USER MANUAL IS940.1 i.safe Mobile

Exterior view of a modern office building (no signage)

IS940.1

OPERATING MANUAL

i.safe MOBILE

IS940.1 | MODEL M940A01

Document No. 1065MM01REV06

Version: 2025-08-19

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

Tel.[phone]

[e-mail]

www.isafe-mobile.com

(c) 2025 i.safe MOBILE GmbH Template: TEMPMM01REV10

CONTENTS

English....4

Deutsch....24

Česky 44

Dansk 64

Español....84

Suomi....104

Français....124

Magyar 146

Italiano 166

Nederlands 186

Norsk 206

Polski 226

This Operating Manual complies with these standards:

IEC 60079, IEC 82079, ANSI Z535.6

IEC 60079, IEC 82079, ANSI Z535.6

ENGLISH

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS940.1 (model M940A01).

This Operating Manual provides important information for safe use of the device.

» Before using the device, read this Operating Manual carefully and pay particular attention to the „Ex-relevant Safety Regulations“ section and the warnings highlighted with the warning symbol. If you do not follow these instructions or do not understand them, this could lead to death, severe injuries and damage to the device.
» Make sure you have access to this Operating Manual when you need it. You can find the current Operating Manual at www.isafe-mobile.com/en/support/downloads
» Follow all instructions given on the device and on the packaging.
» Follow local safety regulations.
» Only use the device in explosion hazardous areas of zones 1/21 and 2/22 or outside of explosion hazardous areas.
» Before entering an explosion hazardous area with the device,

• make sure that only approved accessories are connected to the device, see section "Connecting approved accessories",
• make sure that no gap can be seen between the two halves of the device,
• make sure the device is not damaged,
• make sure that all the labels on the device are readable,
• make sure that only the battery supplied or an approved replacement battery is installed in the device,

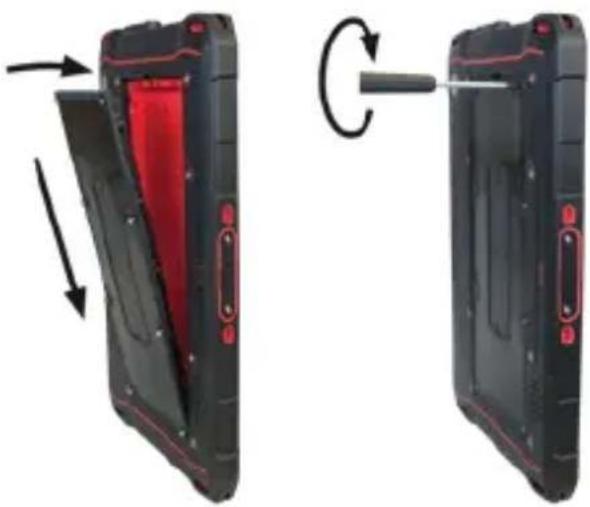

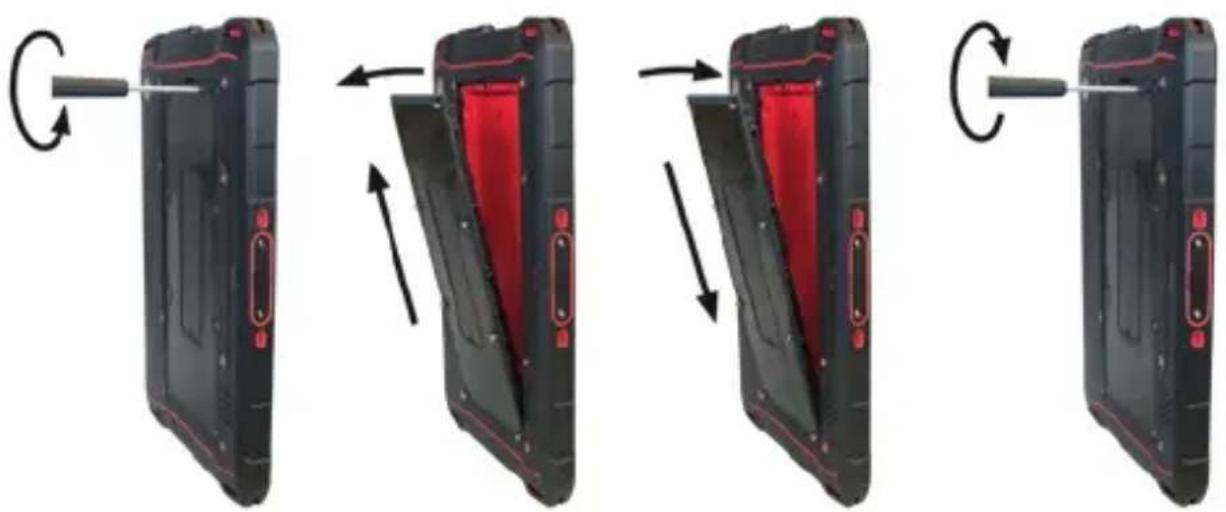

• make sure that the battery is not damaged, see section „Changing the battery“,
• make sure the battery is screwed tight.

» If you use the device in an explosion hazardous area,

• do not loosen the screws on the device,
• do not connect any accessories to the device,
• do not open any interface cover,
• do not charge the device via USB-C or 16-pin ISM interface,
• do not open the device,
• do not damage the device.

» Switch off the device immediately and leave the explosion hazardous area without delay if

• malfunctions occur on the device,
• you have damaged the housing of the device,
• you have exposed the device to excessive loads,
• the device has been stored improperly,
• the labels on the device are no longer readable.

» Do not modify the device structurally.

» Do not expose the device to high temperatures.
» Do not expose the device to strong UV radiation.
» Do not expose the device to processes with high electrical charges.

» Do not expose the device to aggressive acids or bases.
» Do not touch the display with sharp objects.
» Protect the device and the Power Adapter from strong electrical magnetic fields as for example those emitted by induction cookers or microwave ovens, for example.
» Only use accessories approved by i.safe MOBILE GmbH.
» Do not open the device or carry out any repairs yourself.
» Do not use the device in places where its use is prohibited.
» Turn off the device in clinics or other medical facilities.
» Always keep a safety distance of at least 15 cm between the device and a pacemaker or hearing aid. The device can affect the functioning of medical devices such as pacemakers and hearing aids.
» When using the device while driving a motor vehicle, be sure to comply with applicable national laws.
» When using earphones or headsets at the maximum volume setting, first set the volume control on the device to 50 % of the maximum volume. Gradually adjust the volume.
» Only charge the device using the i.safe PROTECTOR 2.0 USB-C Cable supplied or other charging equipment approved by i.safe MOBILE GmbH.
» Only charge the device at ambient temperatures between 0 °C to +45 °C (+32 °F to +113 °F).
» Do not charge the device in the vicinity of flammable substances.

CHARGING VIA THE USB-C OR 16-PIN ISM INTERFACE

» Only charge the device under dry indoor conditions.

» Do not charge the device in environments dusty or humid.

» If you use a third-party USB power supply unit, note the following:

• The third-party USB power supply unit must comply with applicable country regulations and international and regional safety standards.
• The third-party USB power supply unit must have a minimum output of 10 W to 15 W to ensure the specified charging rates. The device does not support USB PD fast charging.
• Even if you use a third-party USB power adapter, only charge the device using the i.safe PROTECTOR 2.0 USB-C Cable supplied.

CHARGING VIA THE DOCKING STATION IS-DS940.1

See IS-DS940.1 Operating Manual at www.isafe-mobile.com/en/support/downloads

EX-RELEVANT SAFETY REGULATIONS

Use of this device assumes that the operator observes the conventional safety regulations and has read and understood Operating Manual, Safety Instructions and certificate.

When used in explosion hazardous areas, the following Safety Instructions must also be complied with:

COVERS

» Inside explosion hazardous areas the covers of the 16-pin ISM interface and the USB-C interface must be closed.

» The 12-pin docking interface does not have to be covered within explosion hazardous areas. When not in use, it is recommended to protect the 12-pin docking interface from dirt.

ACCESSORIES

» It is only allowed to connect accessories approved by i.safe MOBILE GmbH outside explosion hazardous areas to the 16-pin ISM interface.
» Within explosion hazardous areas, the following accessories may be used when connected to the 16-pin ISM interface:
-the Headset IS-HS2A.1
-the Remote Speaker Microphone IS-RSM3A.1
-the PTT Button IS-PTTB1A.1
-the PTT Button IS-PTTB1A.1 together with the Headset IS-HDHS1x.1
-other accessories approved by i.safe MOBILE GmbH.

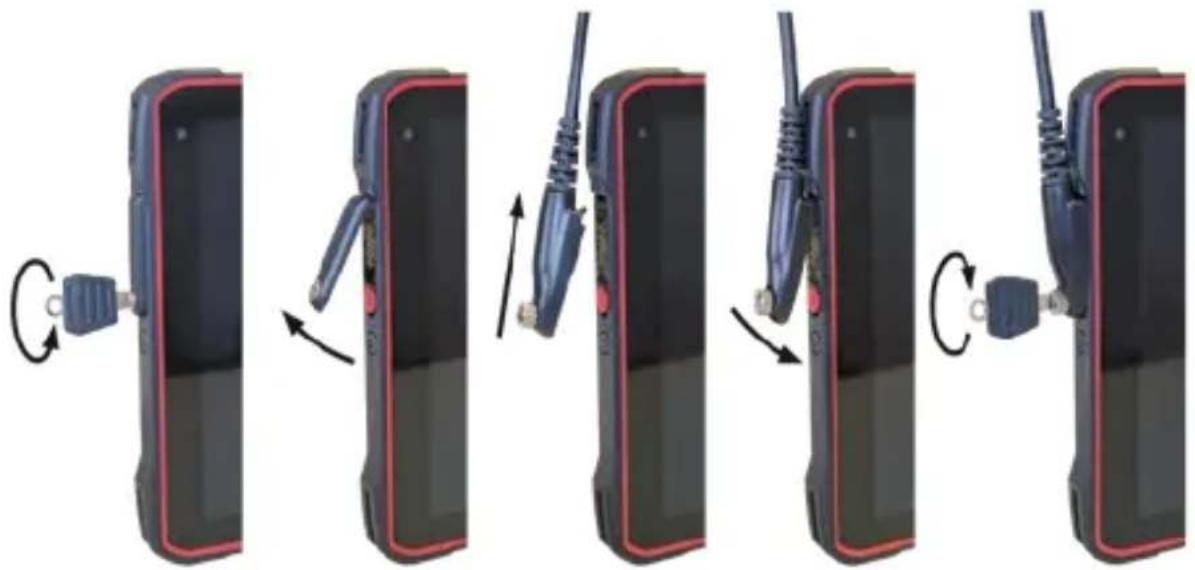

If the PTT Button IS-PTTB1A.1 is connected to the 16-pin ISM interface of the device together with the Headset IS-HDHS1x.1, the Nexus® connection between the IS-PTTB1A.1 and the Headset IS-HDHS1x.1 can be disconnected and reconnected inside explosion hazardous areas. When using the IS-PTTB1A.1 without the Headset IS-HDHS1x.1, the unused Nexus®-jack of the IS-PTTB1A.1 may remain open inside explosion hazardous areas. When not in use, it is recommended to protect the Nexus®-jack from dirt.

» When using accessories with Velcro fasteners (e.g. Headset IS-HDHS1B.1), the Velcro fastener may only be adjusted outside explosion hazardous areas.

» The 16-pin ISM connector of the accessory must be securely fastened to the 16-pin ISM interface.

» It is allowed to connect the Docking Station IS-DS940.1 or accessories approved by i.safe MOBILE GmbH within explosion hazardous areas to the 12-pin docking interface.

IP-PROTECTION

» To ensure the IP-protection, it has to be ensured that all gaskets are present and functional. There must be no large gap between the battery and housing.

CHARGING

» The i.safe PROTECTOR 2.0 USB-C Cable, other accessories approved by i.safe MOBILE GmbH or other accessories that ensure U _m = 5,88 V may be connected to the USB-C interface outside explosion hazardous areas for charging or data connection.

» The device may only be charged at temperatures between 0 °C to +45 °C (+32 °F to +113 °F).

SIM- AND SD CARDS

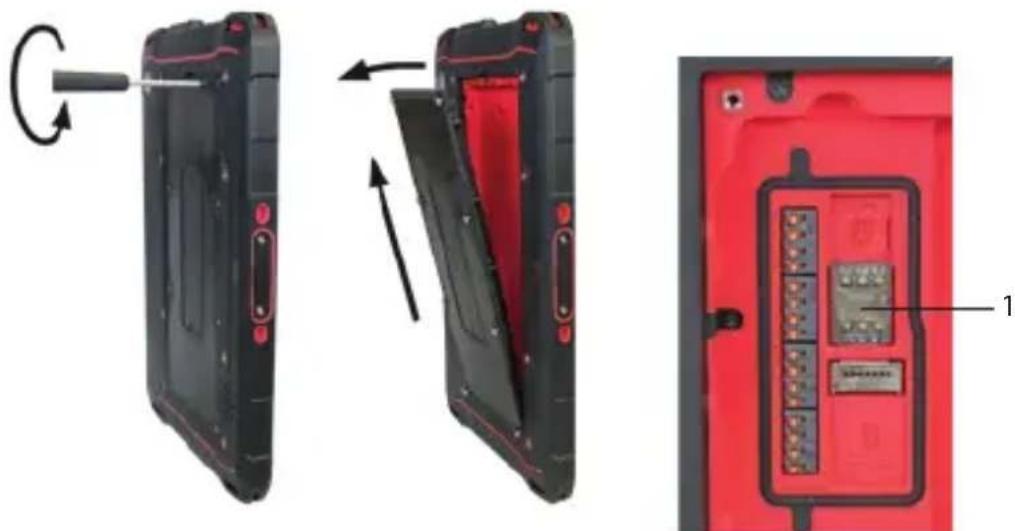

» Nano-SIM cards which comply with the intrinsic safety entity parameters mentioned in the certificate, may be used in the corresponding slot in the hazardous area.

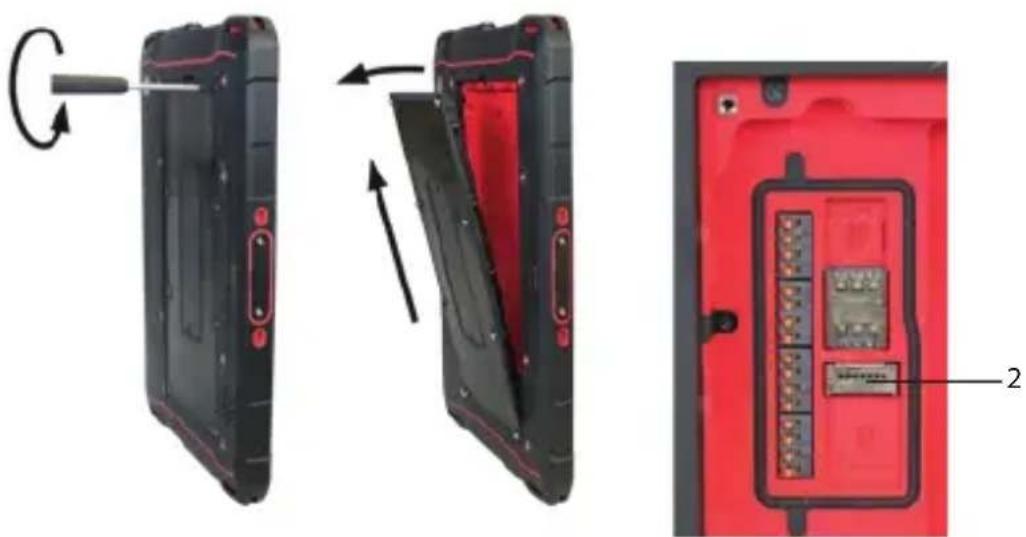

» The microSD cards type IS-SD164.1 or microSD cards which comply with the intrinsic safety entity parameters mentioned in the certificate, may be used in the corresponding slot in the hazardous area.

IMPACTS

» The device must be protected from impacts with high impact energy, against excessive UV light emission and high electrostatic charge processes

» The device may not be exposed to any aggressive acids or alkalis.

CONDITIONS OF USE

» The permitted ambient temperature range is -20 °C to +55 °C (-4 °F to +131 °F).

» The device may only be used in zones 1, 2, 21, or 22.

EX-RELEVANT SAFETY REGULATIONS FOR NORTH AMERICA

WARNING

» The batteries shall only be replaced outside of potentially explosive areas.
» The batteries shall only be recharged outside of potentially explosive areas using an i.safe PROTECTOR 2.0 USB-C Cable supplied by i.safe MOBILE GmbH at 0 ^ ≤ T_charge ≤ +45 ^ .
»The batteries can be recharged outside and also inside of potentially explosive areas using docking station IS-DS940.1 connected as per control drawing 1065AD07 at 0^ ≤ T_ charge ≤ +45^ .
» The device must be protected from impacts.
» The device must be protected from excessive exposure to UV light emissions.
» The device must be protected from high electrostatic charge environments and processes.
» The device is intended to be carried over during use in the hazardous area.
» The USB-C interface shall be securely closed with cover when inside the hazardous area.
» Only Nano-SIM cards which comply with the following intrinsic safety entity parameters, may be used in the corresponding slots in the hazardous area:

$$ V _ {o c} = 5. 8 8 \mathrm{V} $$

$$ C _ {a} = 4 1 \mu F $$

$$ L _ {a} = 1 \mu H $$

» Only SD cards which comply with the following intrinsic safety entity parameters, may be used in the corresponding slots in the hazardous area:

$$ V _ {o c} = 5. 8 8 \mathrm{V} $$

$$ C _ {a} = 2 5 \mu F $$

$$ L _ {a} = 1 \mu H $$

FAULTS AND DAMAGES

If there is any reason to suspect that the safety of the device has been compromised, it must be withdrawn from use and removed from any ex-hazardous areas immediately.

Measures must be taken to prevent any accidental restarting of the device. The safety of the device may be compromised, if, for example:

» Malfunctions occur.
» The housing of the device shows damage.
» The device has been exposed to excessive loads.
» The device has been stored improperly
» Markings or labels on the device are illegible.

We recommend that a device displaying errors or in which an error is suspected be sent back to i.safe MOBILE GmbH to be checked.

BATTERY

The battery contains flammable materials such as organic solvents. Mishandling the battery may cause fire, smoke or an explosion. This poses a risk of death and serious injury!

The following must be observed:

» If the device is used daily, the battery should be replaced 2 years after first use, but at the latest after 500 charging cycles or when the operating time has been significantly reduced.
» The battery must not be used if there are noticeable abnormalities, such as smell, heat, discoloration or deformity.
» A leaking battery must not be used and touched.
» The battery must not be used or placed near an open flame, heater or high Temperature (above 80 °C (176 °F)).
» The battery must not be used where static electricity in excess of 100 V is generated.
» The battery must not be immersed in liquid such as water, beverages or other fluids.
» The battery must not be placed in or near a microwave or other cooking appliances.
» The battery must not be used in devices for which it was not intended.
» No short-circuit must be applied to the battery.
» The battery must not be exposed to excessive impacts.
» The battery must not be penetrated with a nail or strike with a hammer.
» The battery must not be disassembled.
» The battery must be packed securely in a case or carton for transport.
» The battery must not be charged in the vicinity of flammable substances.
»The battery must only be charged using the charging equipment approved by i.safe MOBILE GmbH.
» The battery must only be charged at ambient temperatures between 0 °C to +45 °C (+32 °F to +113 °F).
» CHARGING VIA THE USB-C OR 16-PIN ISM INTERFACE: The battery must only be charged under dry indoor conditions. The battery must not be charged in environments dusty or humid.
» If the battery is not to be used for a longer period of time, it must be removed from the device. The battery must be charged to approx. 50 % to 70 % every 3 to 6 months to avoid deep discharge.
» The battery must be stored in a cool, dry place to keep it functional.
» The battery must not be stored with any metal objects.
» The battery must not be thrown away with household waste.
» The battery must be recycled to local rules and regulations.

SAR

The SAR limit of Europe is 2,0 W/kg for the body at 5 mm. The SAR limit of Europe is 4,0 W/kg for the limbs at 0 mm. The device has been tested against this SAR limit. The highest SAR value reported under this standard during product certification for limbs is 1,131 W/kg. This device was tested for typical body worn operations with the back of the handset kept 0 mm from the body. Belt clips, holsters and similar accessories used should not contain metallic components in the assembly. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements, and should be avoided.

MAXIMUM OUTPUT POWER

Frequency bands Maximum output power

LTE Band 1: 22.87 dBm LTE Band 3: 22.81 dBm LTE Band 5: 22.94 dBm

LTE Band 7: 22.86 dBm LTE Band 8: 22.76 dBm LTE Band 20: 22.95 dBm

LTE Band 28: 22.73 dBm LTE Band 40: 23.12 dBm LTE Band 41: 23.19 dBm

LTE Band 42: 22.83 dBm LTE Band 43: 23.12 dBm LTE Band 68: 22.55 dBm

n1: 22.96 dBm n3: 23.15 dBm n5: 23.22 dBm

n7: 23.09 dBm n8: 23.10 dBm n20: 23.07 dBm

n28: 22.97 dBm n38: 23.14 dBm n40: 23.17 dBm

n41: 23.13 dBm n77: 23.13 dBm n78: 23.22 dBm

n41 UL MIMO: 22.78 dBm n77 UL MIMO: 22.43 dBm n78 UL MIMO: 22.45 dBm

CA_1C: 22.85 dBm CA_3C: 22.79 dBm CA_7C: 22.72 dBm

CA_42C: 22.82 dBm CA_8B: 22.74 dBm CA_38C: 22.95 dBm

CA_40C: 23.01 dBm CA_5B: 22.93 dBm CA_41C: 23.10 dBm

BT: 8.33 dBm BLE: 8.24 dBm 2.4G: 19.35 dBm

5G: 16.34 dBm 5.8G: 13.89 dBm NFC: -27.30 dBuA/m at 10 m

WI-FI WARNING

FREQUENCY BAND: 5150 - 5250 MHz:

» Indoor use: Inside buildings only. Installations and use inside road vehicles and train arriages are not permitted.

» Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band.

FREQUENCY BAND: 5250 - 5350 MHZ:

» Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted.

» Outdooruse is not permitted. Operation of WAS/RLAN installations in large aircraft (excluding multi-engined helicopters) is permitted until 31 December 2028.

FREQUENCY BAND: 5470 - 5725 MHZ:

» Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted.

» Operation of WAS/RLAN installations in large aircraft (excluding multi-engined helicopters), except in the frequency band 5600 - 5650 MHz, is permitted until 31 December 2028.

SOUND PRESSURE WARNING

When using earphones or headsets

»First set the volume control on the device to 50 % of the maximum volume.

» Gradually adjust the volume.

INTENDED USE

The IS940.1 is an Internet-capable communication device for industrial use in explosion hazardous areas of Zone 1/21 and 2/22, in accordance with Directives 2014/34/EU, 1999/92/EC and the IECEx system, among others.

Only use the device as described in this Operating Manual. Any other use is considered improper and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by improper use. The warranty expires in the event of improper use.

USER

Only trained users who are qualified in the use of Ex devices in explosion hazardous areas and who have read and understood this Operating Manual may use this device.

WARRANTY

You can find the warranty conditions at www.isafe-mobile.com/en/support/service

For any damage caused by computer viruses that you download while using the Internet functions responsibility is at your hand.

There is no right of recourse against i.safe MOBILE GmbH.

EU DECLARATION OF CONFORMITY

You will find the EU declaration of conformity at www.isafe-mobile.com/en/support/downloads

FCC/IC STATEMENT

The FCC/IC declaration can be found at www.isafe-mobile.com/en/support/downloads

EX MARKINGS

> ATEX:

Ea II 2G Ex ib IIC T4 Gb

① II 2D Ex ib IIIC T135°C Db

EU Type Examination Certificate:

EPS 24 ATEX 1 010 X

CE-designation: 2004

>IECEx:

Ex ib IIC T4 Gb

Ex ib IIIC T135°C Db

IECEx Certificate: IECEx EPS 24.0001X

>IA (South Africa):

Ex ib IIC T4 Gb

Ex ib IIIC T135°C Db

IA Certificate: MTEx-S/24.0456 X

> North America (NEC500):

Class I Div. 1 Groups A, B, C, D, T4

Class II Div. 1 Groups E, F, G, T155 °C

Class III

$$ - 2 0 ^ {\circ} \mathrm{C} \leq T _ {\text {amb}} \leq + 5 5 ^ {\circ} \mathrm{C} $$

$$ 0 ^ {\circ} \mathrm{C} \leq T _ {\text { charge }} \leq + 4 5 ^ {\circ} \mathrm{C} $$

Evaluated against the following standards:

CSA 60079-0 4th ed.

CSA 60079-11 2nd ed.

UL 60079-0 7th ed.

UL 60079-11 6th ed.

>SCOPE OF DELIVERY

Your device packaging contains the following:

1 × IS940.1

1 x Battery

1 x Safety Instructions

1 x Display Protection Foil

1 x i.safe PROTECTOR 2.0 USB-C Cable

1 x Power Adapter universal (power supply unit and various country-specific adapters)

1 x Torx Screwdriver

1 x Hand Strap

CELL BROADCAST

The device supports cell broadcast. Cell broadcast is a cellular service for sending messages to all recipients within a cell.

> Temperature range:

-20 °C ≤ Ta ≤ +55 °C (EN/IEC 60079-0)

-10 °C ... +55 °C (EN/IEC 62368-1)

Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

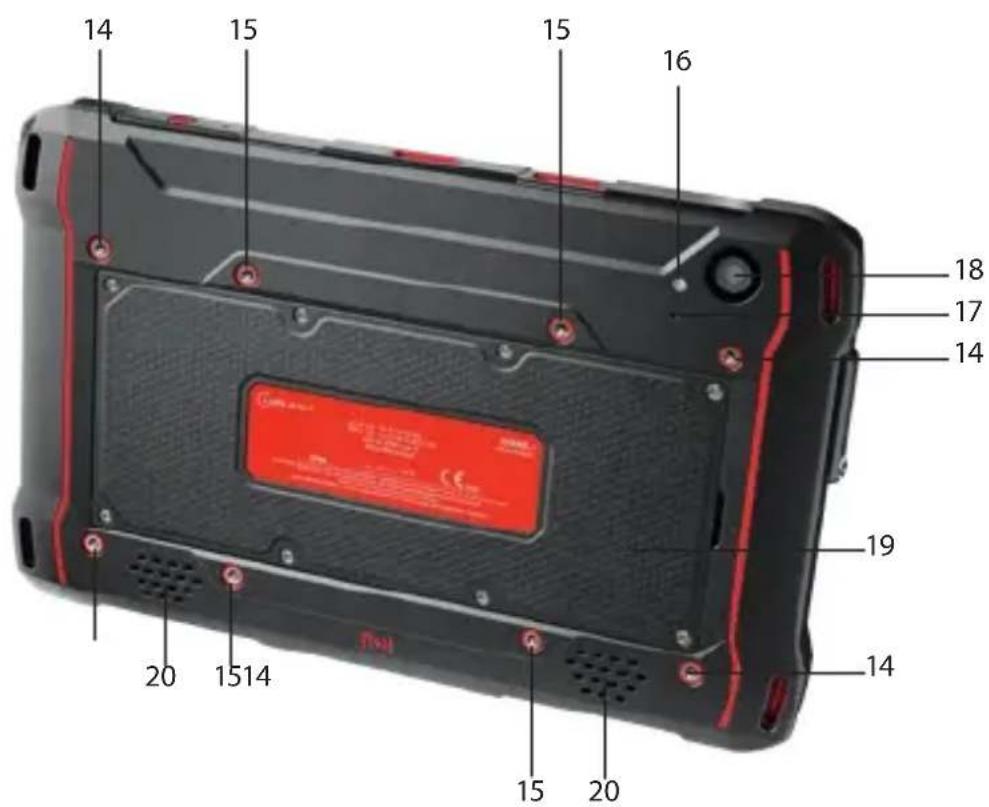

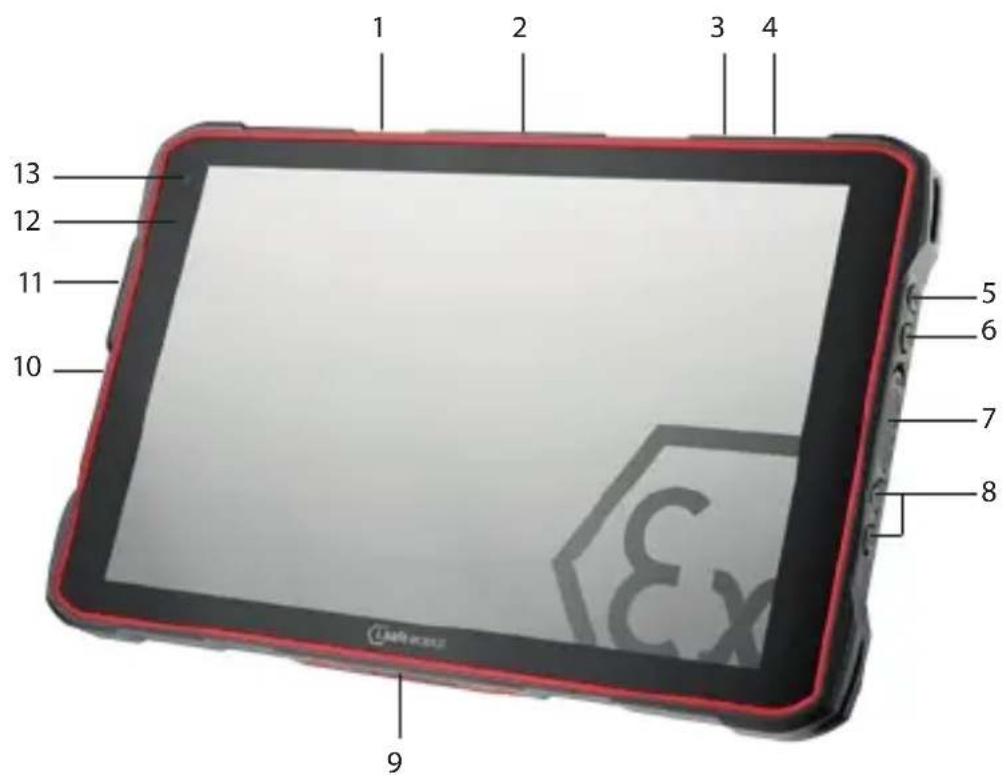

DEVICE OVERVIEW/FUNCTIONS

1 2 3 4 13 12 11 10 5 6 7 8 9

14 15 15 16 18 17 14 19 14 20 1514 15 20

1 > MOUNTING IS-AS1.1: Mounting for the optional IS-AS1.1 Active Stylus Pen.
2 LOCK DOCKING STATION
3 MICROPHONE
4) FUNCTION KEY RED: Optional function, e.g. SOS - function can be assigned via Button App (system integrated).
5> FUNCTION KEY M1: Optional function, e.g. camera - function can be assigned via Button App (system integrated).
6> FUNCTION KEY M2: Optional function, e.g. camera - function can be assigned via Button App (system integrated).
7 USB INTERFACE: Connection for the i.safe PROTECTOR 2.0 USB-C Cable or for other equipment approved by i.safe MOBILE GmbH. Also see sections "Charging" and "Connecting approved accessories".
8> LOUDNESS CONTROL: Volume up/Volume down.
9) 12-PIN DOCKING INTERFACE: Connection for the optional IS-DS940.1 Docking Station.
10 POWER KEY: A long press switches the device on/off. A short press switches the standby mode on/off.
11> 16-PIN ISM INTERFACE: Connection for approved accessories. Also see section "Connecting approved accessories".
12> SENSORS: Proximity sensor, light sensor.
13 FRONT CAMERA
14 MOUNTING HANDSTRAP
15 MOUNTING VESA STANDARD 100
16 LED FLASH
17 MICROPHONE
18 BACK CAMERA
19 BATTERY
20 LOUDSPEAKER

FUNCTION KEYS

The device has various freely programmable keys:

Function keyM1
Function key M2
Function key red

You can assign a function to the freely programmable keys via the Button App installed on the device. You will find the Button App in the menu item „Settings“

>INSTALLING THE BATTERY

DANGER

Installing the wrong battery in the device, poses a risk of explosion, which could result in death or serious injuries! Only fit the battery supplied or an approved replacement battery in the device outside of explosion hazardous areas. The approved replacement battery can be found on the website www.isafe-mobile.com/en/products

Two views of a black electronic device showing internal components and a red highlighted section, with no visible text or symbols.

» Place the battery in the battery compartment as shown. Make sure that the gold-coloured contacts of the battery and the device face each other.
» Hand-tighten the screws using the Torx Screwdriver provided.
» Check that the battery is seated correctly and securely.

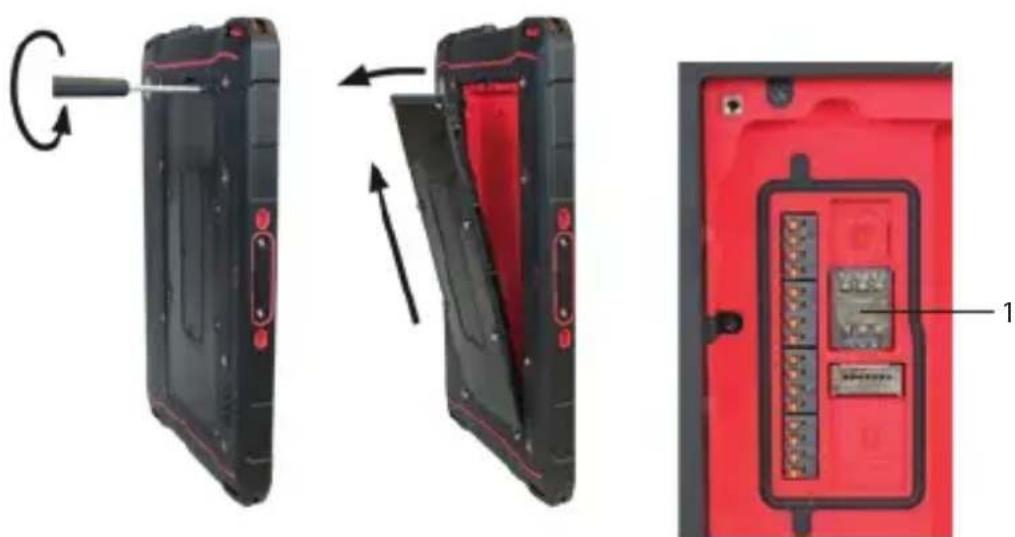

> INSERT/REMOVE SIM CARD

The device has a nano-SIM card slot and an additional eSIM. The eSIM is a non-removable, integrated digital SIM. For more information contact your provider.

DANGER

An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries! Only open the device outside of explosion hazardous areas to insert or remove the SIM card.

NOTICE

Proceeding incorrectly when inserting/removing the SIM card can damage the device and the SIM card. Switch off the device before inserting or removing a SIM card. Do not charge the device while inserting or removing a SIM card.

Three-panel diagram showing device rear panels with red and black components, one being rotated by a circular arrow (no text or symbols)

» Loosen the screws on the battery using the Torx Screwdriver provided.
» Remove the battery from the battery compartment.
» Insert the SIM card into the nano-SIM card slot (1) with the gold-coloured contacts facing down.
»Reinstall the battery. See section "Installing the battery".

Activate eSIM

You can activate the eSIM in several ways:

1. Via the Android™ Setup Wizard during initial device setup:
   » Scan the eSIM QR code that you have received from your service provider or manually enter the eID that you have received from your service provider.
2. Via the settings menu of the device:
   » > Settings > Network & Internet > Mobile network (add Network) > Download SIM > scan (or manually enter) eSIM QR code that you have received from your service provider.

> INSERT/REMOVE microSD CARD

DANGER

An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries! Only open the device outside of explosion hazardous areas to insert or remove the microSD card.

NOTICE

Proceeding incorrectly when inserting/removing the microSD card can damage the device and the microSD card. Switch off the device before inserting or removing a microSD card. Do not charge the device while inserting or removing a microSD card.

Three views of a red electronic device showing internal components and a mechanical assembly (no text or symbols visible)

» Loosen the screws on the battery using the Torx Screwdriver provided.
» Remove the battery from the battery compartment.
» Insert the microSD card into the slot provided (2) with the gold-colored contacts facing down. The device has a slot for a microSD card up to 512 GB.
»Reinstall the battery. See section "Installing the battery".

INSTALLING ACCESSORIES

The Hand Strap is included with the device package.

» Install the Hand Strap to the device.
» Hand-tighten the screws using the Torx Screwdriver provided.

>ATTACHING THE DEVICE TO A MONITOR MOUNT

You can mount the device to a monitor mount with Vesa standard 100.

NOTICE

Incorrect mounting to the monitor mount can cause damage to the device.

» Note the maximum screw depth of 4,5 mm on the IS940.1.

>CHARGING

NOTICE

Incorrect charging can cause damage to the device. Please note the following when charging:

» Only charge the device using the i.safe PROTECTOR 2.0 USB-C Cable supplied or other charging equipment approved by i.safe MOBILE GmbH.

CHARGING VIA THE 12-PIN DOCKING INTERFACE

For charging in explosion hazardous areas, you can connect the IS940.1 to the IS-DS940.1 Docking Station via the 12-pin docking interface.

Further information can be found in the IS-DS940.1 Operating Manual at www.isafe-mobile.com/en/support/downloads

CHARGING VIA THE USB-C INTERFACE

DANGER

An incorrect procedure in explosion hazardous areas poses risk of death or severe injuries! Only charge the device outside of explosion hazardous areas. Do not charge the device in the vicinity of flammable substances.

NOTICE

Incorrect charging can cause damage to the device. Please note the following when charging:

»Only charge the device at ambient temperatures between 0 °C to +45 °C (+32 °F to +113 °F).
»Charge the device under dry indoor conditions only.
»Do not charge the device in environments dusty or humid.

Your device package contains a power supply unit, various country-specific adapters and an i.safe PROTECTOR 2.0 USB-C Cable.

This device can also be powered by third-party USB power supply units.

CAUTION

Charging with third-party USB power supply units poses a risk of property loss or personal injury

»The third-party USB power supply unit must comply with applicable country regulations and international and regional safety standards.
»The third-party USB power supply unit must have a minimum output of 10 W to 15 W to ensure the specified charging rates. The device does not support USB PD fast charging.
Even if you use a third-party USB power adapter, only charge the device using the i.safe PROTECTOR 2.0 USB-C Cable supplied.

» Connect the adapter suitable for your country to the power supply unit supplied.
» Connect the i.safe PROTECTOR 2.0 USB-C Cable to the power supply unit.
» Connect the i.safe PROTECTOR 2.0 USB-C Cable to the USB interface of the device.
» Connect the power supply unit to the power socket.

> SWITCHING ON/OFF

» Press and hold the power key for about 3 seconds.
» Enter the device or SIM PIN when the input dialog for the device or SIM PIN appears after switching on.
» Press and hold the power key to enter the power off menu. Select to switch off the device.

>USING THE DEVICE

CAUTION

When using earphones or headsets at the maximum volume setting, you can damage your hearing. First set the volume control on the device to 50 % of the maximum volume. Gradually adjust the volume.

» Only use the device at ambient temperatures between -20 °C to +55 °C (-4 °F to +131 °F).
» When turning on the device for the first time, follow the instructions on the screen.

Further information on operating the device can be found at

www.isafe-mobile.com/en/support/service under the menu item "FAQ".

Detailed information on operating the Android operating system can be found at:

https://support.google.com/android

CONNECTING APPROVED ACCESSORIES

DANGER

Improper use poses risk of death or severe injuries!

»Only connect accessories approved by i.safe MOBILE GmbH to the device. Accessories approved by i.safe MOBILE GmbH can be found at www.isafe-mobile.com/en/products

If you need approved accessories in explosion hazardous areas, please note the following before connecting:

»Connect approved accessories to the 16-pin ISM interface of the device only outside of explosion hazardous areas.

»Never open the cover of the 16-pin ISM interface in explosion hazardous areas.

»Operate approved accessories in explosion hazardous areas only on the 16-pin ISM interface of the device. Wired connections via the USB interface are prohibited.

»Connect the plug of the accessory securely to the 16-pin ISM interface on the device.

»Only remove approved accessories from the 16-pin ISM interface outside of explosion hazardous areas.

»Close the 16-pin ISM interface with the cover provided when you are not using accessories.

16-PIN ISM INTERFACE

» Loosen the screw on the 16-pin ISM interface cover using the Screwdriver included in the approved accessory package. Remove the cover as shown.

» Connect the plug of the approved accessory to the 16-pin ISM interface as shown.

» Hand-tighten the screws.

» Check that the plug is seated correctly and securely.

USB INTERFACE

DANGER

Improper use poses risk of death or severe injuries! Only use USB interface outside of explosion hazardous areas. Never open the cover of the USB interface in explosion hazardous areas.

The USB interface is used for charging and data transfer.

» Connect approved accessories or other devices to the USB interface only by using the i.safe PROTECTOR 2.0 USB-C Cable or by using other equipment approved by i.safe MOBILE GmbH.

12-PIN DOCKING INTERFACE

The 12-pin docking interface is used for charging and data transfer via the optional IS-DS940.1 Docking Station.

For charging and data transfer in explosion hazardous areas, you can connect the IS940.1 to the IS-DS940.1 Docking Station via the 12-pin docking interface.

Further information can be found in the IS-DS940.1 Operating Manual at www.isafe-mobile.com/en/support/downloads

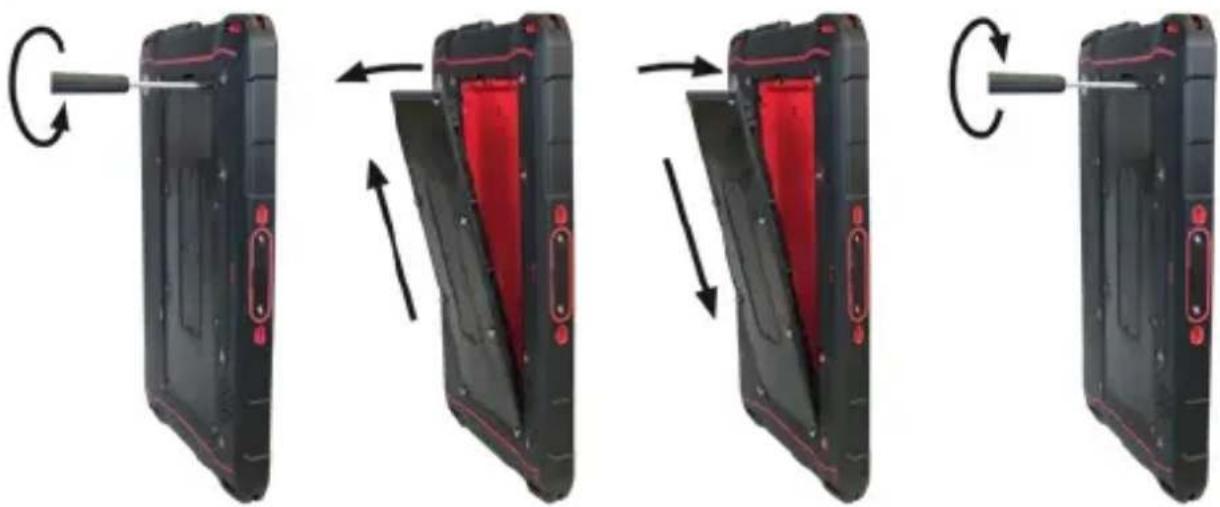

CHANGING THE BATTERY

DANGER

An outdated battery can overheat, inflate and cause a fire. This poses a risk of death and serious injury! If you use the device daily, you should replace the battery 2 years after first use, but at the latest after 500 charging cycles or when the operating time has been significantly reduced. If you have any further questions, please contact the i.safe MOBILE GmbH repair service at www.isafe-mobile.com/en/support/service

WARNING

If you replace the battery with the wrong battery in the device, there is a risk of explosion, which could result in death or serious injuries! Only replace the battery with an approved replacement battery outside of explosion hazardous areas. An approved replacement battery can be found on the website www.isafe-mobile.com/en/products

Four sequential images showing a device with red and black components, each being rotated by a curved arrow (no text or symbols present)

» Loosen the screws on the battery using the Torx Screwdriver provided.
» Remove the battery from the battery compartment as shown.
» Place the approved replacement battery in the battery compartment as shown. Make sure that the gold-coloured contacts of the battery and the device face each other.
» Hand-tighten the screws using the Torx Screwdriver provided.
» Check that the battery is seated correctly and securely.

POSSIBLE DEVICE PROBLEMS

You can find information on possible device problems and how to rectify them at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

If you have any further questions, please contact the i.safe MOBILE GmbH repair service at www.isafe-mobile.com/en/support/service

MAINTENANCE/REPAIR

The device itself has no serviceable parts.

WARNING

Incorrect repairs present a risk of explosion or fire, which can result in death or severe injuries! Do not open the device or carry out any repairs yourself.

Contact the i.safe MOBILE GmbH repair service at w.isafe-mobile.com/en/support/service if the device is not working normally, if the device needs to be repaired or if a replacement part is required.

RETURN SHIPMENT

Contact the i.safe MOBILE GmbH repair service at www.isafe-mobile.com/en/support/service

DISTRIBUTION PARTNER

You can find the specialist distribution partner responsible for your country at www.isafe-mobile.com/en/contact

>CLEANING

NOTICE

Incorrect cleaning can cause damage to the device. Please note the following when cleaning:

» Turn off the device before cleaning.
» Do not charge the device while cleaning.
» Do not use chemical agents for cleaning.
» Clean the device and the Power Adapter with a soft, moistened antistatic cloth.
» Clean the display screen regularly with a soft, antistatic cloth.

>STORAGE

NOTICE

Incorrect storage can cause damage to the device. Store the device at a humidity of 10% to 60% at the following ambient temperatures:

Up to one month: -20 °C to +45 °C (-4 °F to +113 °F)
Up to 3 months: -10 °C to +35 °C (+14 °F to +95 °F)
Over 3 months: -10 °C to +25 °C (+14 °F to +77 °F)

If you do not use the device for a longer period of time, note the following:

» Switch off the device.
» For longer storage without use, remove the battery from the device.
» Charge the battery to approx. 50 % to 70 % every 3 to 6 months to avoid deep discharge.
» Store the battery in a cool, dry place to keep it functional.

RECYCLING

NOTICE

Incorrect disposal of electronic products, batteries and packaging material puts the environment at risk. Please note the following when disposing of items:

»DO NOT throw away batteries with household waste.

» Always dispose electronic products, batteries and packaging material at the appropriate collection points. This way, you prevent uncontrolled waste disposal and promote the recycling of material resources.

You can obtain further information from regional waste disposal companies, state authorities or the i.safe MOBILE GmbH service centre responsible for your country or region at www.isafe-mobile.com/en/support/service

TRADEMARKS

i.safe MOBILE GmbH and the i.safe MOBILE GmbH logo are registered trademarks of the i.safe MOBILE GmbH.

Comes with the Google™ app and Google Chrome™

Google and Google Chrome are trademarks of Google LLC.

Android is a trademark of Google LLC.

All other trademarks and copyrights are the properties of their respective owners.

DEUTSCH

www.isafe-mobile.com/de/support/downloads

Two views of a black electronic device with red internal components, showing a mechanical shift (no text or symbols visible)

Three views of a red electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

Three views of a red and black electronic device showing internal components and a mechanical assembly (no text or symbols visible)

Sequence of four images showing a device being rotated, with arrows indicating rotation direction (no text or symbols)

www.isafe-mobile.com/en/support/downloads

PROHLÁŠENÍ FCC/IC

www.isafe-mobile.com/en/support/downloads

ZNAČENÍ SOUVISEJÍCÍ S NEBEZPEČÍM VÝBUCHU

> ATEX:

II 2G Ex ib IIC T4 Gb

① II 2D Ex ib IIIC T135°C Db

Two views of a black electronic device with red and black components, showing internal structure and rotation (no text or symbols)

Three views of a red and black electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

Three views of a red electronic device showing internal components and a close-up of the interior panel (no text or symbols visible)

www.isafe-mobile.com/en/support/downloads

https://support.google.com/android

Sequence of five photos showing a device transitioning from open to closed, with no visible text or symbols.

Four sequential images showing a device being shifted, with arrows indicating rotation and movement (no text or symbols)

www.isafe-mobile.com/en/support/downloads

FCC/IC-ERKLÆRING

FCC/IC-erklæringen findes på www.isafe-mobile.com/en/support/downloads

TIDLIGERE MærKNINGER

> ATEX:

Eii 2G Ex ib IIC T4 Gb

① II 2D Ex ib IIIC T135°C Db

Two views of a black electronic device with red and black components, showing internal structure and rotation (no text or symbols)

Three views of a red electronic device showing internal components and a circular arrow indicating rotation (no text or symbols present)

Three views of a red electronic device showing internal components and a mechanical assembly (no text or symbols visible)

www.isafe-mobile.com/en/support/downloads

OPLADNING VIA USB-C-GRÅENSEFLADE

FARE

Sequence of five photos showing a device transitioning from a black rectangular panel to a blue handheld device, with no visible text or symbols.

www.isafe-mobile.com/en/support/downloads

SKIFT AF BATTERI

FARE

Sequence of four black-and-red device panels showing a red panel being rotated, with arrows indicating rotation direction (no text or symbols)

www.isafe-mobile.com/en/support/service

DETAILPARTNER

Du kan finde den specialiserede detailpartner med ansvar for dit land på www.isafe-mobile.com/en/contact

RENG∅RING

BEMÄRK

www.isafe-mobile.com/en/support/downloads

Two views of a black electronic device showing internal components and a red highlighted section, with no visible text or symbols.

Three views of a red electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

Three views of a red and black electronic device showing internal components and a mechanical shift (no text or symbols visible)

Four sequential images showing a device with red and black components, each being rotated by a curved arrow (no text or symbols present)

Two views of a black electronic device showing internal components and a scroll wheel (no text or symbols visible)

Three views of a red and black electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

Three-panel diagram showing a device with black plastic panels, red internal components, and a close-up of its internal structure (no text or symbols)

www.isafe-mobile.com/en/support/downloads

https://support.google.com/android

HYVÄKSYTTYJEN LISÄLAITTEIDEN LIITTÄMINEN

VAARA

Sequence of five photos showing a device transitioning from open to closed, with no visible text or symbols.

www.isafe-mobile.com/en/support/downloads

AKUN VAIHTAMINEN

VAARA

Sequence of four black-and-red device panels showing a red panel being rotated, with arrows indicating rotation direction (no text or symbols)

DÉCLARATION DE CONFORMITÉ UE

Certification CE: 2004

IECEx:

Ex ib IIC T4 Gb

Ex ib IIIC T135°C Db

Certificat IECEx: IECEx EPS 24.0001X

Class I Div. 1 Groups A, B, C, D, T4

Class II Div. 1 Groups E, F, G, T155 °C

Class III

$$ - 2 0 ^ {\circ} \mathrm{C} \leq T _ {\text { amb }} \leq + 5 5 ^ {\circ} \mathrm{C} $$

$$ 0 ^ {\circ} \mathrm{C} \leq T _ {\text { charge }} \leq + 4 5 ^ {\circ} \mathrm{C} $$

Two views of a black electronic device showing internal components and a red highlighted section, with no visible text or symbols.

Three views of a red electronic device showing internal components and a mechanical assembly (no text or symbols visible)

Three views of a red electronic device showing internal components and a mechanical assembly (no text or symbols visible)

MISE EN MARCHE/ARRÊT

INTERFACE 16-PIN ISM

Sequence of five images showing a device transitioning from open to closed, with no visible text or symbols.

Four sequential images showing a device's internal structure and rotation, with no visible text or symbols.

Two views of a black electronic device with red and black components, showing internal structure and rotation (no text or symbols)

Three-panel diagram showing device rear panels with labeled components, no readable text or symbols present.

Three views of a red and black electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

www.isafe-mobile.com/en/support/downloads

TÖLTÉS AZ USB-C-INTERFÉSZEN KERESZTÜL

VESZÉLY

www.isafe-mobile.com/en/support/downloads

> AZ AKKUMULÁTOR CSERÉJE

VESZÉLY

Sequence of four images showing a device being rotated, with arrows indicating the process (no text or symbols present)

www.isafe-mobile.com/en/support/downloads

POTENZA DI USCITA MASSIMA

Two views of a black electronic device with red internal components, showing a mechanical shift (no text or symbols visible)

Three views of a red and black electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

Three-panel diagram showing a device's internal structure: front, side, and top views with arrows indicating rotation or assembly (no text or symbols present)

Sequence of five images showing a device transitioning from a black rectangular panel to a white-walled handheld device, with no visible text or symbols.

Sequence of four images showing a device being rotated, with arrows indicating rotation direction (no text or symbols)

www.isafe-mobile.com/en/support/downloads

FCC/IC-VERKLARING

www.isafe-mobile.com/en/support/downloads

EX-MARKERINGEN

> ATEX:

II 2G Ex ib IIC T4 Gb

II 2D Ex ib IIIC T135°C Db

Two views of a black electronic device with red internal components, showing a mechanical shift (no text or symbols visible)

Three views of a red electronic device showing internal components and a circular arrow indicating rotation (no text or symbols present)

Three views of a red electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

https://support.google.com/android

>GOEDGEKEURDE ACCESSOIRES AANSLUITEN

GEVAAR

Sequence of five photos showing a device transitioning from open to closed, with no visible text or symbols.

www.isafe-mobile.com/en/support/downloads

DE ACCU VERVANGEN

GEVAAR

Four sequential images showing a device with red and black components, each being rotated by a curved arrow (no text or symbols visible)

ADVARSEL OM LYDTRYKK

Two views of a black electronic device showing internal components and a screwdriver inserted (no text or symbols visible)

Three views of a red and black electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

Three-panel diagram showing a device with black plastic panels, red internal components, and a close-up view of the interior panel (no text or symbols)

https://support.google.com/android

TILKOBLING AV GODKJENT TILBEH∅R

FARE

Feil bruk kan føre til dødelige eller alvorlige personskader!

Four sequential images showing a device's internal structure and rotation, with no visible text or symbols.

VEDLIKEHOLD/REPARASJON

www.isafe-mobile.com/en/support/service

DETALJHANDELSPARTNER

www.isafe-mobile.com/en/support/downloads

PRZEPISY BEZPIECZEŃSTWA PRZECIWWYBUCHOWEGO

WYPOSAŻENIE DODATKOWE

Two views of a black electronic device showing internal components and a red highlighted section, with no visible text or symbols.

Three views of a red electronic device showing internal components and a circular arrow indicating rotation (no text or symbols present)

Three views of a red electronic device showing internal components and a close-up of the interior panel (no text or symbols visible)

Sequence of five photos showing a device transitioning from open to closed, with no visible text or symbols.

Sequence of four images showing a device being rotated, with arrows indicating rotation direction (no text or symbols)

www.isafe-mobile.com/en/support/downloads

NORMAS DE SEGURANÇA EX RELEVANTES

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

MARCAÇÕES EX

> ATEX:

④ II 2G Ex ib IIC T4 Gb
Ex II 2D Ex ib IIIC T135°C Db

Two views of a black electronic device with red and black components, showing internal structure and rotation (no text or symbols)

Three views of a red and black electronic device showing internal components and a rotation arrow (no text or symbols)

Three views of a red and black electronic device showing internal components and a rotation arrow (no text or symbols)

INTERFACE 16-PIN ISM

Sequence of five images showing a device transitioning from a black rectangular panel to a white handheld device, with no visible text or symbols.

Sequence of four images showing a device's internal structure before and after rotation, with no visible text or symbols.

www.isafe-mobile.com/en/support/service

> PARCEIRO COMERCIAL

www.isafe-mobile.com/en/products

Two views of a black electronic device showing internal components and a tool interacting with it (no text or symbols visible)

Three-panel diagram showing a device with labeled components: left, right, and side (no text or symbols on the main objects)

Three views of a red electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

INTERFACE 16-PIN ISM

www.isafe-mobile.com/en/support/downloads

TROCANDO A BATERIA

PERIGO

Sequence of four black-and-red device panels showing a red panel being rotated, with arrows indicating rotation direction (no text or symbols)

www.isafe-mobile.com/en/support/downloads

ПРАВИЛА ТЕХНИКИ ВЗРЫВОБЕЗОПАСНОСТИ

Two views of a black electronic device showing internal components and a red panel with arrows indicating rotation (no text or symbols)

Three views of a red electronic device showing internal components and a circular arrow indicating rotation (no text or symbols present)

Three-panel diagram showing a device with black plastic casing, red internal panel, and open rear panel (no text or symbols)

Four sequential images showing a device with red and black panels, each being rotated by a curved arrow (no text or symbols visible)

Two views of a black electronic device showing internal components and a red highlighted section, with no visible text or symbols.

Three views of a red handheld device showing internal components and a circular arrow indicating rotation (no text or symbols)

Three views of a red electronic device showing internal components and a mechanical assembly (no text or symbols visible)

Sequence of five photos showing a device transitioning from open to closed, with no visible text or symbols.

www.isafe-mobile.com/en/support/downloads

BYTE AV BATTERI

FARA

Sequence of four black-and-red device panels showing a red panel being rotated, with arrows indicating rotation direction (no text or symbols)

www.isafe-mobile.com/en/support/downloads

SIGURNOSNI PROPISI BITNI ZA PROTUEKSPLOZIVNU ZAŠTITU

Uporaba uređaja zahtijeva da se korisnik pridržava uobičajenih sigurnosnih propisa i da pročita radne upute, sigurnosne upute i certifikat kako bi isključio neispravan rad uređaja.

Two views of a black electronic device showing internal components and a screwdriver inserted (no text or symbols visible)

» Postavite bateriju u odjeljak za bateriju prema prikazu. Vodite računa o tome da kontakti baterije u zlatnoj boji i kontakti uređaja gledaju jedni prema drugima.
» Ručno zategnite vijke isporučenim Torx odvijačem.
» Provjerite da je baterija pravilno učvršćena.

UMETANJE/UKLANJANJE SIM KARTICE

Uređaj ima utor za nano SIM karticu i dodatnu eSIM karticu. eSIM kartica je nezamjenjiva, integrirana, digitalna eSIM kartica. Za više informacija kontaktirajte svog pružatelja usluga.

OPASNOST

Neodgovarajući postupak u područjima ugroženima eksplozijom predstavlja opasnost od smrti ili teških ozljeda! Otvarajte uređaj samo izvan područja ugroženih eksplozijom da biste umetnuli ili uklonili SIM karticu.

NAPOMENA

Neodgovarajući postupak pri umetanju/uklanjanju SIM kartice može oštetiti uređaj i SIM karticu. Isključite uređaj prije umetanja ili uklanjanja SIM kartice. Ne punite uređaj za vrijeme umetanja ili uklanjanja SIM kartice.

Three views of a red and black electronic device showing internal components and a circular arrow indicating rotation (no text or symbols)

» Otpustite vijke na bateriji isporučenim Torx odvijačem.
» Uklonite bateriju iz odjeljka za bateriju.
»Umetnite SIM karticu u utor za nano SIM karticu (1) tako da kontakti zlatne boje gledaju prema dolje.
» Ponovno ugradite bateriju. Pogledajte odlomak „Ugradnja baterije“.

AKTIVIRAJTE ESIM

Three views of a red electronic device showing internal components and a mechanical assembly (no text or symbols visible)

» Otpustite vijke na bateriji isporučenim Torx odvijačem.
» Uklonite bateriju iz odjeljka za bateriju.
»Umetnite mikro SD karticu u pripadajući utor (2) tako da kontakti zlatne boje gledaju prema dolje. Uređaj ima a utor za microSD karticu do 512 GB.
» Ponovno ugradite bateriju. Pogledajte odlomak „Ugradnja baterije“.

>INSTALACIJA PRIBORA

Traka za ruku dio su opsega isporuke uređaja.

» Montirajte traku za ruku na uređaj.
» Ručno zategnite vijke isporučenim Torx odvijačem.

PRIČVRSTITE UREĐAJ NA DRŽAČ ZA MONITOR.

Uređaj možete montirati na držač za monitor s pomoću Vesa standard 100.

NAPOMENA

https://support.google.com/android

> SPAJANJE ODOBRENOG PRIBORA

OPASNOST

Neodgovarajuća uporaba može dovesti do smrti ili teških ozljeda!

»Spajajte na uređaj samo pribor koji je odobrila tvrtka i.safe MOBILE GmbH. Pribor koji je odobrila tvrtka i.safe MOBILE GmbH možete pronaći na www.isafe-mobile.com/en/products

12-PINSKO DOCKING SUČELJE

12-pinsko docking sučelje koristi se za punjenje i za prijenos podataka preko opcHand Strapionalne IS-DS940.1 docking stanice.

www.isafe-mobile.com/en/support/downloads

PUNJENJE BATERIJE

OPASNOST

Stara baterija može se pregrijati, napuhnuti se i prouzročiti požar. To može dovesti do smrti i teških ozljeda! Ako uređaj koristite svakodnevno, trebali biste zamijeniti bateriju 2 godine nakon prve uporabe, ali najkasnije nakon 500 ciklusa punjenja ili kada se vrijeme rada značajno smanji. Ako imate dodatnih pitanja, obratite se servisnoj službi tvrtke i.safe MOBILE GmbH na www.isafe-mobile.com/en/support/service

UPOZORENJE

Ako zamijenite bateriju pogrešnom baterijom u uređaju, postoji opasnost od eksplozije, što može dovesti do smrti ili teških ozljeda! Zamijenite bateriju samo odobrenom zamjenskom baterijom izvan područja ugroženih eksplozijom. Odobrenu zamjensku bateriju možete pronaći na internetskoj stranici www.isafe-mobile.com/en/products

Sequence of four images showing a device being folded or reassembled, with arrows indicating the process (no text or symbols present)

» Otpustite vijke na bateriji isporučenim Torx odvijačem.
» Uklonite bateriju iz odjeljka za bateriju prema prikazu.
» Postavite odobrenu zamjensku bateriju u odjeljak za bateriju prema prikazu. Vodite računa o tome da kontakti baterije u zlatnoj boji i kontakti uređaja gledaju jedni prema drugima.
» Ručno zategnite vijke isporučenim Torx odvijačem.
» Provjerite da je baterija pravilno učvršćena.

MOGUĆI PROBLEMI S UREĐAJEM

www.isafe-mobile.com/en/support/service

MALOPRODAJNI PARTNER

Možete pronaći stručnog maloprodajnog partnera odgovornog za svoju državu na www.isafe-mobile.com/en/contact

ČIŠĆENJE

NAPOMENA

www.isafe-mobile.com/en/support/downloads

VYHLÁSENIE FCC/IC

Vyhlásenie FCC/IC nájdete na www.isafe-mobile.com/en/support/downloads

OZNAČENIA SÚVISIACE S NEBEZPEČENSTVOM VÝBUCHU

> ATEX:

Eii 2G Ex ib IIC T4 Gb

① II 2D Ex ib IIIC T135°C Db

Two views of a black electronic device with red and black components, showing internal structure and rotation (no text or symbols)

» Batériu vložte do priehradky na batérie tak, ako je to znázornené. Uistite sa, že zlaté kontakty batérie a zariadenia smerujú k sebe.
» Skrutky ručne utiahnutie pomocou dodaného skrutkovača Torx.
» Skontrolujte, či je batéria vložená správne a pevne.

VKLADANIE/VYBERANIE SIM KARTY

Three-panel diagram showing device rear panels with labeled components, no text or symbols present.

» Uvolnite skrutky na batérii pomocou dodaného skrutkovača Torx.
» Vyberte batériu z priehradky na batérie.
» Vložte SIM kartu do slotu na kartu nano-SIM (1) tak, aby zlaté kontakty smerovali nadol.
» Vložte spät batériu. Pozrite časť „Inštalácia batérie“.

Three-panel diagram showing a device with black plastic panels, red internal compartments, and a close-up of its internal structure (no text or symbols)

https://support.google.com/android

> PRIPOJENIE SCHVÁLENÉHO PRÍSLUŠENSTVA

NEBEZPEČENSTVO

Sequence of five images showing a device transitioning from open to closed, with no visible text or symbols.

Sequence of four black-and-red device panels showing a red panel being rotated, with arrows indicating rotation direction (no text or symbols)

» Uvoľnite skrutky na batérii pomocou dodaného skrutkovača Torx.
» Vyberte batériu z priehradky na batérie tak, ako je to znázornené.
» Schválenú náhradnú batériu vložte do priehradky na batérie tak, ako je to znázornené. Uistite sa, že zlaté kontakty batérie a zariadenia smerujú k sebe.
» Skrutky ručne utiahnutie pomocou dodaného skrutkovača Torx.
» Skontrolujte, či je batéria vložená správne a pevne.

> MOŽNÉ PROBLÉMY SO ZARIADENÍM

Two views of a black electronic device showing internal components and a screwdriver inserted (no text or symbols visible)

Three views of a red electronic device showing internal components and a circular arrow indicating rotation (no text or symbols present)

Three abstract geometric shapes in black, red, and gray tones with no visible text or symbols

1. Transaktion: From a combination of four different types of solutions
   a) Transfers Revenues in Financial Services Agreements
2. In terms of the maximum value of the following index is a non-zero value that suggests
   Table 1 Manager session on monthly attendance as of 12/18
   a) Transfers over manufacturers from the magazine upstream, also transfers to manufacturers
   3.МОНТИГРАНЫЕ ДОДАТНЕ ОПРОМЫ
   Name of name or abbreviation is not useful
   (1) 2017年1月1日至2018年1月1日
   a. Recommendation: This is recommended to be

www.isafe-mobile.com/en/support/downloads

Sequence of five images showing a device transitioning from a black rectangular panel to a white-walled handheld device, with no visible text or symbols.

Sequence of four images showing a device being rotated, with arrows indicating rotation direction (no text or symbols)

Two views of a black electronic device with red components, showing internal structure and rotation (no text or symbols)

Three views of a red and black electronic device showing internal components and a mechanical assembly (no text or symbols visible)

Three-panel diagram showing a device with black plastic casing, red internal panel, and a close-up of its rear panel (no text or symbols)

Sequence of five-step diagram showing a device transitioning from a black rectangular panel to a red-lit device via cable and switch (no text or symbols present)

Four sequential images showing a device's internal structure before and after rotation, with no visible text or symbols.

Two views of a black electronic device showing internal components and a pull-up mechanism (no text or symbols visible)

Three views of a red electronic device showing internal components and a mechanical assembly (no text or symbols visible)

Three views of a red electronic device showing internal components and a close-up of the interior panel (no text or symbols visible)

Four sequential images showing a device's internal structure before and after rotation, with no visible text or symbols.

Two views of a black electronic device showing internal components and a red highlighted section, with no visible text or symbols.

Three-panel diagram showing a device with red and black components, one being folded to a cable, another open with a red panel, and a close-up of the internal panel (no text or symbols)

Three views of a red and black electronic device showing internal components and a rotation arrow (no text or symbols)

Sequence of four black-and-red device panels showing a red panel being rotated, with arrows indicating rotation direction (no text or symbols)

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

نطاق درجة الحرارة

-20 °C ≤ Ta ≤ +55 °C (EN/IEC 60079-0)

-10 °C ... +55 °C (EN/IEC 62368-1)

المُصْبِع:

i.safe MOBILE GmbH

i Park Tauberfranken 10

Lauda-Koenigshofen 97922

ألمانيا

Two views of a black electronic device with red internal components, showing a red highlighted section and a black plastic component being inserted (no text or symbols visible)

Three views of a red electronic device showing internal components and a mechanical assembly (no text or symbols visible)

Sequence of four images showing a device with red and black components, each with a curved arrow indicating rotation or change (no text or symbols present)

FOR FURTHER QUESTIONS PLEASE CONTACT OUR SERVICE CENTRE:

» i.safe MOBILE GmbH, i_Park Tauberfranken 10, 97922 Lauda-Koenigshofen, Germany
» [e-mail]
» https://support.isafe-mobile.com

ISAFE-MOBILE.COM
