USER MANUAL TSA0801 Teesa

Diagram illustrating foot size adjustment from a rectangular foot to a 8.8 kg weight, with a magnified view of the foot's size.

Diagram illustrating foot size adjustment from a rectangular foot to a 8.8 kg weight, with a magnified view of the foot's size.

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use.

Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

Follow basic safety precautions, including the following:

1. Read this instruction manual carefully and keep it for future reference.
2. Place the device on flat, stable and firm surface. Avoid carpet or soft surfaces.
3. The product is not waterproof. Do not place the appliance in water or any liquid.

4. The surface of the scale will be slippery if wet. Please make sure both the glass and your feet are dry before use.

5. Remove the batteries if the product is not going to be used for a long time.

6. Please note: when using the scale for the first time or when changing its position or location, the scale should be restarted twice and should be free of objects to ensure accurate measurements. Such calibration should be performed to assure precise measurements.

7. Appliance for indoor use only.

8. Do not attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this device. Never disassemble this product.

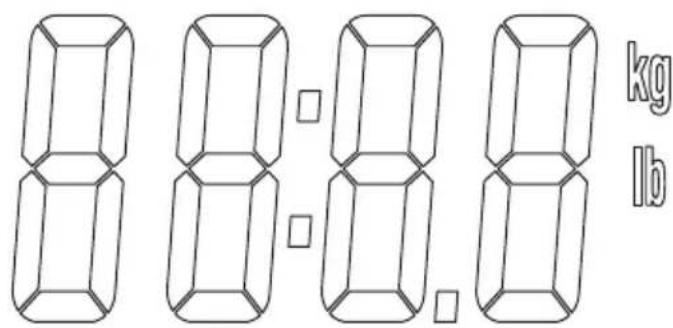

DISPLAY

8 8.8.8 kg lb

FUNCTION SWITCH

Under the battery cover at the back of the scale there is a function switch designed for changing units.

Set the switch left or right to select kg or lb.

Set the switch in the middle to turn off the scale.

OPERATION

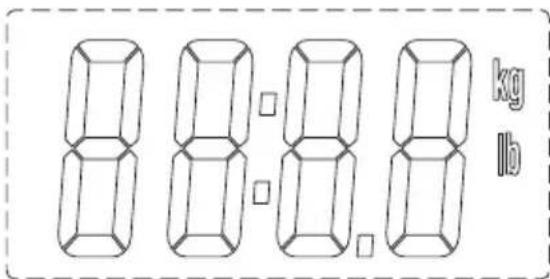

1. Open the battery door at the back of the scale and insert the battery. Pay attention to correct polarization. The LCD will turn on, as below.

8 8 8 8 kg lb

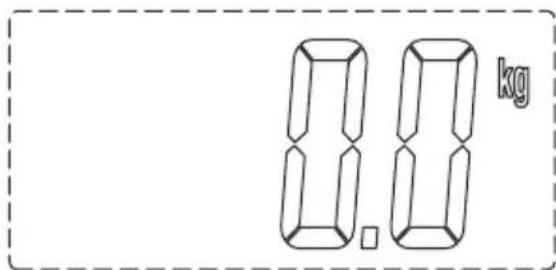

1. Close the battery door and wait until "0.0 kg" is shown on the display.

8.0 kg

1. Place the scale on a flat, firm ground.

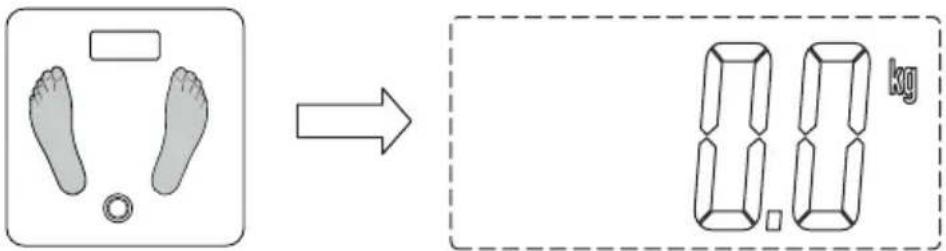

2. Stand on the platform directly to switch on.

Diagram illustrating foot size adjustment from a rectangular foot to a 8.8 kg weight using a directional arrow.

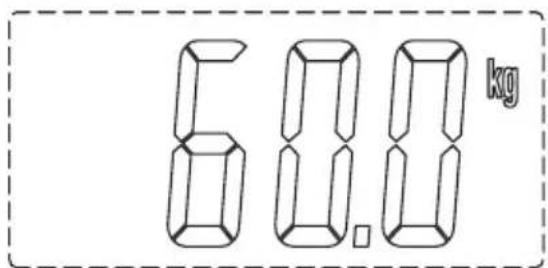

1. Stand still and the weight data will be locked automatically with blinking twice when stable. Then the scale will turn off after about 10 s.

6.8.0 kg

Note: if you want to measure once again, please step off, then step on the platform again. If there is no load placed on the scale, the device will turn off automatically after about 10 seconds.

ERROR INDICATIONS

Lo	Low battery The scale will turn off after a few seconds. Replace batteries!
OL	Overload Remove the weight to protect the sensors.

SPECIFICATION

Maximum load: 180 kg / 396 lb

Minimal load: 3 kg

Division: 0,1 kg

Weight unit: kg / lb

Function switch

LCD Display

Power supply: CR2032 battery

Auto on/off function

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolińska 1, 08-400 Miętne.
