USER MANUAL Automix 90 Eibenstock

Industrial machine with a cylindrical bucket and handle, no visible text or symbols

Automix 90

Wichtige Hinweise

Close-up of a metallic bolt with hexagonal nuts and a central hub, labeled (a) in the corner (no text or symbols on the bolt itself)

Bild 1 Bild 2

Labeled diagram of mechanical parts including bolts, screws, fasteners, and clips with numbered annotations

Labeled diagram of a mechanical device with numbered components, showing components like a bucket and fan assembly.

Close-up of a black cylindrical container with a metal hook attached, marked with number 10 (no text or symbols on the object itself)

Close-up of a black bicycle wheel mounted on a metal frame, with a white arrow indicating the wheel's direction (no text or symbols visible)

Close-up of a mechanical component with a tool and bracket, no visible text or symbols

Close-up of a mechanical assembly with pipes and a labeled component (C), no readable text or symbols present.

Close-up of a black industrial machine with a curved handle and grid-patterned base (no visible text or symbols)

Close-up of a mechanical assembly with a black bracket and numbered component (7), no visible text or symbols.

Close-up of a black industrial fan or radiator component with visible wiring and mounting bracket (no text or symbols)

Close-up of a mechanical assembly with a black component and a white arrow pointing to a detail (no visible text or symbols)

Close-up of a mechanical device with a circular grid structure and a black lever mechanism (no visible text or symbols)

Close-up of a metal bracket with bolts and a circular end, showing mechanical assembly (no text or symbols visible)

Symbol of a trash bin crossed out by two diagonal lines, representing waste sorting or disposal (no text or labels)

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

30.06.2016

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

Important Safety Instructions

Important instructions and warning notices are allegorized on the machine by means of symbols:

Three black-and-white warning symbols: a person reading, a warning triangle with an exclamation mark, and a person wearing glasses.

Before you start working, read the operating instructions of the machine.

Work concentrated and carefully. Keep your workplace clean and avoid dangerous situations.

In order to protect the user, take precautions.

During work you should wear ear protectors, goggles, protective gloves and sturdy work clothes!

Three circular icons showing headphones, a person wearing glasses, and a hand gesture (no text or symbols)

Wear ear protectors

Wear goggles

Wear protective gloves

While working with the Automix important:

During mixing process do not reach with your hand through the protective grid or put any object through. Physical hazard!

Technical Data

Automix 90

Nominal voltage 230 V ~ 110 V ~
Power input 1500 W 1500 W
Rated current 7,0 A 14,5 A
Order no. 07617 07618

Frequency: 50 - 60 Hz

Rated speed 50 rpm

Tank volume: 90 l

Batches up to: 80 kg

Stirrer holder: M 20, female thread

Protection class: II

Degree of protection: IP 20

Weight: approx. 35 kg

Interference suppression: acc. to: EN 55014 and EN 61000

Supply

Stirrer with stand, bucket, stirring rod and operating instructions in cardboard box.

Intended Use

The Automix 90 tool is intended to be used to prepare and mix ready-mixed plaster, mortar and concrete as well as gypsum, lime and other building materials of medium to high viscosity and a maximum quantity of 80 kg.

General Instructions

The tool may be used only completely mounted with the stand supplied along with it.

The tool's working spindle is equipped with a M20 female thread.

Thread and front surfaces must be kept clean.

When assemble the stirring rod put the copper ring (5a) supplied along with the tool between spindle and stirring rod to simplify the removal of the stirring rod.

The stirring rod should be detached using a SW 27 open-end wrench.

Safe work with the machine is only possible, if you read this operating instructions completely and strictly follow the instructions contained herein.

In addition, the general safety instructions in the enclosed brochure have to be observed. Take part in a practical introduction before the first use.

If the connecting cable is getting damaged or cut during the work, don't touch it, but instantly pull the plug out of the socket. Never use the machine with damaged connecting cable.

The machine must neither be wet, nor be used in humid ambient conditions.

• Do not use the tool for mixing materials either in danger of explosion (petrol, diluent).
  ■ Modifications of the tool are prohibited.
• Always check the tool, cable and plug before use. Have damages only repaired by specialists. Only insert the plug into the socket when the tool switch is OFF.
• Ensure a safe state of the machine.
• When the machine runs outside, always use a protection switch (30 mA max.) against fault current.
• The machine should only run under supervision of somebody.
• Pull the plug and switch the machine off if it is not under supervision, e.g. in case of setting up and stripping down the machine, in case of voltage drop or when fixing or mounting an accessory.
• Switch the machine off if it stops for whatever reason. This way, you avoid that it starts suddenly and not under supervision.
  ■ Always lead the cable to the back, away from the machine.
• Do not use the machine if a part of the housing is damaged or in case of damages on the switch, the connecting cable or plug.
  ■ Power tools have to be inspected by a specialist in regular intervals.
• Do not touch rotating parts.
• Be careful with long hair. Only work with close-fitting clothes.
• Persons under 16 years of age are not allowed to use the machine.
• When working with this machine wear ear protectors, goggles and protective gloves.

For further safety instructions, refer to the enclosure.

Tool Assembly

The Automix 90 only has to be used as complete and correct mounted unit. Take the several parts out of the cardboard box.

BOMENIX BOMENIX 92 006 11 BOMENIX BOMENIX 92 006 11

Consider the numbers on the cardboard box.

They have to be equal.

Cardboard label Automix 90 – example

006/ I (cardboard box 1)

006/ II (cardboard box 2)

Cardboard box 1: Cardboard 2:

Framework Protective grid with machine holder

Transport cart Stirring rod

Bucket 90 I Motor and switch

Draw bar

Accessories plastic bag Accessories plastic bag

(content see picture 1) (content see picture 2)

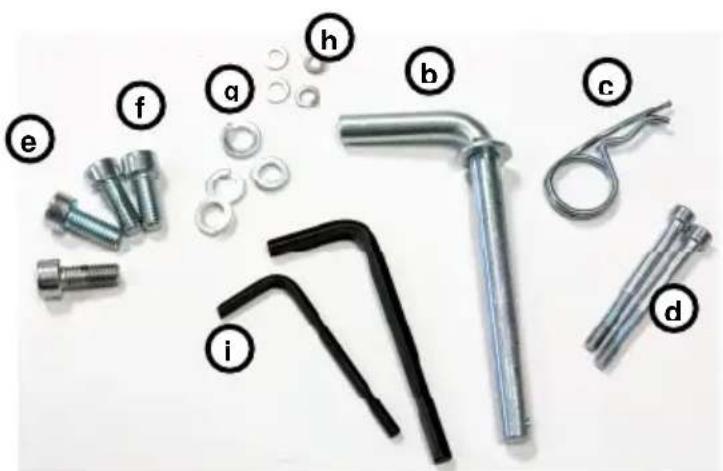

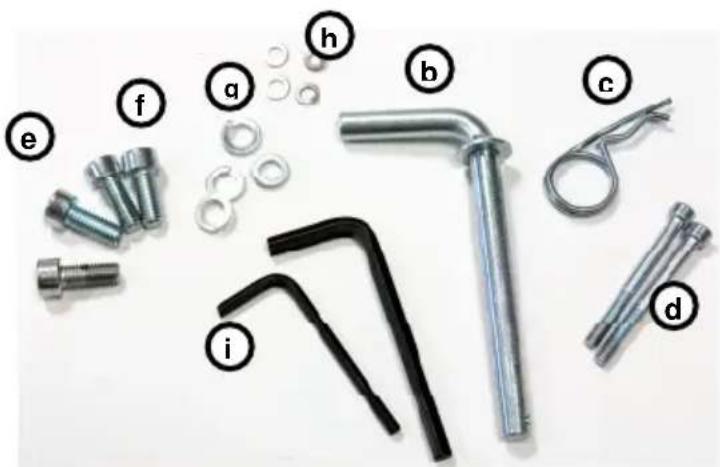

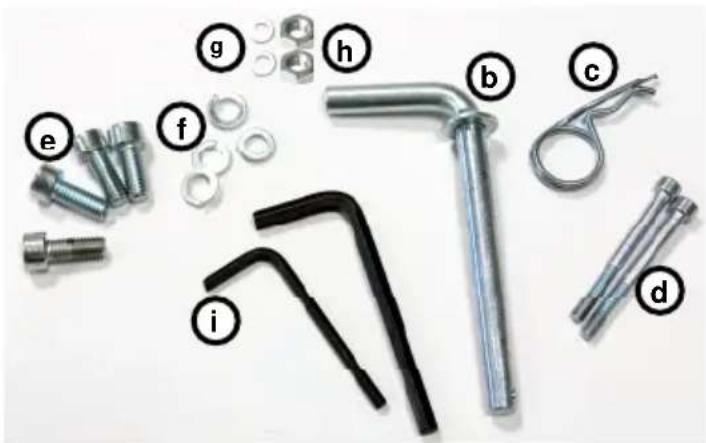

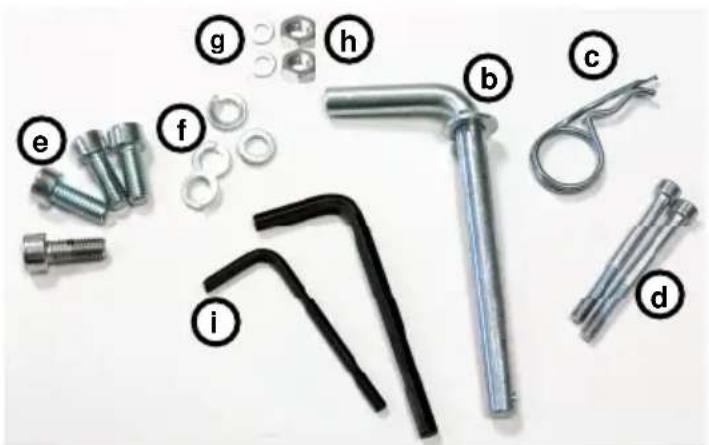

(a) 1 Hexagon screw 6×35(b)1 Locking bolt\1 Hexagon nut M6(c)1 Spring cotter pin\1 Ring washer Ø6,4(d)2 Cheese-head screw 5×55)4 Cheese-head screw 8×20.

(f) 4 Spring rings ∅ 8

(g) 2 Spring rings ∅ 5

(h) 2 Nuts M5

(i) 2 Allen key ∅ 4, ∅ 6

Close-up of a metallic bolt with hexagonal nuts and a flanged end, labeled 'a' in the corner (no text or symbols on the bolt itself)

Labeled diagram of mechanical parts including bolts, screws, and clips with numbered annotations

picture 1 picture 2

Operating instructions, safety instructions, warranty extension

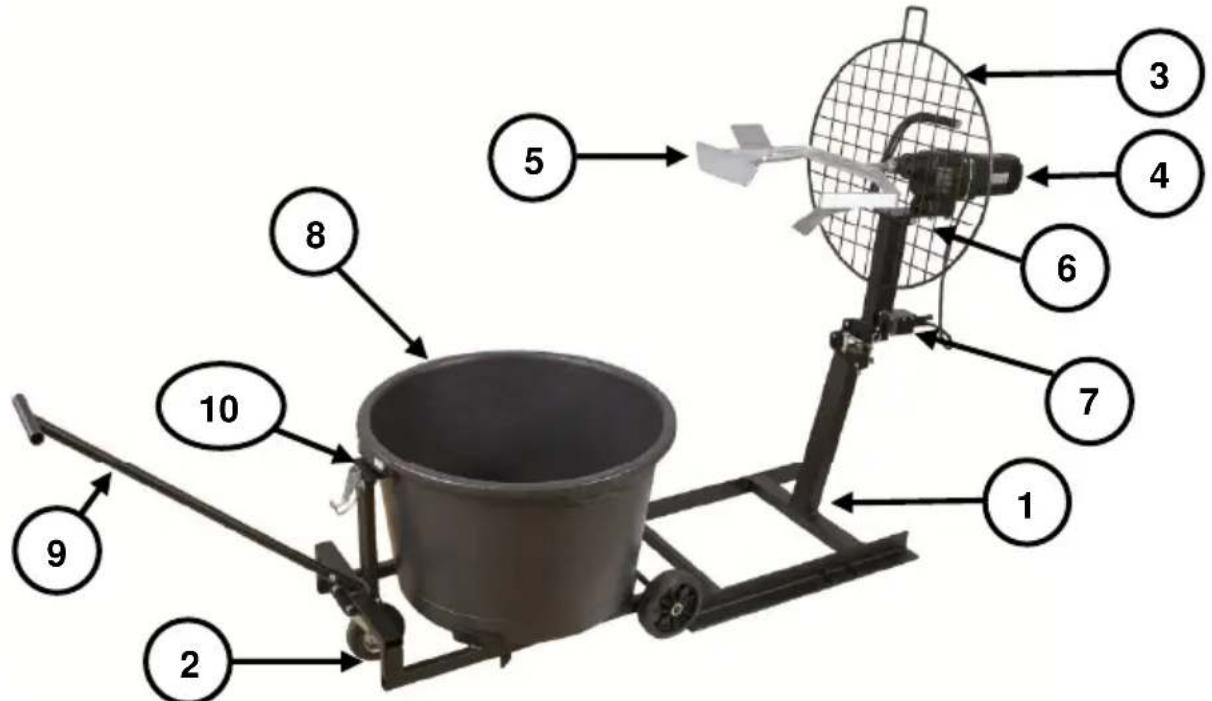

Labeled diagram of a mechanical device with numbered components, showing parts like a bucket and fan assembly.

(1) Framework (6) Copper ring
(2) Transport cart (7) Safety switch
(3) Protective grid with machine holder (8) Bucket (Machine holding plate) (9) Draw bar
(4) Motor (10) Support

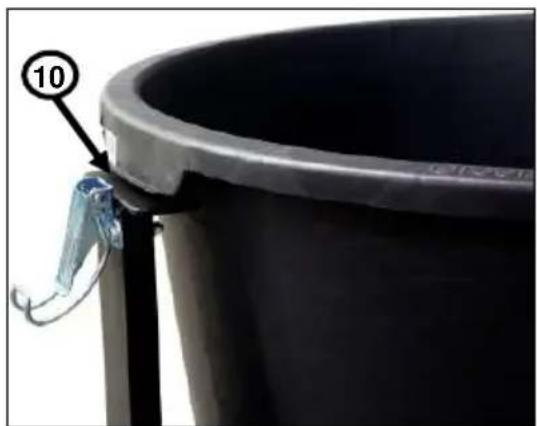

(5) Stirring rod Put the draw bar ⑨ into the transport cart ② and fix it with the hexagon screw and nut M6.

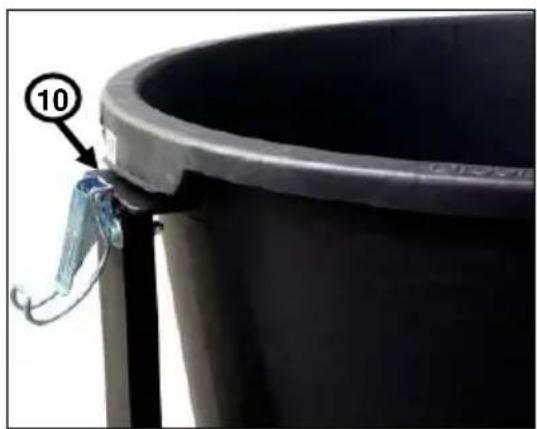

After that put the bucket⑧ that way on the transport cart, that it lock in the support⑩.

Close-up of a black cylindrical container with a metal hook attached, labeled with number 10 (no text or symbols on the container itself)

Close-up of a black bicycle wheel mounted on a metal platform, with a white arrow pointing to the wheel (no text or symbols visible)

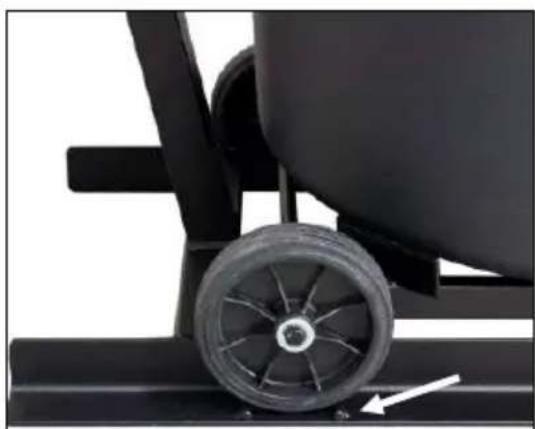

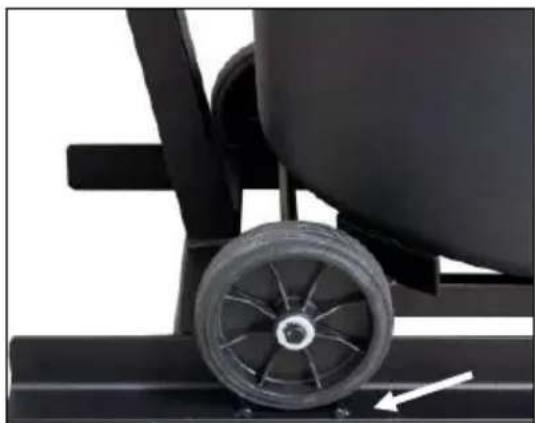

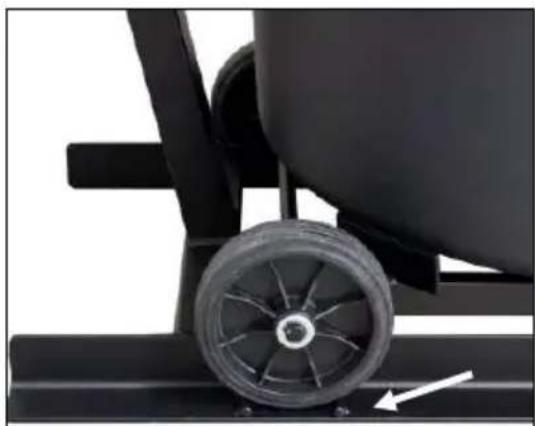

Move the bucket as far on the framework till the wheels lock between the both bolts.

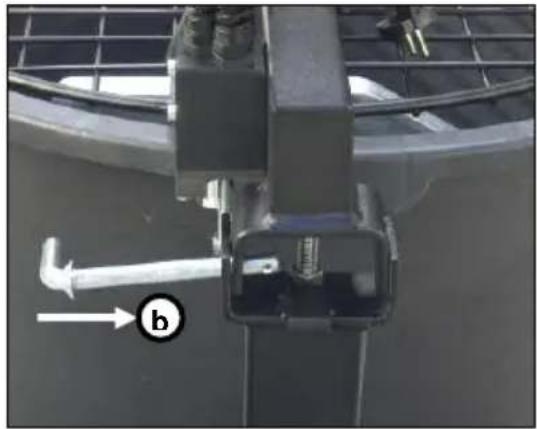

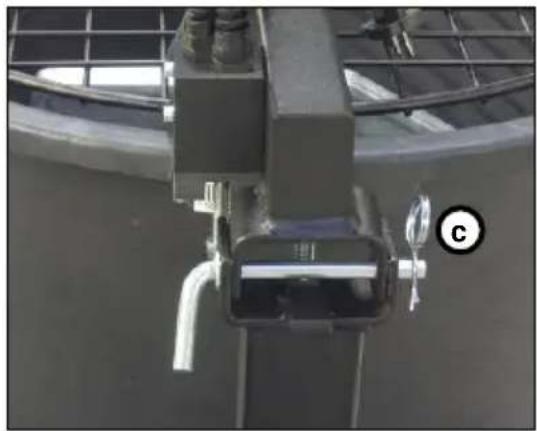

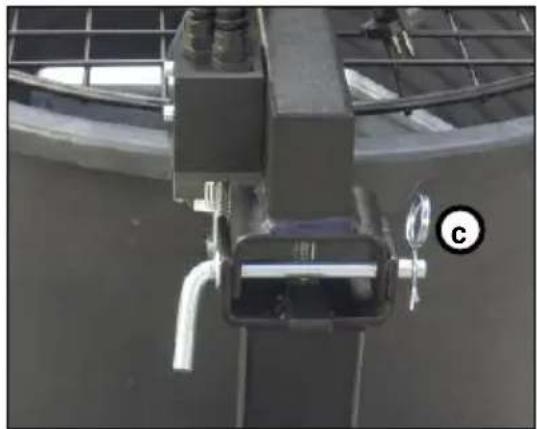

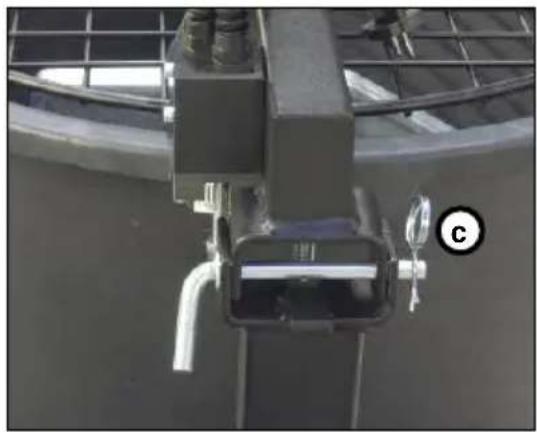

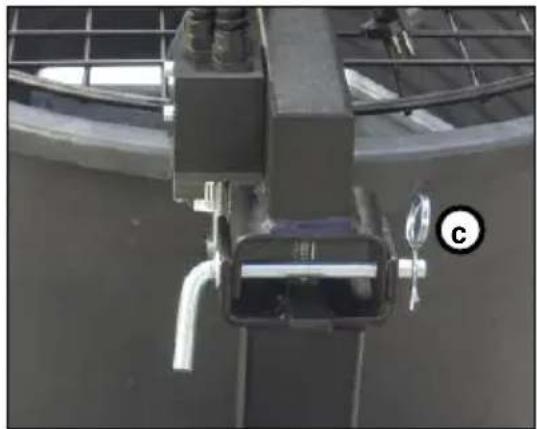

Now the protective grid with the machine holder ③ can be put on the bucket and can be connected with the framework by means of the locking bolt (b) and spring cotter pin.

Close-up of a mechanical device with a tool and labeled component (b), no readable text or symbols present.

Close-up of a mechanical device with pipes and a labeled component (C), no readable text or symbols present.

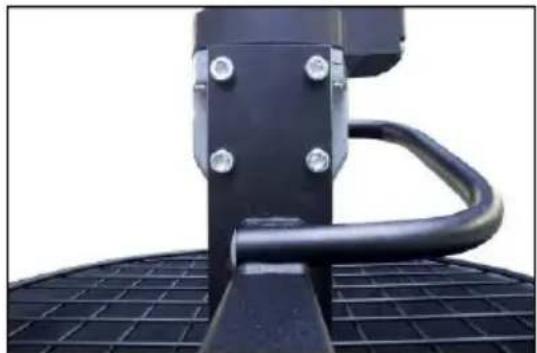

Then mount the motor ④ on the machine holder by means of the 4 screws (e) and spring rings (f).

Close-up of a black metal support structure with a curved handle and grid-patterned base (no text or symbols visible)

Close-up of a mechanical assembly with a black bracket and numbered component (7), no visible text or symbols.

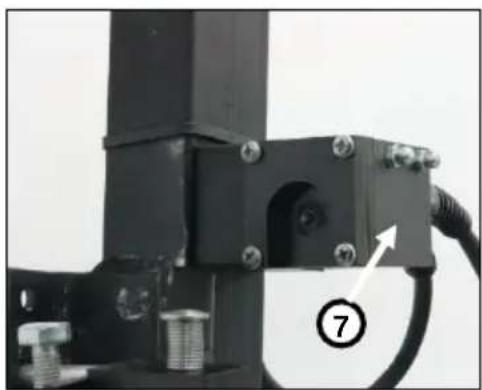

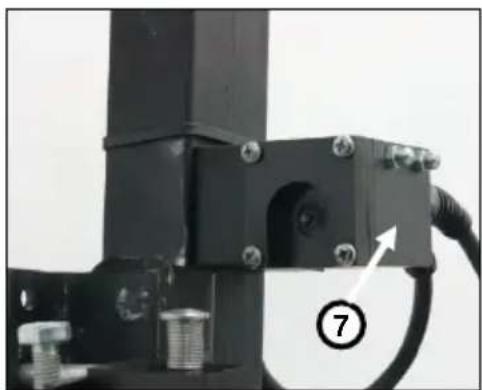

Mount the safety switch ⑦ with the both screws (d), spring rings (g) and Nuts M5 (h) on the protective grid with machine holder. ③

Open up the tool and mount the stirring rod.

Use

The tool maybe started only with put down and locked tool arm. After having the tool switched off, the locking may be opened and the tool arm put up only after the stirring rod has stopped.

Close-up of a black industrial fan or radiator component with attached metal clips (no visible text or symbols)

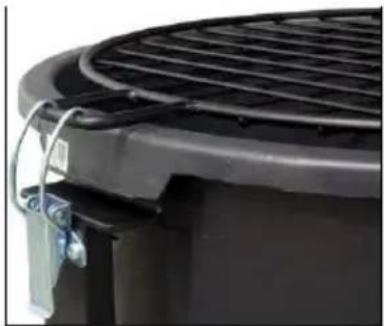

Move the bucket to the framework until the bucket holder stops in the end position. Put the protective grid down and lock it by means of the locking.

Close-up of a mechanical component with a labeled section (A) and an arrow pointing to a detail, no readable text or symbols present.

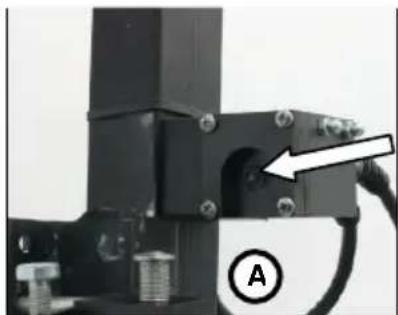

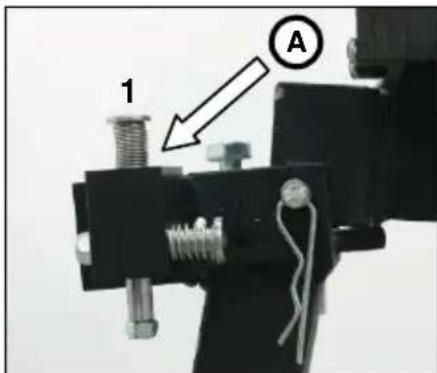

The Automix 90 mixing station is equipped with a safety switch (see arrow). This safety feature is operated via the switch pin (A) and ensures that the mixing station can only be switched on when the protective grille is closed and immediately switches off when the grille is opened.

Before use check the function of the safety switch!

Standard mixing mode:

1 A

The mixing station should be switched on after the protective grille has been closed and secured and before the mixture is poured in and should be filled when the machine is running (see also Operating Instructions – Operation Section). The adjustable switch pin (A) is in its normal position 1 here (see illustration).

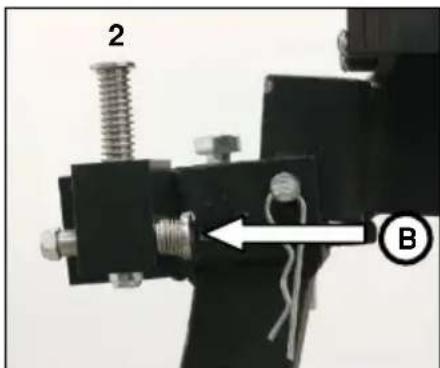

Remixing mode:

2 B

To remix material which is already in the bucket, set the switch pin (A) to position 2 using the locking mechanism (B) (see illustration).

Mechanical device with circular grid structure and mounted components, no visible text or symbols

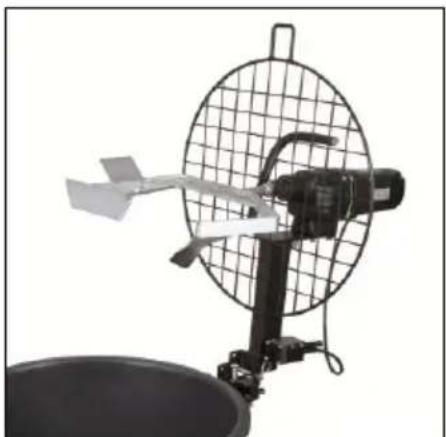

Turn the stirrer as shown on the left before closing the protective grille.

This prevents the stirrer from touching the mortar bucket as it is tilted downwards.

Caution!

Wear protective gloves.

Keep the on/off switch of the machine pressed down and move the stirrer carefully into the bowl.

The mixing station switches on as soon as the protective grille is closed and thus allows the stirrer to be dipped into a mixture which has already been mixed. The on/off switch can be released as soon as the stirrer is running. Secure the closed protective grille.

Caution!

Use this mode only for remixing.

Pay special attention when carrying out this type of mixing.

Prepare the mix as follows:

Always start the tool without load.

Depending on the material to be processed, proceed as follows:

Floor and Wall Tile Adhesives

Carefully read the instructions on the material bag.

To prepare the desired quantity of adhesive, fill the required quantity of water into the bucket.

Switch the tool on. Add the content of the first bag (25 kg) with a feed of approx. 10 kg/min through the protective grid into the bucket.

Continue to do so in an uninterrupted and regular way with the second bag (25 kg).

So you can avoid clumping of the mix. If required, allow the adhesive to stand for 5 to 10 min, and then mix again for some minutes.

Premixed plaster and ready-mixed mortar

The stirrer is well suited to mix ready-mixed mortar, plaster and the like.

Automix is not designed to mix concrete or mortar with medium-size gravel and admixtures.

To prepare ready-mixed mortar or plaster, process as described in section 'Floor and Wall Tile Adhesives' above.

Since mortar is heavily hygroscopic, in view of excessive mix hardening it is necessary to carefully observe the quantities of adhesive, cement or additives for the desired mix.

Epoxy Resins

To process epoxy resins, it is necessary to check the viscosity and the specific weight of the mix to be prepared in order to avoid overload of the Automix tool. Fill the quantities of resin, hardener and powder as advised by the producer into the bucket. Carefully mix the components in order to avoid formation of bubbles or clumps

Paints

Fill the paint into the bucket and add the quantity of water or admixtures required for the solution.

IMPORTANT!

The use of chemicals or solvents may impair the properties of the bucket. Before using the Automix tool, check the products to be mixed for compliance with the tool manufacturer's requirements.

Removal of the Bucket

On putting-up the protective grid there is danger of crushing. Therefore wear protective gloves!

• Switch the tool off and wait until the stirring rod has stopped.
• Open the locking.
  ■ Move the protective grid out of the bucket.
• Move the bucket out of the framework. By means of the transport cart you can move the mixture to the place of action.

Attention! Don't lift full buckets out of the tool alone!

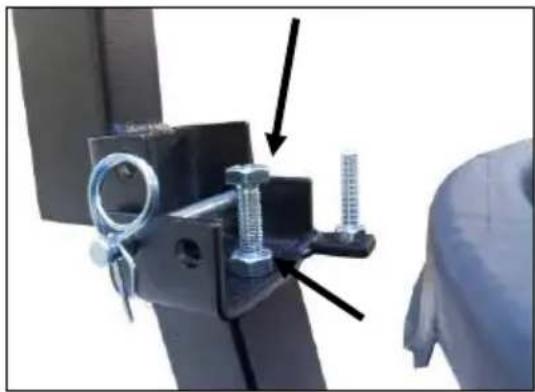

Readjustment of the protective grid with machine holder

The Automix 90 is preset at the factory to the optimal position of the stirring rods in the bucket.

This position can be readjusted as follows:

Close-up of a mechanical clamp or bracket with screws and bolts, shown with an arrow pointing to a detail (no text or symbols visible)

Loosen the hexagon nut with a jaw wrench size 17. Adjust the hexagon nut so that the stirring rod runs as far as possible parallel to the border of the bucket, but does not contact this.

Hold the screw in this position by means of the jaw wrench and retighten the nut. Check the correct position.

Electrical Connection

Before starting the machine check the correspondence between voltage and frequency according to the data mentioned on the identification plate.

Voltage differences from + 6 % and - 10 % are allowed.

The Automix 90 is made in protection class II.

Only use extension cables with a sufficient cross-section. A cross-section (min. 2.5 mm ^4 ) which is too small could lead to an excessive power loss and to an overheating of motor and cable.

Tool Protection

Wrong handling can cause damages on the tool.

Therefore, please always observe the following instructions:

Use only stirring rods recommended by the manufacturer.

Do not stress the tool to such an extend that it stops by itself.

In order to protect user and motor, the Automix is equipped with a mechanical overload protection.

In case of sudden blocking of the stirring rod, the mixing spindle is mechanically disengaged from the motor by means of a clutch.

In order to maintain the efficiency, the clutch should slide 2 seconds max. through. In case of considerable wear, it has to be replaced by an authorised service workshop.

Care and Maintenance

Repairs may be executed only by appropriately qualified and experienced personnel. After every repair the machine has to be inspected by an electric specialist. Due to its design, the machine needs a minimum of care and maintenance. However, the following points always have to be observed:

□ Always keep the power tool and the ventilation slots clean.
During work, please pay attention that no particles get inside the machine.
In case of failure, a repair has to be carried out by an authorised service workshop.

Environmental Protection

Raw material recycling instead of waste disposal

To avoid damages on transportation, the power tool has to be delivered in a sturdy packing. The packing as well as the tool and its accessories are made of recyclable materials which makes it possible to remove environmental friendly und differentiated because of available collection facilities.

Only for EU countries

Do not dispose of electric tools together with household waste material!

Symbol of a trash bin with no text or labels

In observance of the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Noise Emission / Vibration

The indication of noise emission is measured according to DIN 45 635, part 21. The level of acoustic pressure on the work place could exceed 85 dB (A); in this case protection measures must be taken.

Wear ear protectors!

The typical hand-arm vibration is below 2.5 m/s ^4 .

Measured values determined according to EN 60 745.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different

accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Warranty

According to our general terms of delivery for business dealings, suppliers have to provide to companies a warranty period of 12 months for redhibitory defects (to be documented by invoice or delivery note).

Damages due to natural wear, overstressing or improper handling are excluded from this warranty.

Damages due to material defects or production faults shall be eliminated free of charge by either repair or replacement.

Complaints will be accepted only if the tool is returned in non-dismantled condition to the manufacturer or an authorized Eibenstock service centre.

CE Declaration of Conformity

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardization documents:

EN 61 029-1

according to the provisions of the directives 2011/65/EU, 2014/30/EU, 2006/42/EG

Technical file (2006/42/EC) at:

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

30.06.2016

Handwritten signature or scribble in cursive script

Frank Markert

Head of Engineering

FRANÇAIS

Voltage: 230 V ~
Puissance: 1500 W
Ampérage: 7,0 A

Close-up of a metallic threaded bolt with hexagonal end caps and a circular label (a) in the corner, no visible text or symbols on the bolt itself.

Labeled diagram of mechanical parts including bolts, fasteners, and washers with numbered annotations

photo 1 photo 2

Labeled diagram of a mechanical device with numbered components, showing parts like a bucket and fan mechanism.

Close-up of a black bucket with a metal clip attached, showing no text or symbols.

Close-up of a black bicycle wheel mounted on a metal platform, with a white arrow indicating the wheel's direction (no text or symbols visible)

Close-up of a mechanical assembly with a tool and bracket, no visible text or symbols

Close-up of a mechanical device with pipes and a labeled component (C), no readable text or symbols present.

Close-up of a black industrial machine handle with bolts and a curved pipe mounted on a grid-patterned base (no text or symbols visible)

Close-up of a mechanical assembly with a black component and numbered annotation (7), no readable text or symbols present.

Close-up of a black industrial fan or radiator component with visible cooling fins and metal clips (no text or symbols)

Close-up of a mechanical assembly with a black bracket and labeled component A (no readable text or symbols)

Close-up of a mechanical device with a circular grid structure and a black lever mechanism (no visible text or symbols)

Close-up of a mechanical clamp or bracket assembly with screws and a hole, shown with an arrow pointing to a detail (no text or symbols visible)

Symbol of a trash bin with no text or labels

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

30.06.2016

NEDERLANDS

Close-up of a metallic bolt with threaded end and hexagonal base, labeled 'a' in top-left corner (no text or symbols on the bolt itself)

afbeelding 1

Labeled diagram of mechanical parts including bolts, washers, and tools with numbered annotations

afbeelding 2

Labeled diagram of a mechanical device with numbered components, showing components like a bucket and fan assembly.

(1) Onderstel (5a) Koperen ring

Close-up of a black mechanical wheel mounted on a metal frame (no visible text or symbols)

Close-up of a black cylindrical container with a metal hook attached, marked with number 10 (no text or symbols on the object itself)

Close-up of a mechanical component with a tool inserted, showing a curved structure and a numbered arrow (b) pointing to a feature.

Close-up of a mechanical assembly with pipes and a labeled component (C), no readable text or symbols present.

Close-up of a black industrial machine with a curved handle and grid-patterned base (no visible text or symbols)

Close-up of a mechanical assembly with a numbered component (6) and bolted joint, no visible text or symbols.

Close-up of a black industrial fan or radiator component with attached metal clips and a small blue clip (no visible text or symbols)

Close-up of a mechanical clamp or bracket component with a white arrow pointing to a detail, labeled (A) in the corner (no readable text or symbols)

Close-up of a mechanical device with a circular grid pattern and mounted components (no visible text or symbols)

Close-up of a mechanical clamp or bracket assembly with screws and a hole, next to a person's hand (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

30.06.2016

Handwritten signature or scribble on a wavy line, possibly from a document or form

Frank Markert

Head of Engineering

Three black-and-white icons representing occupational and safety symbols: a person reading, a warning triangle with an exclamation mark, and a person wearing glasses (no text or labels)

Three circular icons showing head, face, and hand symbols (no text or labels)

Close-up of a metallic threaded bolt with hexagonal end caps and a circular label (a) in the corner, no visible text or symbols on the bolt itself.

Labeled diagram of mechanical parts including bolts, fasteners, and screws with numbered annotations

Resim 1 resim 2

Labeled diagram of a mechanical device with numbered components, showing parts like bucket, fan, and motor assembly.

Close-up of a black cylindrical container with a metal clip attached, labeled with number 10 (no text or symbols on the object itself)

Close-up of a black bicycle wheel mounted on a metal platform, with an arrow indicating the wheel's direction (no text or symbols visible)

Close-up of a mechanical assembly with a tool and bracket, no visible text or symbols

Close-up of a mechanical device with pipes and a labeled component (C), no readable text or symbols present.

Close-up of a black industrial machine with a curved handle and mounting bolts, mounted on a grid-patterned base (no visible text or symbols)

Close-up of a mechanical assembly with a black bracket and numbered component (7), no visible text or symbols.

Close-up of a black industrial fan or radiator component with visible heat dissipation and metal clamps (no text or symbols)

Close-up of a mechanical assembly with a black component and labeled section A (no readable text or symbols)

Close-up of a mechanical assembly with labeled parts (2 and B), no readable text or symbols beyond labels

Mechanical device with circular grid structure and mechanical components, no visible text or symbols

Close-up of a mechanical clamp or bracket assembly with two bolts and a screw, shown with an arrow pointing to the component (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or recycling (no text present)

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

30.06.2016

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

Ihr Fachhändler

Your distributor
