Operating instructions Mobile LED Hybrid Floodlight
MULTI ADM 10050 MH / MULTI ADM 10052 MH
Attention: Before using the product, please carefully read the operating instructions and store them in a proper location!
SAFETY INSTRUCTIONS
- Always check the product for damage before use.
Never use the product in case of any damage. In case you find the product to be damaged, please refer to an electrician or the manufacturer's service address.
Non-compliance poses a risk of fatal injury from electrical current!
- Do not use the product in potentially explosive atmospheres - danger of death!
- Keep the floodlight away from children.
Children are not aware of the risks posed by electric current.
- For operating the floodlight, only use original rechargeable batteries of the manufacturers.
Use of other rechargeable batteries may cause damage.
Only use the supplied connection cable to operate the hybrid function.
- Please never look directly into the light.
- A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.
- The outer flexible line of this lamp may be exchanged and is available as accessory.
Hot surface.
Not suitable for applications with external dimmers.
If the minimum distance is not complied with, illuminated objects may overheat.
The product is not IP55 (dust and water jet protected)
- with removed battery protective cover.
The protective cover can only be used up to and including ProCORE 18 V 8.0 Ah.
Without closed protective cover IP20.
TECHNICAL DATA
Protection class: II
IP class/shock resistance: IP55, IK08
Temperature range: -10^ to +40^
Connection cable: H07RN-F 2x1,0
Mains plug MULTI ADM 10050 MH: Type E + F
Mains plug MULTI ADM 10052 MH: Type J
| Types: MULTI ADM 10050 MH / | MULTI ADM 10052 MH |
| Compatible battery types: You can find an overview of all available adapters and the matching batteries on our homepage www.brennenstuhl.com | |
| Nominal voltage: 220-240 V~ 50/60 Hz | |
| Power consumption: 100 W | |
| Max. current: 0.7 A | |
| Power factor: 0.98 | |
| Max. projected area: 851.27 cm | 2 |
| Dimensions: 25.8x17.7x35.4 cm | |
| Dimensions of protective cover: | 28x18.5x1.6 cm |
| Weight: | 4.76 kg |
This product is suitable for indoor and outdoor lighting purposes.
COMMISSIONING
Place the floodlight on a dry and level surface.
The adjustable bracket can be used to set various inclinations for the floodlight.
INSERTING AND REMOVING THE BATTERY
The adapter can be inserted quickly and easily.

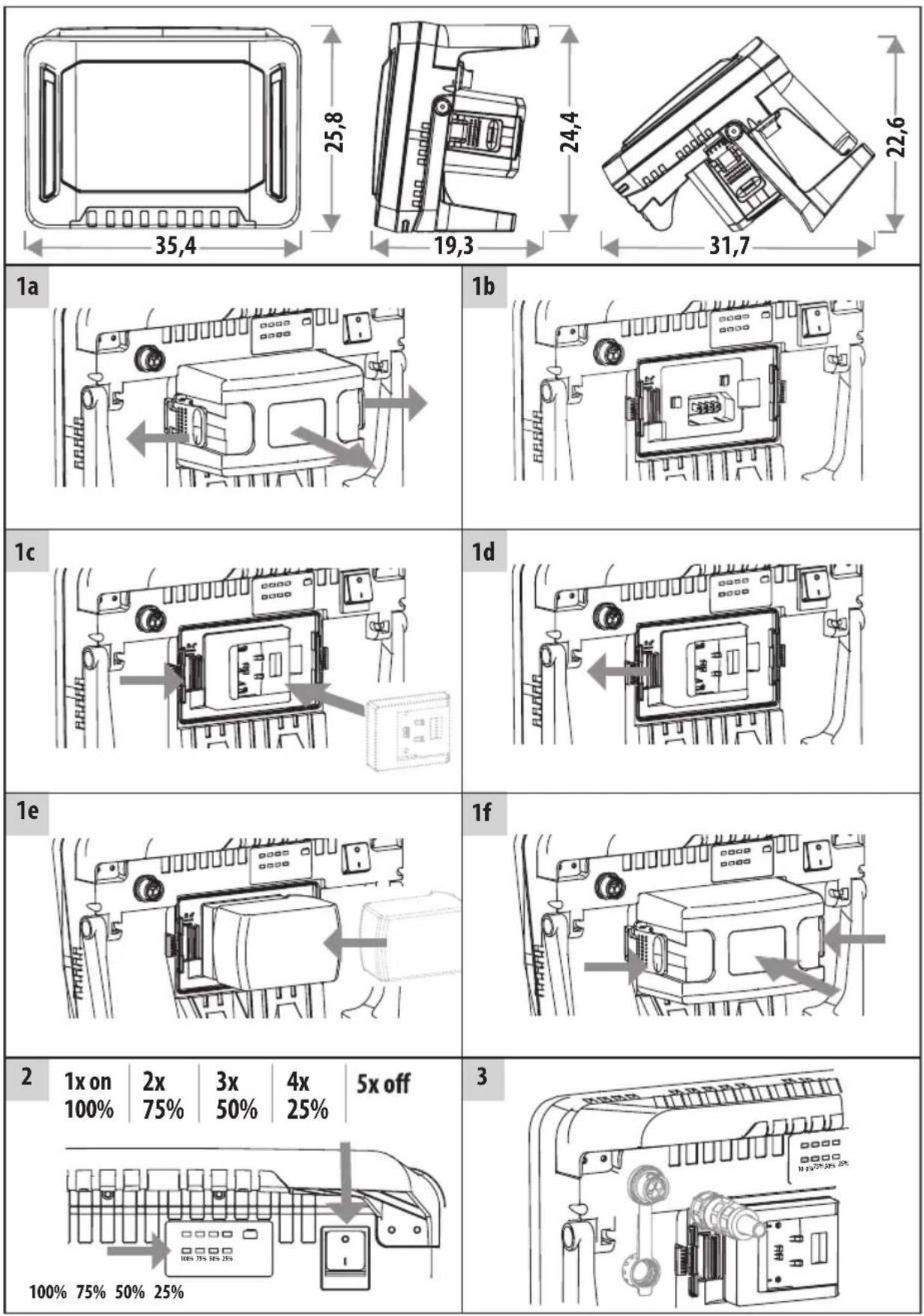

To do this, fold the fastening mechanism of the battery cover outwards and release the tabs from the anchorage. The battery cover can then be removed (Fig. 1a). To change the adapter, release the red locking mechanism and remove the inserted adapter. Now insert the matching adapter into the Brennenstuhl interface (Fig. 1b) and lock it with the red locking mechanism. (Fig. 1c) Insert the charged 18 volt battery into the battery holder from the side (Fig. 1e) until you feel it click into the end position. To remove the battery, press the battery release button and pull the battery to the side out of the battery holder. Then close the cover again (Fig. 1f).
To ensure IP55 (dust and water jet protected), the spotlight must only be operated with the battery cover correctly closed.
If the device is not used for a longer period of time, remove the rechargeable battery.
The floodlight can also be operated without battery cover up to 12 Ah rechargeable batteries; in this case, the IP class will, however, be reduced to IP20 and the floodlight may only be operated in a dry environment. To do so, open the battery cover locking (Fig. 1a). Afterwards, remove the battery cover.
Press the switch multiple times (Fig. 2) to set the brightness to 100% , then 75% , 50% , then 25% and then "off".
The lower the brightness selected, the longer the floodlight will burn. If the switch is left in any of its "on" positions for longer than 5 seconds, then pressing it once again will always turn it off.
If the rechargeable battery is almost flat and the connection cable is not connected, the LED floodlight will flash 5 times. Afterwards, the floodlight remains on for approx. 10 minutes with 50% brightness before it is switched off by the deep discharge protection function.
If the connection cable is connected while the floodlight is switched on (Fig. 3), the floodlight will flash 3 times and then automatically switch into mains operation with 100% light.
The floodlight can be connected to the power supply using the supplied plug-in cable via the connection socket at the back side (Fig. 3).
To switch the floodlight on, operate the button on the back (Fig. 2).
Press the switch multiple times (Fig. 2) to set the brightness to 100% , then 75% , 50% , then 25% and then "off".
If the switch is left in any of its "on" positions for longer than 5 seconds, then pressing it once again will always turn it off.
If the floodlight is connected to the mains, the rechargeable battery is not charged.
If the floodlight is connected to the power supply, the floodlight is operated with mains voltage by default. In case of power failure or if the device is unplugged from the mains, the floodlight will automatically switch to battery operation if a rechargeable battery with sufficient charging is inserted into the battery holder. This is signalled by the floodlight flashing three times.
CHARGING THE RECHARGEABLE BATTERY
Only use one of the manufacturer's original charging device.
TRIPODMOUNTING
By means of the holes in the holding bracket, the floodlight can be mounted on a Brennenstuhl tripod.
If two floodlights are mounted, the accessory crossbar "CB 70 1172640059" is required.
SCOPE OF DELIVERY
Floodlight, plug-in connection cable, 4 multi adapters:
Bosch, Makita, Metabo, Milwaukee/Dewalt, Adapter bag.
ACCESSIONS
Suitable accessories are available on our homepage www.brennenstuhl.com.
CLEANING
Disconnect the product from the mains voltage and remove the battery before cleaning.
Do not use solvents, caustic cleaning agents or similar products.
Only use a dry or slightly moistened cloth for cleaning.
MAINTENANCE
ATTENTION: The LED lamp does not contain components that require maintenance.
The light source of this lamp cannot be replaced. If the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.
EU DECLARATION OF CONFORMITY
UK DECLARATION OF CONFORMITY
The declaration of conformity is deposited with the manufacturer.
DISPOSAL
Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!
The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.
For possibilities of disposal of the used appliance, please contact your local or municipal administration.
DISPOSAL
Batteries and accumulators must not be disposed of in the household waste!
As a consumer, you are legally obliged to hand in all batteries and accumulators at a collection point in your community/urban district or in the trade, so that they can be disposed of in an environmentally friendly manner, otherwise there are possible risks to the environment and human health.
MANUFACTURER
For more information, we recommend the Service/FAQs section on our homepage www.brennenstuhl.com.
