USER MANUAL MULTI 6050 MA BRENNENSTUHL

Mobiler LED Akku Teleskop Strahler Mobile LED Battery Telescopic Floodlight

MULTI 6050 MA

EN Operating instructions 9

FR Mode d'emploi 13

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating a downward motion (no text or symbols present)

Technical line drawing of a mechanical component with internal structure (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with rotating components (no text or labels)

Mechanical assembly diagram showing a rotating component mounted on a base with a spring scale (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Bedienungsanleitung

Mobiler LED Akku Teleskop Strahler

MULTI 6050 MA

Mobile LED Battery Telescopic Floodlight

MULTI 6050 MA

Attention: Before using the product, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

- Always check the product for damage before use. Never use the product in case of any damage. In case you find the product to be damaged, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

• Do not use the product in potentially explosive atmospheres – danger of death!
• Keep the floodlight away from children.
  Children are not aware of the risks posed by electric current.
• For operating the floodlight, only use original rechargeable batteries of the manufacturers.
  Use of other rechargeable batteries may cause damage.
• Please never look directly into the light.
• A destroyed protective cover cannot be replaced.
  The floodlight has to be disposed of.
• There is an increased risk of crushing from moving components!

Hot surface.

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

- The product is not IP54 (dust and splash-proof) - with removed battery protective cover. The protective cover can only be used up to and including ProCORE 18 V 8.0 Ah. Without closed protective cover IP20.

TECHNICAL DATA

Protection class: III

IP class/shock resistance: IP54, IK08

Temperature range: -10 °C to +40 °C

Type: MULTI 6050 MA
Compatible battery types: You can find an overview of all available adapters and the matching batteries on our homepage www.brennenstuhl.com
Max. projected area: 172.6 cm	^2
Dimensions: 12.9x69.8x11.2 cm
Dimensions of protective cover: 38.2x4.6x0.7 cm
Weight: 5 kg

This product is suitable for indoor and outdoor lighting purposes.

INSERTING AND REMOVING THE BATTERY

The adapter can be inserted easily and quickly.

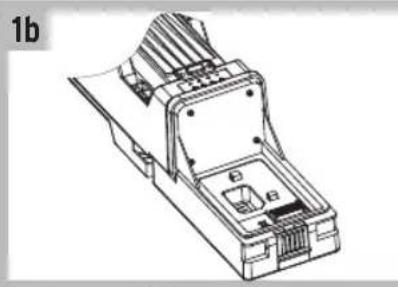

To do this, unlock the battery cover by sliding the gray latch towards the bottom. Now you can pull off the battery cover in the direction of the gray latch (Fig. 1a - Fig. 1b). To change the adapter, release the red locking mechanism and remove the inserted adapter.

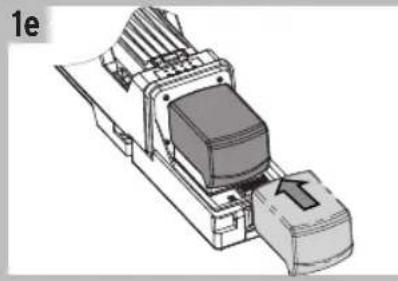

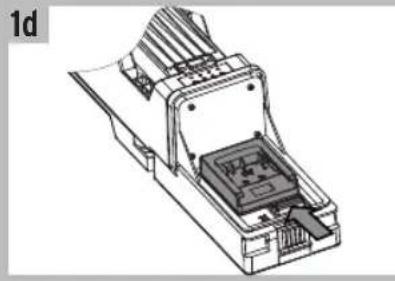

Now insert the matching adapter into the Brennenstuhl interface (Fig. 1c) and lock it with the red locking mechanism (Fig. 1d). Insert the charged 18 volt battery into the battery holder from behind (Fig. 1e) until you feel it click into the end position. To remove the battery, press the battery release button and pull the battery back out of the battery holder. Then close the cover again (Fig. 1f).

To ensure IP54 (dust and splash-proof), the floodlight may only be operated with the battery cover correctly closed.

If the device is not used for a longer period of time, remove the rechargeable battery.

The floodlight can also be operated without battery cover up to 12 Ah rechargeable batteries; in this case, the IP class will, however, be reduced to IP20 and the floodlight may only be operated in a dry environment. To do so, open the battery cover locking (Fig. 1a). Afterwards, remove the battery cover.

COMMISSIONING

Place the floodlight on a dry, level surface and fold out the support legs as far as they will go (Fig. 2a).

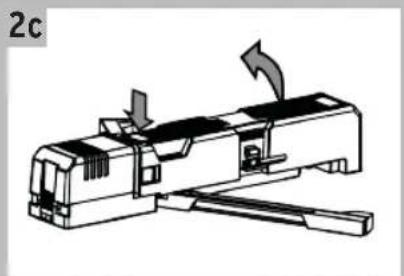

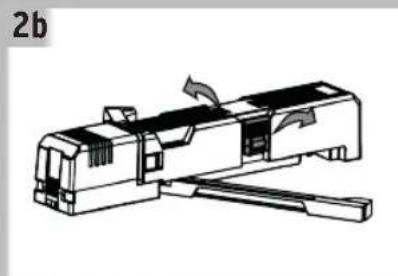

Unlock the telescopic stand by sliding the two gray latches on the sides from the bottom to the top and releasing them from the anchorage (Fig. 2b). Then unlock the light by pressing the gray button by the battery indicator (Fig. 2c).

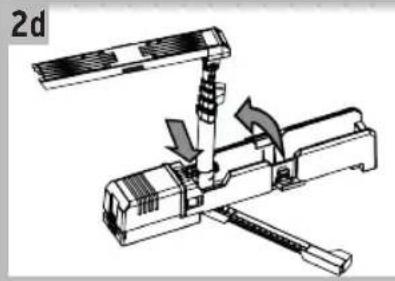

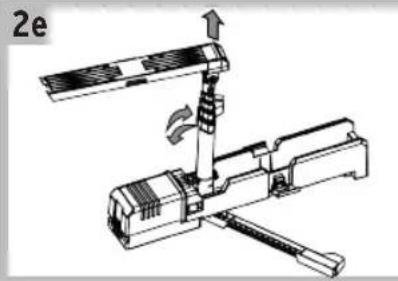

Now the stand can be set up vertically (Fig. 2d). Make sure that it audibly clicks into place in the lock at the battery indicator. The telescopic stand can now be extended to the desired height. To do this, start with the lowest step, open the yellow clamp lock, extend the tripod to the desired height and lock it again with the yellow clamp lock (Fig. 2e).

This procedure can be performed up to four times until the illuminator has reached its maximum height.

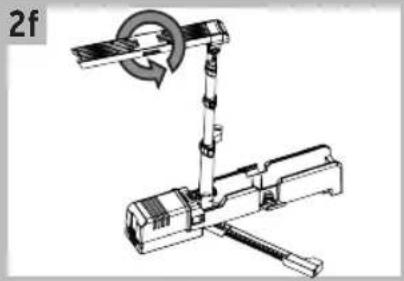

To move the light element to the desired position, the floodlight has two functions. Set the floodlight in the desired direction by folding it up or down on the shaft side. In addition, the floodlight can be rotated 180^ (Fig. 2f).

Important: always turn the floodlight back to its original position after use.

To switch on the floodlight, press the switch on the side. Pressing it several times switches the light intensity from 100% to 75% to 50% to 25% and then to "off" (Fig. 3).

The less light output is set, the longer the light duration.

If a switch position is unchanged for more than 5 seconds, pressing it again always leads to the "off" state.

If the battery is almost empty, the LED floodlight flashes five times. After that, the floodlight will continue to shine at 50% brightness for about 10 minutes before the deep discharge protection switches the floodlight off.

DISMANTLING

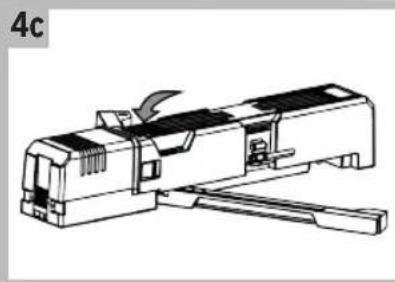

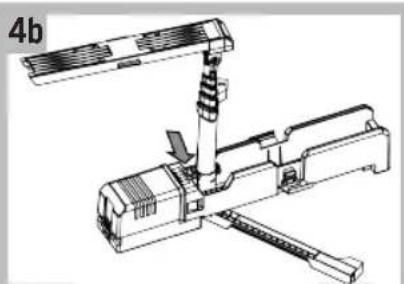

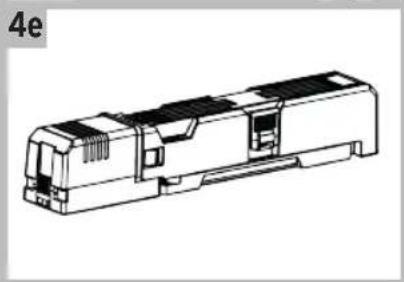

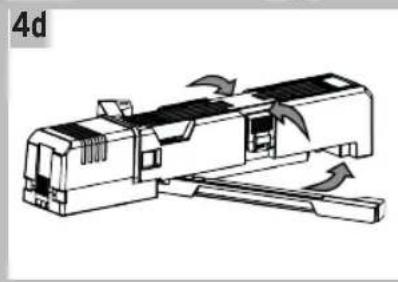

To properly repack the floodlight after use, first open the yellow clamp latches and retract the stand to the minimum (Fig. 4a). Unlock the floodlight with the gray button on the battery indicator (Fig. 4b). Now fold the telescope together with the light unit. The light unit must audibly engage in the gray button at the battery display (Fig. 4c). Now lock the lamp head with the gray anchors and fold the support legs together (Fig. 4d). Once the floodlight is in its initial state (Fig. 4e), it can be safely stored in the transport bag.

CHARGING THE RECHARGEABLE BATTERY

Only use one of the manufacturer's original charging device.

SCOPE OF DELIVERY

Floodlight, 4 multi adapters Bosch, Makita, Metabo, Milwaukee/Dewalt, adapter bag, bag for floodlight.

ACCESSORIES

Suitable accessories are available on our homepage www.brennenstuhl.com.

CLEANING

Remove the battery before cleaning.

Do not use solvents, caustic cleaning agents or similar products.

Only use a dry or slightly moistened cloth for cleaning.

MAINTENANCE

ATTENTION: The LED lamp does not contain components that require maintenance. The light source of this lamp cannot be replaced. If the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

EU DECLARATION OF CONFORMITY

UK DECLARATION OF CONFORMITY

The declaration of conformity is deposited with the manufacturer.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

DISPOSAL

Batteries and accumulators must not be disposed of in the household waste!

As a consumer, you are legally obliged to hand in all batteries and accumulators at a collection point in your community/urban district or in the trade, so that they can be disposed of in an environmentally friendly manner, otherwise there are possible risks to the environment and human health.

MANUFACTURER

For more information, we recommend the Service/FAQs section on our homepage www.brennenstuhl.com.
