USER MANUAL LAGAN 705.767.44 IKEA

Safety information....3

Safety instructions 4

Product description 6

Control panel....7

Programmes....8

Functions....9

Settings 9

Before first use....10

Daily use....11

Hints and tips ....14

Care and cleaning 16

Troubleshooting......17

Technical information (EN60436)......21

Environmental concerns 22

IKEA guarantee....22

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

- Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.

• Children of less than 3 years of age should be kept away unless continuously supervised.

- Do not let children play with the appliance.

- Keep detergents away from children.

- Keep children and pets away from the appliance when the door is open.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

- Keep all packaging away from children and dispose of it appropriately.

General Safety

- This appliance is intended to be used in household and similar applications such as:

- Farm houses; staff kitchen areas in shops, offices and other working environments;

- By clients in hotels, motels, bed and breakfast and other residential type environments.

- Do not change the specification of this appliance.

- The operating water pressure (minimum and maximum) must be between 0.4 (0.04)/10 (1.0) bar (MPa).

- Obey the maximum number of 13 place settings.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Put the cutlery in the cutlery basket with the sharp ends pointing down or put them in the cutlery rack in a horizontal position with the sharp edges down.

• Do not leave the appliance with the open door unattended to avoid stepping accidentally onto it.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

• Do not use high pressure water sprays and/or steam to clean the appliance.

• If the appliance has ventilation openings in the base, they must not be covered e.g. by a carpet.

• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

Safety instructions

Installation

⚠ WARNING! Only a qualified person can install this appliance.

• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Follow the installation instruction supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Make sure that the appliance is installed below and adjacent to safe structures.

Electrical connection

⚠ WARNING! Risk of fire and electrical shock.

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

⚠ WARNING! Do not use multi-plug adapters and extension cables.

⚠ WARNING! Do not, under any circumstances, cut, remove, or bypass the grounding prong

• The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Always use a correctly installed shockproof socket.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable). Contact the Authorised Service Centre to change the electrical components.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- This appliance complies with the E.E.C. Directives.
- UK and Ireland only: This appliance is fitted with a 13 A mains plug. If it is necessary to change the mains plug fuse, use only a 13 A ASTA (BS 1362) fuse.

Water connection

• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.

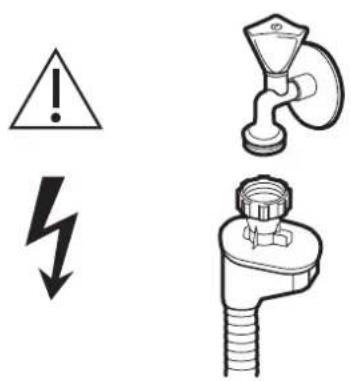

• The water inlet hose has a safety valve and a sheath with an inner mains cable.

Safety warning symbols and corresponding icons: triangular warning triangle, lightning bolt, and plug device with warning symbol.

⚠ WARNING! Dangerous voltage.

- If the water inlet hose is damaged, immediately close the water tap and disconnect the mains plug from the mains socket. Contact the Authorised Service Centre to replace the water inlet hose.

Use

⚠ WARNING! Risk of injury, burns, electrical shock or fire.

⚠ WARNING! Do not use the appliance before installing it in the built-in structure. The appliance must be disconnected from the power supply before any installation work is done – risk of electric shock.

- Do not sit or stand on the open door. - Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.

- Use only detergent and rinse aid recommended for use in an automatic dishwasher.

- Never use soap, laundry detergent, or hand washing detergent in your dishwasher.

- Do not drink and play with the water in the appliance.

- Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

- Do not remove the dishes from the appliance until the programme is complete. Some detergent may remain on the dishes.

- The appliance can release hot steam if you open the door while a programme operates. - Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Service

• To repair the appliance contact an Authorised Service Centre.

• Use original spare parts only.

Disposal

⚠ WARNING! Risk of injury or suffocation.

- Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

- Remove the door to prevent children and pets to be closed inside of the appliance.

Note:

When connecting to drinking water make sure that you connect the appliance using a safety device against drinking water contamination through backflow (according to DIN EN 1717) and meet water pollution requirements (according to KTW-BWGL). Product shall be constructed to prevent backsiphonage of non-potable water into the water mains according to IEC/EN 61770. We recommend that installation, including water supply and electrical connections, and repairs are carried out by a qualified technician.

Product description

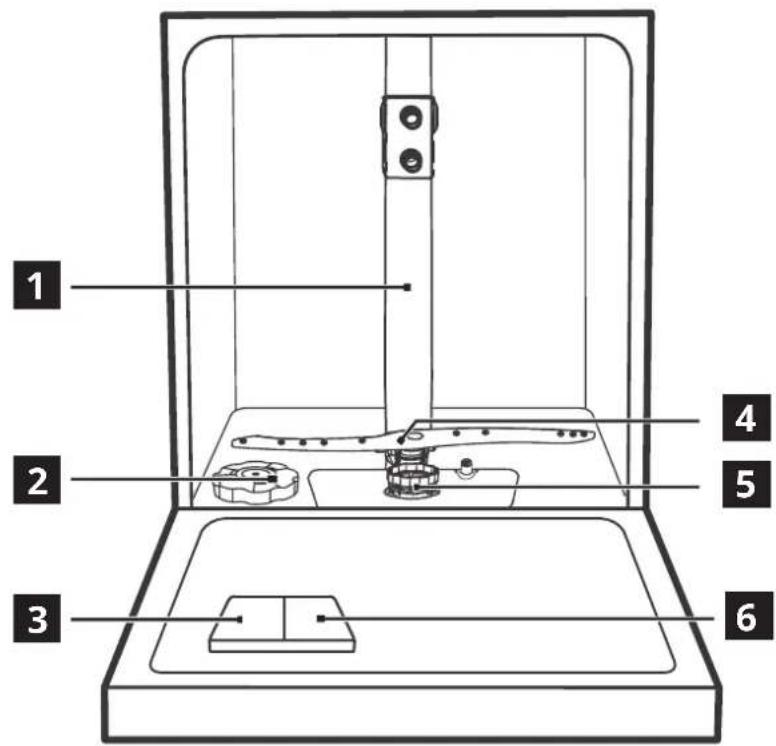

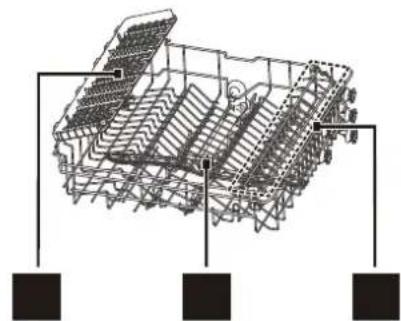

1 2 3 4 5 6

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Technical line drawing of a multi-tiered basket structure with no visible text or symbols

1 Inner pipe
2 Salt container
3 Detergent dispenser
4 Lower spray arm
5 Filter assembly
6 Rinse aid dispenser

7 Cutlery basket
8 Cutlery rack (Upper basket)
9 Upper spray arm
10 Cup rack (Upper basket)

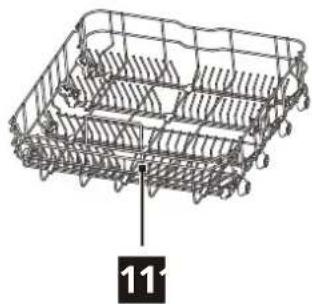

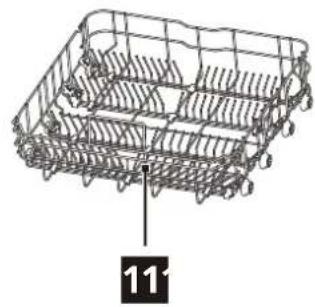

11 Lower basket

Control panel

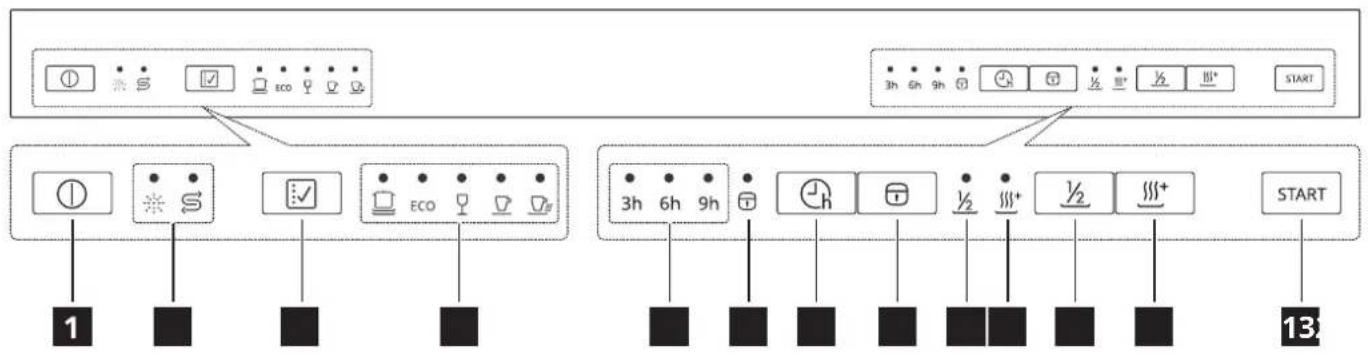

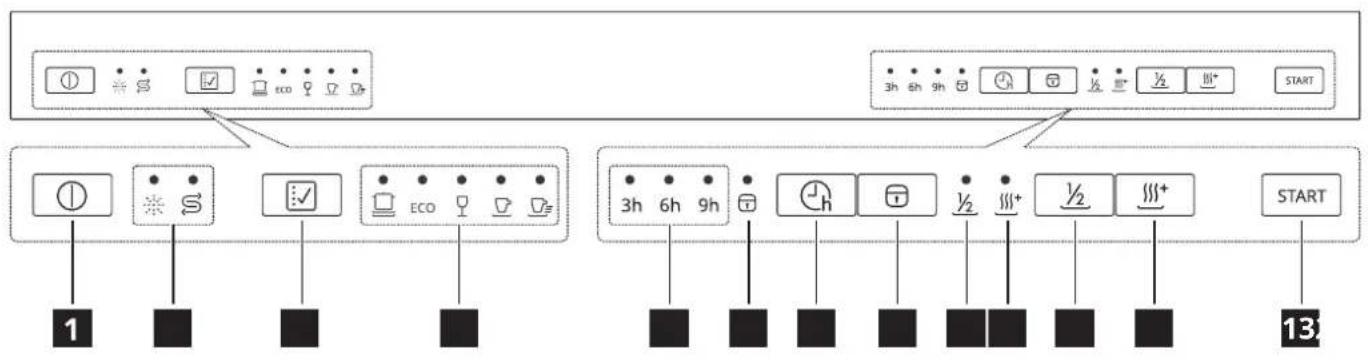

1 On/Off button
2 Warning indicators
3 Programme button
4 Programme indicators
5 Delay time
6 Child lock indicator

7 Delay button
8 Child lock button
9 Half-load indicator
10 Extra Drying indicator
11 Half-load button
12 Extra Drying button
13 Start/Pause button

Indicators Description
	Rinse aid indicator. It is always on when the rinse aid dispenser needs refilling.
	Salt indicator. It is always on when the salt container needs refilling.
	Delay start indicator. It is on when a delay start setting is present.
	Child lock indicator. It is on when the Child lock function is activated.
	Half-load indicator. It is on when the Half-load function is selected.
	Extra Drying indicator. It is on when the Extra Drying function is selected.

Programmes

Programme	Degree of soil/Type of load	Programme phases Options
(Intensive)	Heavy soilCrockery, cutlery, pots and pans	PrewashWash (60 °C)RinseRinse (65-72 °CDrying	Delay startHalf-loadExtra Drying
	Normal soilCrockery and cutlery and pans	PrewashWash (45 °CRinse (60 °CDrying	Delay startHalf-loadExtra Drying
—(Glass)	Light soilGlass	PrewashWash (45 °CRinseRinse (55-60 °CDrying	Delay startHalf-loadExtra Drying
(90 min)	Normal soil	Wash (55 °CRinseRinse (60-65 °CDrying	Delay startHalf-loadExtra Drying
(Rapid)	Light soilCrockery and cutlery	Wash (45 °CRinseRinse (45 °C)	Delay start

1) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. (This is the standard programme for test institutes).

Consumption values

Programme Drying phase		Available functions	Programme duration (min)	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
[2YZD]	√	_h 12 )))^+	180 13.9 1.2	75-1.385
ECO	√	_h 12 )))^+	230 11.0 0.9	37
	√	_h 12 )))^+	125 13.9 0.8	50-0.925
[Y2BK]	√	_h 12 )))^+	90 11.2 0.9	5-1.030
	-30 10.3	0.584 _h

1. The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.
2. ECO programme is suitable to clean normally soiled tableware, and it is the most efficient programme in terms of its combined energy and water consumption. This programme is also used to assess compliance with the EU eco-design legislation.
3. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
4. The values given for programmes other than the eco programme are indicative only.

Information for test institutes

To receive the necessary information for conducting performance tests (e.g. according to EN60436), send an email to:

[e-mail]

In your request, please include the product number code (PNC) found on the rating plate.

Functions

It is not possible to activate or deactivate options while a programme is running.
If a function is not applicable to a programme, the related indicator is off.
- Activating functions can affect the water and energy consumption as well as the programme duration.

Child lock

This option allows you to lock the buttons on

the control panel, except for the On/Off button, so children cannot accidentally start the dishwasher by pressing the buttons on the panel.

To lock or unlock the buttons on the control panel, press the Child lock button for 3 seconds.

Half-load function

For smaller loads, you can choose this function to save energy and water. To select the Half load function, press the Half-load button after selecting a programme.

Settings

The water softener

The water softener removes minerals from the water supply, which would have a detrimental effect on the washing results and on the appliance.

The higher the content of these minerals, the harder your water is. Water hardness is measured in

equivalent scales.

The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right level of the water softener to assure good washing results.

Water hardness

German degrees (°dH)	French degrees (°fH)	mmol/l	Clarke degrees	Water softener level	Salt consumption (gram/cycle)	Regeneration frequency (Every X cycles)
35 - 55 61 -	98 6.1 - 9.8 43	- 69 H6 60 1
23 - 34 41 -	60 4.1 - 6.0 29	- 42 H5 30 2
18 - 22 31 -	40 3.1 - 4.0 22	- 28 H4 20 3
12 - 17 21 -	30 2.1 - 3.0 15	- 21 H3		1)	12	5
6 - 11	10 - 20	1.0 - 2.0	7 - 14	H2	9	10
0 - 5	0 - 9	0 - 0.94	0 - 6	H1 2)	0	NO

1) Factory setting.
2) Do not use salt at this level.

Whether you use a standard detergent or multi-tablets (with or without salt), set the proper water hardness level to keep the salt refill notification active.

Multi-tablets containing salt are not effective enough to soften hard water.

During every regeneration, an additional 2.0 liters of water is required, energy consumption increases by 0.02kWh and the programme is extended by 4 minutes.

How to set the water softener level

1. Close the dishwasher door and press the On/Off button to switch the appliance on.
2. Within 60 seconds after switching on, press the Programme button for more than 5 seconds to enter the water softener setting mode. The salt indicator will flash.
3. Press the Programme button to select the correct setting according to your local water hardness, the setting will change in the following order: H3->H4->H5->H6->H1->H2->H3.
4. Wait 5 seconds or press the On/Off button to confirm the setting and exit.

Water softener level	LED indicator(○ indicator off; ● indicator on)
H1	○	○	●
H2	○	●	○
H3	○	●	●
H4	●	○	○
H5	●	○	●
H6	●	●	○

The rinse aid empty notification

The rinse aid helps to dry the dishes without streaks and stains. For best drying performance, always use rinse aid.

The rinse aid is automatically released during the hot rinse phase.

When rinse aid dispenser is empty, the rinse aid indicator (.) lights up reminding you to refill rinse aid. At other times, you can estimate the remaining amount by the size of the black dot on the rinse aid level indicator, as illustrated below:

Full 3/4 full
1/2 full 1/4 full
○ Empty

The rinse aid level

It is possible to set the released quantity of rinse aid between level 1 (minimum quantity) and level 4 (maximum quantity).

How to set the rinse aid level

Remove the rinse aid reservoir cap. Turn the rinse aid indicator dial to a number (1-4).

If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

Hand pressing a button on a device control panel (no text or symbols visible)

Activating/deactivating the key sound

Press and hold the 14 and buttons for 3 seconds to activate or deactivate the key sound.

Before first use

1. Make sure that the current level of the water softener agrees with the hardness of the water supply. If not, adjust the level of the water softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.

4. Open the water tap.

5. Start a programme to remove any processing residuals that can still be inside the appliance. Do not use detergent and do not load the baskets.

After starting a programme, it may take up to 5 minutes for the appliance to recharge the resin in the water softener. It seems that the appliance is not working.

The washing phase starts only after this procedure is completed. The procedure is repeated periodically.

The salt container

⚠️ CAUTION! Use rough salt designed for dishwashers only. Fine salt increases the risk of corrosion.

The salt is used to recharge the resin in the water softener and to assure good washing results in daily use.

Filling the salt container

Fill the salt only when the salt indicator turns on.

1

Line drawing of a device with an open lid and a magnified inset showing internal components (no text or symbols)

Find the salt container at the bottom.

2

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Remove the cap of the salt container.

3

SALT

Put 1.5kg dishwasher salt in the salt container.

4

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Fill the salt container to the maximum level with water.

5

Tightly close the cap of the salt container.

CAUTION! Water and salt may come out of the salt container when you fill it. After you fill the salt container, immediately start a programme to prevent corrosion.

Filling the rinse aid dispenser

1

Line drawing of an open refrigerator with a circular button on the side (no text or symbols)

Find the rinse aid dispenser on the inside of the door.

2

Hand holding a rotary switch with a device panel and indicator lights (no text or symbols visible)

Remove the rinse aid reservoir cap by turning it counterclockwise.

3

Hand holding a rotary switch with icons, no text or symbols present

Fill the rinse aid container with rinse aid. Be careful not to overfill.

4

Hand holding a rotary switch with a device icon, no text or symbols present

Close the rinse aid reservoir cap by turning clockwise.

Daily use

1. Open the water tap.
2. Press the On/Off button to activate the appliance.
3. If the salt indicator is on, fill the salt container.

4. If the rinse aid indicator is on, fill the rinse aid dispenser.

5. Rotate the spray arm to see if it rotates freely.

6. Load the basket and add the detergent.

7. Set and start the correct programme for the type of load and the degree of soil.

Using the detergent

1

Line drawing of a refrigerator with an open lid and base tray (no text or symbols)

Find the detergent dispenser on the inside the door.

2

Press

Press the release latch on the detergent dispenser to open the lid.

3

A B

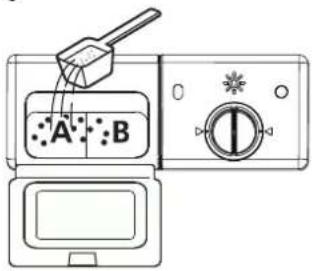

Add detergent into the larger cavity (A) for main wash. For more heavily soiled loads, also add some detergent into the smaller cavity (B) for release during pre-wash.

Hand pressing a button on a device control panel (no text or symbols visible)

Close the lid and press it down until it locks into place.

The auto off function

This function decreases energy consumption by automatically deactivating the appliance when it is not operating.

The function comes into operation:

• 15 minutes after the completion of the programme.
• After 15 minutes if the programme has not started.

Starting a programme

CAUTION! Do not remove the baskets from the dishwasher before a wash cycle is completed.

1. Draw out the lower and upper baskets, load the dishes and push them back in. It is recommended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. For the power supply, refer to the rating plate on the inside of the appliance door. Make sure that the water supply is turned on to full pressure.
4. Close the door, then press the On/Off button.
5. Choose a programme, the corresponding light will turn on. Then press the Start/Pause button, the dishwasher will start its cycle.

Starting a programme with delay start

1. Close the appliance door and set a programme.
2. Press (repeatedly until the display shows the delay time you want to set (3h/6h/9h). The delay indicator turns on.
3. Press Start/Pause to start the countdown.

While a countdown is running it is possible to increase the delay time but also change the selection of the programme and options. Make sure you press the Start/Pause button first.

When the countdown is completed, the programme starts.

Opening the door while the appliance operates

Opening the door while a programme is running stops the appliance. It may affect the energy consumption and the programme duration.

After closing the door, the appliance will resume operation within 10 seconds.

Cancelling the delay start while the countdown operates

When you cancel the delay start you have to set the programme and options again.

Press the On/Off button to deactivate the appliance. The delay start will be cancelled.

Cancelling the programme

Press the On/Off button to deactivate the appliance. Or open the door to stop running the programme, and wait a few seconds until the appliance completely stops, then press the On/Off button. The programme will be cancelled. Make sure that there is detergent in the detergent dispenser before you start a new programme.

End of the programme

1. Press the On/Off button or wait for the auto off function to automatically deactivate the appliance. If you open the door before the activation of auto off, the appliance is automatically deactivated.

2. Close the water tap.

The appliance will beep for 8 seconds when the programme is completed, then the appliance will enter standby.

If you open the door while the appliance is beeping, the appliance will enter standby immediately.

Changing the programme mid-cycle

A programme can only be changed if it has been running only for a short period of time, otherwise the detergent may have been released or the water with detergent is already drained. In this case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. With the appliance door closed, press the Start/Pause button.

2. Press Programme button for more than 3 seconds to cancel the current programme. The machine will be in programme selection mode.

3. You can change the programme to the desired cycle setting.

Forget to add a dish?

A forgotten dish can be added at any time before the detergent dispenser opens. In that case, follow these steps:

1. Press the Start/Pause button to pause the cycle.

2. When the spray arms have stopped working, you can open the door completely.

3. Add the forgotten dishes.

4. Close the door.

5. Press the Start/Pause button, and the dishwasher will start after 10 seconds.

Adjusting the upper basket

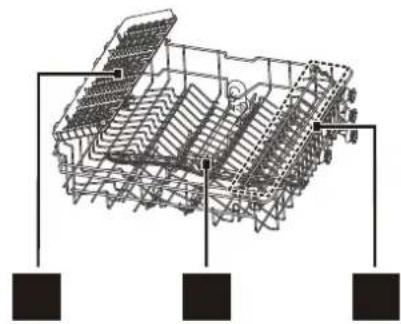

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket.

lower position

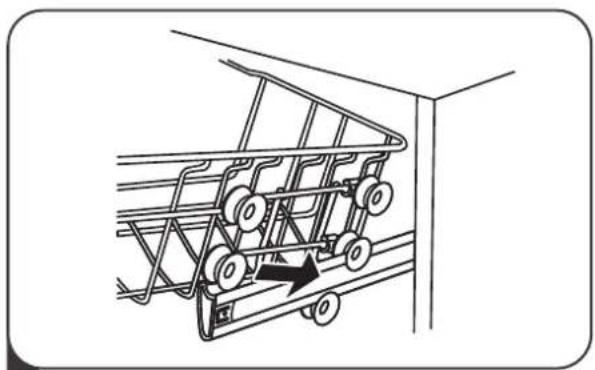

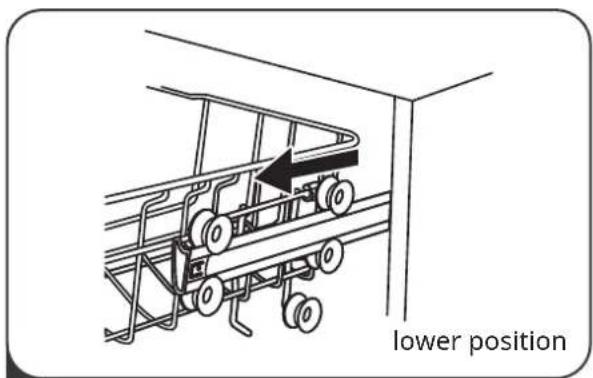

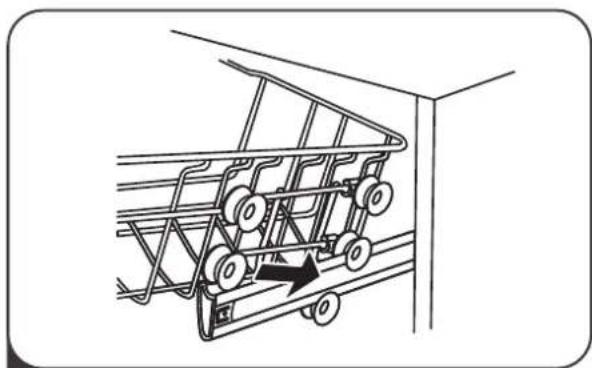

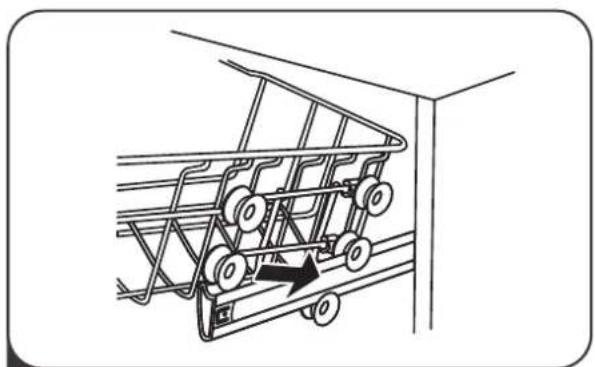

1 Pull out the upper basket.

IMPORTANT: Remove all items before adjusting the basket. The basket must be empty.

To adjust the height of the upper basket, follow these steps:

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

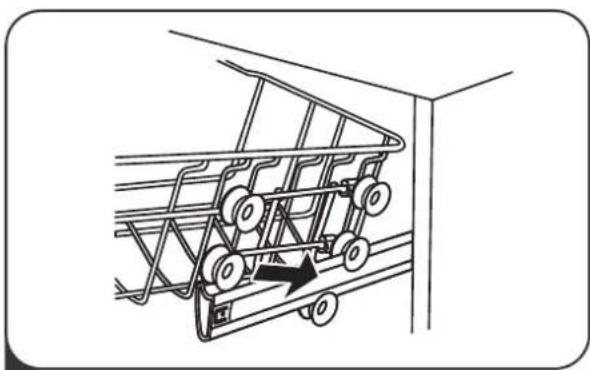

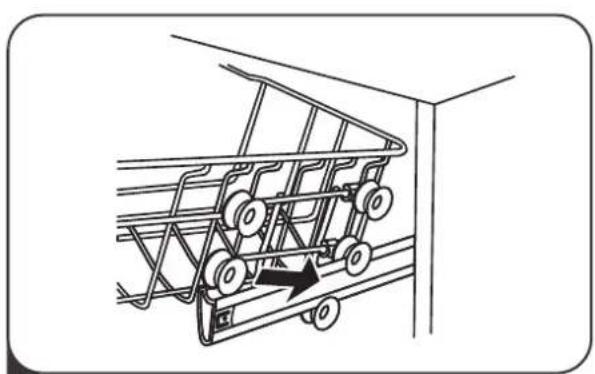

2 Remove the upper basket.

Line drawing of a car chassis with wheels and a directional arrow (no text or symbols)

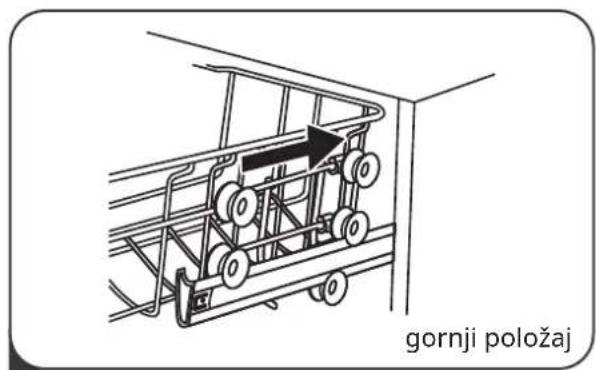

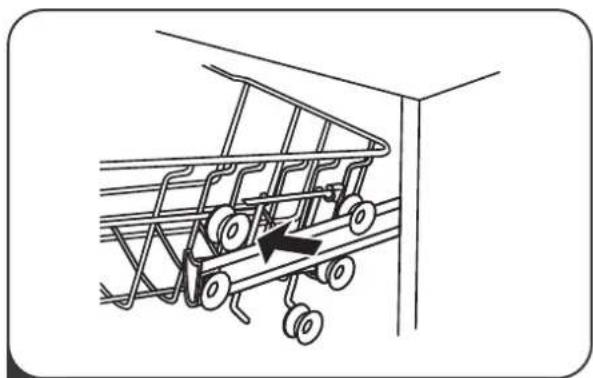

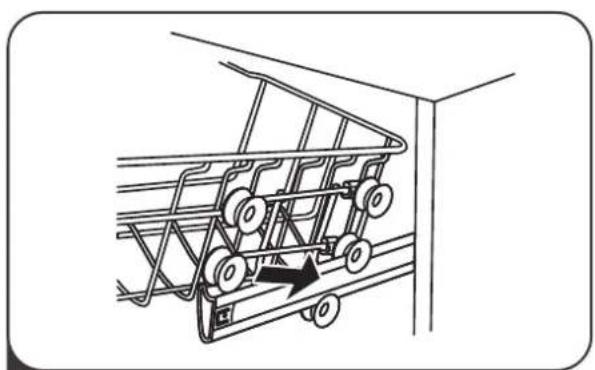

3 Re-attach the upper basket to upper or lower rollers.

upper position

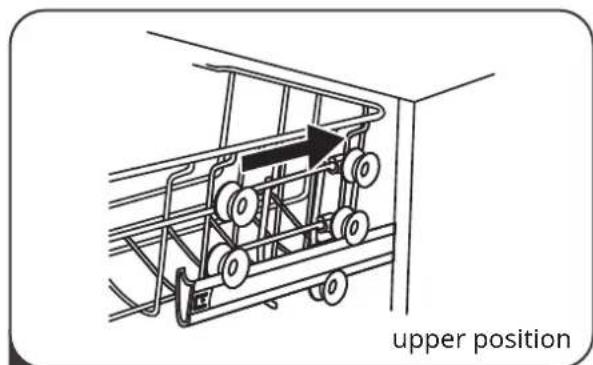

4 Push in the upper basket.

Adjustable cup shelf

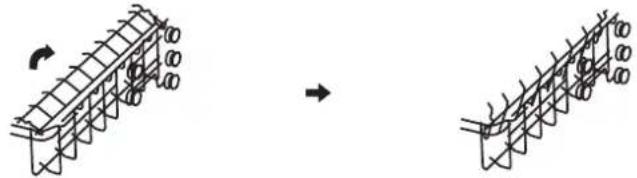

The cup shelf in the upper basket can be unfolded to make room for taller dishes.

Pull the cup shelf up to unfold it.

Diagram showing a structural component before and after rotation, with no visible text or symbols

Adjustable lower basket

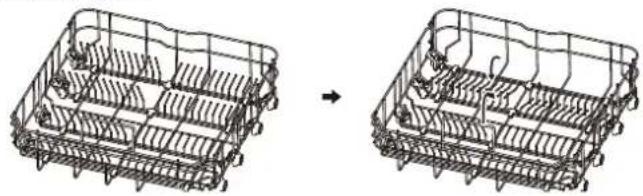

The spikes of the lower basket can be folded to make room for large dishes.

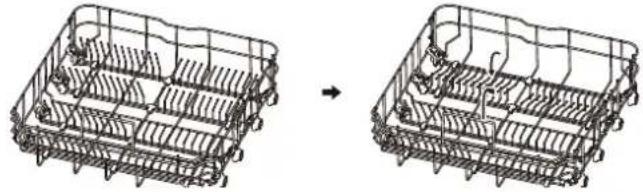

Push the spikes of the lower basket down to fold the spikes.

Two wire mesh models of a multi-layered container or rack structure, showing structural changes (no text or symbols)

Hints and tips

General

The following hints will ensure optimal cleaning and drying results in daily use and also help to protect the environment.

• Remove larger residues of food from the dishes into the waste bin.
• Do not pre-rinse dishes by hand. When needed, use the prewash programme (if available) or select a programme with a prewash phase.
• When loading the appliance, make sure that the dishes can be completely reached and washed by the water released from the spray arm nozzles. Make sure that items do not touch or cover each other.
• You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. "3 in 1", "4 in 1", "All in 1"). Follow the instructions written on the packaging.
• Select the programme according to the type of load and degree of soil. With the ECO programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.

Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• In areas with hard and very hard water we recommend to use plain dishwasher detergent (powder, gel, tablets containing no additional agents), rinse aid and salt separately for optimal cleaning and drying results.
• At least once a month run the appliance with the use of appliance cleaner which is particularly suitable for this purpose.
• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.
• Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

What to do if you want to stop using multi-tablets

Before you start to use separately detergent, salt and rinse aid do the following procedure.

1. Set the highest level of the water softener.
2. Make sure that the salt and rinse aid containers are full.
3. Start the shortest programme with a rinsing phase. Do not add detergent and do not load the baskets.
4. When the programme is completed, adjust the water softener according to the water hardness in your area.
5. Adjust the released quantity of rinse aid.
6. Activate the rinse aid empty notification.

Loading the baskets

Refer to examples of the load of the baskets on page 15.

• Only use the appliance to wash items that are dishwasher-safe.
• Do not put in the appliance items made of wood, aluminium, pewter and copper.
• Do not put in the appliance items that can absorb water (sponges, household cloths).
• Remove remaining food from the items.
• Soak items with remaining burned food in water.
• Put hollow items (cups, glasses and pans) with the opening down.
  • Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
  • Make sure that glasses do not touch each other.
• Put small items in the cutlery basket.
• Put light items in the upper basket. Make sure that the items do not move.

Before starting a programme

Make sure that:

• The filters are clean and correctly installed.
• The cap of the salt container is tight.
• The spray arms are not clogged.
• There is dishwasher salt and rinse aid (unless you use multi-tablets).

• The position of the items in the baskets is correct.
- The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.

Unloading the baskets

For better drying results keep the appliance door ajar for some minutes before you remove the dishes.

1. Let the dishes cool down before you remove them from the appliance. Hot dishes are easily damaged.
2. First remove items from the lower basket then the upper basket.

At the end of the programme water can still remain on the sides and on the door of the appliance.

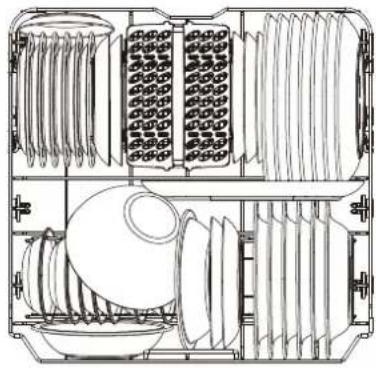

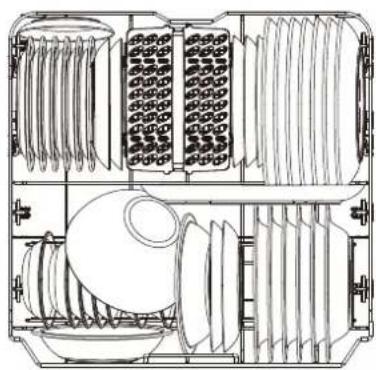

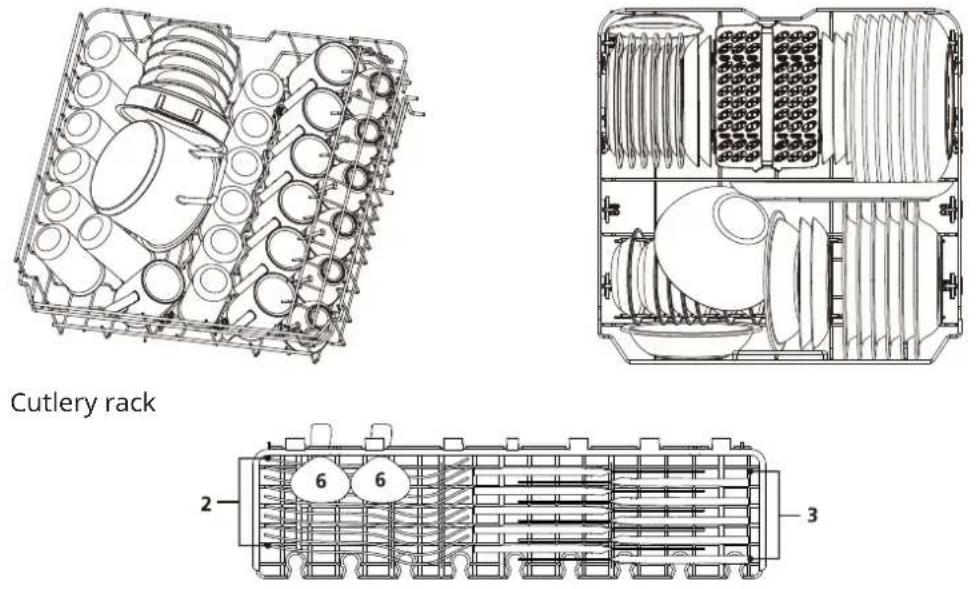

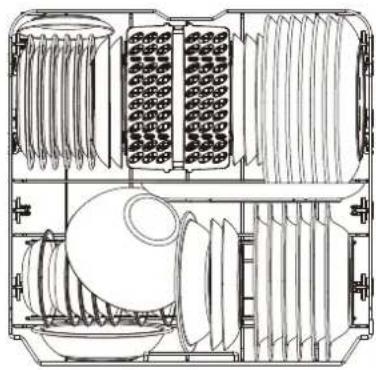

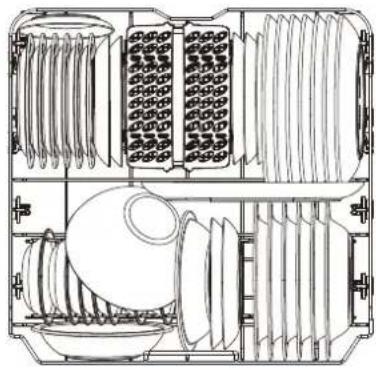

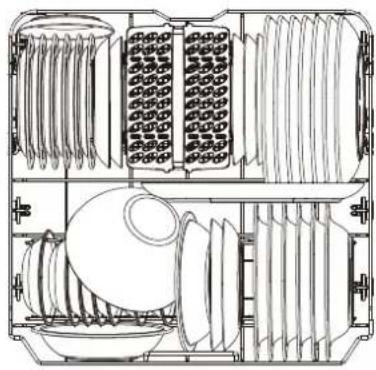

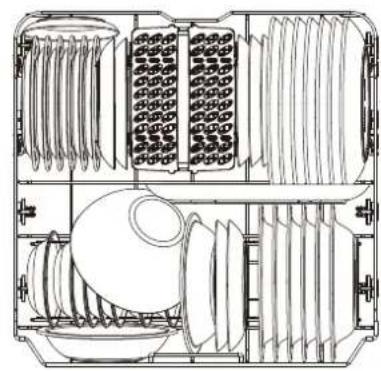

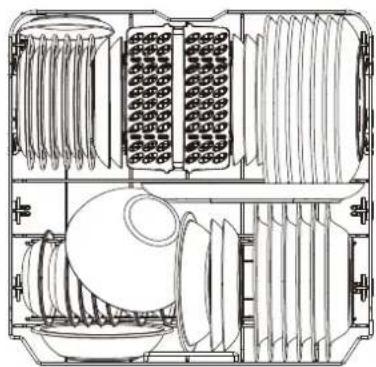

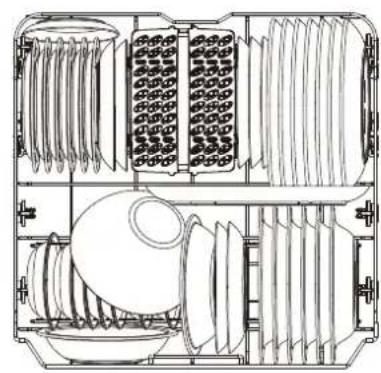

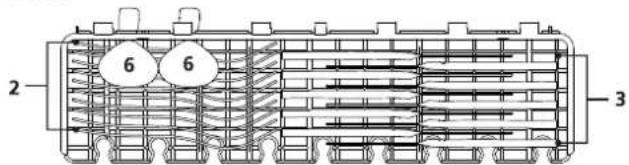

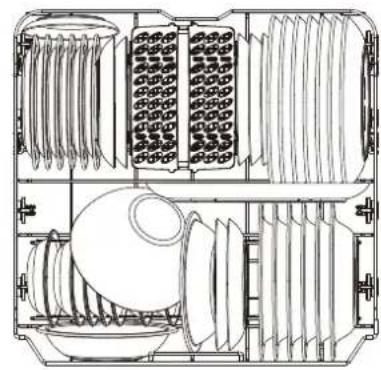

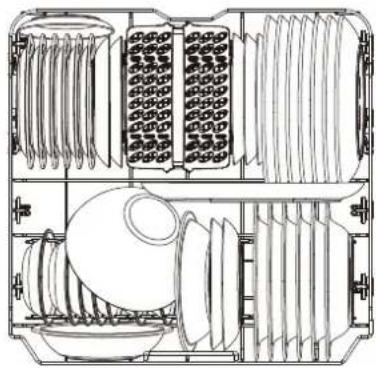

Examples of basket loads

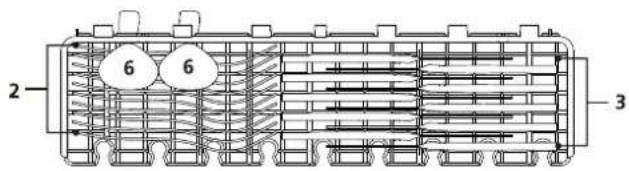

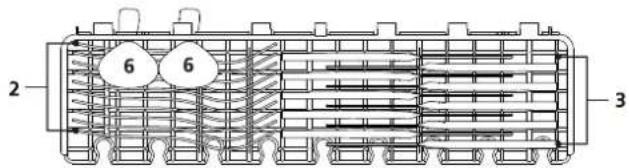

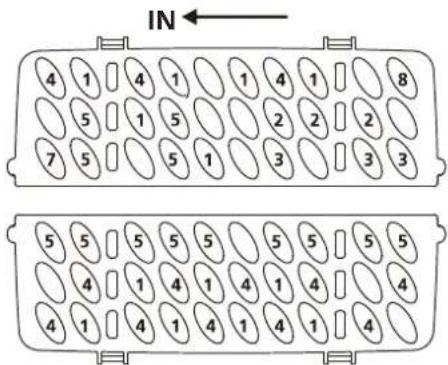

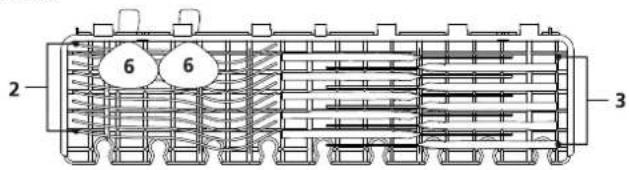

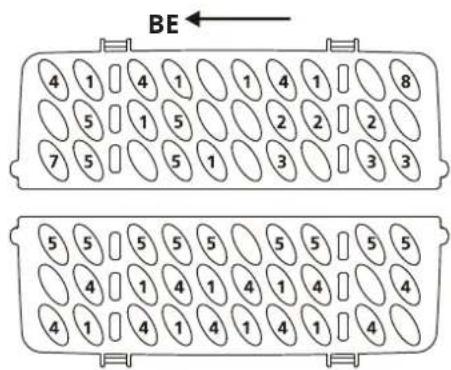

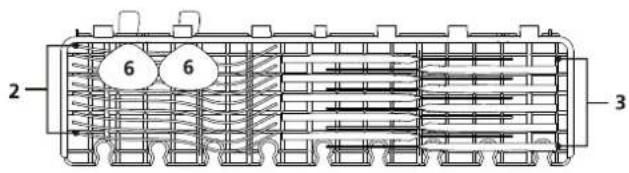

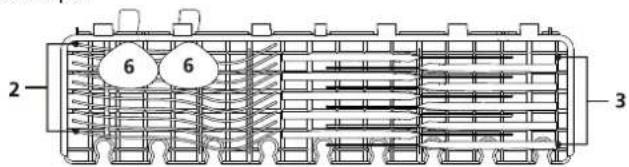

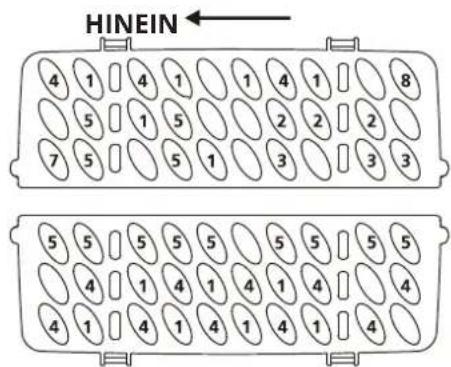

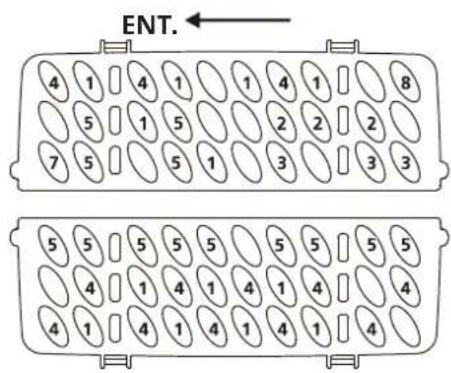

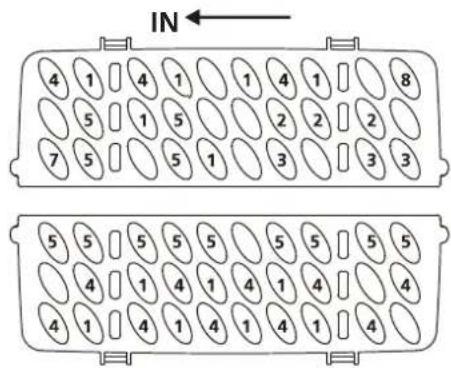

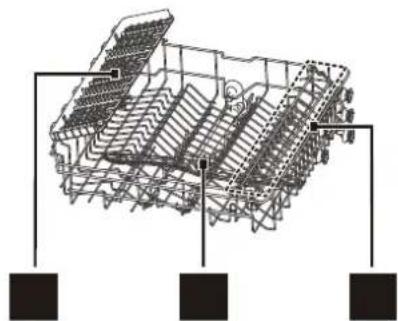

Cutlery basket

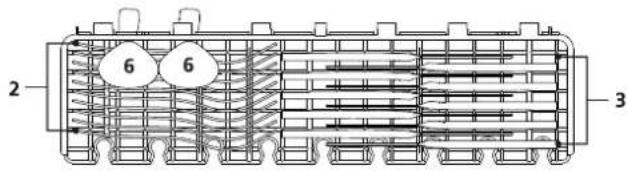

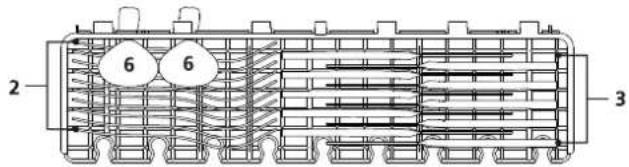

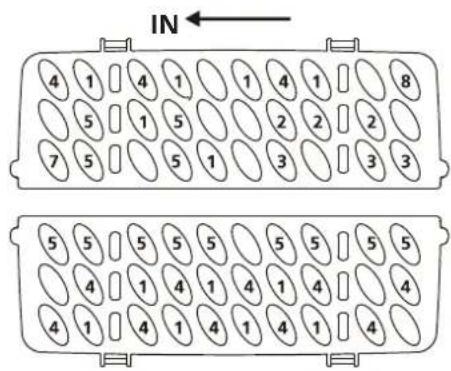

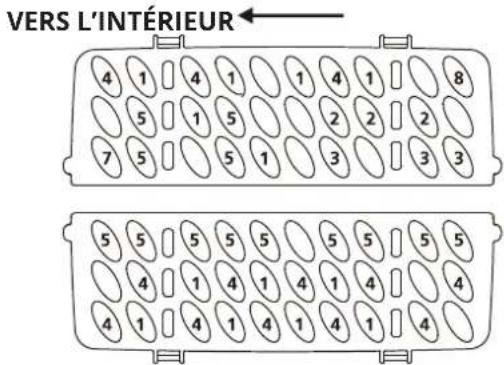

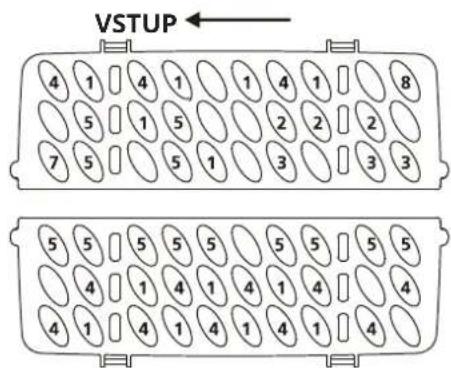

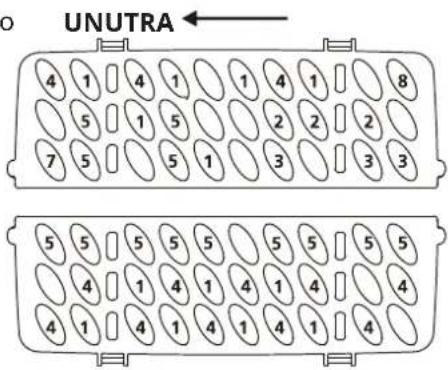

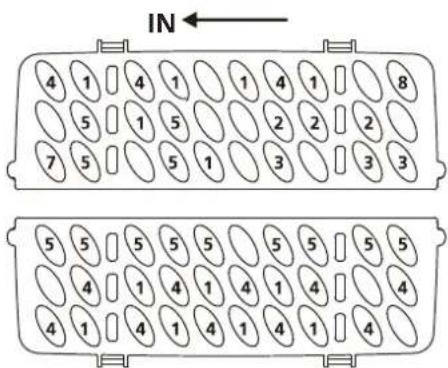

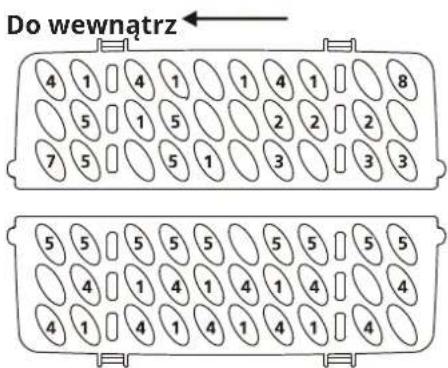

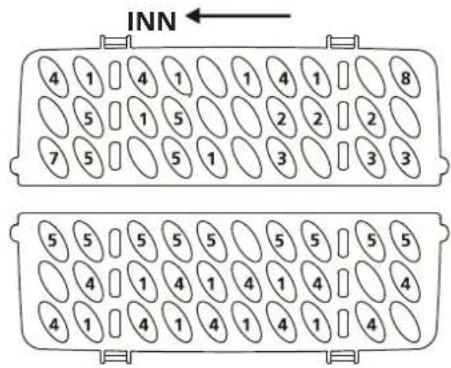

IN 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

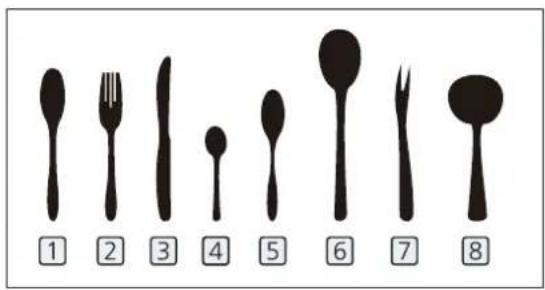

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Care and cleaning

⚠ WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket.

Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them.

Cleaning the filters

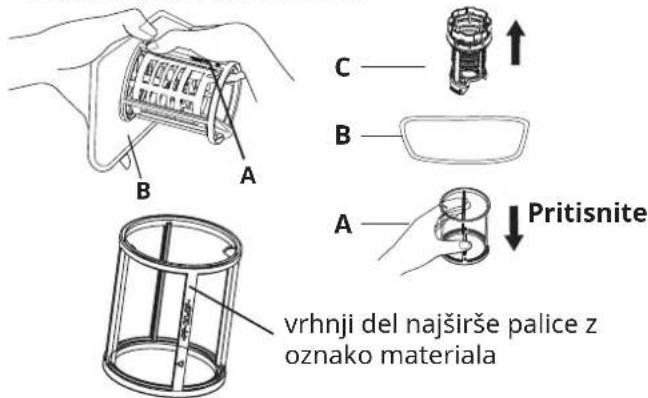

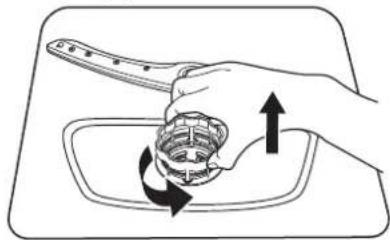

1. Turn the filter counterclockwise to unlock it, then lift it out of the appliance.

Illustration of a hand holding a tool inside a container with an arrow indicating rotation (no text or symbols)

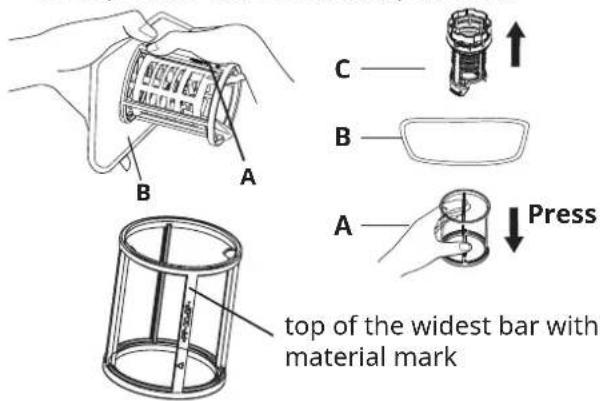

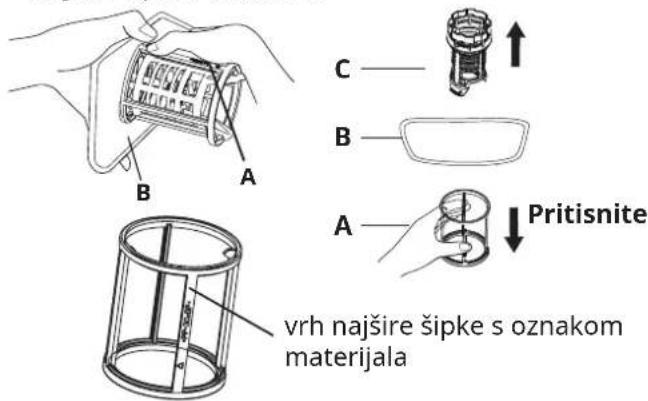

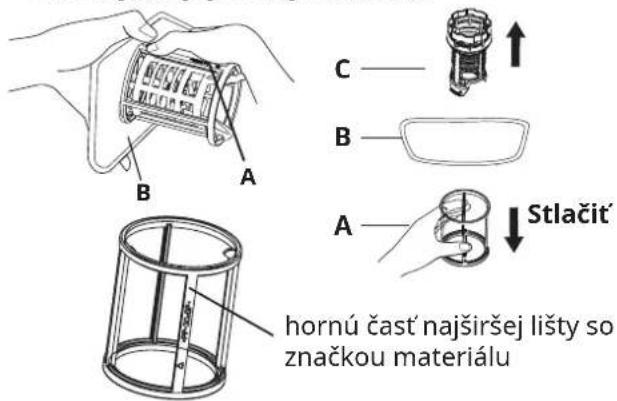

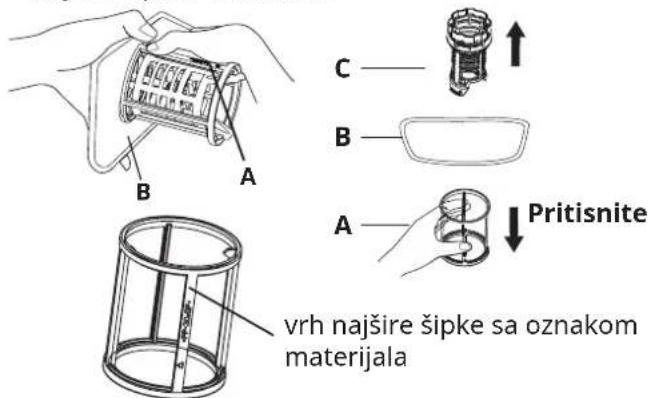

1. Grasp B firmly, then use your thumbs to press on the top of the widest bar and pull out A.

C B A Press top of the widest bar with material mark

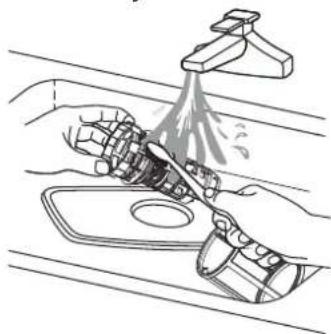

1. Rinse the filter under running water to remove larger food remnants. For more thorough cleaning, use a soft cleaning brush.

Illustration of hands using a tool to clean or spray liquid from a sink (no text or symbols)

1. Reassemble the filters in the reverse order of disassembly, replace the filter insert, and turn clockwise to the close arrow.

Illustration of a hand using a tool to clean or wash a small container, with no text or symbols present.

Cleaning the spray arms

We recommend to clean the upper and lower spray arms regularly to prevent clogging. Clogged holes can cause unsatisfactory washing results.

1. Pull out the upper and lower baskets.
2. To disengage the upper spray arm from the upper basket, hold the nut in the center position of the upper spray arm and turn the spray arm counterclockwise to remove.

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols)

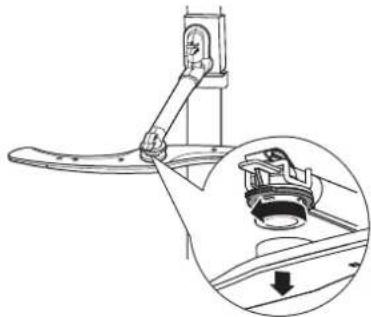

1. To detach the lower spray arm from the bottom of the appliance, just pull it up to remove.

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

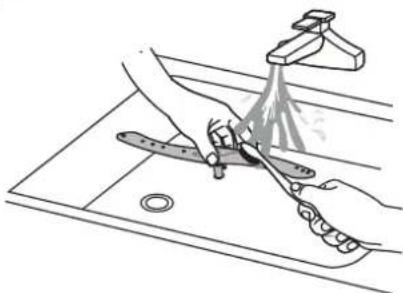

1. Rinse the upper and lower spray arms under running water. Use a thin pointed tool (e.g. a toothpick) to remove particles of soil from the holes of the spray arms.

Illustration of hands using a tool to spray or spray onto a surface, no text or symbols present

5. After cleaning, replace the spray arms.

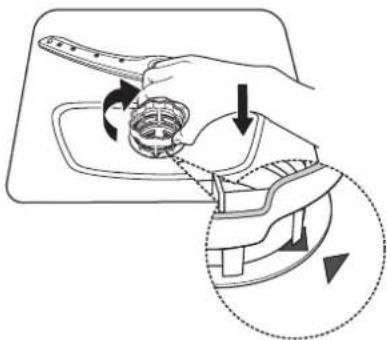

To attach the upper spray arm to the upper basket, align the center position of the upper spray arm with the nut then turn it clockwise to tighten.

To attach the lower spray arm to the bottom of the appliance, insert the lower spray arm into position.

External cleaning

• Clean the appliance with a moist soft cloth.
• Only use neutral detergents.
• Do not use abrasive products, abrasive cleaning pads or solvents.

Internal cleaning

• Carefully clean the appliance, including the rubber gasket of the door, with a soft damp cloth.
• To maintain the performance of your appliance, use a cleaning product designed specifically for dishwashers at least once a month. Carefully follow the instructions on the packaging of the product.
• Do not use abrasive products, abrasive cleaning pads, sharp tools, strong chemicals, scourer or solvents.
• Using short-duration programmes regularly can cause grease and limescale buildup inside the appliance.
• Run long-duration programmes at least twice a month to prevent the buildup.

Frost precaution

Please take frost protection measures on the dishwasher in winter. After each washing cycle, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to collect the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up the water in the sump.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

When not in use for a long time

It is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Troubleshooting

If the appliance does not start or it stops during operation, first check if you can solve the problem by yourself with the help of the information in the table or contact an Authorised Service Centre.

WARNING! Repairs not properly done may result in serious risk to the safety of the user. Any repairs must be performed by qualified personnel.

Problem Possible cause and solution
You cannot activate the appliance.	Make sure that the mains plug is connected to the mains socket.Make sure that there is no damaged fuse in the fuse box.
The programme does not start.• Make sure that the appliance door is closed.If the delay start is set, cancel the setting or wait for the end of the countdown.The appliance has started the procedure to recharge the resin inside the water softener. The duration of the procedure is approximately 5 minutes.
The appliance does not fill with water.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low.For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the filter in the inlet hose is not clogged.Make sure that the inlet hose has no kinks or bends.
The appliance does not reach the required temperature.	Heating element malfunctions. Contact an Authorised Service Centre.
The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the filter in the outlet hose is not clogged.Make sure that the interior filter system is not clogged.Make sure that the drain hose has no kinks or bends.
The appliance stops and starts more times during operation.	It is normal. It provides optimal cleaning results and energy savings.
The programme lasts too long.	If the delayed start option is set, cancel the delay setting or wait for the end of the countdown.
The remaining time in the display increases and skips nearly to the end of programme time.	This is not a defect. The appliance is working correctly.
Small leak from the appliance door.	The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).The appliance door is not centred on the tub. Adjust the rear foot (if applicable).
The appliance door is difficult to close.	The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).Parts of the tableware are protruding from the baskets.
Rattling/knocking sounds from inside the appliance.	The tableware is not properly arranged in the baskets. Refer to basket loading section.Make sure that the spray arms can rotate freely.
The appliance trips the circuit-breaker.	The amperage is insufficient to supply simultaneously all the appliances in use. Check the socket amperage and the capacity of the meter or turn off one of the appliances in use.Internal electrical fault of the appliance. Contact an Authorised Service Centre.

Refer to "Before first use", "Daily use", or "Hints and tips" for other possible causes.

Once problem occurs on the appliance, deactivate and activate the appliance. If the problem occurs again, contact an Authorised Service Centre.

Refer to "Before first use", "Daily use" or "Hints and tips" for other possible causes.
The washing and drying results are not satisfactory

Problem Possible cause and solution
Poor washing results.	Refer to “Daily use”, “Hints and tips” and basket loading section.Use more intensive washing programmes.Clean spray arm jets and filter. Refer to “Care and cleaning”.
Poor drying results.	Tableware has been left for too long inside a closed appliance.There is no rinse aid or the dosage of rinse aid is not enough.Set the rinse aid dispenser to a higher level.Plastic items may need to be towel dried.For the best drying performance activate the dry plus option.We recommend to always use rinse aid, even in combination with multi-tablets.
There are whitish streaks or bluish layers on glasses and dishes.	The release quantity of rinse aid is too much. Adjust the rinse aid level to a lower level.The quantity of detergent is too much.
There are stains and dry water drops on glasses and dishes.	The released quantity of rinse aid is not sufficient. Adjust the rinse aid level to a higher level.The quality of the rinse aid can be the cause.
The dishes are wet.	The programme does not have a drying phase or has a drying phase with low temperature.The rinse aid dispenser is empty.The quality of the rinse aid can be the cause.The quality of the multi-tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use rinse aid and multi-tablets together.
The interior of the appliance is wet.	This is not a defect of the appliance. it is caused by the humidity in the air that condenses on the walls.
Unusual foam during washing.	Use the detergent for dishwashers only.There is a leak in the rinse aid dispenser. Contact an Authorised Service Centre.
Traces of rust on cutlery.	There is too much salt in the water used for washing.Refer to “The water softener”.Silver and stainless steel cutlery were placed together.Avoid to put silver and stainless steel items close together.
There are residues of detergent in the dispenser at the end of the programme.	The detergent tablet got stuck in the dispenser and therefore was not completely washed away by water.Water cannot wash away the detergent from the dispenser.Make sure that the spray arm is not blocked or clogged.Make sure that items in the baskets do not impede the lid of the detergent dispenser from opening.
Odours inside the appliance. Refer to “Internal cleaning”.
Limescale deposits on the tableware, on the tub and on the inside of the door.	The level of salt is low, check the refill indicator.The cap of the salt container is loose.Your tap water is hard. Refer to “The water softener”.Even using multi-functional tabs use salt and set regeneration of the water softener. Refer to “The water softener”.If limescale deposits still remain, clean the appliance with appliance cleaners which are particularly suitable for this purpose.Try different detergent.Contact the detergent manufacturer.
Dull, discoloured or chipped tableware.	Make sure that only dishwasher-safe items are washed in the appliance.Load and unload the basket carefully. Refer to load of basket at the end of this user manual.Place delicate items in the upper basket.

Error indications

If there is a malfunction the dishwasher will give an error indication. The following table shows possible error indications and their causes.

Error indication Meaning	Possible cause and solution
The indicator flashes quickly	Longer inlet time. Faucet is not opened, or water intake is restricted, or water pressure is too low.
The and indicators flash quickly	Not reaching required temperature.	Malfunction of heating element.
The indicator flashes quickly	Overflow. Some element of the dish washer leaks.
The ECO and indicators flash quickly	Failure of communication between the main circuit board and display circuit board.	Open circuit or broken wiring for the communication.

WARNING!

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
• If there is an error that cannot be solved, please request professional assistance.

Technical information (EN60436)

Supplier name IKEA of Sweden AB
Supplier address	IKEA of Sweden AB, Tulpanvägen 8, 343 81 Älmhult, Sweden
Product type Dishwasher
Installation type Freestanding
Dimensions (W x H x D) 60 x 85 x 60 cm
Rated capacity a) (ps) 13	b)
Energy efficiency class a)	E
EEI a)	55,9
Cleaning performance index a)	1,125
Drying performance index a)	1,065
Energy consumption per cycle c)	0,937 kWh
Water consumption per cycle d)	11 litres
Program duration a)	3:50 (h:min)
Airborne acoustical noise emission a)	47 dB(A)
Airborne acoustical noise emission class a)	C
Off-mode 0,49 W
Delay start 1,00 W

a) For the eco program.
b) The maximum number of place settings to be washed is 13. Refer to examples of the load of the baskets at the begin of this quick guide. Correct loading will contribute to energy and water savings. The Dishes may not clean with incorrect loading.
c) Energy consumption in kWh per cycle, based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.
d) Water consumption in litres per cycle, based on the eco program. Actual water consumption will depend on how the appliance is used and on the hardness of the water.

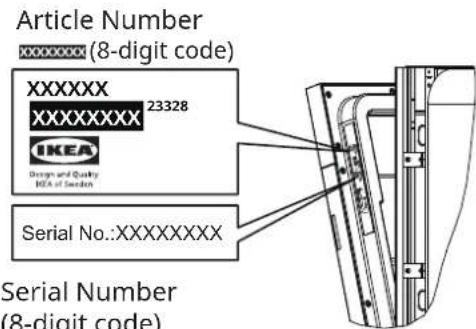

The article number and serial number are shown on the rating plate on the internal right side of the appliance door.

Article Number XXXXXXXX (8-digit code) XXXXXX 23328 XXXXXXXX IKEA Design and Quality IEEA of Sweden Serial No.:XXXXXXXX Serial Number (8-digit code)

Picture for reference only

Link to EU EPREL Database

The QR code on the energy label supplied with the appliance provides a web link to the registration of this appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is possible to find information related to the performance of the product in the EU EPREL database using the link https://eprel.ec.europa.eu and the model name and product number that you can find on the rating plate of the appliance. Refer to the chapter "Product description".

For more detailed information about the energy label, visit www.theenergylabel.eu.

Environmental concerns

Recycle materials with the symbol ☐ But the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances.

Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

IKEA guarantee

How long is the IKEA guarantee valid?

This guarantee is valid for 2 years from purchase date unless otherwise specified in national legislation. In Norway, Portugal and Spain the guarantee is valid for 3 years from delivery date to the customer unless otherwise specified in national legislation. Please go to IKEA.com to find out what applies in your country. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (DIRECTIVE (EU) 2019/771) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its

sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.
- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.
- Consumable parts including batteries and lamps.
- Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible colour differences.
- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.
- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.
- Cases where no fault could be found during a technician's visit.
- Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.
- Repairs caused by installation which is faulty or not according to specification.
- The use of the appliance in a non-domestic environment i.e. professional use.

• Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.
• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives You specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information.

The dedicated After Sales Service for IKEA appliances:

Please do not hesitate to contact IKEA After Sales Service to:

make a service request under this guarantee; ask for clarification on installation of the IKEA appliance in the dedicated IKEA kitchen furniture. The service won't provide clarifications related to:

the overall IKEA kitchen installation; connections to electricity (if machine comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.

Ask for clarification on user manual contents and specifications of the IKEA appliance.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual section of this booklet before contacting us.

Availability of the spare parts

The following parts will be available for 7 years after this model has been discontinued: motor; circulation and drain pump; heaters and heating elements, including heat pumps (separately or bundled); piping and related equipment including all hoses, valves, filters and aquastops; structural and interior parts related to door assemblies (separately or bundled); printed circuit boards; electronic displays; pressure switches; thermostats and sensors; software and firmware including reset software.

The following parts will be available for 10 years after this model has been discontinued: door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.

For ordering the spare parts, please contact IKEA After Sales Service.

How to reach us if You need our service

Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers.

In order to provide You with a quicker service, we recommend that You use the specific phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specific appliance You need an assistance for. Before calling us, assure that You have to hand the IKEA article number (8 digit code) and the Serial Number (8 digit code that can be found on the rating plate) for the appliance of which you need our assistance.

i SAVE THE SALES RECEIPT! It is Your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances, please contact our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Inhalt

Safety warning symbols and three labeled diagrams: triangular warning triangle, lightning bolt, and pipe fitting with a valve.

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with grid-like components and directional arrows, no visible text or symbols

Wire mesh basket diagram with labeled component '11' (no text or symbols on the diagram itself)

Hand pressing a button on a device control panel (no text or symbols visible)

Line drawing of a refrigerator with an open lid and a circular inset showing a closed lid (no text or symbols)

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container onto a stack of plates (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a rotary switch with a device panel and indicator lights (no text or symbols visible)

Hand inserting a button into a digital camera module (no text or symbols visible)

Hand holding a rotary switch button on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a circular dial and fan (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Diagram showing a structural transformation of a grid-like structure, with an arrow indicating the direction (no text or symbols present)

Two wire mesh plastic crates showing internal structure before and after transformation (no text or symbols)

Hinweise und Tipps

Allgemeines

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Besteckablage

2 6 6 3

Besteckkorb

HINEIN 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a tool inside a container with an arrow indicating rotation (no text or symbols)

Illustration of hands cleaning a kitchen sink with a tool, no text or symbols present

Illustration of a hand using a tool to clean or wash a small container, with an inset showing the same step (no text or symbols present)

Mechanical lever assembly diagram showing handle and gear mechanism (no text or labels)

Illustration of a hand using a tool to lift a water bottle into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Safety warning symbols including warning triangle, lightning bolt, and pipe fitting with corresponding illustrations

⚠ AVERTISSEMENT ! Tension dangereuse.

Line drawing of a handbag with handle and internal structure (no text or symbols)

Technical diagram of a structural framework with labeled components and directional arrows indicating flow or movement.

Wire mesh basket diagram with labeled component '11' (no text or symbols on the diagram itself)

Hand holding a touchscreen button with floral symbol (no text or labels)

Line drawing of a device with an open lid and a circular inset showing a magnified view of a component (no text or symbols)

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a rotary switch with a button and indicator lights (no text or symbols visible)

Hand operating a digital camera with a rotary knob (no text or symbols visible)

Hand holding a rotary switch with a small device icon, no text or symbols present

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a circular arrow indicating rotation (no text or symbols)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical cart with wheels and a directional arrow (no text or symbols)

Diagram showing a structural frame with grid patterns before and after rotation, no text or symbols present

Two wire mesh plastic crates showing internal structure before and after modification (no text or symbols)

Conseils et astuces

Généralités

Technical line drawing of a mechanical component with multiple circular features and a central threaded feature (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Porte-couverts

2 6 6 3

Panier à couverts

VERS L'INTÉRIEUR 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing hands holding a device labeled A and B, likely illustrating a mechanical or electrical component assembly.

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical diagram of a mechanical lever mechanism with an inset showing a close-up of the component (no text or symbols present)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray the surface on a kitchen sink (no text or symbols)

Safety warning symbols and three mechanical diagrams: warning triangle, lightning bolt, and valve with plug.

⚠ AVVERTENZA! Tensione pericolosa.

Three technical line drawings of a shopping basket with labeled parts (no text or symbols on the diagrams themselves)

Hand holding a camera control panel with a flower icon and triangular buttons (no text or symbols)

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a rotary switch with a button, no text or symbols visible

Hand operating a digital camera switch with buttons and display (no text or symbols visible)

Hand placing a rotary knob on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component on the base (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Diagram of a car with wheels and an arrow indicating motion, no text or symbols present

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Two wire mesh models of a multi-layered container or rack structure, showing structural changes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Technical line drawing of a mechanical component with multiple spring-like components and a central fan-like structure (no text or symbols)

Ripiano per posate

2 6 6 3

Cestello per posate

IN 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a tool inside a container with a rotating button and upward arrow (no text or symbols)

Illustration of hands cleaning a kitchen sink with a tool, no text or symbols present

Illustration of a hand using a tool to clean or wash a small container, with no text or symbols present.

Technical line drawing of a mechanical lever mechanism with an inset close-up showing a component detail (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Illustration of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Safety warning symbols and corresponding icons: triangular warning triangle, lightning bolt, and plug device with warning symbol.

⚠ ADVARSEL! Farlig spænding.

Line drawing of a handbag with handle and internal structure (no text or symbols)

Technical diagram of a structural framework with labeled components and directional arrows indicating flow or movement.

3D wireframe model of a multi-tiered basket structure with no visible text or symbols

Hand holding a camera button with a flower icon and triangular buttons (no text or symbols)

Line drawing of a refrigerator with an open door and a circular inset showing a lid (no text or symbols)

Find beholderen til salt i bunden.

2

Illustration of a hand pressing down on a gear-shaped component with an arrow indicating press direction (no text or symbols)

Fjern låget til beholderen til salt.

3

SALT

Simple line drawing of a hand pouring liquid into a container (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a camera control panel with a rotary knob (no text or symbols visible)

Hand operating a digital camera switch with buttons and display (no text or symbols visible)

Hand placing a rotary knob on a device panel (no text or symbols visible)

Line drawing of a box with an open lid and circular inset showing a small object (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

2 Fjern overkurven.

Line drawing of a mechanical cart with wheels and an arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Indstillelig underkurv

Stavindsatserne i underkurven kan klappes ned for at give plads til større service.

Klap stavindsatserne i underkurven ned ved at skubbe dem.

Two wire mesh plastic crates showing internal structure before and after modification (no text or symbols)

Råd og tip

Generelt

Technical line drawing of a mechanical component with multiple circular features and internal components (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Bestikhylde

2 6 6 3

Bestikkurv

IND 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a tool inside a container with arrows indicating rotation or movement (no text or symbols)

Diagram showing hands holding a device labeled A and B, likely illustrating a mechanical or electrical component assembly.

Line drawing of hands using a tool to clean or repair a surface, no text or symbols present

Illustration of a hand using a tool to clean or wash a small container, with no text or symbols present.

Mechanical component diagram showing a lever mechanism and a close-up inset of the lever mechanism (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray the surface on a kitchen sink (no text or symbols)

Safety warning symbols and three labeled illustrations: triangular warning triangle, falling black lightning bolt, and two pipe fittings with different shapes.

⚠ ADVARSEL! Farlig spenning.

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

3D wireframe model of a multi-tiered basket structure with no visible text or symbols

1 Innvendig rør
2 Saltbeholder
3 Oppvaskmiddeldispenser
4 Nedre sprayarm
5 Filterenhet
6 Skyllemiddeldispenser

7 Bestikkurv
8 Bestikkstativ (øvre kurv)
9 ∅vre sprayarm
10 Koppestativ (øvre kurv)
11 Nedre kurv

Kontrollpanel

1 På/av-knapp
2 Advarselsindikatorer
3 Programknapp
4 Programindikatorer
5 Forsinkelsestid
6 Indikator for barnelås

7 Forsinkelsesknapp
8 Barnelås-knapp
9 Indikator for halvfull
10 Indikator for ekstra tørking
11 Halvfull-knapp
12 Ekstra tørking-knapp
13 Start/pause-knapp

Indikatorer Beskrivelse
	Skyllehjelpindikator. Den lyser alltid når skyllemiddelbeholderen trenger påfyll.
	Saltindikator. Den lyser alltid når saltbeholderen trenger påfyll.
	Indikator for forsinket start. Den lyser hvis du har stilt inn en forsinket start.
	Barnelåsindikator. Den lyser hvis barnesikringsfunksjonen er aktivert.
	Indikator for halvfull. Den lyser når du har valgt funksjonen for halvfull.
	Ekstra tørkeindikator. Den lyser hvis du har valgt funksjonen Ekstra tørking.

Programmer

Hand holding a camera button with a flower symbol and triangular buttons (no text or labels)

Aktivere/deaktivere tastelyden

Hold knappene √ag inne i 3 sekunder for å aktivere eller deaktivere tastelyden.

Før første bruk

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Finn saltbeholderen nederst.
2

Illustration of a hand pressing down on a gear-shaped component with an arrow indicating press direction (no text or symbols)

Illustration of a hand pouring liquid from a container into a pot (no text or symbols)

Line drawing of an open refrigerator with a circular button on the base (no text or symbols)

Finn skyllemiddeldispenseren på innsiden av døren.

2

Hand holding a rotary switch with a device panel and indicator lights (no text or symbols visible)

Hand holding a rotary switch with a small device on the left (no text or symbols visible)

Fyll skyllemiddelbeholderen med skyllemiddel. Ikke overfyll.

4

Hand holding a rotary switch button on a device panel (no text or symbols visible)

Line drawing of a refrigerator with an open lid and base tray (no text or symbols)

Illustration of a hand pressing down on a control panel with an arrow indicating rotation (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural transformation of a grid-like structure with an arrow indicating direction (no text or symbols present)

Justerbar nedre kurv

Two wire mesh models of a multi-tiered container or rack structure, showing structural changes (no text or symbols)

Hint og tips

Generelt

Technical line drawing of a mechanical housing or enclosure with circular components and internal features (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Bestikkstativ

2 6 6 3

Bestikkurv

INN ← 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a tool inside a container with an arrow indicating rotation (no text or symbols)

Illustration of hands using a tool to clean or spray liquid from a sink (no text or symbols)

Illustration of a hand using a tool to clean or wash a small container, with no text or symbols present.

Diagram of a mechanical device with a close-up inset showing a component detail (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Illustration of hands using a tool to spray or spray onto a surface, no text or symbols present

Artikkelnummer XXXXXXXXX (8-sifret kode) XXXXXXXXX 23328 IKEA Design and Quality IEFA of Sweden Serial No.:XXXXXXXXX Serienummer (8-sifret kode)

Bildet er kun for referanse

Lenke til EUs EPREL-database

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug device

⚠️ VAROITUS! Vaarallinen jännite.

Line drawing of a handbag with handle and internal structure (no text or symbols)

Technical diagram of a structural framework with labeled components and directional arrows indicating flow or movement.

Wire mesh basket diagram with labeled component '11' (no text or symbols on the diagram itself)

Hand holding a camera button with a flower symbol and triangular buttons (no text or labels)

Line drawing of a device with an open lid and a magnified inset showing internal components (no text or symbols)

2

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a rotary switch on a device panel (no text or symbols visible)

Hand operating a digital camera switch with buttons and display (no text or symbols visible)

Hand holding a rotary switch button on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a circular dial and star symbol (no text or labels)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

2 Poista yläkori.

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Säädettävä alakori

Two wire mesh plastic crates showing internal structure before and after assembly (no text or symbols)

Vinkkejä

Yleistä

Technical line drawing of a mechanical component with multiple circular holes and a central threaded feature (no text or symbols)

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

Illustration of a hand holding a tool inside a container with a rotating button and upward arrow (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical diagram of a mechanical component with an inset showing a close-up view of a component (no text or symbols present)

Illustration of a hand pouring liquid into a small container with a valve (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Safety warning symbols and component illustrations: triangular warning triangle, lightning bolt, and pipe fitting with a valve.

⚠ WARNING! Farlig spänning.

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Wire mesh basket diagram with labeled component '11' (no text or symbols on the diagram itself)

Hand holding a touchscreen switch with a flower icon (no text or symbols)

Aktivera/inaktivera knappljud

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Simple line drawing of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Hand holding a rotary switch on a device panel (no text or symbols visible)

Hand operating a digital camera switch with a circular dial indicator (no text or symbols visible)

Hand holding a rotary switch button on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component on a base (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Justerbar nedre korg

Two wire mesh metal crates showing structural changes, one before and after assembly (no text or symbols)

Råd och tips

Allmänt

Technical line drawing of a mechanical assembly with multiple circular components and a central cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with internal channels and housing (no text or symbols)

Bestickställ

2 6 6 3

Bestickkorg

IN 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a tool interacting with a mechanical component, showing rotational motion (no text or symbols)

Illustration of hands using a tool to clean or spray liquid from a kitchen sink (no text or symbols)

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a component detail (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid onto a kitchen sink (no text or symbols)

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and pipe fitting with labels

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

3D wireframe model of a multi-tiered basket structure with no visible text or symbols

Hand holding a camera control panel with a flower icon and triangular buttons (no text or symbols)

Ativar/desativar o som das teclas

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Identifique o recipiente de sal na parte inferior.

2

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Remova a tampa do recipiente de sal.

3

SAL

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Identifique o dispensador de abrilhantador no interior da porta.

2

Hand holding a rotary switch with a button, no text or symbols visible

Hand holding a rotary switch with a small device icon (no text or symbols visible)

Hand holding a rotary switch on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Identifique o dispensador de detergente no interior da porta.

2

Premir

Prima a lingueta de abertura do dispensador de detergente para abrir a tampa.

Illustration of a hand pressing down on a control panel with an arrow indicating rotation (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

2 Remova o cesto superior.

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Two wire mesh models of a multi-ring basket, one showing internal structure change (no text or symbols)

Dicas e sugestões

Informações gerais

Technical line drawing of a mechanical assembly with circular components and internal structure (no text or symbols)

Technical line drawing of a mechanical or electrical component with multiple coiled spring-like structures and internal channels (no text or symbols)

Suporte de talheres

2 6 6 3

Cesto de talheres

ENT.

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Cuidados e limpeza

Illustration of a hand holding a tool inside a container with an arrow indicating rotation (no text or symbols)

Illustration of hands cleaning a kitchen sink with a tool, no text or symbols present

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a close-up view of a circular detail (no text or symbols)

Illustration of a hand using a tool to lift a water tap into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with grid-like components and directional arrows, no visible text or symbols

Wire mesh basket diagram with labeled component '11' (no text or symbols on the diagram itself)

1 Tubo interior
2 Recipiente de sal
3 Dispensador de detergente
4 Brazo rociador inferior
5 Sistema de filtro
6 Dispensador de enjuague

Nivel del descalcificador de agua	Indicador LED(○ indicador encendido;● : indicador apagado)
	[4370]
H1	(Gevel)	(Gevel)	(Gevel)
H2	(Gevel)	(Gevel)	(Gevel)
H3	(Gevel)	(Gevel)	(Gevel)
H4	(Gevel)	(Gevel)	(Gevel)
H5	(Gevel)	(Gevel)	(Gevel)
H6	(Gevel)	(Gevel)	(Gevel)

Hand pressing a button on a device control panel (no text or symbols visible)

Line drawing of a device with an open lid and a circular inset showing a screen (no text or symbols)

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Retire la tapa del recipiente de sal.

3

SAL

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a rotary switch with a small icon, no text or symbols present

Hand holding a rotary switch with a device icon (no text or symbols visible)

Hand holding a rotary switch button on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

2 Retire la cesta superior.

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural steel frame being reformed, with no text or symbols present.

Two wire mesh plastic crates showing internal structure before and after modification (no text or symbols)

Technical line drawing of a mechanical assembly with multiple circular components and a central cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component, showing rotational motion (no text or symbols)

Illustration of hands cleaning a kitchen sink with a tool, no text or symbols present

Diagram showing a hand using a tool to clean a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical line drawing of a mechanical lever mechanism with an inset close-up showing the component (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical component into a basin (no text or symbols)

Line drawing of hands using a spray gun to clean a small airplane on a kitchen sink (no text or symbols)

Safety warning symbols including warning triangle, lightning bolt, and pipe fittings with corresponding illustrations

Three technical line drawings of a mechanical device with labeled components (no text or symbols present)

Hand holding a camera button with a flower symbol and triangular buttons (no text or labels)

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Illustration of a hand pouring liquid from a container into a pot (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Hand holding a rotary switch on a device panel (no text or symbols visible)

Hand holding a rotary switch with a small device inside, no text or symbols visible

Hand holding a rotary switch on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside and an open lid (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Diagram showing a structural transformation of a grid-like structure into a multi-layered framework (no text or symbols)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Two wire mesh plastic crates showing internal structure before and after transformation (no text or symbols)

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing hands holding a device with labeled parts A and B

Illustration of hands cleaning a kitchen sink with a tool, no text or symbols present

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical diagram of a mechanical component with an inset showing a close-up view of a gear assembly (no text or symbols present)

Illustration of a hand using a tool to lift a water bottle into a sink (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid onto a surface (no text or symbols)

Safety warning symbols including warning triangle, lightning bolt, and pipe fitting with corresponding illustrations

⚠ WAARSCHUWING! Risico op letsel of verstikking.

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with grid-like components and directional arrows, no visible text or symbols

Technical line drawing of a multi-tiered mechanical cage or rack structure (no text or symbols)

Hand pressing a button on a digital camera interface (no text or symbols visible)

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a stack of plates (no text or symbols)

Line drawing of an open refrigerator with a circular button on the base (no text or symbols)

Hand holding a rotary switch with a device panel and indicator lights (no text or symbols visible)

Hand holding a rotary switch with a small device and starburst symbol (no text or labels)

Hand inserting a rotary switch into a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Two wire mesh diagrams showing structural changes before and after transformation (no text or symbols)

Wenken en tips

Algemeen

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Illustration of a hand holding a tool inside a container with a rotating button and upward arrow (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Illustration of a hand using a tool to lift a small container in a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

⚠ WAARSCHUWING! Onjuist

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug components

Line drawing of a handbag with handle and internal structure (no text or symbols)

Technical diagram of a structural framework with labeled components and directional arrows indicating flow or movement.

Technical line drawing of a multi-tiered mechanical cage or rack structure (no text or symbols)

Hand holding a camera control panel with a flower icon and triangular buttons (no text or symbols)

Aktivace/deaktivace zvuku tlačítek

Line drawing of a mechanical device with a circular inset showing a component (no text or symbols)

Illustration of a hand pressing down on a gear and then pressing into a bowl (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a rotary switch with a device panel and indicator lights (no text or symbols visible)

Hand holding a rotary switch with a small device inside (no text or symbols visible)

Hand holding a rotary switch button on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Two wire mesh models of a multi-ring basket, one showing internal structure change (no text or symbols)

Rady a tipy

Obecné

Technical line drawing of a mechanical housing or enclosure with multiple circular components and internal features (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical and ribbed parts (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component, showing motion arrows (no text or symbols)

Illustration of hands using a tool to clean or spray liquid from a sink (no text or symbols)

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical diagram of a mechanical component with an inset showing a close-up view of a gear assembly (no text or symbols present)

Illustration of a hand using a tool to lift a small bowl into a sink (no text or symbols)

Line drawing of hands using a tool to clean or spray the surface on a kitchen sink (no text or symbols)

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Technical line drawing of a multi-tiered mechanical cage or rack structure (no text or symbols)

Hand holding a camera control panel with a flower icon and triangular buttons (no text or symbols)

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a pot (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a rotary switch with a button and indicator lights (no text or symbols visible)

Hand holding a rotary switch with a small device icon (no text or symbols visible)

Hand holding a rotary switch on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a circular dial and fan (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Two wire mesh models of a multi-ring basket, one showing internal structure change (no text or symbols)

Wskazówki i porady

Informacje ogólne

Technical line drawing of a mechanical housing or enclosure with multiple circular components and internal structural elements (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical and ribbed parts (no text or symbols)

Wspornik na sztućce

2 6 6 3

Kosz na sztućce

Do wewnątrz 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 1 4 1 4 1 4 1 4 1

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a tool inside a container with a rotating knob and directional arrows (no text or symbols)

Diagram showing hands holding a device labeled A and B, likely illustrating a mechanical or electrical component assembly.

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Illustration of a hand using a tool to adjust a small container, with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a mechanical lever mechanism with an inset close-up showing a rotating component (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Illustration of hands using a tool to clean or spray liquid onto a kitchen sink (no text or symbols)

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Technical line drawing of a multi-tiered mechanical basket or cage structure (no text or symbols)

Hand pressing a button on a digital camera interface (no text or symbols visible)

Line drawing of a device with a circular inset showing a magnified view of a device (no text or symbols)

Illustration of a hand pressing down on a circular component with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a pot (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Hand holding a rotary switch with a device panel and indicator lights (no text or symbols visible)

Hand holding a camera control panel with buttons and a starburst icon (no text or symbols)

Hand holding a rotary switch with a small icon, no text or symbols present

Line drawing of a mechanical device with a circular component on its side (no text or symbols)

Hand pressing a button on a device control panel (no text or symbols visible)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural assembly before and after rotation, with no visible text or symbols

Two wire mesh models of a multi-layered container or rack structure, showing structural changes (no text or symbols)

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Illustration of a hand holding a tool interacting with a circular object inside a container, with an upward arrow indicating rotation (no text or symbols)

Illustration of hands cleaning a dashboard with a tool, no text or symbols present

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a component detail (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray the surface on a kitchen sink (no text or symbols)

Safety warning symbols including warning triangle, lightning bolt, and pipe fitting with corresponding illustrations

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

3D wireframe model of a multi-tiered basket structure with no visible text or symbols

1 Vnútorné potrubie
2 Nádoba na sol'
3 Dávkovač čistiaceho prostriedku
4 Dolné ostrekovacie rameno
5 Zostava filtra
6 Dávkovač leštidla

Hand pressing a button on a device control panel (no text or symbols visible)

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Odstráňte uzáver nádoby na sol.

3

SOL

Do nádoby na sol dajte 1,5 kg soli do umývačky riadu.

4

Illustration of a hand pouring liquid from a container into a stack of plates (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Hand holding a rotary switch on a device panel (no text or symbols visible)

Hand holding a camera control panel with buttons and a star symbol (no text or labels)

Hand holding a rotary switch with a device icon, no text or symbols present

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a circular dial and directional arrow (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Two wire mesh models of a multi-layered container or rack structure, showing structural deformation (no text or symbols)

Rady a tipy

Všeobecné

Technical line drawing of a mechanical housing or enclosure with circular components and internal features (no text or symbols)

Technical line drawing of a mechanical component with multiple spring-like components and a central circular component (no text or symbols)

Regál na príbor

2 6 6 3

Kôš na príbor

VSTUP ← 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 4 1 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Starostlivost' a čistenie

Illustration of a hand holding a tool inside a container with a rotating button and upward arrow (no text or symbols)

1. Pevne uchopte B, potom palcami zatlačte na hornú čast' najširšej tyče a vytiahnite A.

C B A Stlačit' hornú čast' najširšej lišty so značkou materiálu

Line drawing of hands cleaning a dashboard with a tool, no text or symbols present

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical diagram of a mechanical component with an inset showing a close-up view of a component (no text or symbols present)

1. Ak chcete odpojit dolné ostrekovacie rameno od dolnej časti spotrebiča, jednoducho ho potiahnite nahor.

Illustration of a hand using a tool to lift a small cylindrical component into a basin (no text or symbols)

Illustration of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug components

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Wire mesh basket diagram with labeled component '11' (no text or symbols on the diagram itself)

Hand holding a camera button with a flower symbol and triangular buttons (no text or labels)

Line drawing of a device with an open lid and a magnified inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Nuimkite druskos talpyklos dangtelj.

3

DRUSKA

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Pripildykite druskos talpykla vandeniu iki maksimalaus lygio.

5

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand-drawn diagram of a device control panel with a hand pressing the button, showing airflow direction and control buttons.

Hand holding a rotary switch with a small device icon, no text or symbols present

Hand placing a rotary knob on a device panel (no text or symbols visible)

Line drawing of a box with an open lid and a circular inset showing a small object (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a car interior with wheels and a directional arrow (no text or symbols)

Diagram showing two stages of a structural rebar assembly with arrows indicating direction (no text or symbols)

Two wire mesh plastic crates showing internal structure before and after modification (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with multiple circular components and a central cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Jrankių lentynėlė

2 6 6 3

Irankių krepšys

IN 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a tool interacting with a mechanical component, showing rotational motion (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical diagram of a mechanical component with an inset showing a close-up view of a gear assembly (no text or symbols present)

Illustration of a hand using a tool to lift a cup into a sink (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Safety warning symbols and diagram showing warning triangle, lightning bolt, and valve components

⚠ BRĪDINĀJUMS! Bīstams spriegums.

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Wire mesh basket diagram with labeled component '11' (no text or symbols on the diagram itself)

Hand pressing a button on a digital camera interface (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Diagram showing two stages of a structural rebar assembly with rotation arrows (no text or labels)

Two wire mesh plastic crates showing internal structure before and after modification (no text or symbols)

leteikumi un padomi

Vispārīgi

Illustration of a hand holding a tool inside a container with arrows indicating rotation or movement (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid from a sink (no text or symbols)

Diagram showing a hand using a tool to clean or wash a small container, with arrows indicating process flow (no text or symbols present)

Technical diagram of a mechanical component with an inset showing a close-up view of a component (no text or symbols present)

Illustration of a hand using a tool to lift a water level from a sink (no text or symbols)

Line drawing of hands using a tool to clean or spray water on a kitchen sink (no text or symbols)

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Technical line drawing of a multi-tiered basket structure with no visible text or symbols

Hand holding a button with floral symbol, no text or labels present

Line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a gear-shaped component with an arrow indicating press direction (no text or symbols)

Line drawing of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a box with an open lid and a circular button on the base (no text or symbols)

Hand holding a rotary switch on a device panel (no text or symbols visible)

Hand holding a rotary switch with a small device icon, no text or symbols present

Hand holding a rotary switch with a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a tray and lid, no text or symbols present

Hand pressing a button on a control panel with a star and directional arrow (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating motion (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Two wire mesh plastic crates showing internal structure changes, one before and one after (no text or symbols)

Підказки та поради

Загальні поради

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Illustration of a hand holding a tool inside a container with a rotating knob and upward arrow (no text or symbols)

Illustration of hands cleaning a dashboard with a tool, no text or symbols present

Illustration of a hand using a tool to clean or wash a small container, with no text or symbols present.

Mechanical assembly diagram showing a lever mechanism and a close-up of a component detail (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical component into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Safety warning symbols and three labeled diagrams: triangular warning triangle, falling lightning bolt, and valve with handle.

⚠ HOIATUS! Ohtlik pinge.

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Technical line drawing of a multi-tiered mechanical device with no visible text or symbols

Veepehmendi tase	LED-näidik( Ⓞnäidik on väljas; ● : näidik on sees)
	[STX]	[STXC]	[SSXA]
H1	[STX]	[STX]	[STX]
H2	[STX]	[STX]	[STX]
H3	[STX]	[STX]	[STX]
H4	[STX]	[STX]	[STX]
H5	[STX]	[STX]	[STX]
H6	[STX]	[STX]	[STX]

Hand holding a finger pressing a button on a device control panel (no text or symbols visible)

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Eemaldage soolakonteineri kork.

3

SOOL

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Hand holding a rotary switch with a button, no text or symbols visible

Hand operating a digital camera with a rotary knob (no text or symbols visible)

Hand holding a rotary switch with a small device icon, no text or symbols present

Line drawing of a refrigerator with an open lid and base tray (no text or symbols)

Illustration of a hand pressing down on a control panel with an arrow indicating rotation (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Diagram showing two stages of a structural rebar assembly with arrows indicating direction (no text or symbols)

Two wire mesh plastic crates showing internal structure before and after modification (no text or symbols)

Technical line drawing of a mechanical assembly with circular components and a central component (no text or symbols)

Technical line drawing of a mechanical component with internal spring-like structures and housing (no text or symbols)

Söögiriistade rest

2 6 6 3

Söögiriistade korv

SISSE ← 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a tool interacting with a mechanical component, showing rotational motion (no text or symbols)

Illustration of hands holding a small electronic component labeled A and B (no text or symbols beyond labels)

Illustration of hands cleaning a dashboard with a tool, no text or symbols present

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical line drawing of a mechanical lever mechanism with an inset close-up showing the component (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Illustration of hands using a spray gun to clean or spray the surface of an airplane on a kitchen sink (no text or symbols)

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug device

⚠ UPOZORENJE! Opasan napon.

- Ako je oštećeno crijevo za dovod vode, odmah zatvorite slavinu za vodu i odvojite utikač iz utičnice. Za zamjenu crijeva za dovod vode obratite se ovlaštenom servisnom centru.

Uporaba

⚠ UPOZORENJE! Rizik od ozljeda, opeklina, električnog udara ili požara.

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Wire mesh basket diagram with labeled component '11' (no text or symbols on the diagram itself)

1 Unutarnja cijev
2 Spremnik za sol
3 Dozator deterdženta
4 Donja ručica za prskanje
5 Sklop filtra
6 Dozator sredstva za ispiranje

7 Košara za pribor za jelo
8 Stalak za pribor za jelo (Gornja košara)
9 Gornja ručica za prskanje
10 Stalak za šalice (Gornja košara)
11 Donja košara

Upravljačka ploča

1 Gumb za uključivanje/isključivanje
2 Indikatori upozorenja
3 Gumb programa
4 Indikatori programa
5 Vrijeme odgode
6 Indikator dječje bravice

7 Gumb za odgodu
8 Gumb dječje bravice
9 Gumb s polovičnim opterećenjem
10 Indikator dodatnog sušenja
11 Gumb s polovičnim opterećenjem
12 Gumb za dodatno sušenje
13 Gumb za početak/pauzu

Indikatori Opis
	Indikator sredstva za ispiranje. Uvijek je uključen dok je potrebno dopuniti spremnik sredstva za ispiranje.
	Indikator soli. Uvijek je uključen kada treba napuniti spremnik soli.
	Indikator odgode početka. Uključen je dok postoji postavka odgode početka.
	Indikator dječje bravice. Uključeno je kada je aktivirana funkcija dječje bravice.
	Gumb s polovičnim opterećenjem. Uključeno je kada je odabrana funkcija polovičnog opterećenja.
	Indikator dodatnog sušenja. Uključeno je kada je odabrana funkcija dodatnog sušenja.

Programi

Program	Stupanj onečišćenja / Vrsta opterećenja	Faze programa Opcije
(Intenzivno)	Teško zaprljanjePosuđe, pribor za jelo, lonci i tave	PretpranjePranje (60 °C)IspiranjeIspiranje (65 - 72 °CSušenje	Odgođeni početakPolovično opterećenjeDodatno sušenje
	Normalno zaprljanjePosuđe i pribor za jelo i tave	PretpranjePranje (45 °C)Ispiranje (60 °CSušenje	Odgođeni početakPolovično opterećenjeDodatno sušenje
(1)	Blago zaprljanjeČaše	PretpranjePranje (45 °C)IspiranjeIspiranje (55 - 60 °CSušenje	Odgođeni početakPolovično opterećenjeDodatno sušenje
	Normalno zaprljanje	Pranje (55 °C)IspiranjeIspiranje (60-65 °CSušenje	Odgođeni početakPolovično opterećenjeDodatno sušenje
	Blago zaprljanjePosuđe i pribor za jelo	Pranje (45 °C)IspiranjeIspiranje (45 °C)	Odgođeni početak

1) U ovom programu imate najučinkovitiju potrošnju vode i energije za posuđe i pribor za jelo s normalnim zaprljanjem. (Ovo je standardni program za ispitne institute).

Razina omekšivača vode	LED indikator (○ indikator isključen; ●: indikator uključen)
	[2Y90]
H1	[total]	[wood]	[overall]
H2	[overall]	[overall]	[overall]
H3	[overall]	[overall]	[overall]
H4	[overall]	[overall]	[overall]
H5	[overall]	[overall]	[overall]
H6	[overall]	[overall]	[overall]

Hand holding a button with floral symbol and triangular buttons, no text or labels present

Aktiviranje/deaktiviranje zvuka tipke

Pritisnite i držite 12 tipke na 3 sekunde za aktiviranje ili deaktiviranje zvuka tipki.

Prije prve uporabe

1. Provjerite slaže li se trenutna razina omekšivača vode s tvrdoćom dovoda vode. Ako ne, podesite razinu omekšivača vode.

2. Napunite spremnik soli.

3. Napunite spremnik sredstva za ispiranje.
4. Otvorite slavinu za vodu.
5. Pokrenite program za uklanjanje ostataka obrade koji još uvijek mogu biti unutar uređaja. Ne koristite deterdžent i ne punite košare.

Nakon pokretanja programa, može trebati i do 5 minuta da uređaj ponovno napuni smolu u omekšivaču vode. Čini se da uređaj ne radi. Faza pranja započinje tek nakon završetka ovog postupka. Postupak se povremeno ponavlja.

Spremnik za sol

Line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Pronadite spremnik za sol na dnu.

2

Illustration of a hand pressing down on a gear-shaped component with an arrow indicating press direction (no text or symbols)

Uklonite poklopac spremnika za sol.

3

SOL

Stavite 1,5 kg soli za perilicu posuđa u spremnik za sol.

4

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Napunite spremnik za sol vodom do maksimalne razine.

5

Čvrsto zatvorite čep spremnika za sol.

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a camera control panel with a rotary knob (no text or symbols visible)

Hand holding a rotary switch with a small device on the left (no text or symbols visible)

Napunite spremnik za sredstvo za ispiranje sredstvom za ispiranje. Pazite da ne prekoračite maksimalnu razinu.

4

Hand holding a rotary switch button on a device panel (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside and an open casing (no text or symbols)

Pronadite dozator deterdženta na unutrašnjoj strani vrata.

2

Pritisnite

Pritisnite zasun za otpuštanje na spremniku deterdženta kako biste otvorili poklopac.

3

A B

Illustration of a hand pressing down on a control panel with an arrow indicating rotation (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

2 Uklonite gornju košaru.

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Diagram showing a structural steel frame being reformed from an angle, with no text or symbols present.

Podesiva donja košara

Two wire mesh plastic crates showing internal structure before and after modification (no text or symbols)

Naputci i savjeti

Općenito

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Stalak za pribor za jelo

2 6 6 3

Košara za pribor za jelo

UNUTRA ← 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a tool interacting with a mechanical component, showing rotational motion (no text or symbols)

1. Čvrsto uhvatite B, a zatim palcima pritisnite vrh najšire šipke i izvucite A.

C B A Pritisnite vrh najšire šipke s oznakom materijala

Line drawing of hands cleaning a kitchen sink with a tool, no text or symbols present

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Čišćenje ručica za prskanje

Technical diagram of a mechanical component with an inset showing a close-up view of a rotating component (no text or symbols present)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

1. Isperite gornju i donju ručicu za prskanje pod tekućom vodom. Upotrijebite tanki šiljati alat (npr. čačkalicu) za uklanjanje čestica prljavštine iz rupa ručica za prskanje.

Illustration of hands using a tool to clean or spray liquid onto a kitchen sink (no text or symbols)

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug components

⚠ UPOZORENJE! Opasan napon.

- Ako se crevo za dovod vode ošteti, odmah zavrnite slavinu i odvojte utikač iz napajanja. Obratite se ovlašćenom servisnom centru radi popravke creva za dovod vode.

Upotreba

⚠ UPOZORENJE! Opasnost od povrede, opekotina, strujnog udara ili požara.

⚠ UPOZORENJE! Ne koristite uređaj pre nego što ga ugradite na predviđeno mesto ugradnje. Uređaj se mora isključiti iz napajanja pre bilo kakvog rada na postavljanju jer postoji rizik od strujnog udara.

- Ne sedite i ne stojte na otvorenim vratima.

Line drawing of a handbag with handle and internal structure (no text or symbols)

Technical diagram of a structural framework with labeled components and directional arrows indicating flow or movement.

Technical line drawing of a multi-tiered mechanical cage or rack structure (no text or symbols)

1 Unutrašnja cev
2 Komora za so
3 Dozator deterdženta
4 Donji krak za raspršivanje
5 Sklop filtera
6 Dozator sredstva za ispiranje

7 Korpa za pribor
8 Polica za pribor (gornja korpa)
9 Gornji krak za raspršivanje
10 Polica za čaše (gornja korpa)
11 Donja korpa

Komandna tabla

1 Dugme za uključivanje/isključivanje
2 Indikatori upozorenja
3 Dugme za program
4 Indikatori programa
5 Odlaganje
6 Indikator zaštite za decu

7 Dugme za odlaganje
8 Dugme za zaštitu za decu
9 Indikator polupune mašine
10 Indikator dodatnog sušenja
11 Dugme za polupunu mašinu
12 Dugme za dodatno sušenje
13 Dugme Start/Pauza

Hand pressing a button on a digital camera interface (no text or symbols visible)

Aktiviranje/deaktiviranje zvuka tastera

Pritisnite i držite dugmad 12 3 Sekunde da biste aktivirali ili deaktivirali zvuk tastera.

Pre prve upotrebe

1. Uverite se da trenutni nivo omekšivača vode odgovara tvrdoći korišćene vode. U suprotnom, podesite nivo omekšivača vode.

2. Napunite komoru za so.

3. Napunite dozator sredstva za ispiranje.
4. Otvorite slavinu.
5. Pokrenite program da biste uklonili sve ostatke koje su posle ovoga možda ostali u uređaju. Ne koristite deterdžent i ne punite korpe.

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a gear-shaped component with an arrow indicating press direction (no text or symbols)

Skinite poklopac komore za so.

3

SO

Sipajte 1,5 kg soli za mašinu za sudove u komoru za so.

4

Illustration of a hand pouring liquid from a container into a pot (no text or symbols)

Napunite komoru za so vodom do maksimalnog nivoa.

5

Dobro pričvrstite poklopac komore za so.

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Hand holding a rotary switch with a device icon and control knob (no text or symbols)

Uklonite poklopac rezervoara sredstva za ispiranje okretanjem u smeru suprotnom od kazaljke na satu.

3

Hand inserting a button into a device (no text or symbols visible)

Hand inserting a rotary switch into a device panel (no text or symbols visible)

Zatvorite poklopac rezervoara sredstva za ispiranje okretanjem u smeru kazaljke na satu.

Svakodnevna upotreba

1. Otvorite slavinu.
2. Pritisnite dugme za uključivanje/isključivanje da biste uključili uređaj.
3. Ako indikator soli svetli, napunite komoru za so.
4. Ako je uključen indikator sredstva za ispiranje, napunite dozator.

5. Okrenite krak za raspršivanje da vidite da li se slobodno okreće.

6. Napunite korpu i dodajte deterdžent.

7. Podesite i pokrenite odgovarajući program za tip napunjenosti i zaprljanost.

Line drawing of a box with an open lid and a circular inset showing a small object (no text or symbols)

Pronadite dozator deterdženta na unutrašnjoj strani vrata.

2

Pritisnite

Pritisnite rezu za otpuštanje na dozatoru deterdženta da biste otvorili poklopac.

3

A B

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Zatvorite poklopac i pritisnite ga dok se ne zaključa u mestu.

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

2 Izvadite gornju korpu.

Line drawing of a shopping cart with wheels and an arrow indicating motion (no text or symbols)

3 Postavite gornju korpu na gornje ili donje točkiće.

Diagram showing a structural frame with circular elements and an arrow indicating rotation (no text or symbols)

Podesiva donja korpa

Šiljci u donjoj korpi mogu da se rasklope i sklope, da bi se omogućilo smeštanje velikih sudova.

Gurnite šiljke donje korpe nadole da biste ih sklopili.

Two wire mesh plastic crates showing internal structure before and after assembly (no text or symbols)

Saveti

Opšte

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Polica za pribor

2 6 6 3

Korpa za pribor

IN 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Illustration of a hand holding a mechanical component with directional arrows indicating rotation (no text or symbols)

1. Čvrsto uhvatite B, a zatim palčevima pritisnite vrh najšire šipke i izvucite A.

C B A Pritisnite vrh najšire šipke sa oznakom materijala

1. Isperite filter pod tekućom vodom da biste uklonili veće ostatke hrane. Za temeljnije čišćenje koristite meku četku za čišćenje.

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

1. Ponovo sastavite filtere redosledom obrnutim od rastavljanja, vratite umetak filtera i okrenite ga u smeru kazaljke sata do strelice za zatvaranje.

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Technical diagram of a mechanical lever mechanism with an inset showing a close-up of the component (no text or symbols present)

1. Da biste odvojili donji krak za raspršivanje sa uređaja, samo ga povucite nagore.

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

1. Vratite krakove za raspršivanje na njihovo mesto posle čišćenja.

Da biste pričvrstili gornji krak za raspršivanje za gornju korpu, poravnajte njegov centralni deo sa navrtkom i okrenite ga u smeru kazaljki sata da biste ga pričvrstili.

Da biste pričvrstili donji krak za raspršivanje za dno uređaja, umetnite ga na njegovo mesto.

Čišćenje spoljašnosti

• Uređaj čistite vlažnom mekom krpom.
• Koristite isključivo neutralni deterdžent.
• Ne koristite abrazivne proizvode, abrazivne jastučiće za čišćenje ili rastvarače.

Čišćenje unutrašnjosti

• Pažljivo očistite uređaj, uključujući gumenu zaptivku na vratima, vlažnom mekom krpom.
• Da bi se radne karakteristike uređaja očuvale, koristite namenski proizvod za čišćenje mašina za sudove barem jednom mesečno. Pažljivo sledite uputstva na pakovanju proizvoda.
• Ne koristite abrazivne proizvode, abrazivne jastučiće za čišćenje, jake hemikalije, sredstva za ribanje ili rastvarače.
• Redovno korišćenje kratkih programa može da dovede do taloženja masti i kamenca u uređaju.
• Da bi se sprečilo stvaranje naslaga, koristite duge programe barem dvaput mesečno.

Mere zaštite od zamrzavanja

Preduzmite mere zaštite od zamrzavanja na mašini za pranje sudova zimi. Nakon svakog ciklusa pranja, uradite sledeće:

1. Isključite električnu energiju mašine za pranje sudova iz izvora napajanja.
2. Isključite dovod vode i odvojte cev za dovod vode od ventila za vodu.
3. Ispustite vodu iz ulazne cevi i ventila za vodu. (Koristite posudu za sakupljanje vode)
4. Ponovo povežite cev za dovod vode sa ventilom za vodu.
5. Uklonite filter na dnu kade i upotrebite sunder da pokupite vodu u jami.

Pomeranje uređaja

Ako uređaj mora da se pomeri, pokušajte da ga držite u vertikalnom položaju. Ako je apsolutno neophodno, može se postaviti na leđa.

Kada se ne koristi duže vreme

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug components

⚠ OPOZORILO! Nevarna napetost.

Line drawing of a portable handbag with handle and front panel, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a multi-tiered mechanical device with no visible text or symbols

Hand pressing a button on a device screen with floral and circular symbols (no text or labels)

Aktiviranje/deaktiviranje zvoka tipk

Pridržite gumba 3. sekunde, da aktivirate ali deaktivirate zvok tipk.

Pred prvo uporabo

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a gear-shaped component with an arrow indicating press direction (no text or symbols)

Illustration of a hand pouring liquid from a container into a pot (no text or symbols)

Line drawing of an open refrigerator with a circular button on the side (no text or symbols)

Hand holding a rotary switch with a device icon and control knob (no text or symbols)

Hand holding a rotary switch with a small device icon, no text or symbols present

Hand inserting a rotary switch into a device panel (no text or symbols visible)

Line drawing of a box with an open lid and circular inset showing a small object (no text or symbols)

Pritisnite

Pritisnite sprostitveni zatič na dozirniku detergenta, da odprete pokrov.

3

A B

Illustration of a hand pressing down on a control panel with an arrow indicating rotation (no text or symbols)

Zaprite pokrov in ga pritisnite navzdol, da se zaskoči.

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

2 Odstranite zgornjo košaro.

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Nastavljiva spodnja košara

Two wire mesh diagrams showing structural changes before and after transformation (no text or symbols)

Napotki in namigi

Splošno

Technical line drawing of a mechanical assembly with circular components and a central housing (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Stojalo za pribor

2 6 6 3

Košara za pribor

IN 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Nega in čiščenje

Illustration of a hand holding a tool interacting with a mechanical component, showing rotational motion (no text or symbols)

1. Nežno primite B, nato pa s palcema pritisnite vrh najširše palice in izvlecite A.

C B A Pritisnite vrhnji del najširše palice z oznako materiala

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Diagram showing a hand using a tool to clean a small container, with an inset close-up of the container being removed (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a component detail (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Illustration of hands using a tool to clean or spray the surface on a kitchen sink (no text or symbols)

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug components

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Technical line drawing of a multi-tiered mechanical cage or rack structure (no text or symbols)

Hand holding a button with floral symbol, no text or labels present

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a circular component with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a pot (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Hand holding a rotary switch with a device icon and control knob (no text or symbols)

Hand holding a rotary switch with a device panel and star symbol (no text or labels)

Hand holding a rotary switch with a device icon, no text or symbols present

Line drawing of a refrigerator with an open lid and base tray (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Diagram of a shopping cart with wheels and an arrow indicating direction, labeled 'üst konum' (no other text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Two wire mesh plastic crates showing internal structure before and after transformation (no text or symbols)

ipucu ve öneriler

Genel

Technical line drawing of a mechanical housing or enclosure with multiple circular components and internal features (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component, showing rotational motion (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Illustration of a hand using a tool to clean or wash a small container, with no text or symbols present.

Technical diagram of a mechanical lever mechanism with an inset close-up showing a component detail (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical object into a basin (no text or symbols)

Illustration of hands using a spray gun to clean a small aircraft on a kitchen sink (no text or symbols)

Ürün Numarası XXXXXXXXX (8-haneli kod) XXXXXXXXX 23328 IKEA Design and Quality HDA of Sweden Serial No.:XXXXXXXXX Seri Numarası (8 haneli kod)

Three technical line drawings of a shopping basket with labeled components (no text or symbols present)

Hand holding a touchscreen device with a flower icon and control knob (no text or symbols)

Line drawing of a device with an open lid and a magnified inset showing internal components (no text or symbols)

Diagram showing a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a pot (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand holding a rotary switch on a device panel (no text or symbols visible)

Hand holding a camera switch with a small screen and starburst icon (no text or symbols)

Hand-drawn diagram showing a hand pressing a button on a device with a scroll wheel and directional arrow

Line drawing of a laboratory apparatus with a circular component on a base (no text or symbols)

Illustration of a hand pressing down on a control panel with a circular dial and starburst symbol (no text or labels)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow indicating motion (no text or symbols)

Diagram showing a structural change from a grid-like structure to a multi-layered framework, with no visible text or symbols.

Регулируема долна кошница

Two wire mesh plastic crates showing internal structure before and after assembly (no text or symbols)

Препоръки и съвети

Общи съвети

Technical line drawing of a mechanical assembly with circular components and a central housing (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and internal channels (no text or symbols)

Поставка за прибори

2 6 6 3

Кошница за прибори

Навътре 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Грижи и почистване

⚠️ ПРЕДУПРЕЖДЕНИЕ! Преди

Illustration of a hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing hands holding a device labeled A and B, likely illustrating a mechanical or electrical component assembly.

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a component detail (no text or symbols)

Illustration of a hand using a tool to lift a small container on a sink (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Safety warning symbols including warning triangle, lightning bolt, and pipe fittings with corresponding illustrations

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with grid-like components and directional arrows, no visible text or symbols

Technical line drawing of a multi-tiered mechanical device with no visible text or symbols

Hand holding a camera control panel with a flower icon and triangular buttons (no text or symbols)

Line drawing of a device with an open lid and a circular inset showing a screen (no text or symbols)

Illustration of a hand pressing down on a gear mechanism with an arrow indicating press direction (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of an open refrigerator with a circular base and lid (no text or symbols)

Hand-drawn diagram of a device with a rotary knob and indicator lights, showing a hand pressing the button.

Hand holding a rotary switch with icons (no text or labels)

Hand holding a rotary switch with a device panel and indicator lights (no text or symbols visible)

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a circular dial and fan (no text or symbols)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Line drawing of a mechanical cart with wheels and an arrow indicating motion (no text or symbols)

Diagram showing a structural component before and after rotation, with no visible text or symbols

Two wire mesh plastic crates showing internal structure before and after modification (no text or symbols)

Technical line drawing of a mechanical component with multiple circular features and a central cylindrical feature (no text or symbols)

Technical line drawing of a mechanical component with internal channels and housing (no text or symbols)

Illustration of a hand holding a kitchen utensil with an arrow indicating rotation (no text or symbols)

Line drawing of hands using a tool to clean or repair a surface, no text or symbols present

Illustration of a hand using a tool to clean or wash a small container, with no text or symbols present.

Technical line drawing of a mechanical component with an inset close-up showing a circular component (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical component into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug components

Line drawing of a handbag with handle and internal structure (no text or symbols)

Technical diagram of a structural framework with labeled components and directional arrows indicating flow or movement.

3D wireframe model of a multi-tiered basket structure with no visible text or symbols

Hand holding a button with floral symbol and arrow, pointing at the center (no text or labels)

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating rotation (no text or symbols)

Simple line drawing of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of an open refrigerator with a circular button on the side (no text or symbols)

Hand holding a rotary switch with a button, no text or symbols visible

Hand holding a rotary switch with a small device icon, no text or symbols present

Hand holding a rotary switch with a small device icon, no text or symbols present

Line drawing of a laboratory apparatus with a circular component inside a transparent housing (no text or symbols)

Illustration of a hand pressing down on a control panel with a rotary knob (no text or symbols)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Line drawing of a mechanical cart with wheels and an arrow indicating motion (no text or symbols)

Diagram showing a structural transformation of a grid-like structure with circular elements, no text or symbols present

Two wire mesh plastic crates showing internal structure before and after assembly (no text or symbols)

Tippek és tanácsok

Általános

Technical line drawing of a mechanical assembly with multiple circular components and a central housing (no text or symbols)

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

Edénypolc

2 6 6 3

Evőeszközkosár

BE 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Ápolás és tisztítás

Illustration of a hand holding a tool inside a container with a rotating knob and upward arrow (no text or symbols)

Diagram showing hands holding a device labeled A and B with visible internal components

Line drawing of hands using a tool to clean or spray liquid in a kitchen (no text or symbols)

Illustration of a hand using a tool to clean or wash a small container, with no text or symbols present.

Technical line drawing of a mechanical lever assembly with an inset close-up showing a component detail (no text or symbols)

Illustration of a hand using a tool to lift a small cylindrical component into a basin (no text or symbols)

Line drawing of hands using a tool to clean or spray the surface on a kitchen sink (no text or symbols)

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug components

⚠ VIDVÖRUN! Hættuleg spenna.

Line drawing of a handbag with handle and internal structure (no text or symbols)

3D architectural or mechanical structure diagram with no visible text, numbers, or symbols

Technical line drawing of a multi-tiered mechanical cage or rack structure (no text or symbols)

1 Innri lögn
2 Salthólf
3 Uppbvottaefnisskammtari
4 Neðri sprautuarmur
5 Síusamstæða
6 Gljáaskammtari

7 Hnífaparakarfa
8 Hnífapararekki (Efri grind)
9 Efri sprautuarmur
10 Bollarekki (Efri grind)
11 Neðri grind

Stjórnborð

1 Rofi
2 Viðvörunarvísar
3 Kerfishnappur
4 Kerfisvísar
5 Seinkun
6 Barnalæsigaumljós

1/2 fullur 1/4 fullur

©

O

Tómur

Gljástilling

Hand pressing a button on a device screen (no text or symbols visible)

Line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a circular component with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Hand holding a rotary switch with a device icon and control knob (no text or symbols)

Hand holding a rotary switch with a device panel and star symbol (no text or labels)

Hand placing a rotary knob on a device panel (no text or symbols visible)

Line drawing of a box with an open lid and circular inset showing a small object (no text or symbols)

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow (no text or symbols)

Diagram of a shopping cart with wheels and an arrow indicating direction, labeled 'efri staða' at bottom (no other text or symbols)

4 Ýttu inn efri grindinni.

Stillanleg bollahilla

Diagram showing a structural component before and after rotation, with no visible text or symbols

Stillanleg neðri grind

Two wire mesh models of a multi-layered container or rack structure, showing structural changes (no text or symbols)

Ábendingar og ráð

Almennt

Technical line drawing of a mechanical housing or enclosure with circular components and internal features (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components and no visible text or symbols

Hnífapararekki

2 6 6 3

Hnífaparakarfa

IN 4 1 4 1 1 4 1 8 5 1 5 2 2 2 7 5 5 1 3 3 3 5 5 5 5 5 5 5 5 4 1 4 1 4 1 4 4 1 4 1 4 1 4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Umhirða og Þrif

Illustration of a hand holding a mechanical component with directional arrows indicating rotation (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Diagram showing a hand using a tool to clean or wash a small container, with an inset close-up of the container being removed (no text or symbols present)

Hreinsun sprautuarma

Technical line drawing of a mechanical component with an inset showing a close-up view of a component (no text or symbols)

Illustration of a hand using a tool to lift a small container on a sink (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)
