USER MANUAL CDB30/1X CANDY

THIS APPLIANCE IS CONCEIVED FOR DOMESTIC USE ONLY. THE MANUFACTURER SHALL NOT IN ANY WAY BE HELD RESPONSIBLE FOR WHATEVER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR BY UNSUITABLE, WRONG OR ABSURD USE.

CE PRODUIT EST CONC U EXCLUSIVEMENT POUR USAGE DOMESTIQUE. LE CONSTRUCTEUR DÉCLINE TOUTE RESPONSABILITÉ POUR DOMMAGES ET BLESSURES CAUSES PAR UN INSTALLATION INCORRECTE OU PAR UN USAGE IMPROPRE, ERRONÉ OU ABSURDE.

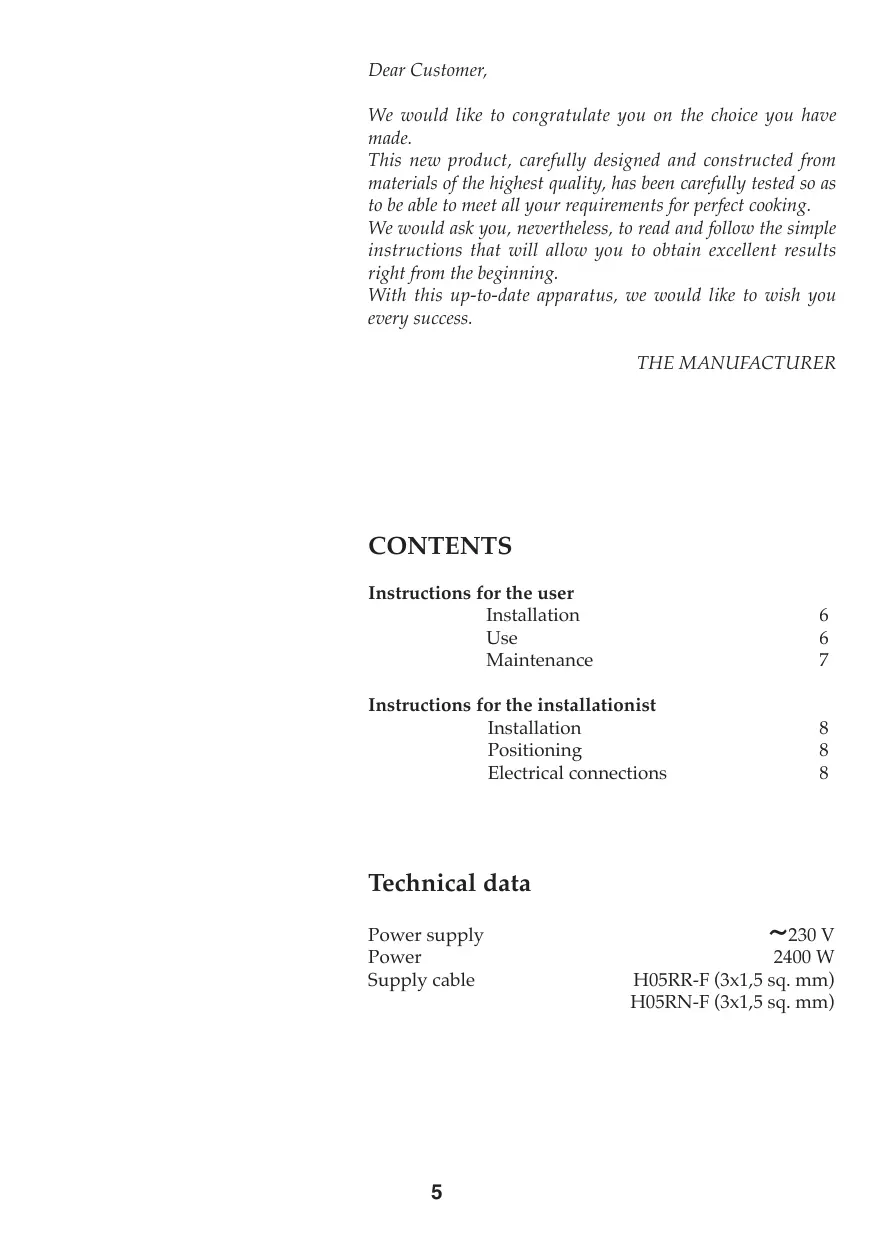

We would like to congratulate you on the choice you have made.

This new product, carefully designed and constructed from materials of the highest quality, has been carefully tested so as to be able to meet all your requirements for perfect cooking.

We would ask you, nevertheless, to read and follow the simple instructions that will allow you to obtain excellent results right from the beginning.

With this up-to-date apparatus, we would like to wish you every success.

THE MANUFACTURER

CONTENTS

Instructions for the user

Installation 6

Use 6

Maintenance 7

Instructions for the installationist

Installation 8

Positioning 8

Electrical connections 8

Technical data

Power supply

Power

Supply cable

230V

2400W

H05RR-F (3x1,5 sq. mm)

H05RN-F (3x1,5 sq.mm)

Instructions for the user

Installation

All the operations relating to the installation (electrical connection) must be carried out by qualified personnel according to the regulations in force.

• The appliance and its accessible parts become very hot during use. Care should be taken not to touch the heating elements. Children under 8 years of age must be kept away if not continually monitored.
• This appliance can be used by children as young as 8 years old and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or they have been instructed to use the appliance safely and understand the risks involved.
• Children must not play on the appliance. Children should not clean or perform maintenance without supervision.
• ATTENTION: cooking with grease or oil on the automatic cooking surface can be very dangerous and can cause fires. Do not attempt to put out a fire with water but turn off the appliance and then cover the flames with a lid or fire blanket.
• ATTENTION: Danger of fire: do not store objects on the cooking surfaces.
• Do not use steam cleaners to clean the appliance.
• The appliance is not intended for use with an external timer or a separate remote control system.

Use

(Fig.1) The barbecue allows you to grill your food fast. Using the control knob on the front panel, you can turn on the heater that can cook faster or more slowly, according to the settings from 1 to 11. It works as a grill by turning the knob to position 11. You will notice a slight click that shows that the thermostat has been turned off, and the heating coil soon gets red hot.

This does not mean that you cannot get very good grilling results from the intermediate positions. On the contrary, these positions are recommended for cooking delicate dishes, or to cook the food evenly overall, and right into the middle as well.

The lava rock in the tray is provided to absorb the drips of oil or grease that are produced during cooking. As well, it accumulates heat during the start-up phase of the heater, and so gives you a more constant grilling performance,

which is very similar to that obtained from charcoal.

Water can be put into the tray, instead of the lava rock.

(We suggest a depth of about 3cm or one inch.) The presence of water in the tray eliminates unpleasant cooking smells, without reducing the performance of the barbecue in any way.

To obtain the best results, we therefore recommend preheating the lava rock for at least 10 minutes at position 1. This is particularly advisable when you turn on the equipment for the first time, because it allows you to reduce the risk, during cooking, of the food absorbing smells that the heating coil produces when it is first switched on.

Maintenance

Before doing any operation, cut off the electricity from the apparatus.

In order to give your equipment a long life, it is vital to thoroughly clean it all over, remembering the following points:

• the steel and/or painted parts must be cleaned using suitable products (available on the market) which are not abrasive or corrosive. Avoid products based on chlorine (bleach, etc);
• avoid leaving acids or alkalis on the work surface (vinegar, salt, lemon-juice, etc.)

CHARCOAL OR SIMILAR COMBUSTIBLE FUEL MUST NOT BE USED WITH THIS APPLIANCE.

Instructions for the installationist

Installation

These instructions are intended to be used by a qualified installationist, who will be responsible for the installation, adjustment and maintenance according to the laws and regulations in force.

All operations must always be carried out with the equipment disconnected from the electricity.

Positioning

(Fig. 2) The apparatus is designed to be set into a work surface, as shown in the relevant illustration.

Fit the seal provided round the whole perimeter of the surface.

Electric connections

Before connecting up the electricity, ensure that:

• the specification of the system is such as to match that shown on the serial number plate applied to the underneath of the work surface.

• the system is supplied with an efficient earth connection to the ground, according to the regulations and the laws in force. The earth connection is obligatory by law.

In the case where the equipment is not supplied with cable and/or relevant plug, make use of materials suited to the input current shown on the serial number plate, and to the working temperature. The cable must not reach a temperature of more than 50^ higher than the ambient temperature in any part of its length.

If connecting directly to the mains power supply, fit a multi-pole switch of a suitable size for the rated capacity with a clearance distance which completely disconnects the power line under overvoltage category III conditions, consistently with the rules of installation (the yellow/green earth wir must not be interrupted). The plug or omnipolar switch must be easily reached on the installed equipment.

N.B.: The manufacturer declines any responsibility in the case where the above and the normal accident prevention regulations have not been respected.

To avoid all risk, if the power cable becomes damaged, it must only be replaced by the manufacturer, by an authorised service centre, or by a qualified electrician.

Cher Client,

Apparatus class I Type Y

Appareil de classe I type Y

The manufacturer declines all responsibility for possible inaccuracies contained in this pamphlet, due to printing or copying errors. We reserve the right to make on our own products those changes to be considered necessary or useful, without jeopardizing the essential characteristics.
