Product Type	Freestanding Washing Machine
Loading Type	Front Load
Capacity	8 kg
Spin Speed	1400 rpm
Energy Class	A+++
Dimensions (H x W x D)	850 x 600 x 500 mm
Weight	65 kg
Power Supply	220-240 V ~ 50 Hz
Water Consumption (per cycle)	45 L
Noise Level (Wash/Spin)	52 / 76 dB(A)
Number of Programs	15
Key Programs	Cotton, Synthetics, Delicates, Wool, Quick 30', Eco 40-60
Additional Functions	Delay Start, Child Lock, Rinse Hold, Extra Rinse, Prewash
Display	LED Digital Display
Drum Type	Stainless Steel Drum with Honeycomb Pattern
Safety Features	Child Lock, Overflow Protection, Unbalanced Load Detection, Anti-Flood System
Door Opening Angle	180°
Maintenance	Clean pump filter regularly; descale drum with descaler every 3 months
Spare Parts Availability	Original Candy parts: belts, pumps, heating elements, control boards, door seals
Repairability Index	8.5/10 (designed for easy access to main components)

Frequently Asked Questions - Holiday 084 DF CANDY

What does the error code E40 mean on my Candy Holiday 084 DF?

Error E40 usually indicates a door lock issue. Check if the door is fully closed. If the problem persists, the door lock or its wiring may need replacement.

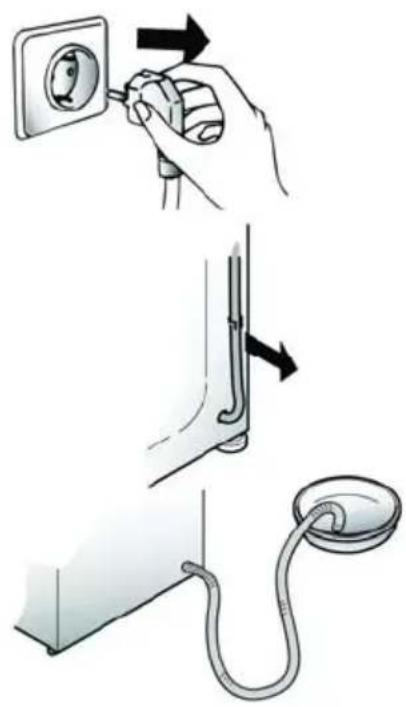

How do I clean the pump filter on this washing machine?

Turn off and unplug the machine. Open the lower front panel. Place a container under the filter. Unscrew the filter counterclockwise and clean it. Remove any debris. Reinsert and tighten clockwise. Regular cleaning prevents drainage issues.

Why does my wash cycle take longer than expected?

The machine automatically adjusts cycle time based on load size, water temperature, and unbalance detection. A heavily unbalanced load can extend wash and spin times. Redistribute laundry evenly.

Can I use washing machine cleaner in the Holiday 084 DF?

Yes, use a descaling cleaner specifically for washing machines. Run a cotton program at 90°C without laundry. Avoid mixing different cleaning products.

How do I activate the child lock?

Press and hold the Start/Pause button for 3-5 seconds. A padlock symbol appears on the display. Repeat to deactivate. Child lock prevents accidental setting changes during operation.

What should I do if the machine vibrates excessively?

Ensure the floor is level and stable. Remove the transit bolts (if not already done). Adjust the adjustable feet so the machine is level. Avoid washing heavy items like rugs alone.

How do I clean the detergent drawer?

Press the release tab and pull out the drawer. Rinse under warm water and use a brush to remove residue. Clean the compartment with a damp cloth. Reinsert fully. Regular cleaning prevents blockages.

What programs are available for delicate fabrics?

Use the Delicates program for silk, lingerie, and hand-wash items. It operates at low temperature (max 30°C) and gentle spin. For wool, select the Wool program.

Can I pause and add laundry after cycle start?

Yes, press Start/Pause to pause. Wait for the door to unlock (if temperature and water level are safe). Add items, close door, and press Start/Pause again. Not available during high-temperature cycles.

What does the 'End' message mean after a cycle?

The End message indicates the cycle is finished. The door will unlock automatically after a few minutes. If you have selected Rinse Hold, the machine will stop with water in the drum; drain by running a spin program.

USER MANUAL Holiday 084 DF CANDY

Illustration of a washing machine with a circular vent and control panel (no text or symbols visible)

Hand inserting a plug into an electrical socket (no text or symbols visible)

Hand holding a wall-mounted electrical outlet with a black cross symbol (no text or labels)

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

Illustration of a microwave oven with a black X mark on the side (no text or symbols)

Diagram of a mechanical component with a bolt and threaded shaft, showing directional arrows (no text or symbols)

Illustration of a washing machine next to a person's foot with a large 'X' symbol, no text or symbols present.

Illustration of two figures assembling a washing machine (no text or symbols)

Illustration of a washing machine with a black X-bracing on wheels (no text or symbols)

Illustration of a person using a washing machine with a lamp, no text or symbols present

Illustration of a washing machine next to a curved arrow symbol (no text or labels)

Illustration of a gray industrial cabinet with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using scissors to lift a car tire (no text or symbols)

ВНИМАНИЕ:

Interior view of a kitchen appliance with a circular dial and directional arrows indicating rotation (no text or symbols)

Simple line drawing of a spherical object with internal features (no text or symbols)

Illustration of three mechanical components with diagonal lines crossing them (no text or symbols)

Illustration of a washing machine with a cloth cover and accessories above it (no text or symbols)

Diagram of a bolt and nut assembly with directional arrows indicating motion (no text or symbols)

ВНИМАНИЕ!

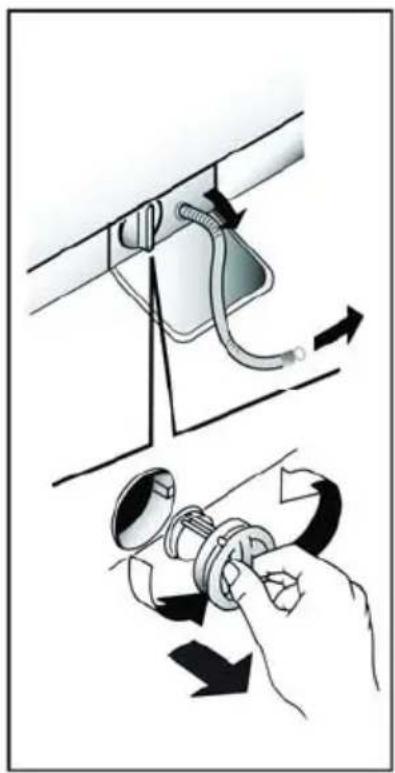

Очистка фильтра

Illustration showing a hand holding a small device with directional arrows indicating rotation or adjustment (no text or symbols present)

ВНИМАНИЕ!

Illustration showing a hand using a tool to adjust or install a wall socket, with no text or symbols present.

ВНИМАНИЕ!

With the purchase of this Candy household appliance, you have shown that you will not accept compromises: you want only the best.

Candy is happy to present their new washing machine, the result of years of research and market experience through direct contact with Consumers.

You have chosen the quality, durability and high performance that this washing machine offers.

Illustration of a modern washing machine with a circular vent and control panel (no text or symbols visible)

Candy is also able to offer a vast range of other household appliances: washing machines, dishwashers, washer-dryers, cookers, microwave ovens. Traditional ovens and hobs, refrigerators and freezers.

Ask your local retailer for the complete catalogue of Candy products.

Please read this booklet carefully as it provides important guide lines for safe installation, use and maintenance and some useful advise for best results when using your washing machine.

Keep this booklet in a safe place for further consultation.

When contacting Candy or a Customer Services Centre always refer to the Model, No., and G number (if applicable of the appliance see panel).

Contents Page

Preface 38

General delivery notes 38

Technical data 39

Safety notes 40

Quick start 42

Useful advice for the users 42

Installation 43

Description of controls 46

Detergents, washing aids and amounts to use 52

Program selector 54

Main wash 56

Table of programs 60

Cleaning and routine maintenance 62

Trouble shooting 64

Customer service 66

Before switching on the appliance make sure it is correctly installed and that the transit brackets are removed as shown in chapter "Installation".

Preface

Read these instructions for use and all other information enclosed with the washing machine and act accordingly.

Keep all documentation for future reference or for any future owners.

Note: this machine is solely for domestic use.

Notes on disposal

All packaging material used is environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means.

Your supplier or local council will be able to give you details of current means of disposal.

Appliances which are finished with are not worthless rubbish! Valuable materials can be salvaged via scrap reprocessing.

Note: pull out the mains plug from appliances which are finished with. Cut the power cable and dispose of it, together with the plug.

When disposing of an old washing machine, please ensure that the porthole lock is rendered inoperable to prevent children shutting themselves in the appliance.

General delivery notes

On delivery check that there is the following with the appliance:

• Instruction manual;
• Customer service addresses;
  • Guarantee certificates;
• Caps;
• Bend for outlet tube;
• Filling hose;
• Label (class of machine).

KEEP THEM IN A SAFE PLACE

Check that the machine has not incurred damage during transport, If this is the case, contact your nearest Authorized Technical Support Service agent (see Customer Service).

Technical data

Maximum wash load dry kg 4

Supply voltage V 220-240

Power input W 1850

Energy consumption (prog. 90°C) kWh 1,8

Power current fuse amp A 10

Normal water level L 6...15

Water pressure

MPa

min. 0,05

max. 0,8

SPIN r.p.m.

See rating plate

NB: For specifications regarding electrical data, see the data panel on the front of the washing machine (porthole area).

CE Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

Electricity supply and safety advice

Washing machines are supplied to operate at a voltage of 220-240V, 50 Hz single-phase.

Check that the conductor is powerful enough to supply at least 3.0 kW, then connect the plug to a 10A earthed socket.

After installation, the appliance must be positioned so that the plug is accessible.

Check that the electricity supply to your home has an earthing system.

The socket in your home and the plug on the appliance must be of the same type.

It is generally not advisable to use multiple adapters and/or extension leads.

All Candy washing machines comply with the safety requirements laid down by the Quality Trademark Institute.

Safety notes

Note: for any cleaning or maintenance procedure for the washing machine:

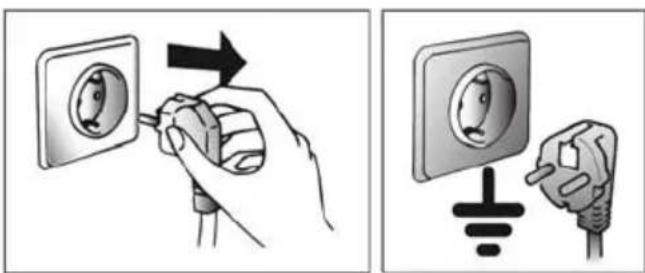

a. Pull out the plug;

b. Candy equips all its appliances with earthing. Ensure that the mains supply is earthed, and if it is not, seek assistance from a qualified person.

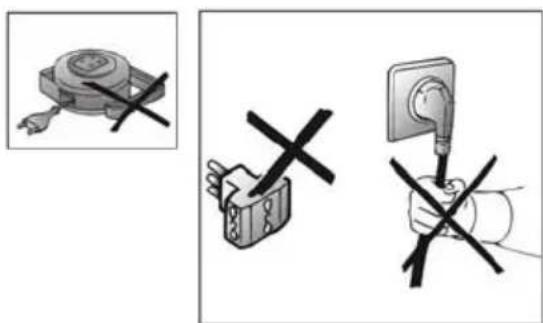

c. Do not use adaptors or multiple plugs;

d. Do not pull the power cable or the appliance itself to remove the plug from the socket. e. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given su-

pervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance; f. The appliance must not be exposed to weather conditions (rain, direct sun, etc...); g. When moving the appliance never lift it by the controls or by the detergent drawer.

When in transit never rest the porthole against the trolley; h. The appliance should be lifted by two people.

i. After the machine has been installed, ensure that the mains plug and water supply valves are easily accessible.
j. Extreme care should be taken if extension leads are used in bathrooms or shower rooms. Avoid this where possible.

Diagram of a bolt and nut assembly with a black arrow indicating rotation (no text or symbols)

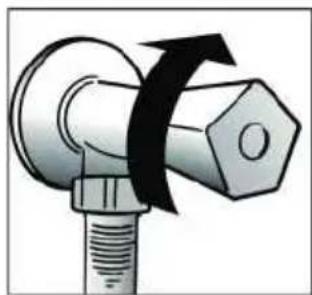

k. Turn off the water inlet tap;

I. Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance with bare feet;

Illustration of a washing machine next to a foot with a large explosion symbol (no text or labels)

m. Check there is no water left in the drum before opening the door;

WARNING!

During the washing cycle, the water can reach a temperature of 90^ C.

n. Glass fibre curtains should never be put into this machine;

N.B! If the appliance is installed on a carpeted floor ensure that the ventilation holes on the sheet are not obstructed.

o. Lint or fluff must not be allowed to collect on the floor around the outside of this machine;
p. Always ensure that the door locked indicator neon has switched itself off before opening the door. By doing so the machine is allowed to cool down before the laundry is handled; q. Always ensure that the base panel is fitted to the machine.
r. If the appliance is not running properly or breaks down, switch it off, turn off the tap and do not tamper with the appliance.

Consult only the Authorised Technical Support Service for possible repair and ask them to use original spare parts.

Failure to comply with the above can compromise the safety of the appliance.

If the appliance's power cable should ever need replacing, consult the Authorised Technical Support Service.

Quick Start

Washing

• Press the button inside the door handle to open the door.

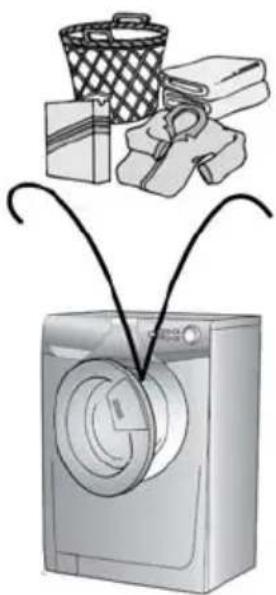

• Select laundry and put it in the machine.
• Close the door.

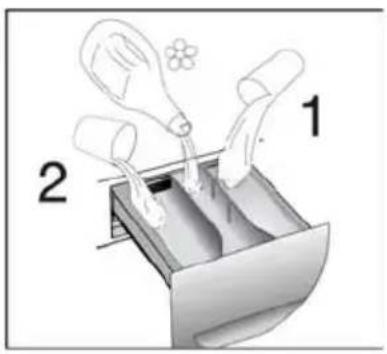

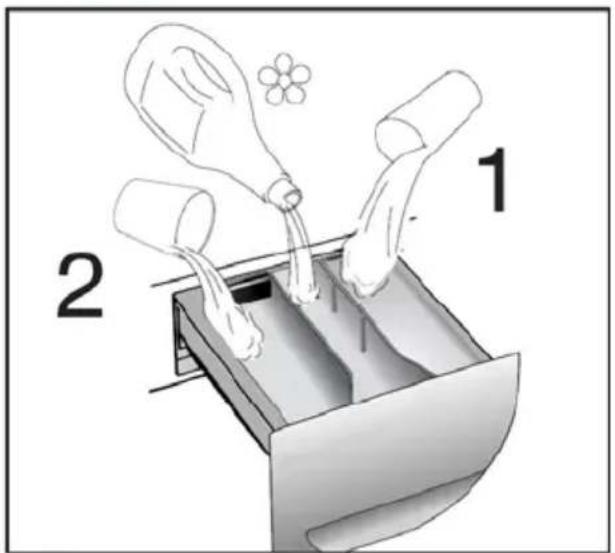

• Put detergent in the dispenser compartments, compartment 1 for pre wash and compartment 2 for all other programs.

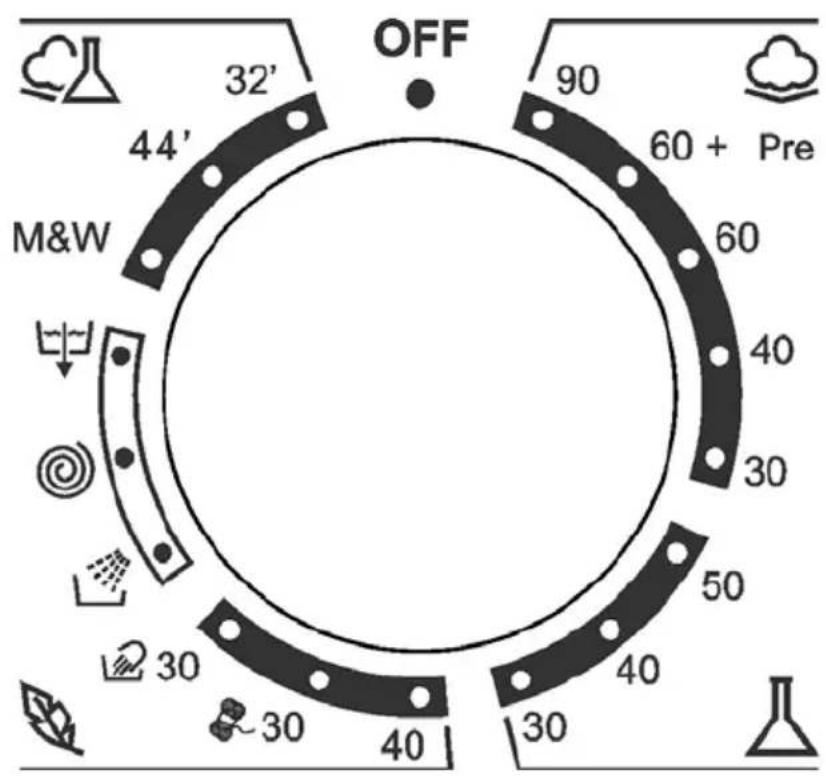

• Select program by turning the program knob (Your desired program may be seen on the display).
• Select any function buttons required;
• Press the Start/Pause button ( ▷);
  – There may be a short time delay from pressing the start/pause bottom to the start of the program, while the machine senses the water required and sets the parameters for the program.

When the program has finished

• The display will read "END".
• Wait for the door lock to be released (about 2 minutes after the program has finished).

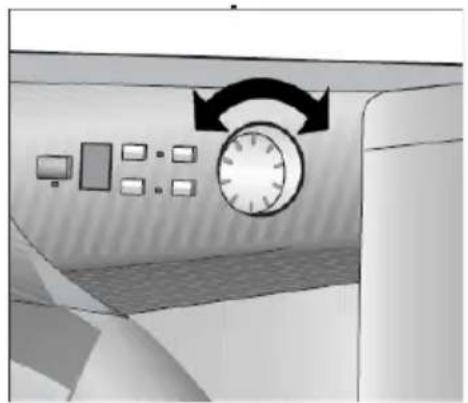

• Switch off the machine by turning the program selector to the "OFF" position.
• Open the door and remove the laundry.
• Disconnect the plug from the mains power supply and turn off the water supply after every use.

Useful advice for users

Tips on using your domestic appliance in the most environmentally-friendly and economical way.

Do a full load in your washing machine.

To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, not exceed the maximum load size.

Save up to 50% energy by washing a full load instead of 2 half loads.

When is prewashing really needed?

Only with particularly dirty loads! Energy savings of 5 to 15% are made by not selecting the prewash option for normally soiled laundry.

Which wash temperature should you choose?

Using stain removers before machine washing reduces the need to wash at temperatures over 60^ C. Energy savings of up to 50% can be made by using a 60^ C wash temperature.

Installation

After removing the machine from the packaging, proceed as follows:

On the back of the machine:

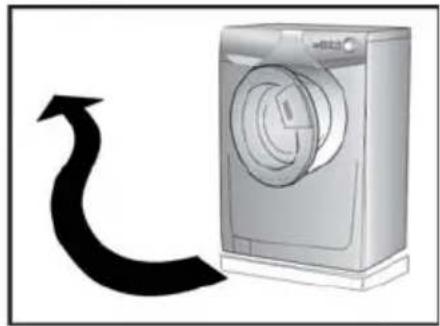

Illustration of a washing machine next to a curved arrow symbol (no text or labels)

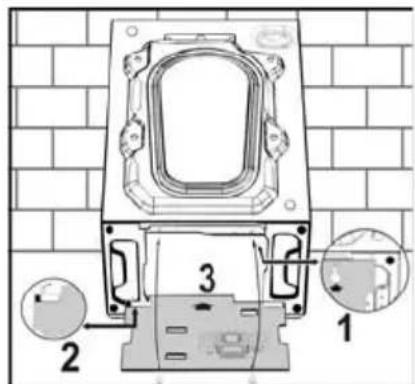

1) Fix the sheet of corrugated material on the bottom as it is shown on picture. You can find the fastener means in the instruction booklet pack.

N.B! If the appliance is installed on a carpeted floor ensure that the ventilation holes on the sheet are not obstructed.

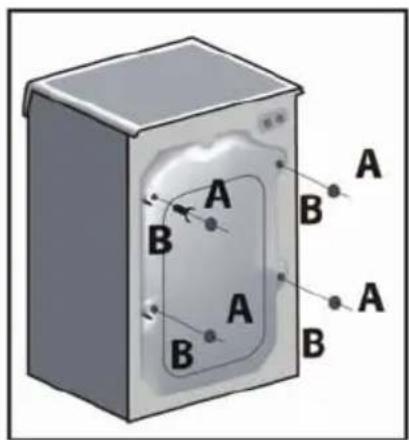

2) Remove the 4 fixing screws marked (A) and remove the 4 spacers marked (B)

3) Cover the 4 holes using the caps provided in the instruction booklet pack.

Note: we recommend you keep the spacers and screws to immobilize the machine for future transit. The Manufacturers will not be responsible for any possible damage to the machine caused by not following the rules relating to releasing the mechanism. The user is responsible for all costs of installation.

WARNING!

Do not leave the packaging in the reach of children as it is a potential source of danger.

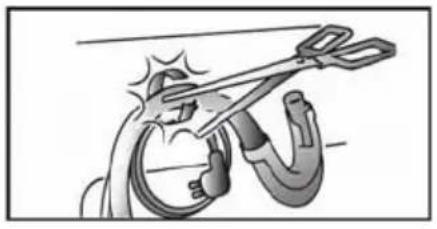

4) Carefully cut the securing strap that holds the main cord and the drain hose.

Illustration of a tool cutting through a pipe with a hook, showing motion and explosion (no text or symbols)

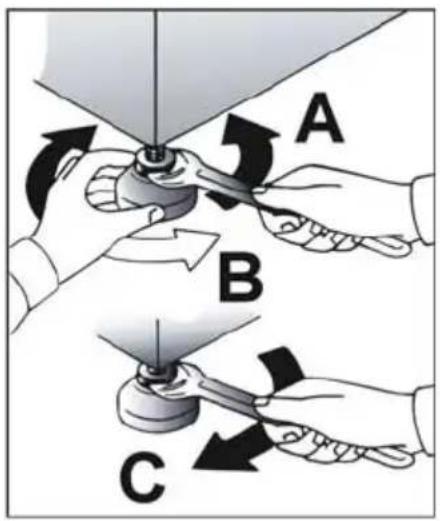

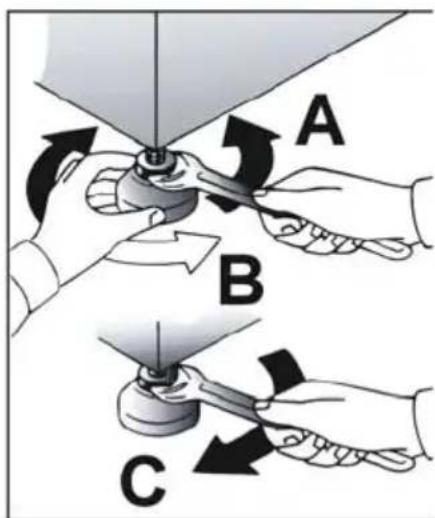

5) Use the 4 feet to level the machine with the floor:

A) Turn the nut clockwise to release the screw adjuster of the foot.

B) Rotate foot to raise or lower it until it stands firmly on the ground.

C) Lock the foot in position by turning the nut anti-clockwise until it comes up against the bottom of the machine.

ATTENTION!

Should it be necessary to replace the supply cord, connect the wire in accordance with the following colours/codes:

BLUE - NEUTRAL (N)

BROWN - LIVE (L)

YELLOW-GREEN - EARTH ( )

If the appliance's power cable should ever need replacing, consult the Authorized Technical Support Service.

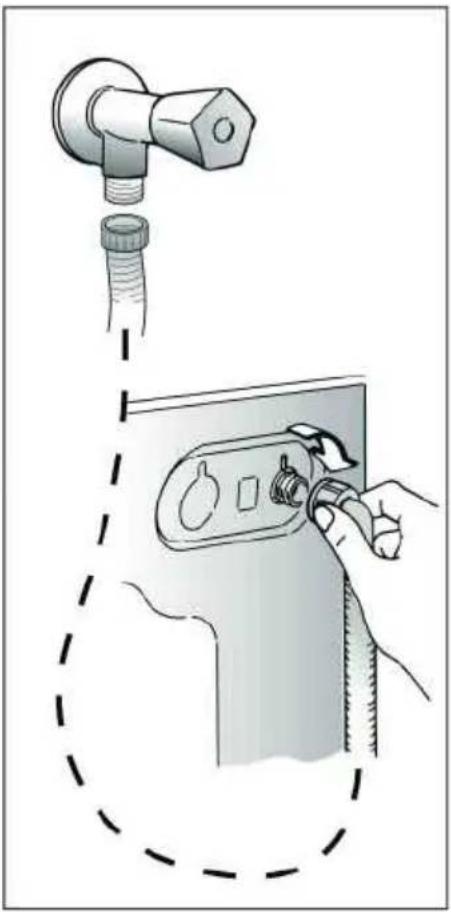

Water supply

The machine has an inlet hose with 34 " threaded ferrules fitted to the ends to attach between the threaded connector on the appliance and the cold water supply.

The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.

The appliance must only be connected to the cold water supply.

Connection to a warm water supply, that is over 40^ , may damage certain delicate fabrics.

Note: it is advisable to turn off the tap after each wash to isolate the washing machine from the water supply.

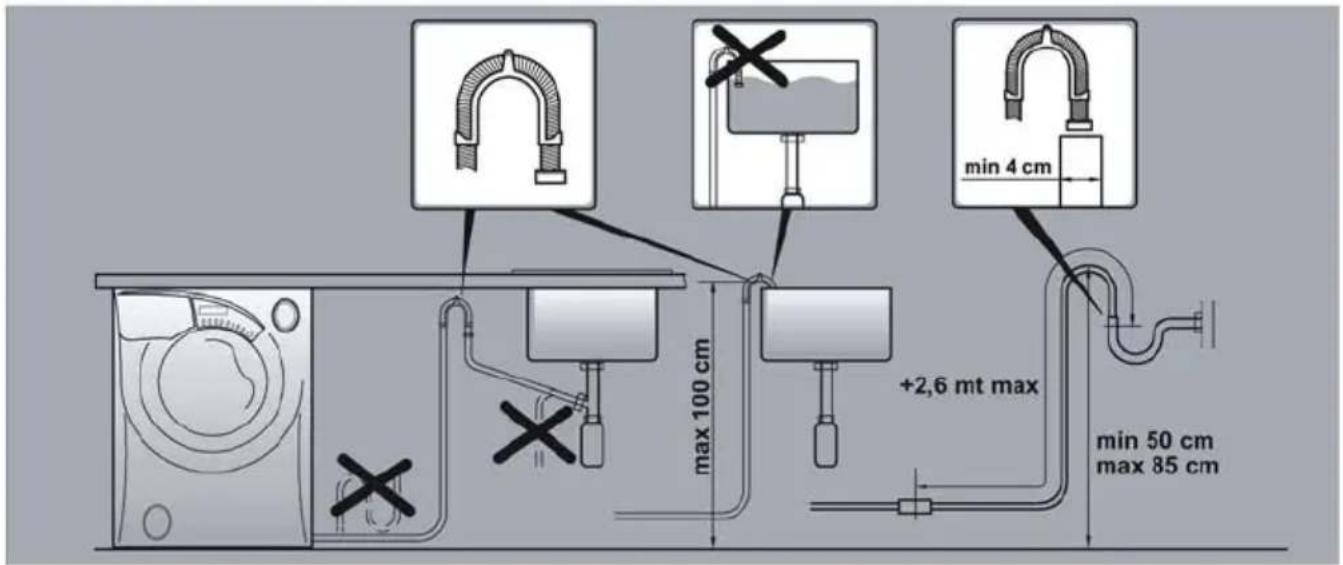

Position the washing machine next to the wall. Hook the outlet tube to the edge of the bath tub, paying attention that there are no bends or contractions along the tube.

If the inlet hose's connection point is changed, check that the 34 " threaded ferrule on the inlet hose is firmly attached to the electrovalve connector.

For the washing machine to function properly the terminal end of the discharge hose (mouth) must be at a minimum of 50 cm and a maximum of 85 cm from the ground.

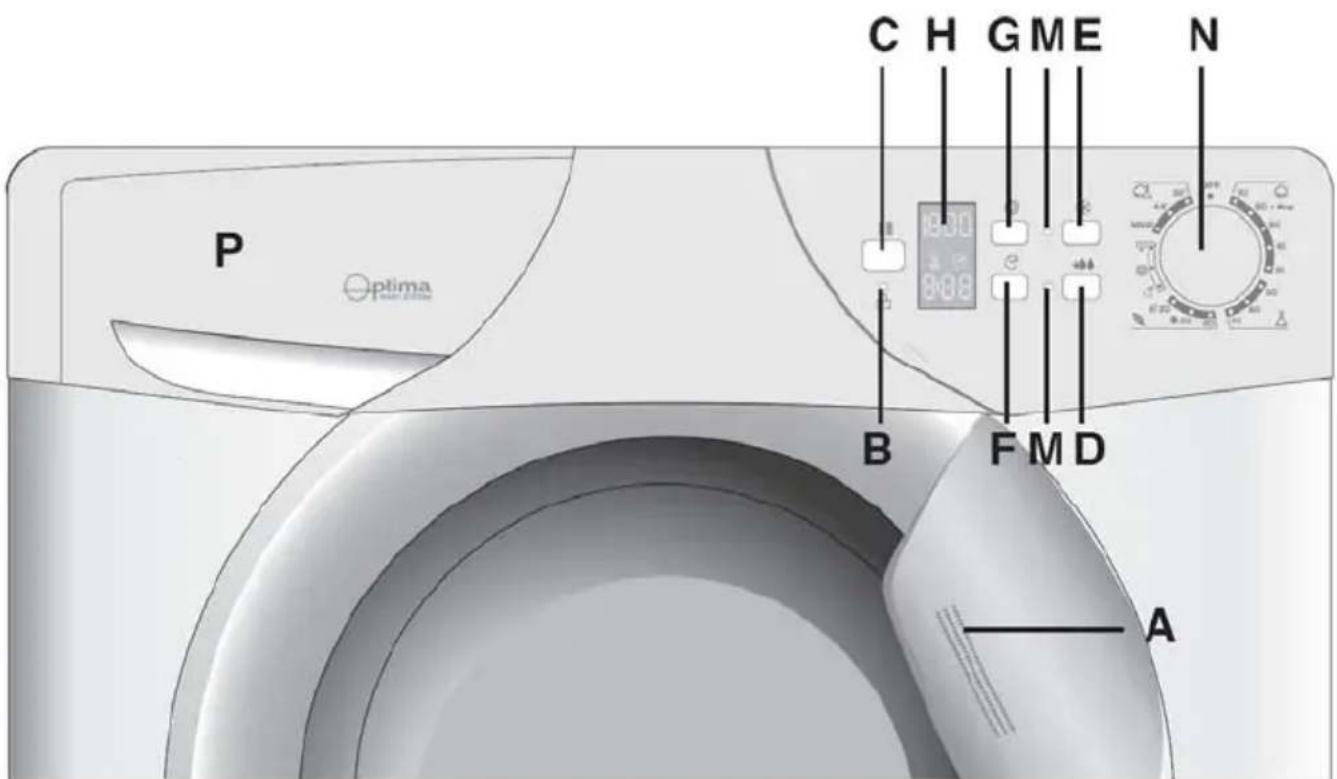

Description of controls

Door handle A

Door locked indicator B

"Start/Pause" button C

"Aquaplus" button D

"Cold Wash" button E

"Start delay" button F

"Spin speed" button G

Digital display H

Buttons indicator light M

Program selector with "OFF" position N

Detergent Drawer P

Description of controls

Door handle A

Press the finger-bar inside the door handle to open the door.

IMPORTANT!

A special safety device prevents the door from opening at the end of the wash/spin cycle. At the end of the spin phase wait up to 2 minutes before opening the door.

Door locked indicator

The "Door Locked" indicator light is illuminated when the door is fully closed and the machine is ON.

When "START/PAUSE" is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate.

If the door is not closed the indicator will continue to flash.

A special safety device prevents the door from being opened immediately after the end of the cycle.

Wait for 2 minutes after the wash cycle has finished and the Door Locked light has gone out before opening the door. At the end of cycle turn the program selector to OFF.

"Start/Pause" button

Press "START/PAUSE" to start the selected cycle.

NOTE: When the start button has been pressed, the appliance can take few seconds before starts working.

CHANGING THE SETTINGS AFTER THE PROGRAMS HAS STARTED (PAUSE)

Press and hold the "START/PAUSE" button for about 2 seconds, the flashing lights on the options buttons and time remaining indicator will show that the machine has been paused, adjust as required and press the "START/PAUSE" button again to cancel the flashing lights.

If you wish to add or remove items during washing, wait 2 minutes until the safety device unlocks the door.

When you have carried out the manoeuvre, close the door, press "START/PAUSE" button and the appliance will continue working where it left off.

CANCELLING THE PROGRAM

To cancel the program, set the selector to the OFF position.

Select a different program.

Re-set the program selector to the OFF position.

The option buttons should be selected before pressing the "START/PAUSE" button.

"Aquaplus" button

By pressing this button you can activate a special new wash cycle in the Colourfast and Mixed Fabrics programs, thanks to the new Sensor Activa System. This option treats with care the fibres of garments and the delicate skin of those who wear them.

The load is washed in a much larger quantity of water and this, together with the new combined action of the drum rotation cycles, where water is filled and emptied, will give you garments which have been cleaned and rinsed to perfection. The amount of water in the wash is increased so that the detergent dissolves perfectly, ensuring an efficient cleaning action. The amount of water is also increased during the rinse procedure so as to remove all traces of detergent from the fibres.

This function has been specifically designed for people with delicate and sensitive skin, for whom even a very small amount of detergent can cause irritation or allergy.

You are advised to also use this function for children's clothing and for delicate fabrics in general, or when washing garments made of towelling, where the fibres tend to absorb a greater quantity of detergent.

To ensure the best performance for your wash, this function is always activated on the Delicates and Woollens/Hand wash programs.

"Cold Wash" button

By pressing this button it is possible to transform every programme into a cold washing one, without modify other characteristics (water level, times, rhythms, etc..).

Curtains, small carpets, man made delicate fabrics, non colour fast garments can be safely washed thanks to this new device.

"Start delay" button

This button allows you to preprogram the wash cycle to delay the start of the cycle for up to 24 hours.

To delay the start use the following procedure:

• Set the required program;
• Press the button once to activate it (h00 appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display). The pre-set delay increases by 1 hour each time the button is pressed, until h24 appears on the display, at which point pressing the button again will reset the delay start to zero.

Confirm by pressing the "START/PAUSE" button (the light on the display starts to flash). The countdown will begin and when it has finished the program will start automatically.

It is possible to cancel the delay start by taking the following action:

- Press and hold the button for 5 seconds until the display will show the settings for the program selected.

At this stage it is possible to start the program previously selected by pressing the "START/PAUSE" button or to cancel the process by setting the selector to the OFF position and then selecting another program.

"Spin speed" button

The spin cycle is very important to remove as much water as possible from the laundry without damaging the fabrics. You can adjust the spin speed of the machine to suit your needs.

By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled.

To reactivate the spin cycle is enough to press the button until you reach the spin speed you would like to set.

For not damage the fabrics, it is not possible to increase the speed over that automatically suitable during the selection of the program.

It is possible to modify the spin speed in any moment, also without to pause the machine.

NOTE: The machine is fitted with a special electronic device, which prevents the spin cycle should the load be unbalanced. This reduces the noise and vibration in the machine and so prolongs the life of your machine.

Digital display H

The display's indicator system allows you to be constantly informed about the status of the machine:

1) SPIN SPEED

Once the program has been selected, the maximum spin speed allowed for that program appears on the display.

Pressing the spin button will reduce the speed by 100 rpm each time the button is pressed. The minimum speed allowed is 400 rpm, or it is possible to omit the spin by pressing the spin button repeatedly.

This flashes when delay start has been set.

3) PROGRAMME START LIGHT

This lights up when the "START/PAUSE" button has been pressed.

4) CYCLE DURATION

When a program is selected the display automatically shows the maximum cycle duration for a full load, which can vary, depending on the options selected.

Once the program has started you will be kept informed constantly of the time remaining to the end of the wash.

The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.

Buttons indicator light M

These light up when the relevant buttons are pressed.

If an option is selected that is not compatible with the selected programme then the light on the button first flashes and then goes off.

Program selector with "OFF" position

N

Rotates in both directions.

The machine is turned on by selecting a program via the program selector.

When the program selector is turned the display lights up to show the settings for the program selected.

Interior view of a kitchen appliance with a circular dial indicator and wall-mounted appliances (no text or symbols visible)

Press the "Start/Pause" button to start the selected cycle.

The program carries out with the program selector stationary on the selected program till cycle ends.

Switch off the washing machine by turning the selector to "OFF".

NOTE: The program selector must be return to the off position at the end of each cycle or when starting a subsequent wash cycle prior to the next program being selected and started.

Detergent drawer P

The detergent drawer is split into 3 compartments:

- the compartment labeled "1" is for prewash detergent;

- the compartment labeled "💡" is for special additives, fabric softeners, fragrances, starch, brighteners etc;

- the compartment labeled "2" is for main wash detergent.

NOTE:

Some Detergents are Difficult to utilise. Ensure to use an in drum dispenser if recommended by the detergent Manufacturer.

3D rendering of a spherical mechanical component with internal cavities and a central slot (no text or symbols)

NOTE: only put liquid products in the compartment labeled “💡 The machine is programmed to automatically take up additives during the final rinse stage for all wash cycles.

Detergents, washing aids and amounts to use

Choice of detergent

General purpose detergents

• Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for use in hot wash programs (60°C and over), for heavily soiled and stained laundry.
  – Liquid detergents, particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil.
  – These detergents are not suitable for washing stained laundry, as they do not contain bleach.
  – Biological detergents, not all the products available give a really through wash.

Special detergents

• Detergents for coloureds and delicates, without added bleach, also often without any optical brightening agents, to preserve the colour.
• Detergents for a thorough wash, without added bleach or enzymes, particularly suitable for handling woollen fibres.
• Detergents for curtains with optical brightening agents, resistant to light, to prevent yellowing from sunlight.
• Special detergents for programmed use of chemical substances, depending on fabric type, degree of soiling and water hardness.
  Here basic detergents, softeners, bleaches/stain removers can be added separately.

Additional laundry aids

– Water softener, means less detergent can be used where water hardness is classed as hard to very hard.
- Prewash substances, for the programmed treatment of stains prior to the main wash. Using them means the subsequent wash can be at a low temperature or with bleach-free detergents.
- Fabric softener, prevents static build-up in synthetic fabrics and softens fabrics. If you own a tumble dryer, clothes are softened even without the use of a fabric softener.

Do not put solvents in the washing machine!

Keep detergents and other laundry products out of children's reach.

Before pouring in the detergent check that there are no foreign bodies in the detergent drawer.

Dosage details are usually shown on the detergent packaging. Follow those instructions.

Dosages

Only use detergents which are suitable for use in a washing machine.

You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.

The amount of detergent to use depends on:

- water hardness, depending on the hardness of the water and the type of detergent used, it is possible to reduce the amount of detergent.

– the degree of soiling, it is possible to reduce the amount of detergent used depending on the degree of soiling.

- amount of laundry, it is possible to reduce the amount of detergent when washing only a small amount of laundry.

The amounts shown on pack for detergents for washing delicates often already refer to a reduced wash size.

Follow the dosage instructions!

Dosage for powder detergent

For normal and low concentration detergents: for normally soiled laundry choose a program without prewash.

Put the detergent in compartment 2 of the drawer.

For heavily soiled laundry, choose a program with prewash.

Put 1/4 of the detergent in compartment 1, 3/4 in compartment 2 of the drawer.

When using water softeners, first put in the detergent, then add the softener to compartment 2.

For highly concentrated detergents not in single dose format, follow what is shown on pack exactly as regards type and amount of dosage.

To avoid the difficulty of checking if the detergent has been taken up, use the dosage aids provided in the detergent packaging.

Liquid detergent dosage

Liquid detergents may be used in accordance with the instructions on the relevant packaging, for all programs without prewash, by using the special container which is placed in the drum or, for those models that have it, in the special insert for liquid detergents.

Program selector

For the various types of fabrics and various degrees of dirt the washing machine has different program bands according to: wash cycle, temperature and length of cycle (see table of washing cycle programs).

1. Resistant fabrics

The programs have been designed for a maximum wash and the rinses, with spin intervals, ensure perfect rinsing.

The final spin gives more efficient removal of water.

2. Mixed and synthetic fabrics

The main wash and the rinse gives best results thanks to the rotation rhythms

of the drum and to the water levels.

A gentle spin will mean that the fabrics become less creased.

3. Special delicate fibres

This is a new wash cycle which alternates washing and soaking and is particularly recommended for very delicate fabrics.

The wash cycle and rinses are carried out with high water levels to ensure best results.

Special WOOL PROGRAM

The special cycle enables to thoroughly wash garments without damaging them. The cycle comprises of alternate periods of activity and pauses. The program has a maximum temperature of 30^ and concludes with 3 rinses and a short spin.

Special program "HAND WASH"

This washing machine also has a gentle Hand Wash program cycle. This program allows a complete washing cycle for garments specified as "Hand Wash only" on the fabric care label. The program has a temperature of 30^ C and concludes with 3 rinses and a slow spin.

4. Special programs

Special "RINSE" program

This programme carries out three rinses with a intermediate spin (which can be excluded by using the correct button).

It can be used for rinsing any type of fabric, e.g. use after hand-washing.

Special "FAST SPIN" program

Program “FAST SPIN” carries out a maximum spin (which can be reduced by using the correct button).

Special "DRAIN ONLY" program

This program drains out the water.

"MIX & WASH SYSTEM" PROGRAM

This is an exclusive Candy system and involves 2 great advantages for the consumer:

- to be able to wash together different type of fabrics (e.g. cotton + synthetic etc...) NON-FAST COLOUREDS;

- to wash with a considerable energy saving.

The "Mix & Wash" program has a temperature of 40^ C and alternate dynamic phases (the basket that turns) to static phases (fabrics in soak in phase of rest) with a duration program that almost reaching the 2 hours.

The energy consumption for the complete cycle is only 850 W/h.

"44 MINUTE" rapid program

A complete washing cycle (wash, rinse and spin), able to wash in approximately 44 minutes:

- a maximum load of 3 kg;

- lightly soiled fabrics (cotton and mixed fabrics)

We recommend, with this programme, a 30% detergent loading dose (compared to the normal one), in order to avoid detergent waste.

"32 MINUTE" rapid program

The 32 minute rapid program allows a complete washing cycle to be carried out in approximately 30 minutes, with up to a maximum load of 2 kg and a temperature of 30^ C.

When selecting the "32 minute rapid" program, please note that we recommend you use only 20% of the recommended quantities shown on the detergent pack.

Important:

- the first washing of new coloureds fabrics must be done separately;

- in every case, never mix FAST COLOUREDS fabrics.

44'

32'

Main wash

Auto half load

The washing machine is fitted with a self adjusting water level system.

This system enables the machine to use the amount of water needed to wash and rinse the laundry in relation to the particular load.

This results in a reduction of the water and electricity used, without in any way compromising the washing and rinsing performance.

In fact the amount of water and electricity used will always be appropriate for the clothes load.

The washing machine automatically ensures excellent washing results at minimum cost whilst respecting the environment.

Sorting the laundry

• It is recommended you wash only items which are washable with water and detergent and not dry-clean items.
• If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them.
• Sort the laundry according to fabric type, degree of soiling and wash temperature: follow the labeling in the garments.

Laundry for hot wash

Coloured, easy-care materials

Delicates and wool

- Items labeled with the following symbols are not suitable for machine washing:

Dry clean

Do not wash

For very delicate items, such as net curtains, underwear, tights etc., you are advised to use a laundry net or wash bag.

- Woollen items must be labeled with the «Pure New Wool» symbol to be washed in the machine ⚪, and must also be labeled «non-matting» or «machine washable».

– Colour often leaks from new coloured items. This can then colour other lighter items being washed.

We therefore recommend that coloured items should be washed for the first time separately.

For future washes, colourfast items can only be washed with white laundry up to 40^ C.

Note:

when sorting laundry

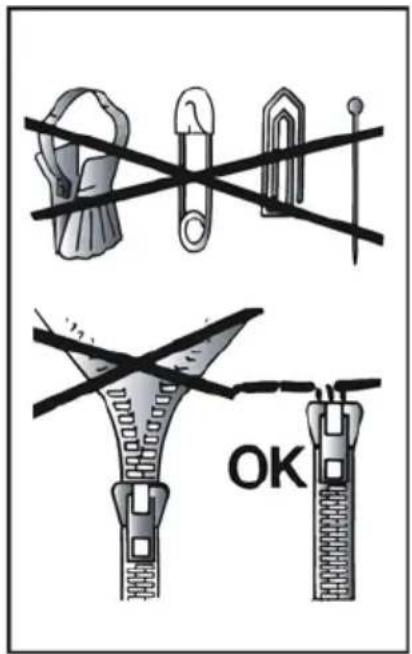

• check there are no metal objects in the laundry (such as paper clips, safety pins, pins, coins etc...);
• in the event of a machine failure during the warranty period and foreign objects are found to be the cause of the failure a labour charge may be made for the call out an engineer;

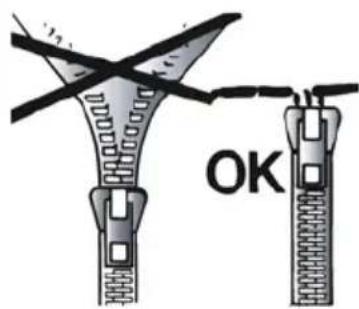

• button up pillowcases, fasten zips, hook & eye fasteners, belts and long dressing gown cords;
• remove curtain hooks;
• pay close attention to the labels on items;
• if you notice stubborn stains whilst sorting the laundry, remove them using a special detergent or a special stain remover.

We recommend that you do not do a full load of just towelling items as these become too heavy since they absorb a lot of water, and may become too heavy for the drum.

Variable capacity

This washing machine automatically adapts the level of the water to the type and quantity of washing. In this way it is also possible to obtain a “personalized” wash from an energy saving point of view.

This system gives a decrease in energy consumption and a sensible reduction in washing times.

The correct way to wash

Preparing the laundry

A) Select and sort the laundry according to the wash care labels found on each garment. Always check the care labels.
A net bag should be used for particularly delicate fabrics.

Loading the laundry

B) Open the door.

C) Put the laundry in the washing machine.

Close the door again, ensuring that no items of laundry are obstructing the lock, or door seal.

Illustration of a washing machine with a basket and cloth above it, showing its components (no text or symbols present)

Putting detergent in machine

D) Ope n the drawer, choose the detergent and put in the correct amount, according to the manufacturer's instructions and the advice on page "Detergents, washing aids and amounts to use".

E) Add any other laundry aids.

F) Close the drawer again.

Liquid detergents that are to be placed directly into the drum should use the recommended dispensing device.

Selecting the wash program

Refer to the program guide to select the most suitable program.

Turning the selector knob required program is activate.

The display will show the settings for the programme selected.

Then press the "START/PAUSE" button.

When the "START/PAUSE" button is pressed the machine sets the working sequence in motion.

The program carries out with the program selector stationary on the selected program till cycle ends.

Mechanical component diagram showing a bolt and nut assembly with a black arrow indicating motion (no text or symbols)

WARNING!

If there is any break in the power supply while the machine is operating, a special memory stores the selected program and, when the power is restored, it continues where it left off.

When the program has finished

• The display will read "END".
• Wait for the door lock to be released (about 2 minutes after the program has finished).
• Switch off the machine by turning the program selector to the "OFF" position.
• Open the door and remove the laundry.

Disconnect the plug from the mains power supply and turn off the water supply after every use.

For all types of wash consult the program table and follow the operations in the order indicated.

Table of programs

Programs for:		Program selector on:	Weight max, kg	Temp., °C	Charge detergent
					2	1
Resistant fabrics Cotton, linen	Whites	90	4	90°	●	●
Cotton, mixed resistant	Non fast coloureds with Prewash	60+Pre	4	60°	●	●	●
Cotton, mixed	Non fast coloureds	60 **	4	60°	●	●
	Non fast coloureds	40	4	40°	●	●
	Fast coloureds	30	4	30°	●	●
synthetics Synthetics (nylon, perlon), mixed cotton	Non fast coloureds	50	2 50°		●	●	M
	Fast coloureds	40	2	40°	●	●
Mixed, delicate synthetics	Shirts	30	2	30°	●	●
Very delicate fabrics	Delicates	40 **	1,5 40°		●	●
	"MACHINE WASHABLE" woollens	-30	1	30°	●	●
	Hand wash	30	1 30°		●	●
Specials	Rinse		--			●
	Fast spin		--
	Drain only		--
	Mix & Wash system program	[DBHY]	4 40°		●	●
	Rapid 44 minute		3 40°		●	-
	Rapid 32 minute		2 30°		●

Please read these notes!

When washing heavily soiled laundry it is recommended the load is reduced to 3 kg maximum.

* Programs according to CENELEC EN 60456.

The spin speed may also be reduced, to match any guidelines suggested on the fabric label, or for very delicate fabrics cancel the spin completely this option is available with a spin speed button.

Cleaning and routine maintenance

Do not use alcohol-based scourers and /or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance:

– Cleaning the drawer compartments;
- Cleaning the filter;
- Removals or long periods when the machine is left standing.

Cleaning the drawer compartments

Even if it is not strictly necessary, it is good to clean the compartments for bleaching detergents and additives occasionally.

A. To do this you just need to pull them out firmly, but without forcing them;
B. Clean everything in the compartment under running water;
C. Put the compartments back into place

Filter cleaning

The washing-machine is equipped with a special filter to retain large foreign matter which could clog up the drain, such as coins, buttons, etc. These can, therefore, easily be recovered. The procedures for cleaning the filter are as follows:

• Open the flap;
• Only available on certain models:

Pull out the corrugated hose, remove the stopper and drain the water into a container.

- Before removing the filter, place an absorbent towel below the filter cap to collect the small amount of water likely to be inside the pump;

- Turn the filter anticlockwise till it stops in vertical position;

- Remove and clean;

- After cleaning, replace by turning the notch on the end of the filter clockwise. Then follow all procedures described above in reverse order.

Illustration showing a hand holding a small mechanical component with directional arrows indicating motion (no text or symbols)

Transporting storing the appliance for long periods when appli- ance is not in use

If the appliance is being transported or is out of use for long periods in unheated places, all remaining water must be completely removed from all hoses.

Ensure mains power is off, then unclip the hose and point it downwards into a basin until all the water has emptied out. When finished, repeat the same operation with the water inlet hose.

Trouble shooting

What might be the cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call the GIAS Service, they may be able to assist you over the telephone.

FAULT	CAUSE	REMEDY
1. Does not function on any program2. Does not load water	Mains plug not plugged in Insert plug
	Mains switch not on Turn on mains switch
	No power Check
	Electric circuit fuses failure Check
	Load door open Close load door
	See cause 1 Check
	Inlet tap turned off Turn on water inlet tap
	Timer not set correctly Set timer on correct position
	Discharge tube bent Straighten discharge tube 3. Does not discharge waterOdd material blocking filter Check filter
4. Water on floor around washing machine	Leak from the washer between the tap and inlet tube	Replace washer and tighten the tube on the tap
5. Does not spin	The washing machine has not discharged water	Wait a few minutes until the machine discharges water
	“No spin” setting (some models only) Turn the program dial onto spin setting
6. Strong vibrations during spin	Washing machine not perfectly level Adjust special feet
	Transport bracket not removed	Remove transport bracket
	Washing load not evenly distributed	Distribute the washing evenly
7. Display reads error 0, 1, 5, 7, 8, 9	-	Call service.
8. Display reads error 2	No water fill.	Check water supplies are on.
9. Display reads error 3	No pump out.	Check drain is clear. Check drain hose is not kinked.
10. Display reads error 4	Machine overfilled with water.	Turn off water supply to machine. Call service.
NOTE: The machine is fitted with a special electronic device, which prevents the spin cycle should the load be unbalanced. This reduces the noise and vibration in the machine and so prolongs the life of your machine.

It is unlikely that water will be visible in the drum!

This is due to the latest technology that achieves the same standard of washing and rinsing but with far less water consumption.

Note:

The use of environmentally-friendly, phosphate-free detergents (check detergent information on pack) can have the following effects:

• waste water from rinsing may be cloudier because of the presence of a white powder (zeolites) held in suspension, without the rinse performance being adversely affected;
• presence of white powder on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric;
• The presence of foam in the final rinsing water is not necessarily an indication of poor rinsing;
• Carrying out more rinse cycles does not serve any purpose in such cases.

Customer Service

The appliance is covered by a certificate of guarantee which allows you free use of the Candy Technical Support Service. Remember to send off the guarantee certificate for validation within 10 days of the date of purchase.

You should retain the receipt issued by the retailer when you purchased the machine to show to the call out engineer, should you need to consult one.

If your washing machine shows signs of a defect or is not working properly, before you contact GIAS Service we recommend you carry out the checks detailed on page 100 within the Trouble shooting section.

If the problem with the machine persists after completing all the recommended checks, please dial the GIAS Service number on the rear cover of this manual.

For the cost of a telephone call, you will be connected directly to GIAS. It is important you tell the GIAS advisor your product's model number and serial number, which you will find on the rating label (16 characters, beginning with the number 3), found on the front of the washing machine (door area). By doing this, your enquiry will be responded to more efficiently.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE)

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
