CDB 30/1 X - Barbecue CANDY - Free user manual and instructions

Product type	Built-in electric barbecue
Brand	CANDY
Model	CDB 30/1 X
Supply voltage	230 V ~
Power	2400 W
Power cable	H05RR-F or H05RN-F (3x1.5 mm²)
Cooking type	Grill with electric heating element
Cooking positions	1 to 11 (position 11: grill without thermostat)
Cooking tray	Lava rock (absorbs grease) or water (3 cm)
Recommended preheating	10 minutes on position 1
Exterior material	Steel and varnished parts
Cleaning	Non-abrasive products, avoid chlorine and acids
Maintenance	Unplug before cleaning; do not use steam cleaner
Safety	Hot surfaces; keep children under 8 away
Grounding	Mandatory according to standards
Installation	Built-in into worktop (peripheral adhesive)
Electrical connection	Accessible omnipolar switch
Prohibited use	Charcoal or similar fuel

Frequently Asked Questions - CDB 30/1 X CANDY

How to preheat the lava rock?

Place the lava rock in the tray, then turn the knob to position 1 for 10 minutes. This allows heat to accumulate and achieve more even cooking while avoiding first-use odors.

Can I use water instead of lava rock?

Yes, you can pour a layer of water about 3 cm in the tray. This eliminates unpleasant odors without compromising the barbecue's performance.

How to clean the CANDY CDB 30/1 X barbecue?

First unplug the appliance. Use non-abrasive products and avoid those containing chlorine (bleach) or acids (vinegar, lemon). Never use a steam cleaner.

What to do in case of oil or grease spill?

Never use water to extinguish a grease fire. Turn off the appliance and cover the flame with a lid or fire blanket. Lava rock naturally absorbs drips.

What is the power of the barbecue?

The barbecue has a power of 2400 W at a voltage of 230 V.

Is the appliance suitable for outdoor use?

The manual does not specify outdoor use. It is intended for built-in installation into a worktop (kitchen). Check the installation conditions to avoid any risk.

What is the difference between positions 1-10 and position 11?

Positions 1 to 10 allow thermostatic adjustment for gentle or even cooking. Position 11 disables the thermostat and heats at full power (red heating element) for intense grilling.

How to install the barbecue into a worktop?

Cut a suitable opening (see fig. 2 in the manual). Apply adhesive along the perimeter of the worktop and embed the appliance. Electrical connection must be done by a qualified installer.

What to do if the power cable is damaged?

Do not use the appliance. The manufacturer, technical support service, or a qualified technician must replace the cable to avoid any risk.

Can I use charcoal with this appliance?

No, it is strictly forbidden to use charcoal or any similar fuel. This appliance is exclusively electric.

USER MANUAL CDB 30/1 X CANDY

THIS APPLIANCE IS CONCEIVED FOR DOMESTIC USE ONLY. THE MANUFACTURER SHALL NOT IN ANY WAY BE HELD RESPONSIBLE FOR WHATEVER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR BY UNSUITABLE, WRONG OR ABSURD USE.

CE PRODUIT EST CONÇU EXCLUSIVEMENT POUR USAGE DOMESTIQUE. LE CONSTRUCTEUR DÉCLINE TOUTE RESPONSABILITÉ POUR DOMMAGES ET BLESSURES CAUSÉES PAR UNE INSTALLATION INCORRECTE OU PAR UN USAGE IMPROPRE, ERRONÉ OU ABSURDE.

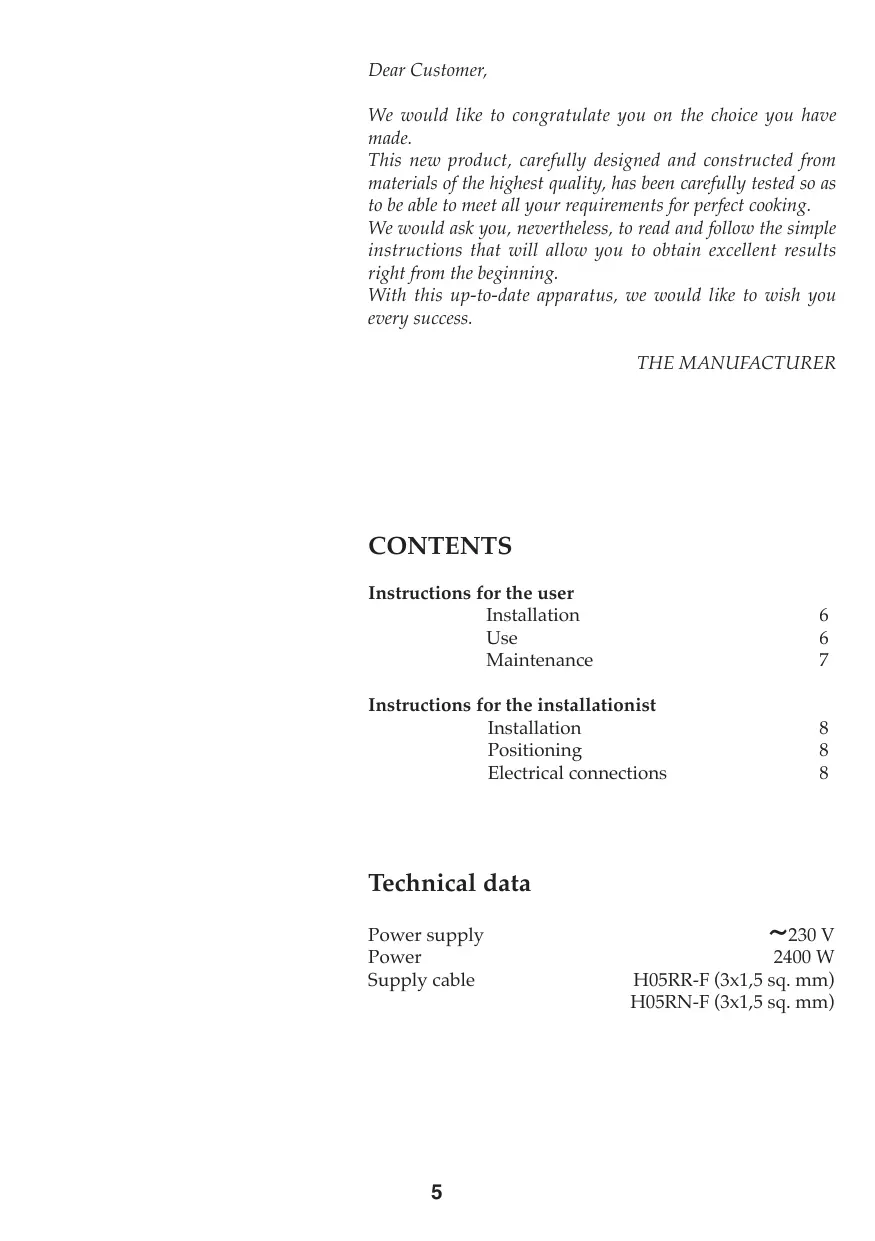

We would like to congratulate you on the choice you have made.

This new product, carefully designed and constructed from materials of the highest quality, has been carefully tested so as to be able to meet all your requirements for perfect cooking.

We would ask you, nevertheless, to read and follow the simple instructions that will allow you to obtain excellent results right from the beginning.

With this up-to-date apparatus, we would like to wish you every success.

THE MANUFACTURER

CONTENTS

Instructions for the user

Installation

6

Use

6

Maintenance

7

Instructions for the installationist

Installation

8

Positioning

8

Electrical connections

8

Technical data

Power supply

Power

Supply cable

230V

2400 W

H05RR-F (3x1,5 sq. mm)

H05RN-F (3x1,5 sq. mm)

Instructions for the user

Installation

All the operations relating to the installation (electrical connection) must be carried out by qualified personnel according to the regulations in force.

• The appliance and its accessible parts become very hot during use. Care should be taken not to touch the heating elements. Children under 8 years of age must be kept away if not continually monitored.
• This appliance can be used by children as young as 8 years old and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or they have been instructed to use the appliance safely and understand the risks involved.
• Children must not play on the appliance. Children should not clean or perform maintenance without supervision.
• ATTENTION: cooking with grease or oil on the automatic cooking surface can be very dangerous and can cause fires. Do not attempt to put out a fire with water but turn off the appliance and then cover the flames with a lid or fire blanket.
• ATTENTION: Danger of fire: do not store objects on the cooking surfaces.
• Do not use steam cleaners to clean the appliance.
• The appliance is not intended for use with an external timer or a separate remote control system.

Use

(Fig.1) The barbecue allows you to grill your food fast. Using the control knob on the front panel, you can turn on the heater that can cook faster or more slowly, according to the settings from 1 to 11. It works as a grill by turning the knob to position 11. You will notice a slight click that shows that the thermostat has been turned off, and the heating coil soon gets red hot.

This does not mean that you cannot get very good grilling results from the intermediate positions. On the contrary, these positions are recommended for cooking delicate dishes, or to cook the food evenly overall, and right into the middle as well.

The lava rock in the tray is provided to absorb the drips of oil or grease that are produced during cooking. As well, it accumulates heat during the start-up phase of the heater, and so gives you a more constant grilling performance,

which is very similar to that obtained from charcoal.

Water can be put into the tray, instead of the lava rock.

(We suggest a depth of about 3 cm or one inch.) The presence of water in the tray eliminates unpleasant cooking smells, without reducing the performance of the barbecue in any way.

To obtain the best results, we therefore recommend preheating the lava rock for at least 10 minutes at position 1. This is particularly advisable when you turn on the equipment for the first time, because it allows you to reduce the risk, during cooking, of the food absorbing smells that the heating coil produces when it is first switched on.

Maintenance

Before doing any operation, cut off the electricity from the apparatus.

In order to give your equipment a long life, it is vital to thoroughly clean it all over, remembering the following points:

- the steel and/or painted parts must be cleaned using suitable products (available on the market) which are not abrasive or corrosive. Avoid products based on chlorine (bleach, etc);

- avoid leaving acids or alkalis on the work surface (vinegar, salt, lemon-juice, etc.)

CHARCOAL OR SIMILAR COMBUSTIBLE FUEL MUST NOT BE USED WITH THIS APPLIANCE.

Instructions for the installationist

Installation

These instructions are intended to be used by a qualified installationist, who will be responsible for the installation, adjustment and maintenance according to the laws and regulations in force.

All operations must always be carried out with the equipment disconnected from the electricity.

Positioning

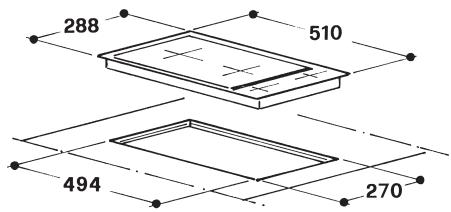

(Fig. 2) The apparatus is designed to be set into a work surface, as shown in the relevant illustration.

Fit the seal provided round the whole perimeter of the surface.

Electric connections

Before connecting up the electricity, ensure that:

- the specification of the system is such as to match that shown on the serial number plate applied to the underneath of the work surface.

- the system is supplied with an efficient earth connection to the ground, according to the regulations and the laws in force. The earth connection is obligatory by law.

In the case where the equipment is not supplied with cable and/or relevant plug, make use of materials suited to the input current shown on the serial number plate, and to the working temperature. The cable must not reach a temperature of more than 50^ C higher than the ambient temperature in any part of its length.

If connecting directly to the mains power supply, fit a multi-pole switch of a suitable size for the rated capacity with a clearance distance which completely disconnects the power line under overvoltage category III conditions, consistently with the rules of installation (the yellow/green earth wir must not be interrupted). The plug or omnipolar switch must be easily reached on the installed equipment.

N.B.: The manufacturer declines any responsibility in the case where the above and the normal accident prevention regulations have not been respected.

To avoid all risk, if the power cable becomes damaged, it must only be replaced by the manufacturer, by an authorised service centre, or by a qualified electrician.

Cher Client,

Simple line drawing of a document with horizontal lines and a circular button at the bottom (no text or symbols)

mng.9511175300

Fig. 1

288 510 494 270

mng.9912210800 20 30

40

600 55 MIN. mg-99:2210200 15 MIN.

mng 3912210300 600 MIN. 200 MIN. 200 MIN.

Apparecchio classe I tipo Y
Apparatus class I Type Y
Appareil de classe I type Y
Gerät der Klasse I Typ Y
Aparato clase I tipo Y
Apparaat klasse I typo Y
Aparelho classe I tipo Y

Fig. 2
