USER MANUAL OCEAVP40TW0 OCEANIC

Two electric fans with black and white designs, one displaying a black fan labeled 'oceanic' on a stand, the other showing a white fan with a white handle (no text or symbols visible)

OCEAVP40TB0
OCEAVP40TW0

oceanic

AVERTISSEMENTS ET CONSEILS DE SECURITE IMPORTANTS

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

6. RÉGLAGE DE L'INCLINAISON

IMPORTANT WARNINGS AND SAFETY ADVICE

We encourage you to read this user guide carefully and completely before installing and using your device.

It is important that this user guide is kept with the device for any new consultation. If this unit is to be transferred to another person, make sure that the user guide follows the unit so that the new user can be informed of the operation of the unit.

In this user guide, the following symbols are used:

	Important information about your personal safety and how to avoid damage to the device
	General information and advice
	Environmental information
	Fire hazard
	Risk of electric shock
	Hot surfaces
	Do not cover the device

The product must be installed in accordance with the national installation rules.

This device is only intended for domestic and indoor use.

1. Mount it completely before turning it on.
2. Before connecting the device, check whether:
3. the connection voltage is the same as that of the nameplate,
4. the plug and the power supply are adapted to the device,

5. the cable plug is suitable for the socket The unit is only intended for a power outlet with a connection voltage of 230 Volts (50 Hz).

6. Never insert your fingers, pencils or any other object through the grill while the fan is running.

7. Make sure that the fan is placed on a stable surface while it is running.

8. Do not use your fan near a window. Rain may cause a risk of electric shock.

9. Never let the fan run unattended.

10. For safety reasons, it is ESSENTIAL to always remove the plug from the socket when the appliance is not in use, before cleaning it or before any maintenance.

11. Do not use chemicals or detergents for cleaning that could easily damage or deform your device.

12. Do not pull on the power cord to disconnect the appliance from the power outlet.

13. Do not use the appliance with a damaged cord or plug.

14. Never attempt to disassemble or repair the unit yourself. In the case of a repair by a non competent person, the warranty is canceled.
15. Unplug the fan when moving it.
16. Never leave this device in the presence of or within the reach of children without supervision.
17. The appliance and grill must not be disassembled for maintenance or cleaning.
18. The devices are not intended to be operated by means of an external timer or by a separate remote control system.
19. This device may be used by children at least 8 years of age and by persons with reduced physical, sensory or mental capacity or lack of experience or knowledge, if they are properly supervised if instructions for the safe use of the apparatus have been given to them and the risks involved have been apprehended. Children should not play with the device. Cleaning and maintenance by the user should not be done by unattended children.
20. This product complies with the requirements of Directives 2014/35 / EU (repealing Directive 73/23 / EEC as amended by Directive 93/68 / EEC) and 2014/30 / EU (repealing Directive 89/336 / EEC).

18. WARNING

If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid a hazard.

1. The power cord plug must be removed from the electrical outlet before cleaning or servicing.

2. Once the unit is assembled, it is forbidden to disassemble the grilles.

3. This device is intended for use in domestic and indoor applications.

4. For instructions on how to install the unit, refer to the following "Assembly Instructions" section of the manual.

5. For cleaning and maintenance of the appliance, refer to the section "Cleaning and maintenance".

SUMMARY

IMPORTANT WARNINGS AND SAFETY ADVICE 13

I. UNPACKING 18

II. OPERATING INSTRUCTIONS AND ASSEMBLY INSTRUCTIONS 18

III. CLEANING AND MAINTENANCE 20

IV. TECHNICAL SPECIFICATIONS 20

V. EXCLUSIONS OF WARRANTY 21

VI. DISPOSAL 22

I. UNPACKING

1. UNPACKING THE APPLIANCE AND DISPOSING OF THE PACKING ELEMENTS

• Remove all packing material around the appliance and the protective elements inside the appliance compartments.

• Cartonboard and sheets of paper are recyclable. They must be thrown in the collection bins provided for this purpose.

• Materials bearing the symbol are recyclable:

  PE <= polyethylene; > PS <= polystyrene; > PP <= polypropylene

This means that they can be recycled by depositing them into appropriate collection containers.

- Other packaging elements (adhesive, fasteners, etc.) must be disposed of with household waste.

II. OPERATING INSTRUCTIONS AND ASSEMBLY INSTRUCTIONS

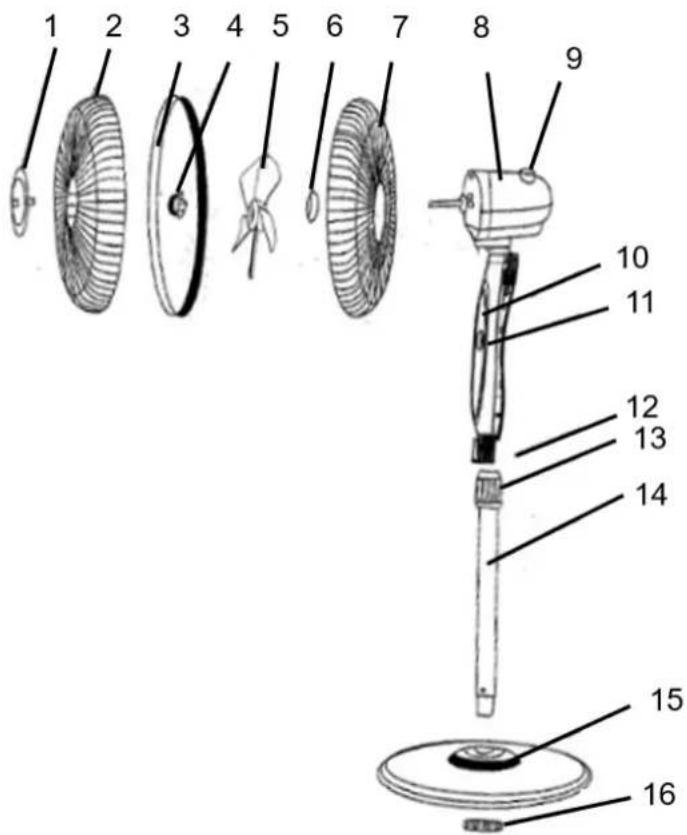

4. DESCRIPTION

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1	CENTRE COVER
2	FRONT GRILL
3	PLASTIC STRAPPING RING
4	REVERSE STEP NUT
5	BLADE
6	RING SCREW
7	REAR GRILL
8	MOTOR HOUSING
9	OSCILLATION BUTTON
10	CONTROL PANEL
11	SPEED CONTROL
12	ADJUSTABLE POLE
13	ROD FIXING RING NUT
14	LOWER TUBE
15	BASE DECORATIVE CAP
16	PLASTIC NUT

2. COLUMN ASSEMBLY INSTRUCTION

- Loosen the plastic nut(16);

- Insert the lower tube(14) on the base decorative cap(15) and tighten the plastic nut(16);

- Unscrew the rod fixing ring nut(13);

- Raise and lower the adjustable pole(12) carefully and firmly tighten the set screw.

Line drawing of a hand holding a mechanical component (no text or symbols)

Step 1

Step 2

Illustration of a hand holding a circular object with radial lines, no text or symbols present

Step 3

Illustration of a hand holding a circular object with concentric rings and radial lines (no text or symbols)

Step 4

Abstract line drawing of a stylized flower or petal with radiating petals (no text or symbols)

Step 5

Illustration of a hand holding a propeller or fan blade (no text or symbols visible)

Step 6

Abstract black-and-white illustration of a fan-like shape with internal lines, no text or symbols present

Step 7

Line drawing of a hand holding a curved object, labeled 'Step 8' (no other text or symbols)

Step 8

3. BODY ASSEMBLY INSTRUCTION

1. Unscrew the nut (6) counterclockwise to remove it from the motor housing. (8);

2. Place the rear grille (7);

3. Screw the nut (6) firmly to secure the rear grille;

4. Remove the plastic tip on the motor shaft and attach the fan blades (5) until they reach the retaining pin;

5. Turn the nut of the blade (4) counterclockwise to the fan blade (5)

6. Clip the front grille (2) onto the rear grille (7). Make sure the grill ring (3) is properly seated.

7. Tighten the screw on the grill ring (3) to secure the front grille (2) and the rear grille (7).

4. FAN SPEED REGULATOR

ON / OFF

Fan speed is controlled by turning knob of speed regulator on the top of bod

5. OSCILLATING

Simple line drawing of a surveying instrument with an upward arrow (no text or symbols)

To make / stop the fan head oscillate, push down / pull up the oscillating.

6. TILT ADJUSTING

To adjust the air flow upward or downward, push the guard lightly to the desired direction.

Warning: the appliance must be unplugged before cleaning.

III. CLEANING AND MAINTENANCE

• Be sure to turn off and unplug the appliance before cleaning.
• Clean the plastic parts with a damp sponge impregnated with a mild soap.
  Remove the soap with clear water and wipe with a soft cloth.
• Make sure the water can not come in contact with the engine.
• Do not reconnect the appliance until it is completely dry.

IV. TECHNICAL SPECIFICATIONS

Reference OCEAVP40TB0OCEAVP40TW0
Model No.	FS400-11L
Voltage	100-240 V~
Frequency	50 Hz / 60 Hz
Power	35W
Class II

Description Symbol Value Unit
Maximum airflow F 58,71 m			^3/min
Absorbed power P 37,60 W
Service value SV 1,56 (m			^3/min)/W
Electricity consumption in "standby" P	SB - W
Electricity consumption "off" P	OFF 0	W
Sound power level	LWA 54,16 dB(A)
Maximum speed of air	C	3,09	metres/sec
Seasonal electricity consumption	Q 12,03 kWh/a
Service Value Measurement Standard	IEC 60879:1986 (corr.1992)
Contact details for any further information SCHNEIDER CONSUMER GROUP, 12 rue Jules Ferry, 93110 Rosny sous Bois, France

V. EXCLUSIONS OF WARRANTY

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or unauthorized repair
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the OCEANIC.

VI. DISPOSAL

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

- This logo affixed to the product means that it is a device whose treatment as waste falls within the scope of Directive 2012/19 / EU, on waste electrical and electronic equipment (WEEE).

- The presence of hazardous substances in electrical and electronic equipment can have potential effects on the environment and human health in the reprocessing cycle of this product.

- Thus, at the end of the life of this appliance, it must not be disposed of with unsorted municipal waste.

- As a final consumer, your role is paramount in the cycle of reuse, recycling and other forms of recovery of this electrical and electronic equipment. Recovery and collection systems are made available to you by local authorities (waste disposal centers) and distributors.

- You have the obligation to use the selective collection systems available to you.
