USER MANUAL OCEAVT40CM2 OCEANIC

White oceanic desktop fan with mesh grille and base, no visible text or symbols on the fan body

OCEAVT40CM2

oceanic

Technical line drawing of a mechanical component with a red directional arrow indicating motion (no text or symbols)

ENTRETIEN ET NETTOYAGE

Important safety instructions:

Please read this instruction manual fully before using this device and it safe for future reference.

- This appliance is for home use only.

- Any use other than that intended for this device, or for an application other than the one into (e.g. commercial use), is prohibited.

- If the supply cord is damaged, it must be replaced by the manufacturer, a service agent, or similarly qualified person in order to avoid potential hazards.

- The fan should only be used according to the rated voltage.

- When using the fan, do not handle or push objects into the grille.

- Before moving the fan, turn off the power supply first.

- This appliance can be used by children aged from 8 years and above, and persons with reduce physical, sensory or mental capabilities or lack of experience and knowledge, but only if they given supervision or instruction concerning use of the appliance in a safe way and understand hazards involved. Children shall not play with the appliance. Cleaning and user maintenance should be made by children without supervision

• Always place the device on a stable surface when using it.

- Do not let the power cord hang over the edge of a table or counter top.

- Make sure that the power cable never comes into contact with a hot surface.

- Before cleaning the fan, first disconnect from the mains, then disassemble the grille and blades. Use a soft damp cloth to wipe away grease and dust. Do not use gasoline or other corrosive liquids attention to not alter the angle of the blades.

• Water and other liquids should not be allowed to enter the motor.

- Do not cover the fan when in use.

- Unplug the fan before leaving home.

- Unplug the cord before moving.

- Do not unplug the fan by pulling on the power cable. Grasp the plug and pull it out to disc

- Do not allow hair, curtains, tablecloths and loose clothing to come into contact with the fan's parts, as this may cause personal injury and property damage.

- Do not use this fan in places where flammable liquids are used or stored.

- The fan is not designed for outdoor use. The fan is for indoor use only. Do not use outdoor

- Fan overheating protection: The fan motor is installed with a thermal fuse. When motor overheating occurs, the thermal fuse will cut off the power supply, and the motor temperature will stop rise prevent the risk of melting or burning.

- Ensure that the fan is switched off from the electrical mains before removing the guard.

- Do not try to repair this fan yourself.

- Any repair operation must be carried out by the manufacturer, its after-sales service or a qual agent so as to avoid any danger.

Appliance specifications

TECHNICAL CHARACTERISTICS
Rated voltage	220-240 V
Rated frequency	50 Hz
Rated wattage	45 W
Ambient operating temperature	20±5 °C
Electrical protection class	II
Maximum fan flow rate	67.18 m3/min
Fan sound power level	51.51 dB(A)
Service value	1.73 (m3/min)/W
Maximum air speed	2.75 meters / sec
Seasonal electric consumption	12.42 kWh/a
Service value measurement standard	CEI 60879: 1986EN 60704-2-7 :1998EN 60704-1 :2010 + A12012EN 50564 :2011
Contact details for more information	Oceanic120-126 Quai de BacalaCS 1158433000 Bordeaux

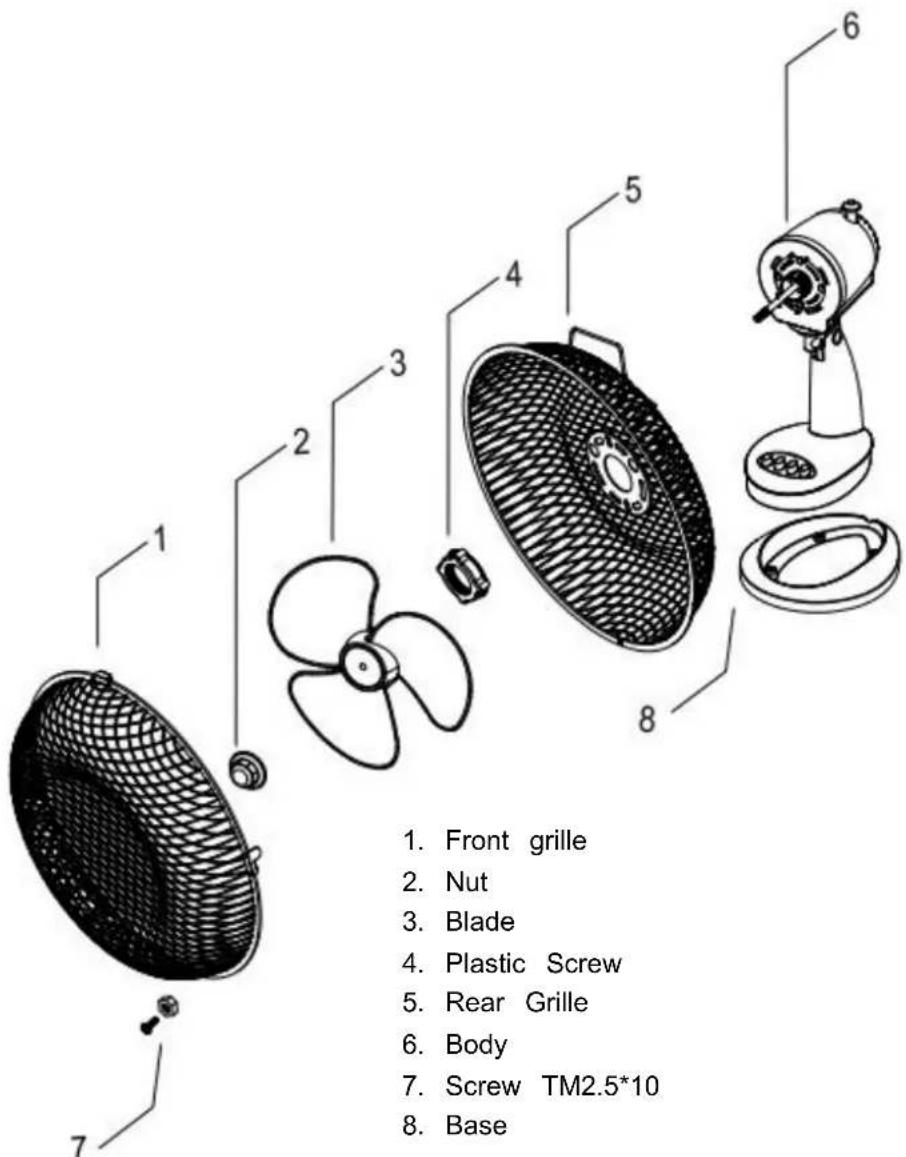

1. Front grille 2. Nut 3. Blade 4. Plastic Screw 5. Rear Grille 6. Body 7. Screw TM2.5*10 8. Base

Assembly:

1. Insert the motor unit into the base.
2. Place the rear protection grid on the motor unit axis.
3. Insert the blades between their rear nut and their front nut. Tighten the nuts by hand.
4. Place the front protection grille and tighten the screw.

USE

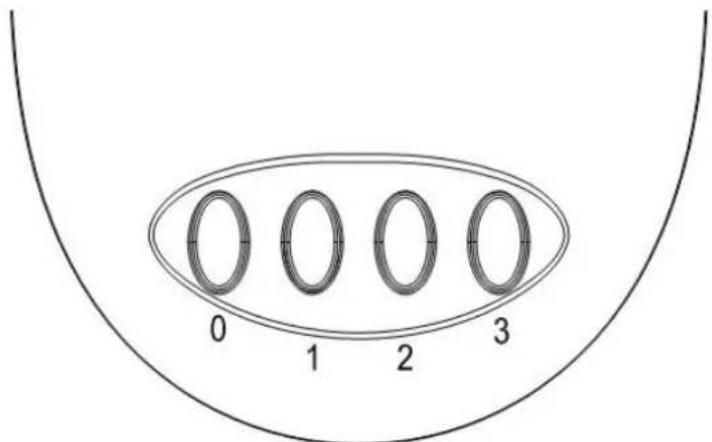

To start and select the fan speed, use the following buttons:

0--STOP

1--LOW SPEED

2--MIDDLE SPEED

3--HIGH SPEED

0 1 2 3

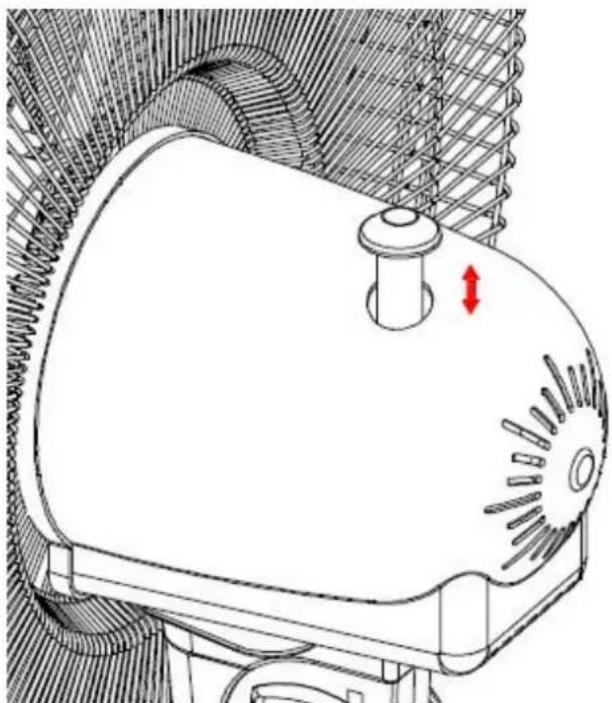

Operate this knob to control oscillation to allow air to cover a larger area, or to choose a directional flow required angle.

Technical line drawing of a mechanical component with a central knob and red directional arrows indicating motion (no text or symbols)

CARE AND CLEANING

Always turn off the fan and unplug it from the power outlet before cleaning.

Clean the fan with a slightly damp cloth, then dry it. Do not immerse the motor housing in water or any other liquid. Do not use chemical or abrasive cleaners.

Storage

When you are not using the fan, store it in a dry and secure place.

• If stored disassembled, it is recommended that you use the original box (or an appropriately sized box).
• If stored assembled or partially assembled, protect the fan head from dust.

DISPOSAL OF WASTE

As a responsible distributor, we attach great importance to the protection of the environment. We encourage you to follow the correct disposal procedures for your device, batteries and packaging. This will help to conserve natural resources and ensure that the product and parts are recycled in a way that is respectful of health and the environment.

You must dispose of this product and its packaging according to local laws and regulations.

Since this product contains electronic components and sometimes batteries, the product and its accessories should be disposed of separately from household waste when the product reaches the of its life.

For more information on disposal and recycling procedures, contact the authorities in your local are

Take the device to a local collection point for recycling. Some centers accept products for free.

Oceanic Imported by:

120-126 Quai de Bacalan A.M.C.

CS 11584 123, QUAI JULES GUESDE

33000 Bordeaux

94400 VITRY SUR SEINE

France

oceanic

www.oceanic.eu
