USER MANUAL OCEAVT30B1 OCEANIC

VENTILATEUR DE TABLE

Guide d'utilisation

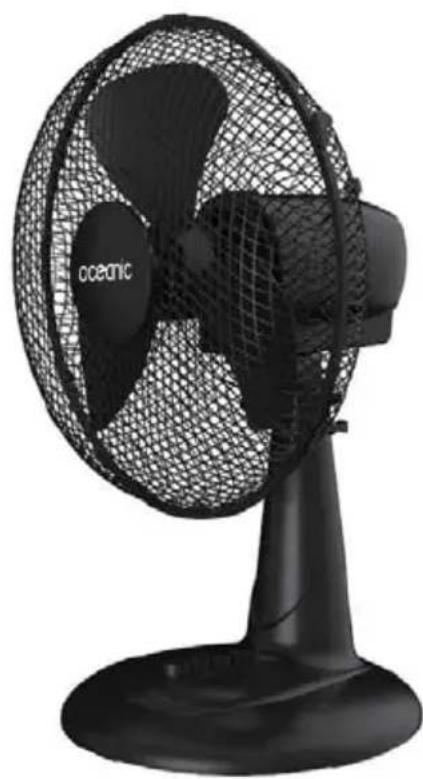

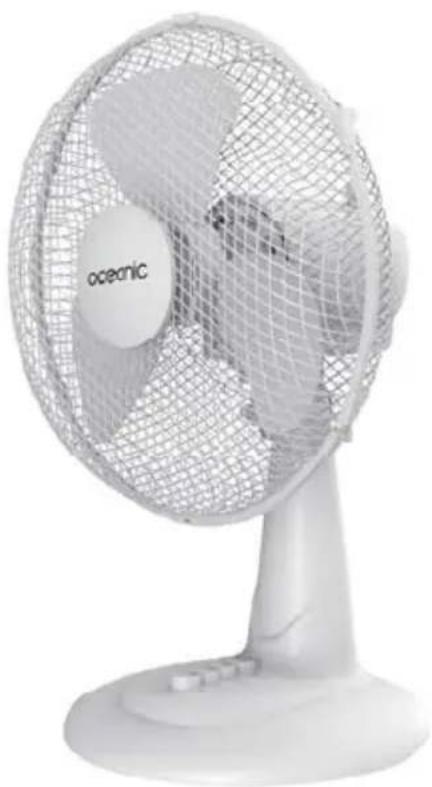

TABLE FAN

User manual

White electric fan with mesh grille and 'oceanic' logo on the front (no additional text or symbols)

Black ceramic fan with mesh grille and 'oceanic' branding, mounted on a stand (no text or symbols beyond branding)

OCEAVT30CM OCEAVT30B1

oceanic

CONSIGNES DE SÉCURITÉ IMPORTANTES

Exploded diagram of a fan assembly with numbered parts for identification

Technical drawing of a mechanical component with concentric rings and mounting brackets (no text or symbols)

Écrou de fixation

Diagram of a coiled wire structure with a vertical support and an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with labeled parts (no text or symbols present)

Écrou de pales

Diagram of a mesh grid structure with a flag and arrow, no visible text or symbols

Technical line drawing of a mechanical component with threaded parts and a bolt (no text or symbols)

UTILISATION

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance and keep them for future reference.

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• For the details concerning the method of cleaning, please see section “Cleaning and maintenance” on page 11.

• Warning! After assembly, it's strictly forbidden to remove the protective guards during maintenance or cleaning.
• Never use the fan without the guards in place. Regarding the method on how to assembly and

how to fix the fan with screws, refer to the section "ASSEMBLY".

• Do not use outdoors.
• Make sure the appliance is placed on a stable surface when used.
• Never insert fingers, pencils or any other objects through the guards when the fan is operating.
• Turn off and unplug the fan from the mains socket when not in use, before moving or cleaning.
• Do not unplug the fan by pulling on the cord. Grasp the plug to pull to disconnect.
• Do not let hair, net curtains, tablecloths or loose clothing come into contact with the moving parts of the fan as it may cause damage or injuries.
• Do not use this fan near a window that may have condensation on it.
• Do not use this fan with any external semi-conductor speed controller.
• Do not use this fan in areas where flammable liquids are used or stored.
• Do not let the power cord hang over the edge of a table or counter top.
• Do not let the power cord touch any hot surface.
• Do not use the appliance for other than its intended use as laid out in these instructions.
• Do not try to repair this fan yourself. There is no user serviceable parts inside and all servicing and

repair must be undertaken by the manufacturer, its after-sales service or a qualified service agent in order to avoid a hazard.

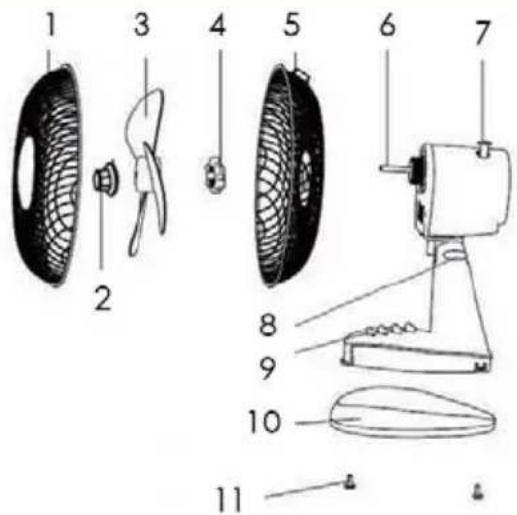

PARTS

Technical diagram of a fan assembly with numbered parts for identification

1. Front guard
2. Retaining nut
3. Fan blade
4. Locking nut
5. Rear guard
6. Motor spindle
7. Oscillation knob
8. Adjusting screw
9. Control buttons
10. Base
11. Securing screws

ASSEMBLY

CAUTION:

DO NOT insert the mains plug into the mains socket until the fan has been completely assembled. Never operate the fan with a cracked or damaged fan blade.

Base assembly

1. Remove the supplied 2 screws from the base.
2. Insert the fan body into the hole of the base and then press it into the base until it clicks in position.
3. Fix the base onto the fan body by tightening the supplied screws.

Rear guard assembly

Unscrew the retaining nut from the motor spindle clockwise. Unscrew the locking nut from the motor spindle anticlockwise.

Position the rear guard onto the motor housing; make sure the handle on the rear guard is pointing upwards.

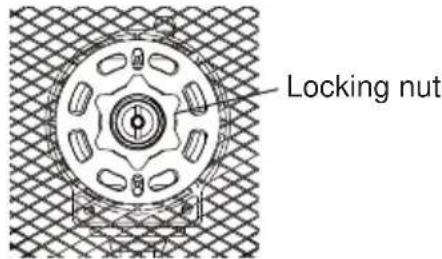

Insert the locking nut and turn it clockwise to lock the rear guard into position.

Locking nut

Fan blade assembly

Slide the fan blade onto the motor spindle, making sure the motor spindle is fully seated into the blade groove.

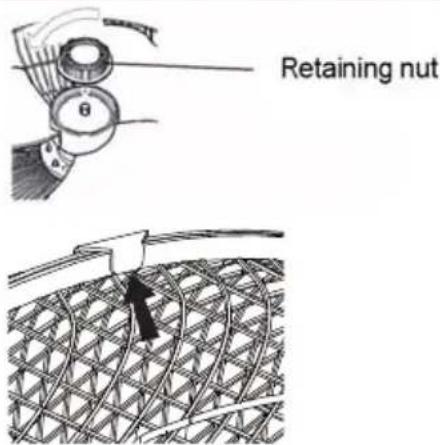

Screw the retaining nut anticlockwise to tighten the fan blade to the motor spindle.

Front guard assembly

Remove the small securing screw and nut from the front guard.

Attention!

The hook of the front guard must be at the top.

Diagram of a coiled wire structure with a directional arrow indicating force or movement (no text or symbols)

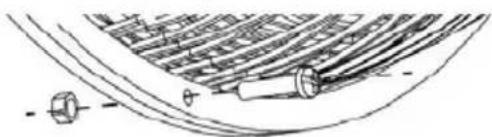

Make sure that the holes in both guards are aligned and fasten them securely by using the provided screw and nut. Once the guard is in position fasten the clips to finally secure both guards.

Retaining nut

Pure technical line drawing of a mechanical component or tool without any text, numbers, or symbols

OPERATION

1. Place the fan on a stable, level surface.
2. Plug the fan in the mains socket.
3. Press the 1, 2 or 3 control button to select the desired speed. To turn off the fan, press the 0 control button.

0= Off 1= Low speed 2= Medium speed 3= High speed

1. To make the fan oscillate, push down the oscillation knob located on the top of the motor housing and the fan will oscillate from side to side.

To stop the fan from oscillating, lift up the oscillation knob.

1. Tilting Adjustment

The airflow can be adjusted upward or downward.

a. Hold the base and slightly loosen the adjusting screw by turning it anticlockwise.
b. Tilt the fan to the desired wind direction (i.e. either upward or downward).
c. Tighten the adjusting screw by turning it clockwise.

CLEANING AND MAINTENANCE

Always turn off and unplug the fan from the mains socket before cleaning.

Once the fan guard was assembled, it's forbidden to take off the guards.

Clean the fan with a slightly damp cloth, and then dry it.

Do not immerse the motor housing in water or any other liquid.

Do not use chemical or abrasive cleaner.

Storage

When not in use keep the fan in a safe, dry location.

• If stored disassembled, it is recommended to use the original (or appropriately sized) box.
• If stored assembled or partially assembled, protect the fan head from dust.

SPECIFICATIONS

Ratings: 220-240V\~, 50Hz 40W

Technical informationsRef: OCEAVT30CM / OCEAVT30B1Model: FT30A
Description Symbol		Value Unit
Maximum fan flow rate	F 19.53		m^3/min
Power	P	35	W
Service value	SV	0.56	(m^3/min)/W
Fan sound power level	LWA	52.049	dB(A)
Standby power consumption	PSB	-	W
Maximum air velocity	C	2.45	m/s
Service value measurement standard	IEC 60879:1986 (corr. 1992)
For more information, please contact	AMC123 quai Jules Guesde94400 VITRY SUR SEINEFrance

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials and if applicable, batteries. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components and may contain batteries, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance and if applicable, batteries should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
