Operating Instructions

Shirt Ironer, 850 W, White

Item No. 3350746

C

1 Operating Instructions for download

Use the link www.conrad.com/downloads (alternatively scan the QR code) to download the complete operating instructions (or new/current versions if available). Follow the instructions on the web page.

2 Intended use

This product is intended to for drying and ironing suitable clothes (e.g. shirts).

The product is not intended for heating rooms or similar applications.

The product is intended for indoor use only. Do not use it outdoors.

If you use the product for purposes other than those described, the product may be damaged. Improper use can result in short circuits, fires, electric shocks or other hazards.

The product complies with the statutory national and European requirements. For safety and approval purposes, you must not rebuild and/or modify the product.

Read the operating instructions carefully and store them in a safe place. Make this product available to third parties only together with the operating instructions.

All company names and product names are trademarks of their respective owners. All rights reserved.

3 Delivery content

Main unit

Rod connector

Base

Hanger with 4 clips

Air bag

Ex Elastic cord with clip

Air bag bracket

Operating instructions

2xrod

4 Description of symbols

The following symbols are on the product/appliance or are used in the text:

The symbol warns of hazards that can lead to personal injury.

This product is constructed according to protection class II.

Read the instructions before using the product.

This product is intended for indoor use only.

5 Safety instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/ guarantee.

5.1 General information

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children should be supervised to ensure that they do not play with the product.

WARNING: This product is only intended for drying textiles that have been washed in water.

The product is not a toy. Keep it out of the reach of children and pets.

Do not leave packaging material lying around carelessly. This may become dangerous playing material for children.

If you have questions which remain unanswered by these operating instructions, contact our technical support service or other technical personnel.

Maintenance, modifications and repairs must only be completed by a technician or an authorised repair centre.

5.2 Handling

Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage the product.

5.3 Operating environment

Only operate the product in well-ventilated rooms to prevent the build-up of moisture and heat.
The air bag increases in size during operation. Check the surrounding area (approx. 3 m distance) for sharp or pointed objects before operation. Remove any obstacles or change the location if necessary.
Do not place the product under any mechanical stress.
Protect the product from extreme temperatures, strong jolts, flammable gases, steam and solvents.
Protect the product (main unit) from high humidity and moisture.
Protect the product from direct sunlight.
Do not switch the product on after it has been taken from a cold to a warm environment. The condensation that forms might destroy the product. Allow the product to reach room temperature before you use it.
Do not pull on the air bag.
Always keep the air vents clean and remove any obstacles which could affect the air flow of the product.
Never operate the product unattended.

5.4 Operation

Consult an expert when in doubt about the operation, safety or connection of the appliance.

it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. DO NOT attempt to repair the product yourself. Safe operation can no longer be guaranteed if the product:

• is visibly damaged,
  -is no longer working properly,
• has been stored for extended periods in poor ambient conditions or
• has been subjected to any serious transport-related stresses.

5.5 Mains cable

Do not modify or repair mains supply components including mains plugs, mains cables, and power supplies. Do not use damaged components. Risk of death by electric shock!

The mains outlet must be located near to the device and be easily accessible.
Never plug in or unplug the mains plug when your hands are wet.
Never pull the mains plug from the socket by pulling at the cable. Always pull it from the mains socket using the intended grips.
Unplug the mains plug from the mains socket if you do not use the device for an extended period of time.
Disconnect the mains plug from the mains socket in thunderstorms for reasons of safety.
Make sure that the mains cable is not squeezed, bent, damaged by sharp edges or put under mechanical stress.
Avoid excessive thermal stress on the mains cable from extreme heat or cold.
Do not modify the mains cable. Otherwise the mains cable may be damaged. A damaged mains cable can cause a deadly electric shock.
Do not touch the mains cable if it is damaged.

• First, power down the respective mains socket (e.g. via the respective circuit breaker) and then carefully pull the mains plug from the mains socket.

• Never use the product if the mains cable is damaged.

damaged mains cable may only be replaced by the manufacturer, a workshop commissi- sioned by the manufacturer or a similarly qualified person, so as to prevent any danger.
Always lay cables so that nobody can trip over or become entangled in them. This poses a risk of injury.

5.6 Product

Make sure the clothes are suitable for drying and ironing. Always check the laundry care labels.
Do not exceed the maximum weight limit of 3kg
Place the dryer on a flat, level, and firm surface.
Avoid using with dripping wet clothing.
Keep the inlet and outlet vents unobstructed.
Disconnect the dryer from the power supply before setup or when not in use.

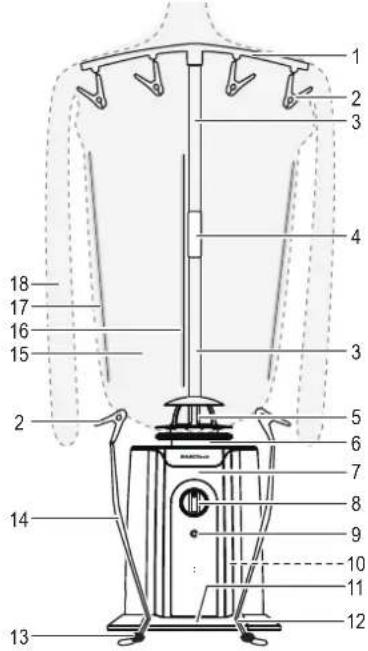

6 Product overview

1 Hanger with 4 clips
2 Clip
3 Rod
4 Rod connector
5 Air bag bracket
6 Air outlet
7 Main unit
8 Settings knob
9 Indicator lightT
10 Air vents (back)
11 Base
12 Hook
13 Cord lock
14 Elastic cord with clip
15 Air bag
16 Centre zipper
17 Side zipper
18 Sleeve

7 Mounting

1. Insert the main unit into the base. It fits only one way.

1. Unzip the centre zipper of the air bag.

Important:

From step 3 on, perform all actions inside the open air bag.
- The centre zipper of the air bag should face to the front.

1. From the inside, put the round opening of the air bag over the air bag bracket.
2. Connect the air bag bracket with the air bag to the air outlet.

Fit the 2 pins of the air bag bracket into the cut-outs of the air output.
Turn the air bag bracket in a clockwise direction, it should lock into place.

1. Attach the first rod to the air bag bracket.
2. Attach the rod connector to this rod.
3. Attach the second rod to the rod connector.
4. Attach the hanger with 4 clips to the upper rod.
5. Adjust the hanger with 4 clips so that it is in the same line as the shoulders of the air bag.
6. Close the zipper of the air bag.
7. The product is fully mounted.

Note: Disassemble the product in reverse order.

8 Operation

8.1 Settings knob

ON:Power ON
OFF:Power OFF
40-180 MINS:Power ON (with timer function)

Note: The indicator light will illuminate when the power is ON.

8.2 Drying / removing wrinkles

Caution: The air outlet becomes hot during use. Avoid touching it during or immediately after operation.

Note:

• The side zippers of the air bag can be unzipped for wider sizes.

• You can dry additional textiles (e.g. socks) by hanging them on the 4 clips of the hanger with 4 clips.

• Switch the product off and disconnect it from the power supply.

• Close the centre zipper of the air bag.
• Put the shirt over the air bag onto the hanger.
• Close all buttons and zippers of the shirt.
• Guide the sleeves of the air bag through the sleeves of the shirt.
• Connect the product to the power supply.
• Switch the product on.
• Stretch the shirt to avoid wrinkles. The air bag should protrude through the neckline and the sleeves.

1. Check the remaining time and adjust it if necessary.

8.3 Using the elastic cord with clips

Note: If further adjustments are needed, use the elastic cords with clip.

1. Attach the elastic cord with clip to one of the hooks on the base.
2. Attach the clip of the elastic cord with clip to the air bag or to the shirt.
3. Stretch the elastic cord with clip by using the round cord lock.
4. Check the remaining time and adjust it if necessary.

8.4 Troubleshooting

Problem Possible cause	Suggested solution
Drying time to long (e.g., >180 mins)	Clothes may be too thick. Allow more time for drying.
	Clothes are too wet.	Do not attempt to dry clothes if they are dripping wet.
	Air bag may not have been closed properly, and hot air is escaping.	Check the air bag and zippers for air leaks.
Product stops working	Air inlet/outlet is blocked (e.g. by loose clothing) and overheat protection has triggered.	1. Switch the product OFF.2. Remove any blockage and allow the product to cool down completely.3. Try again.
	Timer exceeded. Check the timer setting.

9 Cleaning and care

Important:

• Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions. They damage the housing and can cause the product to malfunction.

• Do not immerse the product in water.

• Disconnect the product from the power supply.

• Clean the product with a dry, fibre-free cloth.

10 Disposal

This symbol must appear on any electrical and electronic equipment placed on the EU market. This symbol indicates that this device should not be disposed of as unsorted municipal waste at the end of its service life.

Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose of it separately from unsorted municipal waste. Spent batteries and accumulators, which are not enclosed by the WEEE, as well as lamps that can be removed from the WEEE in a non-destructive manner, must be removed by end users from the WEEE in a non-destructive manner before it is handed over to a collection point.

Distributors of electrical and electronic equipment are legally obliged to provide free take-back of waste. Conrad provides the following return options free of charge (more details on our website):

In our Conrad offices

at the Conrad collection points

at the collection points of public waste management authorities or the collection points set up by manufacturers or distributors within the meaning of the ElektroG

End users are responsible for deleting personal data from the WEEE to be disposed of.

It should be noted that different obligations about the return or recycling of WEEE may apply in countries outside of Germany.

11 Technical data

11.1 Power supply

Input voltage/current. 220 - 240 V/AC, 50/60 Hz

Power consumption. 850 W

Clothing weight... max. 3 kg

Timer function. 0-180 minutes

Material. ABS, PPS, nylon, stainless steel

Ingress protection.. IPX1

Protection class..

11.2 Environment

Operating temperature 0 to +50^

Operating humidity 5-90% RH (non-condensing)

Storage temperature. -30 to +50^

Storage humidity. 5 - 90% RH (non-condensing)

11.3 Other

Dimensions (approx.) 190 x 270 x 380 mm (without hanger set)

190 x 400 x 980 mm (with hanger set)

Weight (approx.) 1.97kg

This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopry, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represents the technical status at the time of printing.

Copyright 2025 by Conrad Electronic SE.

+3350746_V2_0525_02_dh_mh_en
