Brand	Moulinex
Model	Easy Fry Dual Flex EZ9228
Product type	Dual-zone air fryer
Number of cooking zones	2 (with removable divider)
Zone 1 capacity	Up to 1400 g
Zone 2 capacity	Up to 800 g
Total capacity (MEGA)	Up to 1750 g
Temperature range	35°C to 200°C
Timer	0 to 60 minutes
Automatic cooking modes	Fries, Chicken, Vegetables, Fish, Dessert, Dough proofing
Manual mode	Yes
SYNC mode	Yes (synchronizes both zones)
MEGA mode	Yes (cooking in the entire basket)
Display	Digital touch
Viewing window	Removable (hand wash)
Basket divider	Removable
Racks	2 removable racks with silicone pads
Coating	Non-stick on basket and racks
Basket and rack cleaning	Dishwasher safe
Exterior window cleaning	Hand wash
Power supply	Mains (220-240 V)
Safety	Minimum 15 cm clearance around for air circulation

Frequently Asked Questions - Easy Fry Dual Flex EZ9228 MOULINEX

What foods can I cook with the Easy Fry Dual Flex?

You can cook a wide variety of foods: fries frozen or homemade, meats and poultry (steaks, chicken, wings), fish (salmon, shrimp), vegetables, snacks (nuggets, pizza), and even pastries (muffins, cakes, brioches). The automatic modes make cooking easy.

How to use SYNC mode?

The SYNC mode allows you to cook two different foods in the two zones and have them finish at the same time. Place the divider, select the modes for each zone, then press SYNC. The appliance delays the start of the shorter program (showing HOLD) to synchronize the cooking finishes.

How to clean my air fryer?

After cooling, clean the exterior with a damp cloth. The basket and racks are dishwasher safe. The exterior plastic window must be removed and hand washed to preserve its appearance. Avoid metal utensils and abrasive products to protect the non-stick coating.

Can I put the basket in the dishwasher?

Yes, the basket and racks are dishwasher safe. However, the exterior plastic window is not; wash it by hand with a soft sponge.

What is the maximum amount of fries I can cook?

The optimal amount for crispy fries is 1200 g. In MEGA mode (entire basket), you can cook up to 1750 g of fries. In zone 1, up to 1400 g, and in zone 2, up to 800 g.

How to set the temperature manually?

Press the MANUAL mode, then use the + and - keys on the touch screen to set the temperature from 35°C to 200°C. Then set the cooking time from 0 to 60 minutes with the same keys, then press the start button.

What if my food is not cooked enough?

After the cooking cycle, check the doneness. If the food is not cooked enough, simply put the basket back in the appliance and add a few extra minutes by setting the timer. You can also increase the temperature depending on the food type.

Can I reheat food?

Yes, you can reheat food in the appliance. Set the temperature to 160°C for a maximum of 10 minutes. Preferably use manual mode.

How does MEGA mode work?

The MEGA mode uses the entire basket without the divider, allowing you to cook larger quantities. To activate it, press the MEGA key after turning on the appliance. You can then choose an automatic or manual mode. The maximum capacity is 1750 g depending on the food.

How to remove the basket divider?

The divider is removable and can be taken out easily by pulling it upwards from the inner slots of the basket. To use it, insert it into the slots. Be sure to wash it by hand or in the dishwasher according to the instructions.

USER MANUAL Easy Fry Dual Flex EZ9228 MOULINEX

DUAL EASY FRY FLEX

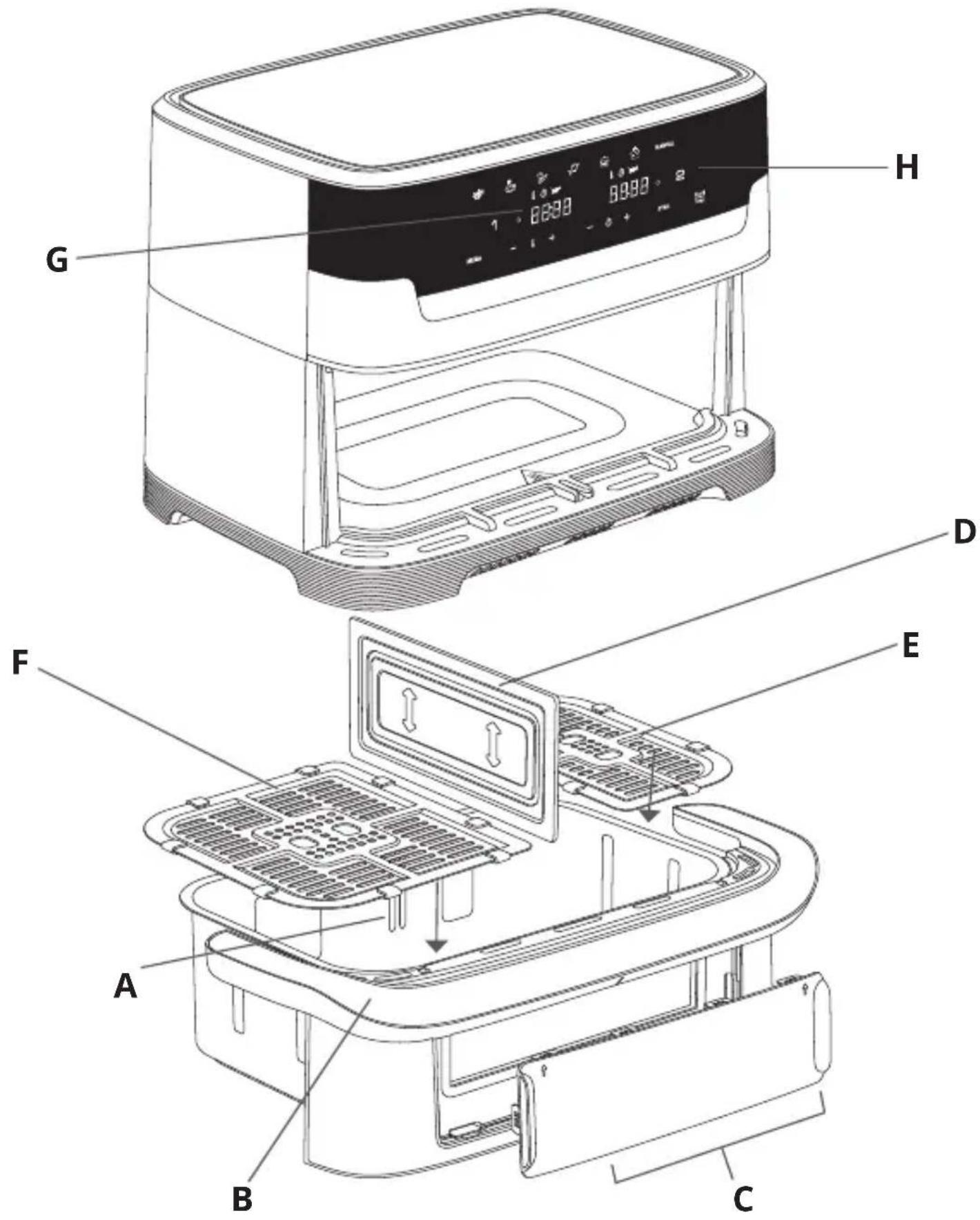

DESCRIPTION

A. Drawer B. Drawer handle C. Detachable window D. Drawer divider

E. Removable grid with silicon pads F. Large removable grid with silicon pads G. Time/temperature display H. Digital touchscreen panel

en

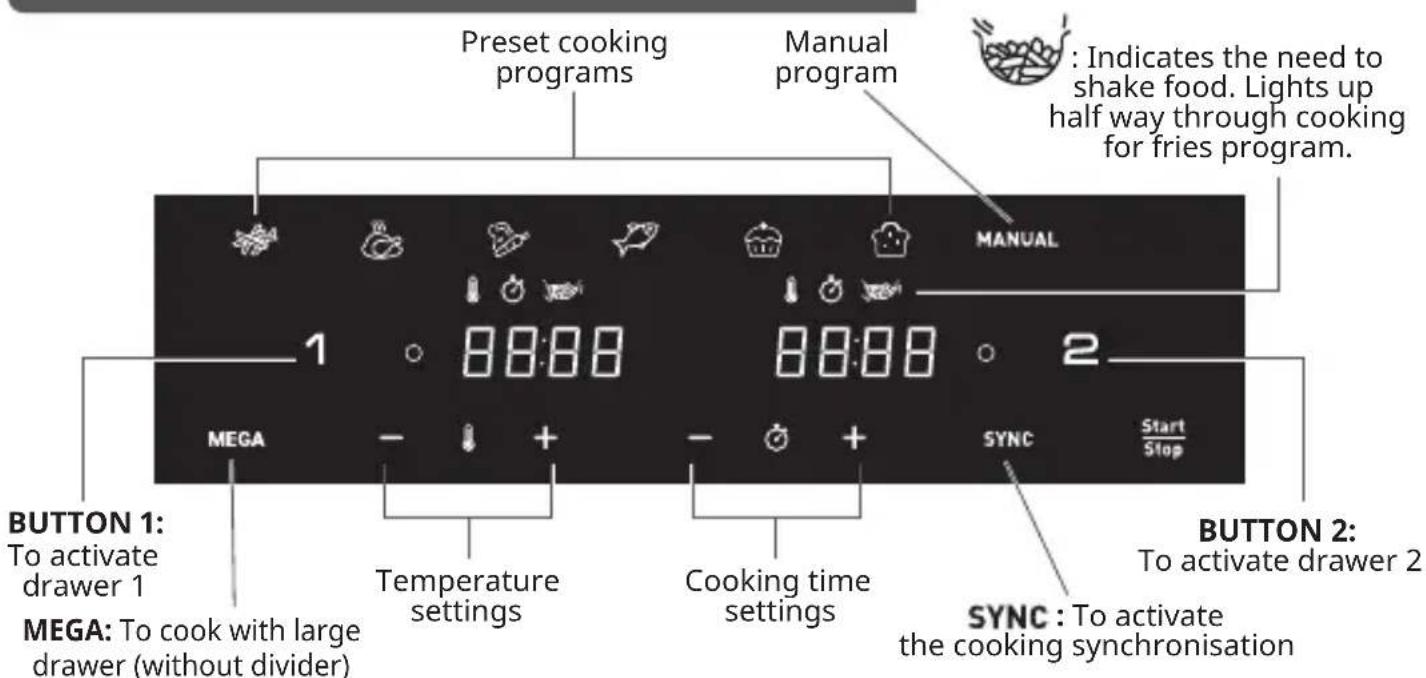

DUAL EASY FRY FLEX user interface

OFF : indicates the drawer is off. To activate, click on 1 or 2 buttons.

AUTOMATIC COOKING MODES

Fries

Chicken

Vegetables

Fish

Dessert

Prove

MANUAL

Manual mode

BEFORE FIRST USE

1. Remove all packaging material.
2. Remove any stickers from the appliance (for example, the sticker on the drawer).
3. Thoroughly clean the drawer and removable grids with hot water, some washing-up liquid, and a non-abrasive sponge.

The drawer and the grids are dishwasher safe.

Warning: For the window, it is important to remove the outer plastic window and wash it by hand to preserve the original appearance. The outer plastic window is not dishwasher safe.

The other parts are dishwasher safe.

1. Wipe the inside and outside of the appliance with a damp cloth. The appliance works by producing hot air. Do not fill the drawer with oil or frying fat.

PREPARING FOR USE

1. Place the appliance on a flat, stable, heat-resistant work surface away from water splashes.
2. Do not fill the drawer with oil or any other liquid.

Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result.

en

IMPORTANT: To prevent the appliance from overheating, do not place it in a corner or below a wall cupboard. A gap of at least 15 cm should be left around the appliance to allow air to circulate.

1. Press the Start/Stop button to switch on the appliance.
2. Fries mode is displayed as default for zone 1 while OFF is displayed on the screen for zone 2.
3. Any zone can be activated for selection by pressing the '1' or '2' button. (To cancel the selection, press the '1' or '2' button again; the zone will be OFF and cancelled). An orange light on the screen indicates your selection.

Note: Never exceed the maximum amount indicated in the table (see section 'Cooking Guide'), as this could affect the quality of the end result.

1. Always place the grids in the drawer before cooking for optimal cooking results.

USING BOTH ZONES ON SYNCHRONISATION MODE (DUAL COOKING)

Cook 2 different types of food at the same time thanks to both zones, the divider, and SYNC Mode.

1. Place the divider in the inner slots of the drawer.
2. Press the Start/Stop button to switch on the appliance. Fries mode is displayed as default for zone 1 while OFF is displayed on the screen for zone 2.
3. Press the desired cooking mode and adjust timing and temperature if different from the pre-set settings (by pressing + and -). The settings are saved.
4. Place your first food in zone 1 (left zone). Slide the drawer back into the appliance.
5. To activate zone 2, press '2'.
6. Press the second desired cooking mode and adjust timing and temperature if different from the pre-set settings (by pressing + and -).
7. Place your second food in zone 2 (right zone). Slide the drawer back into the appliance.
8. Press SYNC to get the two foods ready at the same time. If the two cooking modes selected have different cooking times, 'HOLD' appears on the screen for the shortest cooking mode (for the food that needs less time to cook). This means the appliance delays the cooking start to have both types of food ready at the same time.
9. Press Start/Stop to begin cooking.
10. The appliance beeps when the food is ready, at the same time.

Note: The light inside the drawer switches ON during the entire cooking process, except for the PROVE program.

1. When the food is cooked, take out the drawer. To remove food, use a pair of tongs to lift the food out of the drawer.

Caution: After hot frying, the grids and the food are very hot.

Note: During cooking, if you remove the drawer and do not slide it back within 5 minutes, the drawer panel will display 'OFF'.

USING THE LARGE DRAWER OF THE APPLIANCE (MEGA)

1. Press the Start/Stop button to switch on the appliance.
2. Press MEGA to switch into the mega zone (the entire drawer).
3. To begin cooking, you can select between the preset cooking mode or the manual settings.

a. If choosing preset cooking mode:

• Select the desired cooking mode by pressing the corresponding icon on the touchscreen panel (these modes are described in detail in the "Cooking guide" section).
• Confirm the cooking mode by pressing the Start/Stop button. This will launch the cooking process.
• Cooking starts. The remaining cooking time is displayed on the screen.

b. If choosing manual settings:

• Press MANUAL mode.
• Adjust the temperature with the + and - buttons on the digital screen. The thermostat varies from 35-200°C.
• Then set the desired cooking time by pressing the + and - buttons. The timer can be set for between 0 and 60 minutes.
• Press the Start/Stop button to begin cooking with the selected temperature and time settings. Cooking starts. The remaining cooking time is displayed on the screen.

Note: The light inside the drawer switches ON during the whole cooking process, except for the PROVE program.

1. Excess oil from the food is collected in the bottom of the drawer.
2. Some food will require shaking halfway through the cooking time for optimal cooking results (see section 'Cooking Guide'). To shake the food, pull the drawer out of the appliance by the handle and shake it. Then slide the drawer back into the appliance and the cooking restarts automatically.

During Fries cooking mode, this pictogram flashes halfway through cooking. It indicates the need to shake the fries for even cooking and browning.

1. When you hear the timer sound, the cooking time set has finished. Pull the drawer out of the appliance and place it on a heat-resistant surface.
2. Check if the food is ready.

If the food is not ready yet, simply slide the drawer back into the appliance and set the timer for a few extra minutes.

1. When the food is cooked, take out the drawer. To remove food, use a pair of tongs to lift the food out of the drawer.

Caution: The drawer should never be turned upside down with the grid.

After cooking, the drawer, the grid and the food are very hot.

1. When a batch of food is ready, the appliance is instantly ready for preparing another batch of food.

COOKING GUIDE

The table below helps you to select the basic settings for the food you want to prepare. Note: The cooking times below are only a guide and may vary according to the variety and batch of potatoes used. For other food, the size, shape and brand may affect results. Therefore, you may need to adjust the cooking time slightly.

When using program (35°C), do not launch another cooking at a different temperature at the same time.

	Quantity		Approx.Time (min)	Temperature	Cooking mode	Shake	Extra information
Potatoes & fries
Frozen fries(10 mm x 10 mm standard thickness)	Zone 1	600 - 1400 g	25 - 40 min	180°C		x2
	Zone 2	300 - 800 g 25	- 35 min			x2
	MEGA	400 - 1750 g	20 - 45 min			x3
Homemade fries(8 mm x 8 mm)	Zone 1	500 g 40 min		180°C		x4	Dry it by towel before cooking
	Zone 2	200 g 35 min				x4
	MEGA	400 - 1200 g	30 - 45 min			x4
Frozen potato wedges	Zone 1	600 - 1400 g	25 - 40 min	180°C		x2
	Zone 2	300 - 800 g 25	- 40 min			x2
	MEGA	400 - 1750 g	30 - 45 min			x2
Meat & Poultry
Frozen beef burgers	Zone 1	up to 4 pieces	10-18 min	200°C	MANUAL	x1 flip
	Zone 2	up to 2 pieces	10-15 min
	MEGA	6 pieces	15 min
Chicken breast fillets(boneless)	Zone 1	up to 4 pieces	10 min	200°C		x1 flip
	Zone 2	up to 2 pieces	10 min
	MEGA	6 pieces	20 min
Chicken whole	Zone 1	up to 1300 g	50 min 160°C
	MEGA	2 x 1250 g = 2,5 kg	50 min 200°C
Snacks
Chicken nuggets	Zone 1	up to 600 g	15 min	200°C		x1
	Zone 2	up to 400 g	12 min
	MEGA	up to 1 kg	15 - 20 min
Chicken wings	Zone 1	up to 1 kg or 8/9 pieces	22 min	200°C		x1
	Zone 2	up to 400 g or 4/5 pieces	22 min
	MEGA	1 kg	30 min
Pizza	Zone 1	up to 3 slices	5 min 170°C		MANUAL
	Zone 2	up to 2 slices	5 min 170°C
	MEGA	1/2 pizza 6	min 200°C
Vegetables	Zone 1 up to 1 kg 22 min			200°C	[GBAA]	x4
	Zone 2 400 - 600 g 22 min					x4
	MEGA	2000 g 55 min				x4
Fish
Salmon fillet	Zone 1	up to 4 pieces	8-10 min	200°C
	Zone 2	up to 2 pieces	8-10 min
	MEGA	1 kg	8-10 min
Prawns	Zone 1	500 -1000 g	8-10 min 200°C			x1
	Zone 2	up to 400 g	8-10 min 200°C			x1
	MEGA	20 pieces	8-10 min 160°C			x1

	Quantity		Approx.Time (min)	Temperature	Cooking mode	Shake	Extra information
Baking
Muffins	Zone 1	up to 6/8 pieces	16 min	160°C
	Zone 2	up to 4 pieces	16 min
	MEGA	up to 12 pieces	18 min
Chocolate cakes	MEGA	1 round cake pan	30-35 min	160°C
Buns / brioches	MEGA	600 g	1/90 min	35°C	[BYX7]
			2/40 min	160°C	MANUAL
		mini x12	1/90 min	35°C
			2/12 min	160°C	MANUAL
Baguette	MEGA	600 g	1/90 min	35°C
			2/40 min	200°C	MANUAL

TIPS

- Smaller foods usually require a slightly shorter cooking time than larger size foods.

- Shaking smaller size foods halfway through the cooking time improves the end result and can help prevent uneven cooking.

• To make your potatoes extra crispy, try adding a small amount of oil before cooking and shake to evenly cover. We recommend 14ml of oil (1 tablespoon).

- Snacks that can be cooked in an oven can also be cooked in the appliance.

- The optimal recommended quantity for cooking fries is 1,200 grams.

- Use ready-made puff and shortcrust pastry to make filled snacks quickly and easily.

- Place an oven dish in the appliance's bowl if you want to bake a cake or quiche or if you want to fry delicate ingredients or filled ingredients. You can use an oven dish in silicone, stainless steel, aluminium, or terracotta.

- You can also use the appliance to reheat food. To reheat food, set the temperature to 160°C for up to 10 minutes. Cooking time could be adjusted depending on food quantity in order to fully reheat the food.

CLEANING

Clean the appliance after every use.

The drawer and the grids have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the bowl to let the appliance cool down more quickly.

1. Wipe the outside of the appliance with a damp cloth.
2. Clean the drawer and grids with hot water, some washing-up liquid, and a non-abrasive sponge.

You can use a degreasing liquid to remove any remaining dirt.

Note: the drawer and the grids are dishwasher safe.

Warning: For the window, it is important to remove the outer plastic window and wash it by hand to preserve the original appearance.

The outer plastic window is not dishwasher safe. The other parts are dishwasher safe.

Tip: If food debris/residue is stuck at the bottom of the drawer and the grid, fill them with hot water and some washing-up liquid. Let the drawer and the grids soak for approximately 10 minutes. Then rinse clean and dry.

1. Wipe inside of the appliance with hot water and a damp cloth.
2. Clean the heating element with a dry, cleaning brush to remove any food residues.
3. Do not immerse the appliance in water or any other liquid.

STORAGE

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.

GUARANTEE AND SERVICE

If you need service or information or if you have a problem, please visit the brand website or contact the brand Consumer Care Centre in your country. You can find the phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local brand dealer.

TROUBLESHOOTING

If you encounter problems with the appliance, visit the brand website (see cover page on this manual) for a list of frequently asked questions or contact the Consumer Care Centre in your country.
