Product type	Electric compressor cooler
Brand	Outwell
Model	Arctic Frost 45L
Interior capacity	48.3 liters
Power supply	12/24 V DC and 100-240 V AC (via included adapter)
Power consumption	AC: 1.2 A (120 V) / 0.6 A (240 V); DC: 3.5 A (12 V) / 7.3 A (24 V)
Temperature range	-20 °C to 20 °C
Refrigerant	R134a (60 g)
Compressor type	High-efficiency DC compressor
Compartments	2 compartments (left/right) independently adjustable
Removable battery	Optional (model 590202, 15,600 mAh / 11.1 V)
Telescopic handle	Yes
Wheels	Yes, oversized
Interior lighting	LED
USB port	Yes (5 V / 1 A)
Accessories	Cutting board, bottle opener, cup holders (in the lid), drain plug
Lid opening direction	Reversible
Operating modes	MAX (quick cooling) and ECO (energy saving)
Battery protection	3 levels: H (high), M (medium), L (low)
Display	LED with temperature control
Climate class	T, ST, N, SN
Maintenance	Cleaning with a damp cloth, manual defrosting
Safety	Integrated 15 A fuse, surge protection
Warranty	Legal warranty + parts availability up to 10 years

Frequently Asked Questions - Arctic Frost 45L Outwell

What should I do if the cooler displays error code F1?

Error code F1 indicates low voltage. Set the battery protection to a lower level (switch from H to M or from M to L). If the problem persists, check the power supply.

How to adjust the compartment temperature?

Press the SET button to select the left or right compartment, then use the + and - buttons to adjust the temperature between -20 °C and 20 °C. The setting is saved automatically after 4 seconds of inactivity.

Can I change the lid opening direction?

Yes, the opening direction is reversible. Open the lid to 90°, remove the rods from both sides, then reinstall it on the other side by aligning the rod with the corresponding hole.

How to use the removable battery?

The battery is optional. To use it, insert it into the designated compartment and press and hold the battery power button to turn it on. The battery recharges via the cooler or a dedicated adapter.

What should I do if the cooler does not cool enough?

Check that the lid is properly closed, the set temperature is correct, and the unit is level. Also make sure that the ventilation openings are not obstructed.

How to clean the cooler?

Turn off and unplug the unit. Use a damp cloth to clean the inside and outside, then wipe with a dry cloth. Do not use abrasive products and do not immerse the unit in water.

How to defrost the unit?

Turn off and unplug the unit. Remove all food, leave the lid open, and wipe the defrost water with a cloth. Never use hard or sharp tools to remove ice.

What is the temperature range of the cooler?

The temperature can be set from -20 °C to 20 °C. The minimum achievable temperature is -20 °C under ambient conditions of 25 °C.

How to use the battery protection mode?

While operating, press and hold SET for 3 seconds until the screen flashes. Then press SET to choose between H (high), M (medium) and L (low). The factory setting is H.

How to reset the cooler?

Turn off the unit. Press and hold SET for 3 seconds until 'Et' is displayed. In Et mode, press and hold SET for 3 seconds to reset.

USER MANUAL Arctic Frost 45L Outwell

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference.

1. SAFETY INSTRUCTIONS

WARNING!

• Do not operate the appliance if it is visibly damaged.
• Do not block the gaps of the cool box with things like pin, wire, etc.
• Do not expose the appliance to rain or soak it in water.
• Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)
• Do not store any explosive substances like spray cans with a flammable propellant.
• Ensure the supply cord is dry and not trapped or damaged. Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.
• Check the voltage specification on the type plate corresponds to that of the energy supply. The appliance is only to be used with the power supply unit provided with the appliance.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Once unpacked and before turning on, the appliance must be placed on a level surface for more than 6 hours.
• Make sure that the appliance stays horizontally when it is running. The tilt angle must be less than 5^ for long time running and be less than 45^ for short time running.
• Keep the ventilation openings in the unit casing or in the built-in structure free of obstacles. (Around the compressor ≥ 100mm).
• Keep the appliance stable on the ground or in the car; Do not drain upside down.

CAUTION!

- Repairs may only be carried out by qualified personnel. Incorrect repair may cause danger. The lamp and supply cord must be replaced by the manufacturer or qualified persons.

- Children aged 3-8 years are only allowed to load and unload refrigerating appliances.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards.

NOTICE!

• Disconnect the power supply before each cleaning and maintenance and after every use.
• Do not use sharp tools to defrost; Do not damage the refrigerant circuit.
• Check if the cooling capacity of the appliance is suitable for storing the food or medicine.
• Food may only be stored in its original packaging or in suitable containers.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the lid open to prevent mould developing within the appliance.
  • The cool box contains a flammable gas inside the compressor.

• The appliance is designed for recreational camping.

UK: INSTRUCTION MANUALUK: INS

IF YOU WISH TO FINALLY DISPOSE OF THE DEVICE

1. Remove cables, lid, tie down brackets from body with compressor and dispose according to local regulations. Ask your local recycling centre for details about how to do this in accordance with the applicable disposal regulations.
2. Place the packaging material in the appropriate recycling waste bins wherever possible.

2. PRODUCT FEATURES

• High-efficiency DC compressor and conversion module.
• CFC free and great heat insulation.
- Lowest cooling to 20^ / 4^ (based on 25^ / 77^ room temperature).
- Intelligent battery protection system prevents your vehicle from running out of battery.
- LED display control panel for temperature setting, USB charging port: SW/A.
- Detachable lithium battery: 15600mAh/11.1V.
- Specific parts: interior drain plug, oversized wheels, telescopic handle, cupholders (in the lid), interior LED light, cutting board and bottle opener.

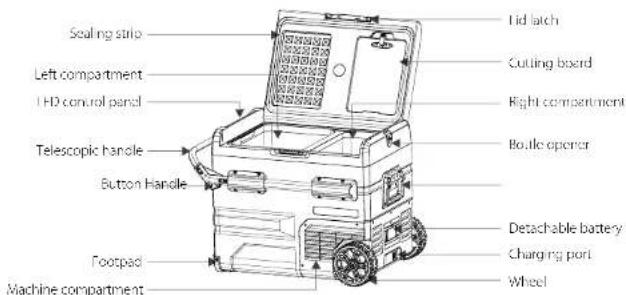

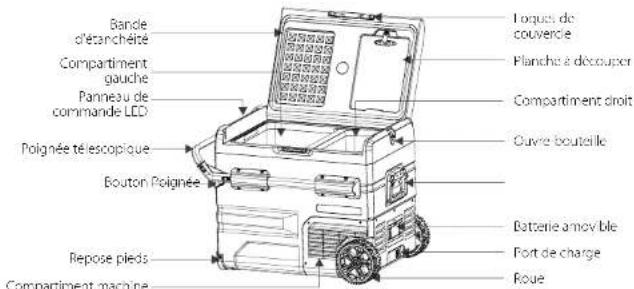

1. PRODUCT STRUCTURE


Sealing strip Left compartment HD control panel Telescopic handle Button Handle Footpad Machine compartment Lid latch Cutting board Right compartment Boutle operator Detachable battery Charging port Wheel

Note: There are buttons on both sides of the telescopic handle, press them at the same time to pull the rod. The cutting board can be moved by turning the knob on the top cover. Clean and dry the cutting board after every use.

4. REVERSE LID OPENING DIRECTION

The lid opening direction can be changed according to actual needs, please follow the instructions below:

LID DISASSEMBLY:

Line drawing of a toolbox with wheels and open lid (no text or symbols)

Open the lid at a 90° angle

Line drawing of a toolbox with open lid and wheels (no text or symbols)

Take off the lid from one side

Line drawing of a toolbox with wheels and a cabinet, no text or symbols present

Take off the lid from the other side

LID INSTALLATION:

Technical line drawing of a portable electronic device with wheels and control panel (no text or symbols)

Reverse the lid opening direction

Line drawing of a toolbox with wheels and an open drawer (no text or symbols)

Align the lid shaft with the hole on one side and insert it

Line drawing of a multi-wheeled toolbox with wheels and open lid (no text or symbols)

Fix the lid on the other side, installaton finished

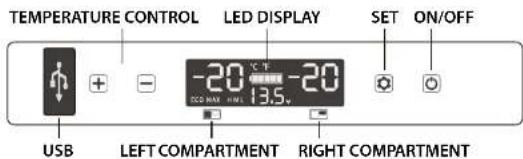

5. FUNCTIONS AND OPERATION

TEMPERATURE CONTROL LED DISPLAY SET ON/OFF USB LEFT COMPARTMENT RIGHT COMPARTMENT -20 °C F 13.5V DCO MAX HML

* Note: the right compartment is on the side where the compressor is.
• Power supply: Connect to DC 12V/24V or AC 100-240V (using dedicated adapter)
- Display Screen Initialization: When the cool box is switched on the buzzer will make a long beep, and the display will be on for two seconds then enter the standby mode.
• Power On/Off: Press ⏻ to switch ON, long press ⏻ for three seconds to switch OFF
- Temperature Setting: Under the running state, long press + and at the same time for three seconds to switch ON/OFF the left compartment, long press - and the same time for three seconds to switch ON/OFF the right compartment. Two compartments cannot be switched off at the same time. When both left and right compartments are set in running state, press + or enter left compartment temperature setting, press + to increase temperature, press - to decrease temperature, and press to switch between left or right compartment. The setting will be saved after stop operating for four seconds (Note: the temperature displayed is the current temperature of the compartments. It will take a while to reach the set temperature; Temperature setting range: -20\~20°C (-4\~68°F).
- Cooling Mode: Under the running state, press to switch to MAX (fast cooling) and FCO (-energy saving Mode), *Factory setting is MAX.
- Battery Protection Mode: under the running state, long press for three seconds until screen flashes, then press again to select protection mode H (High), M (Medium) and L (Low). (*Factory setting is H).

VOLTAGE REFERENCE:

MODE\INPUT	DC 12V		DC 24V
	CUT-OFF	CUT-IN	CUT-OFF	CUT-IN
L	8.5V	10.9V	21.3V	22.7V
M	10.1V	11.4V	22.3V	23.7V
H	11.1V	12.4V	24.5V	25.7V

^x the voltage is a theoretical value, there may be a deviation in different scenarios.
* It should be set when the product is connected to car power, and M or L should be set when it is connected to a portable battery or other back-up battery.

UK: INSTRUCTION MANUALUK: INS

• Temperature Unit Setting: switch off the cool box, long press ⚙ for three seconds until E1 displays, then switch to E5 by pressing again. Under E5 mode, press ⚙ to select Celsius or Fahrenheit. (*Factory setting is °C)
• Reset: Switch off the cool box, long press for three seconds until E1 displays, under E1 mode, long press for the same time for three seconds to reset it.

RECOMMENDED TEMPERATURES FOR COMMON FOOD:

Drinks Fruits Vegetable Ready-to-			eat food	Wine Ice cream		Meat
5°C/41°	5~8°C/41~46°	3~10°C/37~50°	2°C/30°	10°C/50°	10°C/14°	18°C/50°

6. \*BATTERY OPERATION (\*NOT INCLUDED)

Battery ON/OFF: A long press on the power button will switch the battery ON/OFF. When the battery is OH, a short press on the power button will show how much battery power is left.

Technical diagram of a mechanical device with numbered components labeled ①, ②, ③, and ④.

Model: Arctic Frost Rechargeable Battery (590202) / TSAK-002 Capacity: 15600mAh/1.73Wh Rated Voltage: 11.1V
Charging Limited Voltage (DC): 12.6V Charging Limited Current (DC): 3A
① Power Indicator (Green: charging; Blue: discharging) ② Battery Indicator (show current battery)
③ Power Button ④ DC Charging Port

Warning: do not disassemble the battery!

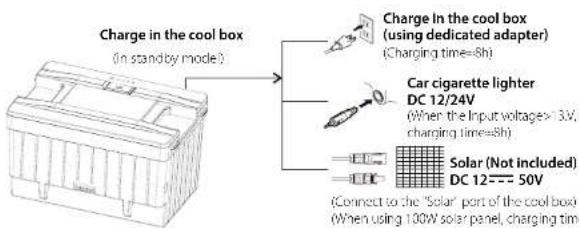

• Battery charging (for reference only):

Charge in the cool box (in standby mode) Charge In the cool box (using dedicated adapter) (Charging time=8h) Car cigarette lighter DC 12/24V (When the Input voltage>3V, charging time=8h) Solar (Not included) DC 12---50V (Connect to the "Solar" port of the cool box) (When using 100W solar panel, charging time

UK: INSTRUCTION MANUALUK: INS

Note: It is suggested to switch off the cool box when charging the battery (the power supply may mainly power the compressor when the cool box is running).

If connecting to a solar panel, please place the cool box in a cool place to dissipate heat. The charging input power should be higher than the working power of the cool box (about 40\~5W), or switch off the refrigerator, otherwise the battery will run out.

It is suggested to use 100W solar panel.

MAX 42V DC and 50V DC no-load from solar panel: SOV; MAX Solar Input Current: 10A.

Note: the output of the solar panel is unstable, so it cannot power the cool box directly. When using a solar panel, the battery should be put into the cool box.

- Discharging time (for reference only): in the low battery protection mode, the battery can last about 4 hours after being fully charged. When the temperature of the cool box is set between 2\~8°C (ambient temperature 25°C), it can last 12 hours after the internal temperature stabilizes. Remove or switch off the battery to prevent self-dcharge when not in use.

7. CARE AND MAINTENANCE

Cleaning:

- Switch off and unplug the device first to avoid electric shock.

- Use a wet cloth to clean the device and then wipe with a dry cloth.

- Do not soak the cool box in water or clean it under running water

- Do not use abrasive cleaning agents during cleaning as these can damage the device.

Storage:

If the device will not be in use for a long time, please follow these instructions:

- Switch off and unplug the device.

• Take out all the items stored in the device.

- Wipe off excess water with a soft rag.

- Fu. the cool box in a cool and dry place.

- Leave the lid slightly open to prevent odors from forming.

- Recommended storage environment: Ambient, temperature: 75°C, ambient humidity: < 75%.

Defrosting:

- Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good time to avoid this.

- Switch off and unplug the device first to avoid electric shock.

• Take out all the items stored in the device.

- Keep the lid open

- Wipe off the defrosted water.

Never use hard or pointed tools to remove ice or to free objects frozen onto the device.

Replacing the AC plug fuse (220-240V)

1. Unplug the cable from the mains socket and the cool box charging port.

2. Pry open the fuse cover with a small flat head screwdriver in the center of the cable plug. Replace fuse

with a new one that has the same rating (85.1362 1340)

1. Re-assemble the cable plug in the reverse order

Replacing the cool box fuse (15A)

1. Unplug the cable from the mains or 12V socket and the cool box charging port.
2. Pry open the fuse cover with a small flat head screwdriver in the cool box charging port. Replace fuse with a new one that has the same rating (ATO regular blade fuse 15A).

3. Re-assemble the charging port in the reverse order.

4. TROUBLESHOOTING

Issues Cause/Suggestions
Cool box does not work	· Check if the switch is on.· Check if the plug and socket are properly connected.· Check if the fuse has been burnt.· Check if the power supply is malfunctioned.· Switching the cool box on/off frequently may cause start delay of the compressor.
Cool box compartments are too warm	· The lid is opened frequently.· A large amount of warm or hot food was stored recently.· The cool box has been disconnected for a long time
Food is frozen · The temperature was set too low
There is "water flow" noise from inside the cool box	· It is a normal phenomenon, caused by the flow of refrigerant.
There are waterdrops around the cool box casing or lid gap	· It is a normal phenomenon, the moisture will condense to water when it touches a cold surface of the cool box.
The compressor is slightly noisy when starting	· It is a normal phenomenon, the noise will be reduced after the compressor works stably.
Code F1 displayed	· Possible cause: low voltage to cool box. Adjust the battery protection from High to Medium or from Medium to Low.
Code F2 displayed	· Possible cause: condenser fan is overloaded.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F3 displayed	· Possible cause: the compressor starts too frequently.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F4 displayed	· Possible cause: compressor not kicking in.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F5 displayed	· Possible cause: overhearing of the compressor and electronics.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F6 displayed	· Possible cause: no parameter can be detected by the controller.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F7 or F8 displayed	· Possible cause: temperature sensor is faulty.Contact manufacturer for service.

*For models with PSAK-002 detachable battery, if code FI displayed, unplug or turn off the battery, or connect to DC12/24V/AC100-240V (using the adapter) power supply to power the compressor and battery in time to avoid long-term micro-current draining the battery.

UK: INSTRUCTION MANUAL

9. GUARANTEE

The statutory guarantee period applies.

If the product is defective, please contact the manufacturer (see the back of the instruction manual) or your retailer.

We strive to have spare parts available for up to 10 years.

For more information please see www.outwell.com

For repair and guarantee processing, please include the following documents when you send in the device:
• A copy of the receipt with purchasing date
• A reason for claim or description of the fault.

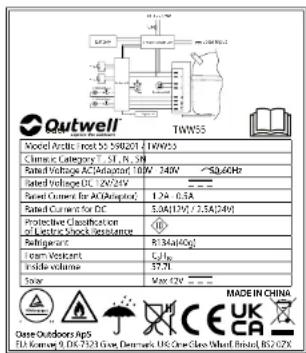

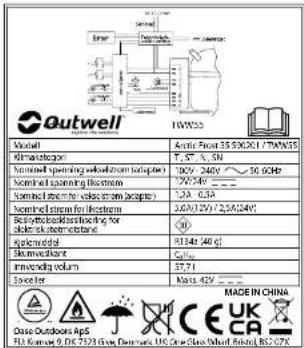

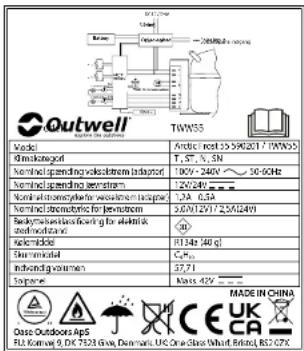

1. TECHNICAL INFORMATION


Model Arctic Host 35 S40197.2 TWN35 Climatic Category 7, ST, N, SN Rated Voltage AC/Adaptor: 10W - 240V Rated Voltage DC 12V/24V Rated Current for AC/Duration: Rated Current for DC Protective Classification of Electric Stock Resilience Refrigerant: Foam Versicher Inside volume: 38.81 Solar Max 42V Made in CHINA Dune Outdoor ApS FU: Kuanq 9, DX 1523 Gye, Danmaic, UK One-Store Wind, Rland, RS7-CPX

Outwell Model Arctic Front 65 5501597.1 Climatic Category T, ST, N, SM Rated Voltage AC/Adaptor, DC Rated Voltage DC 12V/24V Rated Current for AC/Adaptor, Rated Current for DC Protective Classification of Electric Shock Resistance Pulsipulant R134(μKg) Fremi-Ventant CJH6 Inside volume 48.31 Gear Max 24V Made in CHINA BRL: Kurnay 9, DZ 1234 Gwz, Dromatic, UC Gas Class Guard, Bionel, RG 47X

Model Arctic Irest 50 590201 (TW953) Climate Category T, S, N, SN Rated Voltage AC/Adaptive: 10W 340V ~50.6GHz Rated Voltage DC 120V/24V Rated Current for AC/Delayed: Rated Current for DC 3.0A(12V) / 7.3A(24V) Protective Classification of Lattice Shock Resistance Refrigerant: R1344560g Learn Versicher: UJ180 Inside volume: 37.7L Solar: Max 270 Made in CHINA Date-Outdoors ApS FU: Kanyay 9, DC 7521 Goss, Demaratic UC One Class Wind Model, B5/67X

Technical diagram of a mechanical device with numbered parts labeled ①, ②, ③, and ④.

Line drawing of a mechanical toolbox with wheels and open lid (no text or symbols)

Line drawing of a portable tool kit with open lid and wheels (no text or symbols)

Line drawing of a toolbox with wheels and a separate open door (no text or symbols)

Technical line drawing of a portable electronic device with wheels and control panel (no text or symbols)

Vend lågets åbningsretning

Line drawing of a portable mobile device with wheels and a top panel (no text or symbols)

Technical diagram of a mechanical device with numbered parts labeled ①, ②, ③, and ④.

Outwell T/W35 Model: Arctic Front 35 290187 / TWW35 Himubukuri: T, ST, %, SN Nominal spending vaskstrom (model): 190V - 240V ~ 36.6GHz Nominal spending premolars: 127/24V Nominal strometry for vaskstrom (model): 1.2A, 0.3A Nominal strometry for premolars: 5.2A/12V / 2.5A/24V Bodyweight class finishing for elektrick and plasticity: R1342 (48 g) Dram material: C. Inhand genomen: 38.81 Expane: Mass 42V Made in CHINA Base Outdoors APS DC Norway 3, DC-7321 Great Denmark UIC One Class Guard Direct, 02-02-02

Outwell TOW45 Model: Arctic Front 40-590199/10W45 Miminalcagrel: T, 57, N, 56 Nominal spreading velocity stream (adapted): 100V ~ 240V ~ 30-50Hz Nominal spreading peris/cm: 1.2/2.4V Nominal steamships for velocity stream (adapted): 1.24, 0.5A Nominal stramenhyde for peris/mm: 5.04(12V) / 7.3A(24V) Borehole flow with forcing for electric shock impact: Femeral fluid: B13A (40 μg) Stromedial: C.H. Indescent volume: 48.2 L Solvent: Vole, 52V Made in China Case Outdoors ApS UK: Kenya 9, UK-723 Gye, Denmark, UK One Class Chief (Ubsl. 052 GB)

Outwell T1W355 Model: Arclidic Host 20-5M/2021 / TWX55 D/makakorof: T_57, N_5N Arclidic spending volkastrom (adaptor): 190V ~ 240V ~ 30-50Hz Arclidic spending lemmstrom: 1.2V/24V = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = Arclidic stenomotor for lemmstrom: 3.6V/1.2V/1.2 V/2.5V/24V Back view of lead forming for lead wire & lead conductor: R1348 240 g Derminal CpH2 Inducting cylinder: 57,71 Temperature: Max 42V Made in CHINA Oase-Outdoors ApS RU: Kwanay 9, DC 7123 Gw, Denmark, UC One Class Whirl, Arclid, RS 073

FR : MODE D'EMPLOI

INDEX

1. CONSIGNES DE SÉCURITÉ......PAGE 32
2. CARACTÉRISTIQUES DU PRODUIT......PAGE 33
3. STRUCTURE DU PRODUIT ......PAGE 33
4. CHANGER LE SENS D'OUVERTURE DE LA PORTE......PAGE 34
5. FONCTION ET FONCTIONNEMENT ......PAGE 35
6. FONCTIONNEMENT SUR BATTERIE (NON INCLUS)......PAGE 36
7. ENTRETIEN ET MAINTENANCE......PAGE 37
8. DÉPANNAGE.....PAGE 38
9. GARANTIE...... PAGE 39
10. INFORMATIONS TECHNIQUES ......PAGE 39

FR : MODE D'EMPLOI

3. STRUCTURE DU PRODUIT

Line drawing of a portable utility tool case with wheels and open lid (no text or symbols)

Line drawing of a toolbox with open lid and wheels (no text or symbols)

Line drawing of a toolbox with wheels and a control panel (no text or symbols)

Line drawing of a portable electronic device with wheels and a control panel (no text or symbols)

Line drawing of a portable electronic device with open lid and wheels (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled ①, ②, ③, and ④.

Line drawing of a toolbox with wheels and open lid (no text or symbols)

Line drawing of a toolbox with open lid and wheels (no text or symbols)

Line drawing of a toolbox with wheels and a control panel (no text or symbols)

Line drawing of a portable electronic device with front panel and wheels (no text or symbols)

Line drawing of a portable electronic device with open lid and wheels (no text or symbols)

Technical diagram of a mechanical device with numbered parts labeled ①, ②, ③, and ④.

Model: Arctic Frost oplaadbare accu (590202) / FSAK-002 Capacitelt: 15600 mAh/1.73 Wh Nominalc spanning: 11,1 V Beperkte laadspanning (DC): 12,6 V Beperkte laadstroom (DC): 3 A ① Stroomindicator (groen oplacen, blauw, onladen) ② Accu-indicator (floor de huidige accu) ③ Aan/vult-knop ④ DC-laadpoort

Line drawing of a portable utility tool case with wheels and open lid (no text or symbols)

Line drawing of a toolbox with open lid and wheels (no text or symbols)

Line drawing of a toolbox with wheels and a separate open door (no text or symbols)

Technical line drawing of a portable electronic device with wheels and a control panel (no text or symbols)

Line drawing of a portable electronic device with open lid and wheels (no text or symbols)

Line drawing of a multi-wheeled mobile phone with wheels and open door (no text or symbols)

Technical diagram of a mechanical device with numbered parts labeled 1, 2, 3, and 4

Model	Article Front 35 590127/TWN35
Immersion to ketugene	T.ST.N. EN
Immensive rapam AC (adapter)	10kV/240V~50-60Hz
Immensive rapam DC	1kV/40V
Immensity (ground pro AC (adapter))	L.A. 0.1A
Immensity pruned pro DC	5.0kV/24V/2.0kV/40V
Backface or any product electric chip process	10
Chivation	R134a(40 g)
Nonave Cholla	CpH2
Vincent object	38.81
Sed in who panel Max 42V	—

Model	Arctic Front 45 SW0169-TW045
Kimenick kategetone	T,5" N, SN
Jmennote napelt AC [adapter]	100V-240V~50-60Hz
Jmennote napelt DC	1KW-34V= = =
Jmennoty proud pro AC [adapter]	1.2K 6.3A
Jmennoty proud prn DC	3.6KW-26V-2.5KW-4W
Kauffirace ochny prn prot urzu. plastic system producer	1
Chitlanio	R134s 540 g
Perevo divide	C###
Vermity objahr	48.31
Solzinha przelniz Max 42V

Model	Arctic Front 53 390201 / TWW55
dilustriatic kategorie	T, St. N, SN
jmmenvirk napati AC (adaputer)	100V - 240V ~ 50-60Hz
jmmenvirk napati DC	12V/24V
jmmenvirk prausc pro AC (adaputer)	LTA, 0.1A
jmmenvirk prausc pro DC	3.0V/24V (2.5V/24V)
absklacke octany prot inanzu elastecysm process	ID
Chiridio	R/34A/40 G
Ninave Chirda	C4H2
Vortint objem	S/21
Solar who pancha Max 42V

NO: BRUKERVEILEDNING

INNHOLDSFORTEGNELSE

1. SIKKERHETSANVISNINGER....SIDE 59
2. PRODUKTEGENSKAPER ......SIDE 60
3. PRODUKTSTRUKTUR....SIDE 60
4. SNU ÅPNINGSRETNINGEN TIL LOKKET ......SIDE 61
5. FUNKSJON OG DRIFT ......SIDE 62
6. BATTERIDRIFT (BATTERI IKKE INKLUDERT)....SIDE 63
7. VEDLIKEHOLD....SIDE 64
8. FEILS∅KING....SIDE 65
9. GARANTI....SIDE 66
10. TEKNISK INFORMASJON....SIDE 66

NO: BRUKERVEILEDNING

Line drawing of a toolbox with wheels and open lid (no text or symbols)

Line drawing of a toolbox with open lid and wheels (no text or symbols)

Line drawing of a toolbox with wheels and a control panel (no text or symbols)

Technical line drawing of a portable electronic device with wheels and control panel (no text or symbols)

Line drawing of a portable electronic device with open lid and wheels (no text or symbols)

Technical diagram of a mechanical device with numbered parts labeled ①, ②, ③, and ④.

Modell: Arctic Frost opplacbar batteri (590202) / TSAK-002 Karasitet: 15 600 mAh/l 73 Wh Nomineil spenning: 11.1 V
Begrenset ladespenning (likestrøm): Begrenset 12,6 V ladesstrøm (likestrøm): 3A
① Strømindikator (grzinn, lader, blå: lader ut)
② Bautrindikator (vis gieldende bateri)
③ PÅ/AV-bryter ④ Likestrøm ladeport

Model A2016-1986 (4:59/1997 / 1998) Himakelogen T.57, N.57 Non-chial spacing velocity limitator 100V - 240V ~ 30-50Hz Non-chial spacing limitator 1.0V/24V Non-chial strain for velocity limitator 1.24, 0.5x Non-chial strain for Hardness 5.04(1.0V / 7.5A/24V) Bodyless contactorizing for electric distance 3D Polyuretide R145 (40 g) Stainless steel C4h Inner solid steel 48.3 Solution Value: 40Kg Made in China Asses Outdoors ApS UK CA CA CA UK CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CUk Kerming 9, Dc-7221 Gye, Denmark Ulc One Class Guard, Bcl2-62X

Outwell 17W35 Acute Flow 33 S3X201 / T7W35 Infiltrator T.57 %, SN Named spinning wheelstrom (inplane) 100V - 240V ~ 30 60Hz Named spinning lightstrom 120/24V ——— Named steam to wind system (inplane) 1.2A 63A Named steam for lightstrom 320V/12V / 25A/24V Recirculating disklocking for 34bit speed/mstone 30 Ripenolateral R134V 40 g Dumewyckant Cullu Invending volume 37.71 Exchanger Mass 42V ——— Made in CHINA Close Outdoors ApS EU Kerman 9 DC 7328 (Gex Diamark US One Class Wind Bracket, RS2 67X)

Outwell® explore the outdoors

outwell.com
