INDEX

1. SAFETY INSTRUCTIONS ......PAGE 3
2. PRODUCT FEATURES....PAGE 4
3. PRODUCT STRUCTURE......PAGE 4
4. REVERSE DOOR OPENING DIRECTION ......PAGE 4
5. FUNCTION AND OPERATION ......PAGE 5
6. CARE AND MAINTENANCE......PAGE 6
7. TROUBLESHOOTING......PAGE 7
8. GUARANTEE ......PAGE 8
9. TECHNICAL INFORMATION......PAGE 8

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference.

1. SAFETY INSTRUCTIONS

WARNING!

• Do not operate the appliance if it is visibly damaged.
• Do not block the gaps of the cool box with things like pin, wire, etc.
• Do not expose the appliance to rain or soak it in water.
• Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)
• Do not store any explosive substances like spray cans with a flammable propellant.
• Ensure the supply cord is dry and not trapped or damaged. Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.
• Check the voltage specification on the type plate corresponds to that of the energy supply. The appliance is only to be used with the power supply unit provided with the appliance.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Once unpacked and before turning on, the appliance must be placed on a level surface for more than 6 hours.
• Make sure that the appliance stays horizontally when it is running. The tilt angle must be less than 5^ for long time running and be less than 45^ for short time running.
• Keep the ventilation openings in the unit casing or in the built-in structure free of obstacles. (Around the compressor ≥ 100mm).
• Keep the appliance stable on the ground or in the car; Do not drain upside down.

CAUTION!

- Repairs may only be carried out by qualified personnel. Incorrect repair may cause danger. The lamp and supply cord must be replaced by the manufacturer or qualified persons.

- Children aged 3-8 years are only allowed to load and unload refrigerating appliances.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards.

NOTICE!

• Disconnect the power supply before each cleaning and maintenance and after every use.
• Do not use sharp tools to defrost; Do not damage the refrigerant circuit.
• Check if the cooling capacity of the appliance is suitable for storing the food or medicine.
• Food may only be stored in its original packaging or in suitable containers.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the lid open to prevent mould developing within the appliance.
  • The cool box contains a flammable gas inside the compressor.

• The appliance is designed for recreational camping.

UK: INSTRUCTION MANUALUK: INS

IF YOU WISH TO FINALLY DISPOSE OF THE DEVICE

1. Remove cables, lid, tie down brackets from body with compressor and dispose according to local regulations. Ask your local recycling centre for details about how to do this in accordance with the applicable disposal regulations.
2. Place the packaging material in the appropriate recycling waste bins wherever possible.

2. PRODUCT FEATURES

• High-efficiency DC compressor and conversion module.
• CFC free and great heat insulation.
- DC 12/24V or AC 100\~240V (using dedicated adapter) power supply.
- asl cooling to -20°C/4°F (based on 75°C/77°F room temperature).
• Intelligent battery protection system.
• Digital display for temperature sealing.
• Cup holder design and adjustable lid opening direction.

1. PRODUCT STRUCTURE

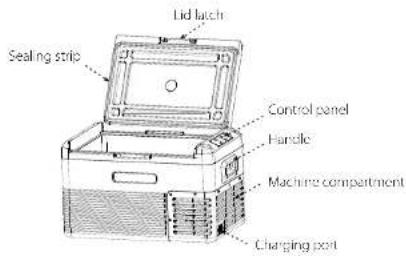

Lid latch Sealing strip Control panel Handle Machine compartment Charging port

4. REVERSE LID OPENING DIRECTION

The lid has two opening directions and can be taken off at an angle of 20°. When installing it back, align the lid shaft with the compartment hole and then insert it.

Shaft Hole

Line drawing of a mechanical device with open lid and internal components (no text or symbols)

1. FUNCTIONS AND OPERATION

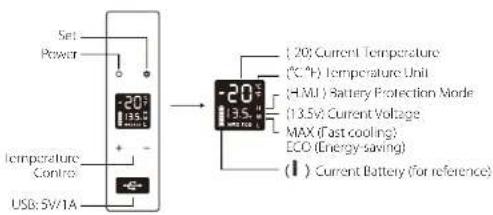

Set Power -20° 135.0 Temperature Control + - USB: 5V/1A [20] Current Temperature (°C, °H) Temperature Unit (H.M.) Battery Protection Mode (13.5V) Current Voltage MAX (Fast cooling) ECO (Energy-saving) (1) Current Battery (for reference)

• Power Supply: connect to DC 12V/24V or AC 100-240V power (using dedicated adapter).
- Display Screen Initialization: connect to the power supply, the buzzer will make a long beep and the display will be on for 2 seconds then enter the normal operating mode.
• Power On/Off: press 📋 switch ON/OFF.
- Temperature Setting: press+ or = for temperature setting, the setting will be saved automatically after having stopping operating for three seconds (Note: the temperature displayed is the current temperature of the compartment, it will take a while to reach the set temperature.)
temperature setting range: -70\~70°C (-4\~68°).
- Cooling Mode: under the running state, press to switch to MAX (fast cooling) and ECO (Energy saving Mode). (*Factory setting is MAX).
- Battery Protection Mode: under the running state, long press for three seconds until screen flashes, then press again to select protection mode H (High), M (Medium) and L (Low). ('Factory setting is H').

VOLTAGE REFERENCE:

MODE\INPUT	DC 12V DC 24V
	CUT-OFF CUT-IN CUT-OFF CUT-IN
L	8.5V	10.9V	21.3V	22.7V
M	10.1V	11.4V	22.3V	23.7V
H	11.1V	12.4V	24.3V	25.7V

* the voltage is a theoretical value, there may be a deviation in different scenarios.
^1 H should be set when the product's connected to car power, and M or L should be set when it is connected to a portable battery or other back-up battery.
- Temperature Unit Setting: switch off the cool box, long press for three seconds until E1 displays, then switch to E5 by pressing again. Under E5 mode, press to select Celsius or Fahrenheit? Factory setting is °C.)
- Reset: switch off the cool box, long press for three seconds until F1 displays, under F1 mode, long press for the same time for three seconds to reset it.

RECOMMENDED TEMPERATURES FOR COMMON FOOD:

Drinks Fruits Vegetable Ready-to-			eat food	Wine Ice cream Meat
5°C/41°F	5~8°C/41~46°F	3~10°C/37~50°F	4°C/30°F	10°C/50°F	-10°C/14°F	-18°C/0°F

6. CARE AND MAINTENANCE

Cleaning:

• Switch off and unplug the device first to avoid electric shock
• Use a wet cloth to clean the device and then wipe with a dry cloth.
• Do not soak the cool box in water or clean it under running water.
• Do not use abrasive cleaning agents during cleaning as these can damage the device.

Storage:

If the device will not be in use for a long time, please follow these instructions:
- Switch off and unplug the device.
• Take out all the items stored in the device.
- Wipe off excess water with a soft bag.
- Put the cool box in a cool and dry place.
- Leave the lid slightly open to prevent odors from forming.
- Recommended storage environment: Ambient temperature: 25°C, ambient humidity: ≤ 75%.

Defrosting:

• Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good time to avoid this.
• Switch off and unplug the device first to avoid electric shock
  • Take out all the items stored in the device.
• Keep the lid open.
• Wipe off the defrosted water.

Never use hard or pointed tools to remove ice or to free objects frozen onto the device.

Replacing the AC plug fuse (220-240V)

1. Unplug the cable from the mains socket and the cool box charging port.
2. Pry open the fuse cover with a small flat head screwdriver in the center of the cable plug. Replace fuse with a new one that has the same rating (BS 1362 13A).
3. Re-assemble the cable plug in the reverse order.

Replacing the cool box fuse (15A)

1. Unplug the cable from the mains or 12V socket and the cool box charging port.
2. Fry open the fuse cover with a small flat head screwdriver in the cool box charging port. Replace fuse with a new one that has the same rating (ATO regular blade fuse 15A).
3. Re-assemble the charging port in the reverse order.

UK: INSTRUCTION MANUALUK: INS

1. TROUBLESHOOTING

Issues	Cause/Suggestions
Cool box does not work	• Check if the switch is on.• Check if the plug and socket are properly connected.• Check if the fuse has been burnt.• Check if the power supply is malfunctioned.• Switching the cool box on/off frequently may cause start delay of the compressor.
Cool box compartments are too warm	• The lid is opened frequently.• A large amount of warm or hot food was stored recently.• The cool box has been disconnected for a long time
Food is frozen	• The temperature was set too low
There is "water flow" noise from inside the cool box	• It is a normal phenomenon, caused by the flow of refrigerant.
There are waterdrops around the cool box casing or lid gap	• It is a normal phenomenon, the moisture will condense to water when it touches a cold surface of the cool box.
The compressor is slightly noisy when starting	• It is a normal phenomenon, the noise will be reduced after the compressor works solely.
Code F1 displayed	• Possible cause: low voltage to cool box. Adjust the battery protection from High to Medium or from Medium to Low.
Code F2 displayed	• Possible cause: condenser fan is overloaded.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F3 displayed	• Possible cause: the compressor starts too frequently.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F4 displayed	• Possible cause: compressor not kicking in.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F5 displayed	• Possible cause: overheating of the compressor and electronics.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F6 displayed	• Possible cause: no parameter can be detected by the controller.Disconnect power to cool box for 5 minutes and re-start.If the code shows again, contact manufacturer for service.
Code F7 or F8 displayed	• Possible cause: temperature sensor is faulty.Contact manufacturer for service.

UK: INSTRUCTION MANUAL

The statutory guarantee period applies.

If the product is defective, please contact the manufacturer (see the back of the instruction manual) or your retailer.

We strive to have spare parts available for up to 10 years.

For more information please see www.outwell.com

For repair and guarantee processing, please include the following documents when you send in the device:
• A copy of the receipt with purchasing date
• A reason for claim or description of the fault.

1. TECHNICAL INFORMATION

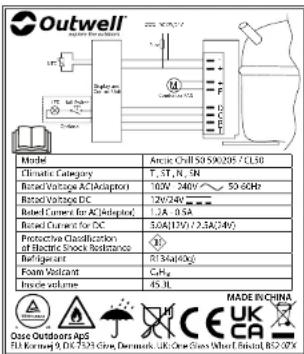

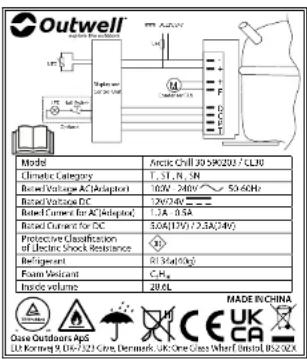

Outwell Model Climatic Category T1, ST, R, SN Basel Voltage AC/Adaptor 100Ω 240V ~ 50-60Hz Basel Voltage DC 12kV DC Basel Current for AC/Adaptor: 1.3A - 0.5A Basel Current for DC 3.0A (15V) / 7.5A (24V) Protective Classification of Electric Shock Resistance 21 Refrigerant 8134(20g) Foam Viscrant C2H2 Inotropic volume 20.6L Made INCHINA Case Outdoors ApS UK Norming 3 D+321 Core Denmark UK One Class Half Control BSC 32

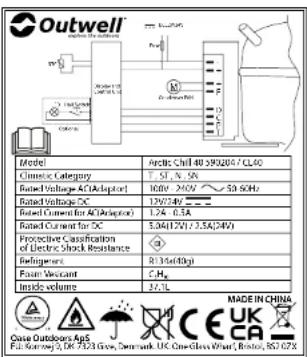

Outwell Model: Arctic Chill 40 390204 / CL40 Classic Category: T. ST. %, SN Rated Voltage ACI/Adaptor: 10kV~240V~50-60Hz Rated Voltage DC: 12kV/34V Rated Current for ACI/Adaptor: 1.24~0.3A Rated Current for DC: 3.04(12V) / 3.5A(24V) Prospective Classification of Electric Shock Resistance Refrigerant: R/3A(40kg) Fossil Viscant: C.H. Inside volume: 3.7L Made in CHINA Case Outdoors ApS Full Range: 2K 75/24 Gw, Denmark, UC Case Glass Master, Boston, MA 87/278

Outwell airupture Air ducts Model Arctic Chill 50/50/205-7/CL50 Climatic Category T, ST, N, SN Rated Voltage AC(Adaptor) 100V 240V 50-60Hz Rated Voltage DC 12V/24V Rated Current for AC(Adaptor) 1.2A - 0.5A Rated Current for DC 3.0A(12V)/2.3A(24V) Protective Classification of Electric Shock Resistance Refrigerant 813Mn(40g) Foam Viscant C2H4 Inverse volume 45 JL Made IN CHINA Oase Outdoors ApS FU-Koming 9, D.C 7525-Crow, Denmark, UK: One Glass Wharf, Bruchel, BS 207X

Line drawing of a printer with lid open, showing internal structure and ventilation slots (no text or symbols)

Skat Full

Line drawing of a portable electronic device with lid and ventilation slots (no text or symbols)

DK: BRUGERVEJLEDNING

1. FUNKTIONER OG BETJENING

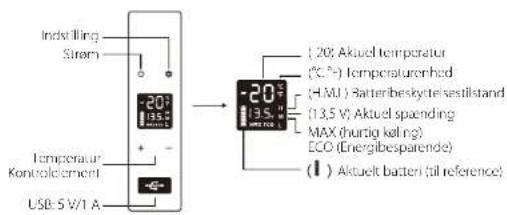

Indstilling Strøn -20° 19.5 V + - Temperature Kontrollement USB: 5 V/1 A [20; Aktuel temperatur (°C,°) temperature/hed (H.MU) Batteribeskytle sestilstand (13,5 V) Aktuel spending MAX (hurtig kall ng) ECO (Energibesparende) (1) Aktuelt bacteri (til reference)

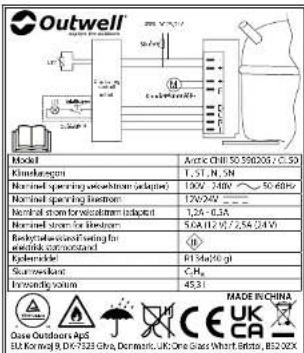

Outwell Model Arctic Chill 40 593204 / CLG Klumidicategor T, ST, N, SV Nominal spanning waveguide (adapter) 100V 340V 50-66Hz Nominal spanning vacuumstrain 13V/24V Nominal steam-gly for waveguide (adapter) 1.24 - 0.5A Nominal steam-gly for vacuumstrain 5.04 (12 V) / 2.5A (24 V) Ravitatbanoid-crodering for switchrock steamed plate R1134x80 g Starmoutnel CpH2 Indending volume Made in CHINA Case Outdoors ApS File: Newrig 12K 7524 Grow Denmark, UK One Class Wheel, Bristol, BS2/23

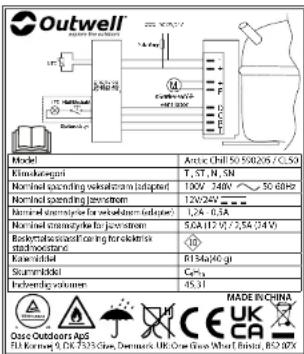

Outwell airway for the ducts Model Antie: Chill 50 590206 / CL50 Klimakogardi T., ST., N, SN Nominal spacing vertical strain (adapted) 100V 340V ~ 50.60Hz Nominal spacing (jusstrom) 12V/24V Nominal steam/sycle for vertical strain (adapted) 1,24 - 0,5A Nominal steam/sycle for jusstrom 5.0A/12 V / 7,5A (24 V) Basketstroke straightening for vertical steck/cover 10 Kawenfeld 6134x40.gt Starmelldel Cp=1 Exchendyl volume 45.31 Made IN CHINA Oase Outdoors ApS EU Korming & DC 7573 Glass, Denmark, UK One Draw What Beidnet, BC 87X

FR : MODE D'EMPLOI

INDEX

1. CONSIGNES DE SÉCURITÉ......PAGE 24
2. CARACTÉRISTIQUES DU PRODUIT ......PAGE 25
3. STRUCTURE DU PRODUIT ......PAGE 25
4. CHANGER LE SENS D'OUVERTURE DE LA PORTE......PAGE 25
5. FONCTION ET FONCTIONNEMENT ......PAGE 26
6. ENTRETIEN ET MAINTENANCE......PAGE 27
7. DÉPANNAGE ......PAGE 28
8. GARANTIE ......PAGE 29
9. INFORMATIONS TECHNIQUES......PAGE 29

Line drawing of a portable electronic device with lid and ventilation slots (no text or symbols)

Outwell Made in CHINA Case Outdoors ApS BLK Nomelj 6, DL-7325 GHz, Denmark UK One Data Watch Satira, 852.02X

Line drawing of a printer with lid open, showing internal structure and ventilation slots (no text or symbols)

Outwell At the current Model Arctic Chill 46 39020471-CL 40 Kilmarkezogenic 1,51,N,N Nominate spanning AC adapter 100V~240V~50-60Hz Nominate spanning DC 15W/24V Nominate covering AC adapter 1,24,63A Nominate stream water UC 5.0A 112 V~2.5A (24 V) Basic temperature measurement can be used in the circuit board to prevent load No need for Schum-Benzenüzel C.H. Brenzenügel 37,11 Made in CHINA Case Outdoors ApS Eli-Gurner 9 DC 7928 Grec. Denmark, UK One Class Wharf, Roi et al. 80.07X

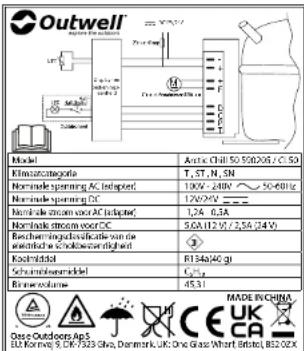

Outwell Air duct (2000-2005) Model Arctic Chill 50 59020G / C1.5D Einzotsatogorte T, ST, N, SN Normale sperning AC (adapted) 100V - 240V ~ 50-680Kg Normale sperning DC 12V/4V Normale stream voor AC (adapted) 1,24 0,3A Normale stream voor DC 5.0A/12 V / 2,5A / 24 V Beachering und verändliche von die einklicated w/kloweren dft wird Kochmittel R134a/46 gi Schumbeizemittel C25 Brinene volume 45.31 Made in CHINA UK CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA CA EAU Kornig & DK-N23 Giva, Denmark, UK; One Gas Wharf Bristel, B52 OZX

CZ: NÁVOD K POUŽITÍ

SEZNAM HESEL

1. BEZPEČNOSTNÍ POKYNY ...... STRANA 38
2. CHARAKTERISTIKY VÝROBKU STRANA 39
3. STRUKTURA VÝROBKU....STRANA 39
4. OBRÁCENÝ SMĚR OTEVŘENÍ DVÍŘEK STRANA 39
5. FUNKCE A PROVOZ STRANA 40
6. PÉČE A ÚDRŽBA STRANA 41
7. ODSTRAŇOVÁNÍ ZÁVAD STRANA 42
8. ZÁRUKA STRANA 43
9. TECHNICKÉ INFORMACE STRANA 43

CZ: NÁVOD K POUŽITÍ

Drill Crivor

Line drawing of a portable electronic device with lid and ventilation slots (no text or symbols)

CZ: NÁVOD K POUŽITÍ

5. FUNKCE A PROVOZ

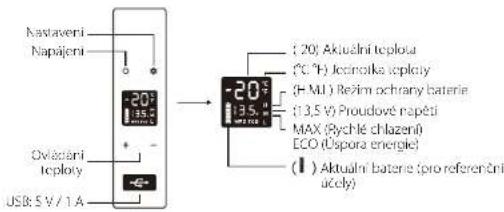

Nastaveni Napajeni -20° 135.0 Ovlazáni teploly USB: 5 V / 1 A - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -20° 135.0 (20) Aktualníteploua (70 °F) Icečnilka teplouy (H MU) Režim ochrany baterie (13,5 V) Proudové napěti MAX (Rychlé chlazení) ECO (Úspora energie) (1) Aktualní baterie (pro referenční účely)

Aksel Hull

Line drawing of a portable electronic device with lid and ventilation slots (no text or symbols)

1. FUNKSJONER OG DRIFT

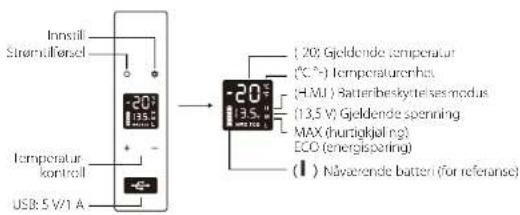

Innsill Strønnlørsel -20°C 135°C + - Temperature kontroll USB: 5 V/1 A (20: Gjeldende temperatur (°C, °) Temperatureohat (H.M.U.) Batteribeskytte ses modus (13,5 V) Gjeldende spenning MAX (hurtigkjøll ng) ECO (energisperiing) (I) Nåvaerende batteri (for reference)

• Stromforsyning: Koble til likestrøm 12 V/24 V eller vekselstrøm 100-240 V-strøm (med dedikert adopted).
• Skjermoppstart: Købe til strømforsyningen, så vil del avgis et langt pip og skjermen vil være på i 2 sekunder før den går til normal driftsmodus.
• Strøm PÅ/AV: rykk (er å skru PÅ/AV.
• Temperaturinnstilling: Trykk+ eller = for temperaturinnstilling. Innstillingen lagres automatisk etter be sekunders stopp. (Merk Den viste temperaturen er den gjeldende temperaturen i seksjonen. Det tar fit vid för den innstilte temperaturen nås) Temperaturinnstillingsområde: 20\~20 °C.
• Kjølemodus: driftsmodus trykker du for å skifts til MAX (hurtigkjøling) og ECO (energisparemodus). (*Fabrikkinnsäll ingen er MAX.)
• Batteribeskyttelsesmodus: I erif, smodus hold du inne i tre sekunder, il skjernen blinker. Deretter trykker du ogjen for å velge beskyttelsesmodus H (High), M (Medium) og L (Low). (*Fabrikinnstillingen er H).

SPENNINGSREFERANSE:

INNGANG MODUS	Likestrøm 12 V Likestrøm 24 V
	AVSTENGNING INNKOPLING		AVSTENGNING INNKOPLING
L	8,5V	10,9V	21,3V	22,7V
M	10,1V	11,4V	22,3V	23,7V
H	11,1V	12,4V	24,3V	25,7V

Outwell MIXICO-2014 Model Auric Child 48 390004 (C) 40 Kilamatozol 1.5V, N, 5V Normed sputtering velocity/stress (dipersed) 100V - 20V / 50-60V Normed sputtering flow-stress 170/24V Normed strom for velocity/stress (dipersed) 1.2A 0.5A Normed strom for flow-stress 5.0V 12 V / 12.5A 0.2V Recyclified flow-folding for alloyed flow-stress Xylemord 81.14E+40 G Diamonated C2.5g Intraeading volume 37.11 Made in CHINA Case Outdoors ApS Liu Scoring 9, D=323 Geve, Denmark, UK Core Class Khart, Berlin, BZ-02X

Outwell Model Atric Chill 50 390206 / C.50 Klindusegm 1,51, N, SN Nominal spacing waterstream (adapt) 100/ 240V ~ 50-60Hz Nominal spacing firearm 170/24V ———— Nominal flow waterstream adapted 1,24 - 0.3A Nominal stream for firearm 5.0A/12 V / 7.5A (24 V) Breakwater/wasal setting for water flow constant Ephenoide 81.34x20 g/l Slawswankt C.H. Inventay system 45.31 Made INCHINA Case Outdoors ApS EU Normig 9 D:7528 Chg, Dornatic UK One Grass Wharf Bhatle, B52-XX
