USER MANUAL Verdi Kichler

Product images may vary slightly from actual product.

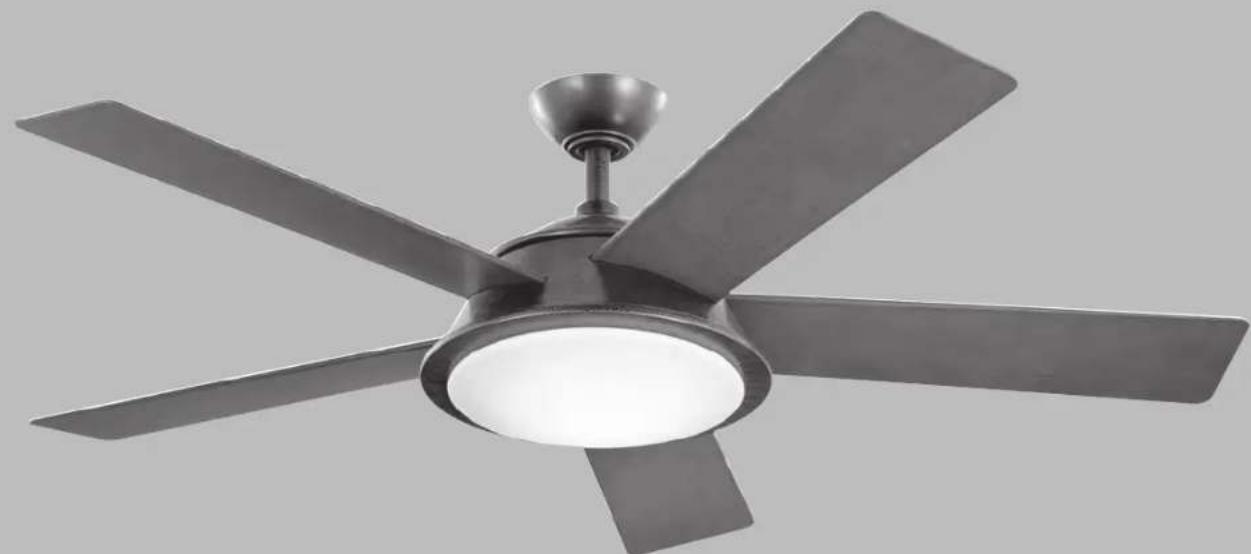

Five metallic ceiling fan with a recessed light bulb, shown against a plain background (no text or symbols)

INSTRUCTION MANUAL

2 | KICHLER.COM

TABLE OF CONTENTS

SAFETY RULES 4

TOOLS REQUIRED....5

PACKAGE CONTENTS....5

MOUNTING OPTIONS....6

HANGING THE FAN....7

INSTALLATION OF SAFETY SUPPORT....9

ELECTRICAL CONNECTIONS....10

FINISHING THE MOTOR INSTALLATION ..... 11

ATTACHING THE FAN BLADES....12

INSTALLING THE SWITCH HOUSING....13

INSTALLING THE LIGHT KIT AND GLASS .....14

OPERATING INSTRUCTIONS....17

TROUBLESHOOTING....18

FCC INFORMATION....19

SAFETY RULES

1. CAUTION – RISK OF SHOCK – Disconnect Power at the main circuit breaker panel or main fusebox before starting and during the installation.
2. WARNING: This fixture is intended for installation in accordance with the National Electrical Code (NEC) and all local code specifications. If you are not familiar with code requirements, installation by a certified electrician is recommended.
3. WARNING: To reduce the risk of fire or electric shock, use only the control provided with the fan.
4. WARNING: To reduce the risk of fire, electric shock, or Personal Injury, mount directly to a structural framing member or to an outlet box marked "Acceptable for Fan Support of 15.9kg (35 lbs) or less". For outlet box mounting, use mounting screws provided with the outlet box.

5. WARNING: Chemical Burn Hazard. Keep batteries away from children. This remote contains a lithium button cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Dispose of cells properly and keep away from children. Even used cells may cause injury.

6. To operate the reverse function on this fan, press the "Reverse" button while fan is running.

7. Avoid placing objects in the path of the blades.

8. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.

9. Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to the floor and at least 30 inches from the ends of the blades to any obstruction.

10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.

11. After making the electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The wires should be spread apart with the ground wire and white (common) wire to one side with the black (load) wire to the other side of the outlet box.

12. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be ETL Listed and marked suitable for use with the model fan you are installing. Switches must be ETL General Use Switches. Refer to the Instructions packaged with the light kits and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

TOOLS AND MATERIALS REQUIRED

• Phillips Screwdriver
- Blade Screwdriver
• 11 mm Wrench
- Step Ladder
- Wire Cutters

Line drawings of five different tools: screwdriver, wrench, ladder, and pliers (no text or symbols)

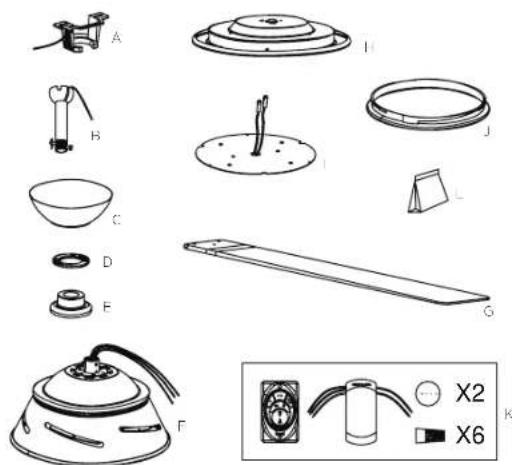

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

A. Mounting Bracket
B. Ball / Downrod Assembly
C. Canopy
D. Canopy Hole Cover
E. Coupling Cover
F. Motor Body
G. Fan Blade (5)
H. Switch Housing
1. Light Kit
J. Glass
K. Remote Control Kit:
Remote Control (1)
Receiver (1)
Batteries (2)
Wire Connectors (6)

L. Package Hardware
1) Mounting Hardware: Wire Connector (3)
2) Blade Attachment Hardware: Screws (15), Washers (15)
3) Safety Cable Hardware: Wood Screw (1), Spring Washer (1), Flat Washer (1)
4) Light Kit Hardware: Screw (3)

Technical diagram showing exploded view of household appliances with labeled parts and a legend for X2 and X6 indicators.

MOUNTING OPTIONS

If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 50 lbs). Do not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of different ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted) ceiling, you may need a longer down rod to maintain proper clearance between the tip of the blade and the ceiling. A minimum clearance of 12" is suggested for optimal operation.

NOTE: Depending on the location you have selected for installation, you may need to purchase and install a "Joist Hanger" for the support of the outlet box. Make sure the joist hanger you purchase has been designed for use with ceiling fans. (Fig. 4)

Outlet box

Fig. 1

Outlet box

Fig. 2

ANGI-HCHI-ING MAXIMUM 30° ANGLE Previous strong support Recessed outlet box ceiling mounting plane

Fig. 3

Outlet box

Fig. 4

HANGING THE FAN

REMEMBER to turn off the power before you begin installation. This is necessary for your safety and also the proper programming of the control system.

To properly install your ceiling fan, follow the steps below.

Step 1. Before attaching the fan to outlet box (not included), ensure the outlet box is securely fastened to at least two points to a structural ceiling member (a loose box will cause the fan to wobble). Pass the 120 volt supply wires from the ceiling outlet box through the center of the ceiling mounting bracket. Install mounting bracket to outlet box in ceiling using the screws and washers included with the outlet box. (Fig. 5)

Step 2. Remove the hairpin and clevis pin from the downrod assembly, retain for later use. Remove the hanger ball from the downrod assembly by loosening set screws, removing the cross pin, and twisting ball off the rod.(Fig. 6)

NOTE: Make sure to keep loosened hardware separate to avoid confusion during installation.

Step 3. Loosen the two set screws on the motor coupling. (Fig. 7)

Outlet Box Ceiling Mounting Bracket Flat Washer Screw

Fig. 5

Hanger Ball Set Screw Cross Pin Clevis Pin He rpin

Fig. 6

Set Screw Motor Body

Fig. 7

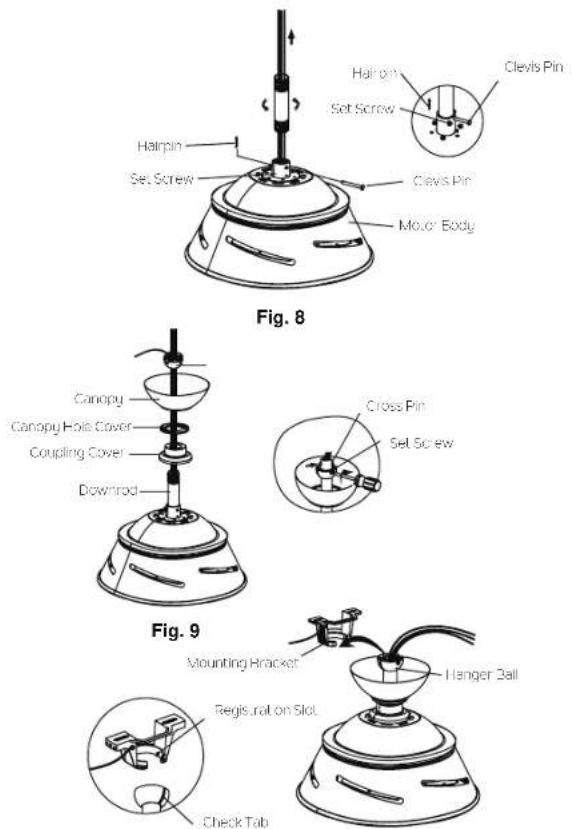

HANGING THE FAN (continued)

Step 3. Carefully feed fan wires and safety cable up through the downrod. Thread the downrod onto the motor coupling until the clevis pin holes are aligned. Next, replace the clevis pin and hairpin, then tighten both set screws. (Fig. 8)

Step 4. Slip the coupling cover, canopy hole cover and canopy onto the downrod. Carefully reinstall the hanger ball onto the downrod. Make sure the cross pin is in the correct position and the set screw is tight and the wires are not twisted. (Fig. 9)

Step 5. Now lift the motor body into position and place the hanger ball into the mounting bracket. Rotate until the "Check Tab" has dropped into the "Registration Slot" and seats rmly. (Fig. 10) The entire motor body should not rotate if this is done correctly.

WARNING: Failure to properly seat the "Check Tab" can damage the ceiling fan during operation.

Hairpin Set Screw Clevis Pin Motor Body Hairpin Set Screw Clevis Pin Fig. 8 Canopy Canopy Hole Cover Coupling Cover Downrod Cross Pin Set Screw Fig. 9 Mounting Bracket Hanger Ball Regisral on Slot Check Tab

Fig. 10

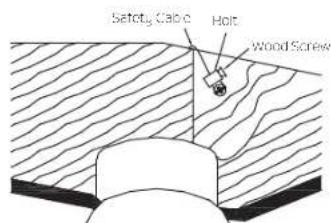

INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY)

A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows.

Step 1. Drive a wood screw and washers into the side of the brace that holds the outlet box. Leave 3mm (1/8") of space between the support brace and the washer. (Fig. 11)

Step 2. Insert the safety cable through the mounting bracket and one of the holes in the outlet box into the ceiling. Adjust the length of the safety cable to reach the screw and washers by pulling the extra cable through the cable clamp until the overall length is correct, put the end of the cable back through the cable clamp, forming a loop at the end of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the safety cable over the wood screw and under the washer. Tighten the wood screw securely. (Fig. 12)

NOTE: Although the safety support cable is required for Canadian installations only. It's a good idea to make the attachment with any installation.

Flat Washer Wood Screw Spring Washer Support Lace Ceiling Outlet Box

Fig. 11

Safety Cable Holt Wood Screw

Fig. 12

ELECTRICAL CONNECTIONS

WARNING: To avoid possible electrical shock, be sure you have turned off the power at the main circuit panel before wiring.

Follow the steps below to connect the fan to your household wiring. Use the wire connectors supplied with your fan. Secure the connector with electrical tape. Make sure there are no loose wire stands or connections.

WARNING: If your house wires are different colors than referenced in this manual, stop immediately. A professional electrician is recommended to determine proper wiring.

Step 1. Insert the receiver into the mounting bracket, and keep flat in opposition of ceiling. (Fig. 13)

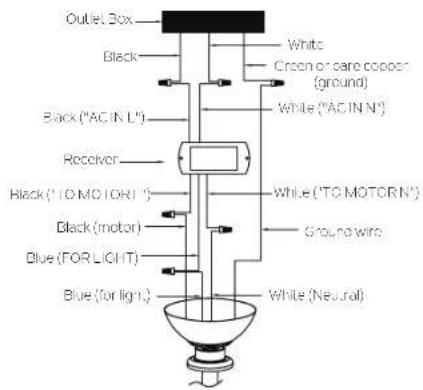

Step 2. Motor to Receiver Electrical Connections:

Connect the BLACK wire from the fan to BLACK wire marked "TO MOTOR L" from the receiver. Connect the WHITE wire from the fan to the WHITE wire marked "TO MOTOR N" from the receiver. Connect the BLUE wire from the fan to the BLUE wire marked "FORLIGHT" from the receiver. Secure all the wire connections with the plastic wire connectors provided. (Fig. 14)

Step 3. Remote Receiver to Outlet Box Electrical Connections:

Connect the BLACK (hot) wire from the ceiling to the BLACK wire marked "AC IN L" from the receiver. Connect the WHITE (Neutral) wire from the ceiling to the WHITE wire marked "AC IN N" from the receiver. Secure all the wire connections with the plastic wire connectors provided. (Fig. 14)

Receiver Mounting Bracket

Fig. 13

Outlet Box Black Black ("AC IN L") Receiver Black ("TO MOTOR L") Black (motor) Blue (FOR LIGHT) Blue (for light) White Crown or bare copper (ground) White ("AC IN N") White ("TC MOTOR N") Ground wire White (Neutral)

Fig. 14

ELECTRICAL CONNECTIONS

Step 4. If your outlet box has a ground wire (green or bare copper) connect it to the fan ground wires; otherwise connect the fan ground wire to the mounting bracket. Secure the wire connection with a plastic nut provided. After connecting the wires, spread them apart so that the green and white wires are on one side of the outlet box and black and blue wires are on the other side. (Fig. 14)

NOTE: Carefully tuck the wire connections up into the outlet box.

NOTE: Fan must be installed at a maximum distance of 30 feet from the transmitting unit for proper signal transmission between the transmitting unit and the fan's receiving unit.

FINISHING THE MOTOR INSTALLATION

Step 1. Remove one of the two shoulder screws in the mounting bracket. Loosen the second shoulder screw without fully removing it. (Fig. 15)

Step 2. Assemble canopy by rotating key slot in canopy over shoulder screw in mounting bracket. Reinstall the shoulder screw that was previously removed, then retighten two shoulder screws securely (Fig.16)

Mounting Bracket Shoulder Screw

Fig. 15

Canopy Shoulder Screw

Fig. 16

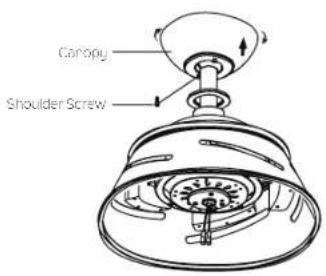

FINISHING THE MOTOR INSTALLATION

Step 3. Securely attach and tighten the canopy hole cover over the shoulder screws in the mounting bracket utilizing the keyslot twist-lock feature. (Fig. 17)

ATTACHING THE FAN BLADES

NOTE: Before continuing, make sure the power is disconnected by turning off the circuit breaker or removing the fuse at the circuit box.

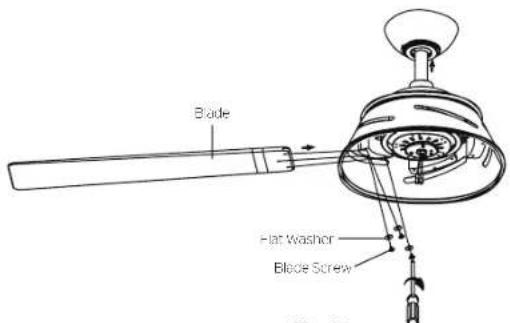

Step 1. Carefully slide the blade through the slot as shown. Securely fasten the five blades with blade screws and flat washers. (Fig. 18)

Canopy Hold Cover

Fig. 17

Blade Flat Washer Blade Screw Fig. 10

Fig. 18

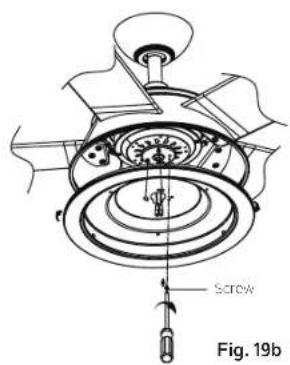

INSTALLING THE SWITCH HOUSING

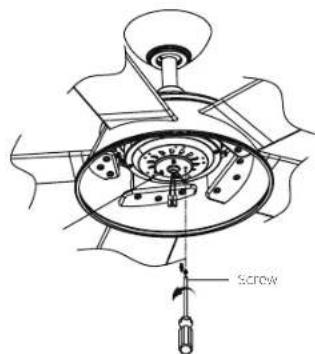

Step 1. Remove the screw marked with a dot label which is preinstalled on mounting plate and keep for later use. Loosen the other two (do not remove). Place the two slot holes on the switch housing over the 2 screws previously loosened from the mounting plate. Rotate the switch housing until it locks in place at the narrow end of the key holes. Secure by tightening the 2 screws previously loosened and the one previously removed. (Fig. 19)

Screw

Fig. 19a

Screw Fig. 19b

INSTALLING THE LIGHT KIT AND GLASS

NOTE: Before continuing installation, confirm that the power is still turned off at the main circuit breaker or by removing the correct fuse. Turning the power off using a wall switch is not sufficient to prevent electrical shock.

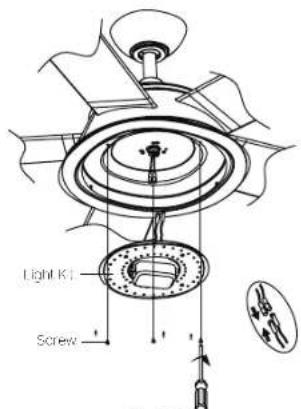

Step 1. Hold the light kit close to the switch housing and connect the WHITE wires from the light kit and fan by pushing the connectors together. Follow the same procedure with the BLACK wires. (Fig. 20)

Step 2. Tuck the connections neatly into the light kit. Attach the light kit to switch housing and securely tighten with three (3) screws found in the hardware pack.

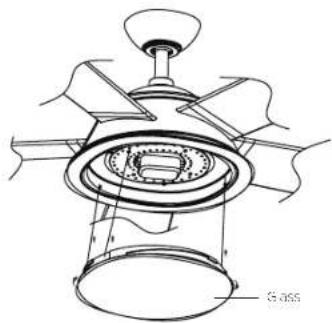

Step 3. Secure the glass to switch housing by twisting in a clockwise direction, twist the glass gradually until it snaps on to the switch housing. Do not over-tighten. (Fig. 21)

Light K1 Screw

Fig. 20

Glass

Fig. 21

OPERATING INSTRUCTIONS

Step 1. Select a location to install your handset control holder, install the holder as shown. (Fig. 22)

Step 2. Using a screwdriver, remove the battery cover from the handset and save the screw for later use. (Fig. 23)

Step 3. To make fan operational, install two 3V CR2032 batteries (included). (Fig. 24)

WARNING: Chemical Burn Hazard. Keep batteries away from children.

NOTE: If not used for long periods of time, remove batteries to prevent damage to the handset control. Store the control away from excessive heat or humidity.

To operate the reverse function on this fan, press the "Reverse" button while fan is running.

Speed setting for warm or cool weather depends on factors such as the room size, ceiling height, number of fans and so on.

Warm Weather Operation: Forward (counter clockwise). A downward airflow creates a cooling effect (Fig. 25). This allows you to set your air conditioner on a warmer setting without affecting your general comfort.

Cool Weather Operation: Reverse (clockwise). An upward airflow moves warm air off the ceiling areas (Fig. 26). This allows you to set your heating unit on a cooler setting without affecting your general comfort.

Fig. 22

CR2032 kV CR2032 kV Batteries KICHLER. Fig. 24

Fig. 24

KICHLER.

Battery Cover
Fig. 23

Fig. 25 Fig. 26

OPERATING INSTRUCTIONS

NOTE: Each handset control carries a unique ID code to facilitate communication between paired devices. The ID code is set by factory and is not user changeable. However, you will be required to perform an "ID code learning" process manually under these circumstances:

- If you have multiple fans installed within a close proximity and want to control all fans using a same handset control.

NOTE: Each fan requires its own receiver.

- When your remote control is not responding (make sure battery is not flat).

• After you have replaced a faulty transmitter or receiver with a new one.

Otherwise the remote control will not work. To perform this process manually, follow steps below: After installing and wiring the unit, restore power to your fan, press and hold the LEARN key for 1-3 seconds, the fan will turn on at medium speed and light (if installed) will turn on. This confirms that the learning process have been completed. This operation must be completed within 30 seconds after restoring power to the fan. (Fig. 27)

NOTE: Ensure slide switch in battery compartment marked "D O" is set to "D" position. (Fig. 27)

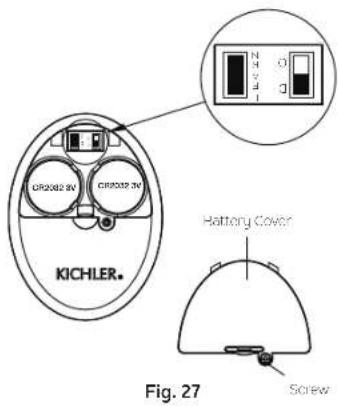

Step 4. Replace the battery cover and tighten with screwdriver. (Fig. 27)

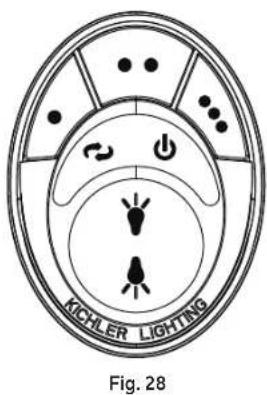

Step 5. The buttons control the fan speed and light as follows: (Fig. 28)

●	Low speed
●●	Medium speed
●●●	High speed
⏻	Fan OFF
	Airflow (Forward or Reverse)
	No function (Do not use this button)
	a.) Light ON/OFF.b.) Press and hold to dim or brighten light to desired level.

CR2082 2V CR2032 2V KICHLER. Battery Cover Screw Fig. 27

KICHLER LIGHTING Fig. 28

TROUBLESHOOTING

Problem Solution

Fan will not start. 1. Check circuit fuses or breakers.

1. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection.
2. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
3. Ensure the batteries have a good charge.

Fan sounds noisy. 1. Make sure all motor housing screws are snug.

1. Make sure the screws that attach the fan blade brackets to the motor are tight.
2. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. CAUTION: Make sure main power is off.
3. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
4. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not touching any other component.
5. Do not connect this fan to wall mounted variable speed control(s). They are not compatible with ceiling fan motors or remote controls.
6. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling

TROUBLESHOOTING

Problem Solution

Fan wobble. 1. Check that all blade and blade arm screws are secure.

1. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
2. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in smoother operation.

Remote control malfunction.

1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a basic On/Off wall switch, if desired.

FCC INFORMATION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

KICHLER®

KICHLER LIGHTING

7711 EAST PLEASANT VALLEY ROAD

CLEVELAND, OHIO 44131

CUSTOMER SERVICE 866.558.5706

8:00 AM TO 5:00 PM EST, MONDAY - FRIDAY

© Kichler Lighting LLC. All Rights Reserved.

KICHLER®

56" Verdi LED

Five metallic ceiling fan with a recessed light bulb, shown against a plain background (no text or symbols)

MANUEL D'INSTRUCTIONS

2 | KICHLER.COM

TABLE DES MATIÈRES

RÈGLES DE SÉCURITÉ ....4

OUTILS NÉCESSAIRES ....5

CONTENU DU COLIS ....5

OPTIONS DE MONTAGE 6

SUSPENDRE LE VENTILATEUR ....7

INSTALLATION DU SUPPORT DE SÉCURITÉ .....9

RACCORDEMENTS ÉLECTRIQUES .....10

FINITION DE L'INSTALLATION DU MOTEUR ....11

FIXATION DES LAMES DU VENTILATEUR .....12

INSTALLATION DU BOÎTIER DE COMMUTATEUR ....13

INSTALLATION DU KIT D'ÉCLAIRAGE ET DU VERRE ....14

INSTRUCTIONS D'UTILISATION ....17

DÉPANNAGE ....18

INFORMATIONS FCC....19

RÈGLES DE SÉCURITÉ

Line drawings of five different tools: screwdriver, wrench, ladder, and pliers (no text or symbols)

CONTENU DU COLIS

A B C D E F H I J L G X2 X6 K

OPTIONS DE MONTAGE

CLEVELAND, OHIO 44131

SERVICE À LA CLIENTÈLE 866.558.5706

Five metallic ceiling fan with a recessed light bulb, shown against a plain background (no text or symbols)

Line drawings of five different types of screwdrivers and pliers, no text or symbols present

Diagram showing various household appliances and fixtures with labeled parts A through G

OPCIONES DE MONTAJE

Diagram of airflow around a mechanical component with curved arrows indicating direction (no text or symbols)

CLEVELAND, OHIO 44131

SERVICIO AL CLIENTE 866.558.5706

8:00 AM A 5:00 PM EST, DE LUNES A VIERNES
