USER MANUAL GC-DP 7035 N ECO PLUS EINHELL

GB Original operating instructions Dirty Water Pump

Close-up of a metallic cylindrical device with attached black cable and a labeled component (no text or symbols visible)

Close-up of a metallic cylindrical device with attached cable and connector, labeled with number 5 (no text or symbols on the device itself)

-3-

Close-up of a metallic cylindrical device with coiled wires and a rectangular sensor attached (no visible text or symbols)

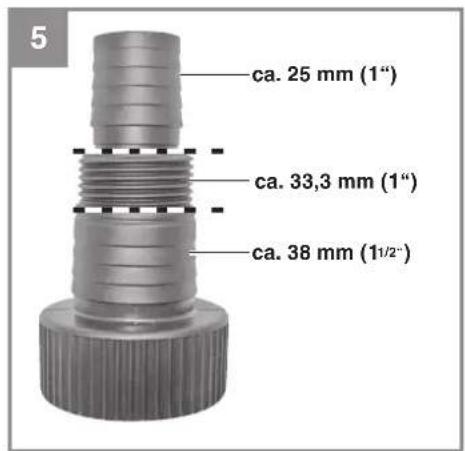

ca. 25 mm (1") ca. 33,3 mm (1") ca. 38 mm (1½)

Symbolic icon of an open book inside a black circle, labeled with number 6 at top left (no text or symbols on the icon itself)

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 6)

1. Danger! - Read the operating instructions to reduce the risk of injury.

1. Safety regulations

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Children are not allowed to use this equipment. Children are not allowed to carry out cleaning or maintenance. This equipment can be used by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment.

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

Danger!

The pump must be powered via an earth-leakage circuit breaker (RCD) with a rated fault current of no more than 30 mA (according to VDE 0100 Part 702 and 738).

The equipment is not designed for use in swimming pools and paddling pools of any kind or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician!

Danger!

• Before you put the equipment into operation, arrange for a specialist to check that the earthing, protective multiple earthing or residual-current operated circuit-breaker circuit comply with the safety regulations of the power supply company and work correctly.
  • The electrical plug-in connections must be protected from wet conditions.
• If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.
• Strictly avoid pumping aggressive liquids and abrasive substances.
  • Protect the equipment from frost.
  • Protect the equipment from dry running.
  • Take suitable measures to keep the equipment out of the reach of children.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1. Handle
2. Floating switch
3. Universal hose connection
4. Intake cage
5. Float switch mounting

GB

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Dirty water pump
  • Universalhoseconnection
  • Original operating instructions

3. Proper use

The equipment you have purchased is designed to pump water with a maximum temperature of 35 ^ . This equipment must never be used for other liquids, especially not for engine fuels, cleaning agents and other chemically-based products!

The equipment can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. It must not be used to operate swimming pools!

If you want to use the equipment in bodies of water with a natural, muddy bottom, place the equipment in a slightly elevated position, e.g. on bricks.

The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment's anticipated life will be greatly shortened because the equipment was not designed for continuous loading.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

The water may be contaminated by escaping lubricating oil/lubricant.

4. Technical data

Mains connection 230 V \~ 50 Hz
Power rating 700 W
Max. pumping rate 19000 l/h
Max. delivery head 8 m
Max. submersion depth 7 m
Max. water temperature 35°C
Hose connection ....approx. 47.8 mm (1½ " IG
Max. size of foreign bodies: 35 mm
Switching point height: ON .....max. approx. 50 cm
Switching point height: OFF ....min. approx. 10 cm
Protection type. IPX8

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

5.1 Installation

The equipment can be installed either:

• Stationary with a rigid pipe line

or
• Stationary with a flexible hose line

Notice!

Before you use the pump, clarify any possible special conditions which need to be fulfilled for the installation!

For example, additional safety measures may be needed if damage to property could result from a power failure, soiling or a defective gasket.

Examples of such safety measures: Pumps running in parallel on a separately protec-

GB

ted power circuit, moisture sensors for switching off the pumps, and similar safety arrangements. Be sure to consult a professional plumber if you have any doubt.

The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced. If the universal hose connection (Fig. 1/Item 3) is used, it should be shortened (as shown in Fig. 5) to the connection actually used in order not to reduce the pumping rate unnecessarily. Flexible hoses must be fastened to the universal hose connection with a hose clip (not included in the scope of supply).

When installing, never hang the equipment by the discharge line or by the power cable. The equipment must be hung up with the provided carry handle or it must rest on the bottom of the shaft. To ensure that the equipment works properly, the bottom of the shaft always must be free of sludge and other accumulations of dirt. If the water level is too low, the sludge in the shaft can quickly dry out and hinder the equipment from starting. It is necessary therefore to check the equipment regularly (carry out trial start-ups).

The pump shaft should be large enough.

5.2 Mains connection

Danger!

The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 230 V \~ 50 Hz. Make sure that the socket-outlet is sufficiently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation.

6. Operation

You can put the equipment into operation after you have thoroughly read the installation and operating instructions. Pay attention to the following points:

• Make sure that the equipment is set up securely.
• Check that the discharge line is fitted correctly.
  • Make sure that the electrical connection is

230 V \~ 50 Hz.

• Check that the electrical socket-outlet is in good working order.
  • Make sure that no moisture or water can ever reach the power connection.
  • Make sure that the equipment does not run dry.
  • To switch off the equipment, pull the power plug out of the socket outlet.

Setting the On/Off switching point:

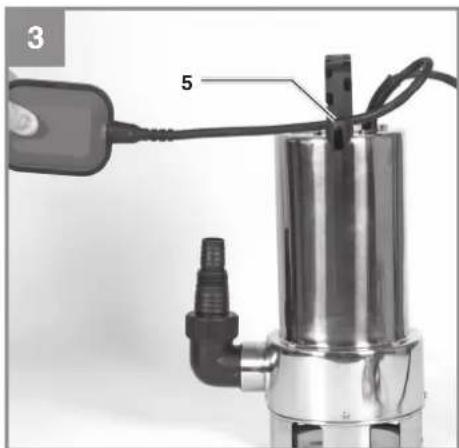

First fit the mount (5) for the floating switch onto the carry handle (1) as shown in Fig. 2. Make sure that the mount latches firmly into the carry handle.

The On/Off switching point of the floating switch can be adjusted by shifting the floating switch in the mount (5) (Fig. 3/ Item 5).

• The floating switch must be fitted so that the switching point height: ON and the switch point height: OFF can be reached easily and with little force. Check this by placing the equipment in a container filled with water and carefully raising and lowering the floating switch with your hand. You can then see whether the equipment switches on and off.
• Make sure that the distance between the floating switch head and the cable holder is not too smaller than 10 cm. If the distance is too small, there is no guarantee that the equipment will work correctly.
• When adjusting the floating switch, make sure that the floating switch does not touch the bottom before the equipment is switched off. Important! Risk of dry running.

Manual operation:

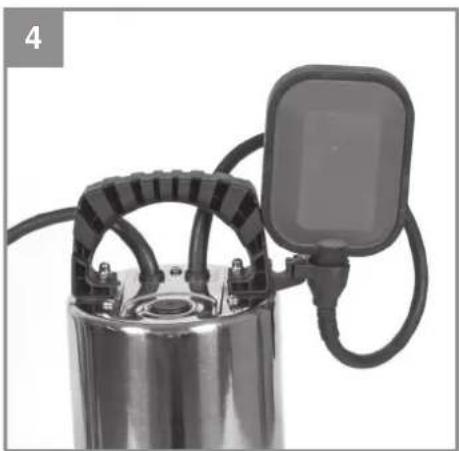

Mount the floating switch as illustrated in Fig. 4. The equipment will then run continuously. To prevent dry running, this operating mode is allowed only under supervision. The equipment must be switched off (pull out the power plug) as soon as no more water is emitted from the discharge line.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

GB

8. Cleaning, maintenance and ordering of spare parts

Danger!

• Unplug the power plug prior to any maintenance work.
• For mobile applications, the equipment should be cleaned with clear water after every usage.
• For stationary installation, it is recommended that you check the floating switch for proper operation every three months.
• Use a water jet to remove any lint or fibrous particles that may have become trapped in the housing.
• Remove sludge from the shaft bottom and clean the shaft walls every 3 months.
• Use clear water to remove deposits from the floating switch.

8.1 Cleaning the paddle wheel

If a lot of deposits collect in the housing, the bottom part of the equipment must be dismantled as follows:

1. Disconnect the intake cage from the housing.
2. Clean the paddle wheel with clear water.
   Important! Do not put down or rest the equipment on the paddle wheel!
3. Assemble in reverse order.

8.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

For our latest prices and information please go to www.Einhell-Service.com

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

11. Troubleshooting guide

Faults Cause	Remedy
Theequipment does not start	- Power supply not connected- Floating switch does trigger	- Check power supply- Raise position of floating switch
Theequipment does not pump	- Intake sieve clogged- Discharge hose kinked	- Clean intake sieve with water jet- Unkink the hose
Theequipment does not cut out	- Floating switch cannot sink - Place equipment correctly on shaft bottom
Insufficient pumping rate	- Intake sieve clogged- Performance reduced due to heavily contaminated and abrasive water impurities	- Clean intake sieve- Clean equipment and replace wear parts
The equipment switches off after briefly running	- Motor circuit-breaker switches the equipment off due to excessive water contamination- Water temperature too high; motor circuit-breaker switches the equipment off	- Unplug power plug and clean equipment and shaft- Ensure that maximum permissible water temperature (35 °C) is not exceeded

GB

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Impeller
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

F

Danger!

X 2006/42/EC
□ Annex IV
Notifi ed Body: Reg. No.:
□2000/14/EC_2005/88/EC
□ Annex V
□ Annex VI
Noise: measured L_WA = dB (A) ; guaranteed L_WA = dB (A) P = kW; L/∅ = cm
Notified Body:
2012/46/EU_(EU)2016/1628 Emission No.:

Standard references: EN 60335-1; EN IEC 60335-2-41; EN 62233; EN IEC 55014-1; EN IEC 55014-2; EN IEC 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR030917

Documents registrar: Helmut Bauer

Wiesenweg 22, D-94405 Landau/Isar

1. GN Dirty Water Pump - FP Pompe aux usadas - FP Pompe par queque elfuso - FP Nom. SK Splitievesiumppe - 8 Stmutsvattonpump - CZ Kalovej Cepradio - SK Kalovej Cepradio - NI Vultuwatepmp - E Bomba da agua suta - FIW I klasveisjumppi - SLO Ciparko za umazana vaso - H Strynyevsztvattyu - RO Pompa de aro izruda - GR Avitla akotapouvrus por - PBomba de agua suta - HR/BN Pumpa za prijuva vaso - RS Pampa za prijuva voda - RP Palma zupuzleniova do brudnej vsoy - TR Ps y por pumala - RUS Hasoc da margariznejnoj na oeda - EE Heltecpump - LV Salmiecobas notekustenju sukins - LT Uzerto vaniesi surbii - RO Pampa za oppadna voda - UKH Hasoc da iandiskunayvanie stn hnikov - MKI Ptunla za hnihotva voda - NO Pumpe li skilent vann - IS Brumvaldelede

Declaration of conformity

We, Einhell UK Ltd

Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom

declare the conformity to UK standards and legislation was assessed for:

Dirt Water Pump GC-DP 7035 N ECO PLUS (Einhell)

UK legislation

□ Simple Pressure Vessels (Safety) Regulation
□ Electrical Equipment (Safety) Regulation
□ Radio Equipment Regulation
□ Personal Protective Equipment Regulation
☐ The Ecodesign for Energy-Related Products and Energy Information Regulation
X The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation
□ Noise Emission in the Environment by Equipment for use Outdoors Regulation
X Electromagnetic Compatibility Regulation
□ Measuring Instruments Regulation
☐ Pressure Equipment (Safety) Regulation

Annex V

Annex VI

Noise:measuredL ww = dB (A); guaranteed L ww = dB (A)
P = kW; L/∅ = cm
UK Approved Body:

X Supply of Machinery (Safety) Regulation

Annex IV

UK Approved Body:

UKTE Certifi cate No.:

Standards: BS EN 60335-1; BS EN IEC 60335-2-41; BS EN 62233; BS EN IEC 55014-1; BS EN IEC 55014-2; BS EN IEC 61000-3-2; BS EN 61000-3-3

Wirral, 22.08.2024

Tom Chambers, Managing Director Einhell UK Ltd.

Archive-File/Record: NAPR030917

Article Number: 41.707.65 I.-No.: 21014

Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar, Germany

Documents registrar: Helmut Bauer

EH 10/2024 (01)
