About This Guide

The VIP Drive 83R Nova Quick Reference Guide (QRG) has basic product information such as connection and menu options. Download the User Manual from www.chauvetvideo.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
  • DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• VIP Drive 83R Nova products
- 4 Rubber Feet
- IEC Power Cord
- USB Cable

• HDMI Signal Cable
  • Cat5e Ethernet Cable
• Quick Reference Guide

Product Front Overview

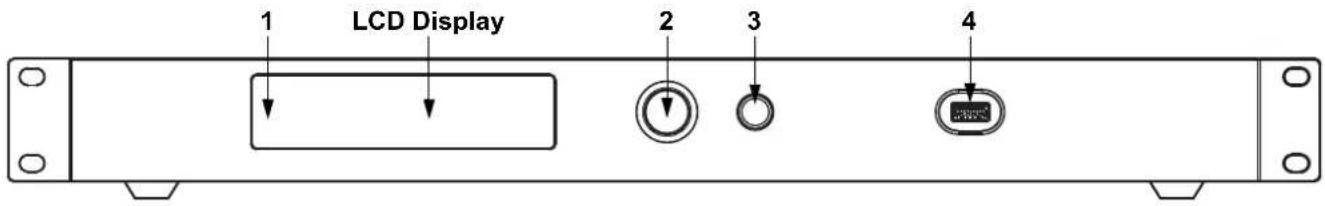

1 LCD Display 2 3 4

Control Panel Description

#	Name Function
1	LED Indicator	Indicates product status: Normal (blue), Standby (blinking), No Signal (orange), or Alarm (red).
2	Knob	Rotate to navigate upwards or downwards through the menu list, and increase or decrease a selected numeric value. Push to enable the currently displayed menu option or set the currently selected value into the selected function.
3	Back Button Exits	the current menu or function
4	USB Port USB Type	A port for connecting to a personal computer

Product Rear Overview

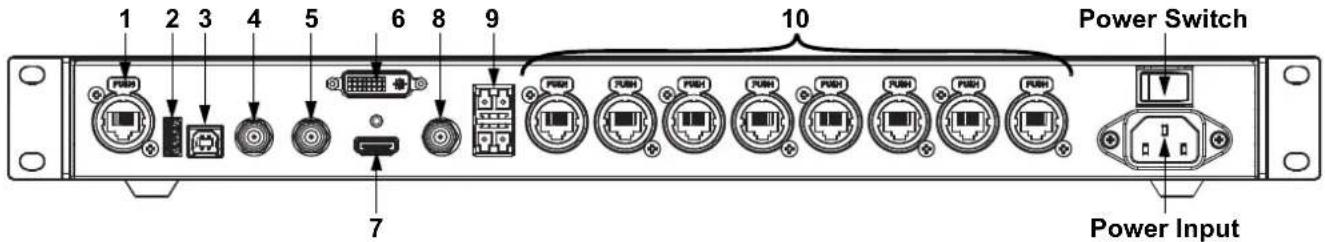

1 2 3 4 5 6 8 9 10 Power Switch 7 Power Input

Rear Panel Description

#	Name Function
1	E T H	E R N E T Neutrik etherCON® port for connecting to a personal computer
2	U S B O U T USB type A output port for cascading to other devices
3	USB IN	USB type B input port for cascading from other devices or connecting to a personal computer
4	GENLOCK IN	For signal synchronization of cascaded devices
5	GENLOCK LOOP
6	DVI	DVI video input port
7	HDMI	HDMI video input port
8	SDI	SDI video input port
9	OPT	Fiber optic ports for video input/output and backup
10	OUTPUT 1–8	Neutrik etherCON® ports for output to LED video products

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz. AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Mounting

The VIP Drive 83R Nova fits nicely on a standard 19" rack, or it can be placed on its rubber feet on a flat level surface.

Menu Lockout Function

To prevent accidental changes to the menu or functions, lock the menu by pressing and holding

and the back button for 3 seconds. Repeat to unlock the menu.

Menu Map

Refer to the VIP Drive 83R Nova product page on www.chauvetvideo.com for the latest menu map.

Main Level Programming Levels Description
Brightness 0-100% Controls total output level
Screen Settings	Quick Config	Cabinet Row Qty	1-30*		Sets number of rows in video assembly.*Range determined by Column Qty and connected products.
		Cabinet Column Qty	1-30*		Sets number of columns in video assembly.*Range determined by Row Qty and connected products.
		Port1 Cabinet Qty	1*-40*		Sets number of video products connected to Output Port 1. *Range is from one eighth of total connected products to 40.
		Data Flow (Front View)			Sets start point and path for data flow in video product assembly
	Advanced Config	Advanced Config	Disable		Enables/disables separate configuration for each port
			Enable
		Port1-8 Setting	Cabinet Row Qty	1-4 Sets	number of rows from the selected port
			Cabinet Column Qty	1-6	Sets number of columns from the selected port
			Start X 0-672*		Sets horizontal offset for the selected port.*Range determined by Column Qty.
			Start Y 0-472*		Sets vertical offset for the selected port.*Range determined by Row Qty.
			Data Flow (Front View)		Sets start point and path for data flow from the selected port
		Apply Applies advanced configurations as set
	Image Offset	Start X 0-672* Sets the offset of the connected video
		Start Y 0-472*
Rotation Settings	Rotation Enable	Disable			Enables or disables product rotation settings
		Enable
	Port Rotate	Step	1		Sets the increment by which the Port Angle can be altered
			10
			90
		Port1-8Angle	0-359*		Sets the degree of rotation for the selected port
	Screen Rotate	Step	1		Sets the increment by which the total rotation angle can be altered
			10
			90
		RotateAngle	0-359*		Sets the degree of rotation for the video assembly

Main Level Programming Levels Description
Input Settings	Input Source	SDI		Selects the input video sourceDVI
		HDMI
	Preset Resolution	Resolution	1024x768	Selects a preset resolution
			1280x720
			1280x1024
			1366x768
			1440x900
			1536x1536
			1600x1200
			1920x1080
			1920x1200
			2048x640
			2048x1152
			2304x1152
			2560x816
			2560x1600
			3840x1080
		Refresh Rate	24Hz	Selects a preset refresh rate
			25HZ
			30Hz
			48Hz
			50Hz
			60Hz
			72Hz
			75Hz
			85Hz
			100Hz
			120Hz
		Apply Applies the selected preset resolution
	Custom Resolution	Width (H) 800-3840* Sets custom pixel width
		Height (V) 600-3840* Sets custom pixel height
		Custom Refresh Rate	24-120Hz* Selects an applicable refresh rate.
		Apply Applies the custom resolution
Display Control	Normal Video output
	Black Out Blacks out the output
	Freeze Freezes the output on a single frame
	Test Pattern	Selects a test pattern

Main Level	Programming Levels				Description
Display Control (cont.)	Image Settings	Color Temperature	Custom Signifies a custom color temperature
			4000-9500K Selects a preset color temperature
		Contrast 0-100% Adjusts the contrast of the output
		Saturation 0-100% Adjusts the saturation of the output
		Hue -180-180 Adjusts the hue of the output
		Red 0-255 Adjusts the red level of the output
		Green 0-255 Adjusts the green level of the output
		Blue 0-255 Adjusts the blue level of the output
		Gamma 1.0-4.0 Adjusts the gamma of the output
		Save to Hardware	No		Saves the image settings
			Yes
		Reset	No		Resets the image settings
			Yes
Advanced Settings	Mapping Function	Disable			Enables/disables mapping
		Enable
	Load RCFG Files	**********			Sends selected pre-loaded file to the connected products
	Alarm Threshold	Temperature MAX		-20-85°C	Sets maximum temperature before alarm
		Temperature MIN		-20-85°C	Sets minimum temperature before alarm
		Voltage MAX		3.5-7.5V	Sets maximum voltage before alarm
		Voltage MIN		3.5-7.5V	Sets minimum voltage before alarm
	Save to RV Card	No			Permanently saves uploaded firmware to connected products
		Yes
	Redundancy	Primary			Sets this VIP Drive 83R Nova as primary
		Backup			Sets this VIP Drive 83R Nova as backup
	Presettings	Presetting 1-10	Save		Saves the current settings
			Load		Loads the selected saved settings
			Delete		Deletes the selected saved settings
	Inputs Backup	Backup	Disable		Enable or disable video source backups
			Enable
		Backup 1	SDI → DVI		Sets backup video source for SDI
			SDI → HDMI
			SDI → NULL
		Backup 2	DVI → SDI		Sets backup video source for DVI
			DVI → HDMI
			DVI → NULL
		Backup 3	HDMI → SDI		Sets backup video source for HDMI
			HDMI → DVI
			HDMI → NULL
	Factory Reset	No			Resets the product to factory settings
		Yes
	Go Homepage (s)		30-3600		Sets number of seconds display is inactive before returning to the Home Screen
	OLED Brightness		6-15 Sets display brightness
	HW Version		V_._._ Displays current firmware version
Main Level	Programming Levels			Description
Communication Settings	Communication Mode		USB Preferred USB connection takes priority
			LAN Preferred Ethernet connection takes priority
	Network Settings	Network Settings	Manually Set IP address manually
			Auto IP address will be assigned
		IP Address 1	-223.0–255.0–255.0–255 Sets IP address
		Subnet Mask	0–255.0–255.0–255.0–255 Sets Subnet Mask
		Reset	No	Resets network settings
			Yes
Working Mode	Sending Card		No	Sets the product to process SDI, DVI, or HDMI video input to ethernet output
			Yes
	Fiber Converter		No	Sets the product to process fiber optic video input to ethernet output
			Yes
Language	中文			Sets display language to Chinese
	English Sets display language to English
	Español Sets display language to Spanish
	Français Sets display language to French
	日本語			Sets display language to Japanese
	Deutsch Sets display language to German
	Português Sets display language to Portuguese

Acerca de Esta Guía

La Guía de Referencia Rápida (GRR) del VIP Drive 83R Nova contiene información básica sobre el producto, como conexiones y opciones de menú. Descargue el Manual de Usuario de www.chauvetvideo.com para información más detallada.

Exención de Responsabilidad

La información y especificaciones contenidas en esta GRR están sujetas a cambio sin previo aviso.

GARANTÍA LIMITADA

PARA VER EL REGISTRO DE GARANTÍA Y LOS TÉRMINOS Y CONDICIONES COMPLETOS, VISITE NUESTRO SITIO WEB.

Para clientes en los Estados Unidos y México: www.chauvetlighting.com/warranty-registration.

Para clientes en Reino Unido, República de Irlanda, Bélgica, Países Bajos, Luxemburgo, Francia y Alemania: www.chauvetlighting.eu/warranty-registration.

Chauvet garantiza que este producto estará libre de defectos de material y mano de obra en condiciones de uso normales, durante el periodo especificado, sujeto siempre a las exclusiones y limitaciones establecidas en la garantía limitada completa de nuestro sitio web. Esta garantía se concede únicamente al comprador original del producto y no es transferible. Para ejercer los derechos que otorga esta garantía, usted debe proporcionar una prueba de compra en forma de un recibo de compra original, expedido por un distribuidor autorizado, donde figure el nombre del producto y la fecha de compra. NO EXISTEN OTRAS GARANTÍAS EXPRESAS NI IMPLÍCITAS. Esta garantía le otorga derechos legales específicos. Es posible que a usted le asistan otros derechos, que variarán dependiendo del estado o del país. Esta garantía solamente es válida en los Estados Unidos, Reino Unido, República de Irlanda, Bélgica, Países Bajos, Luxemburgo, Francia, Alemania y México. Para conocer los términos de garantía en otros países, consulte a su distribuidor local.

Notas de Seguridad
