USER MANUAL Naga 40 Majority

What's In the Box? 3

Basic Information.... 4

Controls and Function.... 5

Connecting to the Power Outlet.... 7

Changing Soundbar modes.... 8

Instructions Guide.... 9

USB Input-Playback 9

ARC Input.... 10

Optical Input.... 11

AUX Input.... 12

Bluetooth Operation.... 13

Troubleshooting.... 14

Product Specification.... 16

Warranty.... 16

Support.... 16

Warning and Safety Information.... 17

EU Declaration of Conformity.... 18

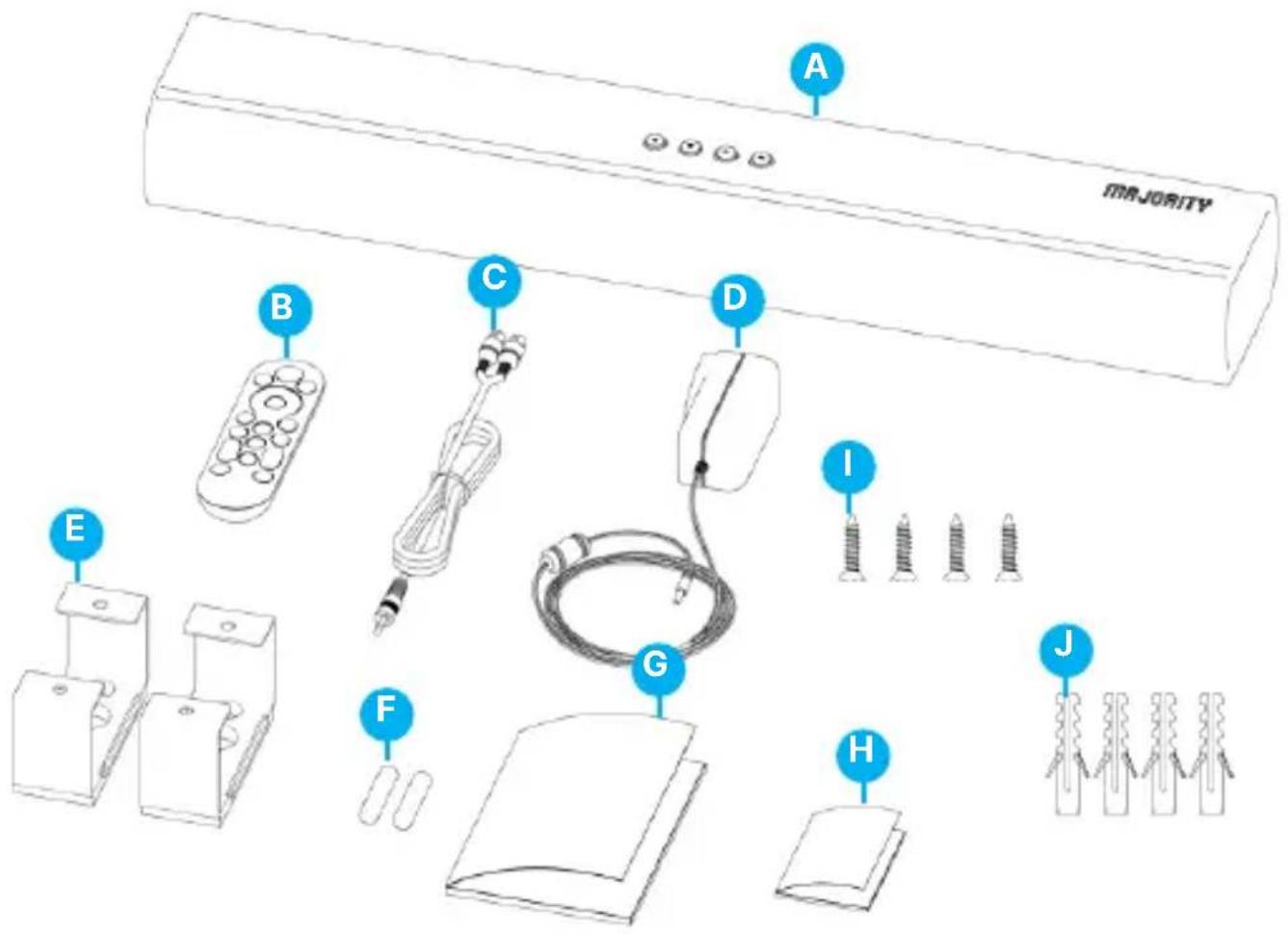

What's in the Box?

A. Majority NAGA 40 Soundbar
B. Remote Control
C. 3.5mm to RCA stereo audio cable
D. Power Adaptor
E. Wall mount bracket x 2

F. 2 × AAA batteries
G. Welcome Guide
H. User Manual
I. 4 × Screws
J. 4 × Wall Plugs

A B C D E F G I H J MAJORITY

PLEASE NOTE: The remote control (B) requires 2 x AAA batteries (included). It is recommended to use alkaline or heavy-duty batteries as this will ensure a longer playtime.

Automatic Power Off Function

no audio signal/sound received from the device that is connected with, or if the TV/ device is switched off.

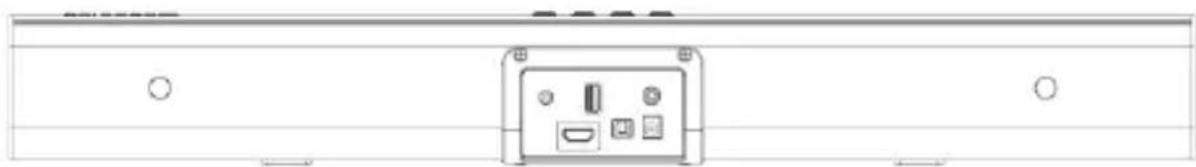

Installing the Soundbar to the Wall

Distance between 2 wall-mount pillars at the rear panel of the soundbar.

Front view of a device panel with indicator lights and buttons, no visible text or symbols

230mm

A. Mark and drill 4 holes with 230mm distance in same horizontal level.

Wall-Mount Brackets

Pure 3D diagram of a rectangular block with two small cubes and directional arrows, no text or symbols present

i. Mark the position of 4 holes and drill holes accordingly.
ii. Insert 4 pcs of screws into 2 wall-mount brackets and fix them.

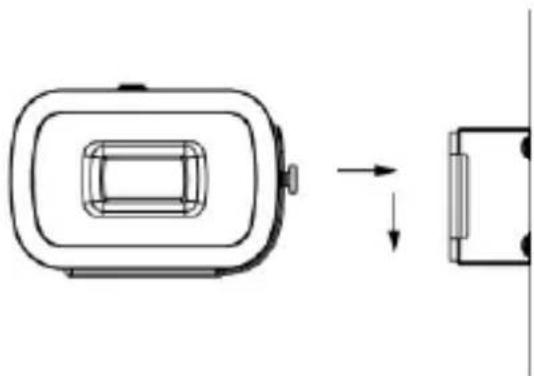

Place the soundbar to the wall-mount brackets as figure shown below.

Technical line drawing of a device component with an arrow indicating transformation (no text or symbols)

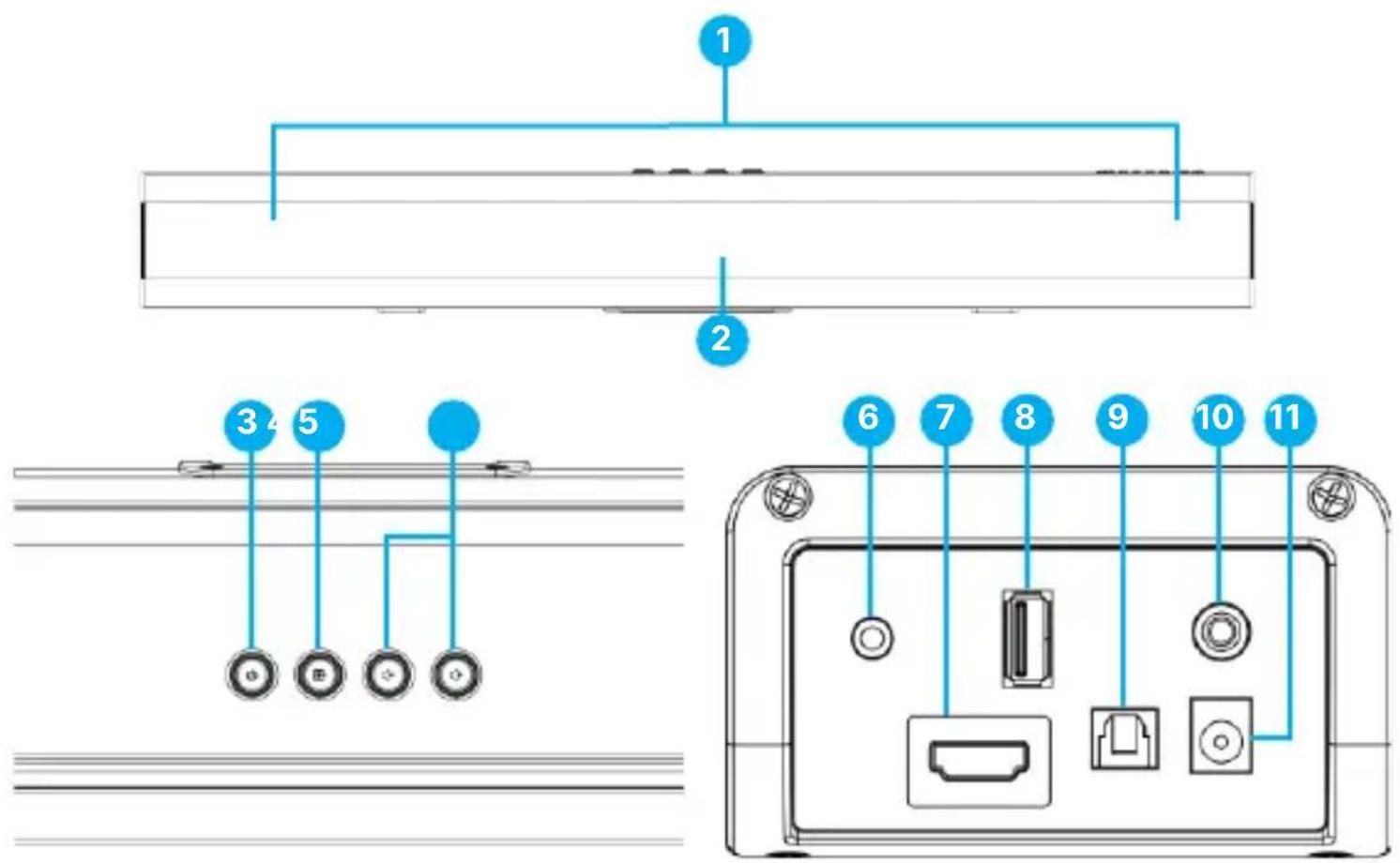

Front, Top & Rear View

1. Left & Right Speaker Drivers
2. Mode LED light indicator
3. Power ON/OFF

4. Press INPUT button to change the modes between BT, OPTICAL, AUX, USB or ARC. Press and hold for 2 seconds to disconnect existing Bluetooth device and search for other Bluetooth device.

5. Adjust volume up or down.

6. 3.5mm AUX Input port

7. HDMI ARC Input port
8. USB Playback port
9. OPTICAL Input port
10. SUBWOOFER OUT jack. To connect with external active subwoofer (not included).
11. DC 18 V IN socket (power cable port)

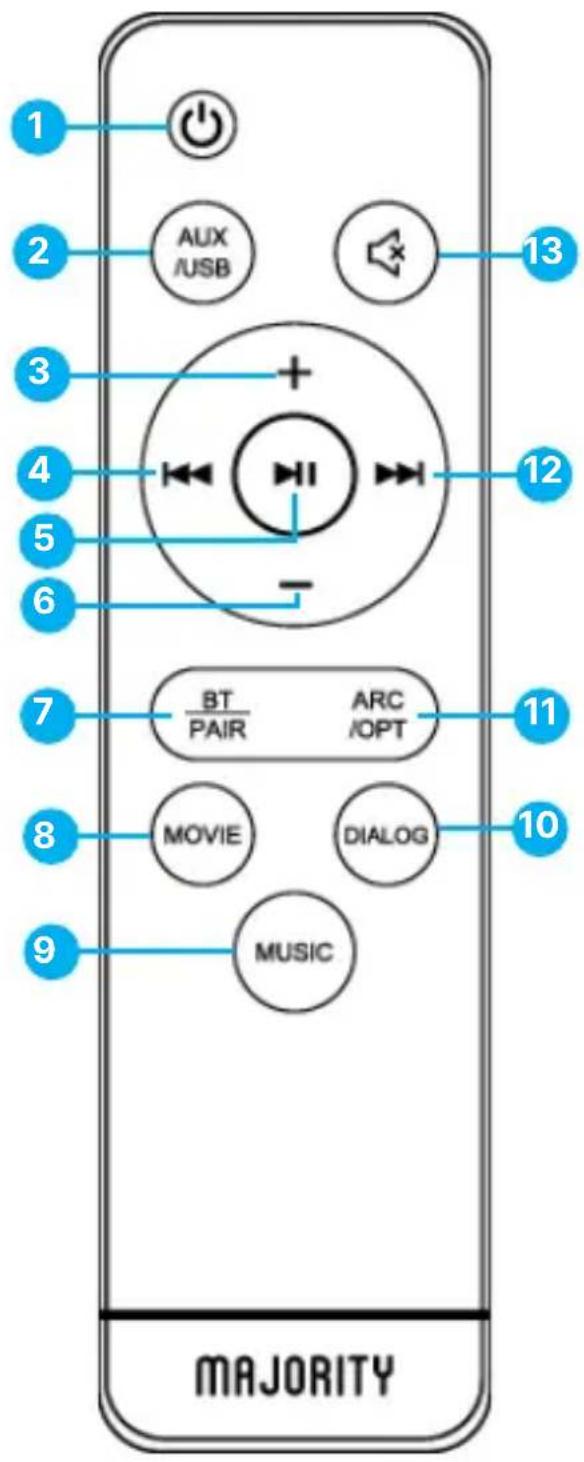

Remote Control

1 2 3 4 5 6 7 8 9 AUX /USB + - MT BT PAIR ARC /OPT MOVIE DIALOG MUSIC 10 11 12 13 MAJORITY

1. Power ON/ OFF

2. AUX/USB Mode. Press once to change in AUX mode. Press again to change the soundbar mode in USB mode.

3. Volume +

4. Previous/back- Press to go back one audio track whilst in USB or Bluetooth mode.

5. Play/Pause- Press to play/pause audio while in Bluetooth or USB mode

6. Volume -

7. BT/Pair- Press to change the soundbar mode into Bluetooth to pair with a device. Press and hold for three seconds to unpair.

8., 9, 10 – Movie, Music, Dialogue sound equalisers. Press any of these to add sound effects as per the content watched or played.

1. ARC/OPT. Press to change the soundbar mode to ARC. Press once again to change into Optical mode.

2. Next/ Forward - Press to skip to the next audio track while in Bluetooth or USB mode.

3. Mute. Press to mute the audio played. Press once again to unmute.

Connecting to The Power Outlet

PLEASE NOTE: The instructions within this user manual will refer to the button number on the soundbar (Ref 'number'), or buttons on remote control e.g. (Rem. 'number'), in accordance with the diagrams from pages 4 - 6.

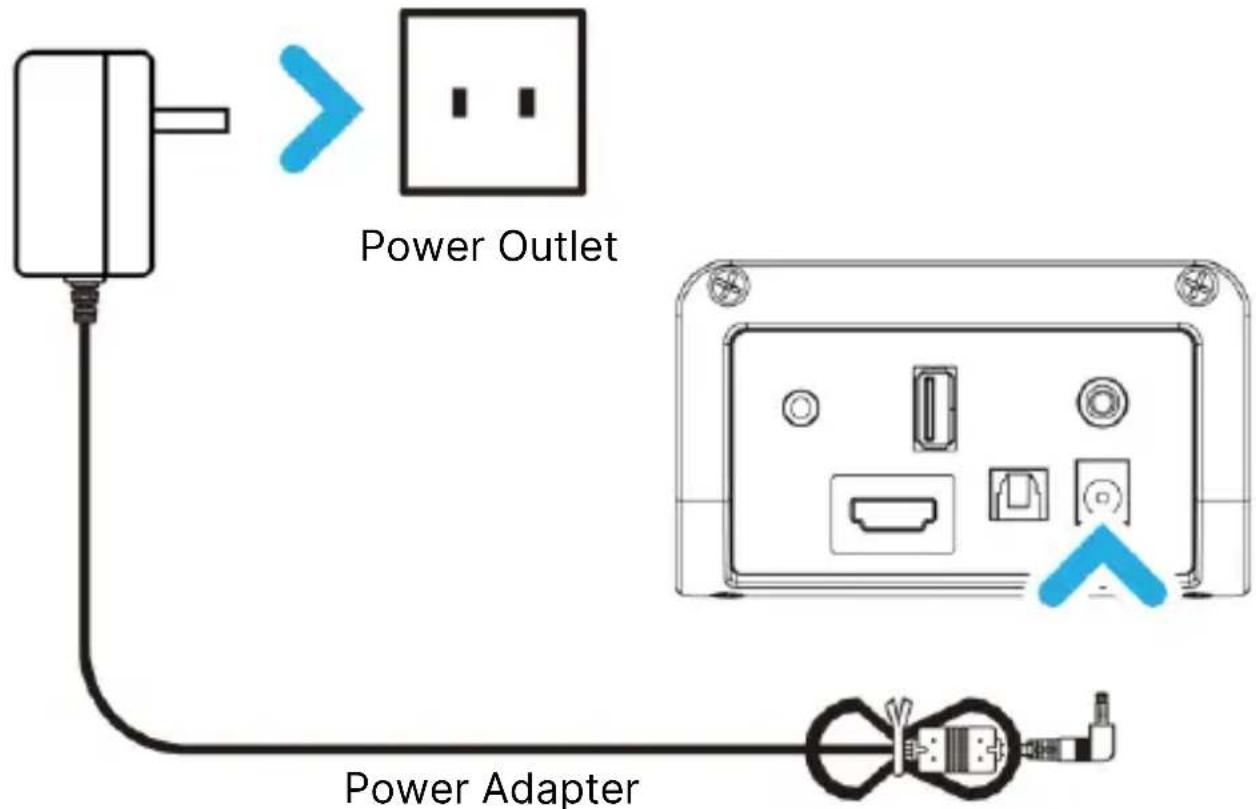

Connecting to the Mains Socket

Ensure that the power supply voltage is within the range of 100V\~240V. Any other voltage may cause damage to the unit.

Unwind the mains cable to its full length. Connect the mains plug to a mains socket.

Ensure that the mains plug is fully inserted into the mains socket.

The mains plug/appliance coupler is used as the disconnect device. The disconnect device must remain readily operable.

Insert the power adaptor end into the Soundbar DC port (Ref.11).

Power Outlet Power Adapter

Ensure all audio cable connections of the unit are properly inserted before connecting the soundbar to the mains power socket. Unplug the power cord from the outlet when the unit is not in use for an extended period of time.

LED light indicator colour/mode

Input Use		Remote Control Button	Colour
OPTICAL	Connecting the soundbar with Optical Cable (not included), to the Optical port of a TV, PC, DVD player or any other similar device with optical output port.	ARC/OPT Yellow
ARC	Connecting the soundbar with HDMI (ARC) Cable, to the HDMI(ARC) port of the TV.	ARC/OPT White
Bluetooth	Pairing the soundbar via Bluetooth with a TV, phone, or other similar device to play audio from via NAGA60.	BT/PAIR Blue
USB	USB Playback port-to be used to play audio from a USB stick (not included).	AUX/USB Purple
AUX IN	Connecting the soundbar with 3.5mm stereo cable, with a TV, PC, or other similar devices	AUX/USB Green

PLEASE NOTE: When the soundbar LED indicator shows a red light this indicates that the soundbar is switched off. Press the Power ON/OFF button (Rem.1) to turn the soundbar on.

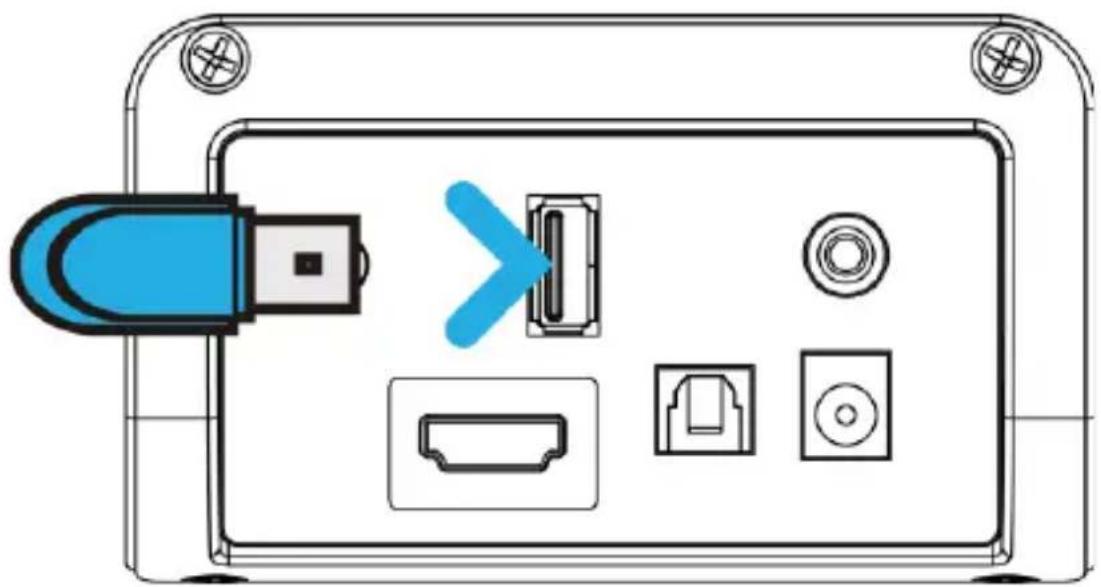

Using the USB Playback Port

- Plug in a USB stick to the USB jack port (Ref.8) on the soundbar.

- Press the 'AUX/USB' button (Rem.2) on the remote control to change the mode to USB. The LED light indicator will turn PURPLE.

• Once in USB mode, the soundbar will automatically start playing audio from the USB stick.

Diagram of a device panel with ports, connectors, and icons (no text or labels)

USB Device

PLEASE NOTE:

• The maximum memory size of a USB sticker 64GB.
• The USB sticker must be formatted into FAT32 before use.
• The supported audio files format are MP3/WAV.

The USB port cannot be used as a port of connection with other devices as this is only for playback.

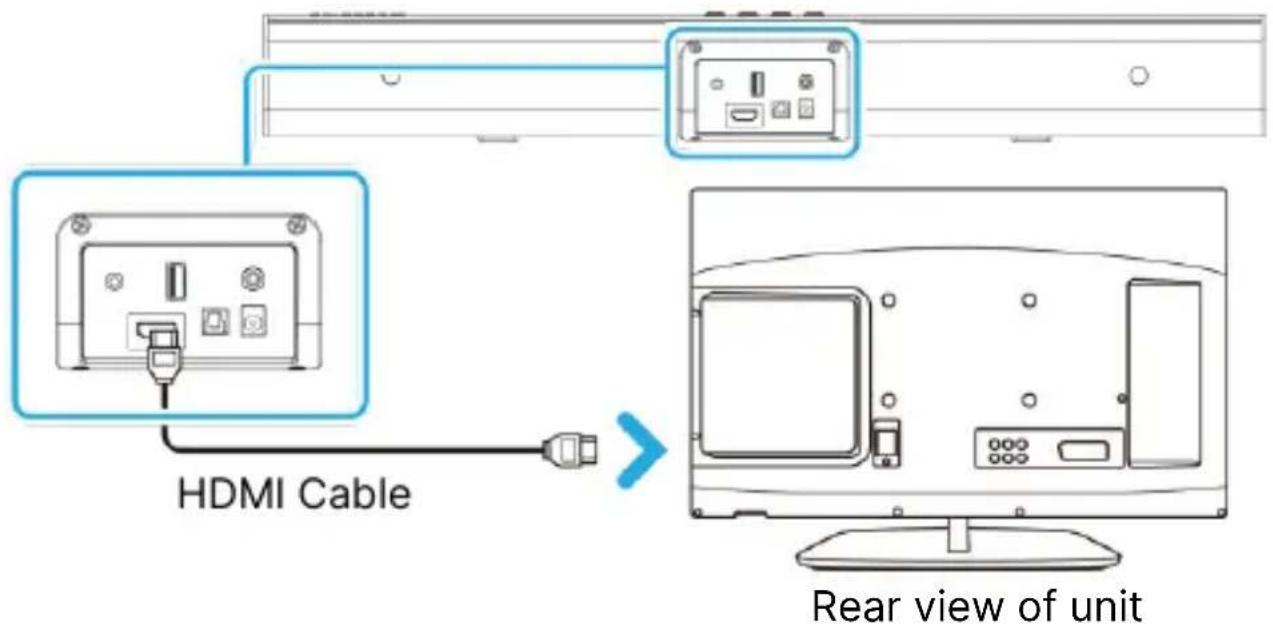

Using the ARC Input

Before connecting, switch off both the soundbar and TV.

Connect the soundbar to TV:

- Plug in the ARC cable (not included) to the ARC jack port on the rear panel of the Soundbar (Ref.7).

- Plug the other end of the cable into the TV's HDMI ARC output port. Ensure the TV port that you are using is marked as ARC. Switch on the TV set.

Change soundbar mode into ARC:

- Press the 'POWER' button on the top panel (Ref.3) of the soundbar or remote control (Rem.1) to switch the soundbar on.

- Press the 'INPUT' button repeatedly on the soundbar (Ref.4) or the ARC/OPT button on the remote control (Rem.11) until ARC Mode is selected. The LED light indicator will turn WHITE.

Adjust the TV audio settings:

- Ensure the TV audio settings are set to HDMI ARC sound output, and the audio format is set to PCM. Enable HDMI –CEC on TV settings.

HDMI Cable Rear view of unit

Please note: It is recommended to use an HDMI ARC cable (not included) for this type of connection. If you experience no sound from the soundbar, check the TV's audio/sound settings and set them to PCM. Alternatively, try a different type of cable connection, such as an optical cable, 3.5 mm to RCA cable or pair via Bluetooth.

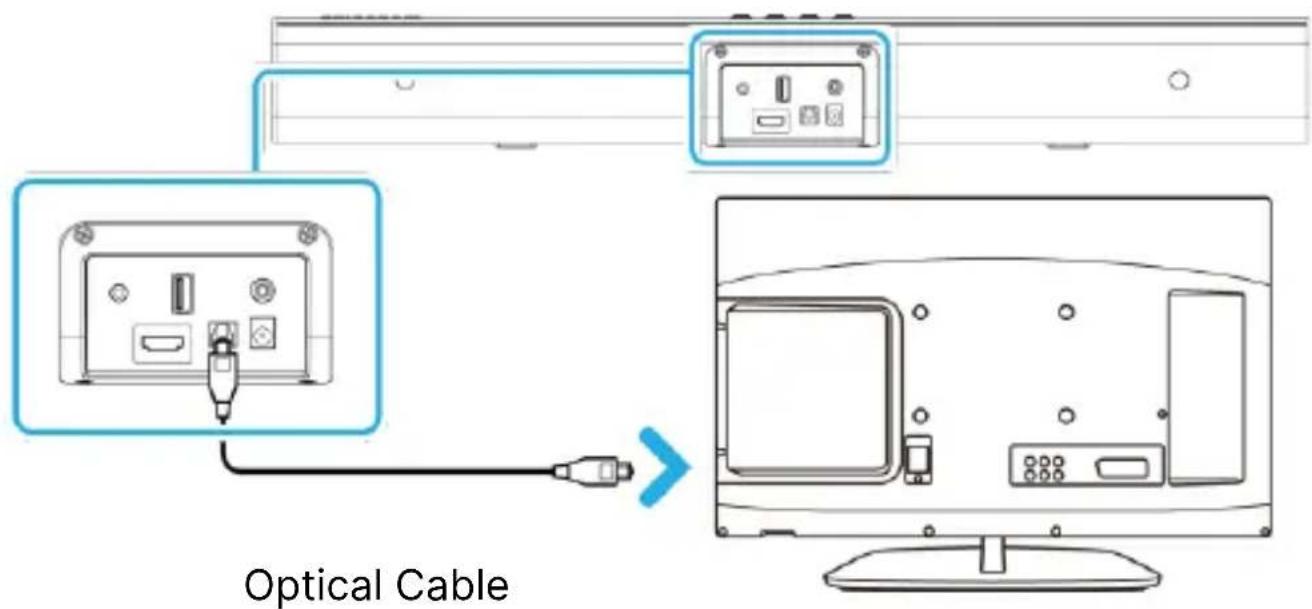

Using the Optical Input

Before connecting, switch off both the soundbar and the TV.

Connect the Majority NAGA 40 with an audio source such as TV, PC or similar with an Optical Audio Output using a Digital Optical Audio cable (not included).

Connect the soundbar to TV, PC, audio source:

• Insert one end of the Digital Optical Audio cable to the optical output on the audio source and the other end to the Optical Input on the Soundbar (Ref.9).
• Press the 'POWER' button on the soundbar (Ref.3) or on the remote control (Rem.1) to switch the soundbar on.

Change the soundbar mode into Optical:

- Press the 'INPUT' button repeatedly on the Soundbar (Ref.4) or the ARC/OPT button on the remote control (Rem. 11) until Optical Mode is selected. The LED light indicator will turn YELLOW.

Adjust the audio settings on TV, PC audio source:

- Using the native controls on your connected device, make sure the audio settings are on and set to Digital Optical Audio and the audio format is set to PCM.

Audio from the connected audio source will now be heard through the NAGA 40.

Optical Cable

Rear view of unit

Using the AUX Input

Before connecting, switch off both the soundbar and the device you are about to connect.

Connecting to External Devices Using a 3.5mm to 3.5mm Audio Cable (Not Included)

• Insert one end of the 3.5mm audio cable into the AUX input socket on the rear panel of the soundbar (Ref.6).
• Insert the other end into the audio output/headphone output of an external device, such as a PC, MP3 player, phone, tablet, TV or another audio source.

Connecting to TV using the 3.5mm to RCA Cable (Included)

• Insert the 3.5mm cable end into the AUX input port on the rear panel of the soundbar (Ref.6).
• Insert the two RCA-coloured ends into the TV's RCA audio output ports.

Change the soundbar mode into AUX:

• Press the 'POWER' button on the soundbar panel (Ref.4) or the remote control (Rem.1) to switch the soundbar on.
• Press the 'INPUT' button repeatedly on the soundbar (Ref.4) or the 'AUX/USB' button on the remote control (Rem.2) until AUX mode is selected. The LED indicator light will turn GREEN.

3.5mm to RCA audio cable Rear view of unit

Please note: If you connect using any of these cables with a TV and you experience no sound from the soundbar, check the TV's audio/sound settings and set them to PCM. Alternatively, try a different type of cable connection, such as an optical cable, ARC cable or pair via Bluetooth.

Bluetooth Operation

The Majority NAGA 40 can be paired via Bluetooth with any Bluetooth-enabled device, such as a smart TV, PC, phone, tablet, or similar device, to play audio through the soundbar.

Press the 'POWER' button on the soundbar (Ref.3) or on the remote control (Rem.1) to switch on the unit.

Activating Bluetooth Mode

• Press the 'INPUT' button on the soundbar repeatedly (Ref.4) or press the 'BT/PAIR' button on the remote control (Rem.7).
  • The LED indicator light will turn BLUE. Whilst the soundbar is searching for a device to pair with, the blue LED indicator will flash a blue light.

Pairing with a Bluetooth Device

• Enable Bluetooth connectivity on your device and start searching for the soundbar.
• Select 'NAGA 40' from your device's Bluetooth list when prompted.
• If a password is required, enter '0000'.
• If you encounter any issues at this stage, please refer to your device's user manual for instructions on pairing with Bluetooth devices.

Successful Connection

• When successfully paired, a beep will be heard from the soundbar, and the LED indicator will stop flashing a blue light.
• Once paired, the soundbar will remain connected unless manually unpaired by the user or until the device is reset.

Reconnecting or Unpairing a Device

• If your device becomes unpaired or fails to connect, repeat the above steps.
- To unpair the soundbar from a connected device, press and hold the 'BT/PAIR' button on the remote control (Rem .7) for 3 seconds. The blue LED light will start flashing, indicating that the soundbar is now searching for a new device to pair with.

PLEASE NOTE: The Majority NAGA 40 is not compatible with Bluetooth headphones or earbuds.

Observation Potential Cause/Solution
No power/function	Check that the power is switched on at the wall socket.Check that the power adaptor is properly connected to the power outlet.
No sound	Check whether the unit is set to MUTE.Check that cables are properly installed.If cables are properly installed, please try connecting to your TV using an alternative cable.Check TV audio settings ensure these are set to PCM. If connected to other device increase the volume level on your audio source.Check if the unit is switched on and set in the correct mode.
No sound in Bluetooth mode	Check that your Bluetooth device is paired.Check that you have pressed the 'BT/PAIR' button before pairing.Check if the soundbar is paired with another device, unpair and try again.Increase volume on soundbar and on your device.Check whether external device requires password '0000'.
Function disturbance	Switch off and unplug the unit. Leave for 2 minutes and switch the soundbar on again.If a particular mode is causing problems, please try an alternative connection to your TV such as Optical or Bluetooth.
No sound when connected and switched to OPTICAL mode	Check and ensure the audio setting of the input source (e.g. TV, games console, DVD player etc.) is set to PCM mode while using digital connection (such as Optical, HDMI or RCA).
No sound when connected and switched to ARC mode.	1.Check and ensure the audio setting of the input (e.g. TV, games console etc.) is set to ARC mode while using digital connection. Enable HDMI- CEC on TV2.Check whether the HDMI ARC cable is correctly connected to the TV ARC port1.Try a different HDMI cable ensuring that this has ARC function.2. Change the TV's audio output format to PCM. This can be named differently on some TV models Check your TV user manual for reference,
Remote control function issues	Check whether the battery needs to be replaced, try new ones.Check whether there are obstacles blocking the remote sensor.

Specification

Power Supply DC18V 1.3A
Frequency Response 30Hz-20KHz
SNR 70dB
Separation 54dB
Bluetooth V5.0
Dimension (LxHxW) 386 × 77.7 × 117mm
Net Weight	1.4 kg

Warranty

All products come with a standard 12-month warranty. All items must be registered within 30 days of purchase on www.majority.co.uk for the warranty to be valid. Once on the web page, use the menu to find 'Register Your Product'. You will also be given the chance to extend your warranty for an additional 24 months, free of charge.

Support

If you require further assistance with your Majority NAGA 40, please contact our support team on the Majority website: www.majority.co.uk/support. Alternatively email tech support team at [e-mail].

Naga 40 Soundbar

MAJORITY

A B C D E F G I H J MAJORITY

Front view of a device panel with indicator lights and buttons, no visible text or symbols

230mm

Technical line drawing of a device component with an arrow indicating transformation or assembly (no text or symbols)

Diagram of a device panel with labeled ports and indicators (no text or symbols)

USB Device

BITTE BEACHTEN:

F. Support mural x 2

G. 2 piles AAA

H. Guide de bienvenue

A B C D E F G I H J MAJORITY

Front view of a device panel with indicator lights and buttons, no visible text or symbols

230mm

Supports de fixation murale

Pure 3D coordinate system diagram with labeled axes and geometric shapes, no text or symbols present

Technical line drawing of a device component with an arrow indicating transformation (no text or symbols)

Diagram of a device panel with ports, connectors, and icons (no text or labels)

Dispositif USB

REMARQUE :

A B C D E F G I H J MAJORITY

Front view of a device panel with indicator lights and buttons, no visible text or symbols

230mm

Technical line drawing of a device component with an arrow indicating transformation (no text or symbols)

Diagram of a device panel with ports, connectors, and icons (no text or labels)

USB Device

NOTA BENE:

3.5mm to RCA audio cable Rear view of unit

A B C D E F G I H J MAJORITY

Front view of a device panel with indicator lights and buttons, no visible text or symbols

230mm

Technical line drawing of a device component with an arrow indicating transformation or assembly (no text or symbols)

Diagram of a device panel with ports, connectors, and icons (no text or labels)

USB-laite

HUOMAA:

Diagram showing connection between a wall-mounted device and a monitor, with labeled ports and cable connections.

A B C D E F G I H J MAJORITY

Front view of a device panel with indicator lights and buttons, no visible text or symbols

230mm

Pure 3D diagram of a rectangular block with arrows indicating direction, no text or symbols present

Technical line drawing of a device component with an arrow indicating transformation (no text or symbols)

Diagram of a device panel with ports and icons, no readable text or symbols present

USB Device

TENGA EN CUENTA:

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, Izilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT declare under our sole responsibility that the product:

Product Name: NAGA 40 Soundbar Model: 1000003027/1000003028/1000003029

Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham | Founder

Signed:

Date of Issue: January 2024

Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB249PT

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rancho Dominguez, CA, 90220

Email: [e-mail]

ATTENTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

RISQUE D'ELECTROCUTION NE PAS OUVRIR

IMPORTANT: Please read all instructions carefully before use and keep for future reference

Solid dark blue background with no visible text, symbols, or objects

MAJORITY

www.majority.co.uk

FR + + + @
