USER MANUAL LEV Ci Kind Shock

Technical line drawings of seven cylindrical mechanical components with no visible text or symbols

This user manual covers the following models: LEV-Ci, LEV Integra, LEV-Si, e30-i, Crux-i, eTen-i

K5

LEV CI, LEV INTEGRA, CRUX-I and eTEN-I USER MANUAL

English	1
German	22
French	43
Italian	64
Spanish	85
Chinese	106
Japanese	127

Copyright © 2017 Kind Shock Hi-Tech Co. Ltd.

All Rights Reserved

K5

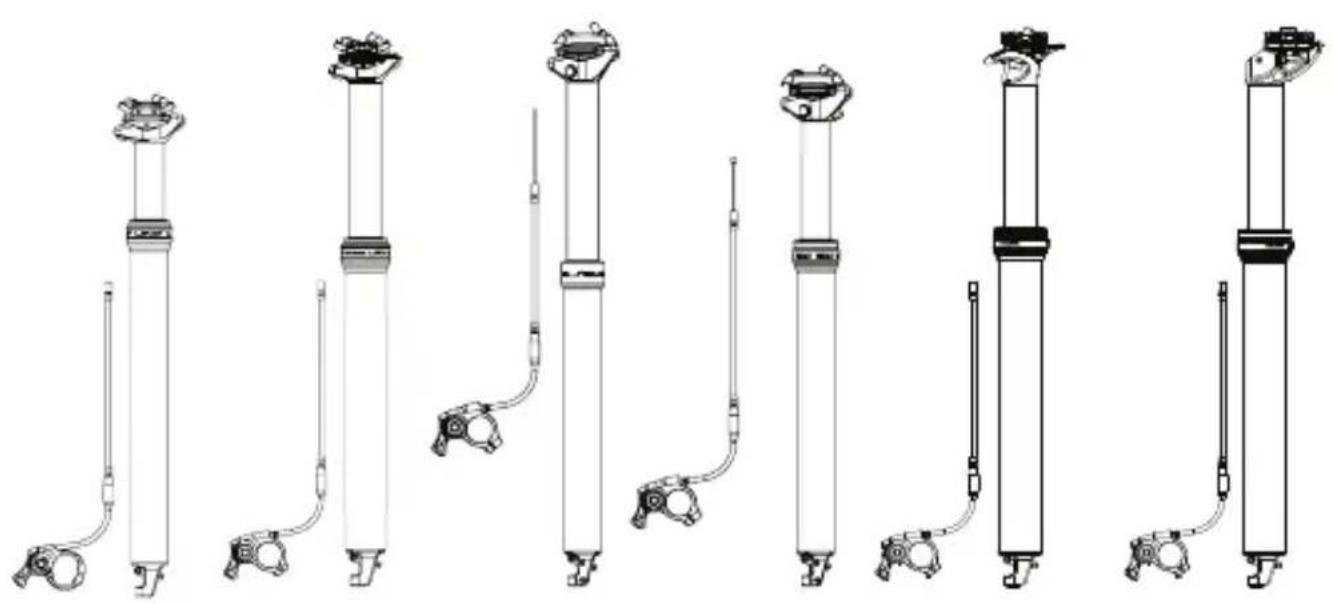

HEIGHT ADJUSTABLE SEATPOST USER MANUAL

Technical line drawings of seven cylindrical mechanical components with no visible text or symbols

This user manual covers the following models: LEV-Ci, LEV Integra, LEV-Si, e30-i, Crux-i, eTen-i

PLEASE READ THIS FIRST

Thank you for purchasing a new KS Height Adjustable Seatpost. Your new seatpost is warranted for a period of two years from the date of purchase. The warranty is expressly limited to the repair or replacement of the defective part and is the sole remedy of the warranty. The warranty applies only to the original owner and is not transferrable. Proof of purchase is required to validate warranty eligibility. The warranty does not cover normal wear and tear, routine maintenance, improper installation or improper use of the seatpost. Modification of the seatpost in any manor shall void the warranty. Kind Shock Hi-Tech Co. Ltd. shall not be responsible for incidental or individual costs incurred by the warranty service provider that are not covered by this warranty. The user assumes the risk of any personal injury or property damage, including damage to the seatpost, and any other losses, if the seatpost is modified or improperly used at any time. This warranty gives the consumer specific legal rights and those rights vary from state to state. This warranty does not affect the statutory rights of the consumer.

ATTENTION

This is a high performance product. It will give you reliable service if it is installed properly and regularly maintained by an authorized KS Service Center. Please read through these instructions fully and follow them careful before you install your new seatpost.

WARNING

KS Height Adjustable Seatposts must be regularly maintained by an a qualified service technician. If you need assistance locating a qualified service technician, more information can be found at http://www.kssuspension.com. Service center locations can be found at www.kssuspension.com. Do not disassemble your seatpost. Disassembly could cause damage and severe personally injury as some of the contents are under pressure. Failure to follow these warnings and instructions will immediately void your warranty.

BEFORE YOU INSTALL THE SEATPOST

Please be sure your new KS seatpost is designed to fit in your frame. All LEV Integra models are designed to fit either 27.2mm, 30.9mm, 31.6mm or 34.9mm seat tube inner diameters in frames originally designed for internal cable routing. Improper fit may cause slippage, faulty performance, injury and may result in void of warranty.

KS Suspension DOES NOT recommend modification or alteration of your frame in any way. Doing so may void your frame or bicycle's warranty and may result in frame failure which could lead to injury or death.

Make sure your frame is clean and free of debris, grease and the inside of your seat tube is smooth and free of any object that may score the seatpost.

Apply grease to all seatpost bolt threads.

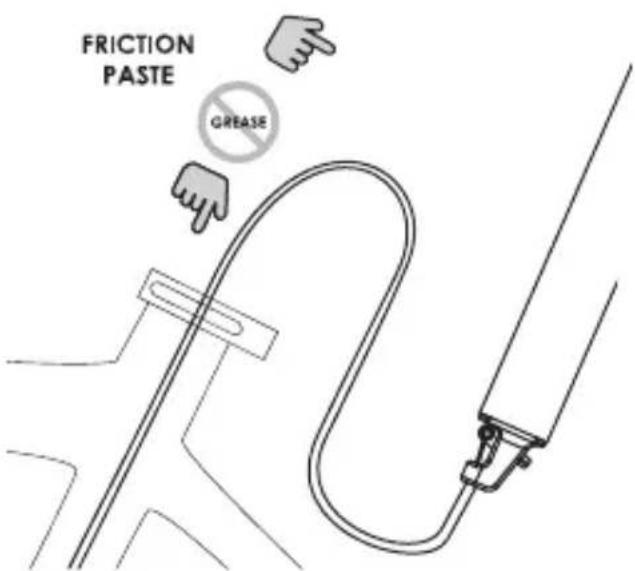

Apply a friction or anti-seize compound to the inside of the seat tube and inserted surface of the seatpost. Do not use grease.

LEV-Ci: This seatpost uses a carbon fiber composite mast. Always install in a clean dry frame and always use fiber prep or suitable compound.

Always use the torque wrench when tightening the seatpost binder bolt. DO NOT EXCEED 5n-m.

FRICTION PASTE GREASE

SEATPOST INSTALLATION

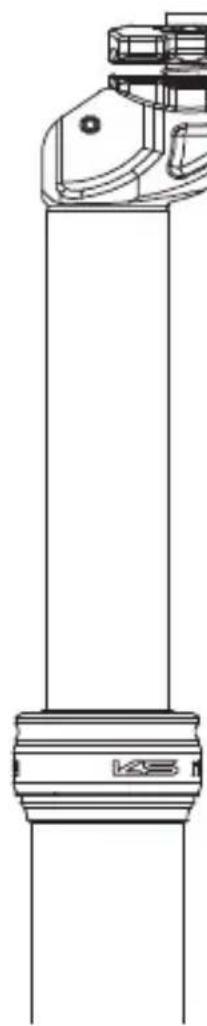

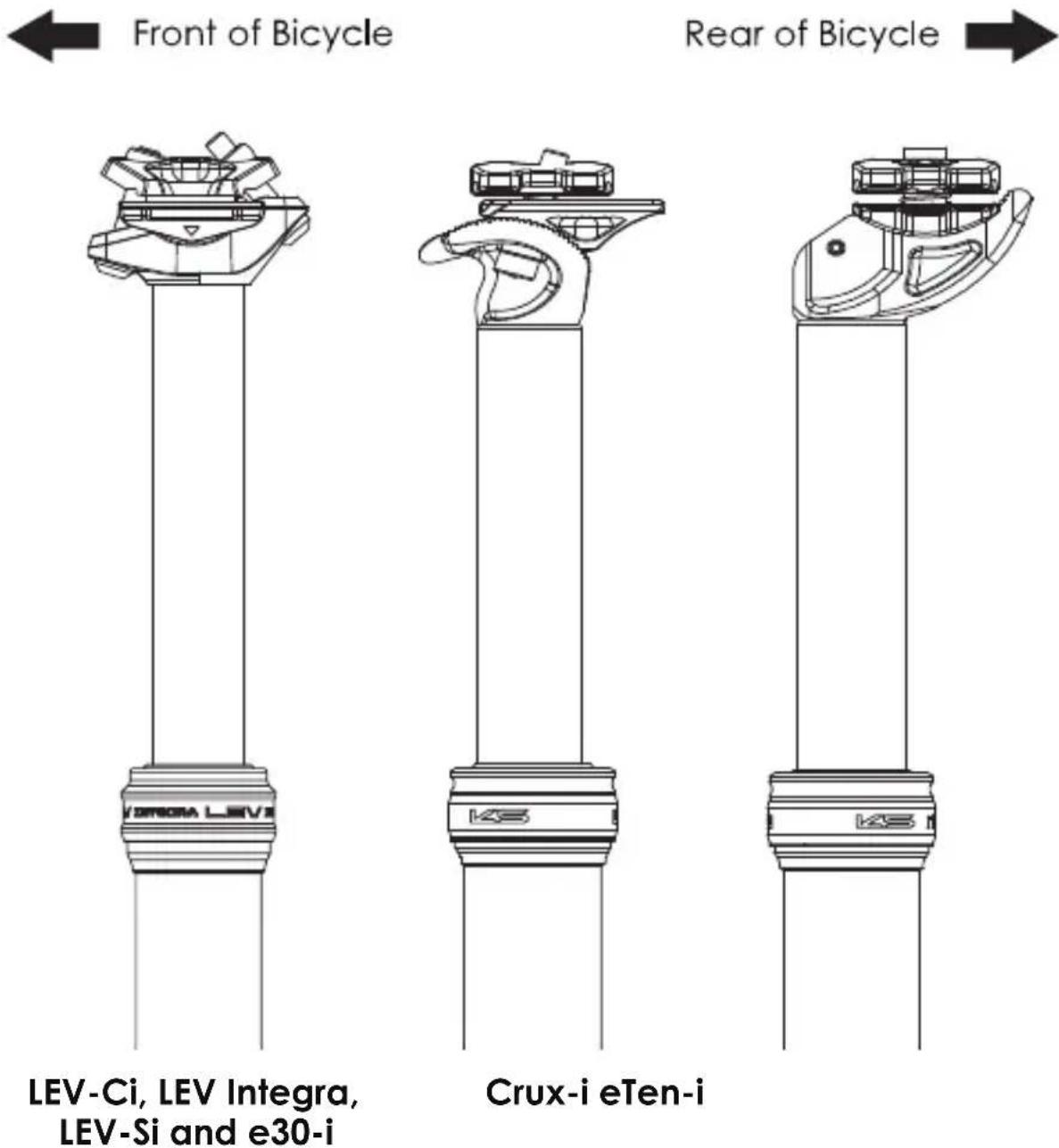

SEATPOST ORIENTATION

Since Integra models remote cable is internally routed and in-line with the seatpost, there is only one position for saddle orientation:

SEATPOST INSTALLATION

MINIMUM INSERTION DISTANCE

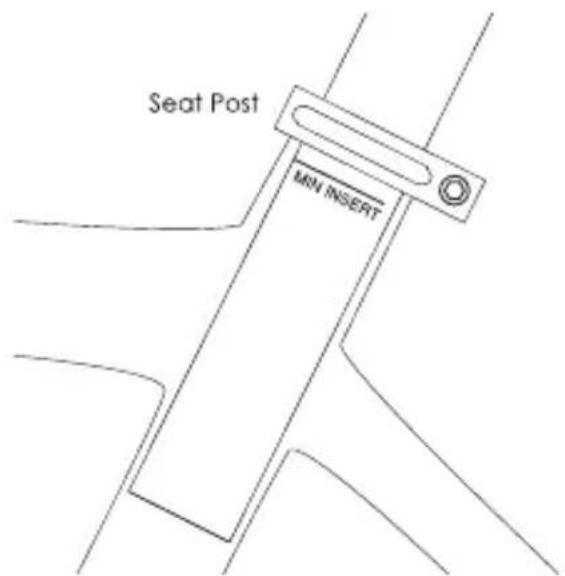

All seat post models must be inserted into the bicycle's seat tube to cover the minimum insertion line indicated on the seat post.

Insufficient insertion of the seat post into the bicycle frame's seat tube could result in damage to the seat post and/or bicycle and may result in a loss of control of the bicycle which may lead to serious injury or death.

Seat Post MIN INSERT

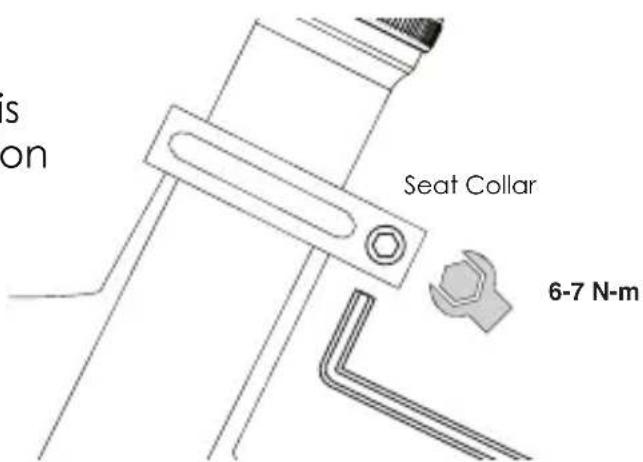

SEAT COLLAR TORQUE

Tighten your frame's seat collar to a maximum torque of 7 N-m. Do not over torque your frame's seat collar as this may inhibit proper function of your seat post.

Do not over torque your frame's seat collar as this may inhibit proper function of your seat post.

s on Seat Collar 6-7 N-m

INSTALLATION

ATTENTION!

Please read the following instructions carefully and install your LEV Ci, LEV Integra, LEV-Si, e30-i, Crux-i and eTen-i according to the steps detailed below.

Your KS height adjustable seatpost is a precision piece of cycling equipment that requires a specific understanding of bicycle maintenance and assembly to install. If you are not certain you have the appropriate skills or tools to properly install this product, please contact your local bicycle dealer or service provider for assistance.

Detailed installation and service videos for all models can be viewed at http://kssuspension.com/support/tech-info/.

WARNING!

LEV Ci, LEV Integra, LEV-Si, e30-i, Crux-i and eTen-i use internal cable routing and is designed to be compatible with bicycle frames that provide for such cable routing.

DO NOT DRILL OR MODIFY YOUR FRAME IN ANY WAY. Doing so will void the Warranty of LEV Ci, LEV Integra, LEV-Si, e30-i, Crux-i and eTen-i and in most cases void the warranty of your bicycle. Modification of your frame in any way may result in frame failure which could result in injury or death.

If you are unsure if LEV Ci, LEV Integra, LEV-Si, e30-i, Crux-i and eTen-i are compatible with your frame, contact your bicycle frame manufacturer or KS USA at www.kssuspension.com.

INSTALLATION

DETERMINING CABLE AND HOUSING LENGTH

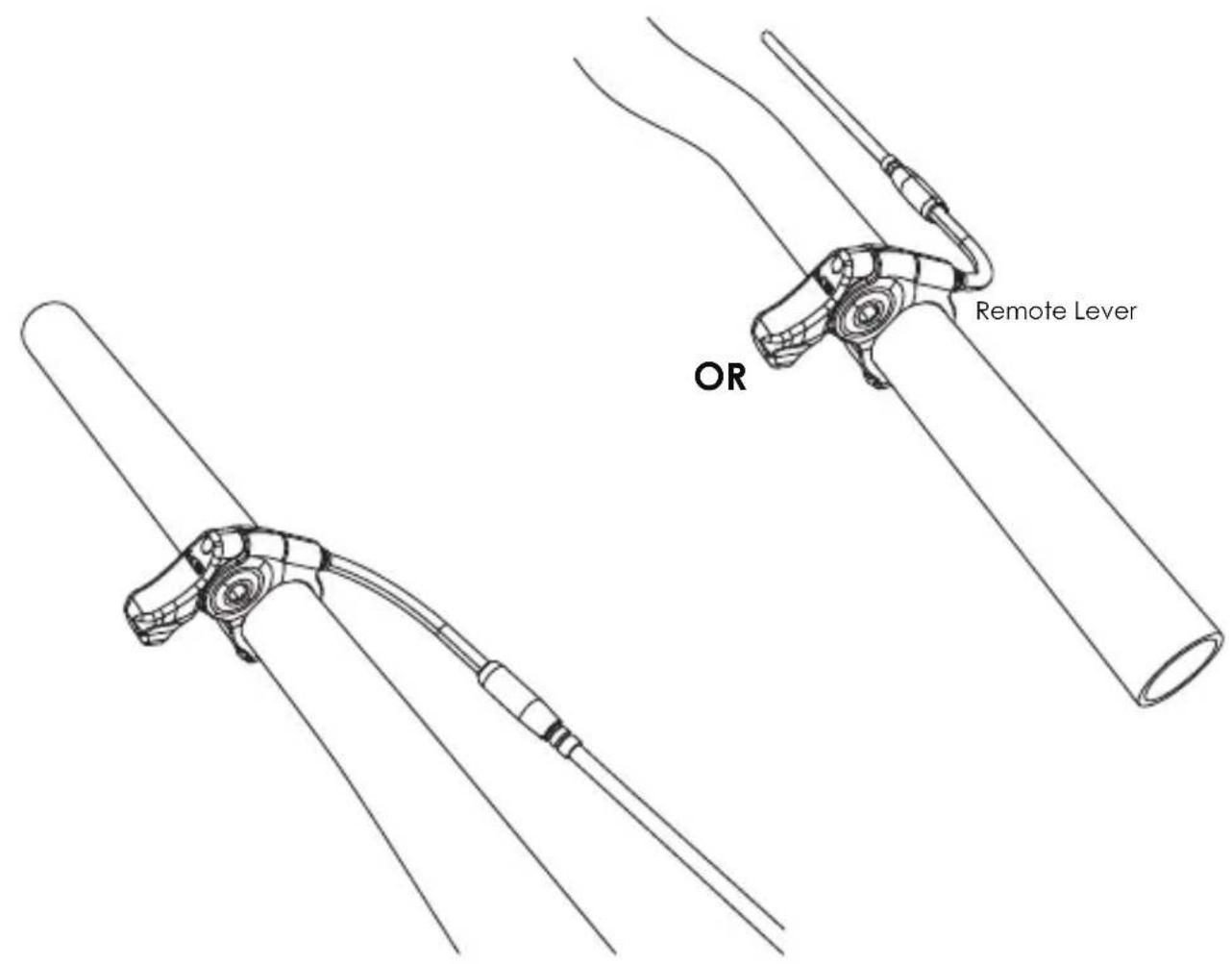

Temporarily install the remote lever in the desired final location. The remote can be installed on either the right or left side of the handlebar.

NOTE: you will use this position to determine cable length but remove and reinstall the lever again in a later step.

Install the supplied elbow noodle with integrated barrel adjuster and insert cable housing into the barrel adjuster.

OR Remote Lever

INSTALLATION

DETERMINING CABLE AND HOUSING LENGTH

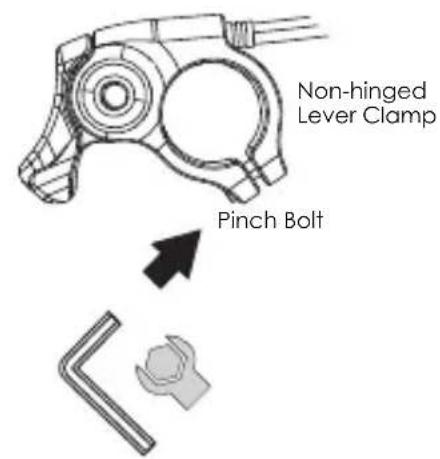

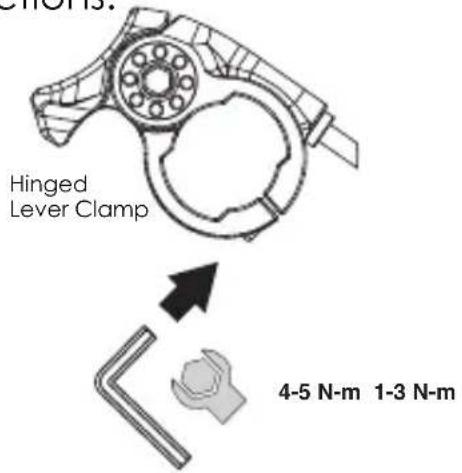

Using a 3mm Hex wrench, loosen the remote lever clamp pinch bolt and remove the bolt. Slide the (non-hinged) lever clamp on your handlebar and position it in the desired location. Tighten to a torque of 1-3 N-m.

NOTE: Aftermarket models of LEV Integra and LEV-Si use the KG SL alloy remote with hinged lever clamp. See below for installation instructions.

Hinged Lever Clamp 4-5 N-m 1-3 N-m

Non-hinged Lever Clamp Pinch Bolt

WITH ODI LOCK-ON™ COMPATIBLE GRIP (AM ONLY)

The alloy remote lever clamp can be used to replace the inner lock ring on ODI LOCK-ON ^TM compatible grips. Remove the inner lock ring on your grip. Replace with the seat post remote lever clamp. Follow the instructions above. NOTE: Polycarbonate remote lever clamp is not hinged and not compatible with ODI LOCK-ON ^TM compatible grips.

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALLATION

DETERMINING CABLE AND HOUSING LENGTH

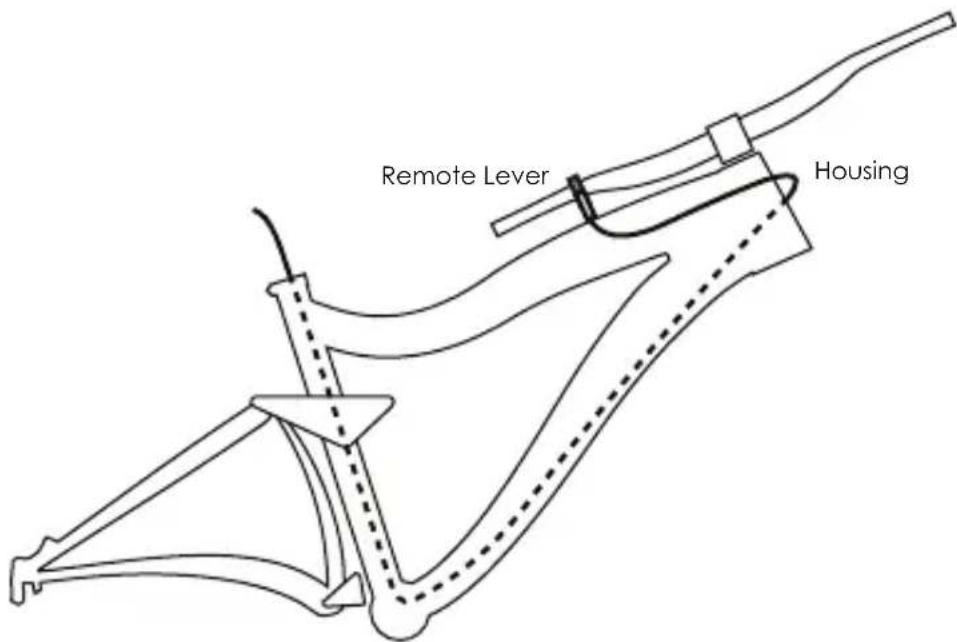

With the housing and noodle in place at the remote lever, route the housing through your bicycle frame per your bicycle frame manufacturers specifications.

To determine the correct length for your housing, pull the housing to remove excess slack with the handlebars turned 90-degree from the forward position. Be sure the housing is long enough to wrap around the head tube as shown to not impede with steering.

NOTE: Do not permanently affix your housing in place. You will need it free to move it in a later step.

Remote Lever Housing

INSTALLATION

DETERMINING CABLE AND HOUSING LENGTH

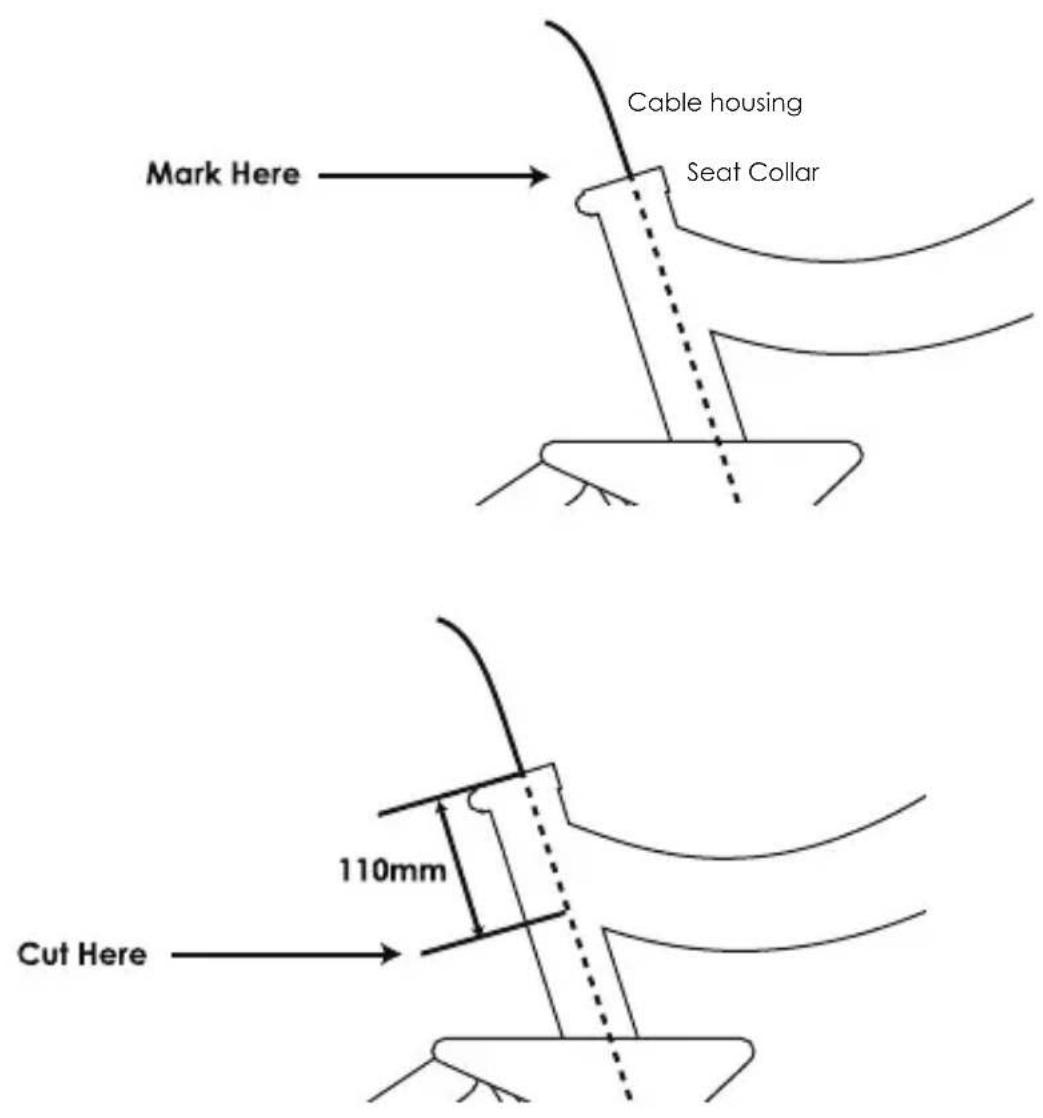

Mark the location on your cable housing at the seat collar as it protrudes from the seat tube. Pull the cable housing out of the seat tube and make another mark 110mm in the direction of the handlebar. This will be your final housing length. Cut the housing to length.

NOTE: This 110mm measurement applies to all travel options.

Mark Here Cable housing Seat Collar Cut Here 110mm

CABLE INSTALLATION

CONNECTING THE INNER WIRE

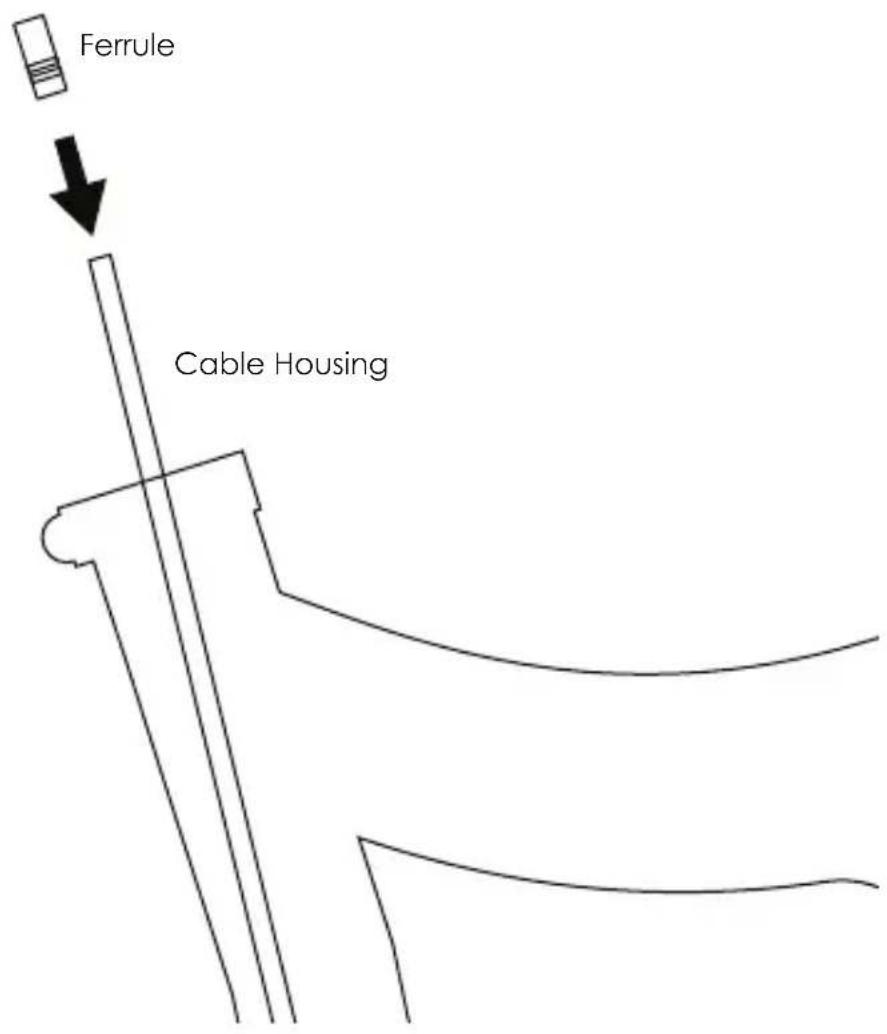

With the housing still routed through your frame, install the ferrule on the end of housing at the seat collar.

Ferrule Cable Housing

CABLE INSTALLATION

CONNECTING THE INNER WIRE

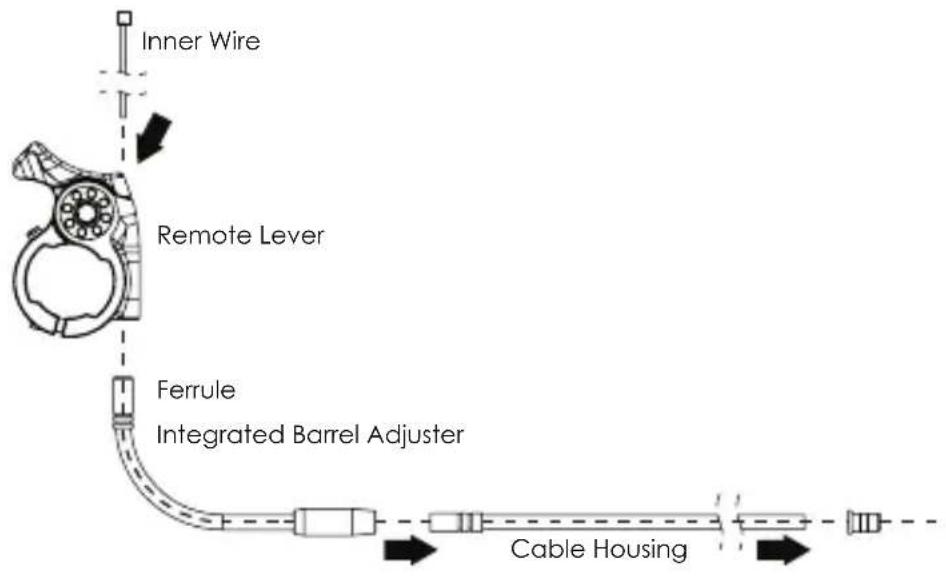

Feed the inner wire through the remote lever, integrated barrel adjuster and cable housing.


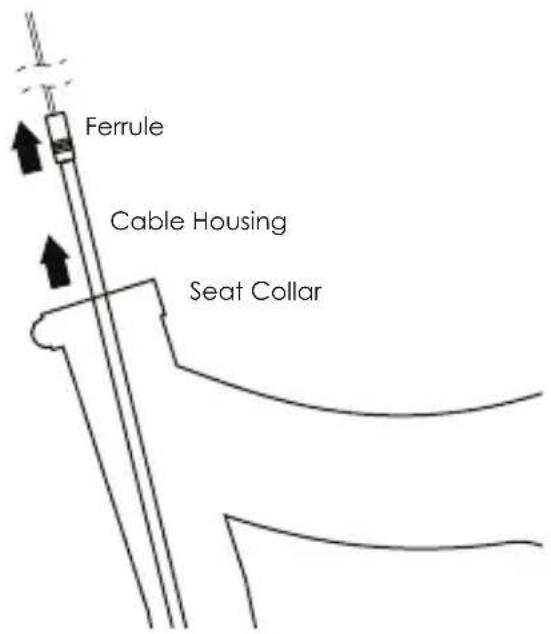

Pull the cable slack out from the seat collar.

Ferrule Cable Housing Seat Collar

CABLE INSTALLATION

Hold the free end of the cable and cable housing to the cable entry point. Mark this length on the cable and cable housing with a marking pen or tape.

Using a pair of bicycle cable cutters, trim the cable housing to this measured length. DO NOT cut the inner wire at this time.

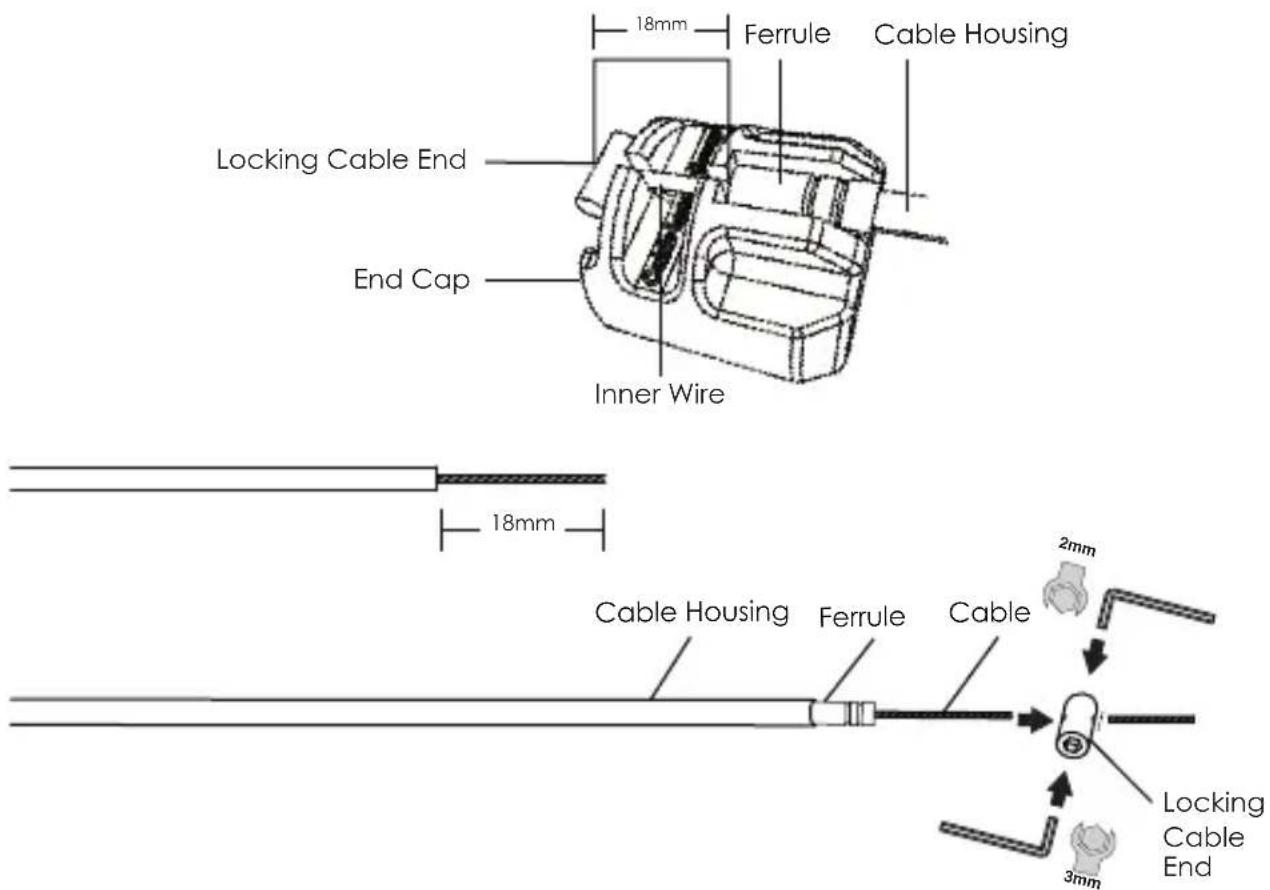

Option 1: Using a standard shifter cable.

Mark the inner wire to a length 18mm longer than the cable housing or use the gauge molded into the supplied protective cap as shown:

18mm Ferrule Cable Housing Locking Cable End End Cap Inner Wire 18mm Cable Housing Ferrule Cable 2mm 3mm Locking Cable End

Tighten the locking cable end to the cable using both a 3mm and 2mm Hex wrench. Ensure the inner wire is flush with the locking cable end.

CABLE INSTALLATION

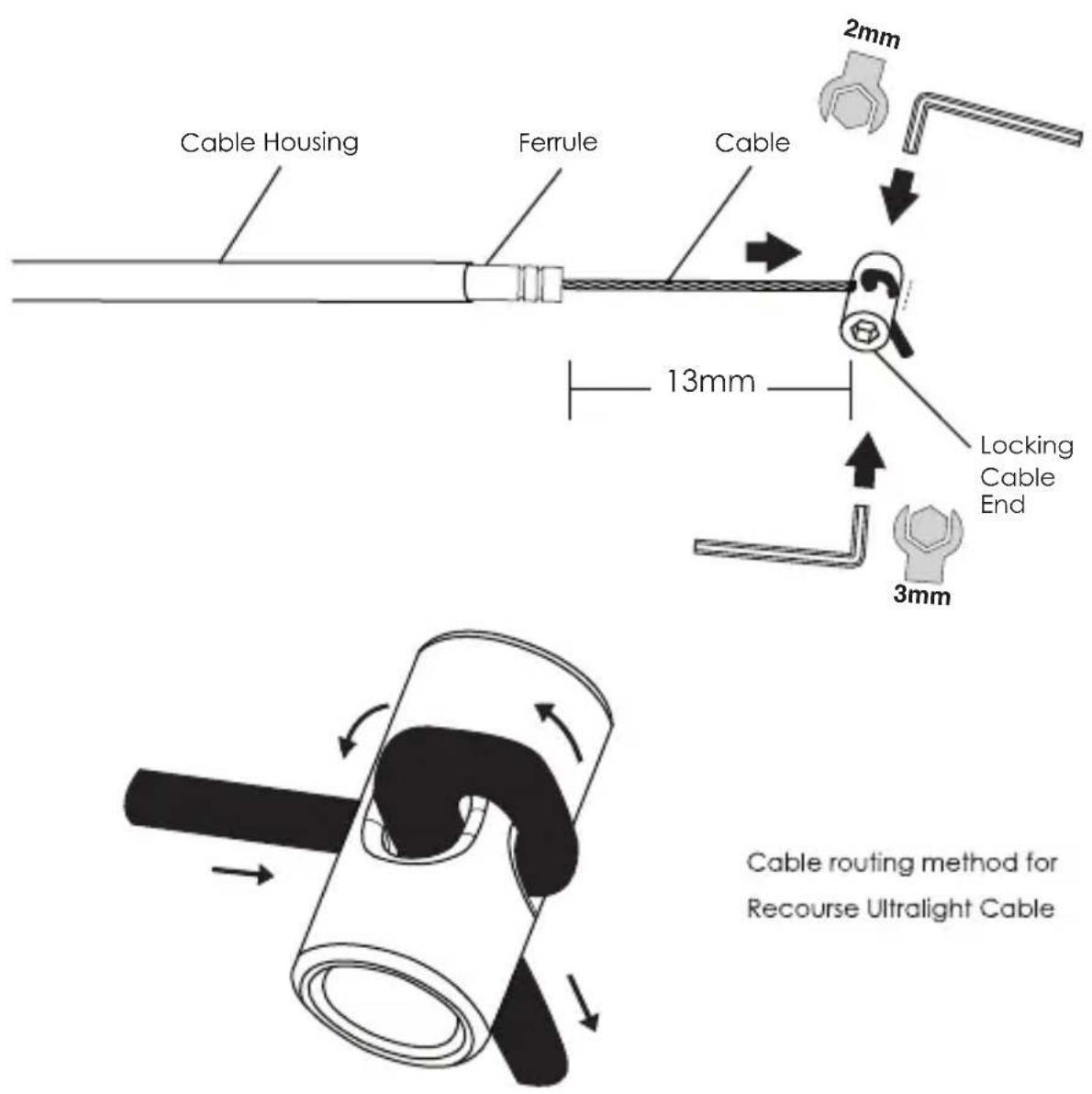

Option 2: Using Recourse Ultralight cable system

Install the LEV-Ci ferrule on the cable housing. Route the Recourse inner wire as shown. Tighten the locking cable end leaving 13mm spacing as shown. Trim the excess inner wire to be flush with the locking cable end.

Cable Housing Ferrule Cable 2mm 13mm Locking Cable End 3mm Cable routing method for Recourse Ultralight Cable

INSTALLATION

CONNECTING THE INNER WIRE

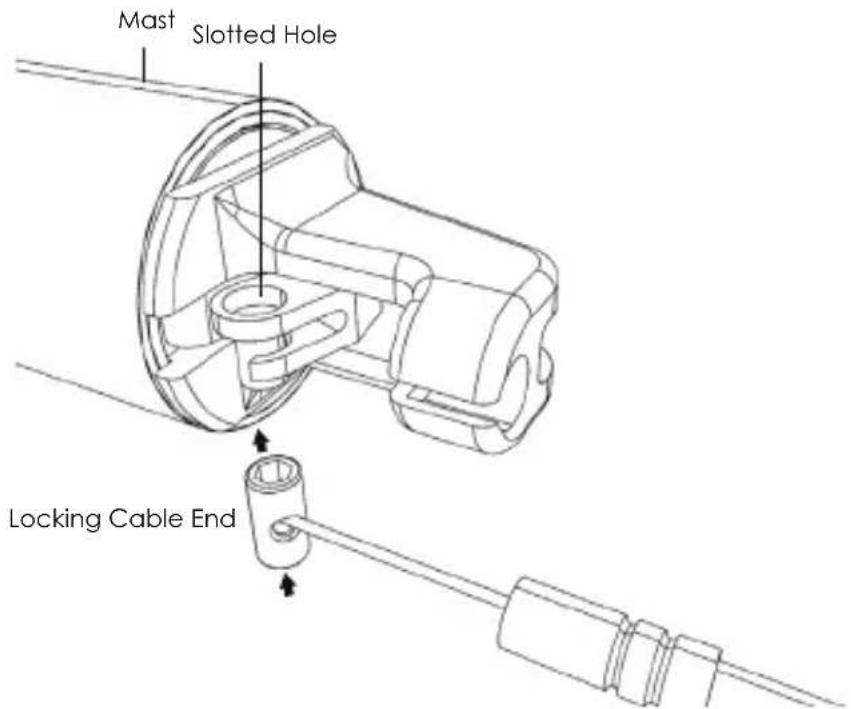

① Insert the Locking Cable End through the slotted hole.

Mast Slotted Hole Locking Cable End

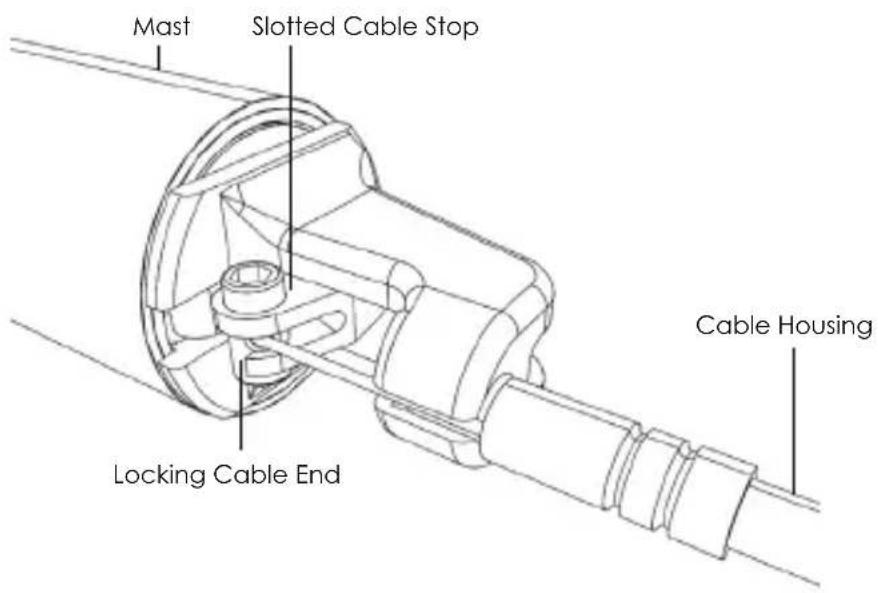

② Insert the housing into the slotted cable stop.

Mast Slotted Cable Stop Locking Cable End Cable Housing

INSTALLATION

INSTALLING ON THE BIKE

Place your seatpost into your seat collar while taking up the cable slack from where it enters the bicycle frame.

Seatpost Seat Collar

SADDLE INSTALLATION

AFTER SETTING SEATPOST ORIENTATION IN YOUR FRAME

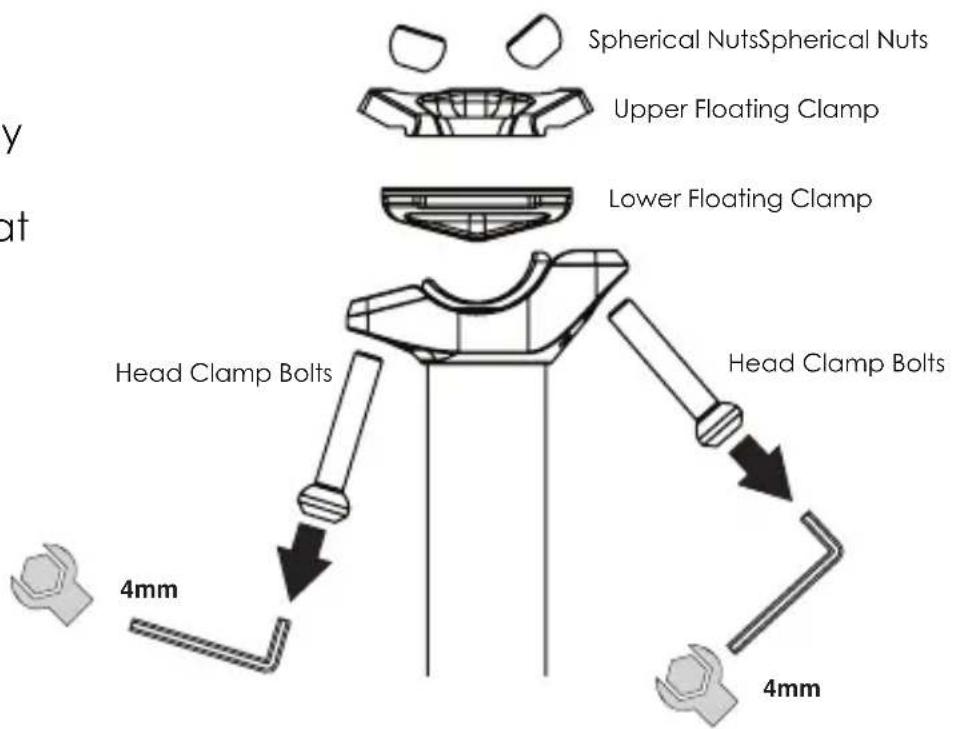

Once you have oriented your seatpost within your seat tube ensuring the saddle is aligned to point forward, you will need to install your saddle. Remove the two saddle head clamp bolts, spherical nuts, upper and lower floating clamp using a 4mm Hex wrench.

Note: The lower clamp body may slide down the stanchion tube at this point.

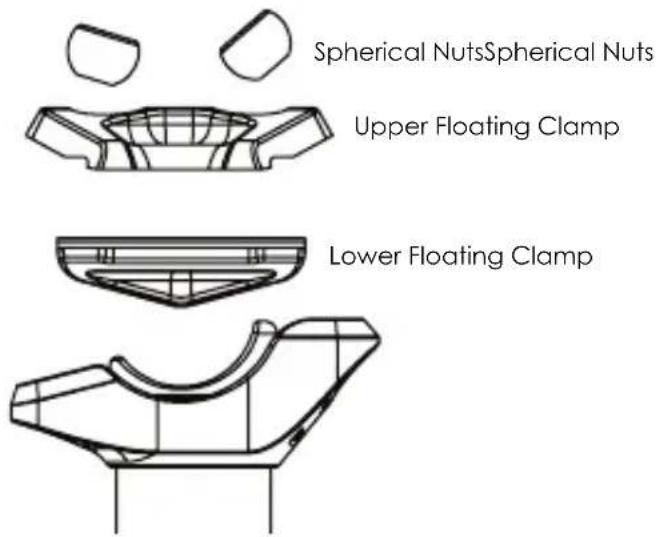

Spherical Nuts Upper Floating Clamp Lower Floating Clamp Head Clamp Bolts Head Clamp Bolts 4mm 4mm

To install the saddle, replace the two saddle head clamp bolts, spherical nuts, upper and lower floating clamp in the order in which they were removed.

Before tightening, place the rails of your saddle between the upper and lower floating clamps so that the rails seat in the channel provided by the lower floating clamp.

Using a 4mm Hex wrench, tighten the two head clamp bolts until the desired saddle angle is achieved. Then tighten both bolts evenly to a maximum torque of 10 N-m (8 N-m LEV-Ci.)

SADDLE INSTALLATION

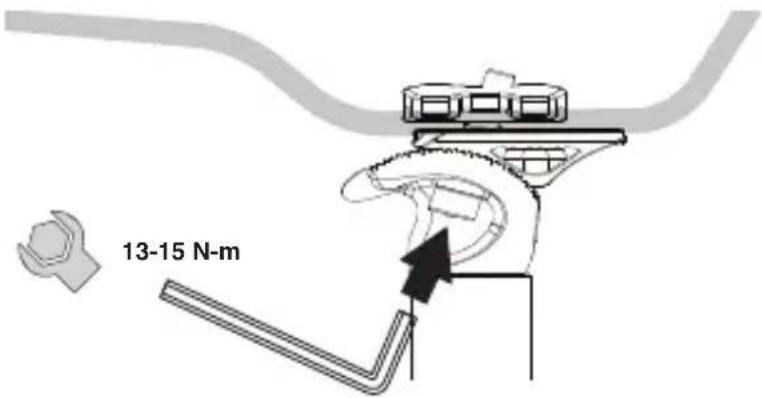

CRUX-i

Using a 5mm Hex wrench, loosen the two head clamp bolts until they are nearly free of the upper half of the saddle clamp. Set the fore/aft and angle position of the saddle. Tighten the two head clamp bolts to a maximum torque of 15 N-m.

13-15 N-m

ETEN-i

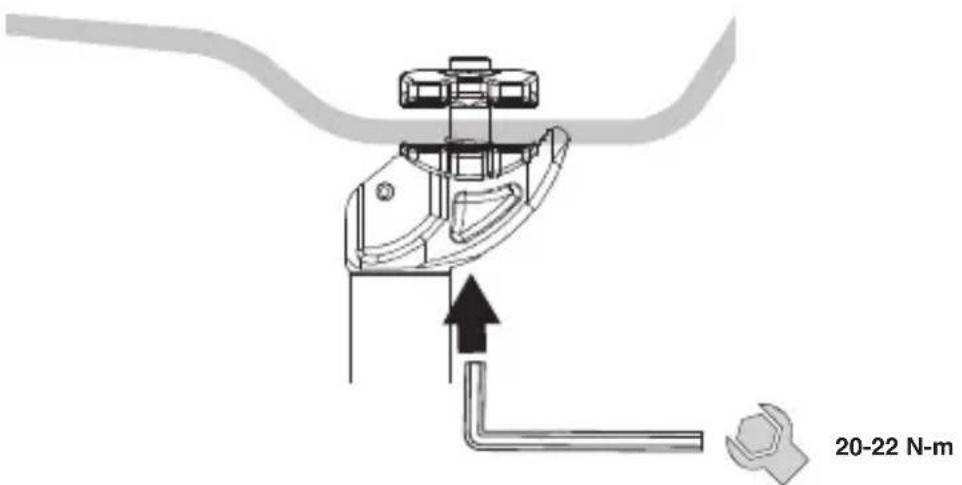

Using a 6mm Hex wrench, loosen the single head clamp bolt until it is nearly free of the upper half of the saddle clamp. Set the fore/aft and angle position of the saddle. Tighten the head clamp bolt to a maximum torque of 22 N-m.

20-22 N-m

ADJUSTING THE RETURN SPEED

(LEV-Ci, LEV Integra and LEV-Si Only)

NOTE: All LEV Integra models come with suitable pressure for the return spring. Test the return speed of LEV Integra before you make adjustments. If air pressure adjustments still must be made, remove the saddle and saddle clamp parts at top end of the stanchion tube.

Spherical Nuts Upper Floating Clamp Lower Floating Clamp

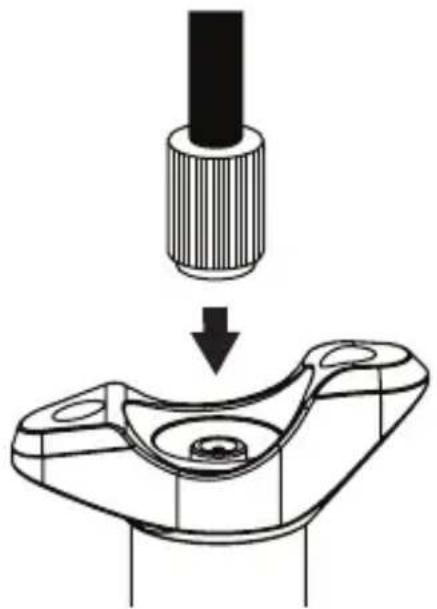

Attach a compatible shock pump and adjust to your desired pressure. KS recommends our AIR-8 High Pressure pump for best results.

Technical illustration of a mechanical component being processed into a base, showing a cylindrical part and a curved base (no text or symbols)

NOTE: Recommended operating pressures is 100-250psi. Do not exceed 250psi.

USING YOUR SEAT POST

FOR THE FIRST TIME

When using your seat post for the first time, it may be necessary to give the post a firm downward “nudge” to start the initial movement. This is due to the seal’s natural tendency to migrate oil away from the seal surface. This is only necessary prior to the first use or after a long period of non-use. Once the post is cycled through its travel the first time, it will distribute oil on the seal and resume its normal function.

RAISING AND LOWERING THE SADDLE

To lower the saddle, weight the saddle firmly with your hand or sit on the bike while pressing and holding the actuation lever or remote. Release the lever when the desired height is reached.

To raise the saddle, actuate your seat post by pulling the lever or handlebar remote. Unweight the saddle and release the lever when the desired height is reached.

You can raise and lower your saddle to any desired position within the seat post's travel.

SAFETY AND MAINTENACE

BEFORE EACH RIDE

Before each ride, check that the seat post is secure in the frame and that all clamping bolts are tightened to their specified torque values. Make sure that your seat post does not show sign of excessive wear and is not leaking. Check that the seat post functions properly. Make sure that the maximum raised position of the seat post is not too high for the rider to properly maintain control of the bicycle.

PERIODIC MAINTENANCE

Your KS seat post requires periodic service to maintain consistent function. Please see your local dealer to have this service performed.

Routine maintenance should be done at regular intervals. Interval duration will depend on frequency of use and conditions. Post should be cleaned and lubricated at least once every 6 months. Wet or severely dusty conditions will require more frequent maintenance. If a high pressure water is used to wash the bicycle, more frequent maintenance is recommended due to the increased chance of water entering the system. If degradation of performance occurs, perform maintenance as soon as possible.

Videos of service procedures on all models are available at http://kssuspension.com/support/tech-info/.

For more information, please contact your local Service Center. Service Center contact information can be found at http://www.kssuspension.com.

K5

Technical line drawings of seven cylindrical mechanical components with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

MONTAGE

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Spherical Nuts Upper Floating Clamp Lower Floating Clamp Head Clamp Bolts Head Clamp Bolts 4mm 4mm

13-15 N-m

ETEN-i

Technical illustration of a mechanical component being processed into a mold (no text or symbols)

Technical line drawings of seven cylindrical mechanical components with no visible text or symbols

http://kssuspension.com/support/tech-info/.

AVERTISSEMENT

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALLATION

INSTALLATION

DETERMINATION DE LA LONGUEUR DU CABLE ET DE LA GAINÉ

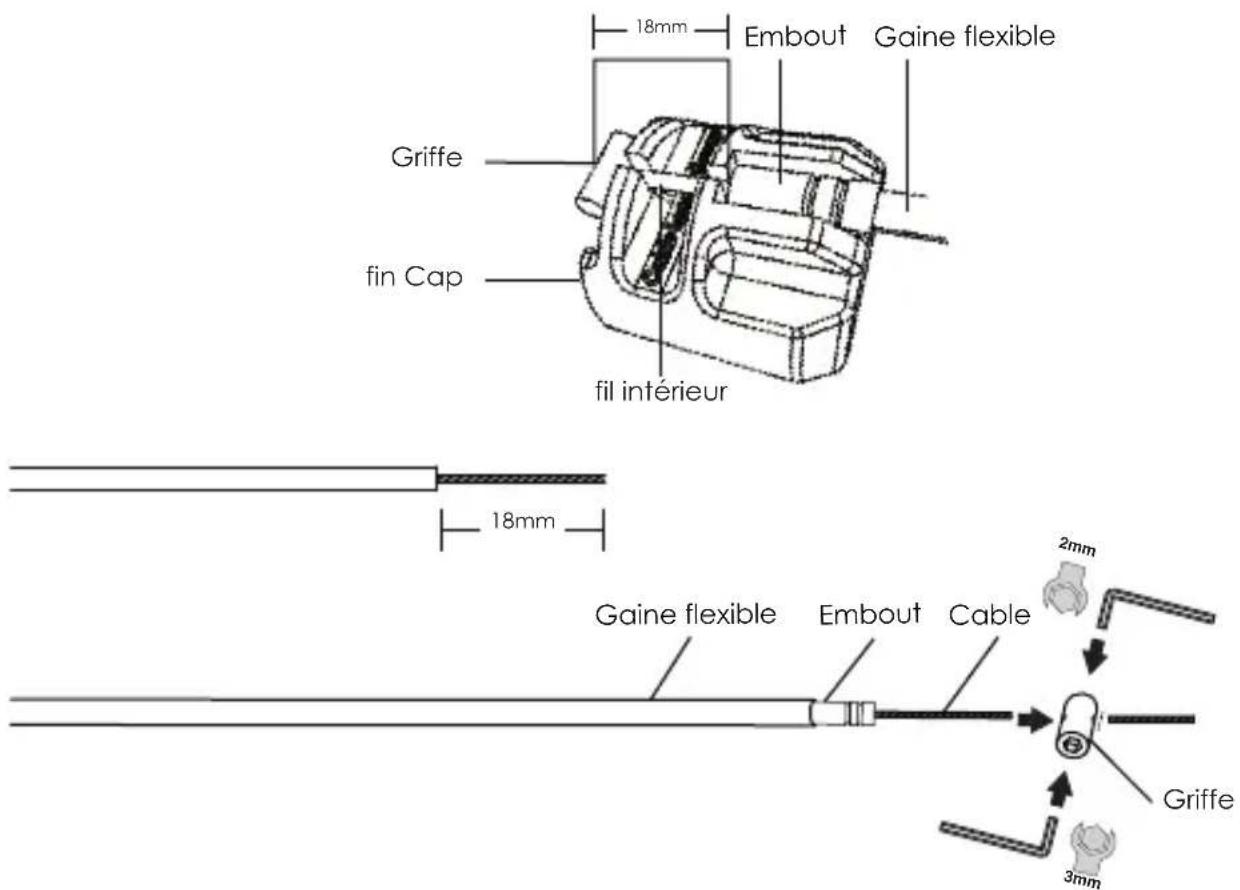

Mark the inner wire to a length 18mm longer than the cable housing or use the gauge molded into the supplied protective cap as shown:

18mm Embout Gaine flexible Griffe fin Cap fil intérieur 18mm Gaine flexible Embout Cable 2mm 3mm Griffe

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Mast trou oblong Griffe

Spherical Nuts Upper Floating Clamp Lower Floating Clamp Head Clamp Bolts Head Clamp Bolts 4mm 4mm

13-15 N-m

ETEN-i

Technical illustration of a mechanical component being processed into a mold (no text or symbols)

Technical line drawings of seven cylindrical mechanical components with no visible text or symbols

Questo manuale é riferito al modello: LEV-Ci, LEV Integra, LEV-Si, e30-i, Crux-i, eTen-i

DA LEGGERE PRIMA DELL'USO

OR Leva remota

INSTALLAZIONE

DETERMINARE LA LUNGHEZZA DI CAVO E GUAINA

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALLAZIONE

DETERMINARE LA LUNGHEZZA DI CAVO E GUAINA

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

CONNECTING THE INNER WIRE

13-15 N-m

ETEN-i

Technical illustration of a mechanical component being inserted into a housing (no text or symbols present)

Technical line drawings of seven cylindrical mechanical components with no visible text or symbols

Three technical line drawings of vertical cylindrical objects with no visible text or symbols

Crux-i eTen-iLEV-Ci, LEV Integra,
LEV-Si and e30-i

palanca remota OR

INSTALACIÓN

PARA DETERMINAR LA LONGITUD DEL CABLE Y LA FUNDA.

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALACIÓN

DETERMINAR LA LONGITUD DEL CABLE Y LA FUNDA

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

13-15 N-m

ETEN-i

Technical illustration of a mechanical component being processed into a mold (no text or symbols)

Technical line drawings of seven cylindrical mechanical components with no visible text or symbols

本用戶手冊包括下列型號：LEV-Ci, LEV Integra, LEV-Si, e30-i, Crux-i, eTen-i

保固期限

感謝您購買全新的KS可調高低座管。

止滑劑 GREASE

座管安裝

Technical line drawing of a mechanical component with no visible text or symbols

LEV-Si and e30-i

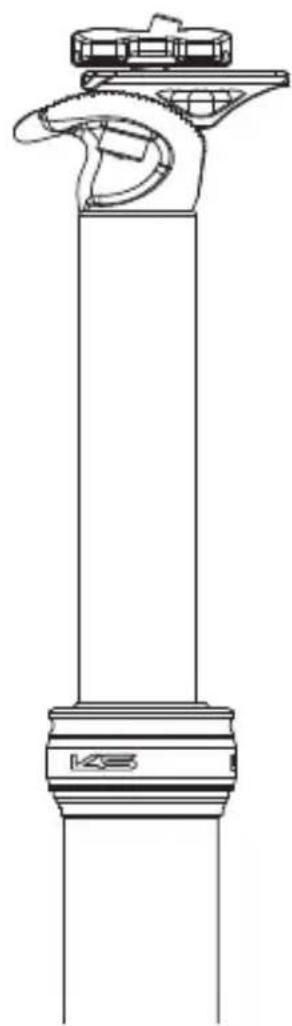

Line drawing of a vertical column with a curved handle and base plate (no text or symbols)

Crux-i eTen-iLEV-Ci, LEV Integra,

Technical line drawing of a vertical mechanical component with base and top features (no text or symbols)

座管安装

安全線位置

Technical line drawing of a mechanical assembly with no visible text or symbols

拉線安裝

決定內線與外線正確長度：

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

超輕內線的走線方式

安装

連接內導線

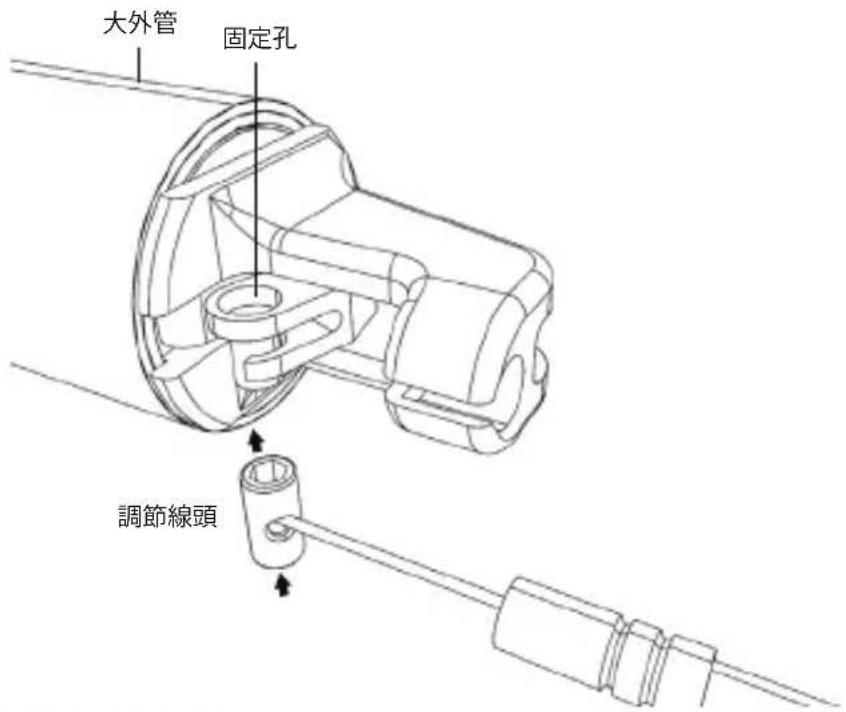

① 將調節線頭穿過固定孔

件座壁 Spherical Nuts Upper Floating Clamp Lower Floating Clamp Head Clamp Bolts Head Clamp Bolts 4mm 4mm

13-15 N-m

ETEN-i

Technical illustration of a mechanical component being processed into a mold (no text or symbols)

Technical line drawings of seven cylindrical mechanical components with no visible text or symbols

Three technical line drawings of a vertical stand with labeled components, showing different architectural or mechanical designs (no text or symbols present)

LEV-Si and e30-i
Crux-i eTen-iLEV-Ci, LEV Integra,

シートポストの取り付け方法

最低差込ライン

OR Remote Lever

取り付け方法

ケーブルとハウジングの長さ

Technical line drawing of a mechanical assembly with no visible text or symbols

取り付け方法

ケーブルとハウジングの長さ

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

ウルトラライトケーブルの取り回し図

インストール

インナーワイヤを接続する

Spherical Nuts Upper Floating Clamp Lower Floating Clamp Head Clamp Bolts Head Clamp Bolts 4mm 4mm

13-15 N-m

ETEN-i

Technical illustration of a mechanical component being inserted into a housing (no text or symbols present)

QR code image containing encoded data, no visible human-readable text

get down and dirty

Rev.2015.12.a3

KS USA

26741 Portola Pkwy, Suite 1E658

Foothill Ranch, CA 92610

[phone]

www.kssuspension.com

Copyright 2015 Kind Shock High Tech Co. Ltd. Rev.010517
