USER MANUAL SWKK 100 A1 SILVERCREST
DE AT CH
WÄRME-KUSCHELKISSEN
Operating instructions and safety advice
NL BE
KNUFFELIGVERWARMINGSKUSSEN
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB / IE Operating instructions and safety advice Page 15
Parts description Page 17
Scope of delivery....Page 17
Technical data......Page 17
Important safety instructions......Page 18
Safety system....Page 20
Special features......Page 20
Start-up Page 20
Switching on/off/Selecting the temperature......Page 20
Temperature levels....Page 21
Automatic switch-off....Page 21
Cleaning and care....Page 21
Storage Page 22
Disposal Page 22
Warranty / Service centre Page 22
Declaration of conformity....Page 23
| List of pictograms used | |||
 | Read the instructions! |  | The cover with built-in heating pad is machine washable. Set the washing machine to an extra gentle washing cycle at 30 °C. |
| V~ | Volt (AC) Do not wash. |  | |
| Hz | Hertz (mains frequency) Do not use bleach |  | |
| W | Watt (effective power) Do not dry in a turt |  ryer. | |
| Safety class II Do not iron. |  | ||
| Observe the warning and safety instructions! |  | Do not dry-clean. | |
| Not suitable for very young children age 0-3 years! |  | 6 temperature settings | |
| Do not stick needles into it! |  | Breathable | |
| The textiles used in this heating pad meet the strict human ecological requirements of Oeko-Tex Standard 100, as verified by the German Hohenstein Research Institute. |  | Machine washable | |
| Do not use folded or rucked! |  | This symbol indicates that the cable is approx. 2.80 m long. | |
| Caution - Risk of electric shock! Danger to life! |  | Dispose of the packaging and the heating pad in an environmentally friendly way! | |
| CE | This product meets the requirements of the applicable European and national directives. |  | Packaging made from recycled material |
Heated Electric Cushion
●Introduction
Please familiarise yourself with the heating pad before getting started and using it for the first time. To do so, please carefully read the following operating instructions and the important safety information. Use the heating pad only as described and for the stated areas of use. Keep these instructions in a safe place. If you pass the heating pad on to anyone else, please ensure that you also pass on all the documentation.
Intendeduse
This heating pad is intended for applying heat to the human body. This heating pad is not suitable for use in hospitals or for any other commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described above or modification of the heating pad are not permissible and may lead to injury and / or damage to the heating pad. The manufacturer assumes no liability for damage arising out of improper use.

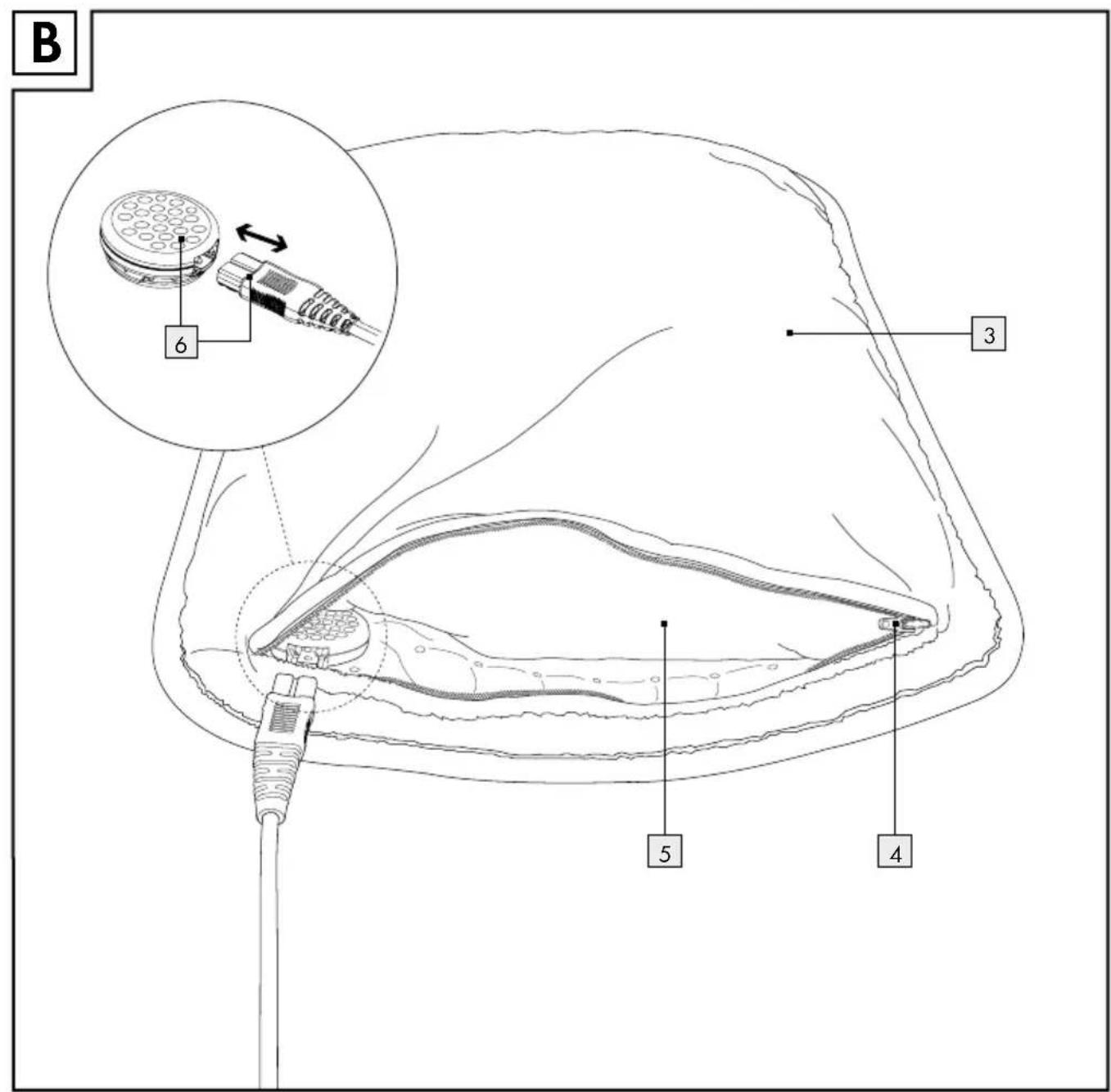

Partsdescription
1 Control unit
2 Function indicator
3 Cover with built-in heating pad
4 Zip fastening
5 Inner cushion
6 Plug-in connector
- Scope of delivery
Please check immediately on unpacking that the delivery scope is complete and that the heating pad is in perfect condition.
1 heated Electric Cushion
1 inner cushion
1 control unit / plug-in connector
1 set of instructions for use
●Technicaldata
Model: SWKK 100 A1
Type: P10 cushion
Power supply: 220-240V/50-60Hz
Power input: 100 W
Dimensions: approx. 40 x 30 cm (with inner cushion)
Protection class: II/☐
Electric field strength: max. 5000 V/m
Magnetic field strength: max. 80 A/ m
Magnetic flux density: max. 0.1 milli-Tesla
Material:
Top/bottom: 100% polyester
Manufacturer:
MGG Elektro GmbH
Steinstraße 27
40210 Düsseldorf
GERMANY
IMPORTANT INSTRUCTIONS – KEEP FOR FUTURE REFERENCE!
Importantsafety instructions
WARNING! Failure to observe the following instructions can cause personal injury or property damage (electric shock, burns, fire). The following safety instructions and hazard warnings are not only intended to protect your own health and the health of others, but also to prevent damage to the heating pad. Please observe these safety instructions and pass on this operating manual together with the heating pad.
SCALDINGHAZARD!
This heating pad may not be used by persons insensitive to heat and other persons in need of protection who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas in the application area, after using analgesics or alcohol). There is a risk of receiving skin burns.
WARNING!
heating pad may not be
used for very young children (0–3 years), as they are unable to react to overheating. There is a risk of receiving skin burns.
The heating pad may be used by children over 3 years and under 8 years on the lowest setting when supervised. Burns may otherwise occur.
This heating pad may be used by older children age 8 and up, and persons with diminished physical, sensory or mental capacities or lacking experience and knowledge when supervised and instructed on the safe use of the heating pad and understand the associated risks.
■ Never allow children to play with the heating pad. There is a risk of injury.
■ Children must not perform clean or maintain the product without supervision. There is a risk of injury.
This heating pad is not intended for hospital or commercial use. This poses a risk of injuries and / or damage to the heating pad.
WARNING!
Do not insert needles or pointed objects into the heating pad. There is a risk of electric shock.
WARNING!
Do not switch on the
heating pad whilst folded or pushed together. The heating pad may otherwise be damaged.
- Do not use when wet! Otherwise there is a risk of electric shock.
This heating pad may only be operated together with the control unit specified on the label. The heating pad may otherwise be damaged.
The electric and magnetic fields emitted by this heating pad could potentially interfere with the functionality of your pacemaker. However, the levels are far below the permissible limits: electric field strength: max. 5000V/m, mag netic field strength: max. 80 A/m, magnetic flux density: max.
0.1 milli-Tesla. Therefore please consult your physician and the manu-facturer of your pacemaker before using this heating pad.
- Do not pull, twist or kink the cables. The heating pad may otherwise be damaged.
The cable and the switch of the heating pad may pose risk of catching, strangulation, tripping or being stepped on if positioned incorrectly. The user must ensure excess cable and cables in general are positioned safely.
■ Frequently check the heating pad for wear or damage. If signs thereof are detected, the heating pad was used improperly or will no longer heat up, it must first be inspected by the manufacturer before being switched on again.
If the power cord of the heating pad is damaged, it must be replaced by the manufacturer or its service department, or a similarly qualified person, to avoid hazards.
■ With the heating pad switched on, never
- place objects on it (e.g. suitcases or clothes baskets),
- place a heating source such as a hot-water bottle, heating pad or similar items on it. The heating pad may otherwise be damaged.
The electronic components inside the control unit will heat up whilst operating the heating pad. For this reason, the control unit must not be covered or be lying on the
heating pad during operation. This poses a risk of injuries and / or damage to the heating pad.
■ Always observe the information on start-up, cleaning and care, and storage.
If you have additional questions on using our products, please contact our Customer Service Department.
●Safetysystem
Note: The heating pad is equipped with a safety system. The electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches the heating pad off automatically due to a fault, then the function display 2 on the control unit 1 is no longer illuminated, even if the heating pad is switched on.
Please note that, for safety reasons, the heating pad must not be used after a fault and must be returned to the service address indicated.
Under no circumstances should you connect the defective heating pad to another switch of the same type. This would also result in a permanent shutdown by the safety system in the switch.
- Special features
This heating pad has been provided with an especially soft and hygienic velour fabric. The
textiles used in this heating pad meet the strict human ecological requirements of Oeko-Tex Standard 100, as verified by the German Hohenstein Research Institute.
- Start-up
Note: The heating pad may smell of plastic the first time you use it, but this will disappear after a short period of time.
☐ To begin, first connect the control unit 1 to the heating pad with the plug-in connector 6 (see fig. B).
☐ Then insert the mains plug into the socket.
- Switching on / off / Selecting the temperature
Switching on:
Set the control unit to 1, 2, 3, 4, 5 or 6 to switch on the heating pad.
Note: The function display 2 illuminates after the heating pad is switched on.
Note: This heating pad features rapid heating, which allows it to heat up within the first 10 minutes of operation.
Switching off:
Set the control unit to 0 to switch off the heating pad.
Note: The operating display 2 will switch off.
Selecting the temperature:
☐ Just before using the heating pad, set it to the highest temperature setting (setting 6). This will cause the heating pad to warm up quickly.
☐ When using the heating pad for several hours, set it to the lowest temperature setting (setting 1).
WARNING!
When opera-
ting the heating pad for several hours, we commend setting the control unit 1 to the lowest setting to prevent overheating and potential burns to the part of the body heat is applied to.
●Temperaturelevels
Set the required temperature level on the control unit 1 (see fig. A).
Level0:off
Level 1: minimum heat
Level 2-5: customised heat
Level 6: maximum heat
●Automaticswitch-off
Note: The heating pad switches itself off automatically after about 90 minutes. The function display 2 then starts to flash.
Then select the setting 0 and after about 5 seconds, reset the heating pad to the desired temperature setting to switch it on again.
If the heating pad is no longer used after the timer expires:
- switch off the heating pad (setting 0),
- unplug from the socket,
- disconnect the plug-in connection 6, i.e. the control unit 1, from the heating pad.
- Cleaning and care
DANG RONING!
LIFE BY ELECTRIC SHOCK! Always
remove the mains plug from the socket
and the plug-in connector 6 with the control unit 1 from the heating pad (see fig. B) before cleaning the heating pad. Otherwise there is a risk of electric shock.
Use a dry, lint-free cloth for control unit cleaning and care.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Never immerse the control unit 1 in water or other liquids. It may otherwise be damaged.
If the heating pad is slightly soiled, use a dam-pened cloth and a little liquid mild detergent, if necessary.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not use chemical cleaning or scouring agents to clean the heating pad or control unit 1. This could damage the heating pad and control unit 1.
■ Always remove the inner cushion 5 before cleaning. To do this, open the zip fastening 4.
WARNING! The inner cushion 5 cannot be washed.
The cover with built-in heating pad 3 is machine washable. Set the washing machine at an extra gentle washing cycle at 30 °C.
For ecological reasons, only wash the cover with built-in heating pad 3 along with other textiles. Use a mild laundry detergent according to the manufacturer's instructions.
Please note that frequent washing of the cover with built-in heating pad 3 will cause wear. The cover with built-in heating pad 3 should therefore be washed no more than max. 10 times in a washing machine throughout its useful life.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY!
Please note the cover with built-in
heating pad 3 and the inner cushion 5 must not be dry cleaned, bleached, wrung out, tumble dried, mangled or ironed. Otherwise the cover with built-in heating pad 3 and the inner cushion 5 may be damaged.
Do not bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
Do not tumble dry.
Do not iron.
Do not dry clean.
- Reshape the still damp cover with built-in heating pad 3 to the original dimensions immediately after washing, and dry flat, spread on a clothes drying rack.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not hang up the cover with built-in heating pad 3 to dry using pegs or similar items. This could damage the cover with built-in heating pad 3.
DANGER OF ELECTRIC SHOCK!
Only connect the control unit 1 to the heating pad if the plug-in connector 6 and the cover with built-in heating pad 3 are completely dry. Otherwise there is a risk of electric shock.
■ Then reinsert the inner cushion 5 into the cover with built-in heating pad 3 and close the zip fastening 4.
DANGER OF ELECTRIC SHOCK!
RISK OF PROPERTY DAMAGE!
Do not under any circumstances switch
the heating pad on to dry. Otherwise there is a risk of electric shock.
●Storage
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Let the heating pad cool before putting it away. The heating pad may otherwise be damaged.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! To prevent the heating pad from becoming sharply creased, do not store other objects on top of the heating pad. The heating pad may otherwise be damaged.
If you do not intend to use the heating pad for any length of time, store it in the original packaging in a dry environment and without weighing it down. Disconnect the plug-in connection 6, i.e. the control unit 1, from the heating pad to do so.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
● Warranty / Service centre
We provide a 3-year warranty from the date of purchase for defects in material and manufacture of the heating pad.
The warranty does not cover:
- Damage from improper use.
·Wearparts. - Damage caused by the customer.
- If the device has been opened by an unauthorised repair shop.
This warranty does not affect the customer's legal rights. The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Warranty claims must be filed with MGG Elektro GmbH, Düsseldorf, Germany within 3 years from the date of purchase.
In the event of a claim, please contact our Service Department listed below:
Service Hotline (toll-free):
GB
∅ 0800 93 10 319
(Mon-Fri: 8 am-6 pm)
service-uk@mgg-elektro.de
IE
∅ 1800 93 92 35
(Mon-Fri: 8 am-6 pm)
service-ie@mgg-elektro.de
If we ask you to return the defective heating pad, please send it to the following address:
NU Service GmbH
Lessingstraße 10b
89231 Neu-Ulm
GERMANY
IAN 375098_2101
● Declaration of conformity (€)
This heating pad complies with the requirements of the relevant European and national guidelines.
This is confirmed by the CE mark.
The relevant declarations are held by the manufacturer.
