USER MANUAL Serie 6 BGL6PETGB BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Bagged vacuum cleaner

BGB6 ... BGL6 ...

https://digitalguide.bsh-group.com/?mat-no=8001250807

[de]	Weitere Informationen und Erklärungen finden Sie online. Scannen Sie den QR-Code auf der Titelseite.
[en]	You can find additional information and explanations online. Scan the QR code on the title page.
[fr]	Vous pouvez trouver d'autres informations et explications en ligne. Scannez le code QR sur la page de titre.
[it]	Puoi trovare ulteriori info e spiegazioni online. Scansiona il codice QR sul frontespizio.
[nl]	U kunt online aanvullende informatie en uitleg vinden. Scan de QR-code op de titelpagina.
[da]	Der findes yderligere oplysninger og forklaringer online. Skan QR-koden på forsiden.
[no]	Du kan finne mer informasjon og forklaringer på Internett. Skann QR-koden på tittelsiden.
[sv]	Det finns mer information och förklaringar online. Scanna QR-koden på omslaget.
[fi]	Löydät lisätietoja ja selityksiä verkosta. Skannaa QR-koodn sivun otsikosta.
[pl]	Dodatkowe informacje i objaśnienia są dostępne online. Zeskanuj kod QR na stronie tytułowej.
[tr]	Ek bilgi ve açıklamaları çevrimiçi olarak bulabilirsiniz. Başlık sayfasındaki QR kodunu tarayın.
[es]	Se puede encontrar información y explicaciones adicionales online. Escanear el código QR en la página de título.
[pt]	Pode encontrar informações e explicações adicionais online. Leia o código QR que figura na página de título.
[el]	Μπορείτε να βρείτε επιπλέον πληροφορίες και εξηγήσεις στο διαδίκτυο (online). Σαρώστε τον κωδικό QR στη σελίδα τίτλου.
[bg]	Можете да намерите допълнителна информация и объяснения онлайн. Сканирайте QR кода на заглавната страница.
[ru]	Дополнительную информацию и объяснения можно найти в сети Интернет. Сканируйте QR-код на титульной странице.
[ro]	Informaṭii şi explicaṭii suplimentare pot fi găsite online. Scanaṭi codul QR de pe pagina de pornire.
[uk]	Додаткову інформацію і пояснення можна знайти онлайн. Зіскануйте QR-код на титульній сторінці.
[ar]	يمكنك الاطلاع على معلومات وトップاحات إضافية عصر الإ턴تن. امسح رمز الاستجابة السربعة ضويّاً في failصفحة الأولی.
[fa]	اطلاعات وトップاحات تكمیلی را میتوانید به صورت آنلانین مشاهده کنید. کد QR روی صفحه عنوان را اسکن کنید.

Labeled diagram of a vacuum cleaner with numbered parts for identification

CLICK

2

CLICK

3

CLICK

4

CLICK

5

Hand inserting a blue object into a device component with an upward arrow (no text or symbols)

6

Illustration of a hand using a tool to adjust a blue component on a car intake manifold (no text or symbols)

7

AAA GLR03A AAA GLR03A 1 2 CLICK

8

Diagram showing three types of electronic components with bidirectional arrows indicating direction, likely illustrating a circuit or signal flow.

9

Illustration of a hand pressing a blue circular button on a car's side panel (no text or symbols visible)

10

Diagram showing a device with a blue button labeled 'P' and an inset view of the button's opening.

11

Diagram showing a device with labeled buttons and a magnified inset highlighting the function '−' and '+'.

12

Two diagrams showing a mechanical device with rotating arms and a blue component, no text or symbols present.

13

Diagram showing a mechanical assembly with a blue component being inserted, no text or symbols present

14

Diagram of a car interior with a blue robotic arm and black arrow indicating downward motion (no text or symbols)

15

Diagram showing two labeled parts (① and ②) of a blue mechanical or robotic arm joint, with arrows indicating movement or assembly.

16

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly steps.

17

Diagram showing a mechanical component with numbered parts, likely illustrating a turning or disassembly process.

18

Illustration of a blue industrial vacuum cleaner with internal components and a black arrow indicating motion (no text or symbols)

19

Diagram of a device interior showing a blue plastic component being inserted into a housing (no text or symbols visible)

20

Diagram of a blue mechanical component with arrows indicating direction, no text or symbols present

m = 311

Diagram of a blue industrial machine interior showing internal components and a black arrow indicating a component (no text or symbols present)

22

Diagram showing a mechanical component with labeled parts and directional arrows, including numbered annotations.

23

Diagram of a showerhead spraying water into a fan structure (no text or symbols)

24

1 2 2 24 h

25

Diagram of a refrigerator interior with labeled parts and directional arrows indicating components

26

Illustration of a hand washing a grid appliance with liquid, no text or symbols present

27

CLICK

28

Diagram showing a hand pressing a component into a machine, with numbered arrows indicating process steps.

m = 311

Illustration of a blue showerhead spraying water onto a white square surface (no text or symbols)

30

② ① 24 h

31

4 Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
■ for cleaning surfaces.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ Never pull or carry the appliance by the power cord.
- If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services.→Page 15
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the appliance only in accordance with the specifications on the rating plate.
- Do not apply flammable substances or substances containing alcohol to the dust bag or filter.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
▶ Pull out the power cord completely.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
- When vacuuming stairs, ensure that there are no persons underneath the appliance.
- When taking a break from vacuuming, switch off the appliance and pull out the mains plug.
▶ Retract the power cord.
- When the cord is being rewound automatically, ensure that the mains plug is not thrown in the direction of persons, body parts, animals or objects.
▶ Do not charge the batteries.

▶ Do not short-circuit the batteries.
▶ Do not throw batteries into a fire.
- Keep packaging material away from children.
▶ Do not let children play with packaging material.

Preventing material damage

▶ Never place the appliance on the hose.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never operate the appliance without a dust bag.
▶ Never operate the appliance without the motor protection filter.
▶ Never operate the appliance without the exhaust filter.
▶ Do not short-circuit the terminals.
▶ Use the specified type of batteries only.
- Do not use different battery types together.
- Do not use new and used batteries together.
- Remove the batteries if you are not using the handle.
- Safely dispose of the empty or defective batteries in an environmentally friendly manner.

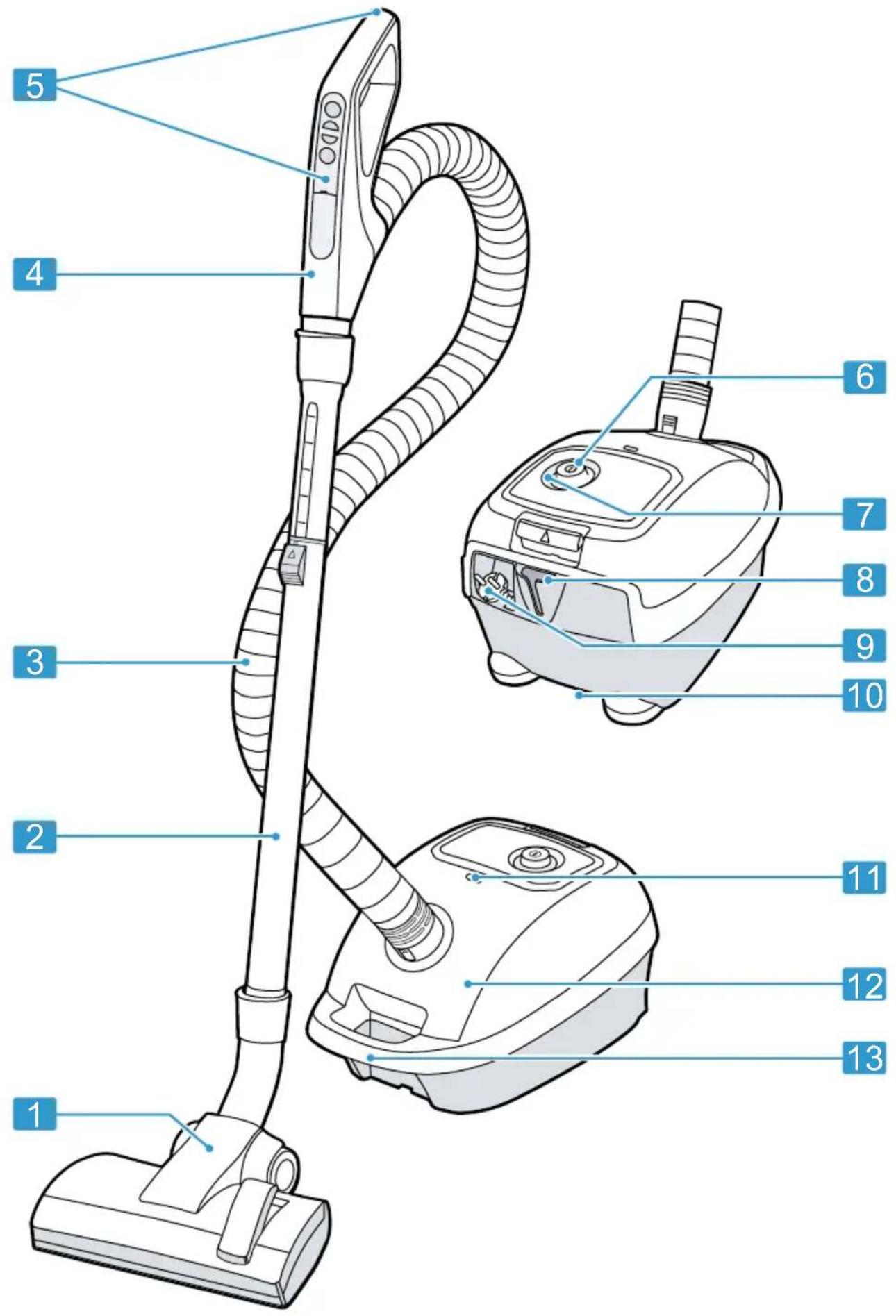

Overview

Note: Individual details and colours may differ, depending on the appliance model.

→Fig. 1

1	Adjustable floor tool ^1
2	Telescopic tube with sliding switch ^1
3	Hose
4	Remote-Power-Control handle with two AAA LR03 batteries
5	Infrared transmitter
6	On/Off switch with infrared receiver
7	Status display
8	Parking aid
9	Power cord
10	Storage aid

11 Bag change indicator
12 Lid
13 Handle

Operation

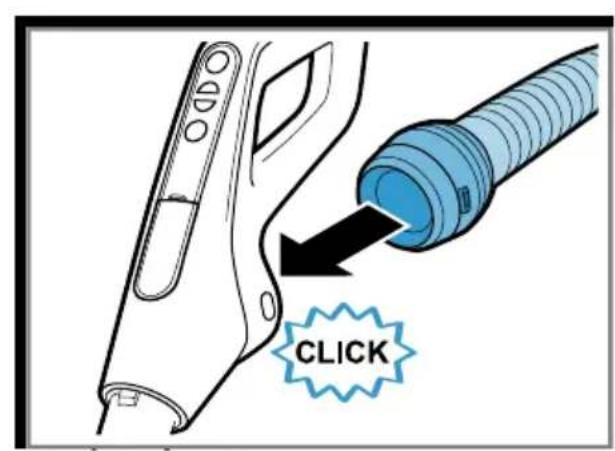

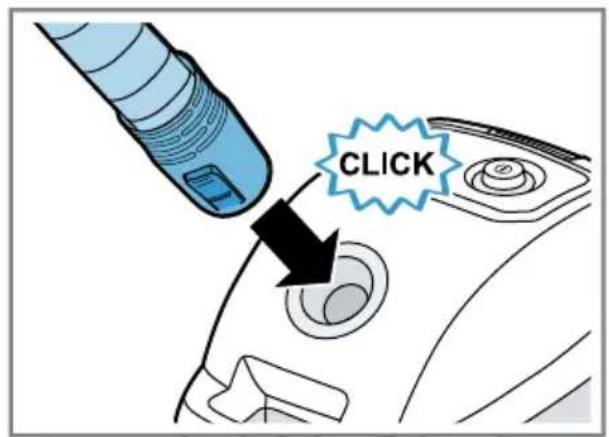

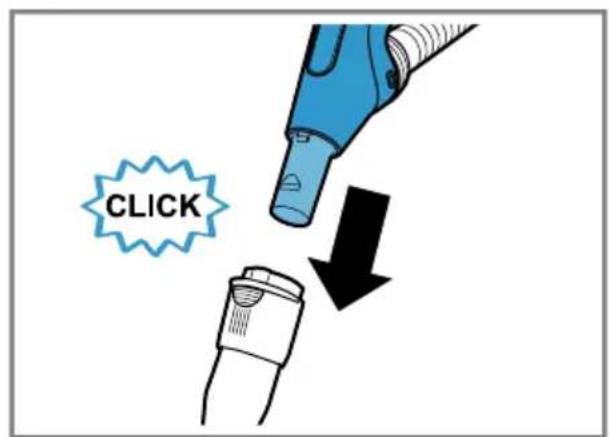

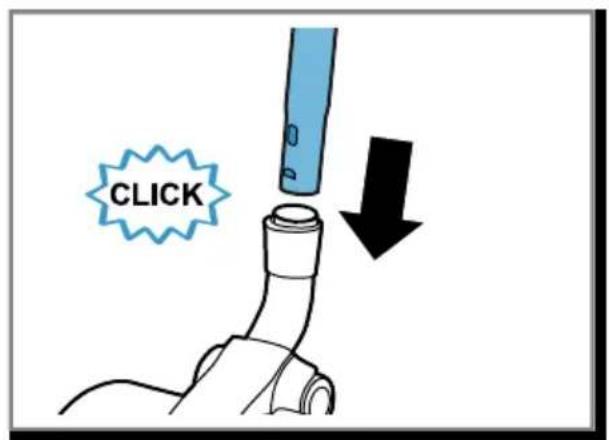

Installing the appliance

→Fig. 2 - 5

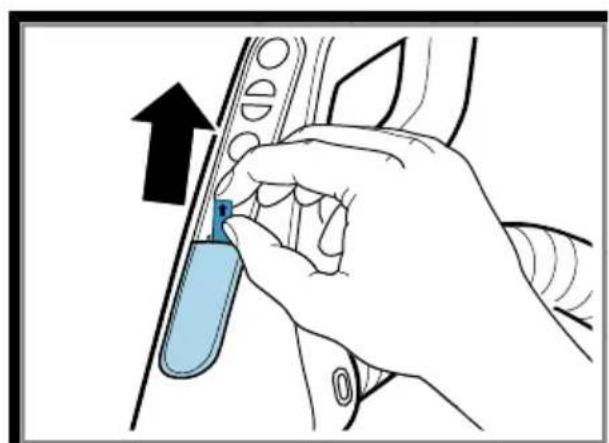

Starting up the handle ^1

→Fig. 6 - 8

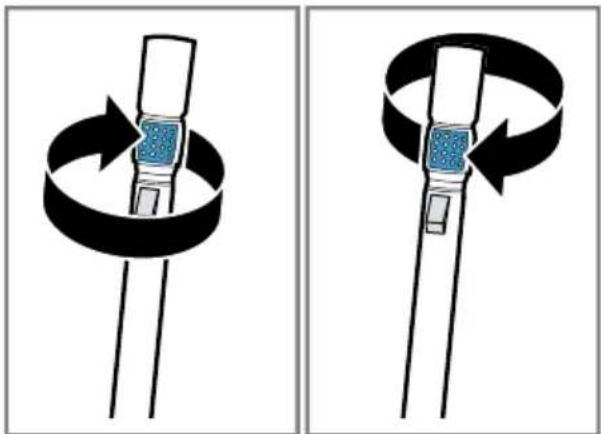

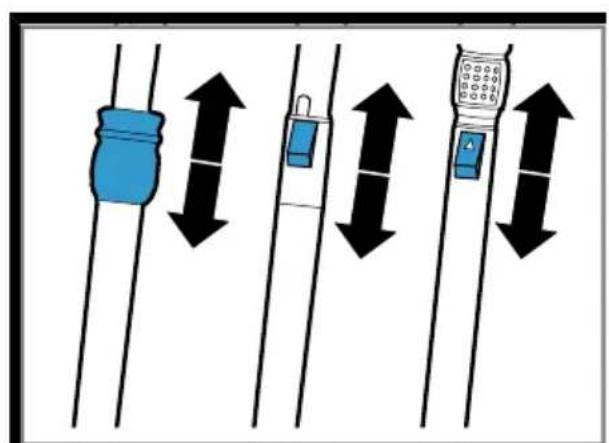

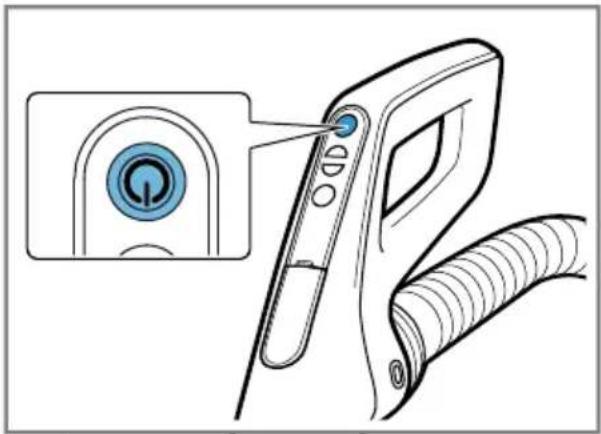

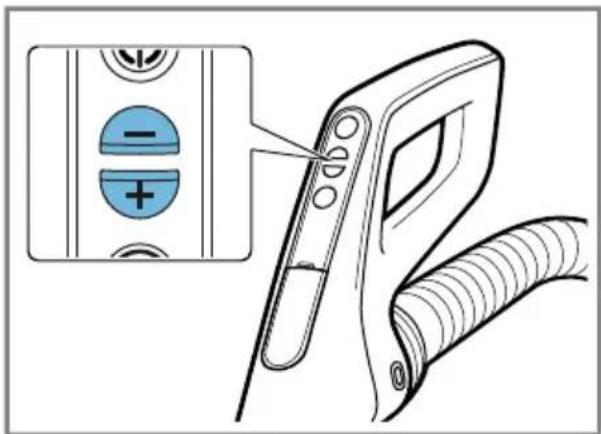

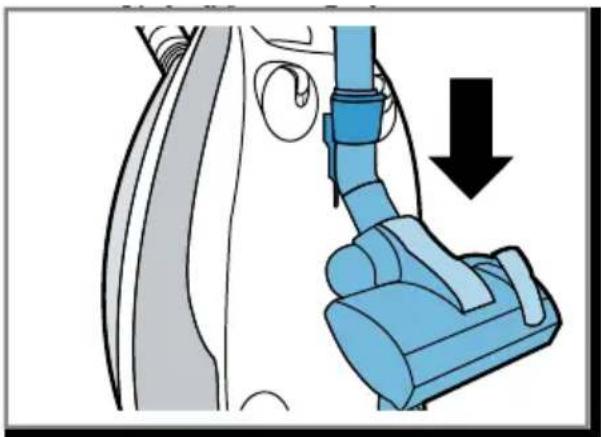

Operating the appliance ^1

→Fig. 9 - 15

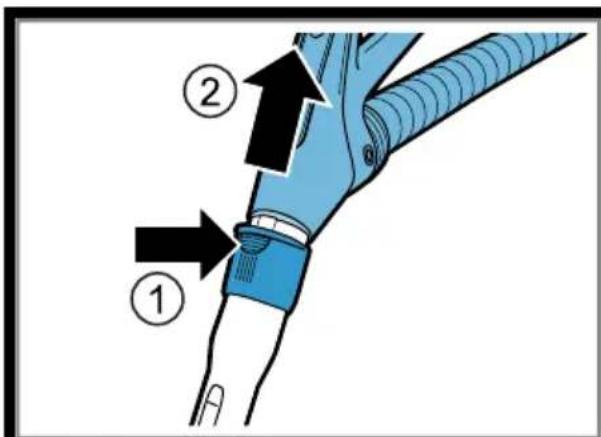

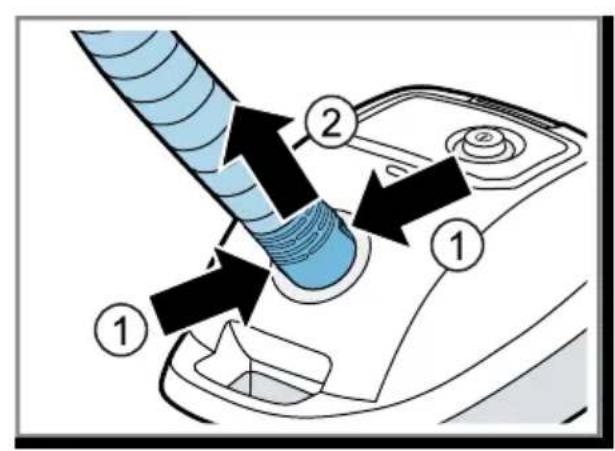

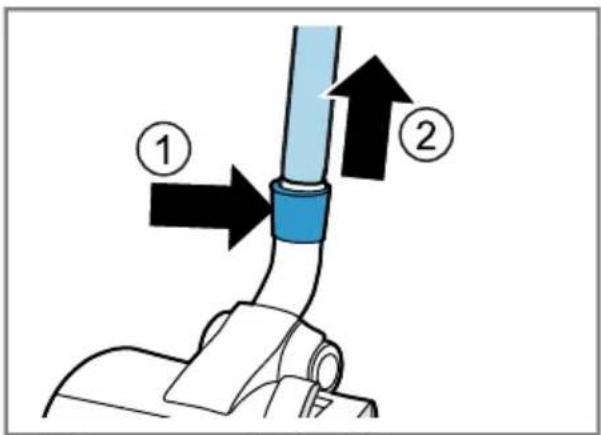

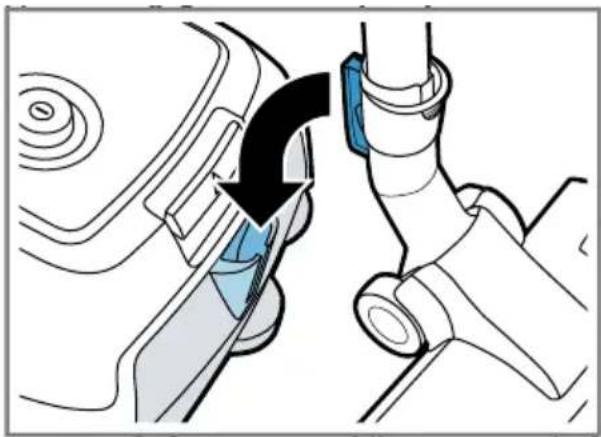

Removing the appliance

→Fig. 16 - 18

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

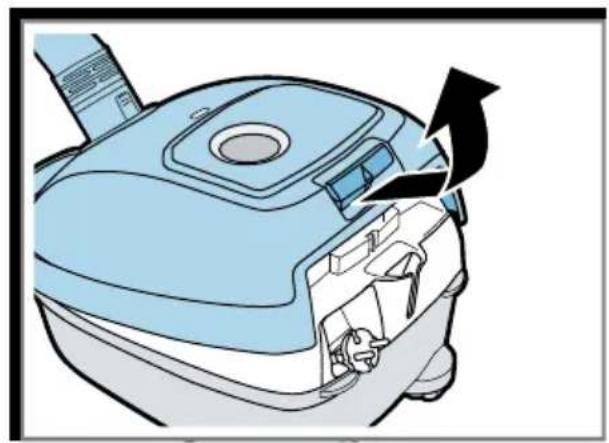

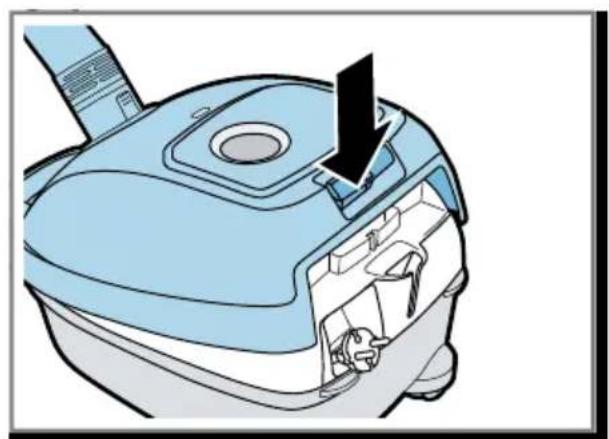

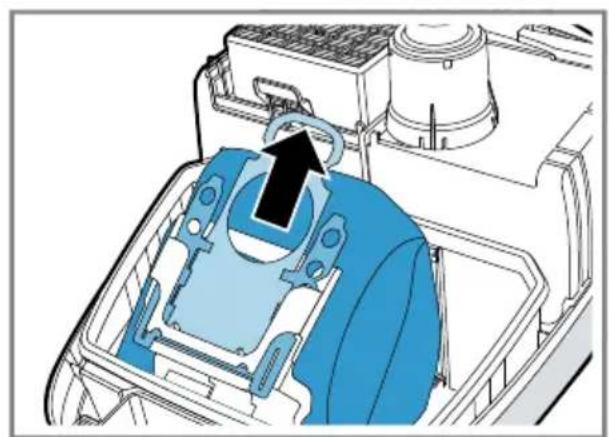

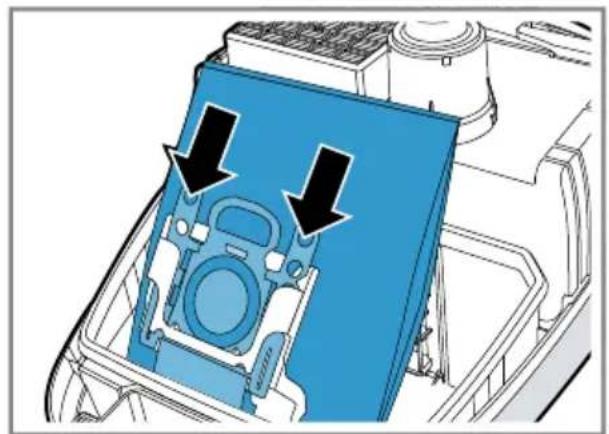

Changing the dust bag

→Fig. 19 - 22

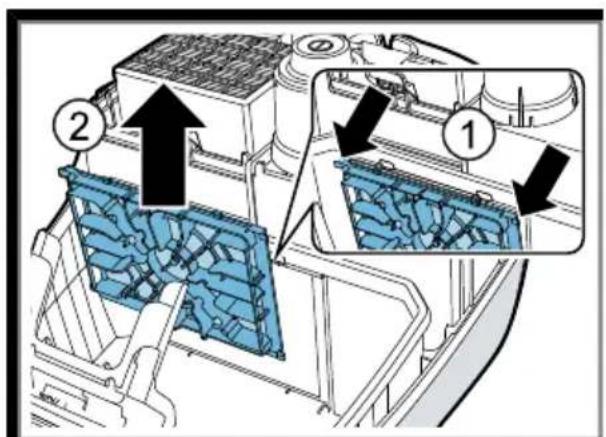

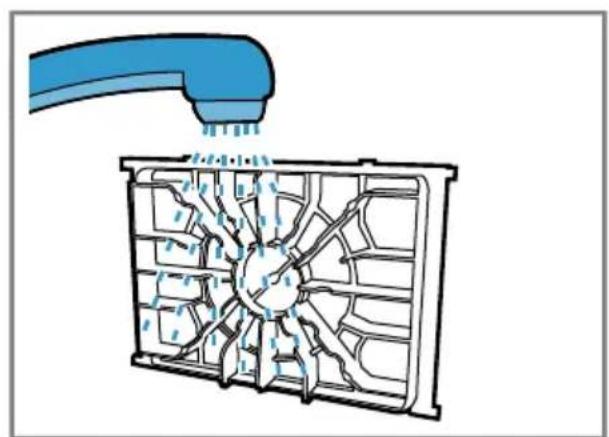

Cleaning the motor protection filter

→Fig. 23 - 25

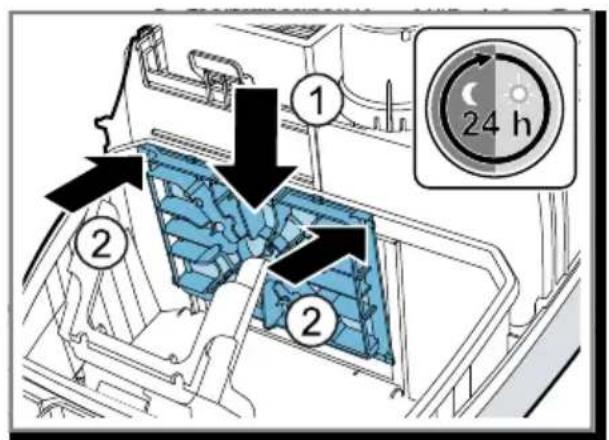

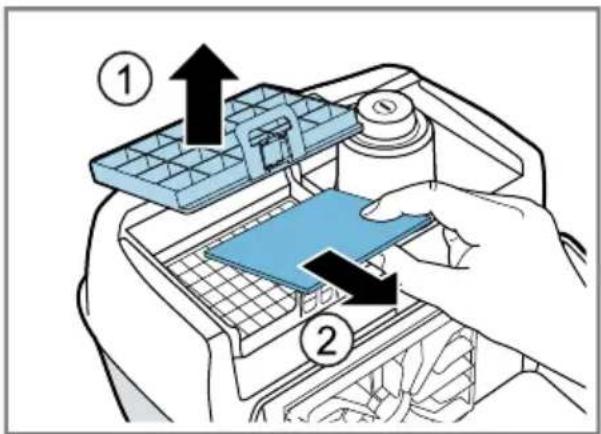

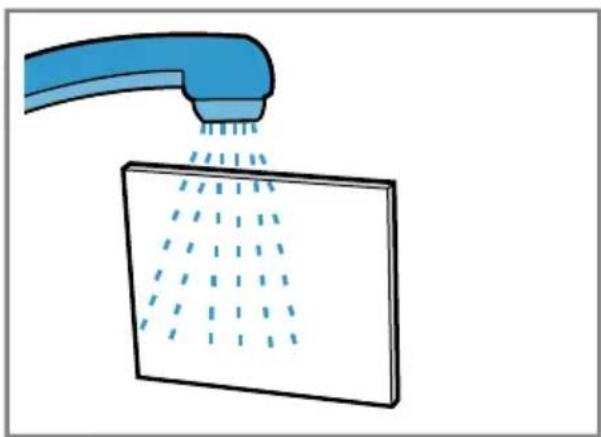

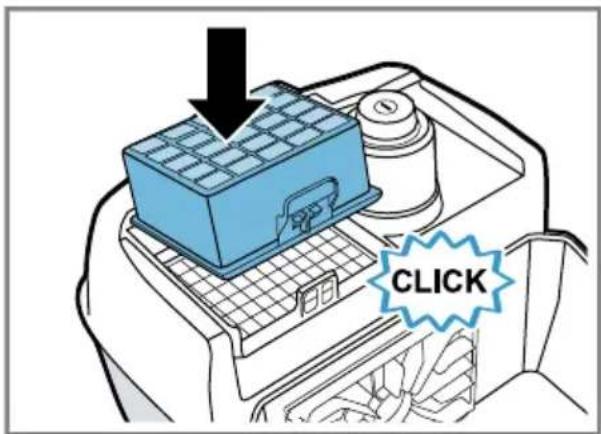

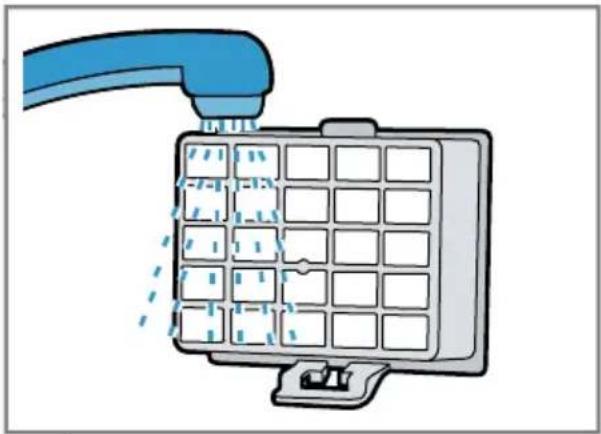

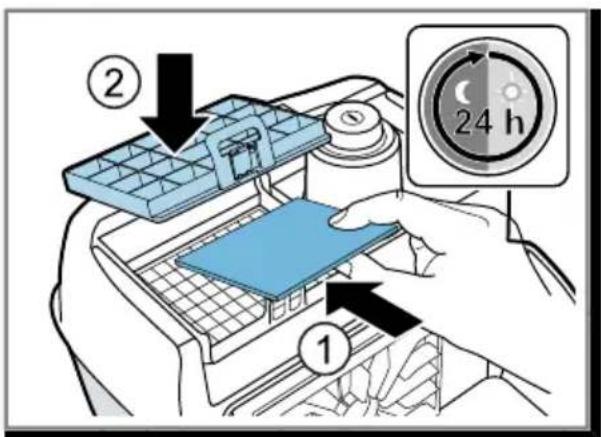

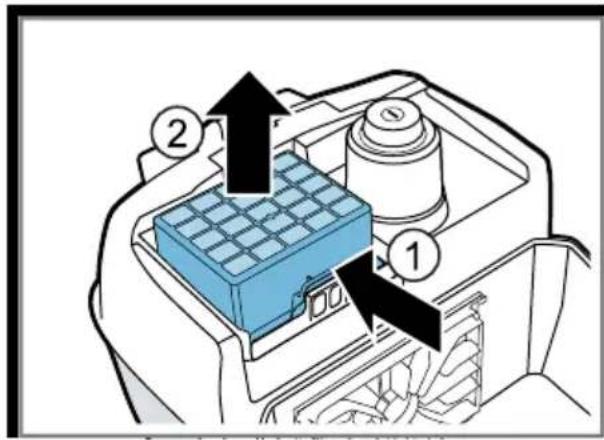

Cleaning the exhaust filter ^1

→Fig. 26 - 31

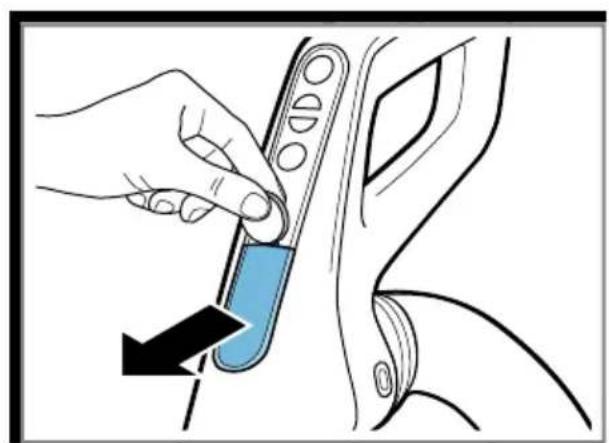

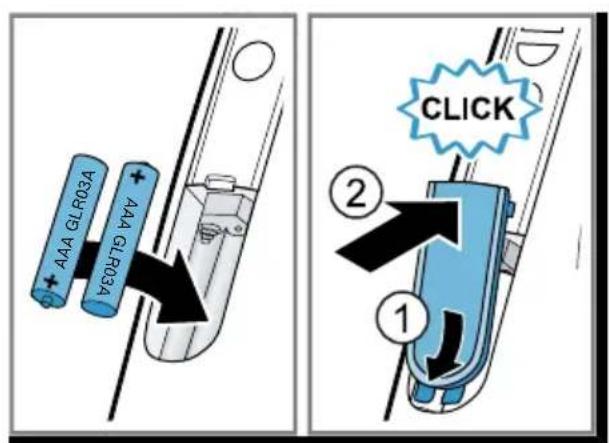

Changing the batteries

→Fig. 7 - 8

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

The appliance is not working.

The Remote-Power-Control handle is not working.

The batteries are empty.

- Change the batteries in the Remote-Power-Control handle.

Wireless connection is faulty.

The infrared transmitter on the handle and/or the infrared transmitter on the On/Off switch are/is covered.

1. Remove any foreign objects.

2. Clean the Remote-Power-Control handle and the appliance.

The communication channel is faulty.

- Establish a direct connection between the infrared transmitter and the infrared receiver.

Suction is reduced.

Nozzle, telescopic tube or hose are blocked.

1. Dismantle the appliance.

2. Remove the blockage.

Exhaust filter is dirty.

▶ Clean the exhaust filter.

The motor protection filter is dirty.

▶ Clean the motor protection filter.

Brush on the turbo nozzle does not turn.

Brush roller is soiled.

▶ Clean the brush roller.

Suction power is too low.

- Turn the power controller to maximum suction power.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

- Dispose of batteries in an environmentally friendly manner.

Customer Service

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.
