CORDLESS SCREWDRIVER WITH EXCHANGEABLE ATTACHMENTS 4V PAS D7

GB IE NI

CORDLESS SCREWDRIVER WITH EXCHANGEABLE ATTACHMENTS 4V

Operation and safety notes Translation of the original instructions

FR BE

VISSEUSE SANS FIL AVEC EMBOUTS INTERCHANGEABLES 4 V

GB/IE/NI Operation and safety notes Page 7

Technical diagram showing exploded view of electronic components with numbered parts and labeled parts

B

III PARKSIDE 15 14 6 12

C PARKSIDE a 5 b 7

D 11 10

E 9 III PARKSIDE

F 21 d c 16 21

G 20 22 16 23 PARKSI

H 17

18 PARK

J 19 III PARKS

K 19 242526

L 26 25 19 PARKSIDE

M 25 III PARKS

N 19 19 PARKS 25

Warnings and symbols used....Page 8

Introduction Page 9

Intended use....Page 9

Scope of delivery....Page 9

Description of parts ...... Page 10

Technical data Page 10

Safety instructions.... Page 11

General power tool safety warnings....Page 11

Safety guidelines for screwdrivers....Page 14

Safety guidelines for using cutting attachment....Page 14

Vibration and noise reduction ...... Page 15

Behaviour in emergency situations....Page 15

Battery charger safety warnings ...... Page 15

Residual risks Page 16

Use Page 16

Battery information.... Page 16

Changing rotary direction ...... Page 17

Changing bits and magnetic bit holder....Page 17

Front cover Page 17

Choosing an attachment Page 17

Installing attachments.... Page 17

Dismantling attachments Page 17

Torque attachment Page 18

Eccentric attachment Page 19

Angle attachment.... Page 19

Cutting attachment.... Page 19

Switching on/off Page 19

Cleaning and maintenance Page 20

Maintenance Page 20

Storage Page 20

Transportation Page 20

Disposal Page 21

Warranty Page 21

Warranty claim procedure....Page 22

Service Page 22

EU declaration of conformity....Page 23

UK declaration of conformity Page 24

Warnings and symbols usedThe following warnings are used in the user manual and on the packaging:
	DANGER! This symbol with the signal word "Danger" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.		Alternating current/voltage
			Direct current/voltage
	WARNING! This symbol with the signal word "Warning" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.		Revolutions per minute
			Protection class II
	CAUTION! This symbol with the signal word "Caution" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.		Use in dry indoor rooms only.
			Wear hearing protection!
	ATTENTION! This symbol with the signal word "Attention" indicates a possible property damage.		Wear eye protection!
	NOTE: This symbol with the signal word "Note" provides additional useful information.		Read the instruction manual.
	Risk of electric shock!
	Lithium-Ion battery		Protect the rechargeable battery from fire.
n_0	No-load speed		Protect the rechargeable battery from water and moisture.
	Protect the rechargeable battery from heat and continuous intense sunlight.	CE	CE mark indicates conformity with relevant EU directives applicable for this product.
	Safety informationInstructions for use	UKCA	UKCA mark indicates conformity with relevant Great Britain regulations applicable for this product.(The UKCA mark logo is valid in Great Britain only.)
	Producer

CORDLESS SCREWDRIVER WITH EXCHANGEABLE

ATTACHMENTS 4V

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

☐ This cordless screwdriver with exchangeable attachments (hereinafter "product" or "power tool") is designed for screwing in and out screws.
☐ The cutting attachment 19 is designed only for cutting soft materials. Examples:

• Corrugated paper (max. thickness: 5 mm)
• Drapery
• Leather (max. thickness: 3 mm)

□ Always use the correct accessory tools (attachments and bits) according to the intended use! Observe the technical requirements of this product (see "Technical data") when purchasing and using accessory tools!

☐ The LED work light 8 on this product is intended to illuminate the immediate work area.

☐ Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial or similar uses.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Cordless screwdriver
1 USB cable
4 Attachments
26 Screw bits x 25 mm:

5 Slotted bits: SL3, SL4, SL5, SL6, SL7

7 Pozidriv bits: PZO, PZ1 (x2), PZ2 (x2), PZ3 (x2)
7 Phillips bits: PHO, PH1 (x2), PH2 (x2), PH3 (x2)
4 Torx bits: T10, T15, T20, T25
3 Hexagonal bits: H3, H4, H5

2 Screw bits x 50 mm:

1 Slotted bit: SL5

1 Pozidriv bit: PZ2

1 Magnetic bit

holder x 60 mm

1 Carrying case
1 User manual

● Description of parts

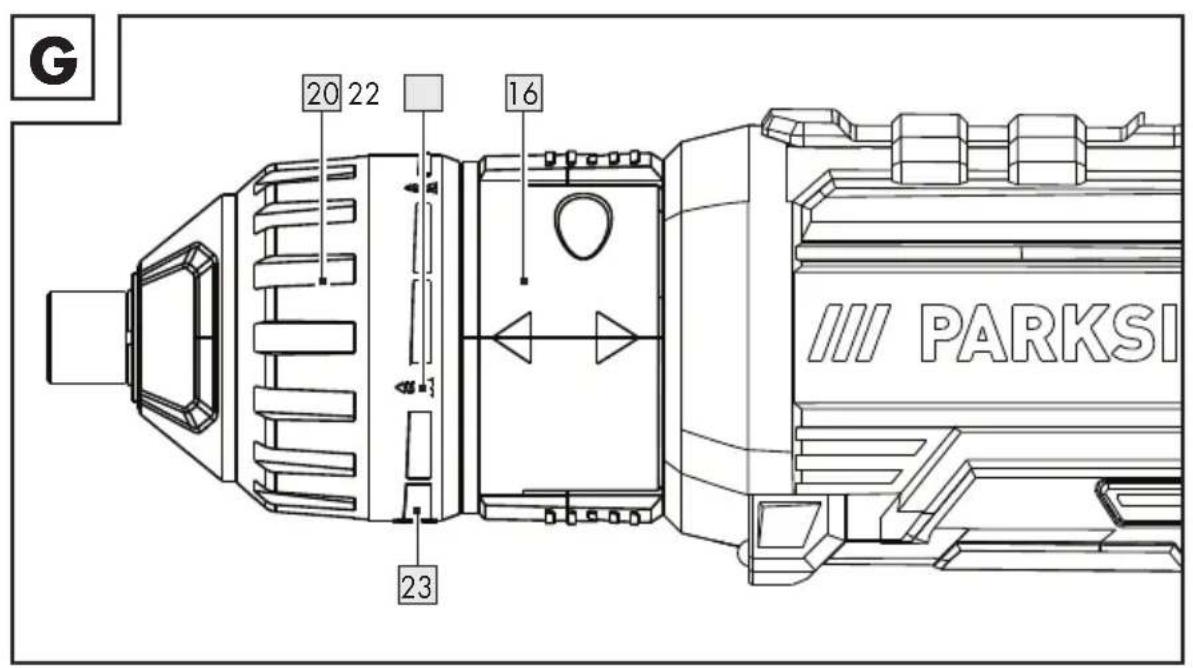

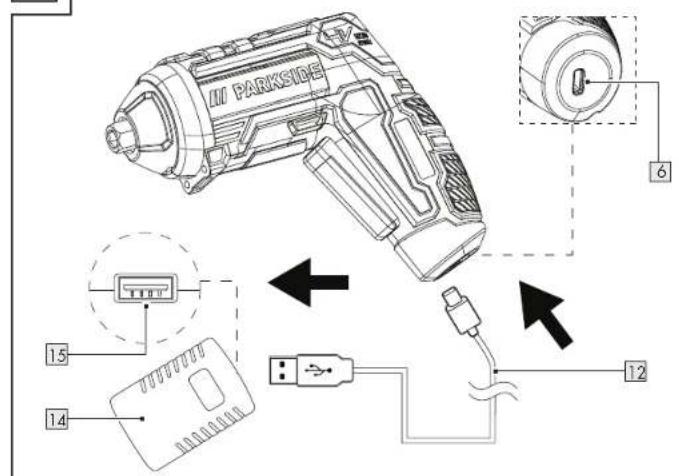

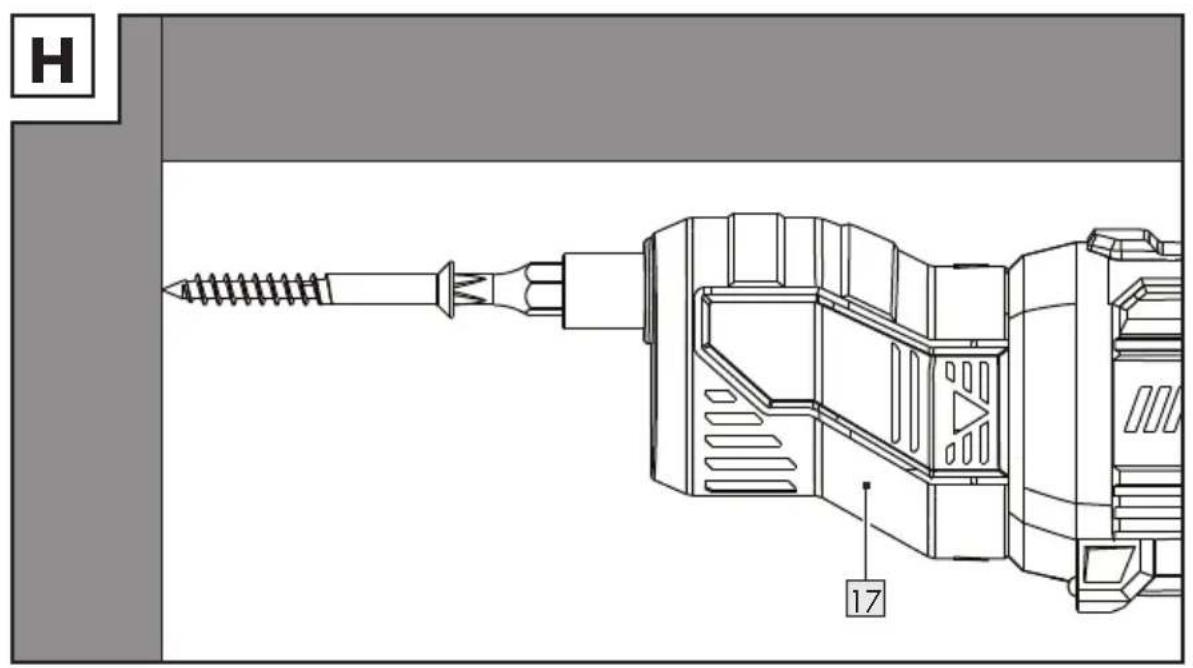

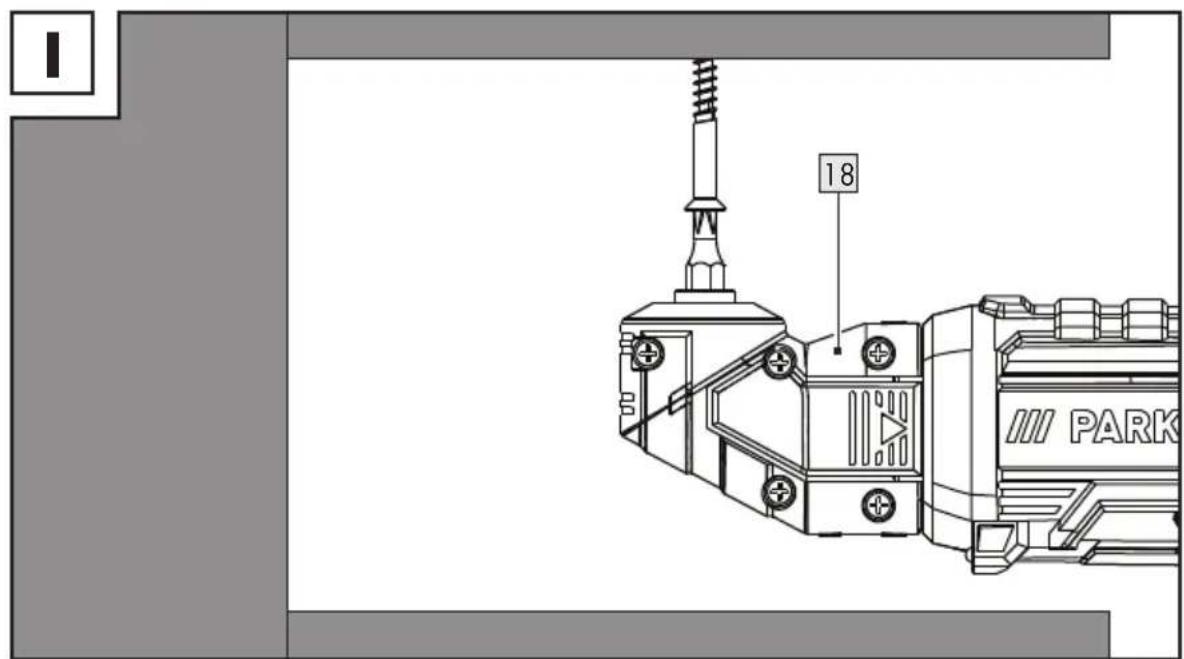

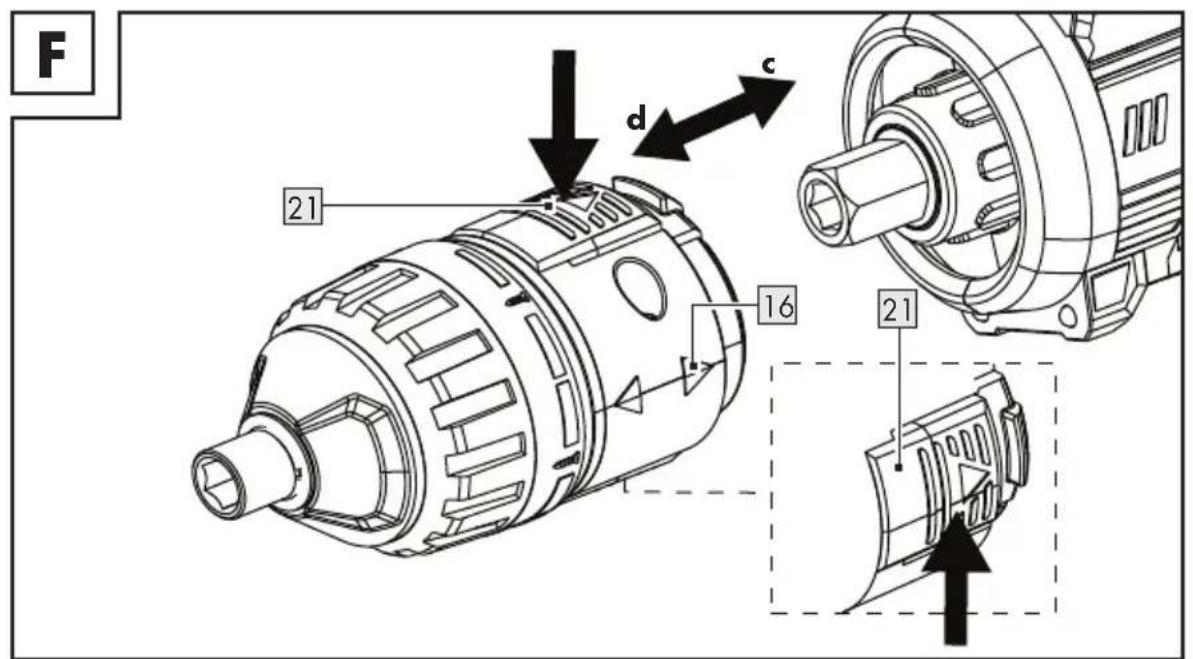

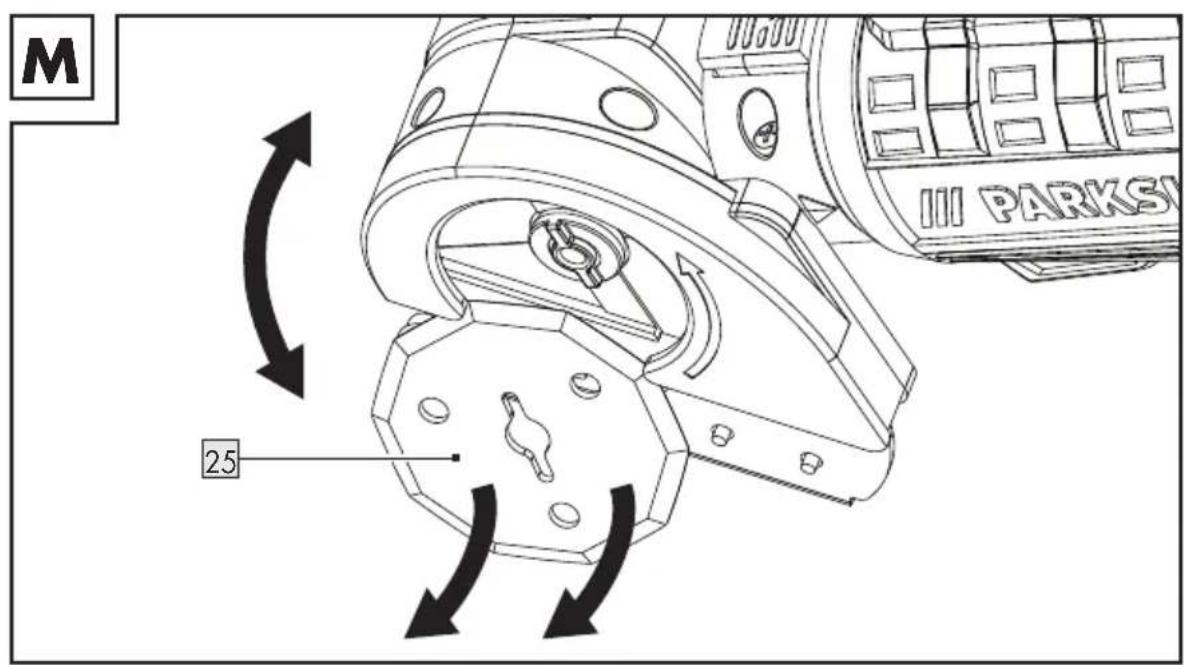

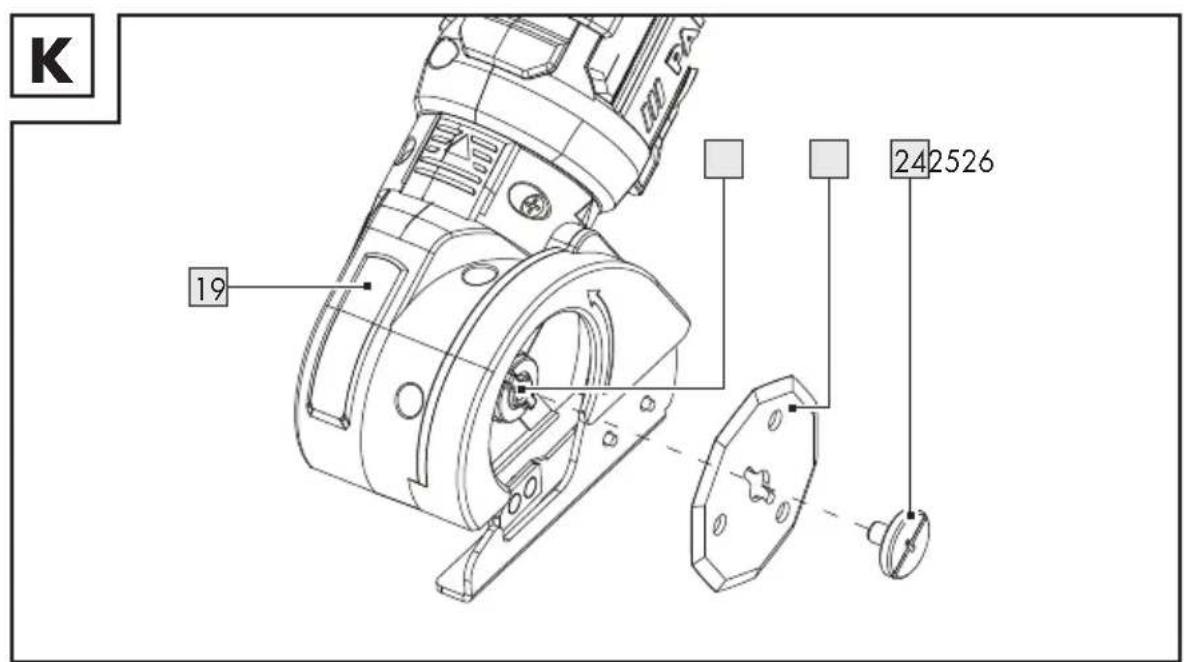

(Fig. A.1, A.2, F, G, K)

1	Bit holder
2	Direction indicator (lighten screws)
3	Battery status LED
4	Direction indicator (bosen screws)

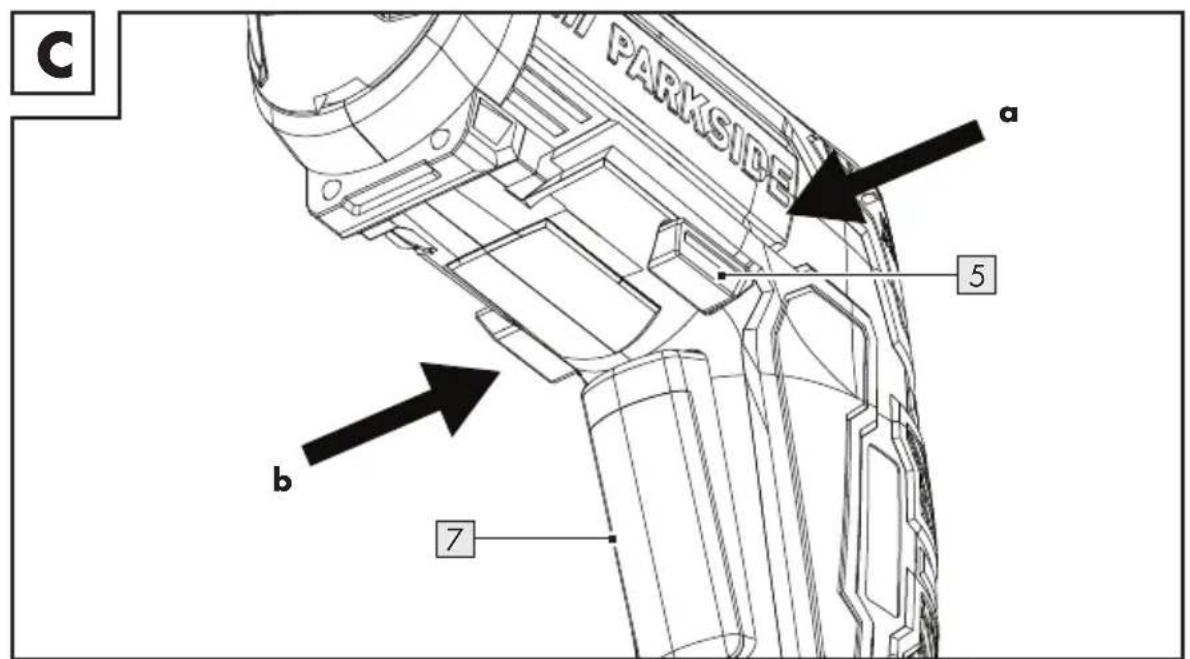

5	Rotation direction switch
6	USB Type C socket
7	Switch trigger
8	LED work light

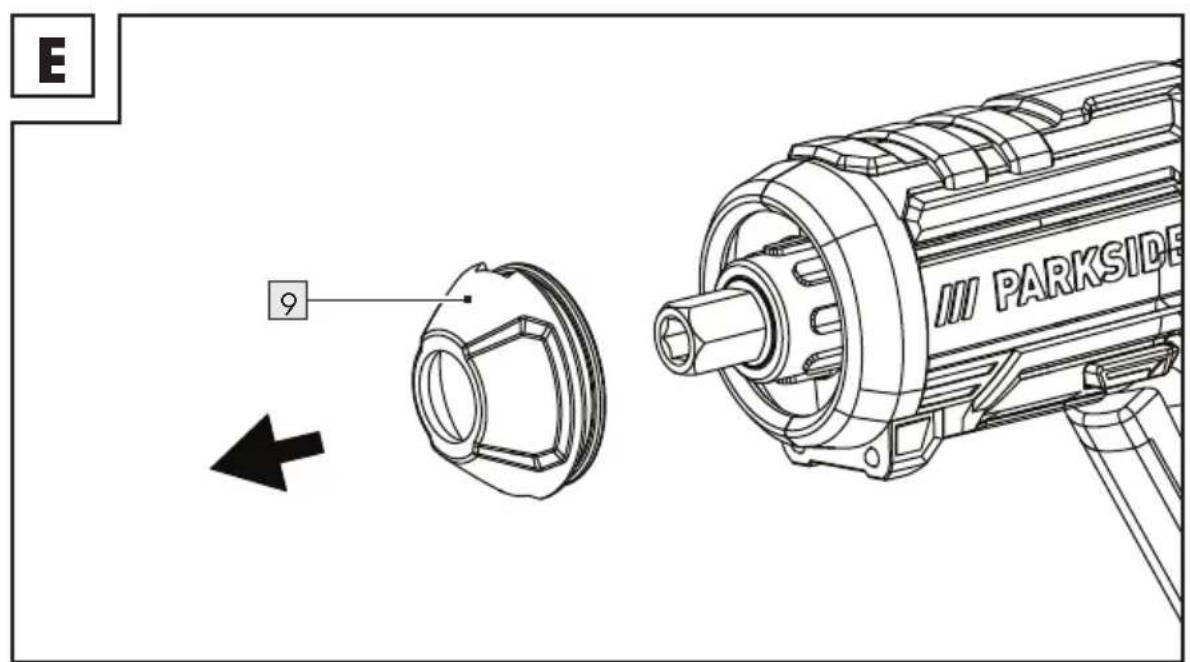

9	Front cover

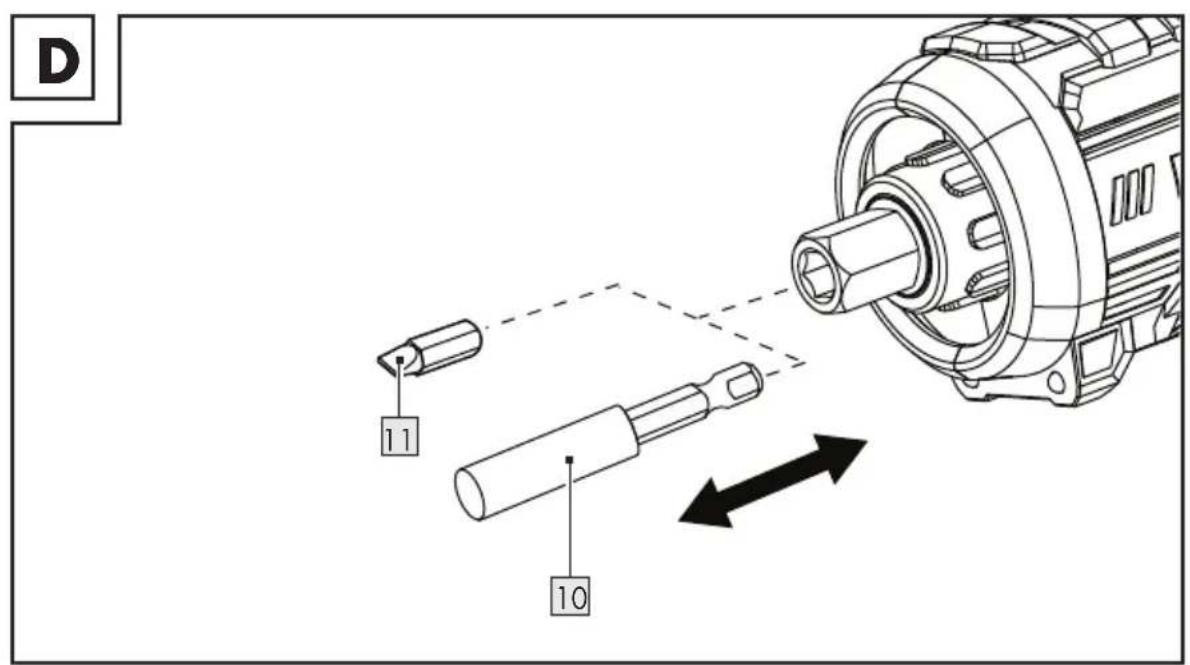

10	Magnetic bit holder
11	Screw bits
12	USB cable
13	User manual
14	Charger*
15	USB port (Type A)

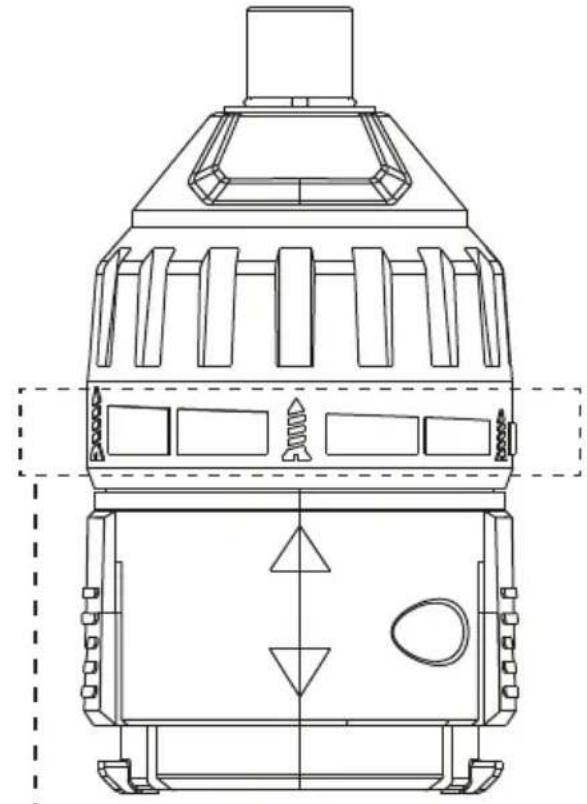

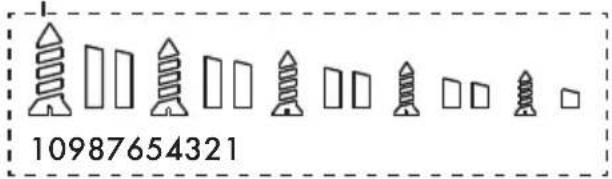

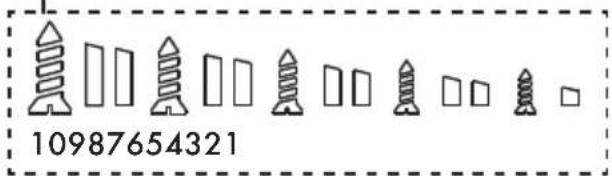

16	Torque attachment
17	Eccentric attachment
18	Angle attachment

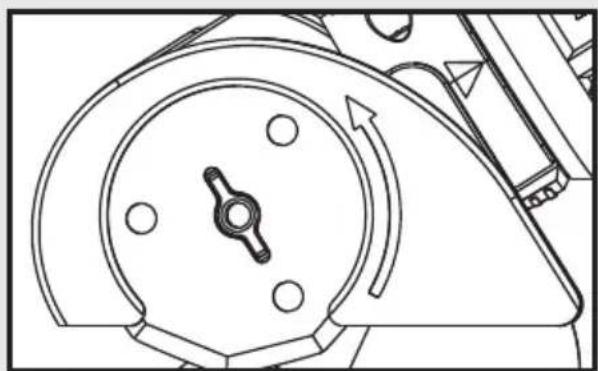

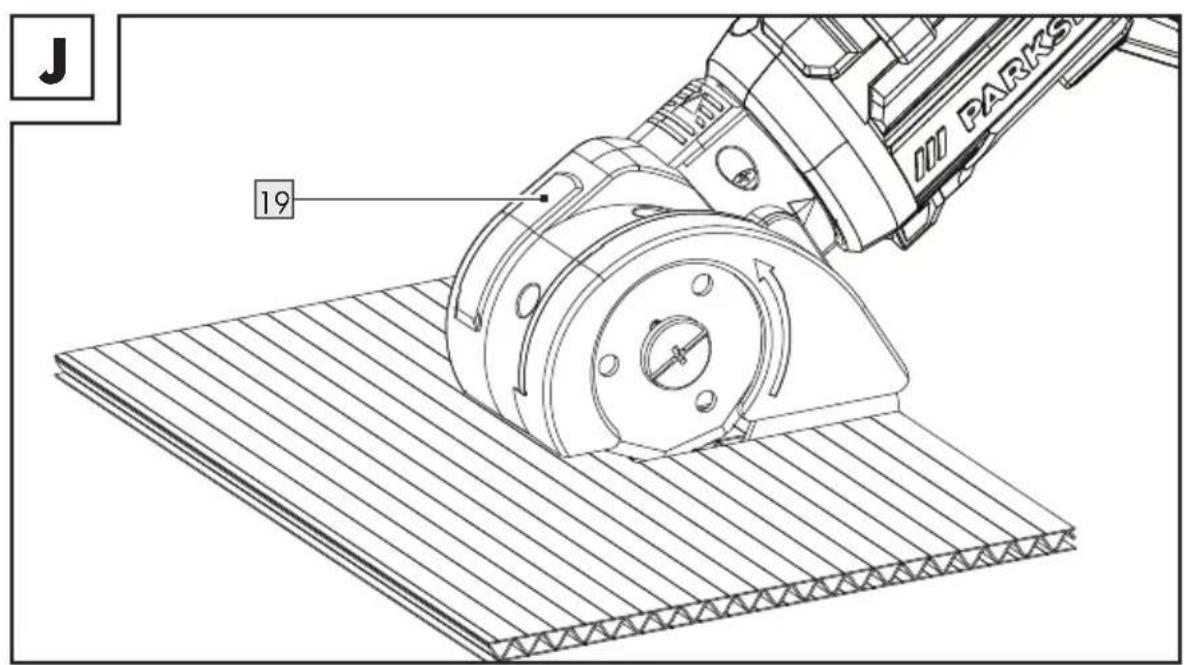

19	Cutting attachment
20	Torque adjustment collet
21	Lock button
22	Screw icon
23	White colour bar
24	Screw

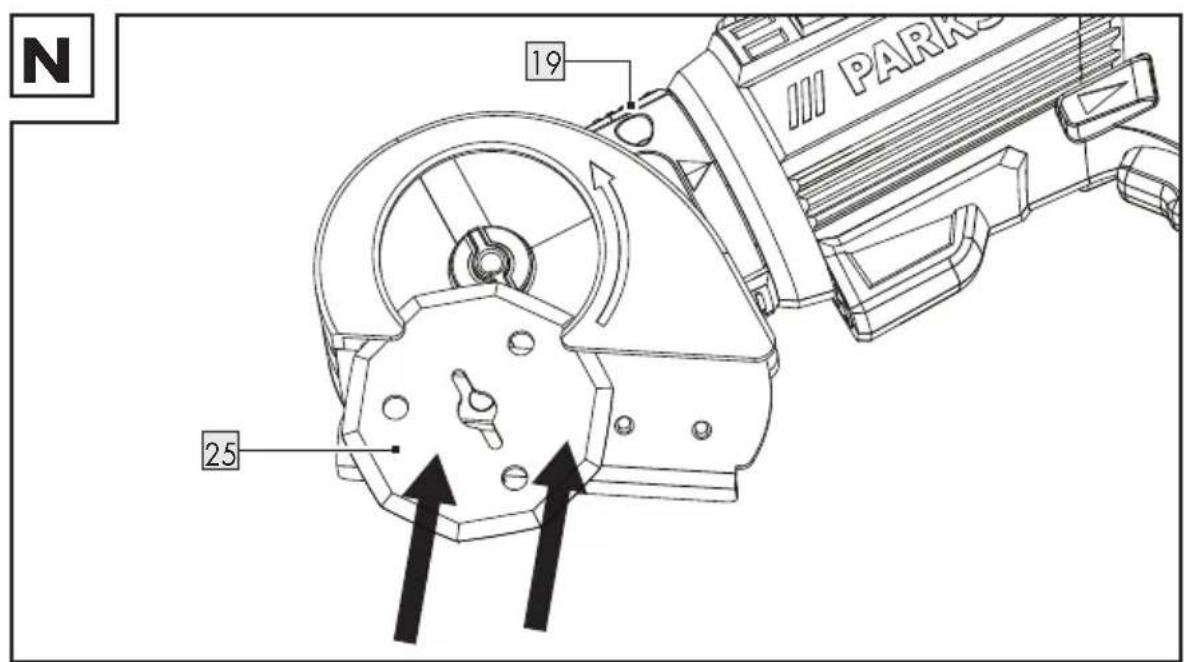

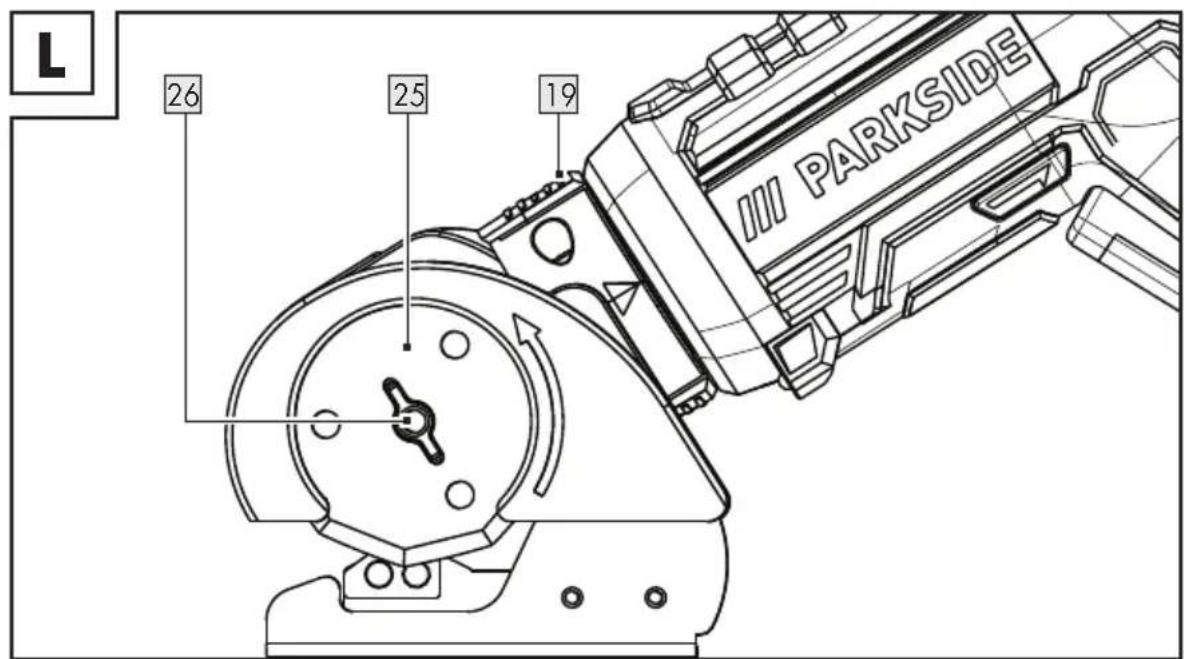

25	Cutting blade
26	Spindle
27	Carrying case (not illustrated)

* Charger is not included. Customers can obtain this charger via www.optimex-shop.com

- Technical data

Cordless screwdriver

Model: HG10759
Rated voltage: 4 V	===(direct current)
Rechargeable battery (built-in): Lithium-Ion
Number of cells: 1
Capacity:	1.5 Ah
No-load speed:	n_0 = 200 min^-1
Torque, hard screwing per ISO 5393:	Max. 10 N m
Bit holder:	6.35 mm (1/4")
Saw blade:	∅ 43 mm

Use only the following charger* to charge the cordless tool:

Information	Value
Manufacturer's name or trade mark, commercial registration number and address:	OWIM GmbH & Co. KGHRA 721742Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY
Model identifier: HG068	25(with VDE plug)HG06825-BS(with BS plug)
Input voltage:	100-240 V~
Input AC frequency:	50/60 Hz
Output voltage:	5.0 V ---
Output current: 1.7 A
Output power:	8.5 W
Average active efficiency:	78.2 %
No-load power consumption:	0.07 W
Input current:	0.3 A
Protection class:	II/☐ (double insulation)
Connection type:	USB Type A
Charging time:	approx. 60 min

* Charger is not included. Customers can obtain this charger via www.optimex-shop.com

Recommended ambient temperature

While charging: +4 to +40 °C

During operation: 0 to +40 °C

During storage: 0 to +50 °C

Noise emission value

The measured values have been determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level:	L_pA	=	60.37 dB(A)
Sound power level: L	WA	=	71.37 dB(A)
Uncertainty K: K	_pA/WA	=	3 dB

Vibration emission value

Vibration total values (triaxial vector sum) determined according to EN 62841:

Screw driving

Vibration emissionvalue a_h :	= <	2.5 m/s ^2 (0.215 m/s ^2 )
Uncertainty K: = 1.5 m/s		^2

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed. Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack for tool that is damaged or modified.

Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive

temperature. Exposure to fire or temperature above 130 °C may cause explosion.

g) Follow all charging instruction and do not charge the battery pack or tool outside the temperature range specified in the instruction.

Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.

CAUTION! RISK OF EXPLOSION!

Never charge non-rechargeable batteries!

Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture.

There is a risk of explosion.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery

packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.

● Safety guidelines for screwdrivers

a) Hold the power tool by the insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

b) Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand.

c) Hold the power tool firmly. High reaction moments can occur for brief periods while lightening and loosening screws.

d) Switch the power off immediately if the tool blocks while in use. Be prepared for high reaction moments as these can cause kickback.

e) While working on the appliance, transporting it or storing it, always set the rotation direction switch to the central position (lock position). This prevents the power tool from starting up unintentionally.

● Safety guidelines for using cutting attachment

- Keep your hands clear of the cutting area and the cutting blade.

Before carrying out any work on the appliance, ensure that the rotation direction switch is in the middle. This prevents unintentional switching on.

Do not cut unless the blade guard is fully functional. Defective blade guards will not protect you against unintentional contact with the cutting blade.

Before each use, check whether the blade guard is in perfect condition and that the cutting blade is firmly fitted.

■ Always use cutting blades of the correct size and with an appropriate central fixing bore.

● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
- Ensure that the product is in good condition and well maintained.
- Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

● Battery charger safety warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Do not charge non-rechargeable batteries. Disregarding this instruction is hazardous.

■ Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock.

Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

The appliance is suitable for indoor use only.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

Use

Battery information

☐ The built-in battery is supplied partially charged. Li-Ion batteries can be charged at any time without adversely affecting their service life. Interruption of the charging process will not damage the battery.
☐ If the battery status LED 3 lights up red during use, the battery is at less than 30 % of its capacity and needs to be charged.

☐ Never charge the product when the ambient temperature is below +4 °C or above +40 °C. The storage climate should be cool and dry and the ambient temperature should be between 0 °C and +50 °C.
☐ This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.

Start charging

(Fig. B)

☐ Connect the USB cable 12 to the USB port (Type A) 15 of the charger 14.
☐ Connect the other end of the USB cable 12 to the USB Type C socket 6.
□ Connect the charger 14 to a socket-outlet.
☐ The battery status LED 3 shows the charging status:

Battery statusLED 3	Charging status
Red Charging
Green Battery is charged up

NOTE: It is normal for the handle to warm up slightly whilst charging.

Stop charging

☐ Disconnect the USB cable 12 from the product.
☐ Disconnect the charger 14 from the socket-outlet.

● Changing rotary direction

☐ Push through the rotation direction switch 5 to set the rotary direction (Fig. C):

Switch pushed from	Direction	Direction indicator
Right (b)	Tighten screws	2
Left (a)	Loosen screws	4

Angle attachment 18 Fig. I
Use	Tighten and loosen screws at an angle of 90°

Cutting attachment 19 Fig. J
Use	Cutting soft materialsExamples:Corrugated paper(max. thickness: 5 mm)DraperyLeather (max. thickness: 3 mm)

● Changing bits and magnetic bit holder

☐ Pull out the bit 11. Insert another type of bit into the bit holder 1 or the magnetic bit holder 10 (Fig. D).
NOTE: Screw bits are labelled according to their dimensions and their shape. If you are unsure, always try the particular screw bit out to see whether it sits in the screw head without any free play.

Front cover

The front cover 9 can be removed for attaching other attachments (Fig. E).

- Choosing an attachment

Torque attachment 16 Fig. F

Use Low torque:☐ Small screws☐ Screwing into soft materials

Eccentric attachment 17 Fig. H
Use	Tighten and loosen screws that are close to the ceiling or an adjacent wall

- Installing attachments

Align the attachment (e.g. torque attachment 16) with the bit holder 1. Push the attachment in direction c till completely engaged to the product. When you hear a click sound, the attachment is properly installed (Fig. F).

- Dismantling attachments

Press down the lock buttons 21, then pull the attachment out of the product in direction d (Fig. F).

i NOTES:

☐ The following attachments can be installed and dismantled in the same way as mentioned above:

• Eccentric attachment 17
• Angle attachment 18
• Cutting attachment 19

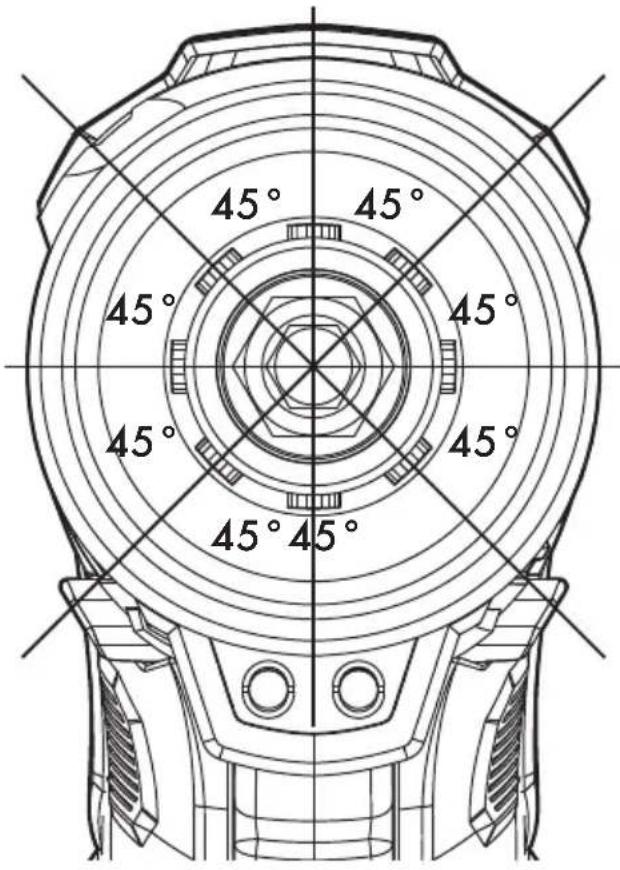

☐ Attachments can be installed to the product in steps of 45^ .

45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45° 45°

- Torque attachment

☐ You can set the torque level when using the torque attachment 16.
☐ Set the torque level with the torque adjustment collet 20. The torque level setting is indicated by the triangular mark on the torque attachment 16.
☐ The screwing operation will stop automatically when the screw is tightened according to the set torque level (Fig. G).

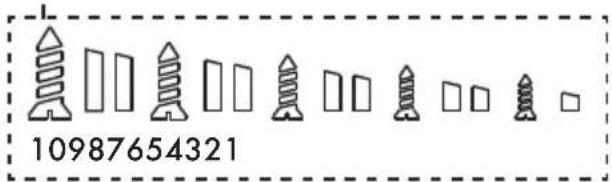

☐ The marking on the torque adjustment collet 20 indicates the 10 available torque levels. The length of the screw icons 22 and the width of the white colour bar 23 represent the following torque:

Technical line drawing of a mechanical device with no visible text or symbols

10987654321

Level Torque	(N m)
1 0.44
2 0.48
3 0.53
4 0.60
5 0.65
6 0.70
7 0.78
8 1.20
9 2.30
10 3.40

☐ Listed driving torque value is measured by static load test method. This is the maximum torque to drive the screw into wood corresponding to level 1-10.

NOTE: These are approximate values for reference only. Do not rely only on this data when high accuracy is required.

Eccentric attachment

(Fig. H)

Use the eccentric attachment 17 for tightening and loosening screws that are close to the ceiling or an adjacent wall.

Angle attachment

(Fig. I)

Use the angle attachment 18 for tightening and loosening screws at an angle of 90°.

Cutting attachment

(Fig. J)

The cutting attachment 19 is designed only for cutting soft materials. Examples:

- Corrugated paper (max. thickness: 5 mm)

- Drapery

- Leather (max. thickness: 3 mm)

CAUTION!

Technical line drawing of a mechanical component with no visible text or symbols

An arrow symbol is marked on the blade guard to indicate the saw blade's rotational direction. Cutting operation can only be processed by setting the saw blade to this rotational direction. Make sure the rotation direction switch rotation 5 is completely pushed down from direction b before you start cutting (Fig. C).

Replacing the cutting blade

(Fig. K)

CAUTION! When the saw blade 25 is to be removed from or inserted to the blade guard, do not touch the sharp cutting edge. To avoid injury, wearing suitable protective gloves is required.

☐ Install the cutting attachment 19 to the product.

This prevents the spindle 26 from rotating and allows the screw 24 to be removed.

☐ Loosen the screw 24 in a counter-clockwise direction by using a PH2 or SL6 screwdriver (not included).

☐ Remove the screw 24 from the spindle 26.

☐ Hold the product in an upright position.

Swing it gently and allow the cutting blade 25 to slide out slowly from the blade guard (Fig. M).

☐ Insert a new cutting blade 25 into the cutting attachment 19 (Fig. N).

☐ Ensure the cutting blade 25 is sitting tight in the slot of the spindle 26 (Fig. L).

☐ Tighten the screw 24 in a clockwise direction.

☐ The attachment is ready for use again.

NOTE: Replacement cutting blades 25 are available from OWIM.

- Switching on/off

Switching on/off Action
On Press the switch	trigger7and hold it in place.The LED work light8lights up.
Off Release the switch	trigger7.The LED work light8goes off.

NOTE: You can use the LED work light 8 even when the product is not in use. Set the rotation direction switch 5 to the middle position. Switch the LED work light on/off according to above description.

● Cleaning and maintenance

☐ Before cleaning or carrying out any maintenance:

• Set the rotation direction switch 5 to the middle position. This prevents unintentional switching on.
• Remove the USB cable 12.
• Remove the bit 11, the magnetic bit holder 10 or any of the attachments 16 17 18 19.
• Disconnect the charger 14 from the socket-outlet.

□ Never allow fluids to get into the product.
☐ The product must always be kept clean, dry and free from oil or grease.
Remove debris from it after each use and before storage.
☐ Regular and proper cleaning will help ensure safe use and prolong the life of the product.
□ Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.
☐ In particular clean the air vents after every use with a cloth and soft brush.
☐ The vents must always be clear.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Maintenance

Before and after each use: Check the product and the following accessories for wear and damage:

• 10 Magnetic bit holder
• |11| Screw bits
• 16 Torque attachment
• 17 Eccentric attachment
• 18 Angle attachment
• 19 Cutting attachment

If required, exchange the accessories for new ones:

• see "Changing bits and magnetic bit holder"
• see "Replacing the cutting blade"

Observe the technical requirements of the accessories (see "Technical data").

Storage

☐ Set the rotation direction switch 5 to the middle position. This prevents unintentional switching on.
☐ Store the product in a dry indoor location protected from direct sunlight.
☐ Store the product in its carrying case 27.

- Transportation

☐ This product contains a Li-Ion rechargeable battery and is therefore subject to hazardous materials regulation. Users may transport the product with built-in rechargeable battery on roads or by sea without special requirements.
☐ The packaging and marking is subject to special requirements when it is transported by third parties (e.g. airline, courier, carrier). A hazardous materials expert must be consulted when transported by third parties.
NOTE: The integrated Lithium-Ion battery may only be removed by trained or qualified personnel.

To remove the battery from the housing, the battery must be empty and the screws unscrewed from the housing. The connections on the battery must be individually disconnected and isolated.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 435309_2304) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

NI Service Northern Ireland

Tel.: [phone]

E-Mail: [e-mail]

● EU declaration of conformity

EU DECLARATION OF CONFORMITY

IAN: 435309_2304

Product identification: "Parkside" CORDLESS SCREWDRIVER WITH EXCHANGEABLE ATTACHMENTS

Model Number: HG10759

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EC

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-2:2014

EN ISO 12100:2010

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN 55014-2:1997/A2:2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN 61000-3-2:2014

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm 21.08.2023 Place Date ppa. Dr. Thorsten Maier Authorised Signatory ppa.Budmai ppa.Jeens Duchheim Authorised Signatory

EN

CE

● UK declaration of conformity

UK DECLARATION OF CONFORMITY

IAN: 435309_2304

"Parkside" CORDLESS SCREWDRIVER WITH EXCHANGEABLE ATTACHMENTS

Product identification:

Model Number: HG10759

The object of the declaration described above is in conformity with the relevant statutory requirements:

Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

References to the relevant designated standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Supply of Machinery (Safety) Regulations 2008

EN 62841-1:2015

EN 62841-2-2:2014

EN ISO 12100:2010

Electromagnetic Compatibility Regulations 2016

EN 55014-1:2017/A11:2020

EN 55014-2:1997/A2:2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN 61000-3-2:2014

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

The object of the declaration described above is in conformity with "The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012":

N° / Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Original declaration of conformity

Neckarsulm 02.08.2023

Place

Date

ppa.Stefan Haensel

Authorised Signatory

Authorised Signatory

UK

Technical line drawing of a mechanical device with no visible text or symbols

10987654321

Niveau Couple (N m)
1 0,44
2 0,48
3 0,53
4 0,60
5 0,65
6 0,70
7 0,78
8 1,20
9 2,30
10 3,40

Technical line drawing of a mechanical component with no visible text or symbols

DÉCLARATION DE CONFORMITÉ UE

IAN: 435309_2304

Identification du produit : "Parkside" VISSEUSE SANS FIL AVEC EMBOUTS INTERCHANGEABLES

Technical line drawing of a mechanical device with no visible text or symbols

Row of identical rocket-shaped diagrams with no text or symbols

10987654321

Stand Koppel (N m)
1 0,44
2 0,48
3 0,53
4 0,60
5 0,65
6 0,70
7 0,78
8 1,20
9 2,30
10 3,40

Technical line drawing of a mechanical component with no visible text or symbols

4 Torx-Bits: T10, T15, T20, T25

Technical line drawing of a mechanical device with no visible text or symbols

10987654321

Stufe Drehmoment (N m)
1 0,44
2 0,48
3 0,53
4 0,60
5 0,65
6 0,70
7 0,78
8 1,20
9 2,30
10 3,40

Technical line drawing of a mechanical component with no visible text or symbols

Authorised Signatory

ppa.Budlai

ppa.Jeys Buchheim

Authorised Signatory

DE

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG10759

Version: 11/2023

IAN 435309_2304
