USER MANUAL SS-8390 Sogo

Black cylindrical device with textured surface and colorful ambient lighting (no visible text or symbols)

SS-8385

SS-8390

ALTAVOZ PORTÁTIL BLUETOOTH PORTABLE BLUETOOTH SPEAKER HAUT-PARLEUR PORTABLE BLUETOOTH ALTO-FALANTE PORTÁTIL BLUETOOTH TRAGBARER BLUETOOTH-LAUTSPRECHER ALTOPARLANTE PORTATILE BLUETOOTH

ref. SS-8385 SS-8390

CE RoHS 2015/863/EU

IMPORTANTE

③ ⑥ ② ① ⑤ ④ M - + + + ▶

• Always read the instruction book carefully before using.
• This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR THE USER

• Do not place or operate the Bluetooth speaker near water sources.
• Never immerse the speaker or the charging cable-in water or any other liquid. In the event of the speaker falling in water take it to an authorized service agent for repair before reusing.
• Do not place or operate the speaker on or near hot surfaces (e.g., stove plates) or open flames.
• In case of speaker malfunction, or if it has been damaged in any manner, return it to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Never use accessories that are not

recommended by the manufacturer.

• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or irreparable damage to the product.
• Do not use the speaker for any other purpose than described in this manual.
• Do not leave the speaker charging longer than recommended by the manufacturer, as this may damage the battery or the speaker itself.
• Do not use the speaker while in charge, otherwise it may also damage the speaker.
• Keep the speaker away from direct sunlight, fire, or other high voltage equipment.

WARNING: the device might get warm during charging. Always ensure the speaker is turned off when you plug and unplug the device. If the device is not turned off you might damage the speaker or injure yourself.

Technical Specification:

Output power 2 x 5W
Driver unit size 9.2 x 9.2 x 17 cm
Sound sensibility ≥90dB
Distortion ≤10%
Frequency response 80Hz-180Hz
Bluetooth version V5.0
Bluetooth range 10 metres
Bluetooth pairing name SOGO SS-8385; SOGO SS-8390
USB & TF max. memory supported 32 GB
Battery capacity Built-in 1200mAh 3.7V
Battery type Li-ion
Charging indicator Yes
Input power DC 5V
Working time 3 – 4 hrs
Charging time	2 – 3 hrs
Charging port	Micro USB
Inputs	Auxiliar cable
Slots	USB and TF card (Micro SD)
Connections	Bluetooth; Radio FM; Hands free

PACKAGE INCLUDES:

Bluetooth Speaker

1 x USB to Micro USB cable
1 x AUX cable
1 x User Manual

INSTRUCTIONS:

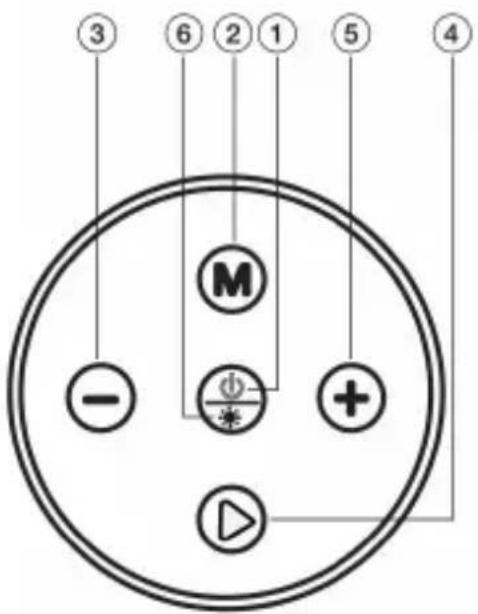

③ ⑥ ② ① ⑤ ④ M - Φ * + ▶

1. Power Button:

This button appears on the centre part of the buttons, to switch on the speaker press it and the device will switched on and to switch off the speaker press the same button again.

2. Mode button:

This button helps to change the speaker mode, when turned on the speaker it enters automatically in default mode which is Bluetooth mode and to change in any another available modes like FM, TF card and USB mode, keep pressing until you find the desired mode.

3. “-” Sign button {Previous Song (Short Press)/ Reduce Volume Button (Long Press)}:

In Bluetooth mode: With the help of “-” button, you can reduce the volume as well as change the song to the previous songs from the play list. Press the button and it start to play the previous song and if keep pressing it will keep changing the songs backwards. In order to decrease the volume, press the button for longer time or hold it in pressed position for little longer (long press).

In FM mode: This button can be used to change the FM channel in this mode.

4. Play/Pause button:

In Bluetooth mode: While the speaker is in Bluetooth mode this button is used to play and pause the music.

This same button can be used to answer the incoming calls and hanging up the call. To answer the call press it once and to hang the call press it again. Also, you can reject the calls by pressing this button for 2 seconds.

In FM mode: While the speaker is in FM mode, this button helps to search the FM channels. Press this button for 2 seconds and speaker automatically starts the process of auto searching of FM channels, once you find the FM channels of your choice, you can save it by pressing the same button. So with the help of this button, you can save multiple FM stations.

5. “+” Sign { Next Song (Short Press) / Volume up (Long Press) }:

In Bluetooth mode: With the help of “+” button, you can increase the volume as well change the song with the forth coming songs from the play list. Press the button and it start to play the next song and if keep pressing it will keep changing the songs. In order to increase the volume, press the button for longer time or hold it in pressed position for little longer (long press).

In FM mode: This button can be used to change the FM channel in this mode.

6. LED Light Button

While switching on the speaker the LED light automatically switched on, you can adjust the LED light colours by pressing this button and keep pressing until you get desired colour. The LED light keep flashing while plays the music.

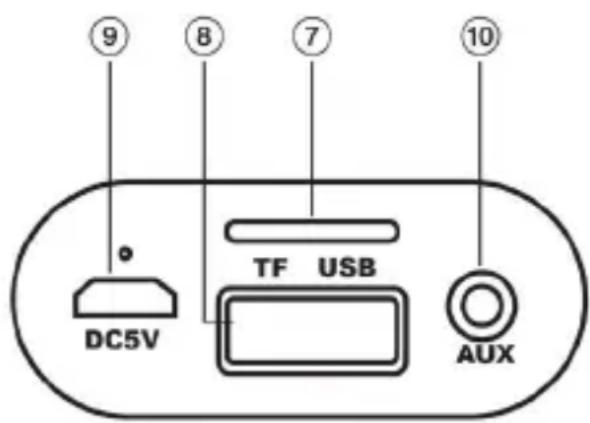

⑨ ⑧ ⑦ ⑩ DC5V TF USB AUX

7. TF/Micro SD card slot:

This device has the TF / Micrto SD card slot. Simply insert the Micro SD card into their corresponding slot and automatically speaker start to play the play list (In case of MP3 files being stored).

8. USB drive port:

This device has the USB drive slot for USB drive. Simply insert the USB drive into their corresponding slot and automatically speaker start to play the play list (In case of MP3 files being stored).

9. Micro USB charging port:

This slot is used to charge the speaker. To charge it, insert the Micro USB end of the charging cable and the other USB side connect with the computer USB slot or USB wall adaptor

10.Aux Mode:

Plug-in 3.5mm Aux. cable (included with the speaker) to the AUX hole. Connect the other end with your preferable music device.

CHARGING

This speaker is provided with an USB charging cable to charge the speaker via an integrated rechargeable battery. Before first use make sure the unit is charged completely.

The battery cannot be removed or replaced, so to ensure optimal performance and battery always charge the battery prior to use.

To charge the Bluetooth speaker, Connect the Micro USB end of charging cable to the USB port of speaker, which is located on the front side of the speaker. Connect the other end of the cable to your computers USB port or an AC adaptor (not included, but you can use your mobile charging adaptor as well, or you can buy an adaptor with 5V input).

The LED indicator will turn red while charging. Once fully charged, the red LED light will turn off.

Note: Make sure to switch off the speaker and not to use it while charging as it leads speaker to take more time in charging. Also avoid to use the speaker while charging, as it can reduce the battery life.

PAIRING

Hold the power button to turn the speaker on. When the device is turned on, it automatically turns on in Bluetooth mode and a voice prompt will indicate that the speaker is ready for use.

Activate the Bluetooth mode of your Mobile phone, Laptop or smart TV and search for the nearby Bluetooth devices, connect it with the Bluetooth pairing code; SOGO SS-8385 or SS-8390, which appears on your device.

Once connected you will hear another voice prompt, that your device has been connected successfully with the speaker and it is ready to use.

Just in case if your device asks for a password, use "0000" or "1234" to complete the pairing process.

Note: Once your device is connected with the speaker, every time whenever you will on the Bluetooth your device will connected automatically with the speaker.

FM MODE:

Press the mode button to enter into the FM radio mode, by using the Play / Pause button you can search the FM stations. Press this button for 2 seconds and speaker automatically starts the process of auto searching of FM channels, once you find the FM channels of your choice, you can store it by pressing the same button. So with the help of this button, you can store multiple FM channels.

MICRO SD AND USB MODE:

Insert the Micro SD card or USB drive into their corresponding slot, music will play automatically when there is MP3 files stored. Press “+” and “-” hold and for volume control, so with the help of these buttons you can increase and reduce the volumes. These same “+” and “-” buttons can be used for track selection.

NOTE: The compatibility for Micro SD and USB drive is max 32GB.

Sleep Mode:

This device will enter into the ‘sleep mode’ if It’s not used or connected within next 15 minutes after switching on. To reactivate the speaker again once it enters into “sleep mode”, press the power button again.

DISPOSAL OF BATTERY-OPERATED UNITS

Do not dispose the battery-operated units as normal rubbish, always these should be recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

IMPORTANT

③ ⑥ ② ① ⑤ ④ M - + +

4. Bouton Lecture/Pause:

③ ⑥ ② ① ⑤ ④ M - + + ▶

③ ⑥ ② ① ⑤ ④ M - + +

1. EIN/AUS-Taste

③ ⑥ ② ① ⑤ ④ M - + + ▶

DECLARATION OF CONFORMITY

This device complies with Electromagnetic Compatibility Directive2014/35/CE, and the Directive 2015/863 UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
