USER MANUAL SS-18425 Sogo

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or document.

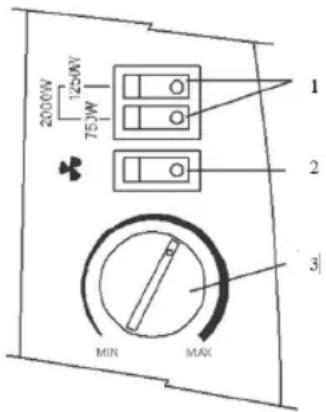

COMPONENTES

1 - Interruptores
2 - Botón Ventilador
3 - Termostato

2000W 1250W 750W MIN MAX 1 2 3

MONTAJE

This instruction manual can also be downloaded from our web page www.sogo.es

• Remove the packing and make sure that the appliance is intact. In case of doubt do not use the appliance and contact our after-sales service. Do not leave packaging materials like bags and staples within reach of children.
• Before switching on appliance check if the electrical voltage and frequency of the circuit correspond to those indicated on the appliance.
• The appliance has to be connected to a circuit according to the rules in force concerning the civil plant. The plant has to be related to the nominal power of the appliance and has to be provided with an earth –wire.
• Use the appliance only for the mentioned purpose, namely as a radiator for domestic use. Do not use it for any other application as it could get dangerous.
• The manufacture is not responsible for any eventual damages caused by improper or faulty use.
• The use of every electrical appliance calls for the awareness of some basic rules, such as:
• Never touch the appliance with wet or damp hands or feet.
• Never expose the appliance to atmospheric conditions (rain, sun, etc.)
• The appliance must be always placed on a flat and stable surface.

• Switch the appliance off and unplug it before cleaning.

• When the appliance is not in use switch it off and unplug it. Make harmless the parts of the appliance which could be handled hazardously by children for playing.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not put the cable on the appliance when it still warm.
• A correct operation of the appliance is obtained when the radiator is installed vertically. Do not switch on the fan heater near pieces of furniture, curtains, shelves, etc.
• Do not use the appliance near liquids or inflammable matters.
• The appliance must not be located immediately below a socket outlet.
• In order to avoid overheating, do not cover the heater
• In case the power cord is damaged, send it to the nearest after sale service recommended by the manufacturer for the replacement.
• This appliance is not intended use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not connect the appliance to extension cords or multiple outlets.

• Do not damage and do not kink the power cord.

• Before cleaning the appliance or carrying out any maintenance switch off the whole system.

• If the appliance is out of work switch it off without tampering it, if any repair is required please contact only the after-sale centers approved by the manufacturer and ask for original spare parts. Otherwise safety of the appliance can be compromised.
• Children under 3 year of age should be kept away from the appliance unless they are under constant supervision.
• Children from 3 to 8 years of age are allowed to operate the on/off button ONLY, provide that the appliance is installed and ready for operation and such children have been supervised and instructed in safe operation of the appliance and they understand all related risks.
• Children from 3 to 8 years of age MUST NOT: connect the plug to power sockets, make adjustment, clean it or carry out user maintenance operations.
• This appliance should not be used by children younger than 8 years of age and by people with reduced physical, sensor and mental capabilities, as well as by people with insufficient experience and knowledge provided they are supervised or instructed in safe operation of the appliance and understand the related risk.
• Children should not be allowed to play with the appliance. Cleaning and user maintenance operations must not be carried out by children without supervision.
• Warning: Do not use this appliance with a

programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

WARNING

1. Not suitable for use in bathroom.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION

Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

This product is only suitable for well insulated spaces or occasional use.

Warning: DO NOT COVER

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or document.

COMPONENTS

1- Switches
2- Fan switch
3- Thermostat

200kW 75kW 1 2 3 MIN MAX

ASSEMBLY

Before using the heater, the feet (supplied separately in the carton), must be fitted to the unit. These are to be attached to the base of the heater using the 4 self-tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater side moldings.

OPERATION

NOTE: It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time the heaters may emit some smell and fumes. This will disappear when the heater has been on a short while.

Choose a suitable location for the heater, taking into account the safety instructions above. Insert the plug of the heater into a suitable socket. Turn the thermostat knob fully in a clockwise direction to the maximum setting.

Turn on the heating elements by means of the switches on the side panel. When the heating elements are on the switches will illuminate. For maximum heat output both switches should be on.

When the desired room temperature has been reached, the thermostat knob should be turned slowly anti-clockwise until the thermostat is heard to click off and the lights on the element switches are seen to go out. After this the heater will keep the air temperature in the room at the set temperature by switching on and off automatically.

Convector heater also incorporates an internal fan, which can be switched on independently of the heating elements.

Fan Operation: This is operated by means of the switch with the fan symbol alongside it. The fan will only operate with the thermostat in the 'on' position and can be used when the heating elements are 'on' to blow warm air into the room. In warm conditions the fan can be used with the heating elements 'off' to blow cool air into the room.

PROTECTION AGAINST OVERHEATING

1) An additional fitted safety thermostat protects the heater against overheating and switches it off automatically. The service lamp then goes out. The heater is ready for service again after a short cooling-off phase (approx. 15 minutes).
2) If this repeat itself, first check whether the thermostat switch it set correctly or if objects hinder the heating operation.

MAINTENANCE

• The appliance needs only an external regular cleaning.
• After use and before cleaning always unplug the appliance and wait till the item is cool.
- Clean the grilles from dust.
- Do not clean the painted parts with emery flour or solvents and use only a moistened cloth.

TECHNICAL DATA

Model: SS-18425

Voltage / Frequency: 220-240V\~ 50/60Hz

Power consumption: 1800W - 2000W

(750W / 1250W / 2000W)

ATTENTION

surface plane et stable.

Attention: NE PAS COUVRIR

COMPOSANTS

Prohibition sign with no text, featuring a document and checkmark symbol

Prohibition sign with no text, featuring a document and diagonal line crossed out, indicating no document or permission.

Aviso: NÃO CUBRA

COMPONENTES

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or document.

COMPONENTI

Prohibition sign with document and checkmark crossed out, indicating no document or report restriction

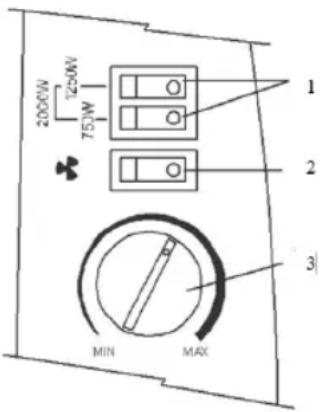

KOMPONENTEN

1- Schalter
2- Grundplatte
3- Thermostat

Information requirements for electric local space heaters

Model identifier(s): SS-18425
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1,8-2,0	kW	manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	Pmin	0,75	kW	manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	Pmax.c	2,0	kW	electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				fan assisted heat output	[no]
At nominal heat output	elmax	N.A.	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N.A.	kW	single stage heat output and no room temperature control	[no]
In standby mode	elsa	0	kW	Two or more manual stages, no room temperature control	[no]
				with mechanic thermostat room temperature control	[yes]
				with electronic room temperature control	[no]
				electronic room temperature control plus day timer	[no]
				electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				room temperature control, with presence detection	[no]
				room temperature control, with open window detection	[no]
				with distance control option	[no]
				with adaptive start control	[no]
				with working time limitation	[no]
				with black bulb sensor	[no]
Contact details	Sanysan Appliances S.LBarcelona, Spain - Tel: [phone] Fax: [phone]

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161

Prohibition sign with no text, featuring a document icon and diagonal line

ref. SS-18425
