USER MANUAL SS-18224 Sogo

Exterior view of a black industrial heat exchanger with visible cooling fins and heat sinks (no text or symbols)

Caution: please read and preserve these important instructions

IMPORTANTE:

1. Always read the instruction book carefully before use.
2. This manual can be downloaded from our website, www.sogo.com
3. Keep these instructions for future reference.

SAFETY INSTRUCIONS FOR USER

• This product is designed for indoor household, non-industrial and non-commercial use. Do not use the item outdoors or for any other purpose. Misuse or improper handling can cause problems with the appliance and can cause injury to the user.
• Make sure that the voltage indicated on the rating plate matches the main wall outlet voltage before plugging in the appliance.
• The appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
• This appliance must be plug-in a grounded wall outlet to prevent any type of shock or short circuit. The wall receptacle must be properly installed and grounded, as the grounding of the socket reduces the risks of the electric shock.
• Never expose the appliance to atmospheric conditions (rain, sun, etc.)
• When the appliance is not in use switch it off and unplug it. Make harmless the parts of the appliance which could be handled hazardously by children for playing.
• Do not put the cable on the appliance when it still warm.
• Do not connect the appliance to extensioncords or multiple out-lets.
• Do not damage and do not kink the power cord.

- The appliance must be always placed on a flat and stable surface.

- Switch the appliance off and unplug it before cleaning.

• Always remove the plug from the outlet when the appliance is not in use. Do not leave the appliance unattended when it is switched on.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Do not switch on the fan heater near pieces of furniture, curtains, shelves, etc.

- Do not place or operate the appliance near sources of water.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance being dropped into water, immediately disconnect it from the main supply and take it to an authorized service agent for repair before using it again.

- Do not place or use the appliance and its power cord on or near hot surfaces (for example, cooktops) or open flames.

- Do not leave the power cord hanging by sharp edges and keep it away from hot objects and flames. Do not wrap the cord around the appliance and do not bend it.

- Do not use the appliance if the cord or plug is damaged. In the event that the cord is damaged, it should only be replaced by the manufacturer, its service agent, or similarly qualified persons, to avoid hazards.

- When you want to remove the plug from the wall socket, do so by pulling the plug and not by the cord or the appliance itself.

• Make sure your hands are dry before plugging or unplugging.
• In the event of a malfunction of the appliance, or if it has been damaged in any way, return the appliance to the nearest authorized service center for examination, repair or adjustment.
• Do not use the appliance near liquids or inflammable matters.
• The appliance must not be located immediately below a socket outlet.
• In order to avoid overheating, do not cover the heater
• This appliance is not to be used by the persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children must be supervised to ensure that they do not play with the appliance.
• Children under 3 year of age should be kept away from the appliance unless they are under constant supervision.
• Children from 3 to 8 years of age are allowed to operate the on/off button ONLY, provide that the appliance is installed and ready for operation and such children have been supervised and instructed in safe operation of the appliance and they understand all related risks.
• Children from 3 to 8 years of age MUST NOT: connect the plug to power sockets, make adjustment, clean it or carry out user maintenance operations.
• This appliance should not be used by children younger than 8 years of age and by people with reduced physical, sensor and mental capabilities, as well as by people with insufficient experience and knowledge provided they are supervised or

instructed in safe operation of the appliance and understand the related risk.

• Children should not be allowed to play with the appliance.
• Cleaning and user maintenance operations must not be carried out by children without supervision.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater
• Warning: Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

WARNING

• Not suitable for use in bathroom.
• Children should be supervised to ensure that they do not play with the appliance.
• This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

CAUTION

• Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• This product is only suitable for well insulated spaces or occasional use.

TECHNICAL SPECIFICATIONS

Model No Desc.	Voltage Frequency Power
SS-18224 2 Carbon	filament heater	220-240V 50-60Hz		1000W

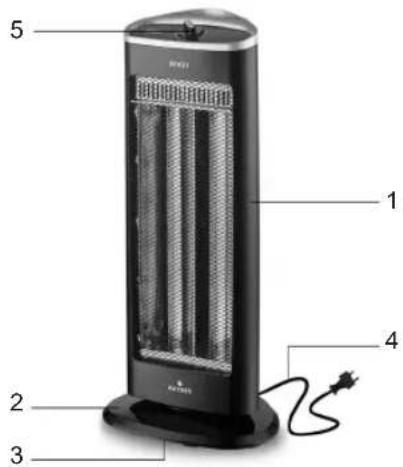

COMPONENTE

1. Heater body
2. Base plate
3. Tip over safety switch
4. Power cord
5. Control knob

5 1 2 3 4

ASSEMBLING OF THE UNIT

Assemble the body frame and the base plate together as the following instructions.

Remove the mounting screw from the bottom part of the body frame

Insert the power cord through the slot placed in the middle part of the basement and then assemble the body frame to base plate

Secure the body frame to the base plate by tighten up the three mounting screw previously removed. Insert the power cord through the suitable slots and then fix it by clamp.

OPERATION

Plug in the appliance and make sure the wall voltage is similar to the appliance, also check that the outlet has atleast 10 ampere current carrying capacity.

Turn the rotary knob on position I to switch on the heater with power of 500W and on to the position II to give you the power of 1000W

Knob with " ” sign is to turn on the oscillating mode of the heater. Turn on with "I" for 500W power and "II" for 1000W power. To switch off the appliance turn the knob on to the "OFF" position.

IMP: Remove the plug when not in the use.

SAFETY DEVICE

This appliance is provided with one safety device switch.

The safety device disconnects the appliance automatically, when the heater is tilted or fall, by means of a switch situated in the lower part of the heater.

So to avoid this type of situation the appliance must be always placed on a flat and stable surface. otherwise it may cause the appliance may not work.

CLEANING AND MAINTENANCE

The appliance need only an external regular cleaning

After every single use and before cleaning always unplug the appliance and wait till the heater gets cool.

Every now and then make sure to clean the grills from the dust.

Do not clean the painted parts with emery flour or solvents, use only a moistened cloth.

IMPORTANTE:

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

Prohibition sign with document icon and checkmark, commonly used to indicate no document or report

ref. SS-18224
