USER MANUAL JN-IPS401UWQHD144-C90W Japannext

Cleaning and maintaining the monitor 19

How to maintain the monitor: 19

The symptoms listed below are normal conditions for the monitor 19

Welcome 20

Quick Start Guide 21

Assembling the Monitor 21 Connection with a computer 22

Accessories 22

Interface / Connectivity 23

Description of the display button 24

On-Screen Menu (OSD) 25

Dysfunction 28

Customer Support 29

Diagram showing a mechanical assembly process: before and after transformation, with no visible text or symbols.

Line drawing of a monitor with control panel and navigation icons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

JAPANNEXT Co., Ltd. Département CS

Chiba-Ken Isumi-Shi Namegawa 506-5

UWQHD 144HZ - 40 inches

LED LCD Monitor

Manual

ENERG UNIVERSITY A B C D E F G 39 kWh/1000h ARCTIC HOR 64 LVM/LVMA Smart TV

Important:

Please make sure to read this instruction manual before use.

Please use it correctly for your safety.

Once you have read it, make sure to keep it.

Please read all included instruction manuals carefully before use.

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust.
  Do not use the monitor where it may become wet or exposed to water.
• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.
• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.
• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.
• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.
• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.
• Always operate the monitor using the type of power source indicated on the product label.
  If you are unsure of the type of power supply you have, please contact your local power company.
• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.
• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.
• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller.

• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.
• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.
• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.
• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord.

Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.
  • Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room.

Before cleaning the monitor, turn off the power and unplug all cables and cords.

How to maintain the monitor:

• LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.
• Monitor frame: Wipe with a soft cloth dampened with a mild cleaner.

The symptoms listed below are normal conditions for the monitor

• When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.
• Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.
• Several pixels may or may not always be lit.
• If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image.

In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed.

Instead of trying to repair the monitor yourself, contact customer service or the dealer.

Welcome

Thank you for purchasing the JAPANNEXT 40 inch LCD monitor.

The panel supports UWQHD (3440 x 1440) resolution.

We recommend using UWQHD resolution for maximum performance. If the resolution is lower than UWQHD, the original performance cannot be achieved.

Assembling the Monitor

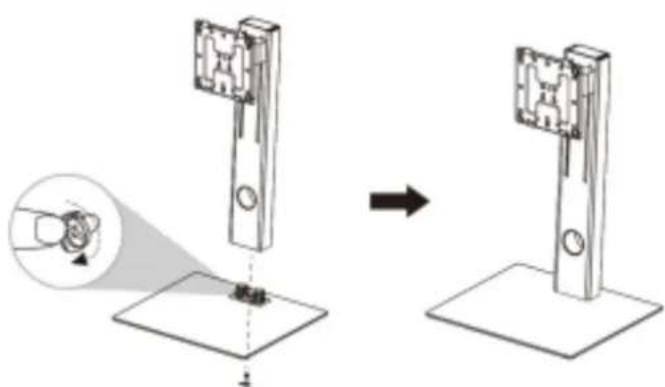

1. Assemble the stand using the screws provided.

Diagram showing a mechanical assembly process: before and after transformation, with no visible text or symbols.

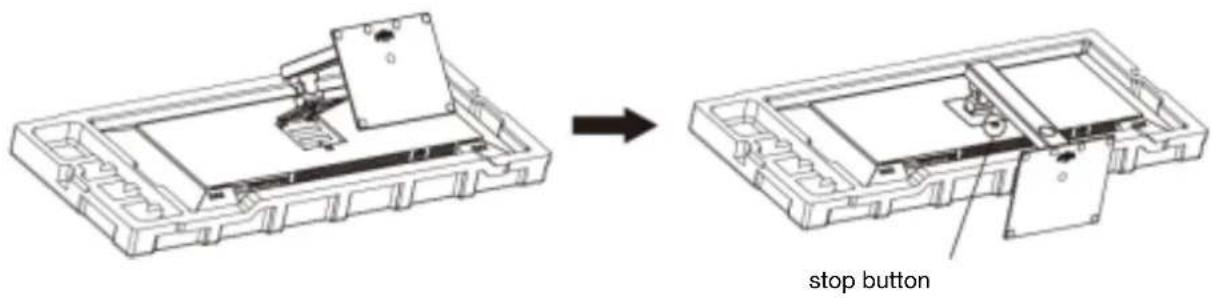

1. Attach the stand to the main unit.

stop button

1. Check that the stand is firmly attached to the main unit and raise the monitor slowly.

Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.
2. Connect the power cable and compatible cables (HDMI, DP, Type-C) to the monitor.
   Also connect the cable (HDMI, DP, Type-C) to the computer.
3. Turn on the monitor and computer.

Notice : Since problems may occur, do not connect HDMI, Type-C and DP cables at the same time. Please connect only one to a computer.

Accessories

Manual

Power cable

DP cable

VESA spacer

*The included power cable is to use exclusively with this product. Do not use it for other equipment.

power

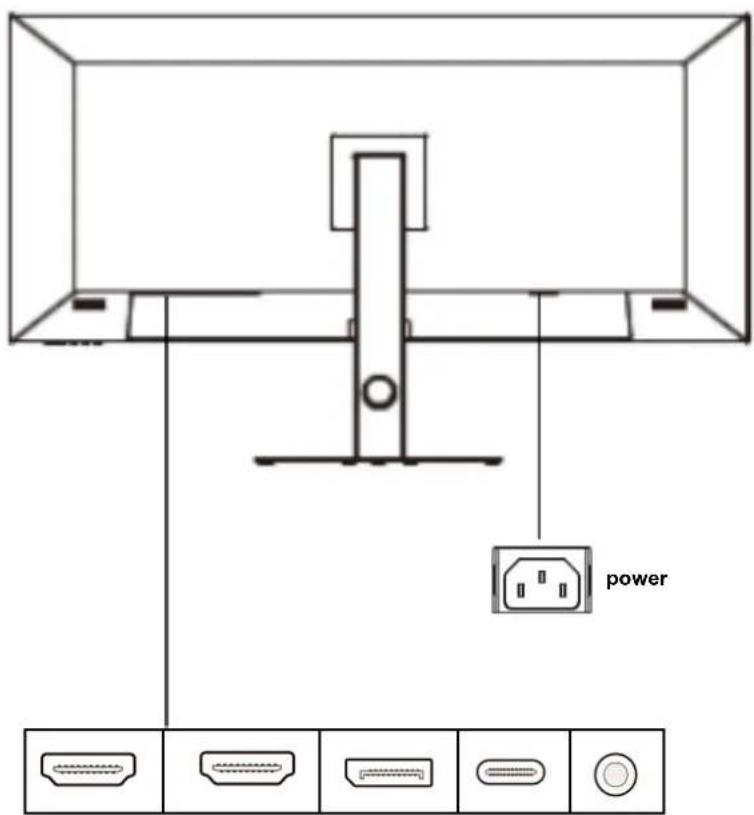

HDMI 2
HDMI 1
DP
Type-C
Audio

HDMI1	Used when connecting HDMI 2.0 exchange devices.
HDMI2	Used when connecting HDMI 2.0 exchange devices.
DP	Used to connect DisplayPort replacement devices.
USB Type-C	Used to connect USB Type-C replacement devices.It can be used to power (90W) external devices.
Audio	Used by connecting headphones or speakers.
Power source	Used when connecting the power cord. Make sure to establish a ground connection.

Description of the display button

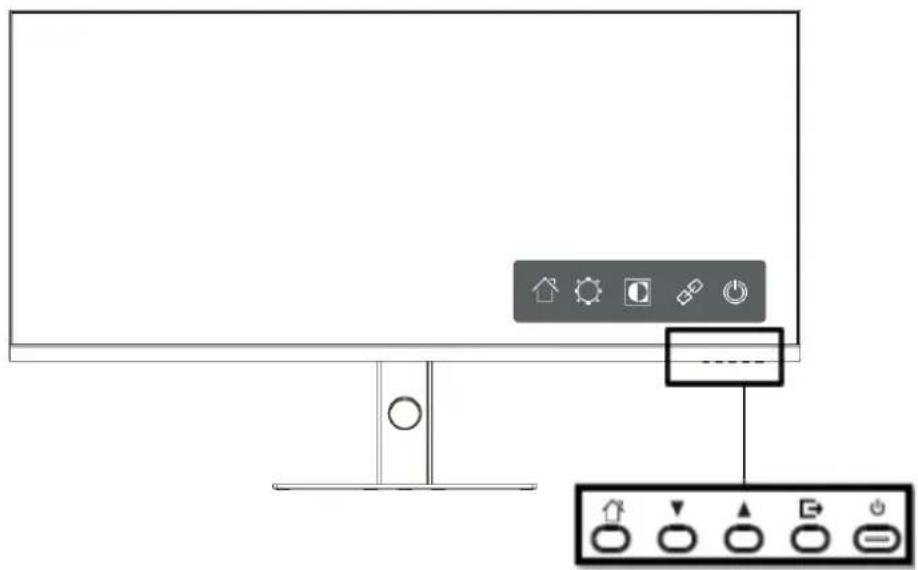

Line drawing of a monitor with control panel and navigation icons (no text or symbols)

Press one of the control buttons at the bottom of the monitor once to display the keyboard shortcuts menu. To open the OSD menu, press the M button (). Please see the table below to learn how to use the menu buttons.

Menu screen operation buttons (bottom of monitor)

	M	Open the OSD menu screen
	▼	Keyboard shortcut menu: Brightness (customizable)OSD menu: move selection down or decrease value
	▲	Hotkey Menu: Contrast (customizable)OSD menu: move selection up or increase value
	E	Hotkey menu: input source (customizable)OSD Menu: Return to menu or close menu
	◎	Turn on/off

On-Screen Menu (OSD)

Menu	Feature	Setting value	Comment
Game Settings	Standard mode	on/off	Setting mode
	RTS/RPG mode	on/off
	FPS Arena Mode	on/off
	MOBA arena mode	on/off
	Adaptive-Sync*	on/off	Adaptive-Sync enabled/disabled
	Shadow balance	0-100	Shadow balance adjustment
	Response time	off/low/medium/high	Select the response time
	Refresh rate*1	on/off	Display refresh rate
		Position: Upper Right/Upper Left/Lower Right/Lower Left	Set refresh rate display position
	Target *1	disabled	Target display settings
		target 1
		target 2
		target 3
		target 4
		target 5
		target 6
	Timer *1	disabled	Set the timer display
		15h00
		30h00
		45h00
		60h00
		Position: Upper Right/Upper Left/Lower Right/Lower Left	Adjust the timer display position
	Dynamic brightness	off/low/medium/high	Dynamic Brightness Settings
	HDR※	disabled	HDR Settings
		Standard HDR
		Film HDR
		HDR RTS/RPG
		FPS HDR
	MPRT※	on/off	MPRT enabled/disabled
	Gradation locale*	on/off	Local dimming on/off

*When a function is enabled in the OSD (in the case of picture mode, when set to anything other than standard), some OSD functions such as brightness may not be able to be changed.
*1 Only one of refresh rate, target and timer can be displayed.

*MPRT can be used at 100 Hz or higher.

*MPRT and Physical Super View cannot be used when using HDR/AdaptiveSync.

*Local dimming is a function that finely adjusts the backlight depending on the brightness of the image. This is effective in improving visibility and reducing energy consumption.

On-Screen Menu (OSD) continued

Menu	Feature	Setting value	Comment
Picture Settings	brightness	0-100	Adjust brightness in range 0-100
	contrast	0-100	Adjust the contrast in the range 0-100
	RCD	on/off	DCR enabled/disabled
	Image mode	disabled	Picture mode settings
		movie
		text
		energy saving mode
		eye care mode
	Low blue light	0-100	Adjust blue light reduction in the range of 0 to 100
	Sharpness	0-5	Adjust sharpness in range 0-5
	gamma	Curve 1.8/2.0/2.2/2.4/2.6/S※1	Gamma settings
	aspect ratio	wide screen	Setting the aspect ratio
		4:3
		1:1
		automatic
Color Settings	natural	on/off	Adjust the color temperature
	cool	on/off
	user 1	R:0-100/V:0-100/B:0-100	User color adjustment possible Resetting OSD returns to initial values
	user 2	R:0-100/V:0-100/B:0-100
	user 3	R:0-100/G:0-100/B:0-100
	Tint	R/G/B/C/M/Y each 0-100	Tint adjustment
	Saturation	R/G/B/C/M/Y each 0-100	Adjust saturation
PIP/PBP	Mode PIP/PBP	disabled	Multi-window settings※PBP 2Win 2:1/ PBP 2Win 1:2 can be used when connected to a smartphone and a Type-C port.
		Mode PIP
		PBP 2Gagner 1:1
		PBP 2Win 2:1 *Pour smartphones
		PBP 2Win 1:2 *Pour smartphones
	SubWin input source	DP/HDMI1/DHMI2/Type-C	Pane settings when using multiple windows
	Source audio	Auto/DP/HDMI1/DHMI2/Type-C	Configuring the audio source when using multiple windows
	Localisation PIP	Top right/top left/bottom right/bottom left	Setting the PIP Pane Position
	PIP size	small/medium/large	Setting the PIP pane size
	Exchange window		Swap main window/sub window

*1 Dark areas are darker and light areas are brighter than normal gamma.
*2 It may not be compatible with some smartphones.

Screen Menu (OSD) continued 2

Menu	Features	Setting value	Comment
OSD Settings	Language	French/English	OSD language definition
	OSD Timeout	5-100	Set OSD display time in the range of 5-100
	Position horizontale OSD	0-100	Set the horizontal position of the OSD in the range 0-100
	Position verticale OSD	0-100	Adjust OSD vertical position from 0 to 100
	OSD transparency	0-5	Set OSD transparency from 0 to 5
	OSD Lock	on/off	OSD lock on/offPress the home button for 10 seconds to unlock.
	Hotkey 1 Settings	Brightness/Contrast/Volume/Mute/Shadow Balance/target/refresh rate/Timer/Picture mode/PIP/PBP mode/Input signal/Dynamic Brightness/Super Physical View/HDR	Customize keyboard shortcut settings
	Hotkey 2 Settings
	Hotkey 3 Settings
Other settings	input signal	Auto/Type-C/DP/HDMI1/HDHMI2	Setting the input source
	volume	0-100	Adjust the volume in the range 0-100
	silence	on/off	Mute action on/off
	auto power off	on/off	When turned on, the power will turn off after 1 minute in sleep mode.
	eye shield reminder	on/off	After 4 hours when turned onA pop-up window will appear.
	reset	no/yes	Reset factory settings
	information		Displays setting information, etc.

*Please note that product design, specifications and appearance are subject to change without notice due to product improvement. *If the information listed differs from the actual item, priority will be given to the actual item.

Symptoms	Checkpoint
Power LED does not light up	• Is the device turned on by pressing the power button?• Make sure the power cord is securely connected to the monitor and the outlet.
No image appears even though the power indicator is on	• Is the blank screen saver running? Please move your mouse or keyboard• Make sure the brightness and contrast are not set to minimum.• Please make sure the signal cable is properly connected to your monitor and computer.• Check if the signal cable pins are bent or the cable is damaged.• Is your computer turned on? If you have another monitor, try connecting it to see if the computer works properly.• Does the computer signal timing match the monitor specifications?
The image is distorted or ripples appear in the image.	• Please make sure the signal cable is well connected to your monitor and computer.• Keep electrical devices that may cause electrical interference away from the monitor.• Does the computer signal timing match the monitor specifications?
The image position is off-center.Image size is incorrect	• Is your computer resolution correct?• Does the computer signal timing match the monitor specifications?
The screen is too bright/too dark	• Screen (OSD): Adjust brightness and contrast settings from the menu.
The image is blurry or unclear	• Set the display resolution on your PC to the same as the recommended native screen resolution for the monitor.• Does the computer signal timing match the monitor specifications?• Check if the signal cable pins are bent or the cable is damaged.
The color of the image is incorrect	• Check if the signal cable pins are bent or the cable is damaged.• Screen (OSD): Please adjust the red/blue/green color settings in the menu (color temperature).• Screen (OSD): Please reset the settings from the menu.• Does the computer signal timing match the monitor specifications?
Unable to display UWQHD	• This product supports resolutions up to 3440 x 1440 (UWQHD), including HDMI, DP and Type-C. However, some graphics cards do not support 3440x1440. Please check with your local distributor or manufacturer for the hardware limitations of your computer.
Abnormal image noise	• Are the cables correctly connected?
Refresh rate not output at 144Hz	• Does the graphics card support 3440 x 1440 @ 144 Hz with DP and Type-C ports?(Even though it supports 3440 x 1440 resolution, it may not support 144 Hz.)• The HDMI connection supports up to 3440 x 1440 @ 100 Hz.

Customer Support

JAPANNEXT

TEL: [phone]

Hours 9:00 a.m. to 5:00 p.m. (Closed Saturdays, Sundays and public holidays)

Contact form

You can easily access the application form by scanning the QR code.

QR code image containing encoded data, no visible human-readable text

JAPANNEXT Co., Ltd. CS Department

Chiba-Ken Isumi-Shi Namegawa 506-5
