Welcome 20

Quick Start Guide 21

Assembling the Monitor Base 21

Connection with a computer 2 2

Accessories 2 2

Interface / LCD Wallpaper 23

Description of the display button 24

When the On-Screen Menu (OSD) is not open 24

When the on-screen menu (OSD) is displayed 24

Operation using the control menu 24

On-Screen Menu (OSD) 25

USB device screen and operations 26

Media selection 27

Example of control panel (when viewing a movie) 27

Dysfunction 28

Other notes 29

Customer Support 30

Technical line drawing of a flat-screen monitor and its rear panel with connectors (no text or symbols)

60Hz UHD Monitor - 55 inches LED Monitor/LCD Screen

Manual

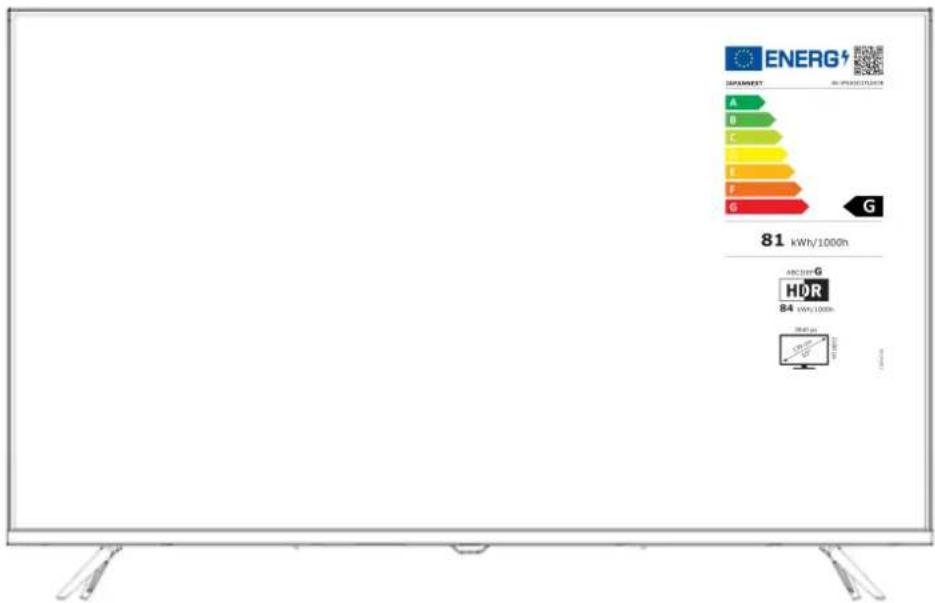

ENERG SPRINGEST A B C F G 81 kWh/1000h ABC2345 G HDR 84 kWh/1000h 10.47 μs

Important:

Please make sure to read this instruction manual before use.

Please use it correctly for your safety.

Once you have read it, make sure to keep it.

Please read all included instruction manuals carefully before use.

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust.
  Do not use the monitor where it may become wet or exposed to water.
• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.
• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.
• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.
• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.
• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.
  • Always operate the monitor using the type of power source indicated on the product label.
  If you are unsure of the type of power supply you have, please contact your local power company.
• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.
• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.
• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller.

• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.
• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.
• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.
• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord.

Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.
  • Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room.

Before cleaning the monitor, turn off the power and unplug all cables and cords.

How to maintain the monitor:

• LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.
• Monitor frame: Wipe with a soft cloth dampened with a mild cleaner.

The symptoms listed below are normal conditions for the monitor

• When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.
• Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.
• Several pixels may or may not always be lit.
• If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image.
  In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed.

Instead of trying to repair the monitor yourself, contact customer service or the dealer.

Thank you for purchasing the 55 inch LCD monitor JAPANNEXT.

The installed panel supports UHD resolution (3840X2160). We recommend using it in UHD resolution (3840X2160) to obtain its original performance. If the resolution is lower than UHD (3840X2160), the original performance cannot be achieved.

Assembling the Monitor Base

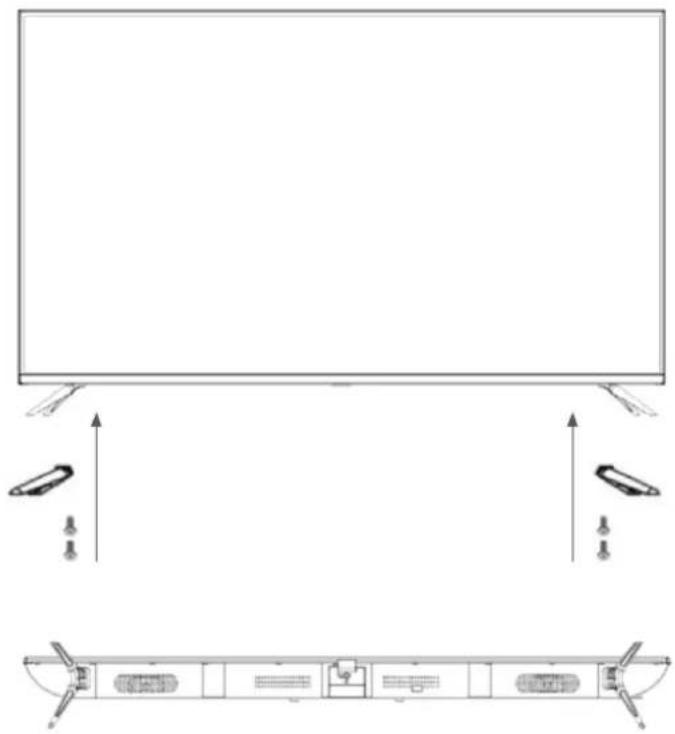

1. Spread a soft cloth on a flat, stable surface and place the device screen side down on it.
2. Align the screw holes on the monitor body and stand using the image below as a reference.
3. Secure the bracket body and bracket using the screws provided.

Technical line drawing of a monitor layout with support pillars and internal components (no text or symbols)

Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.
2. Connect the power cable and compatible cable (HDMI) to the monitor.
   Also connect the (HDMI) cable to the computer.
3. Turn on the monitor and computer.

Accessories

Manual

HDMI cable

Remote

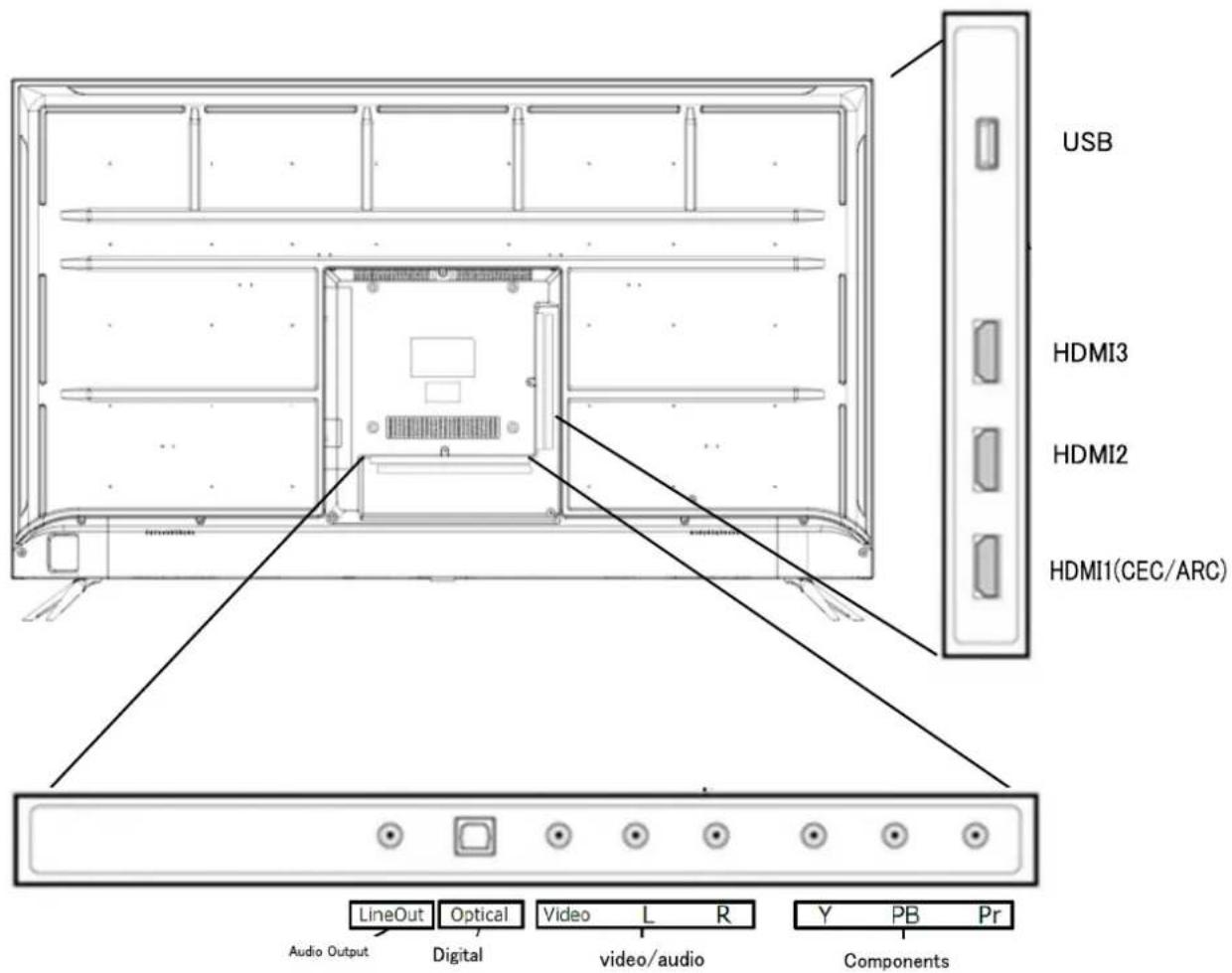

USB HDMI3 HDMI2 HDMI1(CEC/ARC) LineOut Optical Video L R Y PB Pr Audio Output Digital video/audio Components

Description of the display button

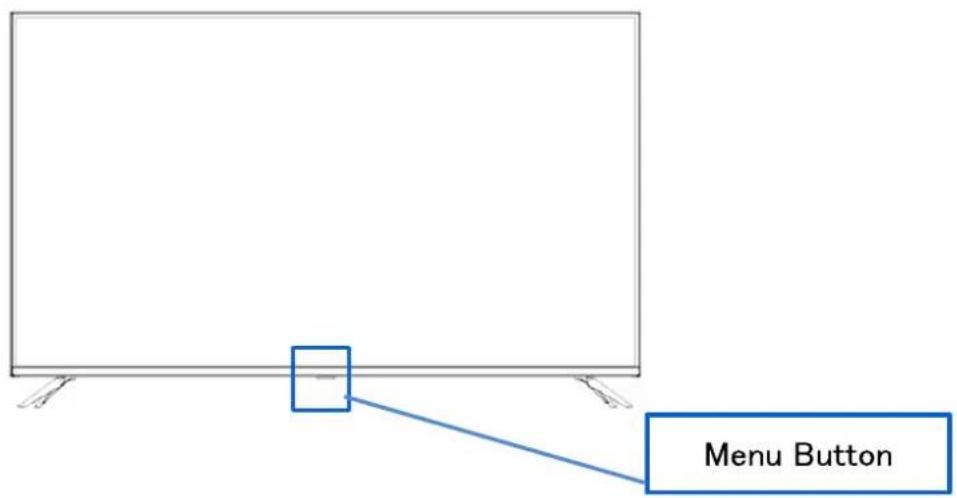

Menu Button

- When the On-Screen Menu (OSD) is not open

1 time	Open the control menu
Long hold	Turn on/off

- When the on-screen menu (OSD) is displayed

1 time	Move menu item to the right
Long hold	Menu item selection / Execute button ∧v+-

• Operation using the control menu

	Turn off
	Open OSD menu
	Open input switching window
^	Long press to move item up
∨	Long press to move item down
	Long press to increase the value or move right
	Long press to decrease the value or move to the left

On-Screen Menu (OSD)

Settings	Menu	Setting value	Comment
Video Settings	Image mode	standard	Select picture mode
		user
		distinct
		HDR normal	Settings > Other settings > Set HDMI 4K to Enhanced and select when HDR is enabled
		Bright HDR
		Shadow HDR
		User HDR
	BLACK LEVEL	0-100	Used during user settings
	Contrast	0-100
	Color intensity	0-100
	Tint	0-100	Available only when using components. It cannot used if the video format is not available.
	Sharpness	0-100
	Brightness	0-100	Adjust backlight from 0 to 100
	Color temperature	standard	When HDR is enabled(Standard/Hot/Cold)
		blue light reduction
		Cold color
	Other video settings	aspect ratio	Video formats that are not available cannot be selected.
		noise reduction	Off / Low / Medium / HighAvailable only when using components.
		dynamic contrast	on/off
		Mode HDMI	Video/Computer/Auto
	HDR	low/medium/high	Select when HDR is enabled
Audio settings	Audio mode	standard	Select audio mode
		music
		movie
		sport
	Low	0-100	Set when using custom audio mode
	Triple	0-100
	Balance	-50 50	The balance can be adjusted from -50 to 50
	Digital output	disabled	Used when outputting digital audio
		binary stream
	Surround	on/off	Surround on/off
	AVL	on/off	Available only when using components
	Speaker	on/off	Select speaker on/off*Does not work with mute remote

On-Screen Menu (OSD)

Settings	Menu	Setting value	Comment
Time	shutdown timer	disabled/5/10/15/30/60/90/120/180/240
Other settings	menu language	French / English
	OSD Timeout	15/05/30/45/60
	Other settings	audio only	OFF / ON
		HDMI 4K Standard/Improvement	Select when HDMI is connected*1
	Reset	no/yes
	HDMI-CEC	Equipment link control enabled/disabled	Not available.(Some devices can be used.CEC functionality is not guaranteed.)
		Powering off the on/off system
		TV link when setting On/Off
		ARC on/off
		List of connected devices
		Selection of connected devices
		List of operations

*Please note that product design, specifications and appearance are subject to change without notice due to product improvement.
*If the information listed differs from the actual item, priority will be given to the actual item.
*To use HDR, set Miscellaneous Settings > Other Settings > HDMI 4K to "Enhanced".
(To enable HDR, settings are also required on the connected device such as a PC. Please contact the manufacturer of each device for details on the connected device settings.)
*Even if you connect headphones to the LINE OUT (audio output) terminal, sound will continue to output from the speakers and the audio settings will not be reflected in the headphones. If you want to listen to audio only with headphones, please set the speaker volume to 0 or mute it.
The LINE OUT jack is not dedicated to headphone output, so you cannot adjust the audio from the monitor's OSD menu.
*1 When using 3840 x 2160@60Hz, please change the OSD menu > Miscellaneous Settings > HDMI 4K to Enhanced.

USB device screen and operations

When you select “Media” for source selection, it is the output of the USB device connected to the USB terminal on the back of the product.

You can select or view data files.

• Media selection

Medias	Content	Comment
photo	You can watch image data	.jpg/.jpeg/.png etc.
music	You can listen to music data	.mp3 etc.
film	You can watch video data	.mpeg/.avi etc.

*The above information is for reference only, and even if mentioned, it may not be usable depending on the file format. Additionally, playback may not be possible depending on the data resolution.

Examples :

MP4 Video: Only supports up to FHD (1920 x 1080)

JPEG: Supports resolution up to 4K

JPG: only supports up to 1024 × 768

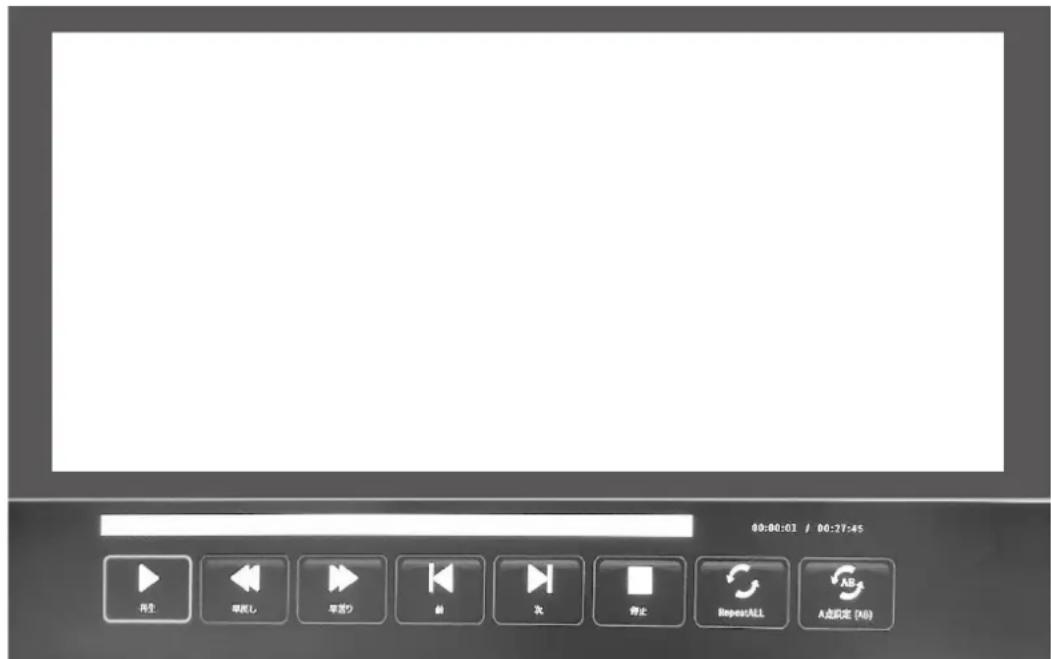

• Example of control panel (when viewing a movie)

If you press the selection button on the remote control while each data is displayed, the control panel will be displayed. Use◀/▶ buttons to move and press OK button to confirm.

Symptoms	Checkpoint
Power LED does not light up	• Is the device turned on by pressing the power button?• Make sure the power cord is securely connected to the monitor and the outlet.
No image appears even though the power indicator is on	• Is the blank screensaver running? Please move your mouse or keyboard• Make sure the brightness and contrast are not set to minimum.• Please make sure the signal cable is properly connected to your monitor and computer.• Check if the signal cable pins are bent or the cable is damaged.• Is your computer turned on? If you have another monitor, try connecting it to see if the works properly.• Does the computer signal timing match the monitor specifications?
The image is distorted or ripp appear in the image.	• Please make sure the signal cable is well connected to your monitor and computer.• Keep electrical devices that may cause electrical interference away from the monitor.• Does the computer signal timing match the monitor specifications?
The image position is off-center. Image size is incorrect	• Is your computer resolution correct?• Does the computer signal timing match the monitor specifications?
The screen is too bright/too dark	• Screen (OSD): Adjust brightness and contrast settings from the menu.
The image is blurry or unclear	• Set the display resolution on your PC to the same as the recommended native screen re of the monitor.• Does the computer signal timing match the monitor specifications?• Check if the signal cable pins are bent or the cable is damaged.
The color of the image is incorrect	• Check if the signal cable pins are bent or the cable is damaged.• Screen (OSD): Please adjust the red/blue/green color settings in the menu (color temperature).• Screen (OSD): Please reset the settings from the menu.• Does the computer signal timing match the monitor specifications?
Unable to display UHD	• HDMI supports resolutions up to 3840X2160 (UHD). However, some graphics cards do not support 3840X2160. Hardware limitations of your computerPlease check with your local distributor or manufacturer for details.
Abnormal image noise	• Are the cables correctly connected?

- The screen is not displayed even if the cable is connected

The connection terminal and input source may not match.

Solution: Display the input switching screen (input switching button on the remote control) and select the name of the connected terminal.

Finally, press the "OK" button on the remote control.

• The screen is bright or dark

There are two types of screen brightness adjustment: backlight adjustment and software adjustment.

The adjustment methods for each are as follows.

Backlight adjustment: OSD menu > Picture settings > Brightness

Software adjustment: OSD menu > Video settings > BLACK LEVEL

*We recommend adjusting the brightness for effective brightness adjustment.

*Please note that product design, specifications and appearance are subject to change without notice due to product improvement.

*If the information listed differs from the actual item, priority will be given to the actual item.

Precautions when removing the monitor body

The LCD panel breaks easily, so two or more people need to unpack it.

When removing the item, hold the frame without touching the panel.
