USER MANUAL GAWB66HWGG Gladiator

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

PARTS

P1. Workbench top
P2. Workbench legs (two welded pairs)
P3. Right angle brace
P4. Left angle brace P5. Leveling feet (4)

P6. 5 / 16^ (7.94 mm) Allen head bolts (6)
P7. 1^1 / 串 (2.9 cm) lag screws (12)
P8. Allen wrench

P6 P7

ASSEMBLY INSTRUCTIONS

Tools and Parts

Gather the required tools and parts before starting installation.

Tools Needed

1/2" (12.7 mm) socket wrench for lag screws

Parts Supplied

■Workbench top

Leveling feet (4)

■Workbench legs (two welded pairs)

5/16" (7.94 mm) Allen head bolts (6)

Right angle brace

1 1/8" (2.9 cm) lag screws (12)

Left angle brace

■Allen wrench

Workbench Use Requirements

WARNING

Excessive Weight Hazard

Use two or more people to move and assemble workbench.

Failure to do so can result in back or other injury.

Intended for use in a garage.
Maximum weight limit is 1,500 lbs (680kg) for the workbench.

Unpack the Workbench

1. Unpack the legs, braces, and hardware from the box. Verify contents. See the "Parts Supplied" section.
   NOTE: Leave the workbench top on the cardboard during assembly.
2. Remove the corners from the workbench top. The pre-drilled holes should be visible.
3. Dispose of/recycle all packaging materials.

Install Legs and Angle Braces

IMPORTANT: The pre-drilled holes on the underside of the workbench top are along the rear edge of the workbench.

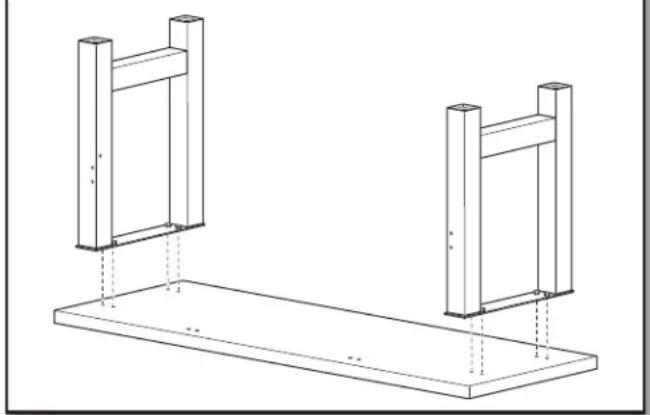

1. Place legs

   With the single rivet nuts facing inward and the two rivet nut holes per leg to rear of the bench, place each pair of legs on the underside of the workbench top. Align the holes in the plate with the pre-drilled holes in the workbench top.

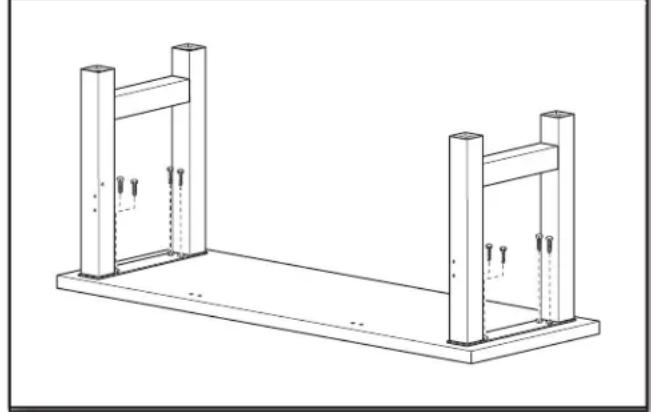

2. Fasten legs to workbench top

   Using eight lag screws (four screws per pair), fasten the legs to the workbench top. Do not completely tighten the screws.

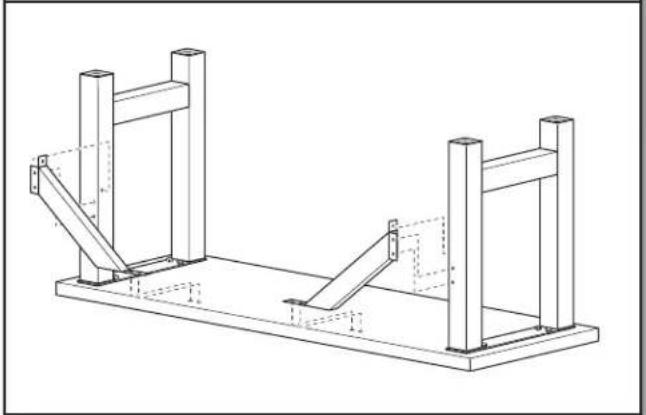

3. Align angle brace holes

Align the holes in the angle braces with the holes in the workbench top and the holes in the legs.

IMPORTANT: The angle braces are left-hand side and right-hand side specific. If the hole pattern doesn't match on one side, try the other side.

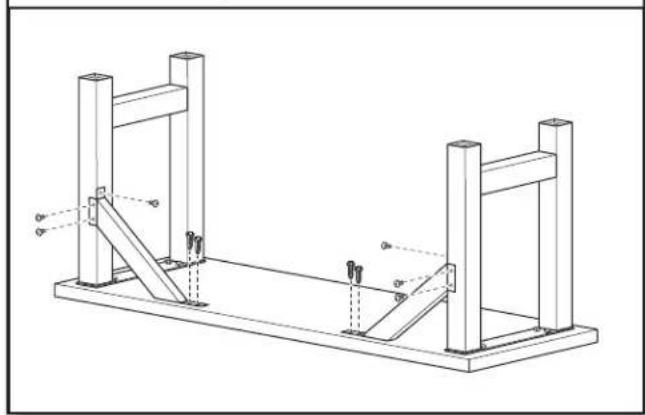

4. Fasten angle braces to workbench

Using two lag screws per brace, fasten the angle braces to the underside of the workbench top. Do not completely tighten the screws.

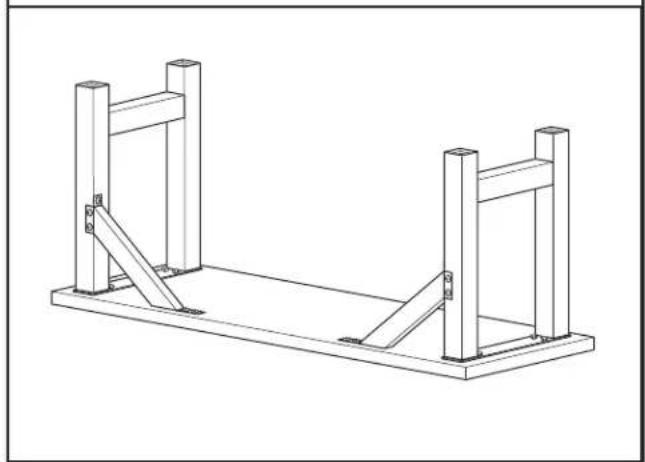

5. Fasten angle braces to legs

Using three Allen head bolts per brace, fasten the angle braces to the legs.

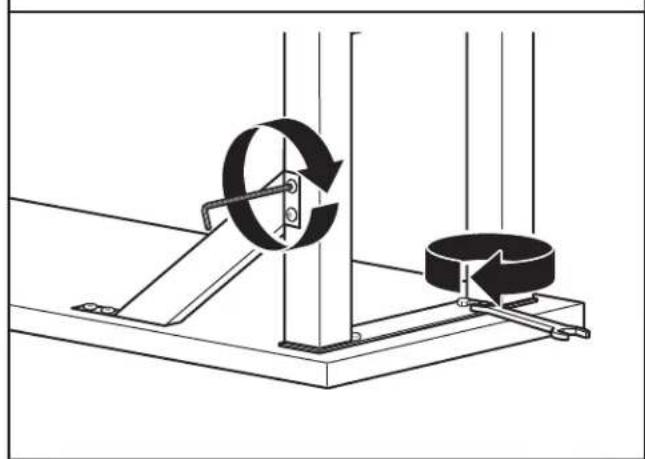

6. Tighten screws and bolts

Completely tighten all screws and bolts.

7. Attach the leveling feet

If not already installed, screw in the four leveling feet.

The leveling feet have a flat side designed for use with an adjustable wrench, if needed.

IMPORTANT: Screw each leveling foot a minimum of 3.5 turns into each leg to ensure feet are secure.

Complete the Assembly

WARNING

Excessive Weight Hazard

Use two or more people to move and assemble workbench.

Failure to do so can result in back or other injury.

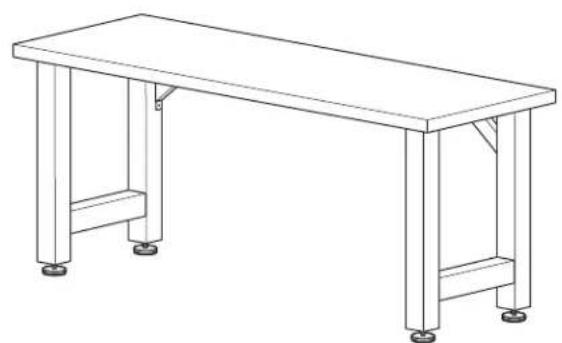

1. Stand up workbench

Using two or more people, stand the workbench upright and place it in its final location.

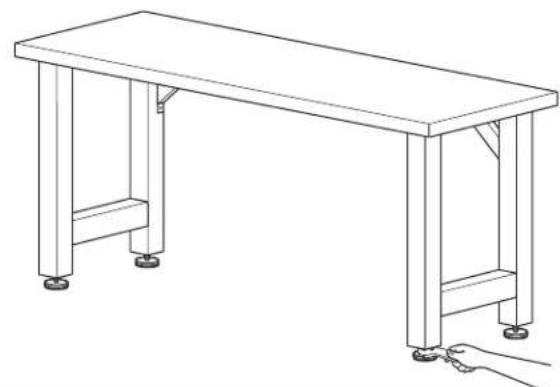

2. Adjust leveling legs

Adjust the leveling legs as needed.

IMPORTANT: When adjusting the leveling legs, be sure they are at least 1/4'' (6.35 mm) deep into the workbench leg.

Workbench Care

1. Wash the workbench with a mild detergent and warm water. Do not allow water to remain on the workbench for any length of time.
2. Rinse completely and dry thoroughly.

GLADIATOR® GARAGEWORKS MODULAR WORKBENCH WARRANTY

ONE-YEAR LIMITED WARRANTY ON WOODEN TOP

For one year from the date of purchase, when this product is operated and maintained according to the instructions attached to or furnished with the product, Gladiator* GarageWorks will replace or repair the defective product or parts to correct defects in materials or workmanship.

LIFETIME LIMITED WARRANTY ON WORKBENCH METAL SECTIONS

For the life of the product, when the Modular Workbench is used and maintained according to the instructions attached to or furnished with the product, Gladiator GarageWorks will pay for repair or replacement of the defective product or parts to correct defects in materials or workmanship.

Gliadiator* GarageWorks will not pay for:

1. Service calls to correct the installation of any Gladiator® GarageWorks products or to instruct you on how to use or install them.
2. Damage resulting from improper handling or shipping of products, or products damaged by accident, misuse, abuse, fire, flood, improper installation, acts of God, neglect, corrosion, modification or mishandling.
3. Shipping or freight fees to deliver replacement products or to return defective products.
4. Repairs or replacement when your product is used in other than normal, single-family household use, such as a commercial environment or handled in any way inconsistent with the installation instructions included with the product.
5. Cosmetic damage including scratches, dings, dents or cracks that do not affect the structural or functional capability of the product.
6. Replacement parts or product for Gladiator® GarageWorks products operated outside the United States and Canada.
7. In Canada, travel or transportation expenses for customers who reside in remote areas.
8. Any labor costs during the limited warranty period.
9. Damage resulting from improper loading beyond the specified maximum weight capacity outlined in the assembly instructions provided with the product.
10. Surfaces damaged due to chemical interaction resulting in corrosion of paint or metal.
11. Any damage, splitting, checking, cracking or warping of the wooden top past the first year.

DISCLAIMER OF IMPLIED WARRANTY; LIMITATION OF REMEDIES

IMPLIED WARRANTYES, INCLUDING TO THE EXTENT APPLICABLE WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDING TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTYES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Gladiator* GarageWorks dealer to determine if another warranty applies.

If you need service, call the Gladiator GarageWorks Customer Experience Center, 1-866-342-4089 (toll-free), from anywhere in the U.S.A. In Canada, contact your Whirlpool Canada LP designated service company or call 1-800-807-6777.

In the United States, Gladiator GarageWorks means Whirlpool Corporation, Benton Harbor, Michigan 49022. In Canada, Gladiator GarageWorks means Whirlpool Canada LP, Mississauga, ON L5N 3A7

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your Modular Workbench to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial label located on the back of the product.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date
