USER MANUAL GAJG36GRDG Gladiator

Assembly Instructions

Model

GAJG36GRDG - Silver Tread

GAJG36GRESG - Hammered Granite

GAJG36FDZW - Gray Slate

Modèle

ASSEMBLY INSTRUCTIONS......4

Cabinet Use Requirements......4

Unpack the Cabinet......4

Assemble Cabinet......4

Attach Back Panels ....4

Install Leveling Legs 5

Install Shelves....5

Install Doors....6

Complete Assembly......6

ACCESSORIES......6

WARRANTY....7

SÉCURITÉ DE L'ARMOIRE......8

PIÉCES 9

INSTRUCTIONS D'ASSEMBLAGE...10

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

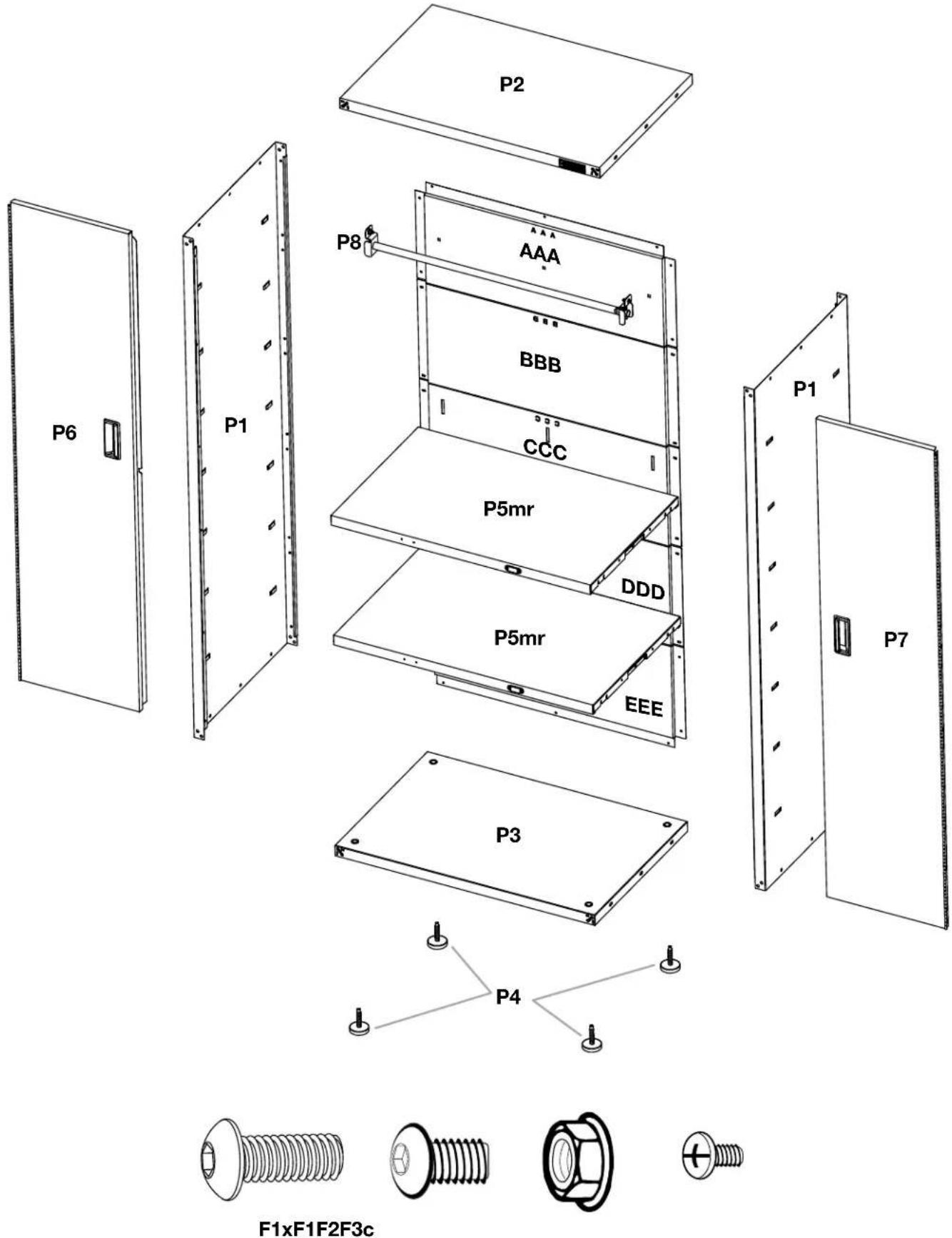

PARTS

ASSEMBLY INSTRUCTIONS

Cabinet Use Requirements

■Intended for use in a garage.
■Maximum weight limit is 50 lbs (22.7 kg) for each shelf.
■Maximum weight limit is 300 lbs (136 kg) for the cabinet.

Unpack Cabinet Parts

1. Remove and verify the contents. Contents include a Hex key, a Key, and the parts and fasteners shown in "Parts."
2. Dispose of/recycle all packaging materials.

Assemble Cabinet

F1

F2

F1. 5/16" Hex-head bolt (28)

F2. 5/16" Flange nut (12)

Gather the required tools before starting installation.

Tools Needed:

■ 1/2" Wrench

Level

■Phillips screwdriver

Tool Supplied:

■ Hex key

■ Key

WARNING

Excessive Weight Hazard

Use two or more people to move, assemble or install cabinet.

Failure to do so can result in back or other injury.

IMPORTANT:

■Two people may be required to complete the assembly.
■As you assemble the cabinet, make sure the edges with the holes are facing up.
If you are assembling the cabinet on the floor, fasten the eight front corner bolts, two at each corner, after you stand the cabinet upright.

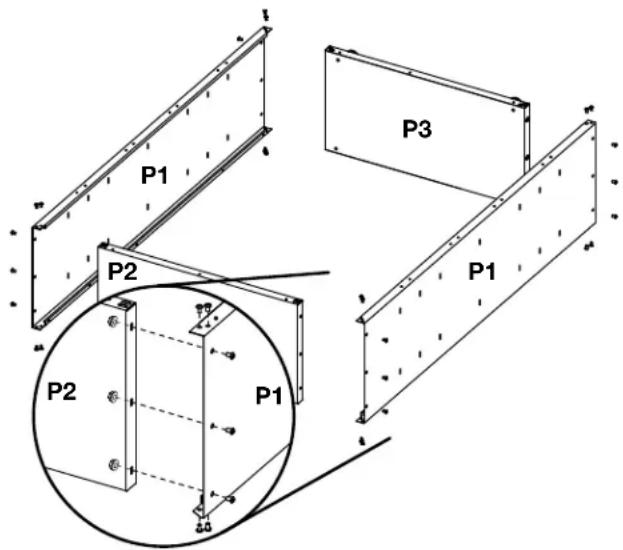

1. Place side panel (P1) on a flat, firm surface so that the edge with the holes is facing up as shown.
2. Insert the cabinet top (P2) between the edges of side panel (P1).

NOTE: Make sure the edges with the holes are facing up.

1. Align the holes and attach the top (P2) to side panel (P1) using Hex-head bolts (F1) and the three 5/16" flange nuts (F2) as shown. Do not tighten completely.

2. Position the other side panel (P1) so that the top (P2) is between the edges of side panel (P1).

3. Align the holes and attach the top (P2) to the side (P1) using Hex-head bolts (F1) and three 5/16" flange nuts (F2) as shown. Do not tighten completely.

4. Insert the cabinet bottom (P3) between the edges of the side panels (P1).

NOTE: Make sure the edges with the holes are facing up.

1. Align the holes and attach the bottom (P3) to the sides (P1) using Hex-head bolts (F1) and three 5/16" flange nuts (F2). Do not tighten completely.

P1 P2 P3 P1 P2 P1

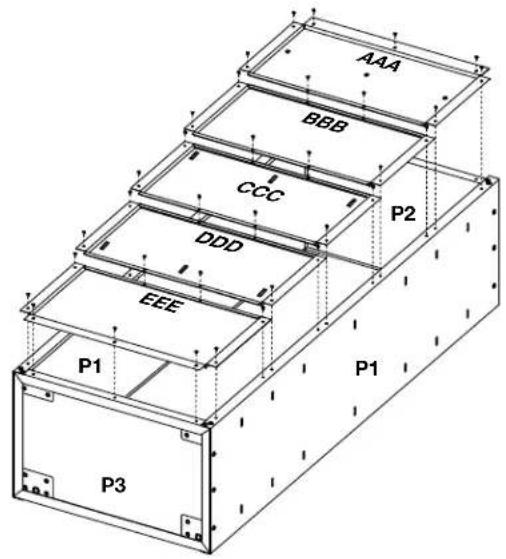

Attach Back Panels

F3c
F3c. Phillips-head screw (34)

IMPORTANT:

■Attach the back panels starting at the top of the cabinet with back panel (AAA) and working down to the cabinet bottom. Each back panel will overlap the panel below.
■Do not completely tighten the screws until all back panels are in place.

1. Align back panel (AAA) with the holes in the cabinet top. Using Phillips-head screws (F3c), attach back panel (AAA) to the cabinet top and sides.
2. Slide the top of back panel (BBB) under the bottom of back panel (AAA). Using Phillips-head screws, fasten back panel (BBB) to the cabinet sides.
3. Repeat Step 2 for the remaining back panels ending with back panel (EEE).
4. Using Phillips-head screws, attach each back panel to the panel below. NOTE: Using Phillips-head screws, attach panel (EEE) to the cabinet bottom (P3).

5. Completely tighten all back panel screws starting with the sides and continuing with the top, middle and bottom.

6. Using the Hex key (provided), completely tighten all cabinet bolts and nuts.

AAA BBB CCC P2 DDD EEE P1 P1 P3

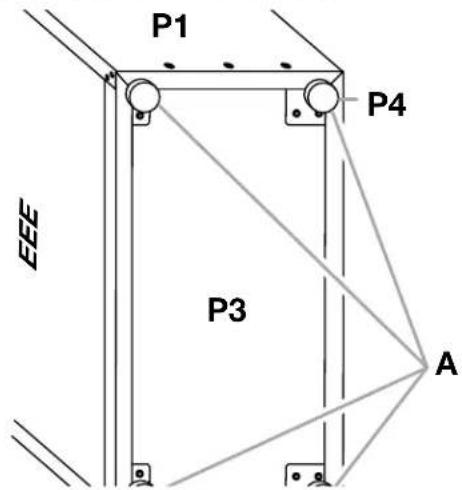

Install Leveling Legs (optional)

IMPORTANT: If you are going to install the cabinet on Gladiator GearWall® panels or GearTrack® channels, you do not need to install leveling legs.

1. Place the cabinet on its side.
2. Screw a leveling leg (P4) into each of the four rivet nuts located at the corners of the cabinet as shown.

P1 P4 EEE P3 A

A. Leveling legs

1. Stand the cabinet upright.
2. If you have not already done so, fasten the two bolts at each front corner, of the cabinet frame. Completely tighten all of the cabinet bolts and nuts.

Install Shelves

IMPORTANT:

■The shelves are supported by the metal slots on the cabinet sides.
■Make sure the magnet in the right of each long shelf edge is facing out.

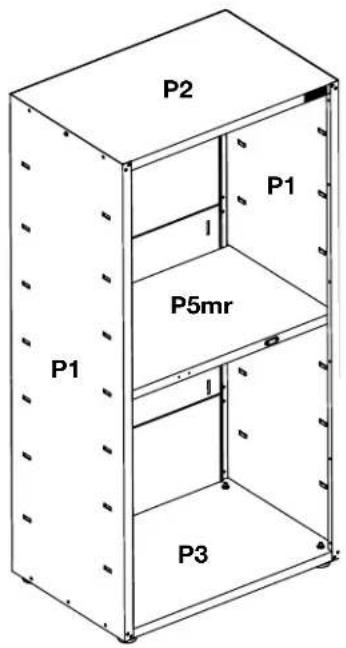

1. Place a shelf (P5mr) so that the 2 tabs in the shelf ends are aligned with the pair of slots in the middle of the cabinet sides.

P2 P1 I P5mr P1 I P3

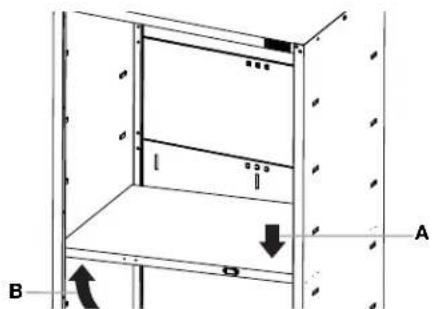

1. Tilt the shelf so that one end is higher than the other as shown.

Diagram of a metal shelving unit with labeled components and directional arrows (no text or symbols)

A. Push down
B. Lift up

1. Insert the shelf into the cabinet so that the higher end is directly above the desired slots and push the shelf down into place behind the side slots. Raise the lower end so it is directly above the desired slots and push the shelf down. NOTE: You may need to slightly bend the shelf tabs outward for the tabs to engage in the slots. Make sure the shelf tabs are in place behind all the slots, as shown.

A B

A. Cabinet slot
B. Shelf tab

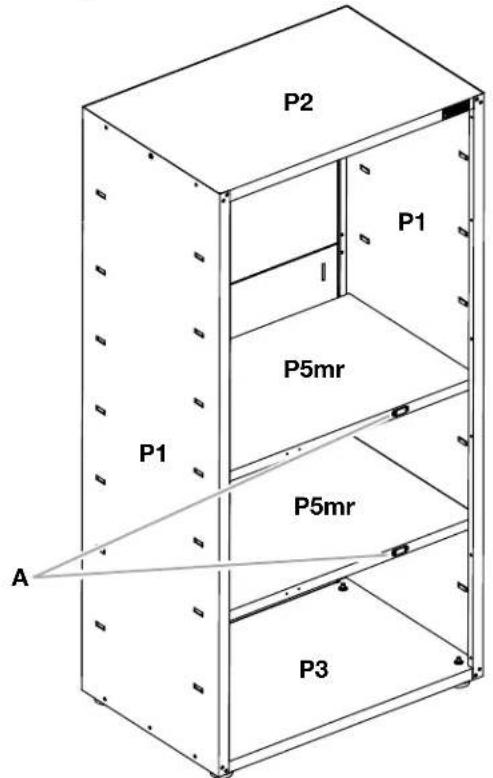

1. Repeat steps 2 and 3. NOTE: Make sure the magnet in the right of each long shelf edge is facing out.

P2 P1 I P5mr P1 A P5mr P3

A. Magnet facing outward

Adjust the Shelves

1. Lift up on the underside of the shelf until the shelf tabs are free of the cabinet slots.
2. Tilt the shelf up to reposition it within the cabinet or to remove it from the cabinet.

Install Doors

IMPORTANT:

F3c

F3c. Phillips-head screw (12)

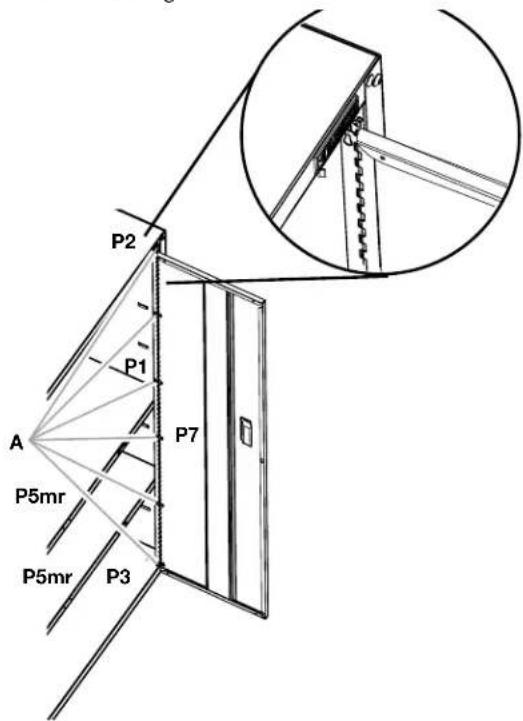

■ The door with the lock assembly (P7) should be installed on the right-hand side of the cabinet.

■The door hinges are designed with keyhole slots at the top and bottom so the door will hang on the cabinet while you are fastening the screws.

1. Start Phillips-head screws (F3c) in both the top and bottom holes on each side of the cabinet.

2. Hang the right-hand side door (P7) from the top and bottom screws, and hand tighten.

3. Insert the middle 4 screws through the door hinge into the cabinet and hand tighten.

P2 P1 A P5mr P5mr P3 P7

A. Phillips-head screw

1. Repeat steps 2 and 3 to attach the left-hand door (P6).
2. Align the doors and completely tighten the door screws.

Complete Assembly

1. Make sure there is a bolt or screw in each hole of the cabinet frame.
2. Move the cabinet to its final location.
3. Place a level on an inside shelf, and if necessary, level the cabinet by adjusting the height of the leveling legs. Turn to the left to raise or to the right to lower the leveling leg.
4. If the doors are not aligned, loosen all the screws attaching the door hinge to the cabinet.
5. Adjust door to the desired height, and fully tighten the screws.

ACCESSORIES

To order accessories, call 1-866-342-4089 and ask for the accessory part number listed below or contact your authorized Gladiator® GarageWorks dealer. In Canada, call 1-800-807-6777.

Mounting Bracket Kit - Allows the cabinet to be mounted on Gladiator® Garageworks GearWall® panels or GearTrack® channels.

Order Part # GABK362PSS

WARRANTY

For warranty information:

In the U.S.A. call 1-866-342-4089 or visit our website at

www.gladiatorgarageworks.com

In Canada call 1-800-807-6777 or visit our website at

www.gladiatorgarageworks.ca
