USER INSTRUCTIONS

NOTE! PRODUCT MAY VARY FROM ILLUSTRATIONS

503-0386 LEV21

EN

Explanation of Symbols

Recycling packaging material. Place the packaging material in the appropriate recycling waste bins wherever possible.

CAUTION

Provide ample ventilation. Do not use this appliance in an unventilated space to avoid endangering your life. If still more gas appliances and/or occupants using gas are added to the space, additional ventilation must be provided.

IMPORTANT

Read these instructions carefully so as to familiarise yourself with the appliance before fitting the appliance to a gas catridge. Retain these instructions for future reference.

1. Safety Information

• The purpose of this appliance is to be a light weight, compact power source for CADAC | DOMETIC BBQ products when the user does not want to use a large LPG cylinder. The user simply connects two gas cartridges to the Dual Power Pak and then to a suitable CADAC | DOMETIC BBQ appliance, or another compatible unit.
  • This regulator complies with EN16129:2013
• Appliance category: I3B(28-30mbar) All EU, NO, IS, CH, TR, DE, AT and LU
• Appliance category: I3B(50mbar) DE, AT and LU
• Only to be used with EN417 type disposable cartridges (CADAC CA445,CA500).
• The gas cartridge is to be used only in the upright position.
• Gas BBQ appliances require ventilation for efficient performance and to ensure the safety of users and other persons in close proximity.
• The Power Pak is fitted with a regulator with a maximum supply rate of 1.0kg/hour.
• Never place the Power Pak on a stove, and always keep it at least 1 meter away from any source of heat, and ensure it is not placed in an environment where the temperature will exceed 50^ .
  • Always store, transport or use the Power Pak in an upright position.
• When not in use, keep the valve closed, even if it is empty.

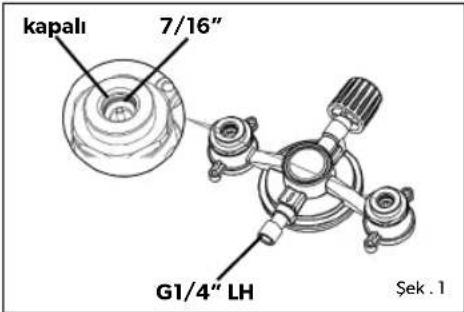

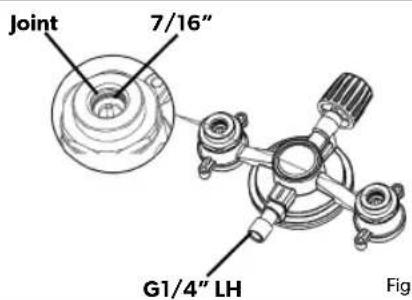

• Check that the seals (Fig. 1) are in place and in good condition before connecting the gas cartridge to the appliance. Do not use the appliance if it has a damaged or worn seal. If in doubt, replace the seal before use.
• The appliance should only be used in a well-ventilated location (minimum ventilation requirement 5m3/h) in order to satisfy offi cial ventilation standards for the supply of suffi cient combustion air and to avoid the dangerous building up of unburned gases.
• Gas cartridges must be fitted or changed in a well-ventilated location, preferably outside and away from any sources of ignition, such as naked flames, pilots, electric fires and away from other people.
• Never leave the appliance unattended when in use.
• Do not modify the appliance. Do not use it for anything for which it has not been designed.
• Do not move the Dual Power Pak during operation.
• Do not use the Dual Power Pak in small enclosed spaces without ventilation.
• The Power Pak is guaranteed for 2 years against factory defects. Normal wear and tear, valve components and plastic parts are excluded. The same applies to damage caused by improper handling, misuse or repairs by an unauthorized low-pressure gas dealer. Liability is limited to the replacement of products.
• In normal conditions of use, in order to ensure the correct operation of the Power Pak, it is recommended that this regulator is changed within 10 years of the date of manufacture.

Leaks

• Do not use an appliance which is leaking, damaged or which does not operate properly (malfunctioning).
• If you suspect a gas leak, soapy water must be applied to the joints (the appliance must not be fully immersed in soapy water as this may result in an unsafe operation of the appliance).
• To check the gas cartridge for leaks, apply soapy water to the connection area of the gas cartridge and see if any bubbles are visible. Any leakage will be seen as bubbles coming from the leakage point. If you cannot remedy any leakage, return the cartridge to your stockist.

Country Name and Abbreviations
AE = United Arab Emirates AL = Albania AT = Austria BE = Belgium CH = Switzerland
CZ = Czech Republic DE = Germany DK = Denmark ES = Spain FI = Finland
FR = France	GB = United Kingdom	GR = Greece	HR = Croatia	IT = Italy
JP = Japan	KR = Korea	NL = Netherlands	NO = Norway	PL = Poland
PT = Portugal	RO = Romania	RU = Russia	RS = Serbia	SI = Slovenia
SK = Slovakia	SE = Sweden TR = Turkey	ZA = South Africa

EN

2. Assembly

• Before operating the appliance, ensure all seals are in good condition. If you are unsure, replace the seals.
• Ensure that the hose is connected securely to the valve outlet of the Dual Power Pak.
• Connect the other end of the hose securely to the BBQ appliance you wish to operate.
• First ensure the control knob on the BBQ appliance you are going to operate is in the "off" position.

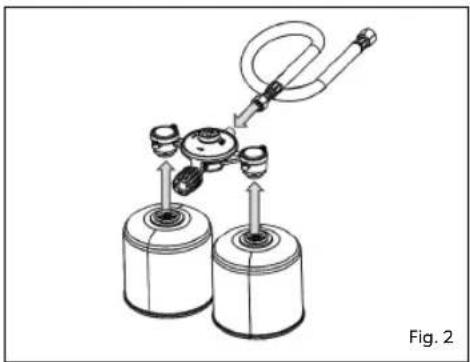

• Insert the two gas cartridges into the unit by screwing them in place (Fig. 2).

Diagram of a mechanical device with two cylindrical components and a rotating arm, labeled Fig. 2 (no text or symbols on the diagram itself)

346

1: Hand wheel (17mm Hex) and hose component
2: Move the handle wheel to the end of the hose sliding it over the brass nut.
3: Connect brass nut to the inlet of the BBQ appliance, turn the hand wheel to tighten.
4: Test the connection for leaks before use.

Close-up of a mechanical component with a metallic shaft and mounting bracket, labeled '1.2' (no other text or symbols visible)

Brass nut
Hand Wheel

Close-up of a mechanical component with a cylindrical shaft and flanged end (no visible text or symbols)

Close-up of a hand holding a white plastic mechanical component (no visible text or symbols)

346-QR

1: Remove QR male.
2: Connect QR male to the inlet of your BBQ appliance and turn to tighten.
3: Connect QR female to QR male by pushing the QR female onto the QR male.
4: Test the connection for leaks before use.

Close-up of two metallic mechanical connectors with black arrows pointing to them (no visible text or symbols)

QR Male
QR Female

3. Operating the Dual Power Pak

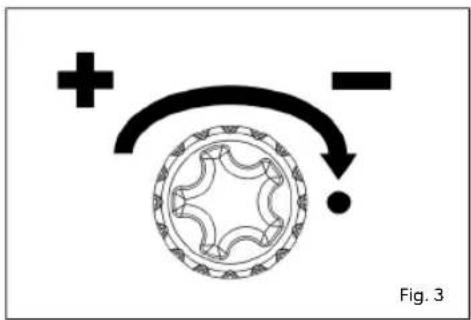

• Turn the control knob on the Dual Power Pak anti-clockwise to increase the gas flow (Fig. 3).
• Then turn on the BBQ appliance you wish to operate, and light the BBQ appliance.
• Adjust the Dual Power Pak control knob, to reach the desired level of gas flow to the BBQ appliance.
• Heat control to be done using the BBQ appliance control knob.
• The supply rate of the Dual Power Pak unit may be adjusted by turning the control valve on the Dual Power Pak from fully closed to fully open.

To disassemble the unit

• Close the control knob.
• Remove the cartridge by unscrewing it.
• Disconnect the hose from the appliance and pack the unit away for storage.


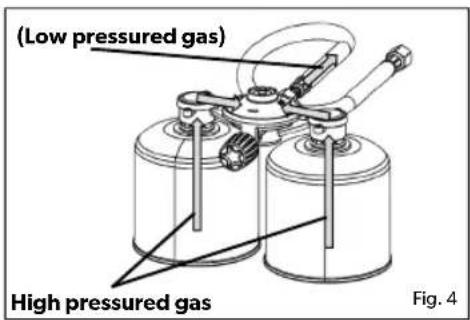

(Low pressured gas) High pressured gas Fig. 4

EN

4. Cleaning

• It is recommended to clean the device after each use. This extends the life of your device.
  • To clean the body of the device, simply wipe it with a damp cloth and, if necessary, a little washing-up liquid.
  • DO NOT IMMERSE IN WATER as this may cause damage to the unit
• Do not use scouring agents as they can damage the surfaces.

5. Storage

• Disconnect the hose from the appliance and pack the unit away for storage.
• Cartridges should always be stored in a cool, dry, well-ventilated area, away from sources of heat or flame

6. Warranty

CADAC Europe BV hereby warrants to the ORIGINAL PURCHASER of this product, that it will be free of defects in material and workmanship from the date of purchase for 2 years.

This warranty will only apply if the unit is assembled and operated in accordance with the printed instructions.

CADAC Europe BV may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE.

This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to CADAC Europe BV's satisfaction, they are defective. Before returning any parts, contact the customer service representative in your region using the contact information provided with your manual. If CADAC Europe BV confirms the defect and approves the claim, CADAC Europe BV will elect to replace such parts without charge. CADAC Europe BV will return parts to the purchaser, freight or postage prepaid.

This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner's manual.

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not cover by this Limited Warranty.

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

CADAC Europe BV is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, to this limitation or exclusion may not apply to you.

CADAC Europe BV does not authorize any person or company to assume for it any obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on CADAC Europe BV.

This Warranty applies only to products sold at retail.

DE

Diagram of a mechanical device with two cylindrical components and a rotating arm, labeled Abb. 2 (no text or symbols on the diagram itself)
