Product Type	Wall-mounted eyewash
Brand	Bradley
Model	S19224EW
Bowl Material	Plastic
Water Flow Rate	4 to 5 1/4 GPM (15.1 to 19.9 L/min)
Flow Pressure	30 PSI min / 90 PSI max (2.0 to 6.1 bar)
Max Static Pressure	125 PSI (8.6 bar)
Water Supply Connection	1 1/4" NPT (BSPP optional)
Drain Connection	1 1/4" NPT
Recommended Water Temperature	15.6 °C to 37.8 °C (60 °F to 100 °F)
Compliance Standards	ANSI/ISEA Z358.1, UL certified
Activation Type	Stainless steel lever (push handle)
Dimensions	See diagram in manual (tolerance ±3.1 mm per threaded joint)
Maintenance	Weekly activation, monthly inspection
Cleaning	Avoid organic solvents and alcohols; rinse with water
Spare parts available	Yes (receiver, hub, faucet, cover, etc.)
Repairability	Modular, replacement parts listed in manual

Frequently Asked Questions - S19224EW Bradley

What water pressure is required for the operation of the Bradley S19224EW eyewash?

The flow pressure must be between 30 PSI (2.0 bar) minimum and 90 PSI (6.1 bar) maximum. The static pressure must not exceed 125 PSI (8.6 bar).

How to install the wall-mounted eyewash S19224EW?

Secure the wall bracket with 4 anchors and 1/4" bolts (not supplied). Connect the water supply in 1 1/4" NPT (or BSPP depending on option) and the drain in 1 1/4" NPT. Apply sealant to the threads. Ensure the water supply remains always open.

What is the ideal water temperature for use?

Water should be tepid, between 15.6 °C and 37.8 °C (60 °F to 100 °F). Too cold water may cause hypothermia with prolonged exposure.

How to maintain the eyewash?

Activate the unit weekly to check flow and flush sediment. Perform a monthly inspection to detect any wear or malfunction. Clean with water only, no solvents or alcohols.

What to do if the water flow is insufficient?

Check that the supply pressure is at least 30 PSI. Make sure the shutoff valve is open and no obstruction blocks the piping. Flush the line before and after installation.

What safety standards are complied with?

This eyewash is UL certified and complies with ANSI/ISEA Z358.1 standard for emergency equipment. It must be installed in accordance with local codes.

Can spare parts be ordered?

Yes, the manual lists spare parts with their references, such as the receiver, faucet, dust cover, etc. Contact Bradley or your dealer to order them.

How to activate the eyewash?

The S19224EW eyewash is equipped with a stainless steel lever. Pull or push the lever to start water flow. A foot pedal model is available as an option.

Is there a dust cover?

The standard S19224EW model does not include a cover, but versions with cover exist (references S19224PDC, S19224DC, etc.). See the manual for options.

What is the warranty of this product?

Warranty information is available on the www.bradleycorp.com website under 'Technical Information'. Contact Bradley for more details.

USER MANUAL S19224EW Bradley

Line drawing of a mechanical device with a housing and mounting bracket (no text or symbols)

Installation

S19224 Series

Halo™ Wall-Mount Eyewash or Eye/Face Wash

Table of Contents

Table of Contents 2

Pre-Installation Information 3-4

Halo Pre-Configured Models 5-6

Halo Configurator....7

Dimensions 8

Installation Instructions 9

Service Parts — Bowl and Hub 10–11

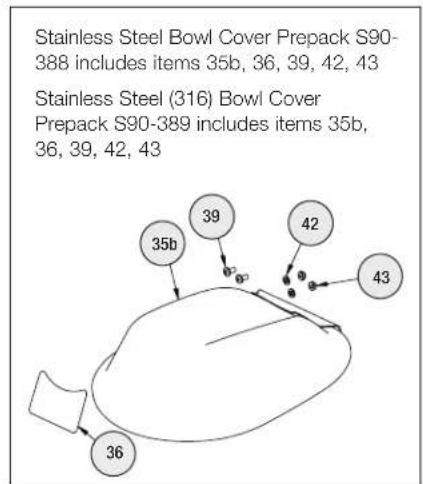

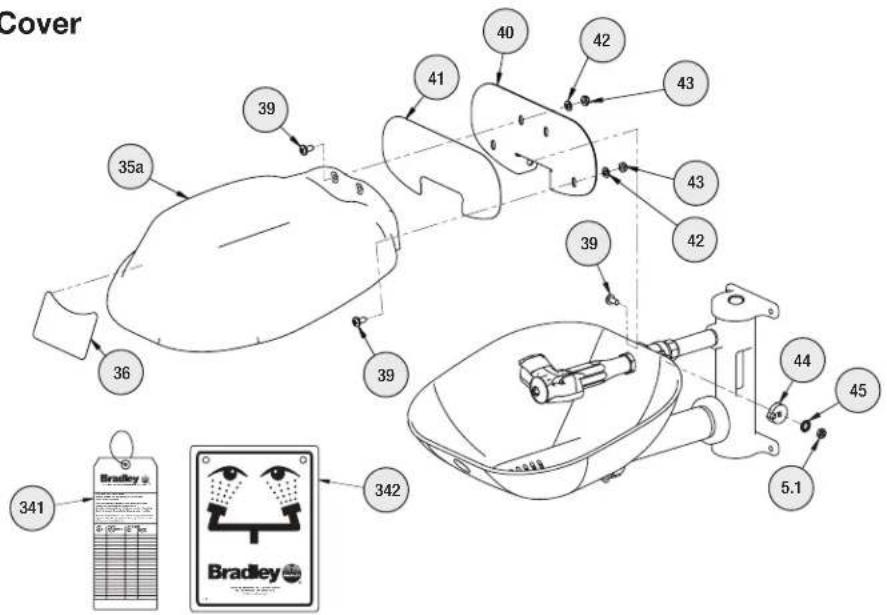

Service Parts — Eyewash, Eye/Face Wash and Bowl Covers.... 12–14

Service Parts — Drain and P-trap....15

Service Parts — Optional Accessories....16

Avant l'installation.... 17-18

Flush the water supply lines before beginning installation and after installation is complete. Test the unit for leaks and adequate water flow. Main water supply to the eyewash should be "ON" at all times. Provisions shall be made to prevent unauthorized shutoff.

CAUTION

Emergency equipment must be supplied with tepid water (60°F to 100°F/15.6°C to 37.8°C). Any prolonged exposure to near freezing water affects the body's ability to maintain body temperature, increasing the risk of hypothermia.

NOTICE

Before installing this product, ensure that there are adequate clearances around the product and activation of the product does not interfere with other products or obstructions.

Avoid cleaners containing organic solvents, alcohols and hydrocarbons. Rinse with water after cleaning.

IMPORTANT

The installation and location of all safety drench showers, eye and eye/face washes must comply with the requirements of ANSI/ISEA Z358.1.

Read this installation manual completely to ensure proper installation, then file it with the owner or maintenance department. Compliance and conformity to drain requirements and other local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not begin installation until you obtain the missing parts.

The ANSI/ISEA Z358.1 standard requires an uninterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21MPa) flowing pressure.

Self-closing spring-loaded valves are not UL classified to ANSI/ISEA Z358.1.

Weekly activation must be conducted on all plumbed emergency equipment to ensure a suitable flushing fluid supply is present and any sediment build-up in the supply line is cleared. Emergency equipment should be inspected monthly to address any maintenance issues ensuring the equipment is in good operating condition and that there are no signs of wear.

Workers who may come in contact with potentially hazardous materials should be trained regarding the placement and proper operation of emergency equipment per ANSI/ISEA Z358.1.

For questions regarding the operation or installation of this product, visit www.bradleycorp.com or call 800-BRADLEY (272.3539).

Product warranties and parts information may also be found under "Products" on our web site at bradleycorp.com.

Supplies Required:

• (4) 14 " anchors and bolts
• Teflon tape and pipe sealant
• 30 PSI (2.0 bar) min/90 PSI (6.1 bar) max flow pressure
• 125 PSI (8.6 bar) max static pressure
- Piping to 12 " NPT (BSPP) water supply inlet (30–90 psi [2.0-6.1 bar])
- Piping to 1 14 " NPT drain outlet on unit (if included with unit)
• OPTIONAL: sign-mounting hardware

Local codes may require the installation of a backflow prevention valve to complete proper installation.

Compliance with local codes is the responsibility of the installer. Valve must be tested annually to verify that it is functioning properly. Backflow prevention valves are not included with the fixture and may be supplied by the contractor or purchased from Bradley Corporation.

Halo Pre-Configured Models

Halo Model Number	Description	UL certified to ANSI/ISEA
Eyewashes
☐ S19224EW	Halo Eyewash, plastic bowl	X
☐ S19224PT	Halo Eyewash, plastic bowl, p-trap	X
☐ S19224B	Halo Eyewash, stainless steel bowl	X
☐ S19224BPT	Halo Eyewash, stainless steel bowl, p-trap	X
Eyewashes with Dust Cover
☐ S19224PDC	Halo Eyewash, plastic bowl w/ dust cover	X
☐ S19224DC	Halo Eyewash, stainless steel bowl & hinged dust cover	X
☐ S19224DCPT	Halo Eyewash, stainless steel bowl & hinged dust cover, p-trap	X
Eye-Face Washes
☐ S19224FW	Halo Eye/face wash, plastic bowl	X
☐ S19224FWPT	Halo Eye/face wash, plastic bowl, p-trap	X
☐ S19224T	Halo Eye/face wash, stainless steel bowl	X
☐ S19224P	Halo Eye/face wash, stainless steel bowl w/ hose spray, tailpiece	X
☐ S19224TPT	Halo Eye/face wash, stainless steel bowl, p-trap	X
☐ S19224Y	Halo Eye/face wash, stainless steel bowl, hand/foot operated, tailpiece	X
Eye-Face Washes with Dust Covers
☐ S19224PDCFW	Halo Eye/face wash, plastic bowl w/ dust cover	X
☐ S19224DCFW	Halo Eye/face wash, stainless steel bowl & hinged dust cover	X
☐ S19224DCRPT	Halo Eye/face wash, stainless steel bowl & hinged dust cover, p-trap	X
All Stainless Steel Eye/Face Wash
☐ S19224SC	Halo stainless steel eye/face wash, bowl and cover	X
☐ S19224SS	Halo stainless steel eye/face wash and bowl	X

Halo Pre-Configured Models

All models with AS4775, AS/NZS 4020 Certification include BSPP threading.

Halo Model Number	Description	IAPMO Oceana certified to AS4775 & AS4020
Eyewashes
☐ S19224EWZ	Halo Eyewash, plastic bowl
☐ S19224EWZS	Halo Eyewash, plastic bowl, stainless steel piping X
☐ S19224PTZ	Halo Eyewash, plastic bowl, p-trap
☐ S19224PTZS	Halo Eyewash, plastic bowl, p-trap, stainless steel piping
☐ S19224BZ	Halo Eyewash, stainless steel bowl
☐ S19224BZS	Halo Eyewash, stainless steel bowl, stainless steel piping X
☐ S19224BPTZ	Halo Eyewash, stainless steel bowl, p-trap
☐ S19224BPTZS	Halo Eyewash, stainless steel bowl, p-trap, stainless steel piping
Eyewashes with Dust Cover
☐ S19224PDCZ	Halo Eyewash, plastic bowl w/ dust cover
☐ S19224PDCZS	Halo Eyewash, plastic bowl w/ dust cover, stainless steel piping X
☐ S19224DCZ	Halo Eyewash, stainless steel bowl & hinged dust cover
☐ S19224DCZS	Halo Eyewash, stainless steel bowl & hinged dust cover, stainless steel piping X
☐ S19224DCPTZ	Halo Eyewash, stainless steel bowl & hinged dust cover, p-trap
☐ S19224DCPTZS	Halo Eyewash, stainless steel bowl & hinged dust cover, p-trap, stainless steel piping
Eye-Face Washes
☐ S19224FWZ	Halo Eye/face wash, plastic bowl
☐ S19224FWZS	Halo Eye/face wash, plastic bowl, stainless steel piping X
☐ S19224WPTZ	Halo Eye/face wash, plastic bowl, p-trap
☐ S19224WPTZS	Halo Eye/face wash, plastic bowl, p-trap, stainless steel piping
☐ S19224TZ	Halo Eye/face wash, stainless steel bowl
☐ S19224TZS	Halo Eye/face wash, stainless steel bowl, stainless steel piping X
☐ S19224TPTZ	Halo Eye/face wash, stainless steel bowl, p-trap
☐ S19224TPTZS	Halo Eye/face wash, stainless steel bowl, p-trap, stainless steel piping
☐ S19224YZ	Halo Eye/face wash, stainless steel bowl, hand/foot operated, tailpiece
☐ S19224YZS	Halo Eye/face wash, stainless steel bowl, hand/foot operated, tailpiece, stainless steel piping	X
☐ S19224PZ	Halo Eye/face wash, stainless steel bowl w/ hose spray, tailpiece
Eye-Face Washes with Dust Cover
☐ S19224PDCFWZ	Halo Eye/face wash, plastic bowl w/ hinged dust cover
☐ S19224PDCFWZS	Halo Eye/face wash, plastic bowl w/ hinged dust cover, stainless steel piping X
☐ S19224DCFWZ	Halo Eye/face wash, stainless steel bowl & hinged dust cover
☐ S19224DCFWZS	Halo Eye/face wash, stainless steel bowl & hinged dust cover, stainless steel piping	X
☐ S19224DCRPTZ	Halo Eye/face wash, stainless steel bowl & hinged dust cover, p-trap
☐ S19224DCRPTZS	Halo Eye/face wash, stainless steel bowl & hinged dust cover, p-trap, stainless steel piping
All Stainless Steel Eye/Face Wash
☐ S19224SCZ	Halo stainless steel eye/face wash, bowl and cover X
☐ S19224SSZ	Halo stainless steel eye/face wash and bowl with foot activation	X

Halo Configurator

Standard Selections (Must select one from each category)

Configuration
☐ 0	Standard Wall Mount
Pipe Material
☐ A	NPT, Yellow BradTect Galvanized Steel
☐ B	NPT, All 304 Stainless Steel
☐ C	NPT, All 316 Stainless Steel
☐ D	NPT, Chrome-Plated
☐ F	BSPP, Yellow BradTect Galvanized Steel ‡
☐ G	BSPP, All 304 Stainless Steel ‡
☐ J	BSPP, Chrome-Plated ‡
Ball Valve
☐ 1	Stay-Open Eyewash, Chrome-Plated brass
☐ 2	Stay-Open Eyewash, 316 SS
Eyewash – Eye/Face Wash
☐ A	Halo Eyewash
☐ B	Halo Eye/Face Wash
☐ D	Halo Eyewash, 304 SS Yoke
☐ E	Halo Eye/Face Wash, 304 SS Yoke
☐ F	304 SS Halo Eye/Face Wash, 304 SS Yoke
☐ G	Halo Eyewash, 316 SS Yoke
☐ H	Halo Eye/Face Wash, 316 SS Yoke
☐ J	316 SS Halo Eye/Face Wash, 316 SS Yoke
Bowl and Dust Cover
☐ A	Plastic Bowl, No Dust Cover
☐ B	Plastic Bowl, Plastic Dust Cover
☐ D	304 SS, No Dust Cover
☐ E	304 SS, 304 SS Dust Cover
☐ F	304 SS, Plastic Dust Cover
☐ G	316 SS, No Dust Cover
☐ H	316 SS, 316 SS Dust Cover
☐ J	316 SS, Plastic Dust Cover
☐ O	No Bowl or Dust Cover

Activation
☐ A	300 SS Handle
☐ B	316 SS Handle
☐ D	300 SS Handle with 300 SS Foot Pedal
Waste
☐ A	Tailpiece
☐ D	P-trap
☐ O	No Waste

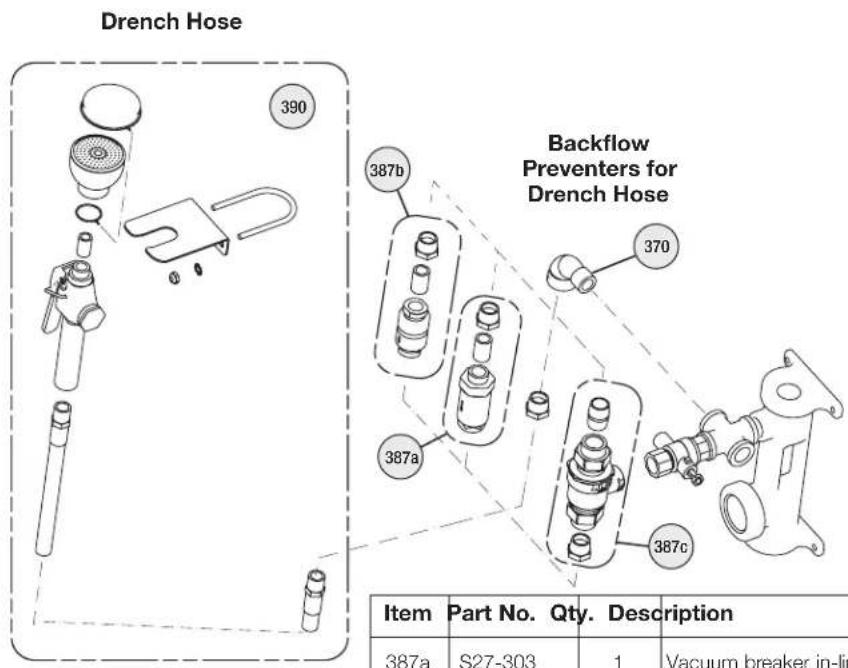

Drench Hose and Backflow Prevention
☐ A	Drench Hose Kit with Vacuum Breaker
☐ B	Drench Hose Kit with N9 Backflow Preventer
☐ C	Drench Hose Kit with 9D Backflow Preventer
☐ D	Drench Hose Kit without Backflow Preventer
☐ O	No Drench Hose and No Backflow Prevention
Freeze and Scald Protection
☐ N	Anti-Freeze Valve
☐ P	Anti-Scald Valve
☐ R	Anti-Freeze and Anti-Scald Valves
☐ O	No Anti-Freeze Valve and No Anti-Scald Valve

* Not available with barrier-free configurations.
‡ Not available in the U.S.

NPT = National Pipe Thread
BSPP = British Standard Pipe Parallel Thread
√ All selections made through the configurator are only UL certified to ANSI/ISEA Z358.1

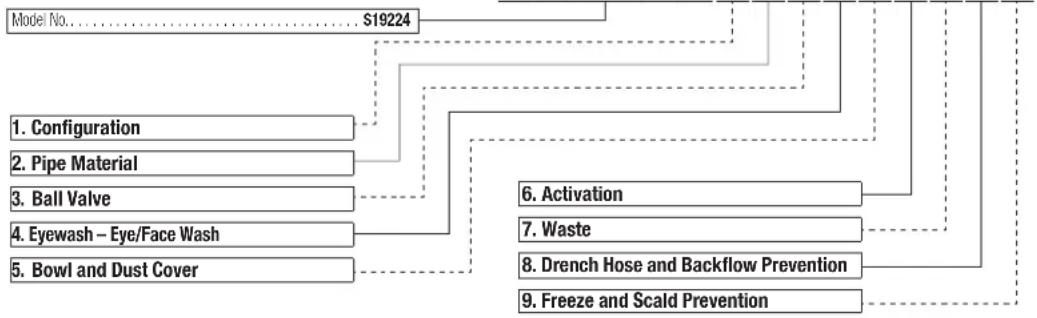

How to Specify Model and Configurations for Bradley Halo Products:


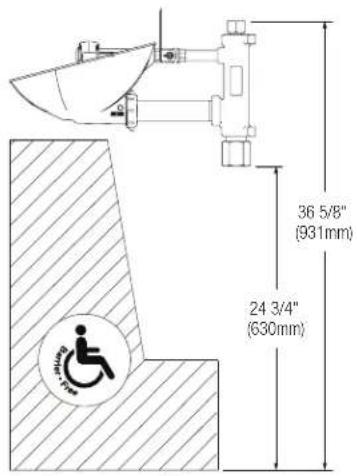

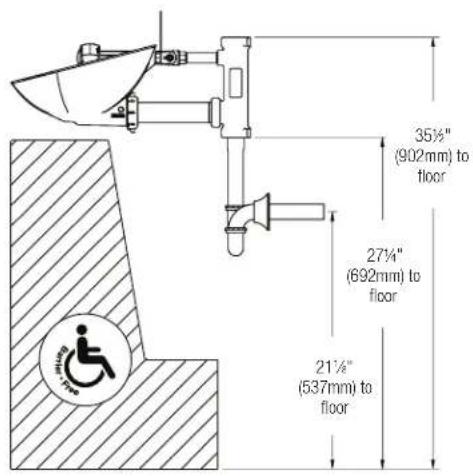

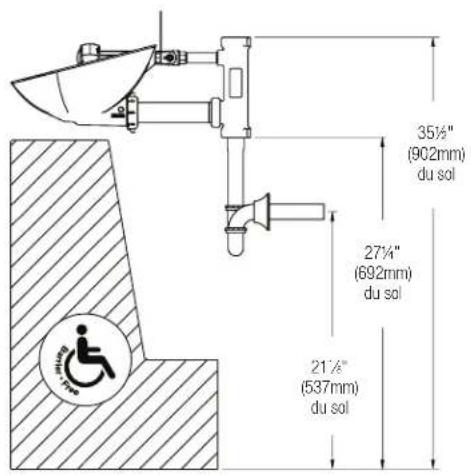

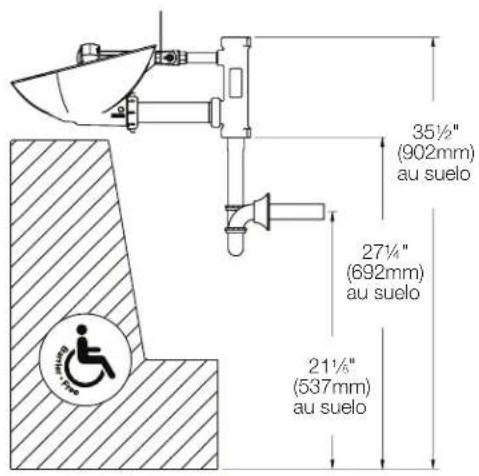

Dimensions

S19224 shown with Eyewash and Plastic Bowl

NPT Connections BSPP Connections

35½" (902mm) to floor 27¼" (692mm) to floor 21½" (537mm) to floor

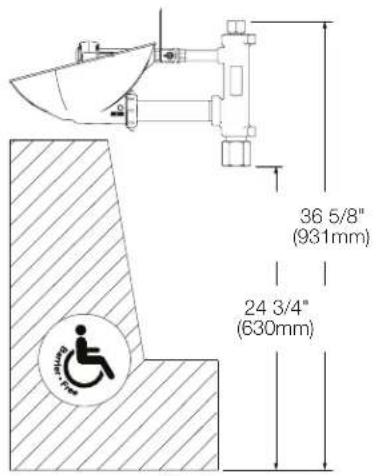

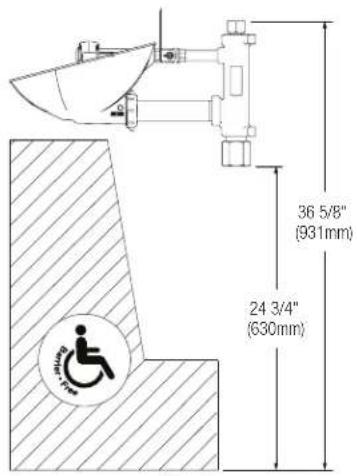

36 5/8" (931mm) 24 3/4" (630mm)

34¾" (883mm) to floor

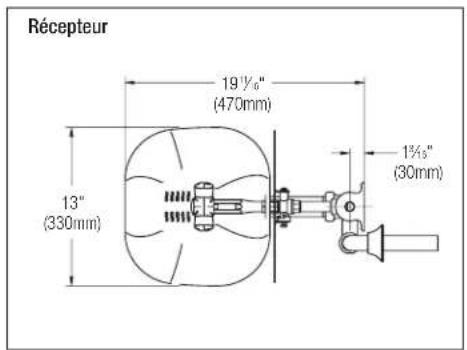

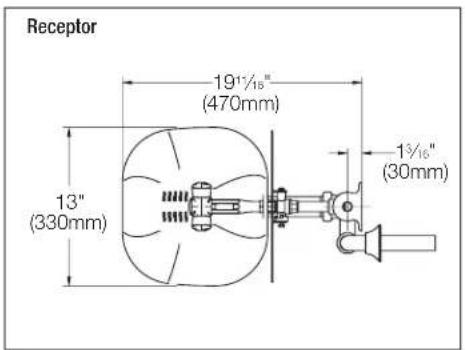

Eyewash Bowl

19½" (470mm) 13" (330mm) 1½" (30mm)

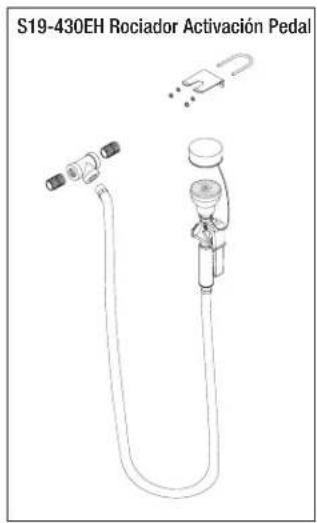

S19-430EH Drench Hose Foot Pedal Activation

Line drawing of a U-shaped tube with connectors and a small inset showing a plug (no text or symbols)

Pure mechanical linkage diagram without any text, numbers, or symbols

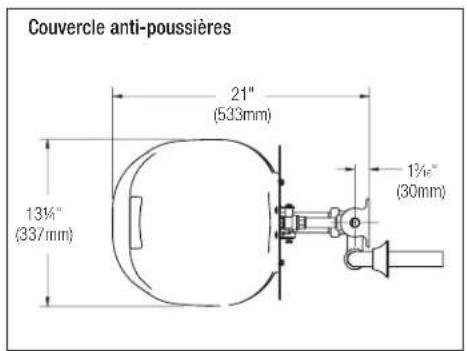

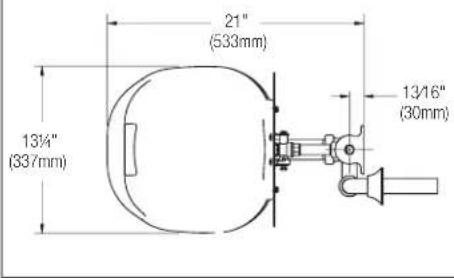

Dust Cover

21" (533mm) 13¼" (337mm) 13/16" (30mm)

Water Flow Rate

Eyewash 4-51⁄4 gpm
Eye/Face Wash 4-51⁄4 gpm
Body Wash 2-8 gpm

All dimensions assume standard thread engagement. Variations in manufacturing allow for +/- 18 (3mm) per threaded joint. To find the tolerance of a dimension, add the number of thread joints across the length of the dimension and multiply it by 1/8 (3mm).

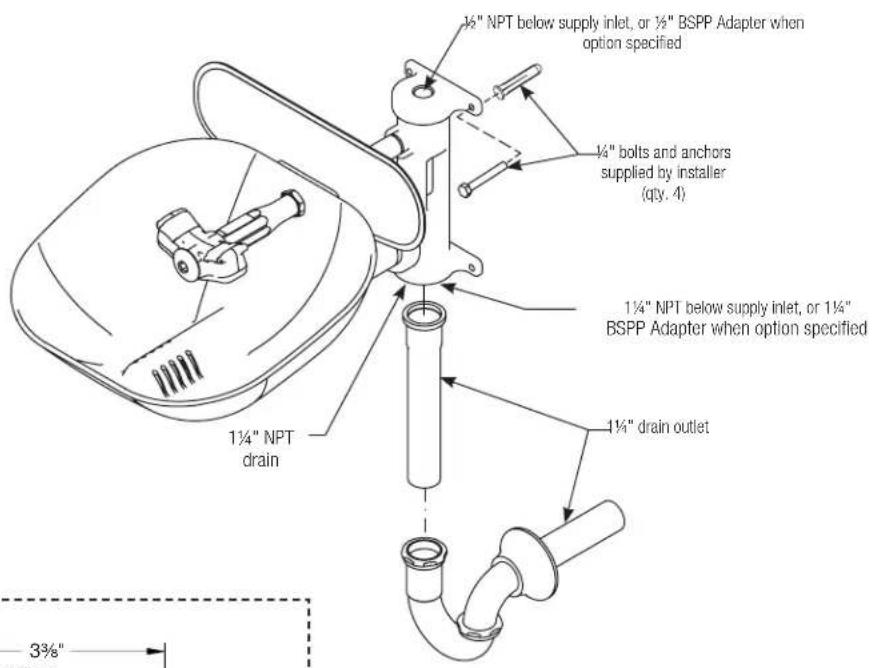

1 Install Eyewash

Standard eyewash unit is shown. Other units are similar.
When connecting components, use the rubber grip pad (provided) around pipes to prevent marring.
√ Apply pipe sealant (supplied by installer) to all male-threaded pipe joints, making sure not to get any excess over the edge of the pipes.
BSPP = British Standard Pipe Parallel Thread (not available in the U.S.)

1½" NPT below supply inlet, or 1½" BSPP Adapter when option specified 1¼" bolts and anchors supplied by installer (qty. 4) 1¼" NPT below supply inlet, or 1¼" BSPP Adapter when option specified 1¼" NPT drain 1¼" drain outlet 3¾"

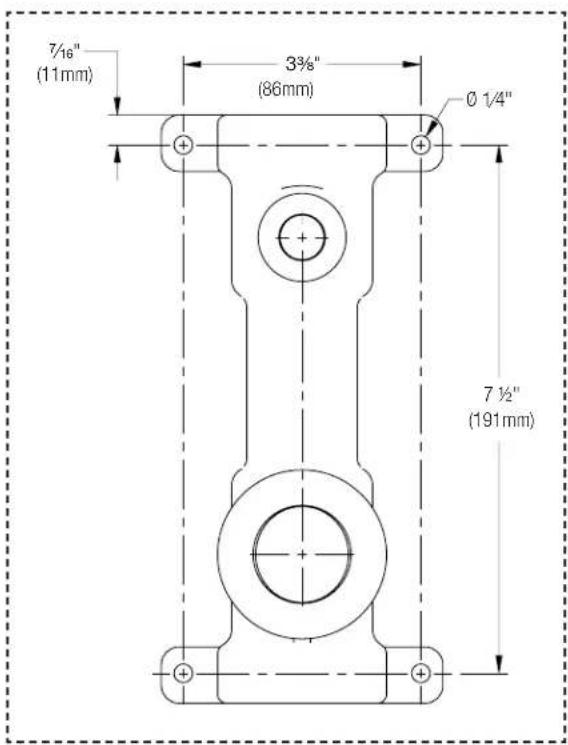

7½" (11mm) 3¾" (86mm) 0 1/4" 7 ½" (191mm)

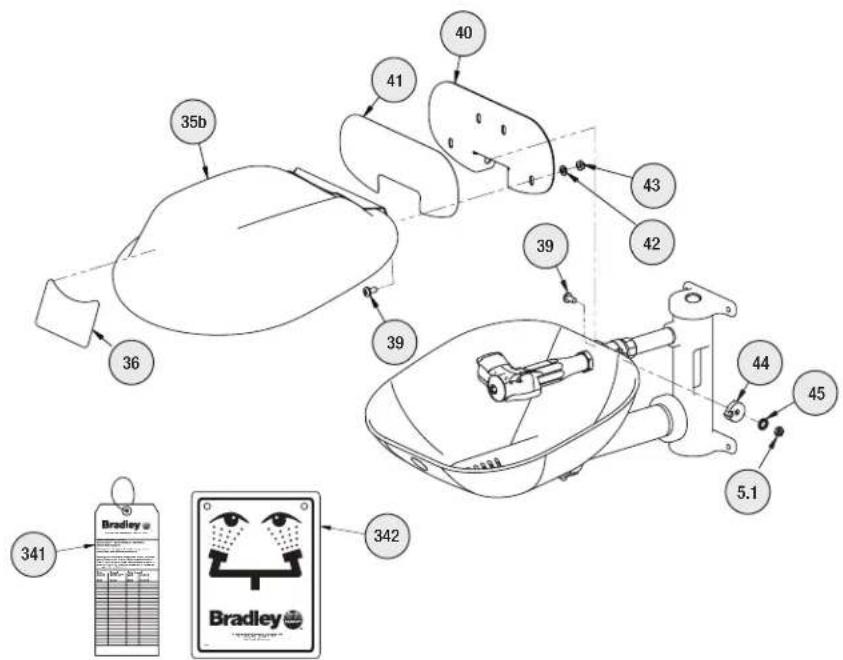

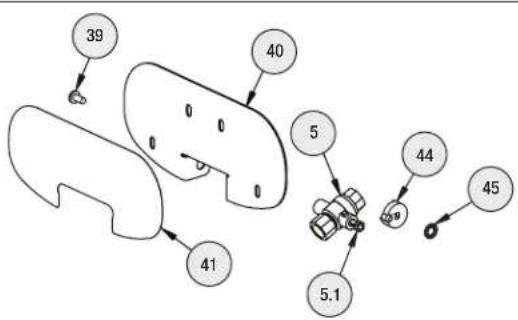

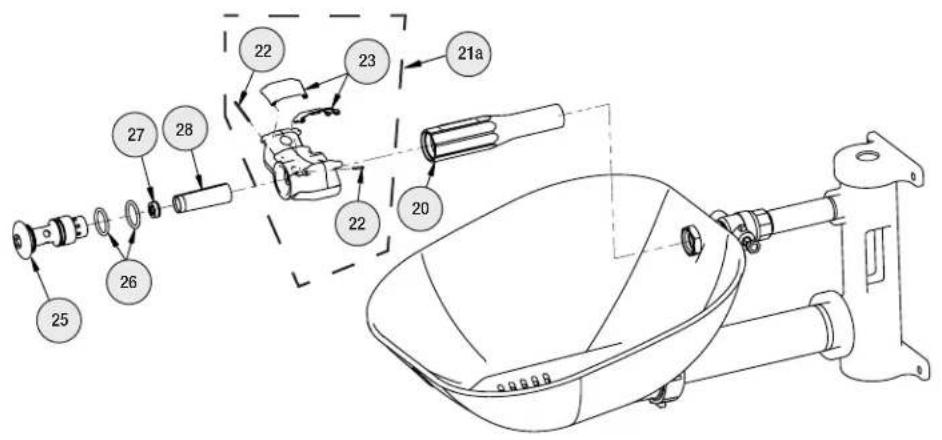

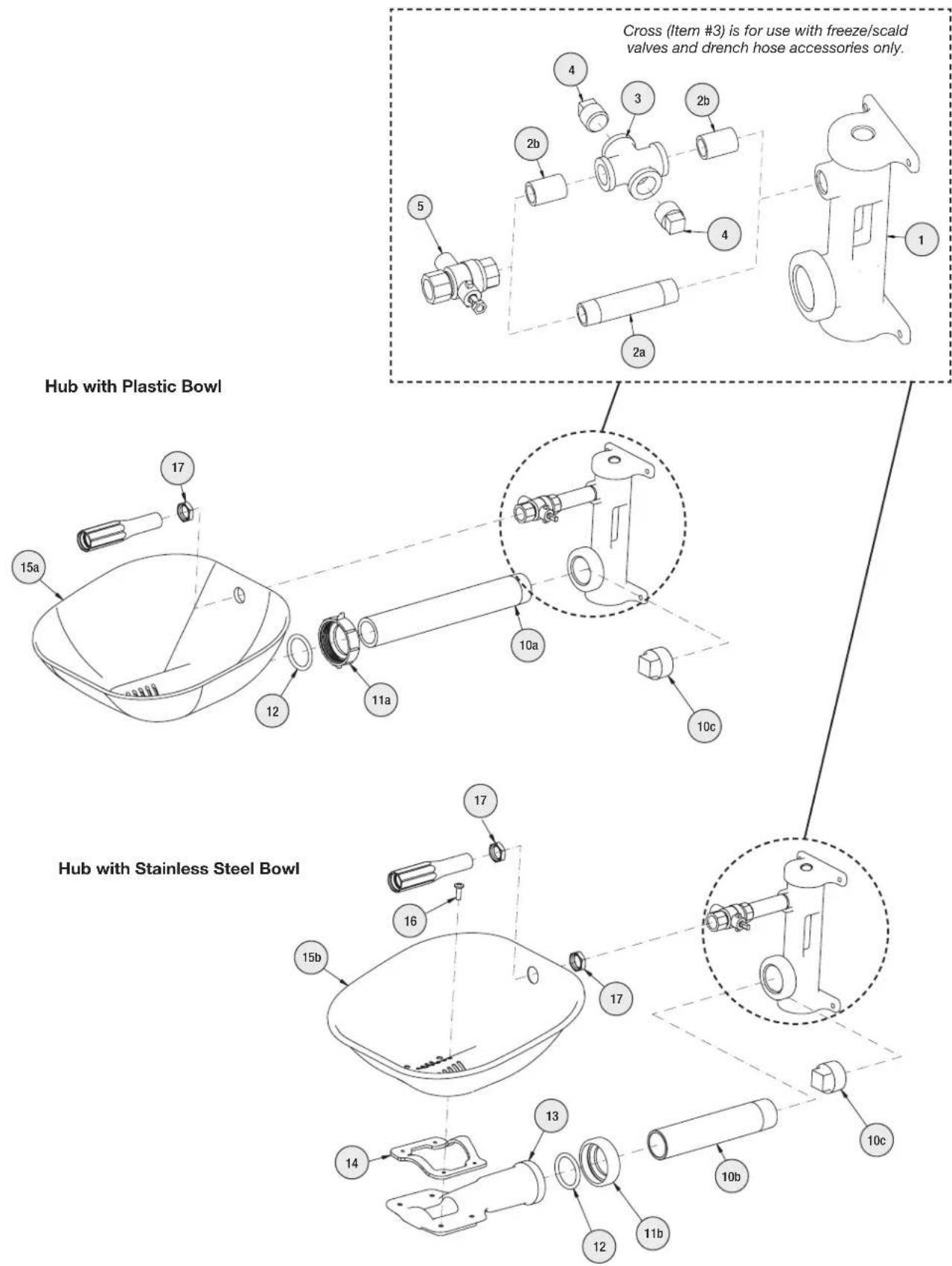

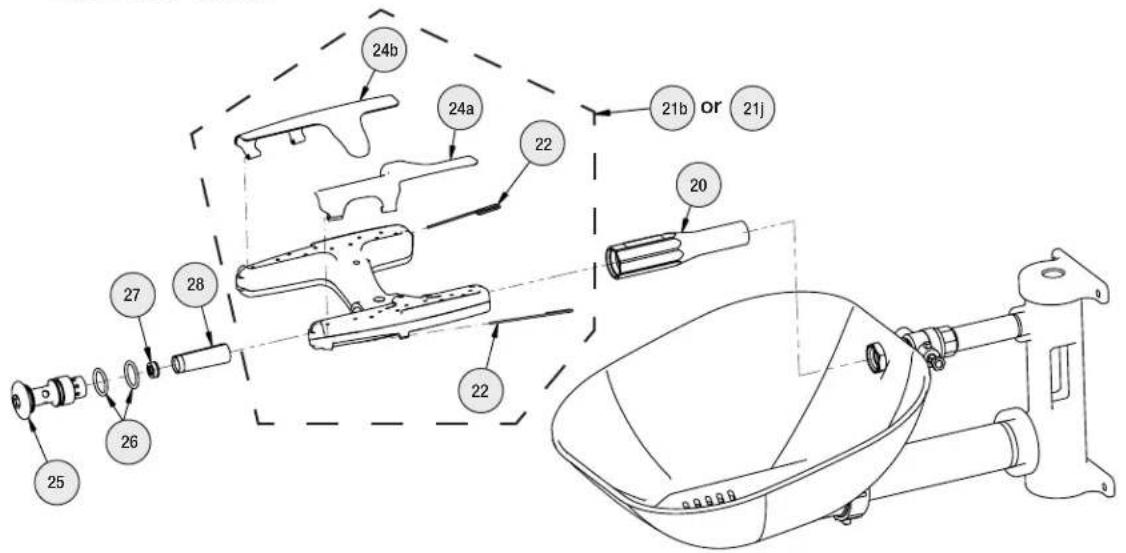

Service Parts - Bowl and Hub

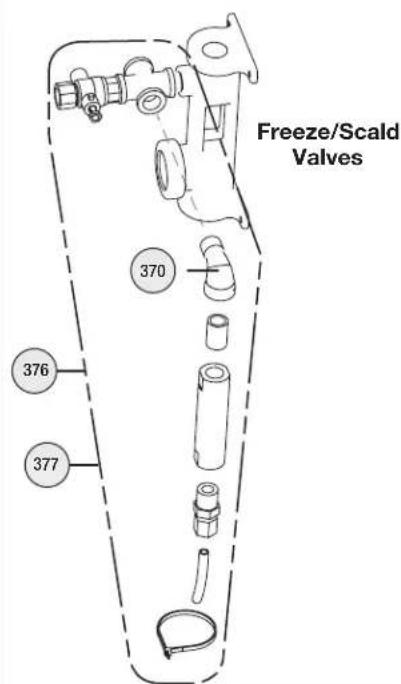

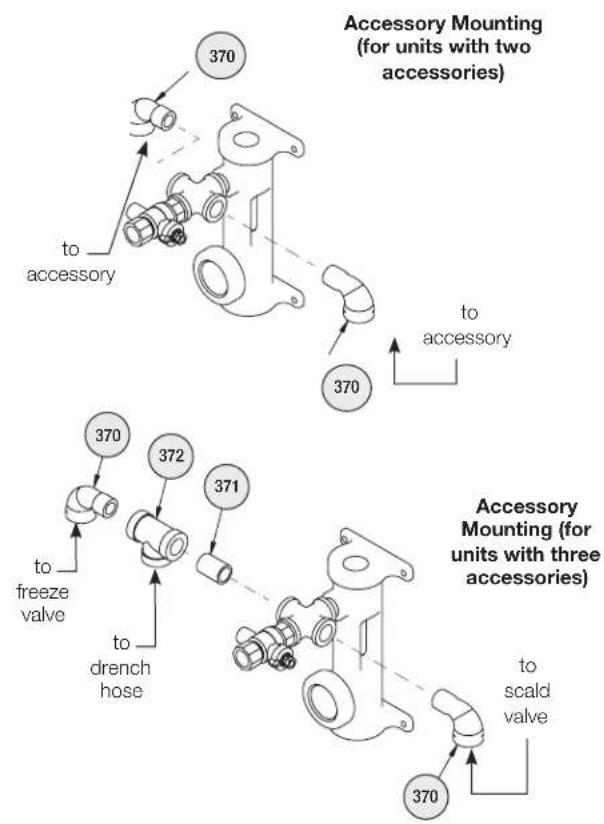

Cross (Item #3) is for use with freeze/scald valves and drench hose accessories only. Hub with Plastic Bowl 17 15a 12 11a 10a 10c 17 16 15b 14 13 12 11b 10b 10c 2a 4 3 2b 2b 4 1

Service Parts List - Bowl and Hub

BSP = British Standard Pipe Thread (not available in the U.S.)

Item	Part No.	Qty	Description
1	111-096	1	Hub
1 111-097	1 Hub stainless steel
1 111-103	1 Hub stainless steel 316
1 111-098	1 Hub stainless steel polish
2a 113	-006LQ 1 Pipe 12" × 312"
2a 113	-965 1 Pipe 12" × 312" stainless steel
2a 113	-1211 1 Pipe 12" × 312" stainless steel 316
2a 113	-596 1 Pipe 12" × 312" chrome
2b 113	-006LG 2 Pipe 12" × close
2b 113	-867 2 Pipe 12" × close stainless steel
2b 113	-1210 2 Pipe 12" × close stainless steel 316
2b 113	-006aw 2 Pipe 12" × close chrome
3 169	-1090 1 Cross 12"
3 169	-1091 1 Cross 12" stainless steel
3 169	-1098 1 Cross 12" stainless steel 316
3 169	-1097 1 Cross 12" chrome
4 300	-0393 2 Plug 12" chrome
4 153	-230 2 Plug 12" stainless steel
4 153	-460 2 Plug 12" stainless steel 316
5 S27	-327 1 Ball valve 12" with nut
5 S27	-328 1 Ball valve 12" ss 316 with nut
5 S27	-329 1 Ball valve 12" frost proof with nut
5 S27	-330 1 Ball valve 12" ss 316 frost proof with nut
5.1	110-215	1	Nut
5.1	110-248 1 Nut stainless steel 316

Item	Part No.	Qty	Description
10a	113-1202 1	Pipe 114"	x 11" thd. one end
10a	113-1203	1	Pipe 114" x 11" thd. one end stn. steel
10b	113-1204 1	Pipe 114"	x 7" thd. one end
10b	113-1205	1	Pipe 114" x 7" thd. one end stainless steel
10b	113-1206 1	Pipe 114"	x 7" thd. one end chrome
10b	113-1212	1	Pipe 114" x 7" thd. one end stn. steel 316
10c	169-724 1	Plug 114"	painted galvanized
10c	269-251 1	Plug 114"	chrome
10c	269-238 1	Plug 114"	stainless steel
10c	269-1402 1	Plug 114"	stainless steel 316
11a	110-239 1	Nut plastic,	slip joint
11b	110-240 1	Nut, stainless steel slip joint
11b	110-242 1	Nut, stainless steel 316 slip joint
12	125-176	1	O-ring
13 111	-099 1	Bowl mount aluminum
13 111	-100 1	Bowl mount aluminum painted
13 111	-101 1	Bowl mount stainless steel
13 111	-102 1	Bowl mount stainless steel 316
14 124	-082 1	Bowl gasket
15a	187-320 1	Bowl plastic
15b	S90-393 1	Bowl stainless steel (includes Item 14)
15b	S90-394 1	Bowl stn.	steel 316 (includes Item 14)
16	160-467	4	Screw
17	110-115a	as req'd.	Nut 12" NPSM chrome brass
17	110-238	as req'd.	Nut 12" NPSM stainless steel
17	110-241	as req'd.	Nut 12" NPSM stainless steel 316

S90-395 Plastic Prepack includes items 10a, 11a, 12, 15a

15a 12 11a 10a

300 Series SS Prepack S90-391 includes items 10b, 11b, 12, 13, 14, 15b 316 Series SS Prepack S90-392 includes items 10b, 11b, 12, 13, 14, 15b

15b 13 14 12 11b 10b

Service Parts — Eyewash

Technical diagram of a scooter body with numbered components and exploded view

Service Parts — Eye/Face Wash

Technical diagram of a scooter body with numbered parts and component labels

Prepack S65-339 includes items 26, 27, 28

Prepack S88-068 includes items 25, 26, 27, 28

Prepack S88-069 includes items 25, 26, 27, 28 (300 series ss)

Prepack S88-070 includes items 25, 26, 27, 28 (316 ss)

Eyewash Cover Prepack S45-2675 includes items 22 and 23

Eye/Face Wash Cover Prepack S45-2676 includes items 22, 24a and 24b

24b 24a 22 22

Service Parts — Plastic Bowl Cover

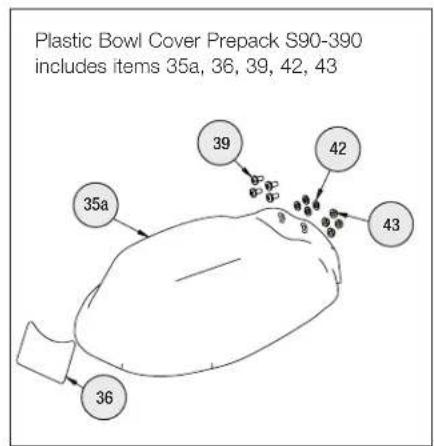

Plastic Bowl Cover Prepack S90-390 includes items 35a, 36, 39, 42, 43 35a 39 42 43 36

Cover 35a 36 39 39 40 41 42 43 43 42 39 44 45 5.1 341 342 Bradley

Service Parts — Stainless Steel Bowl Cover

Stainless Steel Bowl Cover Prepack S90-388 includes items 35b, 36, 39, 42, 43 Stainless Steel (316) Bowl Cover Prepack S90-389 includes items 35b, 36, 39, 42, 43

35b 36 41 40 42 43 39 39 44 45 5.1 341 342 Bradley

Handle Prepacks include items 39, 40, 41, 44, 45, 5, 5.1

Prepack S08-390 (for units with brass ball valve)

Prepack S08-391 (for units with stainless steel ball valve)

Prepack S08-392 (for units with brass frost-proof ball valve)

Prepack S08-393 (for units with stainless steel frost-proof ball valve)

Prepack S08-394 (for units with 316 stainless steel ball valve and handle)

Prepack S08-395 (for units with 316 stainless steel frost-proof ball valve and handle)

39 40 5 44 45 41 5.1

Service Parts List - Eyewash and Eye/Face Wash

Item	Part No. Qty Description
20	171-001	1	Body
20	171-002	1	Body stainless steel
20	171-003	1	Body stainless steel 316
20	171-004	1	Body polished
21a	S05-190	1	Sprayhead ass'y. eyewash (includes)
22	in service kit	2	Pivot pin
23	in service kit	2	Flip cover eyewash
21b	S05-192	1	Sprayhead ass'y. eye/face wash (includes)
22	in service kit	2	Pivot pin
24a	in service kit	1	Flip cover right
24b	in service kit	1	Flip cover left
21j	S05-205(Used on both 304SS and 316SS fixtures)	1	Sprayhead stainless steel 316 ass'y. eye/face (includes)
22	in service kit	2	Pivot pin
24a	in service kit	1	Flip cover right
24b	in service kit	1	Flip cover left
25	115-158	1	Cap
25	115-159	1	Cap stainless steel
25	115-164	1	Cap stainless steel 316
25	115-165	1	Cap polished

Item	Part No. Qty Description
26	125-157 2 O-ring
27	125-175 1 Flow control
28	65-340 1 Screen (incl. 3 per pack)
35a	in service kit	1	Bowl cover plastic
35b	in service kit	1	Bowl cover stainless steel
35b	in service kit	1	Bowl cover stainless steel 316
36	114-097 1 Bowl cover decal
39	160-389	as req'd. as req'd.	Screw 14 -20 x 12" stn. steelScrew 14 -20 x 12" stn. steel 316
39	160-469
40	S08-385	1	Handle ss (incl. items 41, 44, 45, 5.1)
40	S08-388	1	Handle ss 316 (incl. items 41, 44, 45, 5.1)
41	114-096 1 Decal
42	142-002AV as req'd.		Bowl cover washer
43	161-060	as req'd. as req'd.	Nut stainless steelNut stainless steel 316
43	161-062
44	153-372R 1 Adapter ball valve
44	153-372R316	1 Adapter ball valve stainless steel 316
45	142-002DA 1 Lockwasher
341	204-421 1 Emergency		Inspection Tag
342	114-051 1 Eyewash Safety Sign
342	114-051E	1 Eyewash Safety Sign (not available in the U.S.)

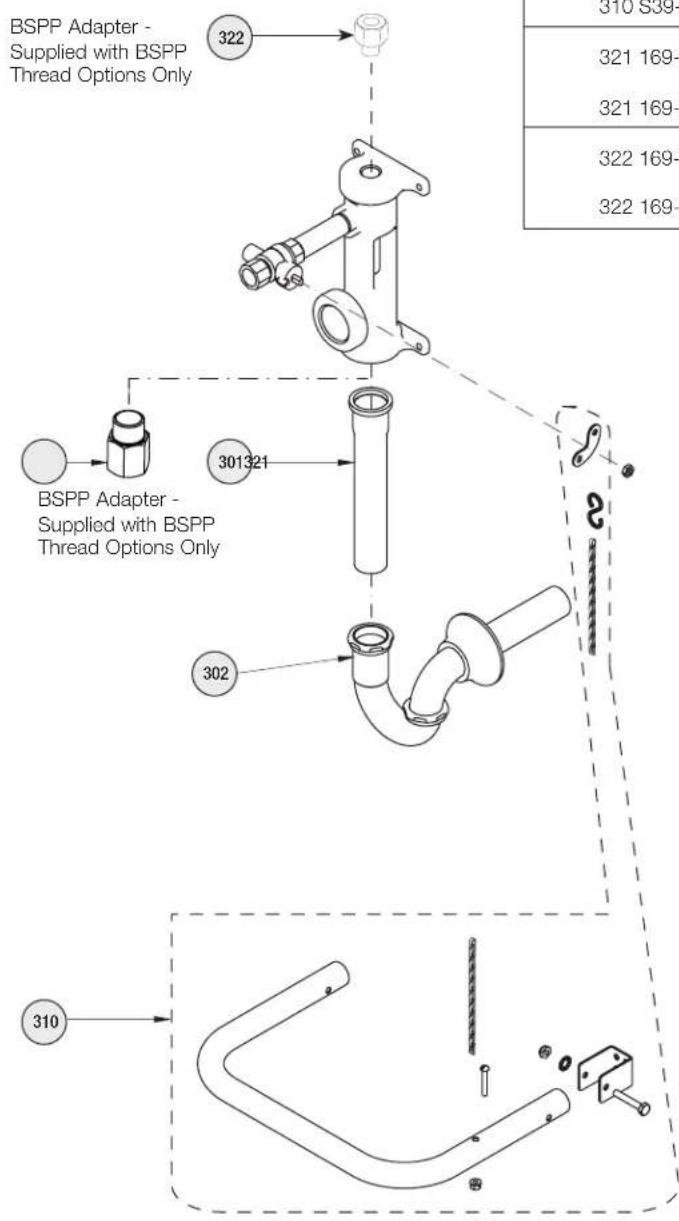

Service Parts and Parts List - Drain, P-trap, and Optional Foot Pedal

322 BSPP Adapter - Supplied with BSPP Thread Options Only 301321 302 310 310 S39- 321 169- 321 169- 322 169- 322 169- BSPP Adapter - Supplied with BSPP Thread Options Only

Item Part No. Qty Description
301 269-167 1 Tailpiece
302 269-142 1 P-trap
310 S39-395 1 Foot Pedal Kit
321 169-1117 1 BSPP-NPT 1-1/4" 303SS
321 169-1118 1 BSPP-NPT 1-1/4" 316SS
322 169-1119 1 BSPP-NPT 1⁄2" 303SS
322 169-1120 1 BSPP-NPT 1⁄2" 316SS

Service Parts and Parts List — Optional Accessories

Accessory Mounting (for units with two accessories) 370 to accessory 370 to accessory 370 to freeze valve 372 to drench hose 371 Accessory Mounting (for units with three accessories) 370 to scald valve

Item	Part No. Qty.	Description
370	169-025	as req'd. Elbow 1⁄2"
370	269-241	as req'd. Elbow 1⁄2" stainless steel
370	269-1396	as req'd. Elbow 1⁄2" stainless steel 316
370	169-862	as req'd. Elbow 1⁄2" chrome
371 113-006LG 1 Pipe 1⁄2" x close
371 113-867	1 Pipe 1⁄2" x close stainless steel
371 113-1210	1 Pipe 1⁄2" x close stainless steel 316
371 113-006AW	1 Pipe 1⁄2" x close chrome
372 169-838	1 Tee 1⁄2"
372 169-1100	1 Tee 1⁄2" stainless steel
372 269-280	1 Tee 1⁄2" chrome
372 169-1099	1 Tee 1⁄2" stainless steel 316

Freeze/Scald Valves 370 376 377

Item	Part No.	Description
376	S45-1986	Freeze Valve kit
377	S45-1989	Scald Valve kit

Drench Hose 390 Backflow Preventers for Drench Hose 387b 370 387a 387c Item Part No. Qty. Description 387a S27-303 1 Vacuum breaker in-lin

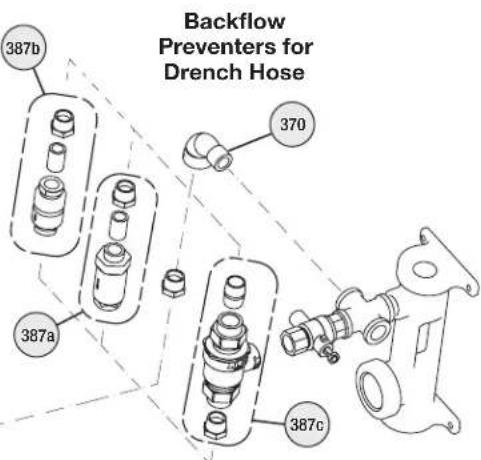

Backflow Preventers for Drench Hose 387b 387a 370 387c

Item	Part No. Qty.	Description
387a	S27-303	1 Vacuum breaker in-line 3/8"
387b	45-2309	1 Backflow preventer N9
387c	45-2310	1 Backflow preventer 9D
390 S19-430EH		1 Spray Kit

AVERTISSEMENT

NPT Connections BSPP Connections

35½" (902mm) du sol 27¼" (692mm) du sol 21½" (537mm) du sol

36 5/8" (931mm) 24 3/4" (630mm)

34¾" (883mm) to floor

Récepteur 19 ½" (470mm) 13" (330mm) 1 ¾/₅" (30mm)

S19-430EH Gicleur

Pédale Activation

Couvercle anti-poussières 21" (533mm) 13½" (337mm) 1¾" (30mm)

7/16" (11mm) 3½8" (86mm) Ø ½" 7½" (191mm)

Technical diagram of a motor assembly with numbered components and labeled parts

NPT Connections BSPP Connections

35½" (902mm) au suelo 27¼" (692mm) au suelo 21½" (537mm) au suelo

36 5/8" (931mm) 24 3/4" (630mm)

34¾" (883mm) au suelo

Receptor 19½" (470mm) 13" (330mm) 1½" (30mm)

7/16" (11mm) 3 3/8" (86mm) Ø 1/4" 7½" (191mm)

Paquete S88-069 incluye art. 25, 26, 27, 28 (300 series ss)
