| Product Type | Halo eye/face wash, plastic bowl |
| Brand | Bradley |
| Model | S19224FW |
| Standards | UL certified to ANSI/ISEA Z358.1 |
| Water flow (eye/face wash) | 4 to 5.25 gpm (15.1 to 19.9 L/min) |
| Required supply pressure | 30 PSI min. (2.0 bar) / 90 PSI max. (6.1 bar) flowing |
| Max static pressure | 125 PSI (8.6 bar) |
| Inlet connection | 1 1/4 in NPT (BSPP) |
| Drain connection | 1 1/4 in NPT |
| Bowl material | Plastic |
| Recommended water temperature | 15.6 °C to 37.8 °C (60 °F to 100 °F) |
| Maintenance | Weekly activation; monthly inspection |
| Cleaning | Rinse with water; avoid organic solvents, alcohols, hydrocarbons |
| Warranty | See website www.bradleycorp.com (Technical Information section) |
Frequently Asked Questions - S19224FW Bradley
User questions about S19224FW Bradley
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Eye wash in PDF format for free! Find your manual S19224FW - Bradley and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. S19224FW by Bradley.
USER MANUAL S19224FW Bradley
S19224 Series
Halo™ Wall-Mount Eyewash or Eye/Face Wash
Table of Contents
Table of Contents 2
Pre-Installation Information 3-4
Halo Pre-Configured Models 5-6
Halo Configurator....7
Dimensions 8
Installation Instructions 9
Service Parts — Bowl and Hub 10–11
Service Parts — Eyewash, Eye/Face Wash and Bowl Covers.... 12-14
Service Parts — Drain and P-trap....15
Service Parts — Optional Accessories....16
Avant l'installation.... 17-18
Flush the water supply lines before beginning installation and after installation is complete. Test the unit for leaks and adequate water flow. Main water supply to the eyewash should be "ON" at all times. Provisions shall be made to prevent unauthorized shutoff.
CAUTION
Emergency equipment must be supplied with tepid water (60°F to 100°F/15.6°C to 37.8°C). Any prolonged exposure to near freezing water affects the body's ability to maintain body temperature, increasing the risk of hypothermia.
NOTICE
Before installing this product, ensure that there are adequate clearances around the product and activation of the product does not interfere with other products or obstructions.
Avoid cleaners containing organic solvents, alcohols and hydrocarbons. Rinse with water after cleaning.
IMPORTANT
The installation and location of all safety drench showers, eye and eye/face washes must comply with the requirements of ANSI/ISEA Z358.1.
Read this installation manual completely to ensure proper installation, then file it with the owner or maintenance department. Compliance and conformity to drain requirements and other local codes and ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not begin installation until you obtain the missing parts.
The ANSI/ISEA Z358.1 standard requires an uninterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21MPa) flowing pressure.
Self-closing spring-loaded valves are not UL classified to ANSI/ISEA Z358.1.
Weekly activation must be conducted on all plumbed emergency equipment to ensure a suitable flushing fluid supply is present and any sediment build-up in the supply line is cleared. Emergency equipment should be inspected monthly to address any maintenance issues ensuring the equipment is in good operating condition and that there are no signs of wear.
Workers who may come in contact with potentially hazardous materials should be trained regarding the placement and proper operation of emergency equipment per ANSI/ISEA Z358.1.
For questions regarding the operation or installation of this product, visit www.bradleycorp.com or call 800-BRADLEY (272.3539).
Product warranties and parts information may also be found under "Products" on our web site at bradleycorp.com.
Supplies Required:
• (4) 14 " anchors and bolts
• Teflon tape and pipe sealant
• 30 PSI (2.0 bar) min/90 PSI (6.1 bar) max flow pressure
• 125 PSI (8.6 bar) max static pressure
- Piping to 12 " NPT (BSPP) water supply inlet (30–90 psi [2.0-6.1 bar])
- Piping to 1 14 " NPT drain outlet on unit (if included with unit)
• OPTIONAL: sign-mounting hardware
Local codes may require the installation of a backflow prevention valve to complete proper installation.
Compliance with local codes is the responsibility of the installer. Valve must be tested annually to verify that it is functioning properly. Backflow prevention valves are not included with the fixture and may be supplied by the contractor or purchased from Bradley Corporation.
Halo Pre-Configured Models
| Halo Model Number | Description | UL certified to ANSI/ISEA |
| Eyewashes | ||
| ☐ S19224EW | Halo Eyewash, plastic bowl | X |
| ☐ S19224PT | Halo Eyewash, plastic bowl, p-trap | X |
| ☐ S19224B | Halo Eyewash, stainless steel bowl | X |
| ☐ S19224BPT | Halo Eyewash, stainless steel bowl, p-trap | X |
| Eyewashes with Dust Cover | ||
| ☐ S19224PDC | Halo Eyewash, plastic bowl w/ dust cover | X |
| ☐ S19224DC | Halo Eyewash, stainless steel bowl & hinged dust cover | X |
| ☐ S19224DCPT | Halo Eyewash, stainless steel bowl & hinged dust cover, p-trap | X |
| Eye-Face Washes | ||
| ☐ S19224FW | Halo Eye/face wash, plastic bowl | X |
| ☐ S19224FWPT | Halo Eye/face wash, plastic bowl, p-trap | X |
| ☐ S19224T | Halo Eye/face wash, stainless steel bowl | X |
| ☐ S19224P | Halo Eye/face wash, stainless steel bowl w/ hose spray, tailpiece | X |
| ☐ S19224TPT | Halo Eye/face wash, stainless steel bowl, p-trap | X |
| ☐ S19224Y | Halo Eye/face wash, stainless steel bowl, hand/foot operated, tailpiece | X |
| Eye-Face Washes with Dust Covers | ||
| ☐ S19224PDCFW | Halo Eye/face wash, plastic bowl w/ dust cover | X |
| ☐ S19224DCFW | Halo Eye/face wash, stainless steel bowl & hinged dust cover | X |
| ☐ S19224DCRPT | Halo Eye/face wash, stainless steel bowl & hinged dust cover, p-trap | X |
| All Stainless Steel Eye/Face Wash | ||
| ☐ S19224SC | Halo stainless steel eye/face wash, bowl and cover | X |
| ☐ S19224SS | Halo stainless steel eye/face wash and bowl | X |
Halo Pre-Configured Models
All models with AS4775, AS/NZS 4020 Certification include BSPP threading.
| Halo Model Number | Description | IAPMO Oceana certified to AS4775 & AS4020 |
| Eyewashes | ||
| ☐ S19224EWZ | Halo Eyewash, plastic bowl | |
| ☐ S19224EWZS | Halo Eyewash, plastic bowl, stainless steel piping X | |
| ☐ S19224PTZ | Halo Eyewash, plastic bowl, p-trap | |
| ☐ S19224PTZS | Halo Eyewash, plastic bowl, p-trap, stainless steel piping | |
| ☐ S19224BZ | Halo Eyewash, stainless steel bowl | |
| ☐ S19224BZS | Halo Eyewash, stainless steel bowl, stainless steel piping X | |
| ☐ S19224BPTZ | Halo Eyewash, stainless steel bowl, p-trap | |
| ☐ S19224BPTZS | Halo Eyewash, stainless steel bowl, p-trap, stainless steel piping | |
| Eyewashes with Dust Cover | ||
| ☐ S19224PDCZ | Halo Eyewash, plastic bowl w/ dust cover | |
| ☐ S19224PDCZS | Halo Eyewash, plastic bowl w/ dust cover, stainless steel piping X | |
| ☐ S19224DCZ | Halo Eyewash, stainless steel bowl & hinged dust cover | |
| ☐ S19224DCZS | Halo Eyewash, stainless steel bowl & hinged dust cover, stainless steel piping X | |
| ☐ S19224DCPTZ | Halo Eyewash, stainless steel bowl & hinged dust cover, p-trap | |
| ☐ S19224DCPTZS | Halo Eyewash, stainless steel bowl & hinged dust cover, p-trap, stainless steel piping | |
| Eye-Face Washes | ||
| ☐ S19224FWZ | Halo Eye/face wash, plastic bowl | |
| ☐ S19224FWZS | Halo Eye/face wash, plastic bowl, stainless steel piping X | |
| ☐ S19224WPTZ | Halo Eye/face wash, plastic bowl, p-trap | |
| ☐ S19224WPTZS | Halo Eye/face wash, plastic bowl, p-trap, stainless steel piping | |
| ☐ S19224TZ | Halo Eye/face wash, stainless steel bowl | |
| ☐ S19224TZS | Halo Eye/face wash, stainless steel bowl, stainless steel piping X | |
| ☐ S19224TPTZ | Halo Eye/face wash, stainless steel bowl, p-trap | |
| ☐ S19224TPTZS | Halo Eye/face wash, stainless steel bowl, p-trap, stainless steel piping | |
| ☐ S19224YZ | Halo Eye/face wash, stainless steel bowl, hand/foot operated, tailpiece | |
| ☐ S19224YZS | Halo Eye/face wash, stainless steel bowl, hand/foot operated, tailpiece, stainless steel piping | X |
| ☐ S19224PZ | Halo Eye/face wash, stainless steel bowl w/ hose spray, tailpiece | |
| Eye-Face Washes with Dust Cover | ||
| ☐ S19224PDCFWZ | Halo Eye/face wash, plastic bowl w/ hinged dust cover | |
| ☐ S19224PDCFWZS | Halo Eye/face wash, plastic bowl w/ hinged dust cover, stainless steel piping X | |
| ☐ S19224DCFWZ | Halo Eye/face wash, stainless steel bowl & hinged dust cover | |
| ☐ S19224DCFWZS | Halo Eye/face wash, stainless steel bowl & hinged dust cover, stainless steel piping | X |
| ☐ S19224DCRPTZ | Halo Eye/face wash, stainless steel bowl & hinged dust cover, p-trap | |
| ☐ S19224DCRPTZS | Halo Eye/face wash, stainless steel bowl & hinged dust cover, p-trap, stainless steel piping | |
| All Stainless Steel Eye/Face Wash | ||
| ☐ S19224SCZ | Halo stainless steel eye/face wash, bowl and cover X | |
| ☐ S19224SSZ | Halo stainless steel eye/face wash and bowl with foot activation | X |
Halo Configurator
Standard Selections (Must select one from each category)
| Configuration | |
| ☐ 0 | Standard Wall Mount |
| Pipe Material | |
| ☐ A | NPT, Yellow BradTect Galvanized Steel |
| ☐ B | NPT, All 304 Stainless Steel |
| ☐ C | NPT, All 316 Stainless Steel |
| ☐ D | NPT, Chrome-Plated |
| ☐ F | BSPP, Yellow BradTect Galvanized Steel ‡ |
| ☐ G | BSPP, All 304 Stainless Steel ‡ |
| ☐ J | BSPP, Chrome-Plated ‡ |
| Ball Valve | |
| ☐ 1 | Stay-Open Eyewash, Chrome-Plated brass |
| ☐ 2 | Stay-Open Eyewash, 316 SS |
| Eyewash – Eye/Face Wash | |
| ☐ A | Halo Eyewash |
| ☐ B | Halo Eye/Face Wash |
| ☐ D | Halo Eyewash, 304 SS Yoke |
| ☐ E | Halo Eye/Face Wash, 304 SS Yoke |
| ☐ F | 304 SS Halo Eye/Face Wash, 304 SS Yoke |
| ☐ G | Halo Eyewash, 316 SS Yoke |
| ☐ H | Halo Eye/Face Wash, 316 SS Yoke |
| ☐ J | 316 SS Halo Eye/Face Wash, 316 SS Yoke |
| Bowl and Dust Cover | |
| ☐ A | Plastic Bowl, No Dust Cover |
| ☐ B | Plastic Bowl, Plastic Dust Cover |
| ☐ D | 304 SS, No Dust Cover |
| ☐ E | 304 SS, 304 SS Dust Cover |
| ☐ F | 304 SS, Plastic Dust Cover |
| ☐ G | 316 SS, No Dust Cover |
| ☐ H | 316 SS, 316 SS Dust Cover |
| ☐ J | 316 SS, Plastic Dust Cover |
| ☐ O | No Bowl or Dust Cover |
| Activation | |
| ☐ A | 300 SS Handle |
| ☐ B | 316 SS Handle |
| ☐ D | 300 SS Handle with 300 SS Foot Pedal |
| Waste | |
| ☐ A | Tailpiece |
| ☐ D | P-trap |
| ☐ O | No Waste |
| Drench Hose and Backflow Prevention | |
| ☐ A | Drench Hose Kit with Vacuum Breaker |
| ☐ B | Drench Hose Kit with N9 Backflow Preventer |
| ☐ C | Drench Hose Kit with 9D Backflow Preventer |
| ☐ D | Drench Hose Kit without Backflow Preventer |
| ☐ O | No Drench Hose and No Backflow Prevention |
| Freeze and Scald Protection | |
| ☐ N | Anti-Freeze Valve |
| ☐ P | Anti-Scald Valve |
| ☐ R | Anti-Freeze and Anti-Scald Valves |
| ☐ O | No Anti-Freeze Valve and No Anti-Scald Valve |
* Not available with barrier-free configurations.
‡ Not available in the U.S.
NPT = National Pipe Thread
BSPP = British Standard Pipe Parallel Thread
√ All selections made through the configurator are only UL certified to ANSI/ISEA Z358.1

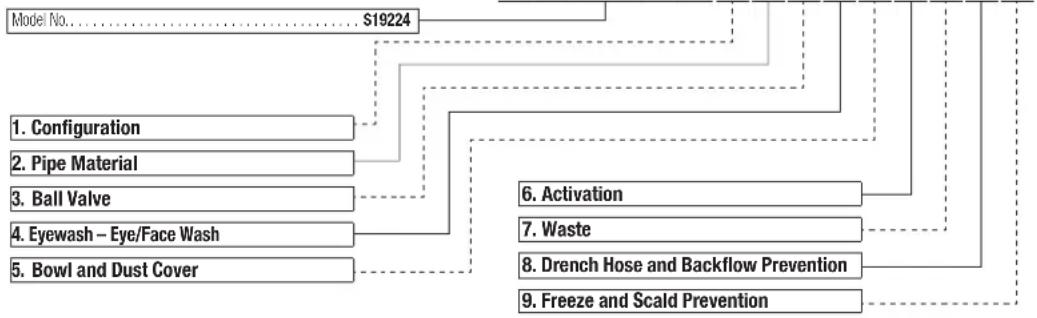

How to Specify Model and Configurations for Bradley Halo Products:


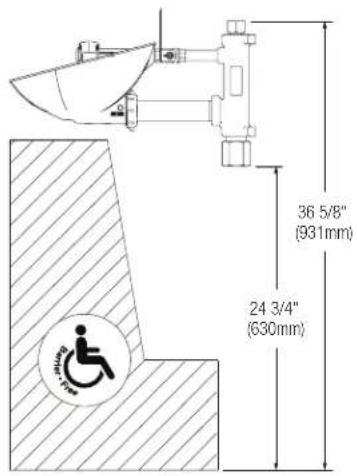

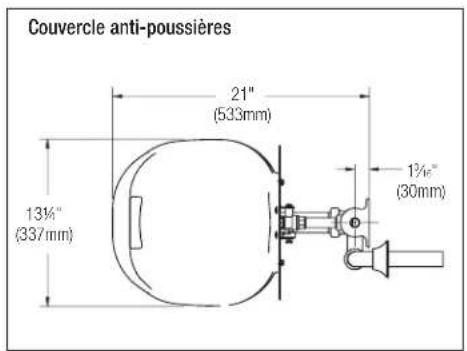

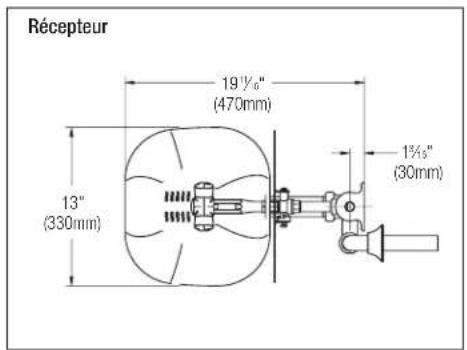

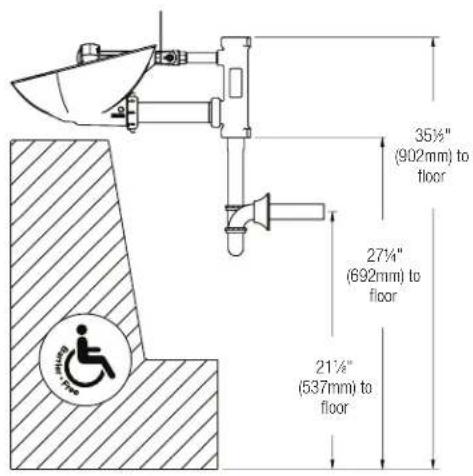

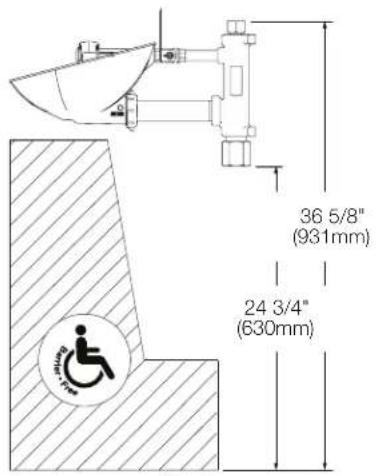

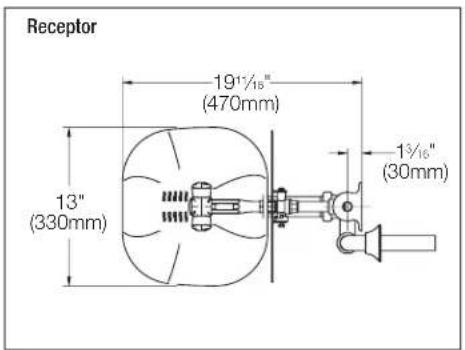

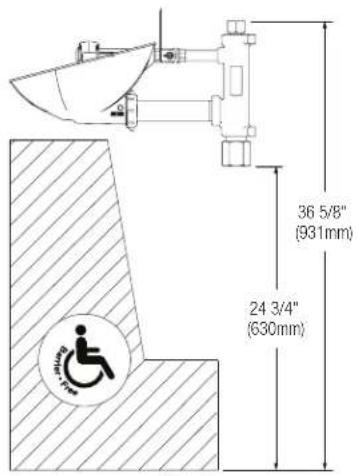

Dimensions
S19224 shown with Eyewash and Plastic Bowl
NPT Connections BSPP Connections
Eyewash Bowl

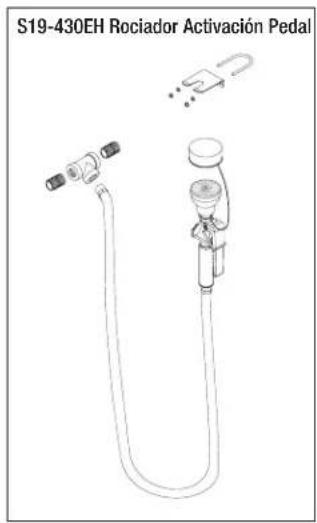

S19-430EH Drench Hose Foot Pedal Activation
Water Flow Rate
| Eyewash 4-51⁄4 gpm | |
| Eye/Face Wash 4-51⁄4 gpm | |
| Body Wash 2-8 gpm |
All dimensions assume standard thread engagement. Variations in manufacturing allow for +/- 18 (3mm) per threaded joint. To find the tolerance of a dimension, add the number of thread joints across the length of the dimension and multiply it by 1/8 (3mm).

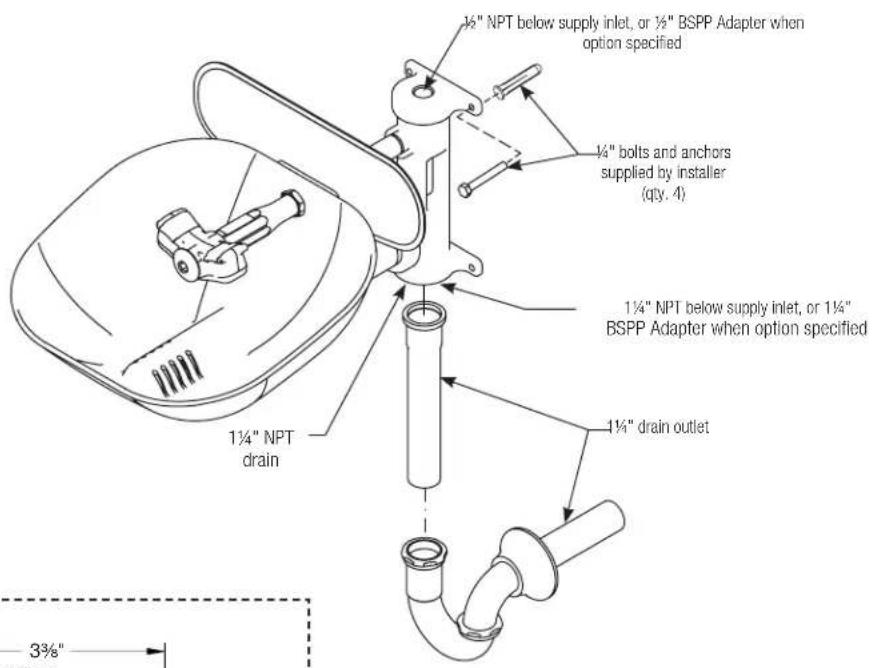

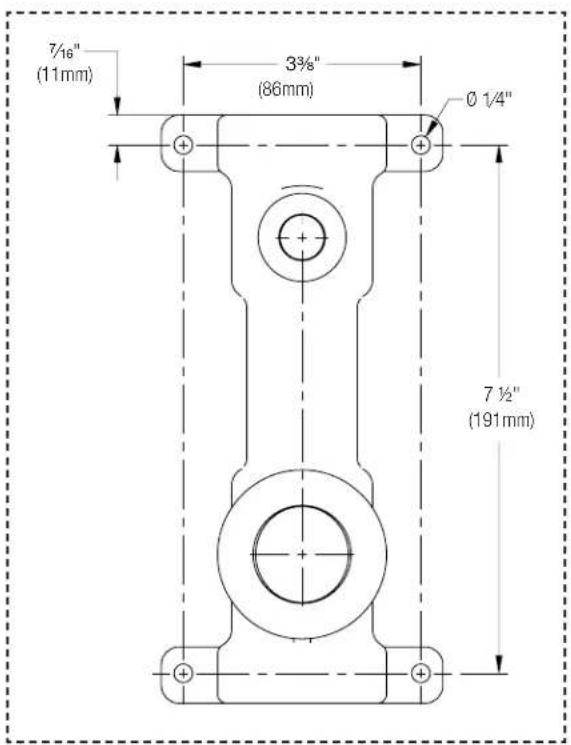

1 Install Eyewash
Standard eyewash unit is shown. Other units are similar.
When connecting components, use the rubber grip pad (provided) around pipes to prevent marring.
√ Apply pipe sealant (supplied by installer) to all male-threaded pipe joints, making sure not to get any excess over the edge of the pipes.
BSPP = British Standard Pipe Parallel Thread (not available in the U.S.)

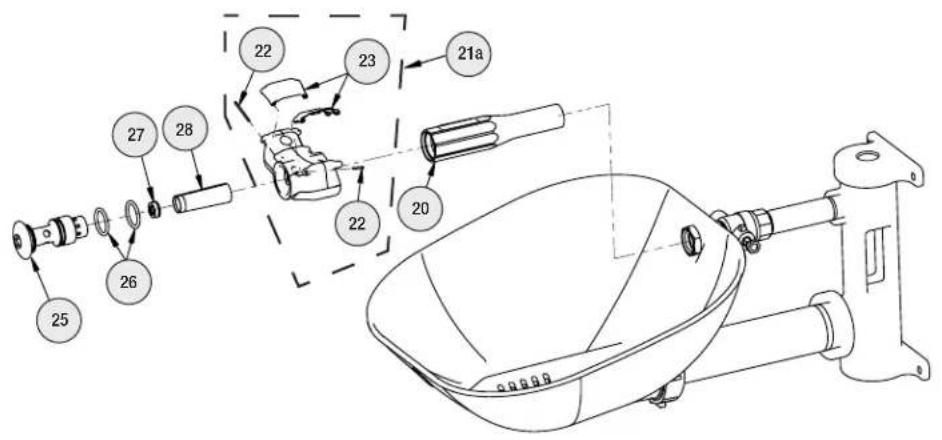

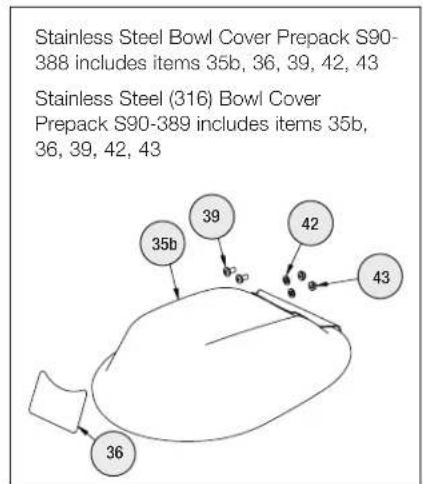

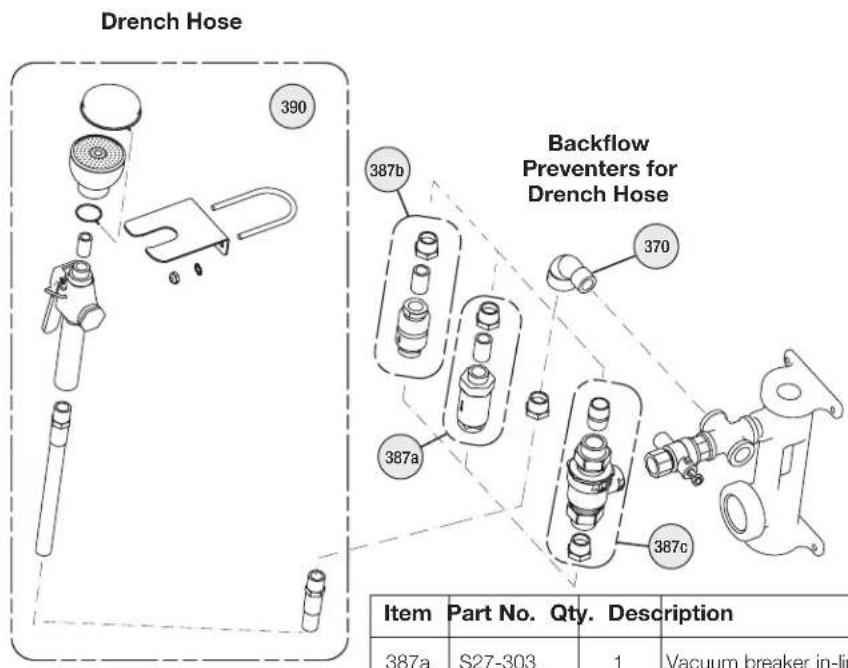

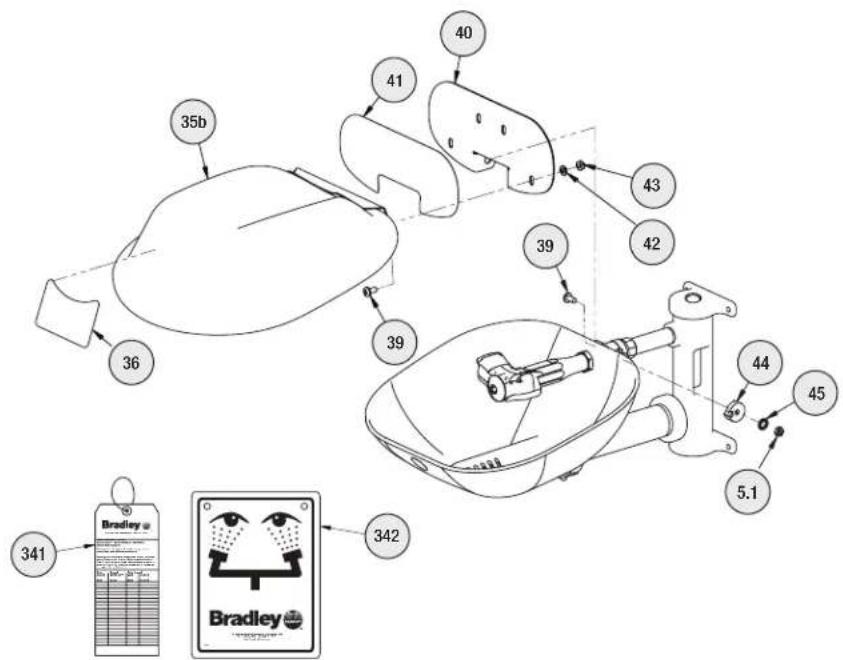

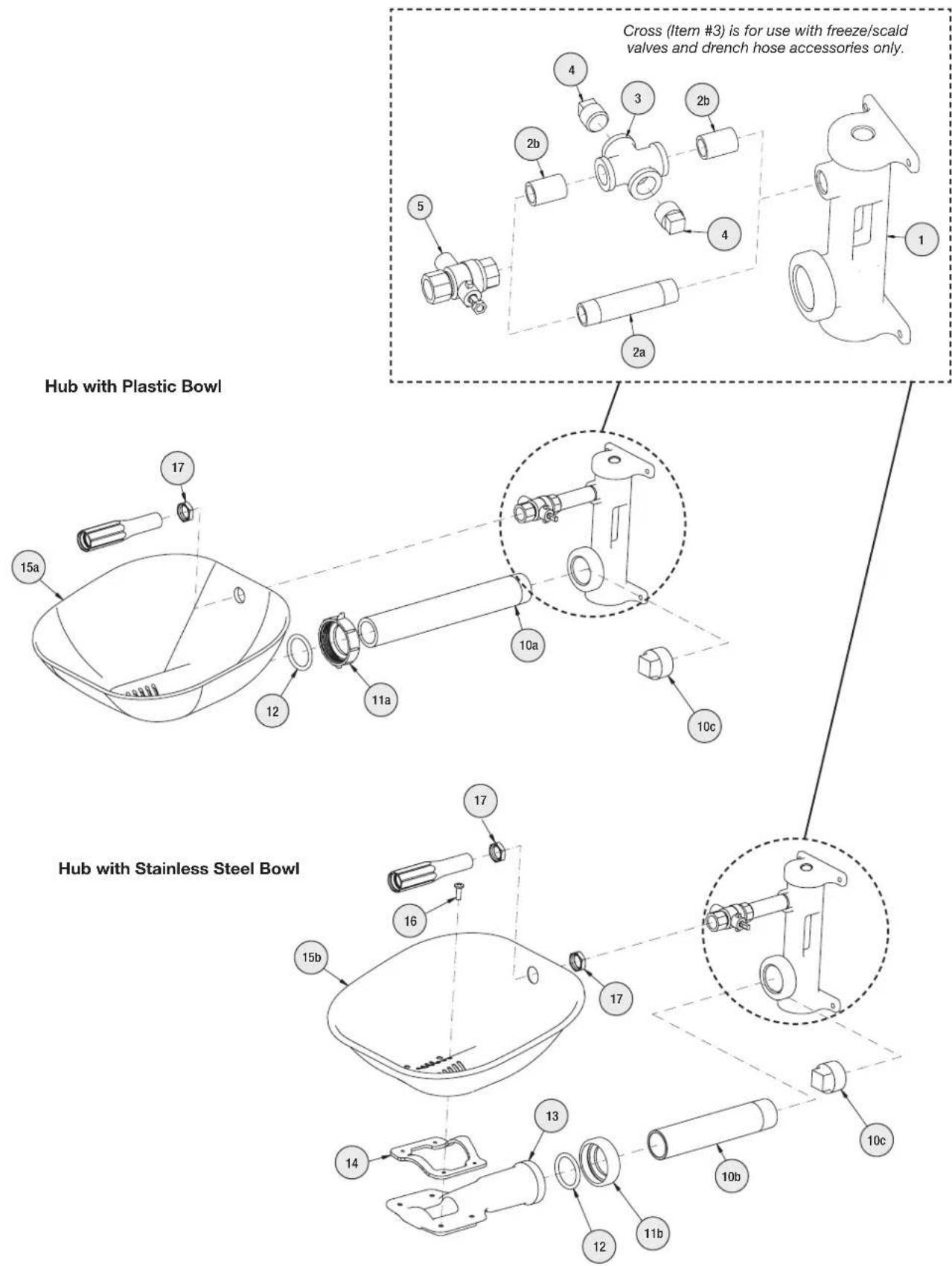

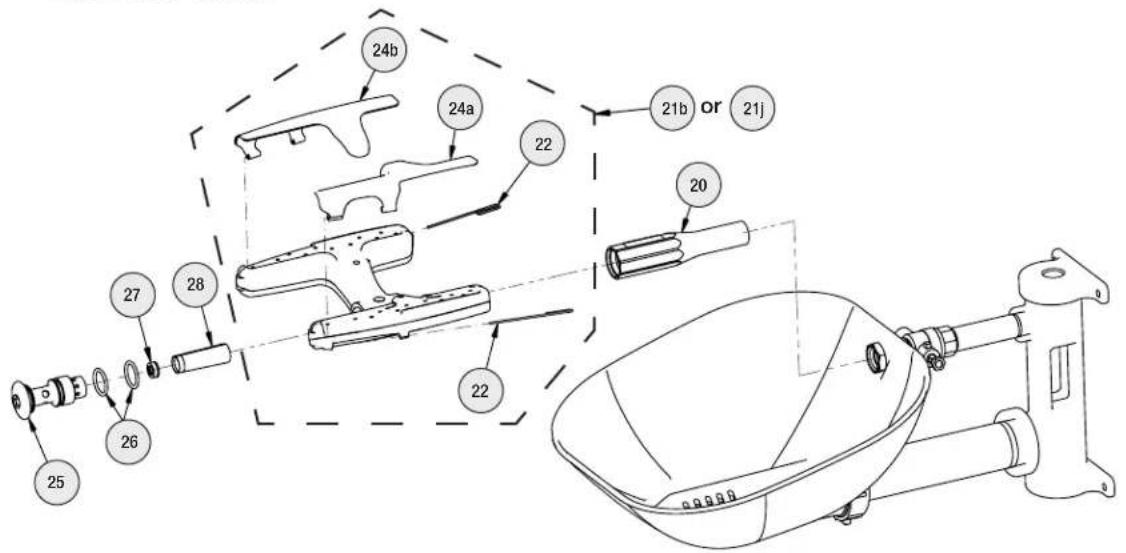

Service Parts - Bowl and Hub
Service Parts List - Bowl and Hub
BSP = British Standard Pipe Thread (not available in the U.S.)
| Item | Part No. | Qty | Description |
| 1 | 111-096 | 1 | Hub |
| 1 111-097 | 1 Hub stainless steel | ||
| 1 111-103 | 1 Hub stainless steel 316 | ||
| 1 111-098 | 1 Hub stainless steel polish | ||
| 2a 113 | -006LQ 1 Pipe 12" × 312" | ||
| 2a 113 | -965 1 Pipe 12" × 312" stainless steel | ||
| 2a 113 | -1211 1 Pipe 12" × 312" stainless steel 316 | ||
| 2a 113 | -596 1 Pipe 12" × 312" chrome | ||
| 2b 113 | -006LG 2 Pipe 12" × close | ||
| 2b 113 | -867 2 Pipe 12" × close stainless steel | ||
| 2b 113 | -1210 2 Pipe 12" × close stainless steel 316 | ||
| 2b 113 | -006aw 2 Pipe 12" × close chrome | ||
| 3 169 | -1090 1 Cross 12" | ||
| 3 169 | -1091 1 Cross 12" stainless steel | ||
| 3 169 | -1098 1 Cross 12" stainless steel 316 | ||
| 3 169 | -1097 1 Cross 12" chrome | ||
| 4 300 | -0393 2 Plug 12" chrome | ||
| 4 153 | -230 2 Plug 12" stainless steel | ||
| 4 153 | -460 2 Plug 12" stainless steel 316 | ||
| 5 S27 | -327 1 Ball valve 12" with nut | ||
| 5 S27 | -328 1 Ball valve 12" ss 316 with nut | ||
| 5 S27 | -329 1 Ball valve 12" frost proof with nut | ||
| 5 S27 | -330 1 Ball valve 12" ss 316 frost proof with nut | ||
| 5.1 | 110-215 | 1 | Nut |
| 5.1 | 110-248 1 Nut stainless steel 316 |
| Item | Part No. | Qty | Description |
| 10a | 113-1202 1 | Pipe 114" | x 11" thd. one end |
| 10a | 113-1203 | 1 | Pipe 114" x 11" thd. one end stn. steel |
| 10b | 113-1204 1 | Pipe 114" | x 7" thd. one end |
| 10b | 113-1205 | 1 | Pipe 114" x 7" thd. one end stainless steel |
| 10b | 113-1206 1 | Pipe 114" | x 7" thd. one end chrome |
| 10b | 113-1212 | 1 | Pipe 114" x 7" thd. one end stn. steel 316 |
| 10c | 169-724 1 | Plug 114" | painted galvanized |
| 10c | 269-251 1 | Plug 114" | chrome |
| 10c | 269-238 1 | Plug 114" | stainless steel |
| 10c | 269-1402 1 | Plug 114" | stainless steel 316 |
| 11a | 110-239 1 | Nut plastic, | slip joint |
| 11b | 110-240 1 | Nut, stainless steel slip joint | |
| 11b | 110-242 1 | Nut, stainless steel 316 slip joint | |
| 12 | 125-176 | 1 | O-ring |
| 13 111 | -099 1 | Bowl mount aluminum | |
| 13 111 | -100 1 | Bowl mount aluminum painted | |
| 13 111 | -101 1 | Bowl mount stainless steel | |
| 13 111 | -102 1 | Bowl mount stainless steel 316 | |
| 14 124 | -082 1 | Bowl gasket | |
| 15a | 187-320 1 | Bowl plastic | |
| 15b | S90-393 1 | Bowl stainless steel (includes Item 14) | |
| 15b | S90-394 1 | Bowl stn. | steel 316 (includes Item 14) |
| 16 | 160-467 | 4 | Screw |
| 17 | 110-115a | as req'd. | Nut 12" NPSM chrome brass |
| 17 | 110-238 | as req'd. | Nut 12" NPSM stainless steel |
| 17 | 110-241 | as req'd. | Nut 12" NPSM stainless steel 316 |
S90-395 Plastic Prepack includes items 10a, 11a, 12, 15a
300 Series SS Prepack S90-391 includes items 10b, 11b, 12, 13, 14, 15b 316 Series SS Prepack S90-392 includes items 10b, 11b, 12, 13, 14, 15b
Service Parts — Eyewash
Service Parts — Eye/Face Wash
Prepack S65-339 includes items 26, 27, 28
Prepack S88-068 includes items 25, 26, 27, 28
Prepack S88-069 includes items 25, 26, 27, 28 (300 series ss)
Prepack S88-070 includes items 25, 26, 27, 28 (316 ss)
Eyewash Cover Prepack S45-2675 includes items 22 and 23
Eye/Face Wash Cover Prepack S45-2676 includes items 22, 24a and 24b

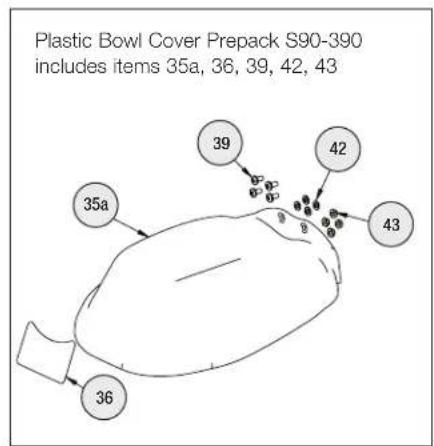

Service Parts — Plastic Bowl Cover
Service Parts — Stainless Steel Bowl Cover

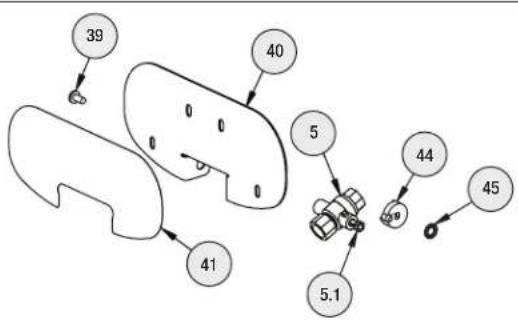

Handle Prepacks include items 39, 40, 41, 44, 45, 5, 5.1
Prepack S08-390 (for units with brass ball valve)
Prepack S08-391 (for units with stainless steel ball valve)
Prepack S08-392 (for units with brass frost-proof ball valve)
Prepack S08-393 (for units with stainless steel frost-proof ball valve)
Prepack S08-394 (for units with 316 stainless steel ball valve and handle)
Prepack S08-395 (for units with 316 stainless steel frost-proof ball valve and handle)
Service Parts List - Eyewash and Eye/Face Wash
| Item | Part No. Qty Description | ||
| 20 | 171-001 | 1 | Body |
| 20 | 171-002 | 1 | Body stainless steel |
| 20 | 171-003 | 1 | Body stainless steel 316 |
| 20 | 171-004 | 1 | Body polished |
| 21a | S05-190 | 1 | Sprayhead ass'y. eyewash (includes) |
| 22 | in service kit | 2 | Pivot pin |
| 23 | in service kit | 2 | Flip cover eyewash |
| 21b | S05-192 | 1 | Sprayhead ass'y. eye/face wash (includes) |
| 22 | in service kit | 2 | Pivot pin |
| 24a | in service kit | 1 | Flip cover right |
| 24b | in service kit | 1 | Flip cover left |
| 21j | S05-205(Used on both 304SS and 316SS fixtures) | 1 | Sprayhead stainless steel 316 ass'y. eye/face (includes) |
| 22 | in service kit | 2 | Pivot pin |
| 24a | in service kit | 1 | Flip cover right |
| 24b | in service kit | 1 | Flip cover left |
| 25 | 115-158 | 1 | Cap |
| 25 | 115-159 | 1 | Cap stainless steel |
| 25 | 115-164 | 1 | Cap stainless steel 316 |
| 25 | 115-165 | 1 | Cap polished |
| Item | Part No. Qty Description | ||
| 26 | 125-157 2 O-ring | ||
| 27 | 125-175 1 Flow control | ||
| 28 | 65-340 1 Screen (incl. 3 per pack) | ||
| 35a | in service kit | 1 | Bowl cover plastic |
| 35b | in service kit | 1 | Bowl cover stainless steel |
| 35b | in service kit | 1 | Bowl cover stainless steel 316 |
| 36 | 114-097 1 Bowl cover decal | ||
| 39 | 160-389 | as req'd. as req'd. | Screw 14 -20 x 12" stn. steelScrew 14 -20 x 12" stn. steel 316 |
| 39 | 160-469 | ||
| 40 | S08-385 | 1 | Handle ss (incl. items 41, 44, 45, 5.1) |
| 40 | S08-388 | 1 | Handle ss 316 (incl. items 41, 44, 45, 5.1) |
| 41 | 114-096 1 Decal | ||
| 42 | 142-002AV as req'd. | Bowl cover washer | |
| 43 | 161-060 | as req'd. as req'd. | Nut stainless steelNut stainless steel 316 |
| 43 | 161-062 | ||
| 44 | 153-372R 1 Adapter ball valve | ||
| 44 | 153-372R316 | 1 Adapter ball valve stainless steel 316 | |
| 45 | 142-002DA 1 Lockwasher | ||
| 341 | 204-421 1 Emergency | Inspection Tag | |
| 342 | 114-051 1 Eyewash Safety Sign | ||
| 342 | 114-051E | 1 Eyewash Safety Sign (not available in the U.S.) | |

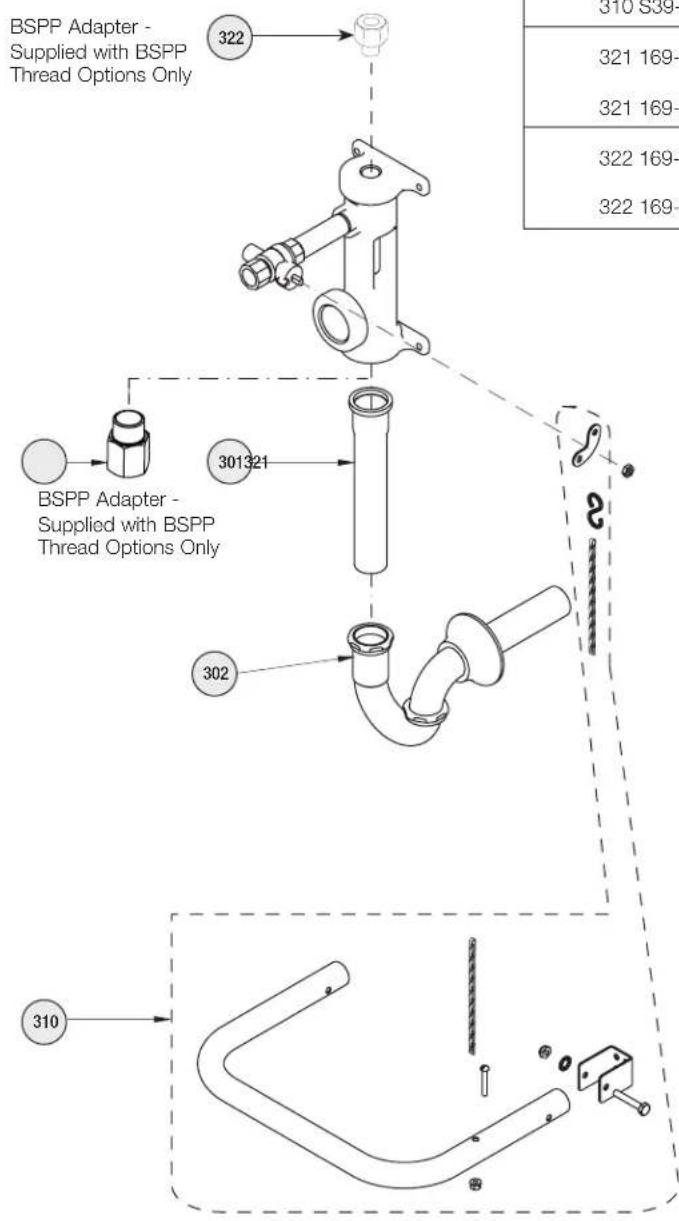

Service Parts and Parts List - Drain, P-trap, and Optional Foot Pedal
| Item Part No. Qty Description | |||
| 301 269-167 1 Tailpiece | |||
| 302 269-142 1 P-trap | |||
| 310 S39-395 1 Foot Pedal Kit | |||
| 321 169-1117 1 BSPP-NPT 1-1/4" 303SS | |||
| 321 169-1118 1 BSPP-NPT 1-1/4" 316SS | |||
| 322 169-1119 1 BSPP-NPT 1⁄2" 303SS | |||
| 322 169-1120 1 BSPP-NPT 1⁄2" 316SS | |||

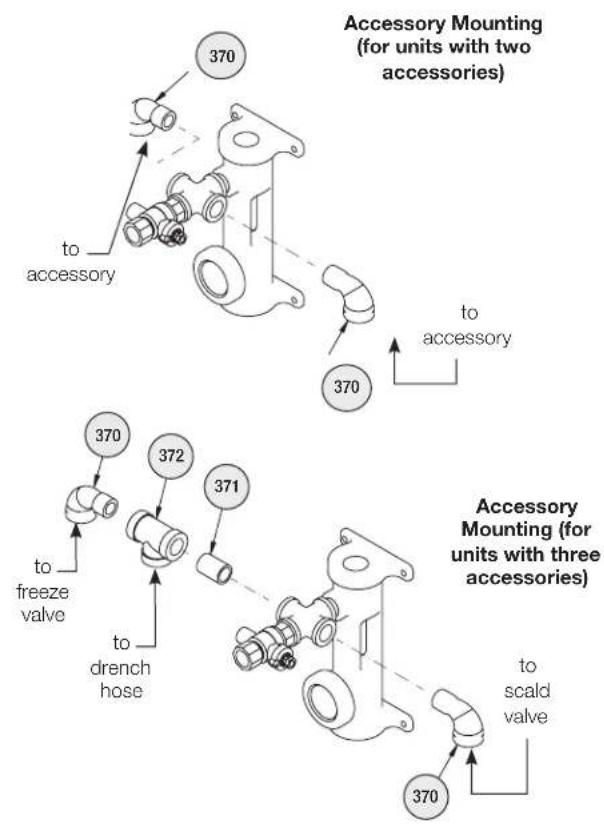

Service Parts and Parts List — Optional Accessories
| Item | Part No. Qty. | Description |
| 370 | 169-025 | as req'd. Elbow 1⁄2" |
| 370 | 269-241 | as req'd. Elbow 1⁄2" stainless steel |
| 370 | 269-1396 | as req'd. Elbow 1⁄2" stainless steel 316 |
| 370 | 169-862 | as req'd. Elbow 1⁄2" chrome |
| 371 | 113-006LG 1 | Pipe 1⁄2" x close |
| 371 | 113-867 | 1 Pipe 1⁄2" x close stainless steel |
| 371 | 113-1210 | 1 Pipe 1⁄2" x close stainless steel 316 |
| 371 | 113-006AW | 1 Pipe 1⁄2" x close chrome |
| 372 | 169-838 | 1 Tee 1⁄2" |
| 372 | 169-1100 | 1 Tee 1⁄2" stainless steel |
| 372 | 269-280 | 1 Tee 1⁄2" chrome |
| 372 | 169-1099 | 1 Tee 1⁄2" stainless steel 316 |

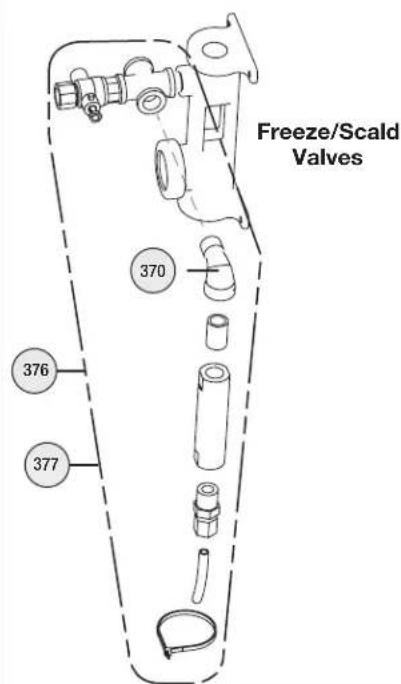

| Item | Part No. | Description |
| 376 | S45-1986 | Freeze Valve kit |
| 377 | S45-1989 | Scald Valve kit |

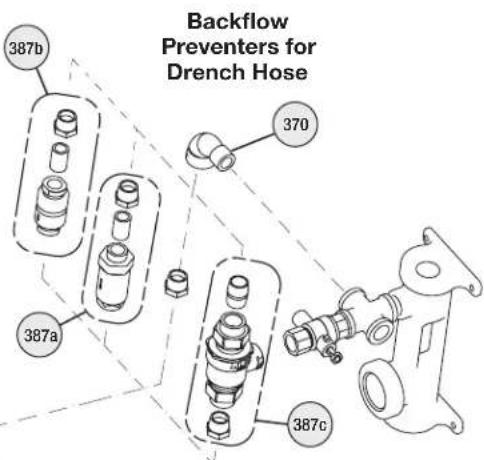

| Item | Part No. Qty. | Description | |
| 387a | S27-303 | 1 | Vacuum breaker in-line 3/8" |
| 387b | 45-2309 | 1 | Backflow preventer N9 |
| 387c | 45-2310 | 1 | Backflow preventer 9D |
| 390 S | 19-430EH | 1 | Spray Kit |

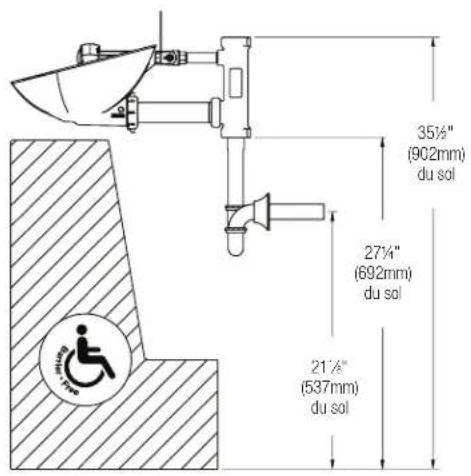

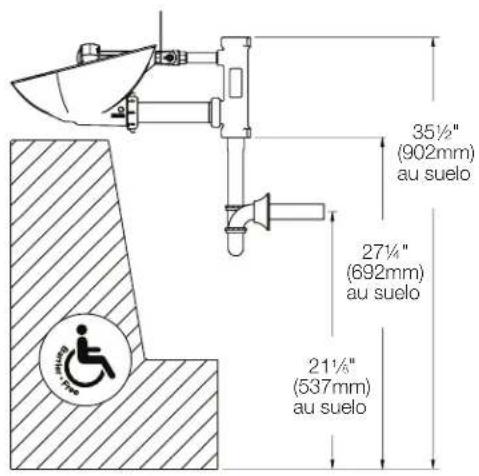

AVERTISSEMENT
NPT Connections BSPP Connections
NPT Connections BSPP Connections
Paquete S88-069 incluye art. 25, 26, 27, 28 (300 series ss)
Brand : Bradley
Model : S19224FW
Category : Eye wash
