USER MANUAL S19214EW Bradley
Halo™ Pedestal-Mount Eyewash or Eye/Face Wash
Table of Contents
Table of Contents 2
Pre-Installation Information 3-4
Halo Pre-Configured Models 5-6
Product Configuration 7
Dimensions 8
Installation Instructions 9
Service Parts — Bowl and Hub....10-11

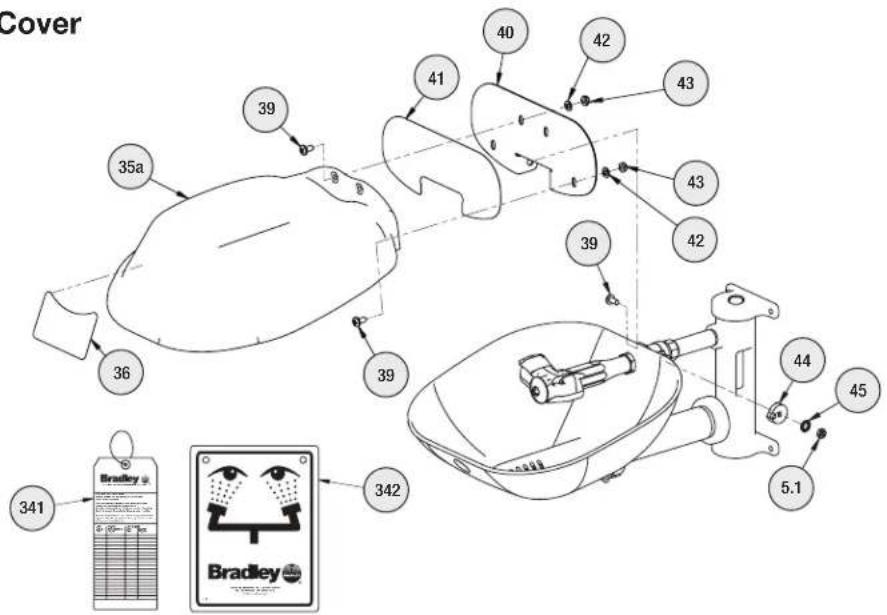

Service Parts — Eyewash, Eye/Face Wash and Bowl Covers.... 12-14

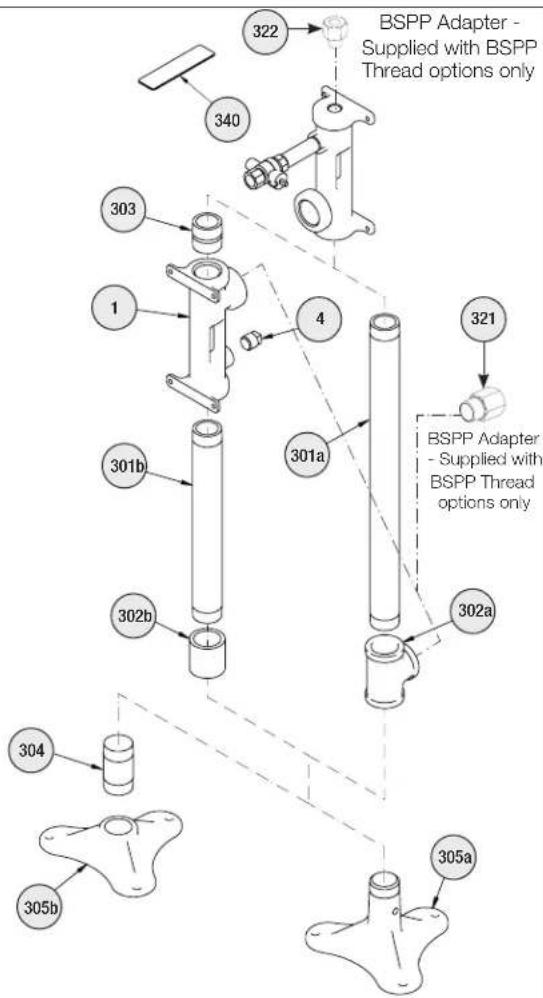

Service Parts — Base and Drain....15
Service Parts — Optional Accessories....16
Avant l'installation.... 17-18
Flush the water supply lines before beginning installation and after installation is complete. Test the unit for leaks and adequate water flow. Main water supply to the eyewash should be "ON" at all times. Provisions shall be made to prevent unauthorized shutoff.
CAUTION
Emergency equipment must be supplied with tepid water (60°F to 100°F/15.6°C to 37.8°C). Any prolonged exposure to near freezing water affects the body's ability to maintain body temperature, increasing the risk of hypothermia.
NOTICE
Before installing this product, ensure that there are adequate clearances around the product and activation of the product does not interfere with other products or obstructions.
Avoid cleaners containing organic solvents, alcohols and hydrocarbons. Rinse with water after cleaning.
IMPORTANT
The installation and location of all safety drench showers, eye and eye/face washes must comply with the requirements of ANSI/ISEA Z358.1.
Read this installation manual completely to ensure proper installation, then file it with the owner or maintenance department. Compliance and conformity to drain requirements and other local codes and ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not begin installation until you obtain the missing parts.
The ANSI/ISEA Z358.1 standard requires an uninterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21MPa) flowing pressure.
Self-closing spring-loaded valves are not UL classified to ANSI/ISEA Z358.1.
Weekly activation must be conducted on all plumbed emergency equipment to ensure a suitable flushing fluid supply is present and any sediment build-up in the supply line is cleared. Emergency equipment should be inspected monthly to address any maintenance issues ensuring the equipment is in good operating condition and that there are no signs of wear.
Workers who may come in contact with potentially hazardous materials should be trained regarding the placement and proper operation of emergency equipment per ANSI/ISEA Z358.1.
For questions regarding the operation or installation of this product, visit www.bradleycorp.com or call 800-BRADLEY (272.3539).
Product warranties and parts information may also be found under "Products" on our web site at bradleycorp.com.
Supplies Required:
• (3) 38 " floor anchors and bolts
• Teflon tape and pipe sealant
• 30 PSI (2.0 bar) min/90 PSI (6.1 bar) max flow pressure
• 125 PSI (8.6 bar) max static pressure
- Piping to 12 " NPT (BSPP) water supply inlet (30-90 psi [2.0-6.1 bar])
- Piping to 1¼” NPT drain outlet on unit (if included with unit)
• OPTIONAL: sign-mounting hardware
Local codes may require the installation of a backflow prevention valve to complete proper installation. Compliance with local codes is the responsibility of the installer. Valve must be tested annually to verify that it is functioning properly. Backflow prevention valves are not included with the fixture and may be supplied by the contractor or purchased from Bradley Corporation.
Halo Pre-Configured Models
| Halo Model Number Description | UL certified to ANSI/ISEA | |
| Eyewashes | ||
| ☐ S19214FW | Halo Eyewash, plastic bowl X | |
| ☐ S19214B | Halo Eyewash, stainless steel bowl | X |
| Eyewashes with Dust Cover | ||
| ☐ S19214PDC | Halo Eyewash, plastic bowl w/ dust cover | X |
| ☐ S19214DC | Halo Eyewash, stainless steel bowl & hinged dust cover | X |
| Eye-Face Washes | ||
| ☐ S19214FW | Halo Eye/face wash, plastic bowl | X |
| ☐ S19214Y | Halo Eye/face wash, stainless steel bowl | X |
| ☐ S19214P | Halo Eye/face wash, stainless steel bowl w/ hose spray | X |
| ☐ S19214YF | Halo Eye/face wash, stainless steel bowl, hand/foot operated | X |
| Eye-Face Washes with Dust Cover | ||
| ☐ S19214PDCFW | Halo Eye/face wash, plastic bowl w/ dust cover | X |
| ☐ S19214DCFW | Halo Eye/face wash, stainless steel bowl & hinged dust cover | X |
| All Stainless Steel Eye/Face Wash | ||
| ☐ S19214BSS | Halo stainless steel eye/face wash and bowl | X |
| ☐ S19214SC | Halo stainless steel eye/face wash, bowl and cover | X |
| ☐ S19214SS | Halo stainless steel eye/face wash and bowl with foot activation | X |
Halo Pre-Configured Models
All models with AS4775, AS/NZS 4020 Certification include BSPP threading.
| Halo Model Number Description | IAPMO Oceana certified to AS4775 & AS4020 | |
| Eyewashes | ||
| ☐ S19214EWZ | Halo Eyewash, plastic bowl | |
| ☐ S19214EWZS | Halo Eyewash, plastic bowl, stainless steel piping X | |
| ☐ S19214BZ | Halo Eyewash, stainless steel bowl | |
| ☐ S19214BZS | Halo Eyewash, stainless steel bowl, stainless steel piping X | |
| Eyewashes with Dust Cover | ||
| ☐ S19214PDCZ | Halo Eyewash, plastic bowl w/ dust cover | |
| ☐ S19214PDCZS | Halo Eyewash, plastic bowl w/ dust cover, stainless steel piping X | |
| ☐ S19214DCZ | Halo Eyewash, stainless steel bowl & hinged dust cover | |
| ☐ S19214DCZS | Halo Eyewash, stainless steel bowl & hinged dust cover, stainless steel piping X | |
| Eye-Face Washes | ||
| ☐ S19214FWZ | Halo Eye/face wash, plastic bowl | |
| ☐ S19214FWZS | Halo Eye/face wash, plastic bowl, stainless steel piping X | |
| ☐ S19214YZ | Halo Eye/face wash, stainless steel bowl | |
| ☐ S19214YZS | Halo Eye/face wash, stainless steel bowl, stainless steel piping X | |
| ☐ S19214YFZ | Halo Eye/face wash, stainless steel bowl, hand/foot operated | |
| ☐ S19214YFZS | Halo Eye/face wash, stainless steel bowl, hand/foot operated, stainless steel piping | X |
| ☐ S19214PZ | Halo Eye/face wash, stainless steel bowl with drench hose | |
| Eye-Face Washes with Dust Cover | ||
| ☐ S19214PDCFWZ | Halo Eye/face wash, plastic bowl w/ hinged dust cover | |
| ☐ S19214PDCFWZS | Halo Eye/face wash, plastic bowl w/ hinged dust cover, stainless steel piping X | |
| ☐ S19214DCFWZ | Halo Eye/face wash, stainless steel bowl & hinged dust cover | |
| ☐ S19214DCFWZS | Halo Eye/face wash, stainless steel bowl & hinged dust cover, stainless steel piping | X |
| All Stainless Steel Eye/Face Wash | ||
| ☐ S19214BSSZ | Halo stainless steel eye/face wash and bowl X | |
| ☐ S19214SCZ | Halo stainless steel eye/face wash, bowl and cover X | |
| ☐ S19214SSZ | Halo stainless steel eye/face wash and bowl with foot activation | X |

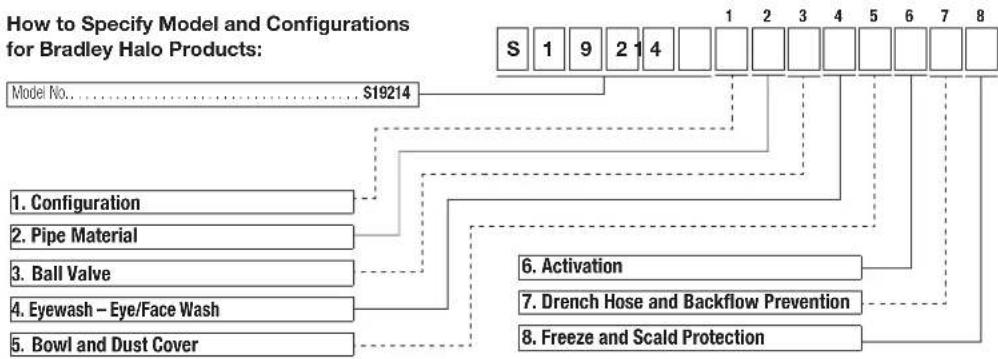

Product Configuration
Standard Selections (Must select one from each category)
Configuration
| ☐ | B | 24" Drain Height |
| ☐ | 0 | Standard, 6" Drain Height |
Pipe Material
| □A | NPT, Yellow BradTect Galvanized Steel |
| □B | NPT, All 304 Stainless Steel |
| □C | NPT, All 316 Stainless Steel * |
| □D | NPT, Chrome-Plated |
| □F | BSPP, Yellow BradTect Galvanized Steel ‡ |
| □G | BSPP, All 304 Stainless Steel ‡ |
| □J | BSPP, Chrome-Plated ‡ |
Ball Valve
| □ 1 | Stay-Open Eyewash, Chrome-Plated Brass |
| □ 2 | Stay-Open Eyewash, 316 SS |
Eyewash – Eye/Face Wash
| ☐ A | Halo Eyewash |
| ☐ B | Halo Eye/Face Wash |
| ☐ D | Halo Eyewash, 304 SS Yoke |
| ☐ E | Halo Eye/Face Wash, 304 SS Yoke |
| ☐ F | 304 SS Halo Eye/Face Wash, 304 SS Yoke |
| ☐ G | Halo Eyewash, 316 SS Yoke |
| ☐ H | Halo Eye/Face Wash, 316 SS Yoke |
| ☐ J | 316 SS Halo Eye/Face Wash, 316 SS Yoke |
* Not available with barrier-free configurations.
‡Not available in the U.S.
NPT = National Pipe Thread
BSPP = British Standard Pipe Parallel Threads
All selections made through the configurator are only UL certified to ANSI/ISEA Z358.1
Bowl and Dust Cover
| □A | Plastic Bowl, No Dust Cover |
| □B | Plastic Bowl, Plastic Dust Cover |
| □D | 304 SS, No Dust Cover |
| □E | 304 SS, 304 SS Dust Cover |
| □F | 304 SS, Plastic Dust Cover |
| □G | 316 SS, No Dust Cover |
| □H | 316 SS, 316 SS Dust Cover |
| □J | 316 SS, Plastic Dust Cover |
| □O | No Bowl or Dust Cover |
Activation
| ☐ A | 300 SS Handle |
| ☐ B | 316 SS Handle |
| ☐ C | 300 SS Handle, 300 SS Foot Pedal |
| ☐ D | 300 SS Handle with 316 SS Foot Pedal * |
| ☐ E | 316 SS Handle with 316 SS Foot Pedal * |

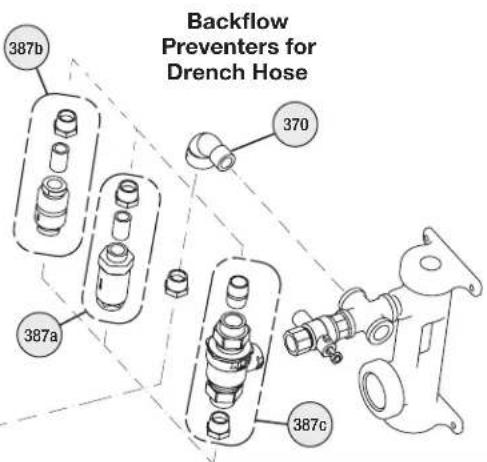

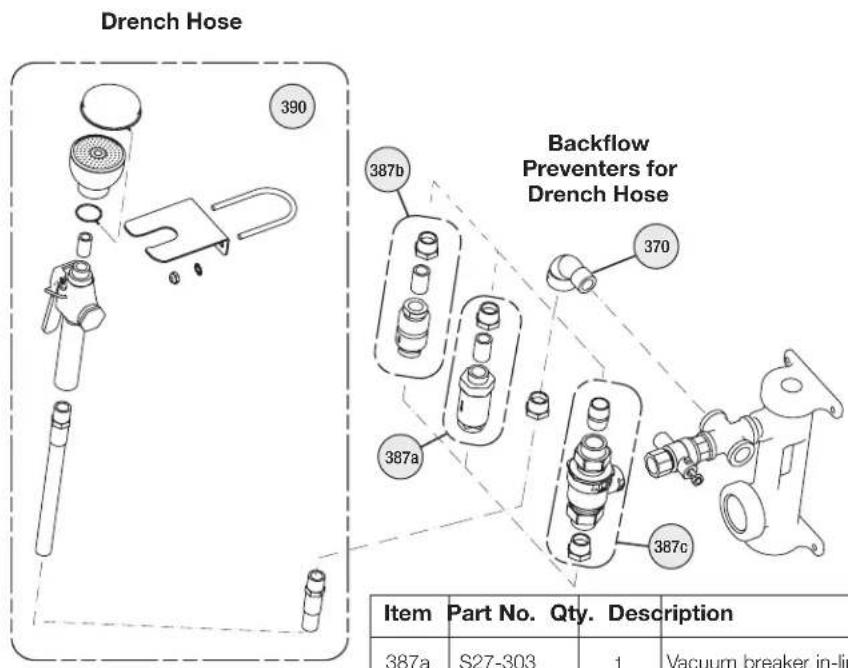

Drench Hose and Backflow Prevention
| ☐ A | Drench Hose Kit with Vacuum Breaker |
| ☐ B | Drench Hose Kit with N9 Backflow Preventer |
| ☐ C | Drench Hose Kit with 90 Backflow Preventer |
| ☐ D | Drench Hose Kit without Backflow Preventer |
| ☐ O | No Drench Hose and No Backflow Prevention |

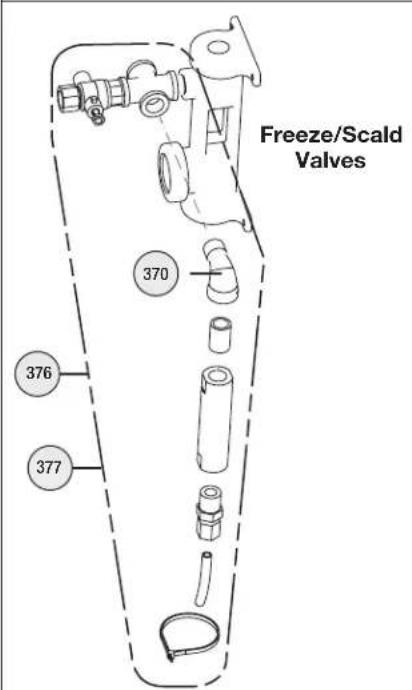

Freeze and Scald Protection
| ☐ N | Anti-Freeze Valve |
| ☐ P | Anti-Scald Valve |
| ☐ R | Anti-Freeze and Anti-Scald Valves |
| ☐ 0 | No Anti-Freeze Valve and No Anti-Scald Valve |

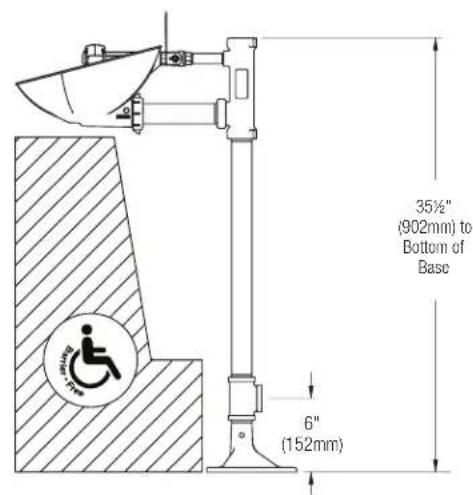

Dimensions
S19214 shown with Eyewash and Plastic Bowl


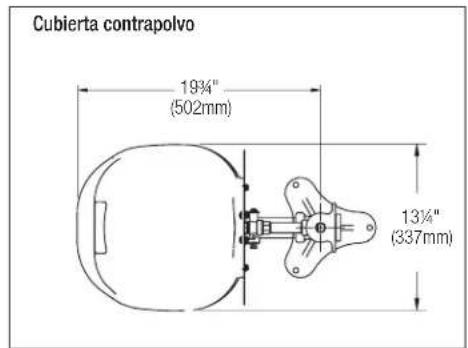

19¾" (502mm) 13¼" (337mm)Water Flow Rate
| Eyewash | 4-5 14 gpm |
| Eye/Face Wash | 4-5 14 gpm |
| Body Wash | 2-8 gpm |
All dimensions assume standard thread engagement. Variations in manufacturing allow for +/-18 (3mm) per threaded joint. To find the tolerance of a dimension, add the number of thread joints across the length of the dimension and multiply it by 18 (3mm).

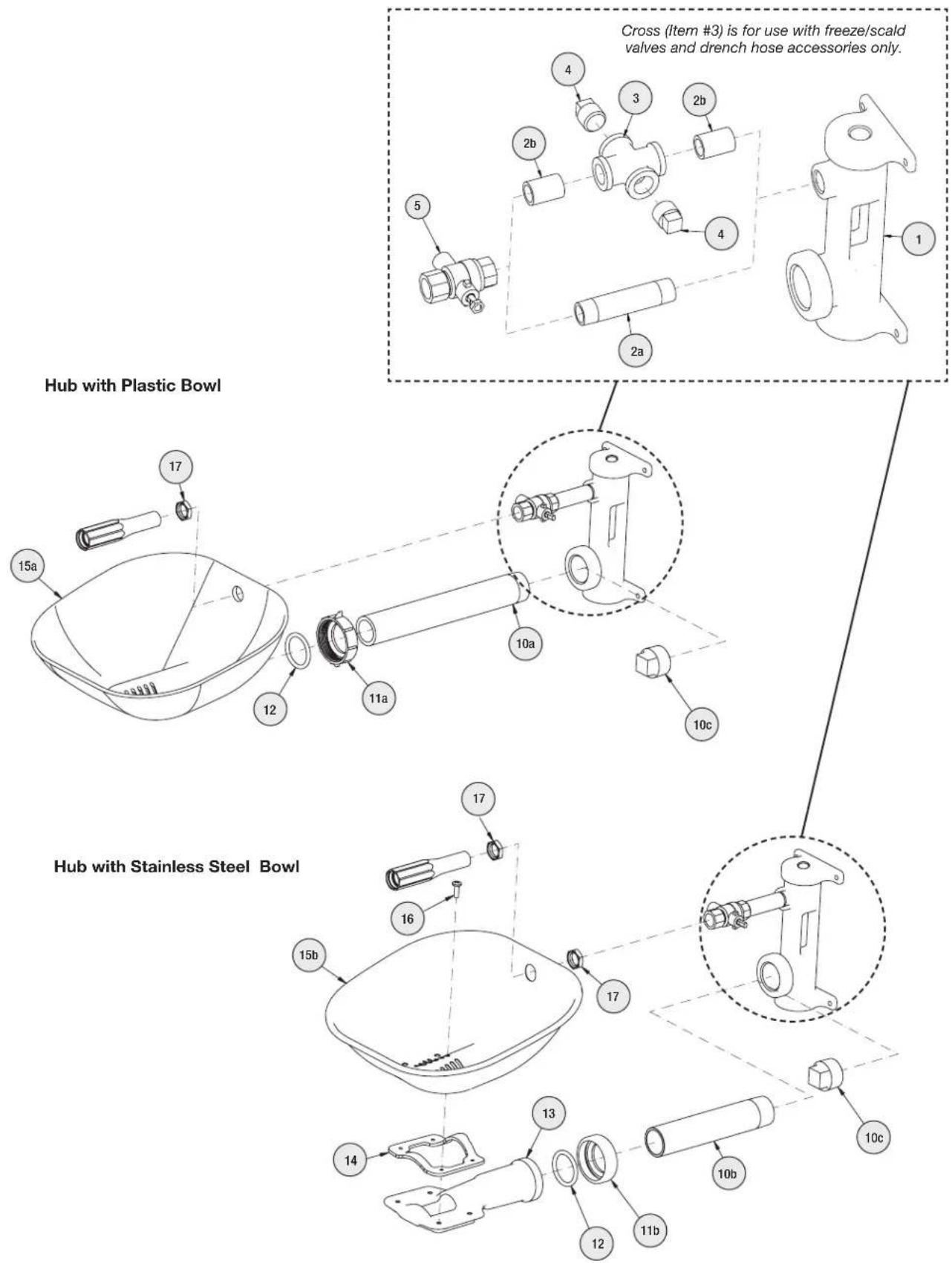

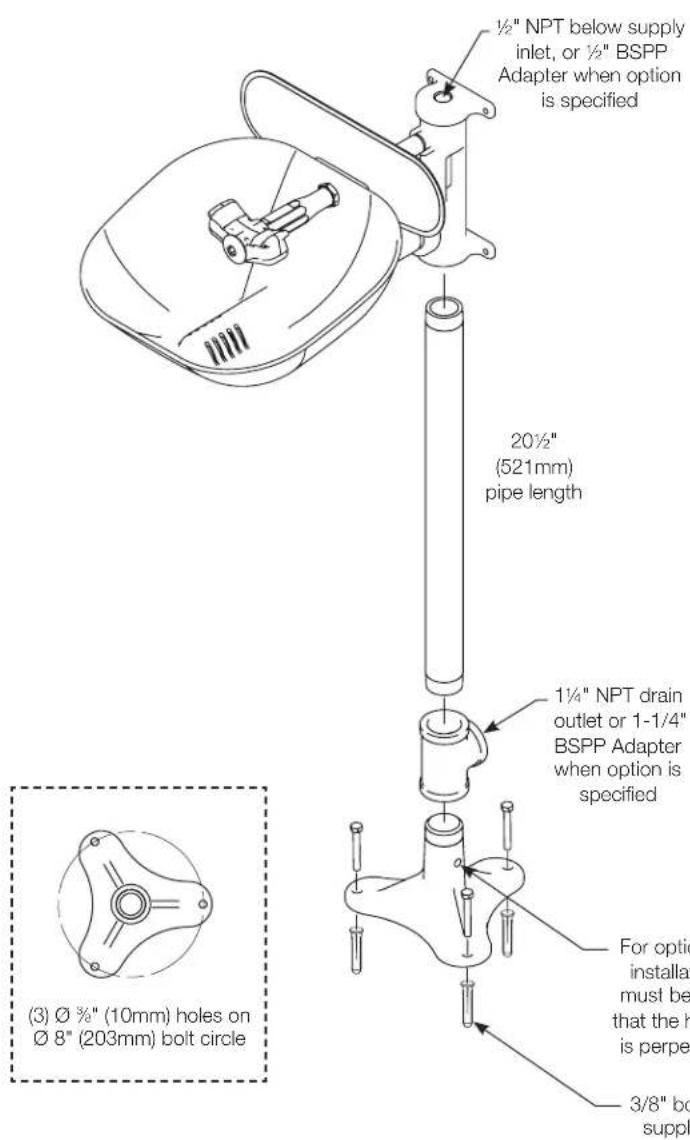

1 Assembly — Connect Base and Eyewash
Standard eyewash unit is shown. Other units are similar.
Connect components before securing the base to the floor. When connecting components, use the rubber grip pad (provided) around pipes to prevent marring.
√ Apply pipe sealant (supplied by installer) to all male-threaded pipe joints, making sure not to get any excess over the edge of the pipes.
BSPP = British Standard Pipe Parallel Thread (not available in the U.S.)

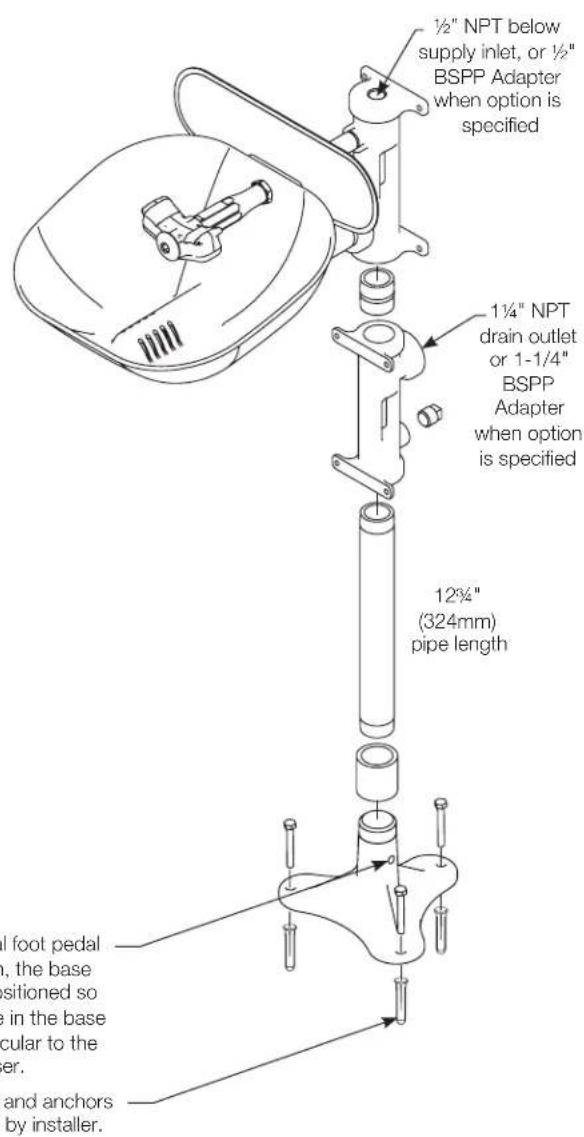

Halo unit with standard drain option


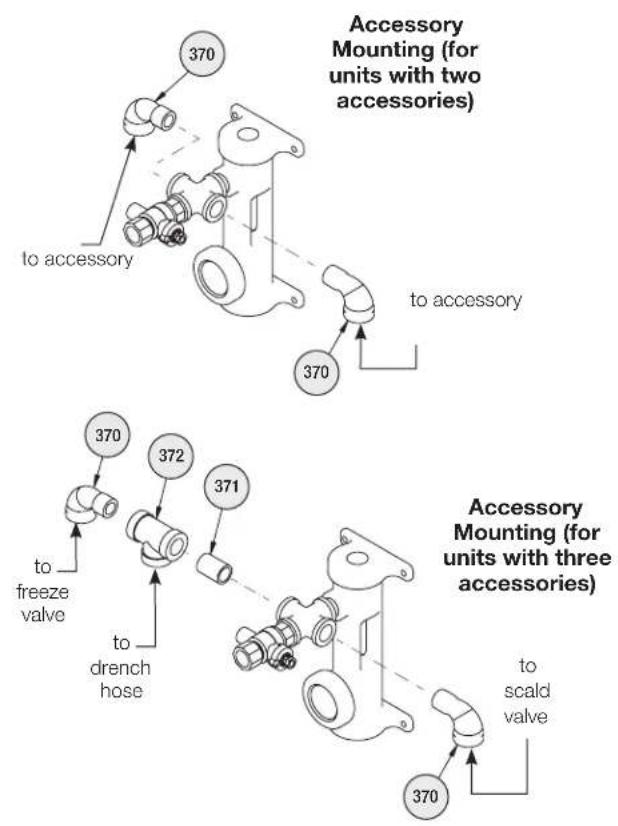

Cross (Item #3) is for use with freeze/scald valves and drench hose accessories only. Hub with Plastic Bowl 15a 17 12 11a 10a 10c 17 16 15b 14 13 12 11b 10b 10cService Parts List - Bowl and Hub
BSP = British Standard Pipe Thread (not available in the U.S.)
| Item | Part No. | Qty | Description |
| 1 | 111-096 | 1 | Hub |
| 1 111-097 1 Hub stainless steel | |||
| 1 111-103 1 Hub stainless steel 316 | |||
| 1 111-098 1 Hub stainless steel polish | |||
| 2a 113-006LQ 1 Pipe 12" × 312" | |||
| 2a 113-965 1 Pipe 12" × 312" stainless steel | |||
| 2a 113-1211 1 Pipe 12" × 312" stainless steel 316 | |||
| 2a 113-596 1 Pipe 12" × 312" chrome | |||
| 2b 113-006LG 2 Pipe 12" × close | |||
| 2b 113-867 2 Pipe 12" × close stainless steel | |||
| 2b 113-1210 2 Pipe 12" × close stainless steel 316 | |||
| 2b 113-006aw 2 Pipe 12" × close chrome | |||
| 3 169-1090 1 Cross 12" | |||
| 3 169-1091 1 Cross 12" stainless steel | |||
| 3 169-1098 1 Cross 12" stainless steel 316 | |||
| 3 169-1097 1 Cross 12" chrome | |||
| 4 300-0393 2 Plug 12" chrome | |||
| 4 153-230 2 Plug 12" stainless steel | |||
| 4 153-460 2 Plug 12" stainless steel 316 | |||
| 5 S27-327 1 Ball valve 12" with nut | |||
| 5 S27-328 1 Ball valve 12" ss 316 with nut | |||
| 5 S27-329 1 Ball valve 12" frost proof with nut | |||
| 5 S27-330 1 Ball valve 12" ss 316 frost proof with nut | |||
| 5.1 110-215 1 Nut | |||
| 5.1 110-248 1 Nut stainless steel 316 | |||

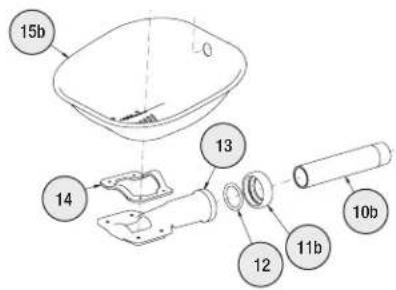

| Item | Part No. | Qty | Description |
| 10a | 113-1202 1 | Pipe 114" | x 11" thd. one end |
| 10a | 113-1203 | 1 | Pipe 114" x 11" thd. one end stn. steel |
| 10b | 113-1204 1 | Pipe 114" | x 7" thd. one end |
| 10b | 113-1205 | 1 | Pipe 114" x 7" thd. one end stainless steel |
| 10b | 113-1206 1 | Pipe 114" | x 7" thd. one end chrome |
| 10b | 113-1212 | 1 | Pipe 114" x 7" thd. one end stn. steel 316 |
| 10c | 169-724 1 | Plug 114" | painted galvanized |
| 10c | 269-251 1 | Plug 114" | chrome |
| 10c | 269-238 1 | Plug 114" | stainless steel |
| 10c | 269-1402 1 | Plug 114" | stainless steel 316 |
| 11a | 110-239 1 | Nut plastic, slip joint | |
| 11b | 110-240 1 | Nut, stainless steel slip joint | |
| 11b | 110-242 1 | Nut, stainless steel 316 slip joint | |
| 12 | 125-176 | 1 | O-ring |
| 13 11 | -099 1 Bowl | mount aluminum | |
| 13 11 | -100 1 Bowl | mount aluminum painted | |
| 13 11 | -101 1 Bowl | mount stainless steel | |
| 13 11 | -102 1 Bowl | mount stainless steel 316 | |
| 14 124 | -082 1 Bowl | gasket | |
| 15a | 187-320 1 | Bowl plastic | |
| 15b | S90-393 1 | Bowl stainless steel (includes Item 14) | |
| 15b | S90-394 1 | Bowl sln. | steel 316 (includes Item 14) |
| 16 | 160-467 | 4 | Screw |
| 17 110 | -115a as req'd. Nut 12" NPSM chrome brass | ||
| 17 | 110-238 | as req'd. | Nut 12" NPSM stainless steel |
| 17 | 110-241 | as req'd. | Nut 12" NPSM stainless steel 316 |
S90-395 Plastic Prepack includes items 10a, 11a, 12, 15a
316 Series SS Prepack S90-392 includes items 10b, 11b, 12, 13, 14, 15b


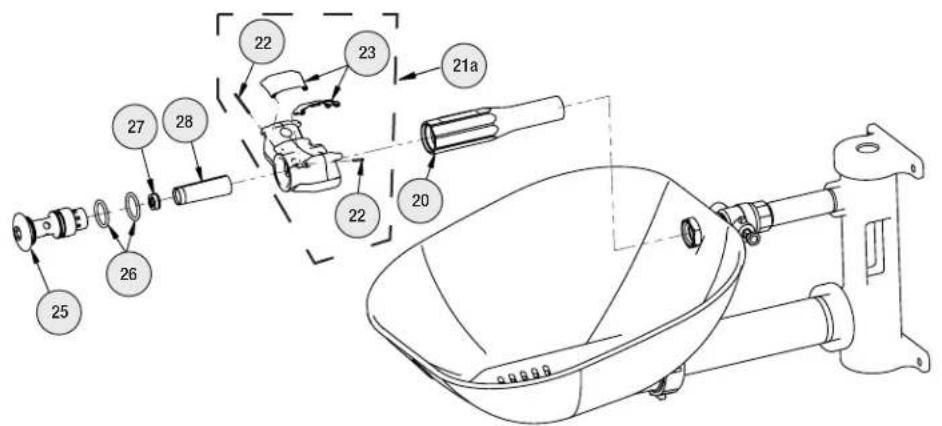

15b L0 13 14 12 11b 10bService Parts — Eyewash


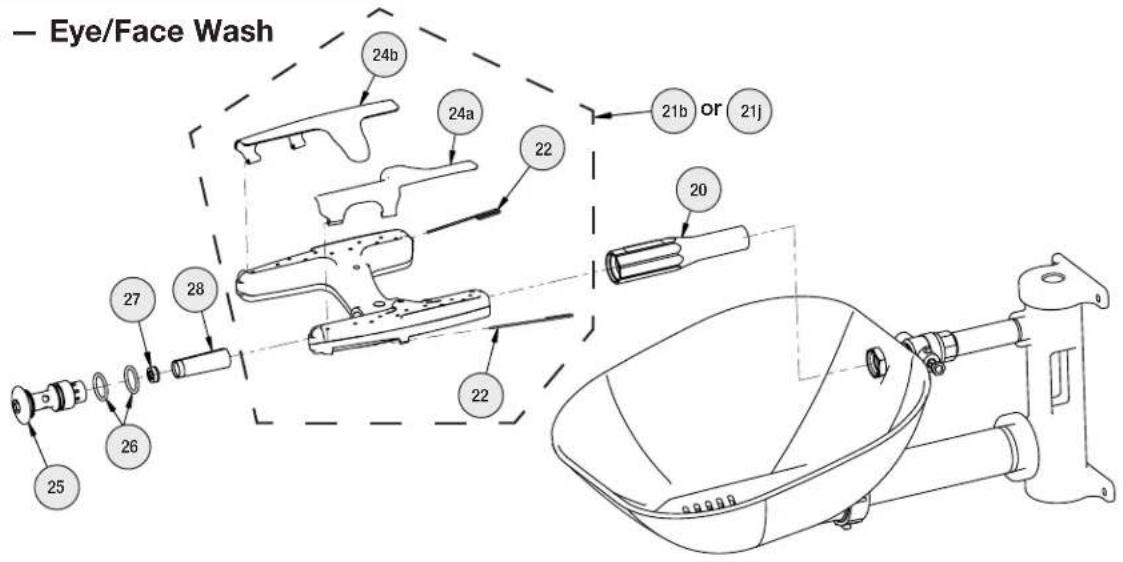

Technical diagram of a scooter seat assembly with numbered parts and component labelsService Parts — Eye/Face Wash
Prepack S88-068 includes items 25, 26, 27, 28
Prepack S88-069 includes items 25, 26, 27, 28 (300 series ss)
Prepack S88-070 includes items 25, 26, 27, 28 (316 ss)
Eyewash Cover Prepack S45-2675 includes items 22 and 23
Eye/Face Wash Cover Prepack S45-2676 includes items 22, 24a and 24b


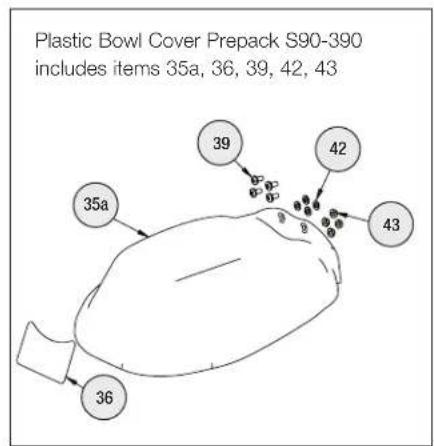

Plastic Bowl Cover Prepack S90-390 includes items 35a, 36, 39, 42, 43 35a 39 42 43 36


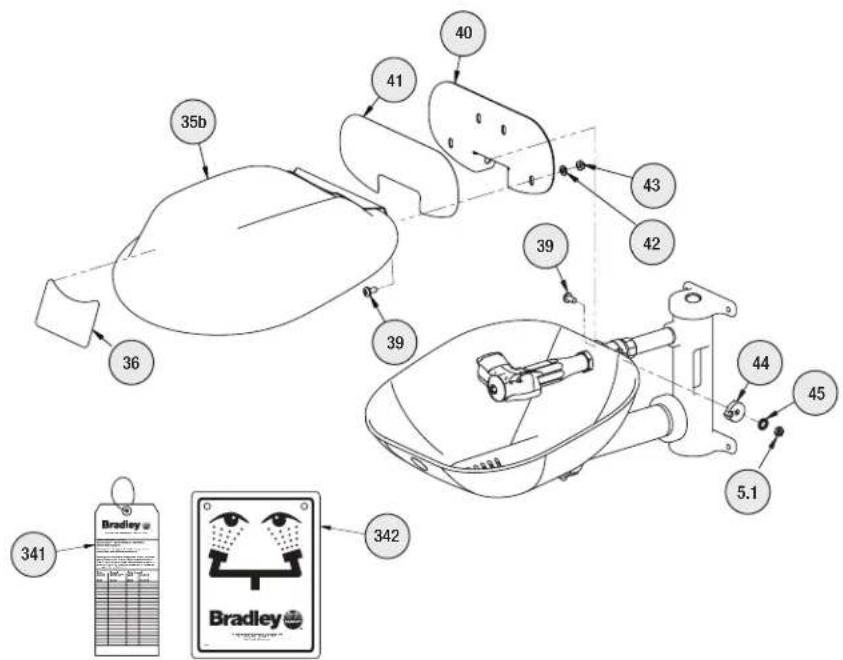

Cover 35a 36 39 39 40 41 42 43 43 42 39 44 45 5.1 341 342 BradleyService Parts — Stainless Steel Bowl Cover


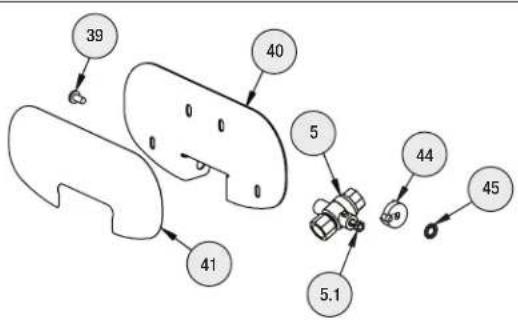

35b 36 41 40 43 42 39 39 44 45 5.1 341 342 BradleyHandle Prepacks include items 39, 40, 41, 44, 45, 5, 5.1
Prepack S08-390 (for units with brass ball valve)
Prepack S08-391 (for units with stainless steel ball valve)
Prepack S08-392 (for units with brass frost-proof ball valve)
Prepack S08-393 (for units with stainless steel frost-proof ball valve)
Prepack S08-394 (for units with 316 stainless steel ball valve and handle)
Prepack S08-395 (for units with 316 stainless steel frost-proof ball valve and handle)
| Item | Part No. Qty Description | Description | |
| 20 | 171-001 | 1 | Body |
| 20 | 171-002 | 1 | Body stainless steel |
| 20 | 171-003 | 1 | Body stainless steel 316 |
| 20 | 171-004 | 1 | Body polished |
| 21a | S05-190 | 1 | Sprayhead ass'y. eyewash (includes) |
| 22 | in service kit | 2 | Pivot pin |
| 23 | in service kit | 2 | Flip cover eyewash |
| 21b | S05-192 | 1 | Sprayhead ass'y. eye/face wash (includes) |
| 22 | in service kit | 2 | Pivot pin |
| 24a | in service kit | 1 | Flip cover right |
| 24b | in service kit | 1 | Flip cover left |
| 21j | S05-205(USEDON BOTH304SS AND316SSFIXTURES) | 1 | Sprayhead stainless steel 316ass'y. eye/face (includes) |
| 22 | in service kit | 2 | Pivot pin |
| 24a | in service kit | 1 | Flip cover right |
| 24b | in service kit | 1 | Flip cover left |
| 25 | 115-158 | 1 | Cap |
| 25 | 115-159 | 1 | Cap stainless steel |
| 25 | 115-164 | 1 | Cap stainless steel 316 |
| 25 | 115-165 | 1 | Cap polished |
| Item | Part No. Qty Description | ||
| 26 | 125-157 2 O-ring | ||
| 27 | 125-175 1 Flow control | ||
| 28 | S65-340 1 Screen (incl. 3 per pack) | ||
| 35a | in service kit | 1 | Bowl cover plastic |
| 35b | in service kit | 1 | Bowl cover stainless steel |
| 35b | in service kit | 1 | Bowl cover stainless steel 316 |
| 36 | 114-097 1 Bowl cover decal | ||
| 39 | 160-389 | as req'd. | Screw 14 -20 x 12 " stn. steel |
| 39 | 160-469 | as req'd. | Screw 14 -20 x 12 " stn. steel 316 |
| 40 | S08-385 | 1 | Handle ss (incl. items 41, 44, 45, 5.1) |
| 40 | S08-388 | 1 | Handle ss 316 (incl. items 41, 44, 45, 5.1) |
| 41 | 114-096 1 Decal | ||
| 42 | 142-002AV | as req'd. | Bowl cover washer |
| 43 | 161-060 | as req'd. | Nut stainless steel |
| 43 | 161-062 | as req'd. | Nut stainless steel 316 |
| 44 | 153-372R 1 Adapter ball valve | ||
| 44 | 153-372R316 | 1 Adapter ball valve stainless steel 316 | |
| 45 | 142-002DA 1 Lockwasher | ||
| 341 | 204-421 1 Emergency Inspection Tag | ||
| 342 | 114-051 1 Eyewash Safety Sign | ||
| 342 | 114-051E | 1 Eyewash Safety Sign (not available in the U.S.) | |
Service Parts and Parts List — Base and Drain
Foot Pedal kits
S45-572 (standard foot pedal kit)
S45-1314SS (stainless steel foot pedal kit)
S45-1314SS16 (316 stainless steel foot pedal kit)
S29-098 (standard)
S29-099 (stainless steel)
S29-100 (316 stainless steel)
S29-101 (chrome)
| 1 | 111-092 | Hub | |
| 1 | 111-093 1 Hub stainless steel | ||
| 1 | 111-095 1 Hub stainless steel | 316 | |
| 1 | 111-094 1 Hub stainless steel | polish | |
| 4 | 300-0393 2 Plug 1⁄2" chrome | ||
| 4 | 153-230 2 Plug 1⁄2" stainless steel | ||
| 4 | 153-460 2 Plug 1⁄2" stainless steel | 316 | |
| 301a | 113-1197 1 Pipe | 11⁄4" x 201⁄2" | |
| 301a | 113-1198 1 Pipe | 11⁄4" x 201⁄2" chrome | |
| 301a | 113-541 1 Pipe | 11⁄4" x 201⁄2" stainless steel | |
| 301a | 113-1213 1 Pipe | 11⁄4" x 201⁄2" stainless steel | 316 |
| 301b | 113-1217 1 Pipe | 11⁄4" x 123⁄4" | |
| 301b | 113-1218 1 Pipe | 11⁄4" x 123⁄4" chrome | |
| 301b | 113-1219 1 Pipe | 11⁄4" x 123⁄4" stainless steel | |
| 301b | 113-1220 1 Pipe | 11⁄4" x 123⁄4" stainless steel | 316 |
| 302a | 169-727 1 Tee 11⁄4" painted galvanized | ||
| 302a | 269-237 1 Tee 11⁄4" stainless steel | ||
| 302a | 269-1398 1 Tee 11⁄4" stainless steel | 316 |
| Item | Part No. | Qty. | Description |
| 302a | 269-253 1 | Tee 1 14 " chrome | |
| 302b | 169-853 1 | Coupling 1 14 " galvanized | |
| 302b | 269-257 1 | Coupling 1 14 " chrome | |
| 302b | 269-1048 1 | Coupling 1 14 " stainless steel | |
| 302b | 269-2016 1 | Coupling 1 14 " stainless steel 316 | |
| 303 | 13-006NA 1 | Pipe 1 14 " x close painted galvanized | |
| 303 | 13-865 1 | Pipe 1 14 " x close stainless steel | |
| 303 | 13-1223 1 | Pipe 1 14 " x close stainless steel 316 | |
| 304 | S06-189 | 1 Plug chrome solid | |
| 305a | 131-059 1 | Base painted | |
| 305a | 131-062 1 | Base stainless steel | |
| 305a | 131-079 1 | Base stainless steel 316 | |
| 305b | 131-044 1 | Base chrome | |
| 321 | 169-1117 1 | BSPP-NPT 1-1/4" 303SS | |
| 321 | 169-1118 1 | BSPP-NPT 1-1/4" 316SS | |
| 322 | 169-1119 1 | BSPP-NPT 1/2" 303SS | |
| 322 | 169-1120 1 | BSPP-NPT 1/2" 316SS | |
| 340 | 269-915 1 | Rubber Grip Pad |
Service Parts and Parts List — Optional Accessories
| 370 | 169-025 | as req'd. Elbow 1⁄2" |
| 370 | 269-241 | as req'd. Elbow 1⁄2" stainless steel |
| 370 | 269-1396 | as req'd. Elbow 1⁄2" stainless steel 316 |
| 370 | 169-862 | as req'd. Elbow 1⁄2" chrome |
| 371 | 113-006LG 1 | Pipe 1⁄2" x close |
| 371 | 113-867 | 1 Pipe 1⁄2" x close stainless steel |
| 371 | 113-1210 | 1 Pipe 1⁄2" x close stainless steel 316 |
| 371 | 113-006AW | 1 Pipe 1⁄2" x close chrome |
| 372 | 169-838 | 1 Tee 1⁄2" |
| 372 | 169-1100 | 1 Tee 1⁄2" stainless steel |
| 372 | 269-280 | 1 Tee 1⁄2" chrome |
| 372 | 169-1099 | 1 Tee 1⁄2" stainless steel 316 |
| 376 | S45-1986 | Freeze Valve kit |
| 377 | S45-1989 | Scald Valve kit |
| 387a | S27-303 | 1 | Vacuum breaker in-line 3⁄4" |
| 387b | S45-2309 | 1 | Backflow preventer N9 |
| 387c | S45-2310 | 1 | Backflow preventer 9D |
| 390 S | 9-430EH | 1 Spray Kit | |
AVERTISSEMENT
Technical diagram of a scooter body with numbered components and exploded viewnatural_image
Technical line drawing of a mechanical device with base, spring, and lever components (no text or symbols)natural_image
Technical line drawing of a mechanical assembly with no visible text or symbols
Technical diagram of a scooter body with numbered parts and exploded view, including labeled parts 20–28.Paquete S88-069 incluye art. 25, 26, 27, 28 (300 series ss)
