USER MANUAL Alpha ILCE-7RM4 SONY

https://www.sony.net/Sonyinfo/Support/

©2019 Sony Corporation Printed in Thailand

5007325410

SONY®

5-007-325-41(2)

α7 _RIV

α7RIV

E-mount

"Help Guide" (Web manual)

Refer to "Help Guide" for

in-depth instructions on the

many functions of the camera.

https://rd1.sony.net/help/ilc/1930/h_zz/

Interchangeable Lens Digital Camera/Instruction Manual	GB
Appareil photo à objectif interchangeable/Mode d'emploi FR
Digitalkamera mit Wechselobjektiv/Gebrauchsanleitung DE
Cámara Digital de Lentes Intercambiables/Manual de instrucciones	ES
Fotocamera digitale con obiettivo intercambiabile/Istruzioni per l'uso	IT
Câmara Digital de Objetivas intercambiáveis/Manual de instruções	PT
Digitale camera met verwisselbare lens/Gebruiksaanwijzing NL
Aparat cyfrowy z wymiennymi obiektywami/Instrukcja obsługi PL
Цифровой фотоаппарат со сменным объективом/Инструкция по эксплуатации	RU
Цифровий фотоаппарат зі змінним об'єктивом/Посібник з експлуатації	UA
Digitalkamera med utbytbart objektiv/Handledning SE
Digitaalinen kamera vaihdettavalla objektiivilla/Käyttöopas FI
Digitalkamera med utskiftbart objektiv/Bruksanvisning NO
Digitalkamera med udskifteligt objektiv/Betjeningsvejledning DK

ILCE-7RM4

Check out the Help Guide!

Simple line drawing of a laptop and smartphone (no text or symbols)

The "Help Guide" is an on-line manual that you can read on your computer or smartphone. Refer to it for details on menu items, advanced usage, and the latest information on the camera.

QR code image containing encoded data, no visible human-readable text

Scan here

https://rd1.sony.net/help/ilc/1930/h_zz/

ILCE-7RM4 Help Guide

Instruction Manual (this book)

This manual introduces some basic functions.

For the quick start guide, see "Startup guide" (page 22). The "Startup guide" introduces the initial procedures from when you open the package until you release the shutter for the first shot.

In-Camera Guide

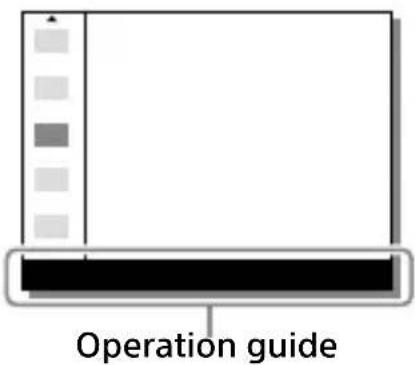

The [In-Camera Guide] shows explanations of the menu items on the monitor of the camera.

You can quickly pull up information during shooting.

Select an item for which you want to view a description, and then press the ⏻(Delete) button.

Notes on using your camera

Along with this section, also see "Precautions" in the Help Guide.

Notes on handling the product

• This camera is designed to be dust resistant and splash resistant, but it is not guaranteed to completely prevent the ingress of dust or water droplets.
• Do not leave the lens or the viewfinder exposed to a strong light source such as sunlight. Because of the lens's condensing function, doing so may cause smoke, fire, or a malfunction inside the camera body or the lens. If you have to leave the camera exposed to a light source such as sunlight, attach the lens cap to the lens.
• When you shoot with backlighting, keep the sun sufficiently far away from the angle of view. Otherwise, the sunlight may focus inside the camera and cause smoke or fire. Even if the sun is slightly away from the angle of view, it may still cause smoke or fire.
• Do not directly expose the lens to beams such as laser beams. That may damage the image sensor and cause the camera to malfunction.
• Do not look at sunlight or a strong light source through the lens when it is detached. This may result in unrecoverable damage to the eyes.
• Do not leave the camera, the supplied accessories, or memory cards within the reach of infants. They may be accidentally swallowed. If this occurs, consult a doctor immediately.

Notes on the monitor and electronic viewfinder

- The monitor and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, there may be some small black dots and/or bright dots (white, red, blue or green in color) that constantly appear on the monitor and electronic viewfinder. These dots are normal due to the manufacturing process and do not affect the images in any way.

• When shooting with the viewfinder, you may experience symptoms such as eyestrain, fatigue, travel sickness, or nausea. We recommend that you take a break at regular intervals when you are shooting with the viewfinder.
• If the monitor or electronic viewfinder is damaged, stop using the camera immediately. The damaged parts may harm your hands, face, etc.

Notes on continuous shooting

During continuous shooting, the monitor or viewfinder may flash between the shooting screen and a black screen. If you keep watching the screen in this situation, you may experience uncomfortable symptoms such as feeling of unwellness. If you experience uncomfortable symptoms, stop using the camera, and consult your doctor as necessary.

Notes on recording for long periods of time or recording 4K movies

• The camera body and battery may become warm with use – this is normal.
• If the same part of your skin touches the camera for a long period of time while using the camera, even if the camera does not feel hot to you, it may cause symptoms of a low-temperature burn such as redness or blistering. Pay special attention in the following situations and use a tripod, etc.

-When using the camera in a high-temperature environment

-When someone with poor circulation or impaired skin sensation uses the camera

-When using the camera with the Auto Power OFF Temp. set to [High].

Sony lenses/accessories

Using this unit with products from other manufacturers may affect its performance, leading to accidents or malfunction.

On the data specifications described in this manual

The data on performance and specifications are defined under the following conditions, except as described in this manual: at an ordinary ambient temperature of 25^ C ( 77^ F), and using a battery pack that has been fully charged until the charge lamp has turned off.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

Notes on location information

If you upload and share an image tagged with a location, you may accidentally reveal the information to a third party. To prevent third parties from obtaining your location information, set

[□ Location Info. Link Set.] to [Off] before shooting images.

Notes on discarding or transferring this product to others

When discarding or transferring this product to others, make sure to perform the following operation to protect private information.

- [Setting Reset] [Initialize]

Notes on discarding or transferring a memory card to others

Executing [Format] or [Delete] on the camera or a computer may not completely delete the data on the memory card. When transferring a memory card to others, we recommend that you delete the data completely using data deletion software. When discarding a memory card, we recommend that you physically destroy it.

Note on network functions

When you use network functions, unintended third parties on the network may access the camera, depending on the usage environment.

For example, unauthorized access to the camera may occur in network environments to which another network device is connected or can connect without permission. Sony bears no responsibility for any loss or damage caused by connecting to such network environments.

Note on the 5 GHz band for wireless LAN

When using the wireless LAN function outdoors, set the band to 2.4 GHz by following the procedure below. (WW716189 only)

- MENU → (Network) → [Wi-Fi Settings]

How to turn off wireless network functions (Wi-Fi, etc.) temporarily

When you board an airplane, etc., you can turn off all wireless network functions temporarily using [Airplane Mode].

Power Cord

For the customers in the UK, Ireland, Malta, Cyprus and Saudi Arabia Use the power cord (A). For safety reasons, the power cord (B) is not intended for above countries/regions and shall therefore not be used there. For the customers in other EU countries/regions Use the power cord (B).

(A)(B)

Simple line drawing of a plug with a bulb and plug connectors (no text or symbols)

For Customers in the U.S.A.

For question regarding your product or for the Sony Service Center nearest you, call 1-800-222-SONY (7669).

Supplier's Declaration of Conformity

Trade Name: SONY

Model No.: WW716189

Responsible Party: Sony Electronics Inc.

Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For customers who purchased their camera from a store in Japan that caters to tourists

Note

Some certification marks for standards supported by the camera can be confirmed on the screen of the camera.

Select MENU → (Setup) → [Certification Logo].

For details on the Wi-Fi functions and NFC One-touch functions, refer to the "Help Guide" (page 2).

Checking the camera and the supplied items

The number in parentheses indicates the number of pieces.

• Camera (1)

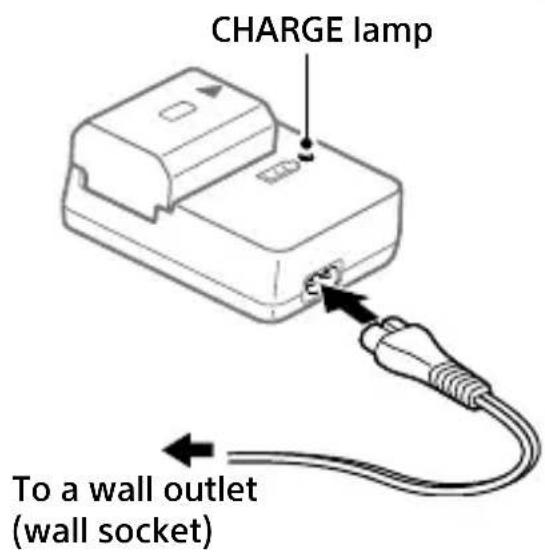

• Battery charger (1)

• Power cord (mains lead) (1)* (supplied in some countries/regions)

Illustration of a USB cable with coiled wires (no text or symbols)

* Multiple power cords may be supplied with this equipment. Use the appropriate one that matches your country/region. See page 5.

- Rechargeable battery pack NP-FZ100 (1)

- USB Type- C^TM cable (1)

Simple line drawing of a U-shaped cable with two USB connectors (no text or symbols)

• Shoulder strap (1)
  • Body cap (1) (Attached to the camera)

Line drawing of two pliers with handles, no text or symbols present

- Cable protector (1)

• Shoe cap (1) (Attached to the camera)
• Eyepiece cup (1) (Attached to the camera)
• Instruction Manual (1) (this manual)
  • Reference Guide (1)

Identifying parts

See the pages in parentheses for details.

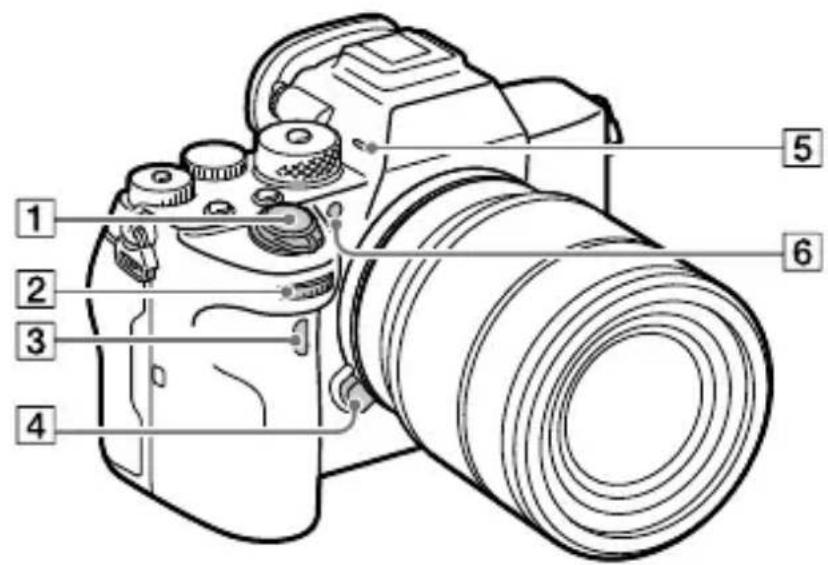

Front side

1 2 3 4 5 6

GB

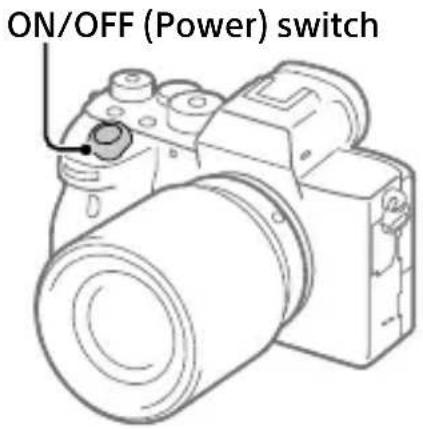

① ON/OFF (Power) switch (29)/Shutter button (30)
2 Front dial You can quickly adjust the settings for each shooting mode.
③ Infrared remote sensor
4 Lens release button (28)
5 Microphone Do not cover this part during movie recording. Doing so may cause noise or lower the volume.
6 AF illuminator (61)/Self-timer lamp

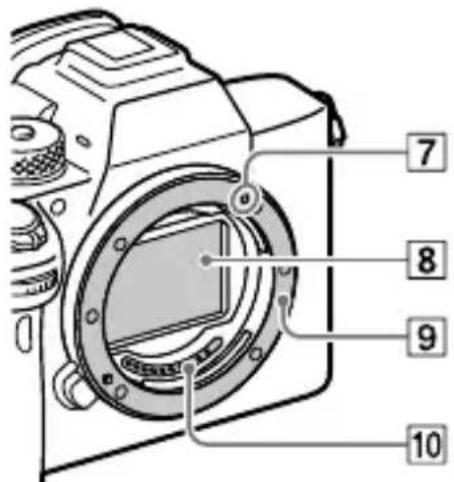

When the lens is removed

7 8 9 10

7 Mounting index (27)
8 Image sensor*
9 Mount
10 Lens contacts*

* Do not directly touch these parts.

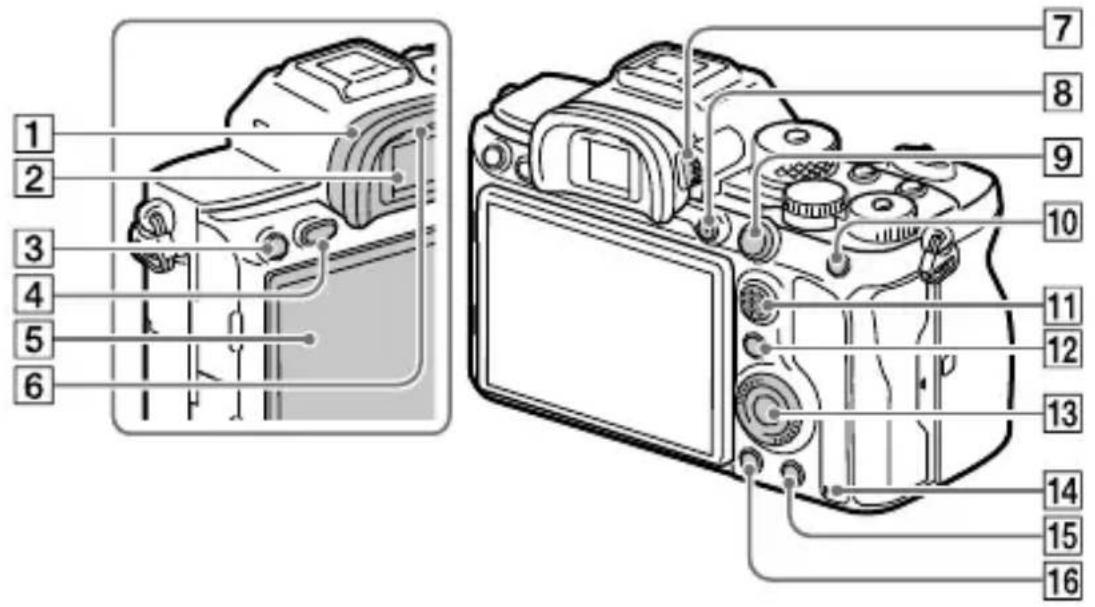

Rear side

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

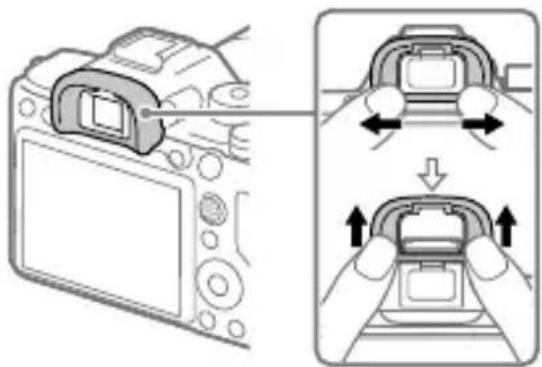

① Eyepiece cup To remove the eyepiece cup Push the grips at the bottom of the eyepiece cup to the left and right and lift up the cup.

Diagram illustrating camera mode adjustment with labeled arrows and directional arrows for zoom and rotation operations

Remove the eyepiece cup when attaching an angle finder (sold separately). Also, select MENU →

2 (Camera Settings 2) → [FINDER/MONITOR], and then switch to [Viewfinder (Manual)] or [Monitor (Manual)].

2 Viewfinder

3 C3 button (Custom button 3) (68)/○—(Protect) button

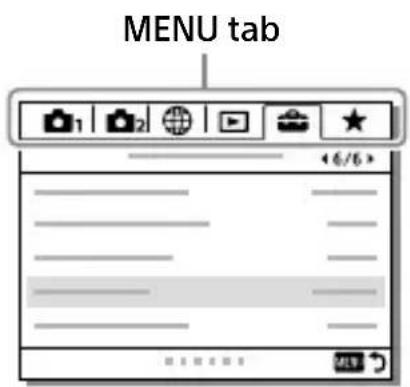

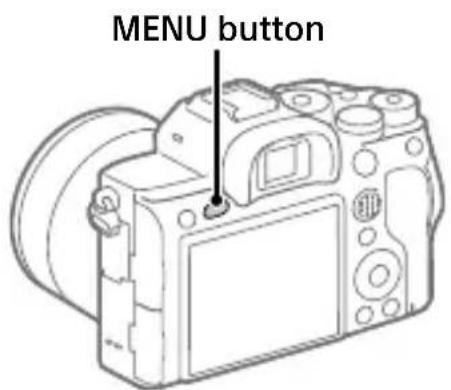

4 MENU button (58)

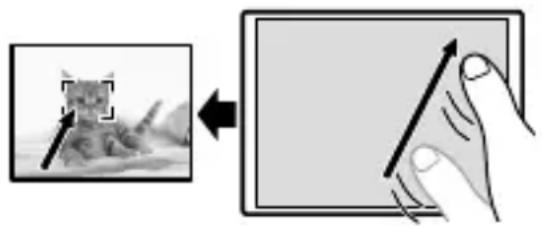

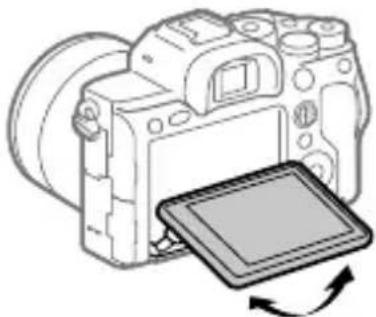

5 Monitor (For touch operation: Touch panel/Touch pad) (41) You can adjust the monitor to an easily viewable angle and shoot from any position.

Line drawing of a DSLR camera with a screen and scroll, showing no text or symbols

6 Eye sensor

7 Diopter-adjustment dial Adjust the diopter-adjustment dial according to your eyesight until the display appears clearly in the viewfinder. If it is hard to operate the diopter-adjustment dial, remove the eyepiece cup before operating the dial.

Mechanical component diagram showing a rotating knob or dial (no text or symbols)

8 MOVIE (Movie) button (31)

9 For shooting: AF-ON (AF On) button For viewing: ⊕ (Enlarge Image) button

10 For shooting: AEL button For viewing: (Image Index) button

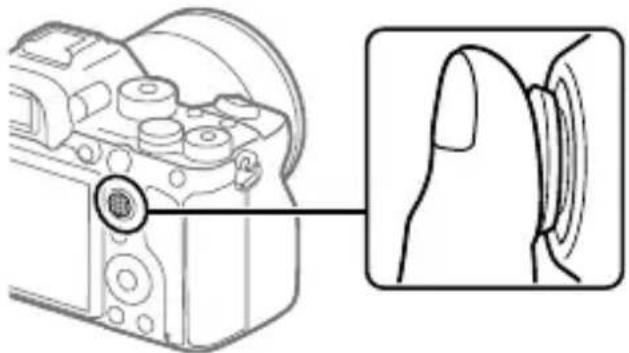

11 Multi-selector (17)

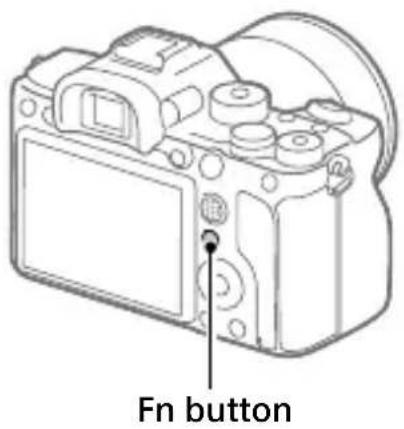

12 For shooting: Fn (Function) button (17, 68) For viewing:

(Send to Smartphone) button

You can display the screen for [Send to Smartphone] by pressing this button.

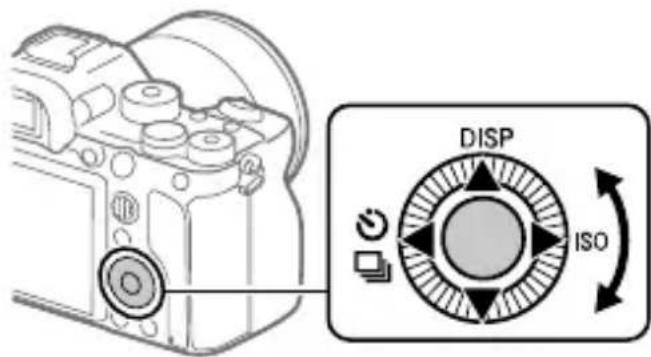

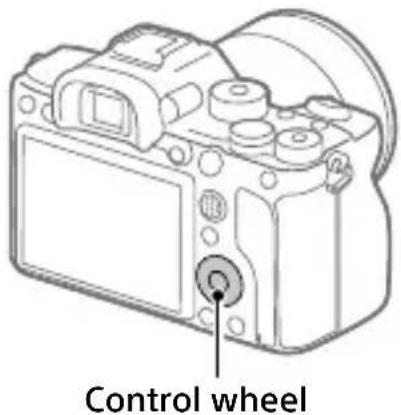

13 Control wheel (16)

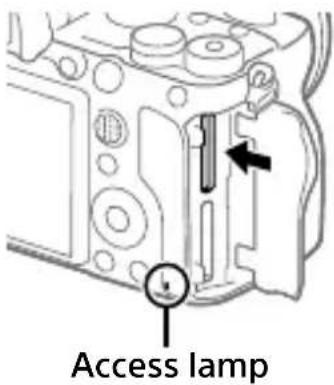

14 Access lamp

15 For shooting: C4 button (Custom button 4) (68) For viewing: ⏻(Delete) button (31)

16 (Playback) button (31)

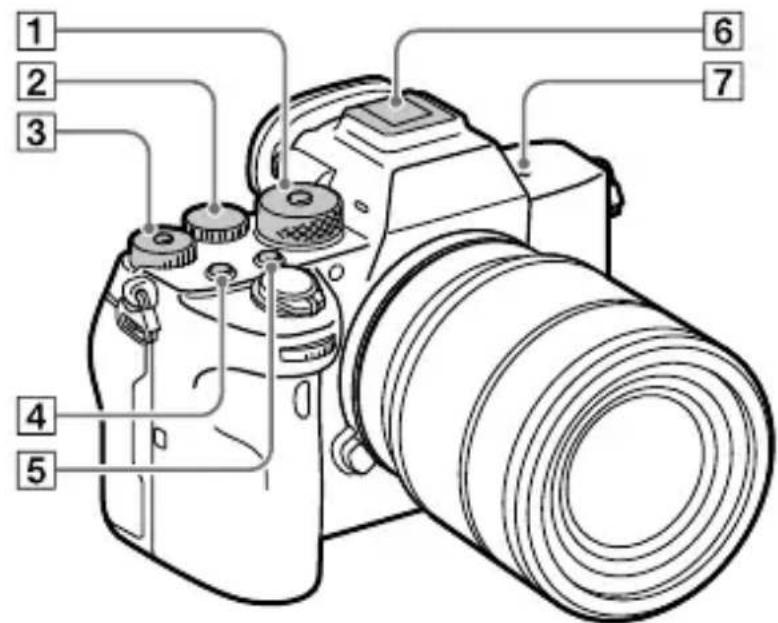

Top side

1 2 3 4 5 6 7

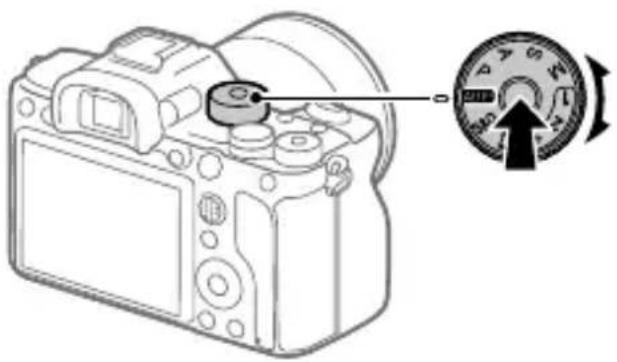

1 Mode dial (31)

The mode dial is unlocked while you hold down the unlock button at the center.

② Rear dial

You can quickly adjust the settings for each shooting mode.

3 Exposure compensation dial

Pressing the lock button at the center switches the exposure compensation dial between the locked and unlocked status. The dial is unlocked when the lock button is popped up and the white line is visible.

4 C1 button (Custom button 1) (68)

5 C2 button (Custom button 2) (68)

6 Multi Interface Shoe*

Some accessories may not go in all the way and protrude backward from the Multi interface shoe. However, when the accessory reaches the front end of the shoe, the connection is completed.

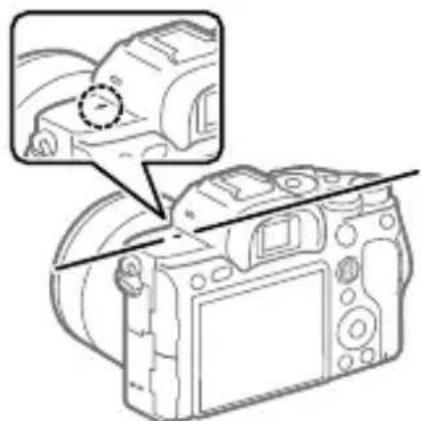

7 Image sensor position mark

- The image sensor is the sensor that converts light into an electric signal. The mark shows the location of the image sensor. When you measure the exact distance between the camera and the subject, refer to the position of the horizontal line.

Line drawing of a DSLR camera with an inset showing a circular component (no text or symbols)

- If the subject is closer than the minimum shooting distance of the lens, the focus cannot be confirmed. Make sure you put enough distance between the subject and the camera.

* For details on compatible accessories for the Multi Interface Shoe, visit the Sony website, or consult your Sony dealer or local authorized Sony service facility. Accessories for the Accessory Shoe can also be used. Operations with other manufactures' accessories are not guaranteed.

ni Multi Interface Shoe

Accessory Shoe

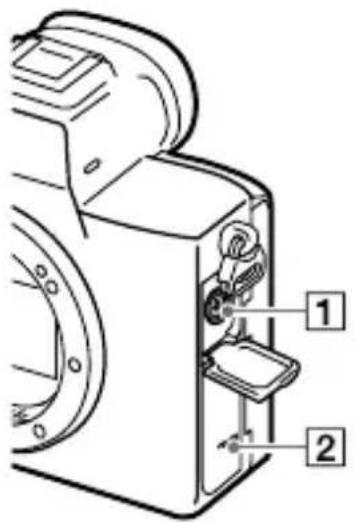

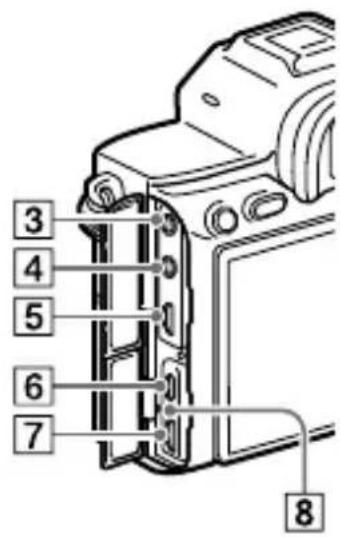

Sides

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

Technical diagram of a DSLR camera with numbered parts labeled 9 and 10

Technical diagram of a camera module with numbered parts labeled 11 and 12

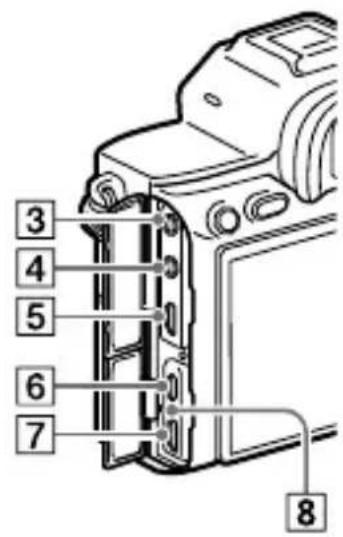

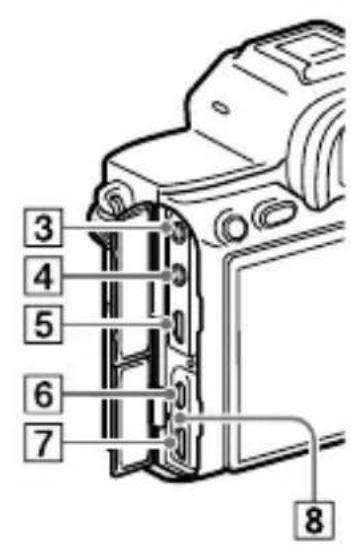

1 (Flash sync) terminal
② Speaker

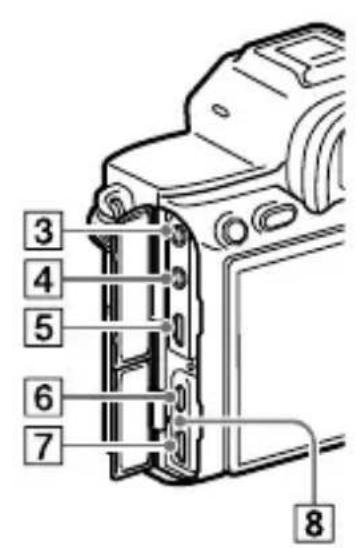

3 (Microphone) jack When an external microphone is connected, the built-in microphone turns off automatically. When the external microphone is a plugin-power type, the power of the microphone is supplied by the camera.

4 Ⓞ (Headphones) jack
5 HDMI micro jack

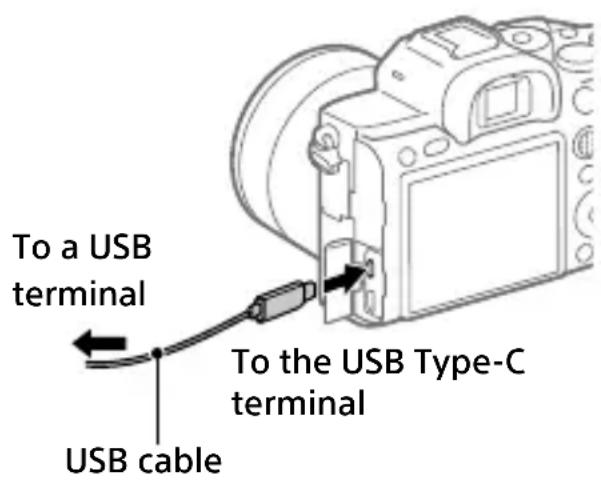

6 USB Type-C terminal (13, 55)
7 Multi/Micro USB Terminal* (13, 55) This terminal supports Micro USB-compatible devices.
8 Charge lamp

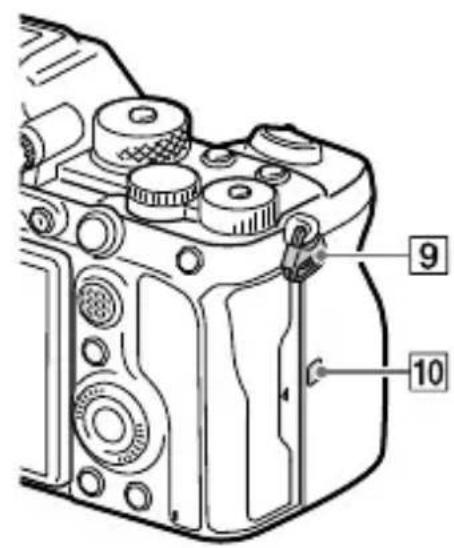

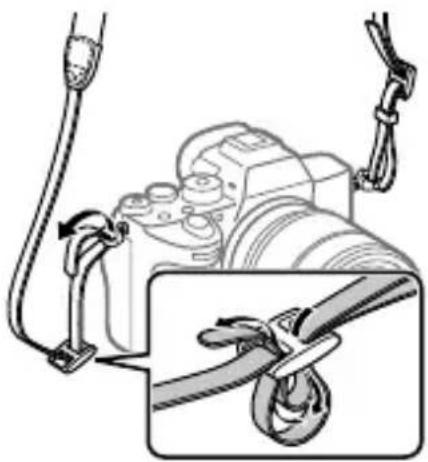

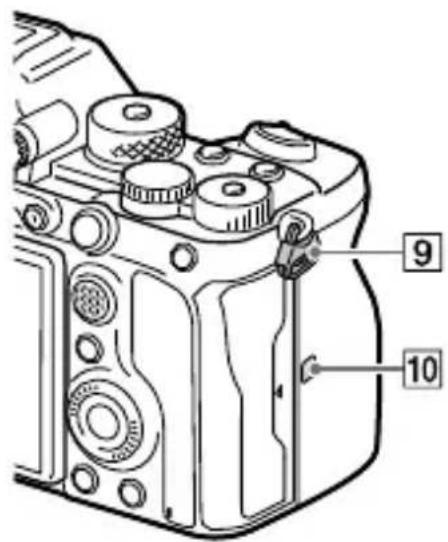

9 Hooks for shoulder strap Attach both ends of the strap onto the camera.

Diagram showing a camera suspended with ropes and a magnified view of the cable (no text or symbols)

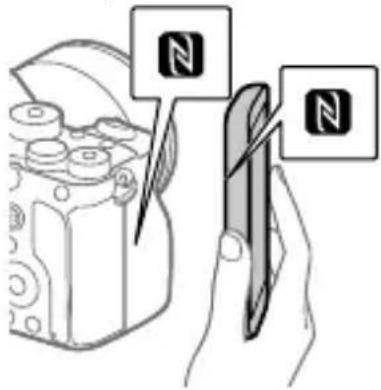

10 (N-Mark) (52)

- This mark indicates the touch point for connecting the camera and an NFC-enabled Smartphone.

Diagram showing a hand holding a tool next to a device with labeled 'N' symbols, likely illustrating a precision or scanning process.

- NFC (Near Field Communication) is an international standard of short-range wireless communication technology.

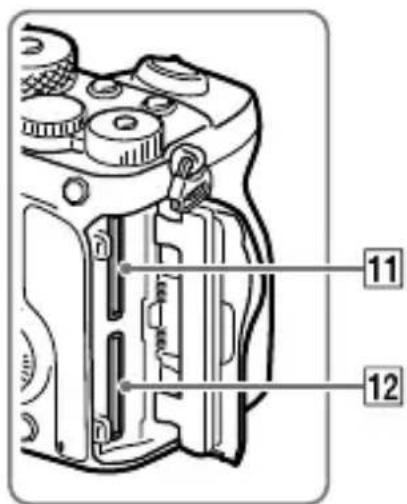

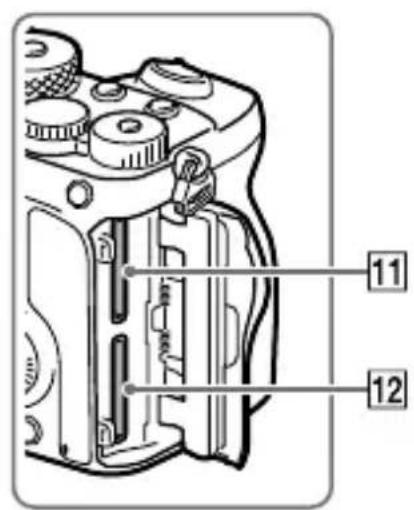

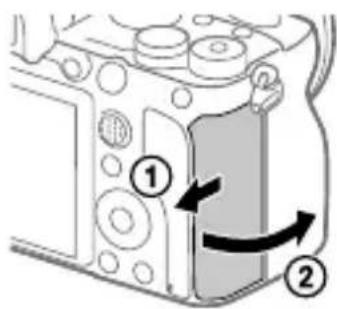

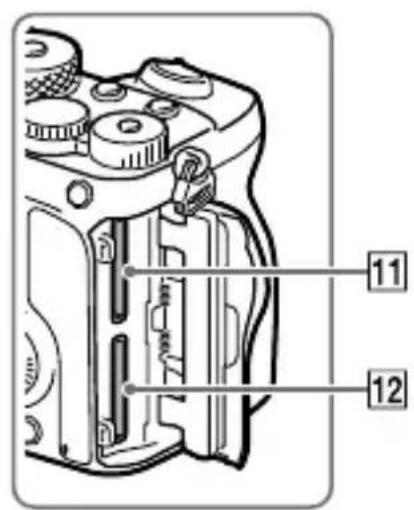

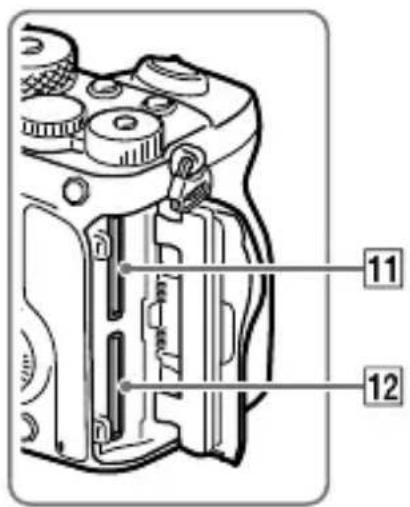

11 SLOT 1 (Memory card slot 1) (24)

Supports SD cards only (compatible with UHS-I and UHS-II)

12 SLOT 2 (Memory card slot 2) (26) Supports SD cards only (compatible with UHS-I and UHS-II)

* For details on compatible accessories for the Multi/Micro USB Terminal, visit the Sony website, or consult your Sony dealer or local authorized Sony service facility.

Notes on USB terminals

You can use either the USB Type-C terminal or the Multi/Micro USB Terminal for supplying power, charging the battery, and USB communications. However, you cannot conduct these operations with both terminals simultaneously.

• The battery charging time does not change according to the terminal you use.
- You can use accessories for the Multi/Micro USB Terminal, such as a remote commander (sold separately), while supplying power or performing PC Remote shooting using the USB Type-C terminal.

Notes on the cable protector

Use the cable protector to prevent a cable from being disconnected when shooting images with the cable connected.

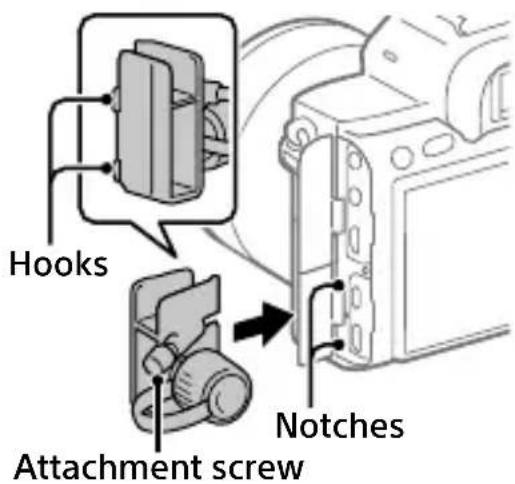

To attach the cable protector

① Open both of the jack covers on the monitor side.

② Fit the two hooks on the rear side of the cable protector into the two notches to the left of the USB Type-C terminal and Multi/Micro USB Terminal, and then align the cable protector with the terminal part of the camera.

③ Push the attachment screw in and turn it to secure the cable protector.

④ Insert the cable into one of the jacks.

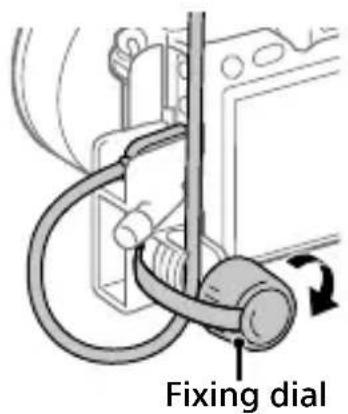

⑤ Insert the cable into the holding part and then secure the cable with the fixing dial.

Hooks Attachment screw Notches

Fixing dial

To remove the cable protector

Loosen the attachment screw, and then remove the cable protector.

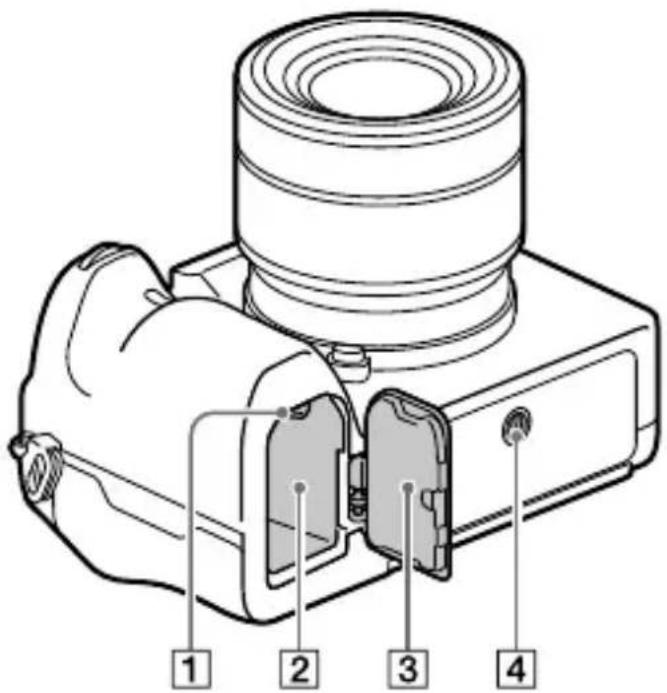

Bottom

Technical diagram of a camera module with numbered parts labeled 1 to 4

GB

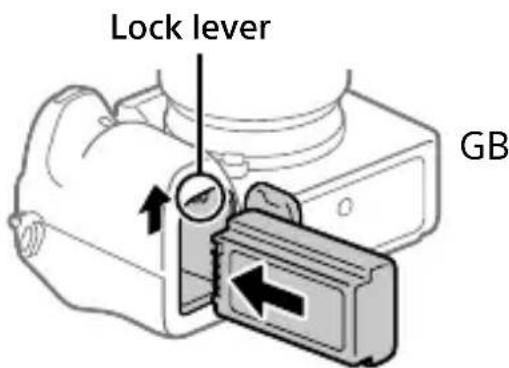

1 Lock lever (23)
2 Battery insertion slot (23)
3 Battery cover (23)
When attaching an accessory such as a vertical grip (sold separately), remove the battery cover.

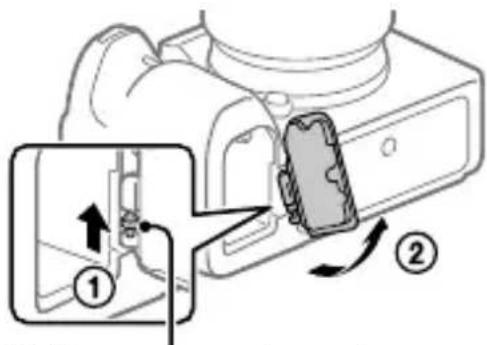

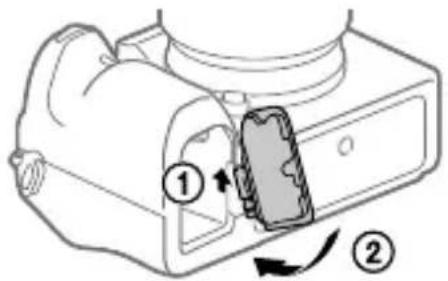

To remove the battery cover Pull the battery cover release lever in the direction of the arrow, and then remove the battery cover.

Diagram showing a device's internal structure with labeled parts and directional arrows indicating movement or assembly.

Battery cover release lever

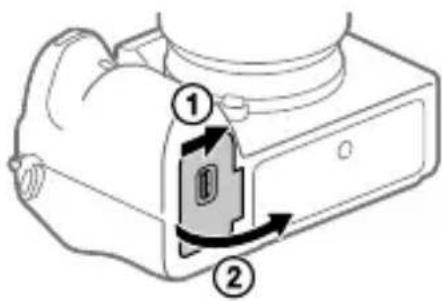

To attach the battery cover Insert the shaft on one side of the battery cover into the attachment site, and then push in the battery cover by attaching the shaft on the opposite side.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

4 Tripod socket hole

Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

Basic operations

Using the control wheel

DISP ISO

- You can select setting items by turning or pressing the top/bottom/left/right side of the control wheel. Your selection is determined when you press the center of the control wheel.

- The DISP (Display Setting) 🎨 (Drive Mode), and ISO (ISO) functions are assigned to the top/left/right side of the control wheel. In addition, you can assign selected functions to the left/right/bottom side and the center of the control wheel, and to the rotation of the control wheel.

- During playback, you can display the next/previous image by pressing the right/left side of the control wheel or by turning the control wheel.

Using the multi-selector

Diagram of a camera module with a magnified inset showing the finger and ear (no text or symbols present)

• Put your finger right on top of the multi-selector to manipulate it more precisely.
• When [Focus Area] is set to [Zone], [Flexible Spot],

[Expand Flexible Spot], [Tracking: Zone], [Tracking: Flexible Spot], or [Tracking: Expand Flexible Spot], you can move the focus area by pressing the multi-selector up/down/left/right.

- The [Focus Standard] function is assigned to the center of the multi-selector in the default settings.

GB

Using the Fn (Function) button (Function menu)

The Function menu is a menu of 12 functions that is displayed at the bottom of the screen when you press the Fn (Function) button in the shooting mode. You can access frequently used functions more quickly by registering them to the function menu.

Simple diagram of a laptop with a grid of square buttons on the screen (no text or symbols)

Hint

• You can separately register 12 functions for still image shooting and 12 functions for movie shooting to the Function menu.
• You can recall functions more quickly by using the custom key function (page 68) to assign frequently used functions to desired keys, along with the function menu.

1 Press the DISP on the control wheel repeatedly to display a screen mode other than [For viewfinder], and then press the Fn (Function) button.

Fn button

2 Select the desired function by pressing the top/bottom/left/right side of the control wheel.

Simple diagram of a computer monitor with a grid of five monitors and one monitor, no text or symbols present.

3 Select the desired setting by turning the front dial, and press the center of the control wheel.

- Some functions can be fine-tuned using the rear dial.

To adjust settings from the dedicated setting screens

Select the desired function in step 2, then press the center of the control wheel. The dedicated setting screen for the function will appear. Follow the operating guide to adjust settings.

Operation guide

To change the functions in the function menu (Function Menu Set.)

The following is the procedure for changing [Drive Mode] in the function menu for still images to [Grid Line].

- To change the function menu for movie shooting, select an item that you want to change from the function menu for movie shooting in step ②.

① MENU → 📄2 (Camera Settings 2) → [Function Menu Set.].
② Select Drive Mode) from among the 12 functions for still image shooting in the function menu using the top/bottom/left/right side of the control wheel, and then press the center.
③ Press the left/right side of the control wheel until [Grid Line] is displayed. Select [Grid Line], and then press the center.

Grid Line) will be displayed in the former location of (Drive Mode) in the function menu.

How to use the Quick Navi screen

The Quick Navi screen is a function optimized for shooting with the viewfinder, that lets you control settings directly.

1 Select MENU → 📄2 (Camera Settings 2) → [DISP Button] → [Monitor].
2 Place a mark on [For viewfinder] and then select [Enter].
3 Press the DISP on the control wheel to set the screen mode to [For viewfinder].

4 Press the Fn button to switch to the Quick Navi screen.

- The displayed contents and their positions in the illustrations are just guidelines, and may differ from the actual displays.

Auto mode

100 24m RAW FME 回 i 1/250 F3.5 ±0.0 ±0.0 - ISO AUTO 600/100% P/A/S/M mode 100 24m RAW FME 回 P 1/250 F3.5 ±0.0 ±0.0 + 50 ±0.0 - ISO 400 600/100% P 1/250 F3.5 ±0.0 ±0.0 + 30 ±0.0 - ISO 400 24M + 150 + 400

5 Select a function to set by pressing the top/bottom/left/right side of the control wheel.

6 Select the desired setting by turning the front dial.

- Some functions can be fine-tuned using the rear dial.

To adjust settings from the dedicated setting screens

Select the desired function in step 5, then press the center of the control wheel. The dedicated setting screen for the function will appear. Follow the operating guide to adjust settings.

Operation guide

Note

• Items that are gray on the Quick Navi screen are not adjustable.
• When using functions such as [Creative Style] or [Picture Profile], some settings can only be controlled from the dedicated screen.

Startup guide

Step 1: Charging the battery pack

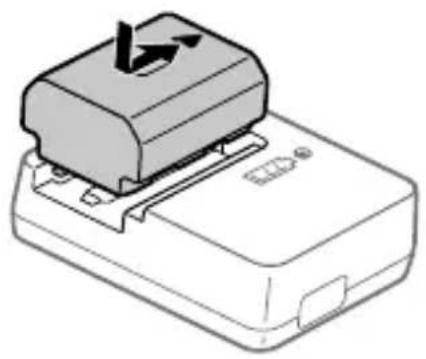

1 Insert the battery pack into the battery charger.

• Place the battery pack on the battery charger in the direction of the ▲.
• Slide the battery pack in the direction of the arrow as far as it will go.

Diagram of a device with a rectangular component and a base, showing directional arrows (no text or symbols)

2 Connect the power cord (supplied) to the battery charger, and connect the battery charger to the wall outlet (wall socket).

The CHARGE lamp on the battery charger will light up in orange and charging will start.

CHARGE lamp (orange)

Lit: Charging

Flashing: Charging error or charging paused temporarily because the camera is not within the proper temperature range

CHARGE lamp To a wall outlet (wall socket)

• When charging is finished, the CHARGE lamp and all indicators turn off.
• Charging time (full charge): approximately 150 min. (when charging a fully depleted battery pack at a temperature of 25^ (77°F))
• When you use a completely new battery pack or a battery pack that has not been used for a long time, the CHARGE lamp may flash quickly when the battery is charged for the first time. If this happens, remove the battery pack and then re-insert it to recharge.
• Be sure to use only genuine Sony brand battery packs.

Step 2: Inserting the battery pack into the camera

1 Open the battery cover.

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

2 Insert the battery pack while pressing the lock lever with the tip of the battery until the battery locks into place.

Lock lever GB

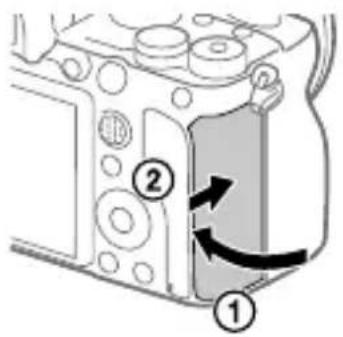

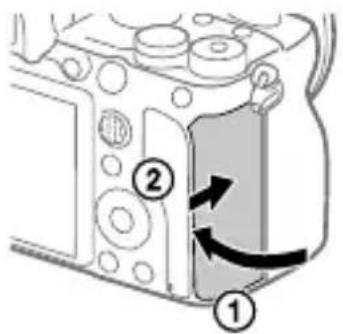

3 Close the cover.

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

To charge the battery pack while it is inserted in the camera

Turn the camera off and connect it to a device such as a computer using the USB cable.

If you turn on the camera, power will be supplied from the computer or the device that you connected, and you will be able to operate the camera. However, the battery pack will not charge.

Use the USB Type-C cable (supplied) or a USB-standard cable.

To remove the battery pack

Make sure that the access lamp (page 9) is not lit, and turn off the camera. Then, slide the lock lever and remove the battery pack. Be careful not to drop the battery pack.

Lock lever

Step 3: Inserting a memory card

For details on memory cards that can be used with this camera, refer to page 83.

1 Open the memory card cover.

Diagram of a mechanical component with numbered parts and directional arrows indicating movement or force

2 Insert the SD card into the slot 1.

• Both the slot 1 (upper) and the slot 2 (lower) only support SD memory cards (compatible with UHS-II).
  • This camera does not support Memory Stick media.
• Insert the memory card with the terminal side facing toward you, until it clicks into place.
• You can change which memory card slot to use by selecting MENU →

(Setup)→[Rec. Media Settings]→[Prioritize Rec. Media].

The slot 1 is used in the default settings.

Technical diagram of an engine cylinder head with internal components and a close-up inset showing a component (no text or labels)

Slot 1 Slot 2

GB

3 Close the cover.

Diagram of a camera body with labeled parts and directional arrows indicating movement or force

Hint

- When you use a memory card with the camera for the first time, it is recommended that you format the card on the camera for more stable performance of the memory card (page 74).

To remove the memory card

Make sure that the access lamp (page 9) is not lit, and then push in the memory card once to remove it.

Access lamp

To record to memory cards in two slots

The slot 1 is used in the default settings. If you do not intend to change the settings and will only use one memory card, use the slot 1. By inserting another memory card into the slot 2, you can record the same images to two memory cards simultaneously or record a different type of image (still images/movies) to each memory card ([Recording Mode] under [Rec. Media Settings]) (page 74).

Step 4: Attaching a lens

1 Remove the body cap from the camera and the rear lens cap from the rear of the lens.

• When changing the lens, work quickly in a dust-free environment to keep dust or debris from getting inside the camera.
• It is recommended that you attach the front lens cap when you have done shooting.

Front lens cap Body cap Rear lens cap

2 Mount the lens by aligning the two white index marks (mounting indexes) on the lens and camera.

- Hold the camera with the lens facing down to prevent dust or debris from entering the camera.

Diagram of a DSLR camera with an inset close-up showing the lens adjustment (no text or symbols present)

3 While pushing the lens lightly toward the camera, turn the lens slowly in the direction of the arrow until it clicks into the locked position.

Line drawing of a DSLR camera with a circular lens and directional arrow (no text or symbols)

GB

Note

• Be sure to hold the lens straight and do not use force when attaching a lens.
• Do not press the lens release button when attaching a lens.
• The Mount Adaptor (sold separately) is required to use an A-mount lens (sold separately). For details, refer to the operating manual supplied with the Mount Adaptor.
• If you want to shoot full-frame images, use a full-frame size compatible lens.
• When carrying the camera with a lens attached, hold both the camera and the lens firmly.
• Do not hold the part of the lens that is extended for zoom or focus adjustment.

To remove the lens

Keep pressing the lens release button and turn the lens in the direction of the arrow until it stops.

Diagram of a DSLR camera with labeled parts showing directional arrows and numbered components

Lens release button

■ Compatible lenses

Lenses compatible with this camera are as follows:

Lens Compatibility with the camera
A-mount lens	Lens compatible with 35 mm full-frame format	√(An optional Mount Adaptor (sold separately) compatible with full-frame format is required)
	APS-C size dedicated lens	√*(An optional Mount Adaptor (sold separately) is required)
E-mount lens	Lens compatible with 35 mm full-frame format	√
	APS-C size dedicated lens	√*

* Images will be recorded in APS-C size. The angle of view will correspond to approximately 1.5 times the focal length indicated on the lens. (For example, the angle of view will correspond to 75 ~mm when a 50 ~mm -lens is attached.)

Step 5: Setting the language and the clock

1 Set the ON/OFF (Power) switch to "ON" to turn on the camera.

ON/OFF (Power) switch

2 Select the desired language and then press the center of the control wheel.

Control wheel

3 Make sure that [Enter] is selected on the screen and then press the center.
4 Select the desired geographic location and then press the center.
5 Select [Date/Time] using the top/bottom of the control wheel or by turning the control wheel, and then press the center.
6 Select the desired item by pressing the top/bottom/left/right side of the control wheel, and then press the center.

7 Repeat steps 5 and 6 to set other items, then select [Enter] and press the center.

Hint

- To reset the date and time setting, use MENU (page 73).

Note

- This camera does not have a function for inserting the date into images. You can insert the date into images and then save and print them using PlayMemories Home (for Windows only).

Step 6: Shooting images in auto mode

Diagram showing a DSLR camera with a dial indicator and directional arrow, likely illustrating camera mode or adjustment.

1 Press and hold the lock release button in the center of the mode dial, then turn the mode dial to set to AUTO.

The shooting mode will be set to i (intelligent Auto).

2 Look into the viewfinder or the monitor and hold the camera.

3 Set the size of the subject by rotating the zoom ring of the lens when a zoom lens is attached.

4 Press the shutter button halfway down to focus.

- When the image is in focus, an indicator (such as ●) will light up.

5 Press the shutter button all the way down.

To shoot movies

Press the MOVIE button to start/stop recording.

To play back images

Press the ☐(Playback) button to play back images. You can select the desired image using the control wheel.

To delete displayed image

Press the [Delete] button while an image is displayed to delete it. Select [Delete] using the control wheel on the confirmation screen, and then press the center of the control wheel to delete the image.

To shoot images in various shooting modes

Set the mode dial to the desired mode depending on the subject or the functions you want to use.

Focusing

Focus Mode

Selects the focus method to suit the movement of the subject.

MENU → 1(Camera Settings 1) → [Focus Mode] → desired setting.

AF-S (Single-shot AF): The product locks the focus once focusing is complete. Use this when the subject is motionless.

AF-A (Automatic AF): [Single-shot AF] and [Continuous AF] are switched according to the movement of the subject. When the shutter button is pressed halfway down, the product locks the focus when it determines that the subject is motionless, or continues to focus when the subject is in motion. During continuous shooting, the product automatically shoots with Continuous AF from the second shot.

AF-C (Continuous AF): The product continues to focus while the shutter button is pressed and held halfway down. Use this when the subject is in motion. In [Continuous AF] mode, there is no beep when the camera focuses.

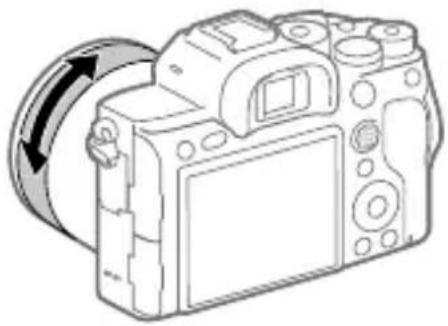

DMF (DMF): You can make fine adjustments manually after performing auto focusing, letting you focus on a subject more quickly than when using the manual focus from the beginning. This is convenient in situations such as macro shooting.

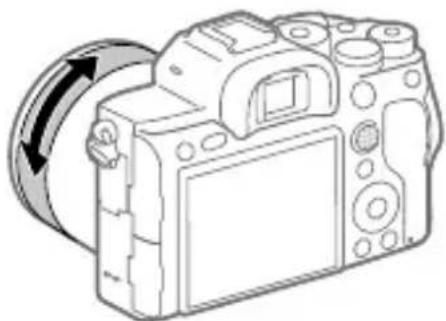

MF (Manual Focus): Adjusts the focus manually. If you cannot focus on the intended subject using auto focus, use manual focus.

Focus indicator

● (lit): The subject is in focus and the focus is locked.
● (flashing): The subject is not in focus.

(lit): The subject is in focus. The focus will be adjusted continuously according to the movements of the subject.

( ) (lit): Focusing is in progress.

Subjects on which it is difficult to focus using auto focus

• Dark and distant subjects
- Subjects with poor contrast
- Subjects seen through glass
- Fast-moving subjects
- Reflective light or shiny surfaces
- Flashing light
- Back-lit subjects

- Continuously repetitive patterns, such as the facades of buildings

- Subjects in the focusing area with different focal distances

Hint

• In [Continuous AF] mode, you can lock the focus by pressing and holding the button that has been assigned the [Focus Hold] function (page 68).
• When you set the focus to infinity in the manual focus mode or the direct manual focus mode, make sure that the focus is on a sufficiently distant subject by checking the monitor or the viewfinder.

Note

• [Automatic AF] is available only when you are using a lens that supports phase detection AF.
• When [Continuous AF] or [Automatic AF] is set, the angle of view may change little by little while focusing. This does not affect the actual recorded images.
• Only [Continuous AF] and [Manual Focus] are available when shooting movies or when the mode dial is set to S&Q

Auto focus

Focus Area

Selects the focusing area. Use this function when it is difficult to focus properly in the auto focus mode.

MENU → 1(Camera Settings 1) → [Focus Area] → desired setting.

Wide: Focuses on a subject covering the whole range of the screen automatically. When you press the shutter button halfway down in the still image shooting mode, a green frame is displayed around the area that is in focus.

Zone: Select a zone on the monitor on which to focus, and the product will automatically select a focus area.

Center: Focuses automatically on a subject in the center of the image. Use together with the focus-lock function to create the composition you want.

Flexible Spot: Allows you to move the focusing frame to a desired point on the screen and focus on an extremely small subject in a narrow area.

Expand Flexible Spot: If the product cannot focus on a single selected point, it uses focus points around the flexible spot as a secondary priority area for focusing.

Tracking: When the shutter button is pressed and held halfway down, the product tracks the subject within the selected autofocus area. This setting is available only when the [Focus Mode] is set to [Continuous AF]. Point the cursor at [Tracking] on the [Focus Area] setting screen, and then adjust the desired area to start tracking using the left/right sides of the control wheel. You can also move the tracking start area to the desired point by designating the area as a zone, flexible spot or expand flexible spot.

Examples of the focusing frame display

The focusing frame differs as follows.

When focusing on a larger area

F3.5 ISO 400

When focusing on a smaller area

F3.5 ☑ ISO 400

GB

• When [Focus Area] is set to [Wide] or [Zone], the focusing frame may switch between "When focusing on a larger area" and "When focusing on a smaller area" depending on the subject or situation.
• When you attach an A-mount lens with a Mount Adaptor (LA-EA1 or LA-EA3) (sold separately), the focusing frame for "When focusing on a smaller area" may be displayed.

When focus is achieved automatically based on the whole range of the monitor

F3.5 ISO 400

- When you use a zoom function other than the optical zoom, the [Focus Area] setting is disabled and the focusing frame is shown by the dotted line. The AF operates with priority on and around the center area.

To move the focus area

• You can move the focus area in [Flexible Spot], [Expand Flexible Spot], [Zone], [Tracking: Flexible Spot], [Tracking: Expand Flexible Spot], or [Tracking: Zone] by operating the multi-selector. If you assign [Focus Standard] to the center of the multi-selector beforehand, you can move the focusing frame back to the center of the monitor by pressing the center of the multi-selector.
• You can move the focusing frame quickly by touching and dragging it on the monitor. Set [Touch Operation] (page 41) to [On] and [Func. of Touch Operation] (page 42) to [Touch Focus] beforehand.

To track the subject temporarily (Tracking On)

You can temporarily change the setting for [Focus Area] to [Tracking] while you press and hold down the custom key to which you have assigned [Tracking On] in advance. The [Focus Area] setting before you activated [Tracking On] will switch to the equivalent [Tracking] setting.

For example:

[Focus Area] before you activate [Tracking On]	[Focus Area] while [Tracking On] is active
[Wide] [Tracking: Wide]
[Flexible Spot: S] [Tracking: Flexible Spot S]
[Expand Flexible Spot] [Tracking: Expand Flexible Spot]

Hint

- In the default settings, [Focus Area] is assigned to the C2 button.

Note

• [Focus Area] is locked to [Wide] in the following situations:
• [Intelligent Auto]
• The focus area may not light up during continuous shooting or when the shutter button is pressed all the way down at once.
• When the mode dial is set to (Movie) or S& during movie shooting, [Tracking] cannot be selected as the [Focus Area].
• If [Subject Detection] under [Face/Eye AF Set.] is set to [Animal], you cannot select [Tracking] for [Focus Area].

Manual Focus

When it is difficult to focus properly in the autofocus mode, you can adjust the focus manually.

1 MENU → 📄1 (Camera Settings 1) → [Focus Mode] → [Manual Focus].

2 Rotate the focusing ring to achieve sharp focus.

- When you rotate the focusing ring, the focus distance is displayed on the screen. The focus distance is not displayed when the Mount Adaptor (sold separately) is attached.

Line drawing of a DSLR camera with a circular scroll wheel (no text or symbols)

GB

3 Press the shutter button fully down to shoot an image.

Note

- When you use the viewfinder, adjust the diopter level to obtain the correct focus on the viewfinder (page 9).

Direct manual focus (DMF)

You can make fine adjustments manually after performing auto focusing, letting you focus on a subject more quickly than when using the manual focus from the beginning. This is convenient in situations such as macro shooting.

1 MENU → 1 (Camera Settings 1) → [Focus Mode] → [DMF].
2 Press the shutter button halfway down to focus automatically.
3 Keep the shutter button pressed halfway down, and then rotate the focusing ring to achieve a sharper focus.

- When you rotate the focusing ring, the focus distance is displayed on the screen. The focus distance is not displayed when the Mount Adaptor (sold separately) is attached.

Line drawing of a DSLR camera with a circular arrow indicating rotation (no text or symbols)

4 Press the shutter button fully down to shoot an image.

Continuous shooting

Shoots images continuously while you press and hold down the shutter button.

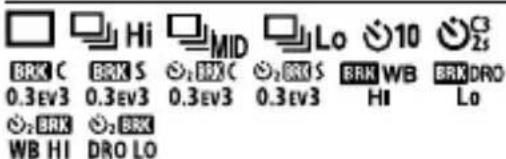

1 Select ⚙ (Drive Mode) on the control wheel → [Cont. Shooting].

- You can also set the drive mode by selecting MENU →

1(Camera Settings 1) → [Drive Mode].

2 Select the desired mode using the right/left side of the control wheel.

Continuous Shooting: Hi+: Images are shot continuously at the maximum speed while you press and hold down the shutter button.

Continuous Shooting: Hi / Continuous Shooting: Mid / Continuous Shooting: Lo: Subjects are easier to track because the subject is displayed in real-time on the monitor or viewfinder during shooting.

Hint

- To continuously adjust the focus and exposure during continuous shooting, set as follows:

- [Focus Mode]: [Continuous AF]

AEL w/ shutter]: [Off] or [Auto]

Note

• The shooting speed during continuous shooting becomes slower when [RAW File Type] is set to [Uncompressed].
• The shooting speed during continuous shooting becomes slower when [e-Front Curtain Shutter] is set to [Off] in [Continuous Shooting: Hi], [Continuous Shooting: Mid] or [Continuous Shooting: Lo] mode.
• When the F-value is greater than F11 in [Continuous Shooting: Hi+], [Continuous Shooting: Hi] or [Continuous Shooting: Mid] mode, the focus is locked to the setting in the first shot.
• The subject is not displayed in real-time on the monitor or viewfinder when shooting in [Continuous Shooting: Hi+] mode.
• The speed of continuous shooting decreases when you shoot with a flash.

■ Displaying continuous shooting remaining time indicator (Cont. Shoot. Length)

Sets whether to display an indicator of the remaining time for which continuous shooting can be performed at the same shooting speed.

MENU → (Camera Settings 2) → [Cont. Shoot. Length] → desired setting.

Always Display: Always displays the indicator when the drive mode is set to [Cont. Shooting].

Shoot.-Only Display: Displays the indicator only while continuous shooting is performed.

Not Displayed: Does not display the indicator.

F3.5 2 B0 400

Hint

- When the internal camera memory for buffering is full, "SLOW" will be displayed and the continuous shooting speed will decrease.

Using touch function

Touch Operation

Sets whether to activate or not the touch operation of the monitor.

MENU → 📄 (Setup) → [Touch Operation] → desired setting.

On: Activates the touch operation.

Off: Deactivates the touch operation.

Touch Panel/Pad

Touch operations when shooting with the monitor are referred to as "touch panel operations," and touch operations when shooting with the viewfinder are referred to as "touch pad operations." You can select whether to activate touch panel operations or touch pad operations.

MENU → 📄 (Setup) → [Touch Panel/Pad] → desired setting.

Touch Panel+Pad: Activates both the touch panel operations when shooting with the monitor and touch pad operations when shooting with the viewfinder.

Touch Panel Only: Activates only the touch panel operations when shooting with the monitor.

Touch Pad Only: Activates only the touch pad operations when shooting with the viewfinder.

Touch Focus

With [Touch Focus], you can use touch operations to specify the position where you want to focus, when [Focus Area] is a setting other than [Flexible Spot], [Expand Flexible Spot], [Tracking: Flexible Spot], or [Tracking: Expand Flexible Spot]. Select MENU → (Setup) → [Touch Operation] → [On] beforehand.

MENU → (Camera Settings 2) → [Func. of Touch Operation] → [Touch Focus].

■ Specifying the position where you want to focus in the still image mode

You can specify the position where you want to focus using touch operations. After touching the monitor, press the shutter button halfway down to focus.

① Touch the monitor.

• When shooting with the monitor, touch the position where you want to focus.
• When shooting with the viewfinder, you can move the position of the focus by touching and dragging on the monitor while looking through the viewfinder.

Diagram illustrating a cat image being edited with a hand using a pen to visualize the right side of the image.

- To cancel focusing with touch operations, touch or press the center of the control wheel if shooting with the monitor, and press the center of the control wheel if shooting with the viewfinder.

② Press the shutter button halfway down to focus.

- Press the shutter button all the way down to shoot images.

■ Specifying the position where you want to focus in the movie recording mode (spot focus)

The camera will focus on the touched subject. Spot focus is not available when shooting with the viewfinder.

Touch the subject on which you want to focus before or during recording.

• When you touch the subject, the focus mode temporarily switches to manual focus and the focus can be adjusted using the focus ring.
• To cancel spot focus, touch or press the center of the control wheel.

Hint

- In addition to the touch focus function, touch operations such as the following GB are also available.

- When [Focus Area] is set to [Flexible Spot], [Expand Flexible Spot], [Tracking: Flexible Spot], or [Tracking: Expand Flexible Spot], the focusing frame can be moved using touch operations.

- When the [Focus Mode] is set to [Manual Focus], the focus magnifier can be used by double-tapping the monitor.

Note

- The touch focus function is not available in the following situations:

• When [Focus Mode] is set to [Manual Focus]
• When using the digital zoom
• When using the LA-EA2 or LA-EA4

Touch Tracking

You can use touch operations to select a subject you want to track in the still image and movie recording modes. Select MENU → (Setup) → [Touch Operation] → [On] beforehand.

1 MENU → (Camera Settings 2) → [Func. of Touch Operation] → [Touch Tracking].

2 Touch the subject that you want to track on the monitor.

Tracking will start.

- When shooting with the viewfinder, you can specify the subject you want to track using the touch pad operations.

3 Press the shutter button halfway down to focus.

- Press the shutter button all the way down to shoot images.

Hint

- To cancel tracking, touch or press the center of the control wheel.

Note

- [Touch Tracking] is unavailable in the following situations:

- When shooting movies with [Record Setting] set to [120p]/[100p].

- When [Focus Mode] is set to [Manual Focus].

- When using the Smart Zoom, Clear Image Zoom and Digital Zoom

- When using the LA-EA2 or LA-EA4 Mount Adaptor

-When [Subject Detection] under [Face/Eye AF Set.] is set to [Animal].

Selecting a still image size/image quality

File Format

Sets the file format for still images.

MENU → 1(Camera Settings 1) → [File Format] → desired setting.

RAW: Digital processing is not performed on this file format. Select this format to process images on a computer for professional purposes.

RAW & JPEG: A RAW image and a JPEG image are created at the same time. This is suitable when you need two image files, a JPEG for viewing, and a RAW for editing.

JPEG: The image is recorded in the JPEG format.

GB

JPEG Quality

Selects the JPEG image quality when [☐e Format] is set to [RAW & JPEG] or [JPEG].

MENU → 📄1(Camera Settings 1) → [JPEG Quality] → desired setting.

Extra fine/Fine/Standard: Since the compression rate increases from [Extra fine] to [Fine] to [Standard], the file size decreases in the same order. This allows more files to be recorded on one memory card, but the image quality is lower.

JPEG Image Size

The larger the image size, the more detail will be reproduced when the image is printed on large-format paper. The smaller the image size, the more images can be recorded.

MENU → 📄1(Camera Settings 1) → [JPEG Image Size] → desired setting.

When recording in the full-frame size

When [ Aspect Ratio] is set to 3:2
L: 60M	9504×6336 pixels
M: 26M	6240×4160 pixels
S: 15M	4752×3168 pixels

When [ Aspect Ratio] is set to 4:3
L: 54M	8448×6336 pixels
M: 23M	5552×4160 pixels
S: 13M	4224×3168 pixels

When [ Aspect Ratio] is set to 16:9 When [
L: 51M	9504×5344 pixels
M: 22M	6240×3512 pixels
S: 13M	4752×2672 pixels

Aspect Ratio] is set to 1:1
L: 40M	6336×6336 pixels
M: 17M	4160×4160 pixels
S: 10M	3168×3168 pixels

When recording in the APS-C-equivalent size

When [ Aspect Ratio] is set to 3:2
L: 26M	6240×4160 pixels
M: 15M	4752×3168 pixels
S: 6.5M	3120×2080 pixels

When [ Aspect Ratio] is set to 4:3
L: 23M	5552×4160 pixels
M: 13M	4224×3168 pixels
S: 5.8M	2768×2080 pixels

When [ Aspect Ratio] is set to 16:9
L: 22M	6240×3512 pixels
M: 13M	4752×2672 pixels
S: 5.5M	3120×1752 pixels

When [ Aspect Ratio] is set to 1:1
L: 17M	4160×4160 pixels
M: 10M	3168×3168 pixels
S: 4.3M	2080×2080 pixels

Note

- When File Format] is set to [RAW] or [RAW & JPEG], the image size for RAW images corresponds to "L."

APS-C/Super 35mm

Sets whether to record in APS-C-equivalent size for still images and in Super 35mm-equivalent size for movies. If you select [On] or [Auto], you can use an APS-C size dedicated lens on this product.

MENU → 1(Camera Settings 1) → [APS-C/Super 35mm] → desired setting.

On: Records in either APS-C-equivalent size or Super 35mm-equivalent size.

Auto: Automatically sets the capture range depending on the lens.

Off: Always captures 35mm full-frame image sensor pictures.

Note

• When you attach an APS-C compatible lens and set [APS-C/Super 35mm] to [Off], shooting may fail.
• When you set [APS-C/Super 35mm] to [On], the angle of view is equivalent to approx. 1.5 times the focal length indicated on the lens during still image shooting, and approx. 1.6 times that value during movie shooting (approx. 1.8 times the focal length indicated on the lens during XAVC S 4K movie shooting at 30p).

Changing settings for movie recording

File Format

Selects the movie file format.

MENU → 📄2 (Camera Settings 2) → [File Format] → desired setting.

File Format Characteristics
XAVC S 4K	Records movies in 4K resolution (3840×2160).	You can save movies on a computer using the PlayMemories Home software.
XAVC S HD	Records movies in crisper quality than AVCHD with larger amounts of data.
AVCHD	The AVCHD format has a high degree of compatibility with storage devices other than computers.	You can save movies on a computer or create a disc that supports this format using the PlayMemories Home software.

For details on memory cards that can be used for these formats, refer to page 83.

Note

• When File Format] is set to [AVCHD], the file size of movies is limited to approx. 2 GB. If the movie file size reaches approx. 2 GB during recording, a new movie file will be created automatically.
• When recording XAVC S 4K movies with [APS-C/Super 35mm] set to [Auto], the angle of view becomes narrower. When [REcord Setting] is set to [25p 100M], [25p 60M], [24p 100M]*, or [24p 60M]* during XAVC S 4K movie shooting, the angle of view is equivalent to approx. 1.6 times the focal length indicated on the lens. When [REcord Setting] is set to [30p 100M] or [30p 60M] during XAVC S 4K movie shooting, the angle of view is equivalent to approx. 1.8 times the focal length indicated on the lens.

* Only when [NTSC/PAL Selector] is set to NTSC

Record Setting

GB

Selects the frame rate and bit-rate for movie recording.

MENU → 📄2 (Camera Settings 2) → [ Record Setting ] → desired setting.

• The higher the bit-rate, the higher the image quality.
• For estimates of the maximum recordable movie time with each recording setting, refer to page 85.

When [File Format] is set to [XAVC S 4K]

Record Setting Bit-rate Description
30p 100M/25p 100M	Approx. 100 Mbps	Records movies in 3840×2160 (30p/25p).
30p 60M/25p 60M	Approx. 60 Mbps	Records movies in 3840×2160 (30p/25p).
24p 100M*	Approx. 100 Mbps	Records movies in 3840×2160 (24p).
24p 60M*	Approx. 60 Mbps	Records movies in 3840×2160 (24p).

* Only when [NTSC/PAL Selector] is set to NTSC

When [非Format] is set to [XAVC S HD]

Record Setting Bit- rate Description
60p 50M/50p 50M	Approx. 50 Mbps Records movies in 1920×1080 (60p/50p).
60p 25M/50p 25M	Approx. 25 Mbps Records movies in 1920×1080 (60p/50p).
30p 50M/25p 50M	Approx. 50 Mbps Records movies in 1920×1080 (30p/25p).
30p 16M/25p 16M	Approx. 16 Mbps Records movies in 1920×1080 (30p/25p).
24p 50M*	Approx. 50 Mbps Records movies in 1920×1080 (24p).
120p100M/100p100M	Approx. 100 Mbps Records high-speed movies in 1920×1080 (120p/100p). You can record movies in 120 fps or 100 fps.You can create smoother slow-motion movies by using compatible editing devices.
120p 60M/100p 60M	Approx. 60 Mbps Records high-speed movies in 1920×1080 (120p/100p). You can record movies in 120 fps or 100 fps.You can create smoother slow-motion movies by using compatible editing devices.

* Only when [NTSC/PAL Selector] is set to NTSC

When [File Format] is set to [AVCHD]

Record Setting Bit-rate Description
60i 24M (FX)/50i 24M (FX)	24 Mbps at maximum	Records movies in 1920×1080 (60i/50i).
60i 17M (FH)/50i 17M (FH)	Approx. 17 Mbps on average	Records movies in 1920×1080 (60i/50i).

Note

• Creating an AVCHD recording disc from movies that were recorded with [60i 24M (FX)]/[50i 24M (FX)] as the [Record Setting] takes a long time because the image quality of movies is converted. If you want to store movies without converting them, use a Blu-ray Disc.
• [120p]/[100p] cannot be selected for the following settings.
• [Intelligent Auto]
• When [Px: proxy Recording] is set to [On], images cannot be output to an HDMI device while recording a 4K movie. When [Px: epoxy Recording] is set to [Off], images are not displayed on the monitor of the camera while recording a 4K movie in a recording mode other than 24p^* .
• When recording XAVC S 4K movies with [APS-C/Super 35mm] set to [Auto], the angle of view becomes narrower. When [Record Setting] is set to [25p 100M], [25p 60M], [24p 100M]*, or [24p 60M]* during XAVC S 4K movie shooting, the angle of view is equivalent to approx. 1.6 times the focal length indicated on the lens. When [Record Setting] is set to [30p 100M] or [30p 60M] during XAVC S 4K movie shooting, the angle of view is equivalent to approx. 1.8 times the focal length indicated on the lens.

* Only when [NTSC/PAL Selector] is set to NTSC

Using the Wi-Fi/One-touch (NFC)/Bluetooth functions

You can perform the following operations using the camera's Wi-Fi, NFC One-touch, and Bluetooth functions.

• Saving images to a computer
• Transferring images from the camera to a smartphone
• Using a smartphone as a remote control for the camera
• Viewing still images on a TV
• Recording location information from a smartphone to images
  • Transferring images to the FTP server

For details, refer to the "Help Guide" (page 2).

Installing Imaging Edge Mobile

Imaging Edge Mobile is required to connect the camera and a smartphone. If Imaging Edge Mobile is already installed on your smartphone, be sure to update it to the latest version.

For details on Imaging Edge Mobile, refer to the support page (https://www.sony.net/iem/).

QR code image containing encoded data, no visible human-readable text

Note

• To use the camera's NFC One-touch function, an NFC-enabled smartphone or tablet is required.
• The Wi-Fi functions introduced in this manual are not guaranteed to operate on all smartphones or tablets.
• Depending on future version upgrades, the operational procedures or screen displays are subject to change without notice.

Recording location information to captured images

By using Imaging Edge Mobile, you can obtain location information from a connected smartphone (via Bluetooth communication) and record it to captured images.

For details on the operating procedure, refer to the "Help Guide" (page 2) or the following support page.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

GB

Transferring images to the FTP server

You can use the camera's Wi-Fi function to transfer images to the FTP server.

For details, refer to the "FTP Help Guide."

https://rd1.sony.net/help/di/ftp/h_zz/

QR code image containing encoded data, no visible human-readable text

- Basic knowledge of FTP servers is required.

Connecting the camera to a wireless access point

Connect the camera to your wireless access point. Before starting the procedure, make sure you have the SSID (name of the access point) and password of your wireless access point with you.

1 MENU → Ⓗ (Network) → [Wi-Fi Settings] → [Access Point Set.].
2 Use the control wheel to select the access point to which you want to connect. Press the center of the control wheel and enter the password for the wireless access point, then select [OK].

Note

- If a connection is not established, see the wireless access point operating instructions or contact the administrator of the access point. To save images to a computer, install PlayMemories Home on your computer.

PlayMemories Home https://www.sony.net/pm/

Connecting the camera to a computer

Connecting to a computer

1 Insert a sufficiently charged battery pack into the camera.
2 Turn on the camera and the computer.
3 Check that [USB Connection] under Setup) is set to [Mass Storage].
4 Connect the camera to the computer using the USB cable.

- When you connect the camera to the computer for the first time, the procedure for recognizing the camera may start automatically on the computer. Wait until the procedure is finished.

• If you connect the camera to your computer using the USB cable when [USB Power Supply] is set to [On], power is supplied from your computer. (Default setting: [On])
• Use the USB Type-C cable (supplied) or a USB-standard cable.
• Use a USB 3.2-compatible computer and the USB Type-C cable (supplied) for higher-speed communications.

To a USB terminal USB cable To the USB Type-C terminal

Note

- Do not turn on/off or restart the computer, or wake the computer from sleep mode when a USB connection has been established between the computer and the camera. Doing so may cause a malfunction. Before turning on/off or restarting the computer, or waking the computer from sleep mode, disconnect the camera from the computer.

Disconnecting the camera from the computer

Perform steps 1 and 2 below before performing the following operations:

• Disconnecting the USB cable.
• Removing a memory card.
• Turning off the product.

1 Click (Safely Remove Hardware and Eject Media) in the taskbar.

2 Click the displayed message.

Note

• On Mac computers, drag and drop the memory card icon or the drive icon into the "Trash" icon. The camera will be disconnected from the computer.
• Depending on the computer you are using, the disconnection icon may not appear. In that case, you can skip the steps above.
• Do not remove the USB cable from the camera while the access lamp is lit. The data may be damaged.

Introduction to computer software

We offer the following computer software to enhance your enjoyment of photos/movies. Access one of the following URLs using your Internet browser and then download the software by following the onscreen instructions.

If one of these software is already installed on your computer, update it to the latest version before use.

For details on the software for computers, refer to the following URL: https://www.sony.net/disoft/

You can check the recommended operating environment for the software from the following URL:

https://www.sony.net/pcenv/

GB

Imaging Edge

Imaging Edge is a software suite that includes functions such as remote shooting from a computer, and adjusting or developing RAW images recorded with the camera.

For details on Imaging Edge, refer to the following URL.

https://www.sony.net/iex/

PlayMemories Home

PlayMemories Home allows you to import still images and movies to your computer and view or use them.

You need to install PlayMemories Home to import XAVC S movies or AVCHD movies to your computer.

You can access the download website directly from the following URL:

https://www.sony.net/pm/

- When you connect the camera to your computer, new functions may be added to PlayMemories Home. Connecting the camera to your computer is therefore recommended even if PlayMemories Home has already been installed on the computer.

Using MENU items

You can change settings related to all the camera operations including shooting, playback, and operating method. You can also execute camera functions from the MENU.

1 Press the MENU button to display the menu screen.

MENU button

2 Select the desired setting you want to adjust using the top/bottom/left/right sides of the control wheel or by turning the control wheel, and then press the center of the control wheel.

MENU tab 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

• Select the MENU tab at the top of the screen and press the left/right side of the control wheel to move to another MENU tab.
• You can also move to another MENU tab by turning the front dial.
• You can move to the next MENU tab by pressing the Fn button.
• You can go back to the previous screen by pressing the MENU button.

3 Select the desired setting value, and press the center to confirm your selection.

Hint

- You can display the menu screen by assigning the [MENU] function to a custom key using [Custom Key] or [Custom Key], and then pressing that key.

List of MENU items

For details on each MENU items, refer to the reference page in the last column or the Help Guide.

1(Camera Settings 1)

Red tab

Quality/Image Size
File Format	Sets the file format for still images. ([RAW] / [JPEG], etc.)	45
RAW File Type	Selects the file type for RAW images. Help Guide
JPEG Quality	Selects the JPEG image quality for [RAW & JPEG] or [JPEG] under [File Format].	45
JPEG Image Size	Selects the size of still images. (L / M / S)	46
Aspect Ratio	Selects the aspect ratio for still images.	Help Guide
APS-C/Super 35mm	Sets whether to record in APS-C-equivalent size for still images and Super 35 mm-equivalent size for movies.	47
Long Exposure NR	Sets noise reduction processing for shots with a shutter speed of 1 second or longer.	Help Guide
High ISO NR	Sets noise reduction processing for high-sensitivity shooting.	Help Guide
Color Space	Changes the color space (range of reproducible colors).	Help Guide
Lens Comp.	Selects the type of lens compensation.	Help Guide
Shoot Mode/Drive
Drive Mode	Sets the drive mode, such as for continuous shooting. ([Self-timer] / [Cont. Bracket], etc.)	39, Help Guide

GB

Bracket Settings	Sets self-timer shooting in bracket mode, shooting order for exposure bracketing, and white balance bracketing.	Help Guide
Interval Shoot Func.	Configures settings for interval shooting.	Help Guide
Pixel Shift Multi Shoot.	Activates pixel shift multi shooting, which allows you to create higher-resolution images on a computer.	Help Guide
MR 🖼️ 🖼️ 🖼️ 🖼️	Calls up settings pre-registered to [MR 🖼️ Memory].	Help Guide
MR 🖼️ Memory	Registers the desired modes and camera settings.	Help Guide
MR Select Media	Selects the memory card slot from which settings are recalled or to which settings are registered for M1 through M4.	Help Guide
Reg. Custom Shoot Set	Assign functions to the custom key to recall when shooting.	Help Guide
AF
Focus Mode	Selects the focus mode. ([Single-shot AF] / [Continuous AF], etc.)	32
Priority Set in AF-S	Sets the timing of the shutter release when [Focus Mode] is set to [Single-shot AF], [DMF] or [Automatic AF] with a still subject.	Help Guide
Priority Set in AF-C	Sets the timing of the shutter release when [Focus Mode] is set to [Continuous AF] or [Automatic AF] with a moving subject.	Help Guide
Focus Area	Selects the area of focus. ([Wide] / [Flexible Spot], etc.)	34
Focus Settings	Configures settings for focusing using the front dial, rear dial or control wheel.	Help Guide
Focus Area Limit	Limits the types of available focus area settings in advance.	Help Guide
Switch V/H AF Area	Sets whether to adjust the [Focus Area] and the position of the focusing frame based on the camera's position (horizontal or vertical).	Help Guide
AF Illuminator	Sets the AF illuminator, which provides light to aid focusing in dark scenes.	Help Guide
Face/Eye AF Set.	Configures settings such as whether the camera focuses with priority on human faces or eyes.	Help Guide
AF Tracking Sens.	Sets the AF tracking sensitivity for the still image mode.	Help Guide
Aperture Drive in AF	Changes the aperture drive system to prioritize the auto-focusing tracking performance or to prioritize silence.	Help Guide
AF w/ shutter	Sets whether to perform auto focusing when the shutter button is pressed halfway down. This is useful when you want to adjust the focus and exposure separately.	Help Guide
Pre-AF	Sets whether or not to perform auto focus before the shutter button is half pressed.	Help Guide
Eye-Start AF	Sets whether to use auto focus when you look through the viewfinder if an LA-EA2/LA-EA4 Mount Adaptor (sold separately) is attached.	Help Guide
AF Area Registration	Sets whether to move the focusing frame to a preassigned position when shooting still images.	Help Guide
Del. Regist. AF Area	Deletes the focusing frame position information that was registered using [AF Area Registration].	Help Guide
Focus Frame Color	Sets the color of the frame indicating the focusing area.	Help Guide
AF Area Auto Clear	Sets whether the focus area is displayed all the time or disappears automatically shortly after focusing.	Help Guide

GB

Disp. cont. AF area	Sets whether or not to display the focus area in [Continuous AF] mode.	Help Guide
Phase Detect. Area	Sets phase detection AF area. Help	Guide
Circ. of Focus Point	Sets whether to allow the focusing frame to jump from one end to the other when you move the focusing frame.	Help Guide
AF Micro Adj.	Finely adjusts the autofocused position, when using the LA-EA2 or LA-EA4 Mount Adaptor (sold separately).	Help Guide
Exposure
Exposure Comp.	Compensates for the brightness of the entire image.	Help Guide
Reset EV Comp.	Sets whether to maintain the exposure value set using [Exposure Comp.] when you turn off the power when the exposure compensation dial position is set to "0."	Help Guide
ISO Setting	Sets functions related to ISO sensitivity. ([ISO] / [ISO AUTO Min. SS], etc.)	Help Guide
Metering Mode	Selects the method for measuring brightness. ([Multi] / [Spot], etc.)	Help Guide
Face Priority in Multi Metering	Sets whether the camera measures brightness based on detected faces when [Metering Mode] is set to [Multi].	Help Guide
Spot Metering Point	Sets whether to coordinate the spot metering point with the focus area when [Focus Area] is set to [Flexible Spot], etc.	Help Guide
Exposure step	Selects the size of the increment step for shutter speed, aperture, and exposure compensation values.	Help Guide
AEL w/ shutter	Sets whether to lock the exposure when the shutter button is pressed halfway down. This is useful when you want to adjust the focus and exposure separately.	Help Guide
Exposure Std. Adjust	Adjusts the standard for the correct exposure value for each metering modes.	Help Guide
Flash
Flash Mode	Sets the flash settings. Help	Guide
Flash Comp.	Adjusts the intensity of flash output. Help	Guide
Exp.comp.set	Sets whether to reflect exposure compensation value to flash compensation.	Help Guide
Wireless Flash	Sets whether to shoot with the wireless flash.	Help Guide
Red Eye Reduction	Reduces the red-eye phenomenon when using flash.	Help Guide
Color/WB/Img. Processing
White Balance	Corrects the tone effect of the ambient light to shoot whitish objects in a white tone. ([Auto] / [Daylight], etc.)	Help Guide
Priority Set in AWB	Selects which tone to prioritize when shooting under lighting conditions such as incandescent light with [White Balance] set to [Auto].	Help Guide
DRO	Analyzes the contrast of light and shadow between the subject and the background by dividing the image into small areas, and creates an image with the optimal brightness and gradation.	Help Guide

GB

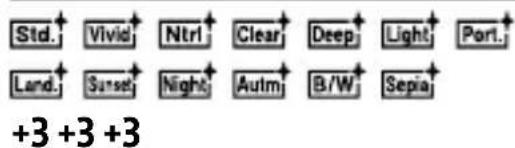

Creative Style	Selects the desired image processing. You can also adjust contrast, saturation, and sharpness. ([Vivid] / [Portrait], etc.)	Help Guide
Picture Effect	Shoots images with a texture unique to the selected effect. ([Toy Camera] / [High Contrast Mono.], etc.)	Help Guide
Picture Profile	Changes settings such as color and tone when recording images. * This function is for skilled movie creators.	Help Guide
Shutter AWB Lock	Sets whether to lock the white balance while the shutter button is pressed in the auto white balance mode.	Help Guide
Focus Assist
Focus Magnifier	Enlarges the image before shooting so that you can check the focus.	Help Guide
Focus Magnif. Time	Sets the length of time the image will be shown in an enlarged form.	Help Guide
Initial Focus Mag.	Sets the initial magnification scale when using [Focus Magnifier].	Help Guide
AF in Focus Mag.	Sets whether or not to autofocus when an enlarged image is being displayed. While the enlarged image is being displayed, you can focus within a smaller area than the flexible spot.	Help Guide
MF Assist	Displays an enlarged image when focusing manually.	Help Guide
Peaking Setting	Sets the peaking function, which enhances the outline of in-focus areas when focusing manually.	Help Guide
Shooting Assist
Anti-flicker Shoot.	Detects flickering/blinking from artificial light sources such as fluorescent lighting and times the shooting of images to moments when flickering will have less of an impact.	Help Guide
Face Registration	Registers or changes the person to be given priority when focusing.	Help Guide
Regist. Faces Priority	Detects the registered face with higher priority using [Face Registration].	Help Guide

(Camera Settings 2)

Purple tab

GB

Movie
Exposure Mode	Sets the exposure mode when shooting movies.	Help Guide
Exposure Mode	Sets the exposure mode when shooting slow-motion/quick-motion movies.	Help Guide
File Format	Selects the movie file format. ([XAVC S 4K] / [AVCHD], etc.)	48
Record Setting	Selects a frame-rate and bit-rate for the movie.	49
S&Q Settings	Changes the settings for slow-motion and quick-motion movie shooting.	Help Guide
Proxy Recording	Records low-bit-rate proxy files simultaneously when recording XAVC S movies.	Help Guide
AF drive speed	Switches focusing speed when using autofocus in movie mode.	Help Guide
AF Tracking Sens.	Sets the AF tracking sensitivity for the movie mode.	Help Guide
Auto Slow Shutter	Sets the function that automatically adjusts the shutter speed following the brightness of the environment in movie mode.	Help Guide
Initial Focus Mag.	Sets the initial magnification scale when using [Focus Magnifier] in movie mode.	Help Guide
Audio Recording	Sets whether to record audio when shooting a movie.	Help Guide
Audio Rec Level	Adjusts the audio recording level during movie recording.	Help Guide
Audio Level Display	Sets whether to display the audio level.	Help Guide
Audio Out Timing	Sets the timing of audio output during the movie recording.	Help Guide
Wind Noise Reduct.	Reduces wind noise during movie recording.	Help Guide
Marker Display	Sets whether to display markers on the monitor when recording movies.	Help Guide
Marker Settings	Sets which markers to display on the monitor when recording movies.	Help Guide
Video Light Mode	Sets the illumination setting for the HVL-LBPC LED light (sold separately).	Help Guide
Movie w/ shutter	Records movies using the shutter button.	Help Guide
Shutter/SteadyShot
Silent Shooting	Shoots images without the shutter sound.	Help Guide
e-Front Curtain Shutter	Sets whether to use the electronic front curtain shutter function.	Help Guide
Release w/o Lens	Sets whether to release the shutter when the lens is not attached.	Help Guide
Release w/o Card	Sets whether to release the shutter when a memory card is not inserted.	Help Guide
SteadyShot	Sets whether to activate SteadyShot for shooting.	Help Guide
SteadyShot Settings	Sets SteadyShot settings. Help	Guide
Zoom
Zoom	Sets the zoom scale for zoom functions other than the optical zoom.	Help Guide
Zoom Setting	Sets whether to use the Clear Image Zoom and Digital Zoom when zooming.	Help Guide
Zoom Ring Rotate	Assigns the zoom in/out to the rotational direction of the zoom lens. This function is only available with a power zoom lens that is compatible with this function.	Help Guide
Display/Auto Review
DISP Button	Sets the type of information to be displayed on the monitor or in the viewfinder when the DISP button is pressed.	Help Guide
FINDER/MONITOR	Sets the method for switching the display between the viewfinder and the monitor.	Help Guide
Finder Frame Rate	Sets the frame rate for the viewfinder when shooting still images.	Help Guide
Zebra Setting	Sets the stripes displayed to adjust brightness.	Help Guide
Grid Line	Displays grid lines for adjusting the image composition.	Help Guide
Exposure Set. Guide	Sets the guide displayed when exposure settings are changed in the shooting screen.	Help Guide
Live View Display	Sets whether to reflect settings such as exposure compensation in screen display.	Help Guide
Cont. Shoot. Length	Sets whether to display an indicator of the remaining time for which continuous shooting can be performed at the same shooting speed.	40

GB

Auto Review	Sets auto review to display the captured image after shooting.	Help Guide
Custom Operation
Custom Key	Assigns functions to the various keys so that you can perform operations more quickly by pressing the keys when shooting still images.	Help Guide
Custom Key	Assigns functions to the various keys so that you can perform operations more quickly by pressing the keys when shooting movies.	Help Guide
Custom Key	Assigns functions to the keys so that you can perform operations more quickly by pressing the keys when playing back images.	Help Guide
Function Menu Set.	Customizes the functions displayed when the Fn (Function) button is pressed.	19
My Dial Settings	Assigns the desired functions to the dials and the control wheel, and register up to three combinations of settings.	Help Guide
Dial Setup	Sets the functions of the front and rear dials when the exposure mode is set to M. Dials can be used for adjusting shutter speed and aperture value.	Help Guide
Av/Tv Rotate	Sets the direction of turning the front or rear dial or the control wheel to adjust the aperture value or shutter speed.	Help Guide
Dial Ev Comp	Sets whether to compensate the exposure with the front or rear dial.	Help Guide
Function Ring (Lens)	Assigns a function to the function ring on the lens.	Help Guide
Func. of Touch Operation	Sets which function is activated by touch operations on the monitor.	42, 43
MOVIE Button	Enables or disables for the MOVIE button.	Help Guide
Lock Operation Parts	Sets whether to disable the multi-selector, control wheel, or front and rear dials temporarily when the Fn button is pressed and held down.	Help Guide
Audio signals	Selects whether the camera beeps during auto focus and self-timer operations.	Help Guide

(Network)

Green tab

GB

Send to Smartphone Func.	Sets movies to be transferred to a smartphone, or transfers images to a smartphone.	Help Guide
Send to Computer (Wi-Fi)	Backs up images by transferring them to a computer connected to a network.	Help Guide
FTP Transfer Func.	Sets image transfer using FTP and executes it.* Basic knowledge of FTP server is required.	53
View on TV	Allows you to view images on a network-enabled TV.	Help Guide
Ctrl w/ Smartphone	Sets the condition for connecting the camera to a smartphone.	Help Guide
PC Remote Function	Configures settings for PC remote shooting.	Help Guide
Airplane Mode	Disables wireless communications from the device such as Wi-Fi, NFC, and Bluetooth function.	Help Guide
Wi-Fi Settings	Allows you to register your access point and check or change the Wi-Fi connection information.	Help Guide
Bluetooth Settings	Configures settings for connecting the camera to a smartphone or a Bluetooth remote commander via a Bluetooth connection.	Help Guide
Location Info. Link Set.	Obtains location information from the paired smartphone and records it to captured images.	Help Guide
Bluetooth Rmt Ctrl	Sets whether or not to use a Bluetooth remote commander.	Help Guide
Edit Device Name	Changes the device name under Wi-Fi Direct, etc.	Help Guide
Import Root Certificate	Imports a root certificate to the camera.	Help Guide
Security (IPsec)	Sets whether or not to encrypt communications between the camera and a computer while they are connected via Wi-Fi.	Help Guide
Reset Network Set.	Resets all the network settings. Help	Guide

(Playback)

Blue tab

Protect	Protects recorded images against accidental erasure.	Help Guide
Rotate	Rotates the image. Help	Guide
Delete	Deletes images. Help	Guide
Rating	Assigns rating to recorded images on a scale from ★ to ★★	Help Guide
Rating Set (Custom Key)	Sets the rating (number of ★) that can be selected using the custom key to which [Rating] has been assigned with [▶Custom Key].	Help Guide
Specify Printing	Specifies in advance on the memory card which still images to print out later.	Help Guide
Copy	Copies images from the memory card in the memory card slot designated in [Select Playback Media] to the memory card in the other slot.	Help Guide
Photo Capture	Captures a chosen scene in a movie to save as a still image.	Help Guide
⊕ Enlarge Image	Enlarges the playback images. Help	Guide
⊕ Enlarge Initial Mag.	Sets the initial magnification scale when playing back enlarged images.	Help Guide
⊕ Enlarge Initial Position	Sets the initial magnification area when playing back enlarged images.	Help Guide
Cont. PB for ⏻ Interval	Continuously plays back images shot using interval shooting.	Help Guide
PB Speed for ⏻ Interval	Sets the playback speed when continuously playing back images with [Cont. PB for ⏻ Interval].	Help Guide
Slide Show	Plays a slide show. Help	Guide
Select Playback Media	Selects the memory card slot of the memory card to be played back.	Help Guide
View Mode	Plays back images from a specified date or specified folder of still images and movies.	Help Guide
Image Index	Displays multiple images at the same time.	Help Guide
Display as Group	Sets whether or not to display images shot continuously or shot using interval shooting as a group.	Help Guide
Display Rotation	Sets the playback orientation for images shot vertically.	Help Guide
Image Jump Setting	Sets which dial and method to use for jumping between images during playback.	Help Guide

Monitor Brightness	Adjusts the brightness of the screen. Help Guide
Viewfinder Bright.	Sets the brightness of the viewfinder. Help Guide
Finder Color Temp.	Sets the color temperature of the viewfinder. Help Guide
Gamma Disp. Assist	Adjusts the screen to make monitoring easier when displaying an S-Log or HLG movie. Help Guide
Volume Settings	Sets the volume for movie playback. Help Guide
Delete confirm.	Sets whether [Delete] or [Cancel] is preselected in the delete confirmation screen. Help Guide
Display Quality	Sets the display quality.* When [High] is selected, the battery is consumed more quickly.* When the temperature of the camera is high, [Display Quality] may be locked to [Standard]. Help Guide
Power Save Start Time	Sets the time intervals to automatically switch to power save mode. Help Guide
Auto Power OFF Temp.	Sets the camera temperature at which the camera turns off automatically during shooting. When shooting in hand-held mode, set to [Standard]. Help Guide
NTSC/PAL Selector*1	Changes the TV format of the device so that you can shoot in a different movie format. Help Guide
Cleaning Mode	Starts the cleaning mode to clean the image sensor. Help Guide
Touch Operation	Sets whether or not to activate the touch operation of the monitor. 41

Touch Panel/Pad	Selects whether to activate touch panel operation when shooting with the monitor, or touch pad operation when shooting with the viewfinder.	41
Touch Pad Settings	Adjusts settings related to touch pad operation.	Help Guide
Demo Mode	Sets demonstration playback of movies to on or off.	Help Guide
TC/UB Settings	Sets the time code (TC) and user bit (UB).* This function is for skilled movie creators.	Help Guide
IR Remote Ctrl	Sets whether to use the infrared remote control.	Help Guide
HDMI Settings	Sets the HDMI settings.* Images will not appear on the monitor of the camera if you record movies while the camera is connected to an HDMI device with [The Format] set to [XAVC S 4K].	Help Guide
4K Output Select	Sets how to record and output 4K movies via HDMI when the camera is connected to an external recorder/ player that supports 4K.	Help Guide
USB Connection	Sets the USB connection method. Help	Guide
USB LUN Setting	Enhances compatibility by limiting the functions of USB connection. Set to [Multi] in normal conditions and to [Single] only when the connection cannot be established.	Help Guide
USB Power Supply	Sets whether to supply power via USB connection when the camera is connected to a computer or USB device.	Help Guide
Language	Selects the language. 29
Date/Time Setup	Sets the date, time, and daylight savings.	29

GB

Area Setting	Sets the location of use. Help	Guide
IPTC Information	Writes IPTC information when recording still images.	Help Guide
Copyright Info	Sets copyright information for still images.	Help Guide
Write Serial Number	Writes the camera's serial number to the Exif data when recording still images.	Help Guide
Format	Formats the memory card. Help	Guide
Rec. Media Settings	Sets the method for recording images to two memory card slots.	Help Guide
File/Folder Settings	Sets file names for still images to be shot, and specifies folders for storing the shot still images.	Help Guide
File Settings	Sets file numbers and file names for movies to be recorded.	Help Guide
Recover Image DB	Recovers the image database file and enables recording and playback.	Help Guide
Display Media Info.	Displays the remaining recording time of movies and the recordable number of still images on the memory card.	Help Guide
Version	Displays the camera software version. Help Guide
Save/Load Settings	Saves the camera settings to a memory card, or reads saved settings from the memory card.	Help Guide
Setting Reset	Restores settings to their defaults. Select [Initialize] to restore all settings to their default values.	Help Guide

(My Menu)

Gray tab

Add Item	Adds desired MENU items to★ (My Menu).	Help Guide
Sort Item	Sorts the MENU items added to★ (My Menu).	Help Guide
Delete Item	Deletes MENU items added to★ (My Menu).	Help Guide
Delete Page	Deletes all the MENU items on a page in ★ (My Menu).	Help Guide
Delete All	Deletes all the MENU items added to★ (My Menu).	Help Guide
Display From My Menu	Sets whether or not to display the My Menu first when the MENU button is pressed.	Help Guide

GB

*1 If you change this item, you will need to format the memory card for compatibility with the PAL or NTSC system. Also, note that it may not be possible to play back movies recorded for the NTSC system on PAL system TVs.

List of icons on the monitor

The displayed contents and their positions in the illustrations are just guidelines, and may differ from the actual displays.

Icons on the shooting screen

Monitor mode Viewfinder mode

2 1 6 3 5 4

1 Shooting mode/Scene recognition

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Shooting mode (30)

Register number (60)

Collection of black-and-white icons representing various human, animal, and symbolic elements (no text or labels)

Scene Recognition icons

2 Camera settings

1 2 1 2 1 RAW 2 RAW 1 RAW 2 RAW 1 JPEG 2 JPEG 1 JPEG 2 JPEG 1 R+J 2 R+J 1 R+J 2 R+J NO CARD

Memory card status (24, 83)

100 / 1 h 30 m

Remaining number of recordable images (84) / recordable times (85)

1113

Writing data / Number of images left to write

Aspect ratio of still images (59)

60M 54M 51M 40M 26M 23M 22M 17M 15M 13M 10M 6.5M 5.8M 5.5M 4.3M

Image size of still images (46)

RAW RAW

RAW recording (compressed/uncompressed) (45)

X.FINE FINE STD

JPEG Quality (45)

XAVCS4K XAVCS HD AVCHD

File format of movies (48)

Record setting of movies (49)

120p 60p 60i 30p 24p 100p 50p 50i 25p

Frame rate of movies (49)

100 Px 60 Px 50 Px 25 Px 16 Px

Proxy Recording (65)

120fps 60fps 30fps 15fps 8fps 4fps 100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Frame rate for slow/quick motion shooting (65)

APS-C/Super 35mm (47, 59)

Flash charge in progress

VIEW

Setting Effect OFF (67)

AF Illuminator (61)

Flicker

Flickering detected (65)

SteadyShot off/on, Camera shake warning (66)

SteadyS. Focal Len./ Camera shake warning (67)

Smart Zoom / Clear Image Zoom / Digital Zoom (67)

-PC-

PC remote (69)

Bright Monitoring

Silent Shooting (66)

Remote control (73)

No audio recording of movies (66)

Wind Noise Reduct. (66)

Copyright information writing on (74)

IPTC

IPTC information writing on (74)

Assist Assist Assist Assist S-Log2 S-Log3 HL6 709 HL6 2020

Gamma Disp. Assist (72)

Focus Cancel (42)

Tracking Cancel (43)

Spot Focus

Performing [Spot Focus] (43)

NFC active (52)

Bluetooth connection available / Bluetooth connection unavailable (70)

Connected to smartphone / Not connected to smartphone

Obtaining location information/ Location information cannot be obtained (70)

Airplane Mode (69)

Overheating warning

Database file full/Database file error

3 Battery

Remaining battery (22)

Remaining battery warning

USB power supply (73)

4 Shooting settings

BRK C 0.3 EV3 BRK S 0.3 EV3 BRK C 0.3 EV3 Mid 0.3 EV3 Lo 10 BRK WB HI BRK DRO Lo BRK DRO WB HI DRO LO

Drive Mode (39)

Flash Mode (63) /

Wireless Flash (63) /

Red Eye Reduction (63)

57±0.0

Flash Comp. (63)

Focus Mode (32)

Electrical schematic symbols with labeled components and polarity indicators

Focus Area (34)

JPEG RAW RARAW+J +J RAW

File Format (45)

Metering Mode (62)

7500K A5 G5

White Balance (Auto, Preset, Underwater Auto, Custom, Color temperature, Color filter) (63)

D-Range Optimizer (63)

Creative Style (64)/Contrast, saturation, and sharpness

Picture Effect (64)

Face/Eye Priority in AF (61)

Picture Profile (64)

Prioritize Rec. Media (74)

5 Focus indicator/exposure settings

Focus indicator (33)

1/250

Shutter speed

F3.5

Aperture value

Exposure compensation (62)/Metered Manual

GB

ISO400 ISO AUTO ISO400

ISO sensitivity (62)

AE lock/FEL lock/AWB lock

6 Guides/other

●Tracking Cancel

Guide display for tracking (43)

●Focus Cancel

Guide display for canceling focusing (42)

Control wheel function

Guide display for My Dial

Bracket indicator

Spot metering area (62)

Exposure Setting Guide (67)

Shutter speed indicator

Aperture indicator

Histogram

Digital level gauge

STBY REC

Movie recording standby/Movie recording in progress

1:00:12

Actual movie recording time (hours: minutes: seconds)

Audio Level Display (66)

REC STBY

REC Control (73)

00:00:00:00

Time code (hours: minutes: seconds: frames) (73)

00 00 00 00

User Bit (73)

Pixel Shift Multi Shoot.

Icons on the playback screen

Single-image playback display Histogram display

1 Basic information

Playback media (71)

View Mode (71)

IPTC

IPTC Information (74)

Rating (70)

Protect (70)

DPOF

DPOF set (71)

3/7

File number/Number of images in the view mode

NFC active (52)

Remaining battery (22)

Display as Group (71)

Proxy movie included (65)

000000 2/4

Pixel Shift Multi Shoot.

② Camera settings

Refer to "Icons on the shooting screen" (page 76).

③ Shooting settings

35mm

Lens focal length

HLG

HDR recording (Hybrid Log-Gamma)

Refer to "Icons on the shooting screen" (page 76) for other icons displayed in this area.

4 Image information

GB

Latitude/longitude information (53)

Copyright information included

2019-1-1 10:37PM

Date of recording (29)

100-0003

Folder number — File number (74)

C0003

Movie file number (74)

Histogram (Luminance/R/G/B)

Specifications

Battery life and number of recordable images

		Battery life Number of images
Shooting (still images)	Screen mode	— Approx. 670
	Viewfinder mode	— Approx. 530
Actual shooting (movies)	Screen mode	Approx. 105 min. —
	Viewfinder mode	Approx. 90 min. —
Continuous shooting (movies)	Screen mode	Approx. 170 min. —
	Viewfinder mode	Approx. 160 min. —

• The above estimates for battery life and number of recordable images apply when the battery pack has been fully charged. The battery life and number of images may decrease depending on the conditions of use.

• The battery life and number of recordable images are estimates based on shooting with the default settings under the following conditions:

• Using the battery pack at an ambient temperature of 25^ (77°F).

• Using a Sony SDXC memory card (U3) (sold separately)
• Using a lens FE 28-70 mm F3.5-5.6 OSS (sold separately)

- The numbers for "Shooting (still images)" are based on the CIPA standard and shooting under the following conditions:

(CIPA: Camera & Imaging Products Association)

• One picture is taken every 30 seconds.
• The power is turned on and off once every ten times.

- The number of minutes for movie shooting is based on the CIPA standard and shooting under the following conditions:

• The image quality is set to XAVC S HD 60p 50M / 50p 50M.
• Actual shooting (movies): Battery life based on repeated shooting, zooming, shooting stand-by, turning on/off, etc.
• Continuous shooting (movies): No operations other than starting and ending shooting are performed.

Memory cards that can be used

This camera only supports SD memory cards (UHS-II compatible).

When using microSD memory cards with this camera, be sure to use the appropriate adaptor.

Recording format Supported memory card
Still image		SD/SDHC/SDXC card
AVCHD		SD/SDHC/SDXC card(Class 4 or faster, or U1 or faster)
XAVC S	4K 60 Mbps*HD 50 Mbps or lower*HD 60 Mbps	SDHC/SDXC card(Class 10, or U1 or faster)
	4K 100 Mbps*HD 100 Mbps	SDHC/SDXC card (U3)

* Including when recording proxy movies at the same time

Note

- When an SDHC memory card is used to record an XAVC S movie over extended periods of time, the recorded movies will be divided into files 4 GB in size. The divided files can be handled as a single file by importing them to a computer using PlayMemories Home. - When recording a movie on memory cards in both the slot 1 and the slot 2 with following camera settings, insert two memory cards with the same file system. XAVC S movies cannot be recorded simultaneously when using a combination of the exFAT file system and FAT32 file system.

File Format] is set to [XAVC S 4K] or [XAVC S HD] -[Recording Mode] under [Rec. Media Settings] is set to [Simult.] or [Simult. ( /)]

Memory card File system
SDXC memory card	exFAT
SDHC memory card	FAT32

- Charge the battery pack sufficiently before attempting to recover the database files on the memory card.

Number of recordable images

When you insert a memory card into the camera and turn the camera on, the number of images that can be recorded (should you continue to shoot using the current settings) is displayed on the screen.

Note

• When "0" (the number of recordable images) flashes in orange, the memory card is full. Replace the memory card with another one, or delete images from the current memory card.
• When "NO CARD" flashes in orange, it means no memory card has been inserted. Insert a memory card.

The number of images that can be recorded on a memory card

The following table shows the approximate number of images that can be recorded on a memory card formatted with this camera. The values are defined using Sony standard memory cards for testing. The values may vary depending on the shooting conditions and the type of memory card used.

[JPEG Image Size]: [L: 60M]

(Units: Images)

JPEG Quality/ File Format	8 GB 32 GB	64 GB 256 GB
Standard	475 1900	3850 15000
Fine	320 1250	2550 10000
Extra fine	165 680	1350 5500
RAW & JPEG (Compressed RAW)*2	88 355	710 2850
RAW (Compressed RAW)	120 490	980 3950
RAW & JPEG (Uncompressed RAW)*2	51	205 415	1650
RAW (Uncompressed RAW)	62 245	495 1950

* When Aspect Ratio is set to other than [3:2], you can record more images than the numbers shown in the table (except when [RAW] is selected).
^*_2 [JPEG Quality] when [RAW & JPEG] is selected: [Fine]

Note

• Even if the number of recordable images is higher than 9999 images, "9999" will appear.
• The numbers shown are when using a Sony memory card.

Recordable movie times

The table below shows the approximate total recording times using a memory card formatted with this camera. The values may vary depending on the shooting conditions and the type of memory card used. The recording times for when [File Format] is set to [XAVC S 4K] and [XAVC S HD] are recording times when shooting with [Pxy Recording] set to [Off].

(h (hour), min (minute))

File Format Record Setting 8 GB 32 GB 64 GB 256 GB
XAVC S 4K 30p	100M/25p 100M	8 min 35	min 1 h 15 min	5 h 5 min
	30p 60M/25p 60M	10 min 55	min 2 h 8 h	5 min
	24p 100M* 8 min 35	min 1 h 15	min 5 h 5 min
	24p 60M*	10 min 55	min 2 h 8 h	5 min
XAVC S HD	120p 100M/100p 100M	8 min 35	min 1 h 15 min	5 h 5 min
	120p 60M/100p 60M	10 min 55	min 2 h 8 h	5 min
	60p 50M/50p 50M	15 min 1 h	10 min 2 h	25 min 10 h
	60p 25M/50p 25M	30 min 2 h	20 min 4 h	45 min 19	h 25 min
	30p 50M/25p 50M	15 min 1 h	10 min 2 h	25 min 10 h
	30p 16M/25p 16M	50 min	3 h 35 min	7 h 20 min	29 h 55 min
	24p 50M*	15 min	1 h 10 min	2 h 25 min	10 h
AVCHD 60i 24M (FX)/50i 24M (FX)		40 min 2 h	55 min 6 h	24 h 15 min
		55 min	4 h 5 min	8 h 15 min	33 h 15 min

* Only when [NTSC/PAL Selector] is set to NTSC

- The duration of time available for movie recording varies depending on the file format/recording settings for movies, memory card, ambient temperature, Wi-Fi network environment, condition of the camera before you start recording, and condition of the charging of the battery. The maximum continuous recording time for a single movie shooting session is approximately 13 hours (a product specification limit).

Note

• The recordable time of movies varies because the camera is equipped with VBR (Variable Bit-Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.
• The times shown are recordable times using a Sony memory card.

Notes on continuous movie recording

• High-quality movie recording and high-speed continuous shooting require large amounts of power. Therefore, if you continue to shoot, the temperature inside the camera will rise, especially that of the image sensor. In such cases, the camera will turn off automatically because the surface of the camera is heated to a high temperature or the high temperature affects the quality of the images or the internal mechanism of the camera.
• The duration of time available for continuous movie recording when the camera records with the default settings after the power has been turned off for a while is as follows. The values indicate the continuous time from when the camera starts recording until the camera stops recording.

Ambient temperature	Continuous recording time for movies (HD)	Continuous recording time for movies (4K)
20°C (68°F)	Approx. 60 min. Approx. 60 min.
30°C (86°F)	Approx. 60 min. Approx. 30 min.
40°C (104°F)	Approx. 60 min. Approx. 10 min.

HD: XAVC S HD (60p 50M/50p 50M, when the camera is not connected via Wi-Fi)

4K: XAVC S 4K (24p 60M/25p 60M, when the camera is not connected via Wi-Fi)

- The duration of time available for movie recording varies with the temperature, file format/record setting for movies, Wi-Fi network environment, or condition of the camera before you start recording. If you frequently recompose or shoot images after the power is turned on, the temperature inside the camera will rise and the recording time available will be shorter.

• If the icon appears, the temperature of the camera has risen.
• If the camera stops movie recording due to a high temperature, leave it for some time with the power turned off. Start recording after the temperature inside the camera drops fully.
• If you observe the following points, you will be able to record movies for longer periods of time.

- Keep the camera out of direct sunlight.

- Turn the camera off when it is not being used.

- When [File Format] is set to [AVCHD], the file size of movies is limited to approx. 2 GB. If the movie file size reaches approx. 2 GB during recording, a new movie file will be created automatically.

Specifications

Camera

[System]

Camera Type: Interchangeable Lens Digital Camera

Lens: Sony E-mount lens

[Image sensor]

Image format: 35 mm full frame (35.7 mm × 23.8 mm), CMOS image sensor

Effective pixel number of camera: Approx. 61 000 000 pixels

Total pixel number of camera: Approx. 62 500 000 pixels

[SteadyShot]

In-camera sensor shift image stabilization system

[Auto focus system]

Detection system: Phase detection system/Contrast detection system

Sensitivity Range: -3 EV to +20 EV (at ISO 100 equivalent, F2.0)

[Electronic viewfinder]

Type: 1.3 cm (0.5 type) Electronic Viewfinder

Total number of dots: 5 760 000 dots

Magnification: Approx. 0.78× with 50 mm lens at infinity, -1 m ^1

Eye Point: Approx. 23 mm from the eyepiece and approx. 18.5 mm from the eyepiece frame at -1 m ^1

Diopter Adjustment: -4.0 m^-1 to +3.0 m^-1

[Monitor]

7.5 cm (3.0 type) TFT drive, touch panel

Total number of dots: 1 440 000 dots

[Exposure control]

Metering method: 1 200-zone evaluative metering

Metering Range: -3 EV to +20 EV (at ISO 100 equivalent with F2.0 lens)

ISO sensitivity (Recommended exposure index): Still images: ISO 100 to ISO 32 000 (Extended ISO: Minimum ISO 50, maximum ISO 102 400) Movies: ISO 100 to ISO 32 000 equivalent

[Shutter]

Type: Electronically-controlled, vertical-traverse, focal-plane type

Speed range: Still images: 1/8 000 second to 30 seconds, BULB Movies: 1/8 000 second to 1/4 second 1080 60i-compatible devices (1080 50i-compatible devices): up to 1/60 (1/50) second in AUTO mode (up to 1/30 (1/25) second in Auto slow shutter mode)

Flash sync speed: 1/250 second (when using a flash manufactured by Sony)

[Recording format]

File format: JPEG (DCF Ver. 2.0, Exif Ver. 2.31, MPF Baseline) compliant, RAW (Sony ARW 2.3 format)

Movie (XAVC S format): MPEG-4 AVC/H.264 XAVC S ver.1.0 format compliant Video: MPEG-4 AVC/H.264 Audio: LPCM 2ch (48 kHz 16 bit)

Movie (AVCHD format): AVCHD format Ver. 2.0 compatible Video: MPEG-4 AVC/H.264 Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator • Manufactured under license from Dolby Laboratories.

[Recording media]

SLOT 1/SLOT 2: Slot for SD cards (UHS-I and UHS-II compatible)

[Input/output terminals]

USB Type-C terminal: SuperSpeed USB (USB 3.2 Gen 1)

Multi/Micro USB Terminal*: Hi-Speed USB (USB 2.0)

* Supports Micro USB compatible devices.

HDMI: HDMI type D micro jack

(Microphone) terminal:

○ (Headphones) terminal:

Rated input: 7.2 V = 3.7 W

Operating temperature: 0 to 40°C (32 to 104°F)

Storage temperature: -20 to 55°C (-4 to 131°F)

Dimensions (W/H/D) (Approx.):

128.9 × 96.4 × 77.5 mm

128.9 × 96.4 × 67.3 mm

(from grip to monitor)

5 1/8 × 3 7/8 × 3 1/8 in.

5 1/8 × 3 7/8 × 2 3/4 in.

(from grip to monitor)

Mass (Approx.):

665 g (1 lb 7.5 oz) (including

battery pack, SD card)

[Wireless LAN]

WW716189 (see name plate on the bottom of camera)

Supported format: IEEE 802.11 a/b/g/n/ac

Frequency band: 2.4 GHz/5 GHz

Security: WEP/WPA-PSK/WPA2-PSK

Connection method: Wi-Fi Protected Setup™ (WPS)/ Manual

Access method: Infrastructure mode

WW587956 (see name plate on the bottom of camera)

Supported format: IEEE 802.11 b/g/n

Frequency band: 2.4 GHz

Security: WEP/WPA-PSK/WPA2-PSK

Connection method: Wi-Fi Protected Setup™ (WPS)/ Manual

Access method: Infrastructure mode

[NFC]

Tag type: NFC Forum Type 3 Tag compliant

[Bluetooth communications]

Bluetooth standard Ver. 4.1

Frequency band: 2.4 GHz

Battery charger BC-QZ1

Rated input: 100 - 240 V ∼, 50/60 Hz, 0.38 A

Rated output: 8.4 V → 1.6 A

Rechargeable battery pack NP-FZ100

Rated voltage: 7.2 V

Design and specifications are subject to change without notice.

On image data compatibility

- This camera conforms with DCF (Design rule for Camera File system) universal standard established by JEITA (Japan Electronics and Information Technology Industries Association).

- Playback of images recorded with your camera on other equipment and playback of images recorded or edited with other equipment on your camera are not guaranteed.

Trademarks

• XAVC S an XAVC registered trademarks of Sony Corporation.
- "AVCHD" and the "AVCHD"
logotype are trademarks of Panasonic Corporation and Sony Corporation.

• Mac is a trademark of Apple Inc., registered in the United States and other countries.
- iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.

- Blu-ray Disc™ and Blu-ray™ are trademarks of the Blu-ray Disc Association.

• DLNA and DLNA CERTIFIED are trademarks of

Digital Living Network Alliance.

- USB Type- C^TM and USB- C^TM are trademarks of USB Implementers Forum.

- Dolby, Dolby Audio and double-D symbol are trademarks of Dolby Laboratories.

- The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

- Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

- SDXC logo is a trademark of SD-3C, LLC.

- Android and Google Play are trademarks or registered trademarks of Google LLC.

- Wi-Fi, the Wi-Fi logo and Wi-Fi Protected Setup are registered trademarks or trademarks of the Wi-Fi Alliance.

- The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

- The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license.

- QR Code is a trademark of Denso Wave Inc.

- In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the ^TM or ^® marks may not be used in all cases in this manual.

On GNU GPL/LGPL applied software

The software that is eligible for the following GNU General Public License (hereinafter referred to as "GPL") or GNU Lesser General Public License (hereinafter referred to as "LGPL") are included in the product.

This informs you that you have a right to have access to, modify, and redistribute source code for these software programs under the conditions of the supplied GPL/LGPL. Source code is provided on the web. Use the following URL to download it. http://oss.sony.net/Products/Linux/ We would prefer you do not contact us about the contents of source code.

Licenses (in English) are recorded in the internal memory of your product. Establish a Mass Storage connection between the product and a computer to read licenses in the "PMHOME" - "LICENSE" folder.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

https://www.sony.net/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Scannez ici

https://rd1.sony.net/help/ilc/1930/h_zz/

ILCE-7RM4 Guide d'aide

Simple line drawing of a power plug with a coiled cable (no text or symbols)

Illustration of a cable with a connector, no text or symbols present

- Batterie rechargeable NP-FZ100 (1)

- Câble USB Type-C™ (1)

Simple line drawing of a USB cable with connector port (no text or symbols)

Line drawing of two pliers with handles and a handle (no text or symbols)

- Protège-câble (1)

Diagram of a DSLR camera with numbered parts for identification and assembly reference.

Diagram showing camera mode adjustment steps with magnified views and directional arrows indicating movement

Line drawing of a DSLR camera with an attached screen and scroll, showing no text or symbols.

6 Capteur de visée

Mechanical component diagram showing a rotating knob or dial (no text or symbols)

8 Bouton MOVIE (Film) (32)

Diagram of a DSLR camera with numbered parts labeled for identification

Line drawing of a DSLR camera with an inset close-up showing the lens (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

Technical diagram of a DSLR camera with numbered parts labeled 9 and 10

Technical diagram of a camera module with numbered parts labeled 11 and 12

Diagram of a cable harness being lifted by ropes, showing mechanical components and rope connections (no text or symbols)

10 (N-Mark) (53)

Diagram showing a hand holding a tool interacting with a device, labeled with 'N' symbols pointing to the screen area.

Technical diagram of a camera module with numbered parts labeled 1 to 4

Diagram showing a device component with labeled parts and directional arrows, including numbered annotations ① and ②.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

4 Écrou de trépied

Diagram of a camera module with a magnified inset showing the finger and ear (no text or symbols present)

Simple diagram of a laptop with blank screen and grid of square buttons (no text or symbols)

Astuce

Simple diagram of a computer monitor with a grid of five monitors and one monitor, no text or symbols present.

Simple diagram of a blank white rectangle with a black horizontal bar at the bottom, no text or symbols present.

Guide d'opérations

Note

Diagram of a device with a rectangular component and an arrow symbol, no readable text or labels present.

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Mechanical assembly diagram showing a valve inserted into a housing with directional arrows indicating movement (no text or symbols)

FR

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Mechanical assembly diagram showing a valve with directional arrows indicating movement or force (no text or symbols present)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or force.

Technical diagram of an engine cylinder with internal components and a close-up view of the cylinder's internal structure (no text or labels)

Fente 1 Fente 2

Diagram of a camera body with labeled parts and directional arrows indicating movement or force

Astuce

Diagram of a DSLR camera with an inset close-up showing the lens and adjustment knob (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

Note

Diagram of a DSLR camera with numbered parts indicating left and right motion directions

Line drawing of a DSLR camera with lens and control panel (no text or symbols)

Line drawing of a DSLR camera with a button labeled 'O' pointing to the left side (no text or symbols on the device itself)

Molette de commande

Line drawing of a DSLR camera with a rotary dial indicator (no text or symbols on the device itself)

Line drawing of a DSLR camera with a circular arrow indicating rotation (no text or symbols)

Line drawing of a DSLR camera with a circular arrow indicating rotation (no text or symbols)

Illustration showing a cat image being processed from a tablet screen, with a hand pointing to the screen (no text or symbols present)

QR code image containing encoded data, no visible human-readable text

Note

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

QR code image containing encoded data, no visible human-readable text

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Collection of black-and-white icons representing various human, animal, and plant symbols (no text or labels)

60M 54M 51M 40M 26M 23M 22M 17M 15M 13M 10M 6.5M 5.8M 5.5M 4.3M

120p 60p 60i 30p 24p 100p 50p 50i 25p

120fps 60fps 30fps 15fps 8fps 4fps 100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Assist Assist Assist Assist S-Log2 S-Log3 HL6 709 HL6 2020

Diagram showing various electrical or mechanical symbols with Chinese characters and icons, possibly representing circuit components or indicators.

AWB AWB AWB -1 0 +1 +2 WB AWB

7500K A5 G5

Toy Move Pop Pos Pos Rtrs Init key Part Part Part HC low OFF

Effet de photo (66)

Prior. visag./yeux AF (63)

Profil d'image (66)

Prior. support d'enr. (76)

(CIPA : Camera & Imaging Products Association)

[Communications Bluetooth]

Batterie rechargeable NP-FZ100

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Hier scannen

https://rd1.sony.net/help/ilc/1930/h_zz/

ILCE-7RM4 Hilfe

Simple line drawing of a cable with a plug and socket (no text or symbols)

Illustration of a USB cable with a connector (no text or symbols)

Pure diagram of a U-shaped cable with two USB connectors (no text or symbols)

Line drawing of two crimping tools with no text or symbols

Diagram showing camera mode adjustment steps with directional arrows indicating movement from left to right.

Diagram of a DSLR camera with a square slot being inserted, showing rotation arrows (no text or symbols)

6 Augensensor

Mechanical component diagram showing a rotating knob or dial (no text or symbols)

Line drawing of a DSLR camera with a close-up inset showing the lens (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

9 10

11 12

Diagram showing a camera with attached cable and rope, no text or symbols present

10 (N-Zeichen) (53)

Diagram showing a hand holding a tool interacting with a device, labeled with 'N' symbols pointing to the components.

Technical diagram of a camera module with numbered parts labeled 1 to 4

Diagram showing a device component with labeled parts and directional arrows, including numbered annotations ① and ②.

Technical diagram showing a mechanical component with numbered parts and directional arrows indicating motion or assembly.

4 Stativgewinde

Diagram of a camera module with a close-up view of the sensor tip (no text or symbols present)

Simple line drawing of a laptop with a grid of square buttons on the screen (no text or symbols)

Tipp

Simple diagram of a grid layout with no text, numbers, or symbols

DE

Simple diagram of a blank white rectangle with a black horizontal bar at the bottom, no text or symbols present.

Bedienungshilfe

Hinweis

Diagram of a mechanical component with a rectangular block and directional arrow indicator (no text or symbols)

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or flow.

Diagram of a camera body with labeled parts and directional arrows indicating movement or force

Technical diagram of an engine cylinder with internal components and a directional arrow indicating flow or movement (no text or symbols present)

Technical diagram of a camera body with numbered components and directional arrows indicating movement or flow.

Tipp

Diagram of a DSLR camera with an inset close-up showing the lens and adjustment knob (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and directional arrow (no text or symbols)

Hinweis

Diagram of a DSLR camera with numbered parts indicating left and right motion directions

Line drawing of a DSLR camera with lens and control panel (no text or symbols)

Line drawing of a DSLR camera with a rotary dial indicator showing 20-degree rotation (no text or symbols on the device itself)

DE

Line drawing of a DSLR camera with a circular scroll wheel (no text or symbols)

Line drawing of a DSLR camera with a circular arrow indicating rotation (no text or symbols)

DE

Illustration showing a hand holding a pen with an arrow pointing to a small cat image, next to an arrow pointing to the screen (no text or symbols present)

QR code image containing encoded data, no visible human-readable text

Hinweis

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

https://rd1.sony.net/help/di/ftp/h_zz/

QR code image containing encoded data, no visible human-readable text

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Aufnahmemodus (31)

Registernummer (63)

Collection of black-and-white icons representing various human, animal, and plant symbols (no text or labels)

60M 54M 51M 40M 26M 23M 22M 17M 15M 13M 10M 6.5M 5.8M 5.5M 4.3M

120p 60p 60i 30p 24p 100p 50p 50i 25p

120fps 60fps 30fps 15fps 8fps 4fps

100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Assist Assist Assist Assist S-Log2 S-Log3 HL6 709 HL6 2020

Diagram showing various electrical or mechanical symbols with labels like [], M, and ± signs

Fokusfeld (35)

JPEG RAW RARAW+J +J RAW

Dateiformat (46)

Messmodus (66)

7500K A5 G5

(CIPA: Camera & Imaging Products Association)

Audio: LPCM 2ch (48 kHz 16 Bit)

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Escanee aquí

https://rd1.sony.net/help/ilc/1930/h_zz/

- MENU → (Red) → [Ajustes Wi-Fi]

Two types of electrical plug connectors shown in line drawings (no text or symbols)

Illustration of a cable with a connector, no text or symbols present

Pure diagram of a U-shaped cable with two connectors (no text or symbols)

• Correa de bandolera (1)

Line drawing of two pliers with handles and a cylindrical body (no text or symbols)

Diagram showing camera mode adjustment steps with directional arrows indicating movement from left to right.

Line drawing of a DSLR camera with an attached screen and scroll, showing rotational motion (no text or symbols)

6 Sensor de ojo

Mechanical component diagram showing a rotating knob with directional arrow (no text or symbols)

Diagram of a DSLR camera with numbered parts labeled for identification

1 Dial de modo (27)

Line drawing of a DSLR camera with an inset close-up showing the lens (no text or symbols present)

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

Technical diagram of a camera with numbered parts labeled 4 and 9

11 12

Diagram of a cable harness with attached components, showing rope routing and hanging weights (no text or symbols)

10 (Mark N) (28)

Diagram showing a hand holding a device with a magnifying glass, labeled 'N' pointing to it, indicating a measurement or inspection.

Technical diagram of a camera module with numbered parts labeled 1 to 4

Diagram showing a device's internal structure with labeled parts and directional arrows indicating movement or assembly.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical component with a rectangular block and directional arrow, no text or symbols present

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Technical diagram of a device with numbered components, likely illustrating a mechanical or electrical component.

Mechanical assembly diagram showing a valve inserted into a housing with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical component with numbered parts and directional arrows indicating movement or force

2 Inserte la tarjeta SD en la ranura 1.

Technical diagram of a mechanical component with internal channels and a close-up view showing a labeled component (no text or symbols present)

Ranura 1 Ranura 2

3 Cierre la tapa.

Diagram of a camera body with labeled parts and directional arrows indicating movement or force

Sugerencia

Technical diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

Luz de acceso

ES

Diagram of a DSLR camera with an inset close-up showing the lens and adjustment knob (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and arrow indicating rotation (no text or symbols)

Nota

Diagram of a DSLR camera with numbered parts indicating left and right motion directions

Line drawing of a DSLR camera with lens and control panel (no text or symbols)

Line drawing of a DSLR camera with visible buttons and dials (no text or symbols)

Rueda de control

Line drawing of a DSLR camera with a rotary dial and pointer (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Nota

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

QR code image containing encoded data, no visible human-readable text

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Modo de toma (26)

Número de registro

Collection of black-and-white icons representing various human, animals, and plant symbols (no text or labels)

60M 54M 51M 40M 26M 23M 22M 17M 15M 13M 10M 6.5M 5.8M 5.5M 4.3M

120p 60p 60i 30p 24p 100p 50p 50i 25p

120fps 60fps 30fps 15fps 8fps 4fps

100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Assist Assist Assist Assist S-Log2 S-Log3 HLG709 HLG2020

Asist. visual. Gamma

Cancelar el enfoque

Cropped image showing multiple labeled icons with symbols and numbers, possibly representing UI or control buttons.

Área de enfoque

Formato archivo

Modo medición

AWB AWB AWB -1 0 +1 +2 WB AWB

7500K A5 G5

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Scansionare qui

https://rd1.sony.net/help/ilc/1930/h_zz/

ILCE-7RM4 Guida

Illustration of a coiled electrical plug with a terminal outlet (no text or symbols)

Illustration of a cable with a connector, no text or symbols present

Pure diagram of a U-shaped cable with two connectors (no text or symbols)

- Tracolla (1)

Line drawing of two pliers with handles and a handle (no text or symbols)

Diagram of a DSLR camera with numbered parts for identification and assembly reference.

Diagram showing camera mode adjustment steps with directional arrows indicating movement from left to right.

Line drawing of a DSLR camera with an attached screen and scroll, showing no text or symbols.

Mechanical component diagram showing a rotating knob or dial (no text or symbols)

Diagram of a DSLR camera with numbered parts labeled for identification

Line drawing of a DSLR camera with an inset close-up showing the lens (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

Technical diagram of a camera with numbered parts labeled 4 and 10

11 12

Diagram of a cable harness being lifted by ropes, showing rope routing and mechanical components (no text or symbols)

Diagram showing a hand holding a tool interacting with a device, labeled with 'N' symbols pointing to the screen area.

Technical diagram of a camera module with numbered parts labeled 1 to 4

Diagram showing a device component with labeled parts and an inset view of a mechanical assembly step

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a device with a rectangular component and a switch, showing directional arrows (no text or symbols)

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Mechanical assembly diagram showing a valve inserted into a housing with directional arrows indicating movement (no text or symbols present)

Technical diagram of a device with labeled parts, showing a component with numbered annotations.

IT

Diagram of a mechanical component with numbered parts and directional arrows indicating movement or force

Technical diagram of a mechanical component with no visible text or symbols

Slot 1 Slot 2

Diagram of a camera body with numbered parts and directional arrows indicating movement or force

IT

Suggerimento

Diagram of a DSLR camera with an inset close-up showing the lens adjustment (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

IT

Nota

Diagram of a DSLR camera with numbered parts indicating left and right views of the lens and body.

Line drawing of a DSLR camera with lens and adjustment knobs (no text or symbols)

Line drawing of a DSLR camera with adjustment knob (no text or symbols)

Diagram showing a DSLR camera with a dial indicator and directional arrow, likely illustrating camera mode or adjustment.

QR code image containing encoded data, no visible human-readable text

Nota

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

https://rd1.sony.net/help/di/ftp/h_zz/

QR code image containing encoded data, no visible human-readable text

Scheda MENU <6/6>

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Collection of black-and-white icons representing various human, animal, and plant symbols (no text or labels)

60M 54M 51M 40M 26M 23M 22M 17M 15M 13M 10M 6.5M 5.8M 5.5M 4.3M

120p 60p 60i 30p 24p 100p 50p 50i 25p

120fps 60fps 30fps 15fps 8fps 4fps 100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Assist Assist Assist Assist S-Log2 S-Log3 HL6 709 HL6 2020

Assist. vis. Gamma

Diagram showing various symbols and labels with geometric shapes, possibly representing electrical or mechanical components.

Area messa a fuoco

JPEG RAW RAW+J +J RAW

Formato File

Modo mis.esp.

AWB AWB A AWB A

7500K A5 G5

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Digitalize aqui

https://rd1.sony.net/help/ilc/1930/h_zz/

Simple line drawing of a cable with a plug and socket (no text or symbols)

PT

Illustration of a cable with a connector, no text or symbols present

Pure diagram of a U-shaped cable with two connectors (no text or symbols)

Line drawing of two pliers with handles and metal bands (no text or symbols)

Diagram illustrating camera mode adjustment steps with labeled arrows and directional arrows for zoom and rotation.

Diagram of a DSLR camera with a screen and scroll, showing mechanical components and rotation arrow (no text or symbols)

6 Sensor dos olhos

Mechanical component diagram showing a knob inserted into a housing (no text or symbols)

Line drawing of a DSLR camera with an inset close-up showing the lens (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

Technical diagram of a DSLR camera with numbered parts labeled 9 and 10

11 12

Diagram showing a cable being lifted by ropes, with an inset illustrating the rope knot (no text or symbols present)

10 (Marca N) (27)

Diagram showing a hand holding a tool next to a device with labeled 'N' symbols, likely illustrating a precision or scanning process.

Technical diagram of a camera module with numbered parts labeled 1 to 4

Diagram showing a device's internal structure with labeled parts and directional arrows indicating movement or assembly.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a device with a black component and directional arrows, no text or symbols present

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

3 Feche a tampa.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or flow.

Mechanical assembly diagram showing a valve inserted into a housing with directional arrows indicating movement (no text or symbols present)

Diagram of a camera body with labeled parts and directional arrows indicating movement or force

PT

2 Insira o cartão SD na ranhura 1.

Technical diagram of an engine cylinder with internal components and a close-up inset showing a component (no text or labels)

Ranhura 1 Ranhura 2

3 Feche a tampa.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Sugestão

Diagram of a DSLR camera with an inset close-up showing the lens adjustment (no text or symbols present)

PT

Illustration of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

Nota

Diagram of a DSLR camera with numbered parts indicating left and right views of the lens and body.

Line drawing of a DSLR camera with lens and control panel (no text or symbols)

Line drawing of a DSLR camera with a button inserted (no text or symbols)

Seletor de controlo

Diagram of a DSLR camera with a dial indicator showing rotary shift and control buttons

PT

QR code image containing encoded data, no visible human-readable text

Nota

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

https://rd1.sony.net/help/di/ftp/h_zz/

QR code image containing encoded data, no visible human-readable text

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Collection of black-and-white icons representing various human, animals, and plant symbols (no text or labels)

60M 54M 51M 40M 26M 23M 22M 17M 15M 13M 10M 6.5M 5.8M 5.5M 4.3M

120p 60p 60i 30p 24p 100p 50p 50i 25p

120fps 60fps 30fps 15fps 8fps 4fps

100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Assist Assist Assist Assist S-Log2 S-Log3 HLG 709 HLG 2020

Auxil. visual. Gamma

Focagem cancelada

Cancelar Seguimento

Foco Ponto

Executar [Foco Ponto]

NFC ativo (27)

Cropped image showing multiple labeled icons with symbols and arrows, possibly representing UI or control buttons.

Área de Focagem

Formato ficheiro

Modo do medidor

AWB AWB AWB -1 0 +1 +2 WB AWB

7500K A5 G5

Equil brancos (Auto, Predefinido, Subaquático auto, Personalizado, Temperatura de cor, Filtro de cor)

Otimiz Alc Din

Std.↑ Vivid↑ Ntrl↑ Clear↑ Deep↑ Light↑ Port.↑ Land.↑ Sunset↑ Night↑ Autm↑ B/W↑ Sepia↑ +3 +3 +3

Multi-capt. desl. pxl

Visor do histograma

1 Informação básica

Multi-capt. desl. pxl

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Scan hier

https://rd1.sony.net/help/ilc/1930/h_zz/

ILCE-7RM4 Helpgids

Helpfunct. in camera

Two types of electrical plug connectors shown in line drawings (no text or symbols)

Illustration of a USB cable with a connector (no text or symbols)

Simple line drawing of a U-shaped cable with connectors (no text or symbols)

Line drawing of two pliers with handles and clamps (no text or symbols)

• Kabelbeschermer (1)

Diagram of a camera with numbered parts labeled for identification

Diagram showing camera mode adjustment steps with magnified views of the device's screen and cable

Line drawing of a DSLR camera with a screen and scroll, showing rotational motion (no text or symbols)

6 Oogsensor

Mechanical component diagram showing a rotating knob or dial (no text or symbols)

Diagram of a DSLR camera with numbered parts labeled for identification

Line drawing of a DSLR camera with an inset close-up showing the lens (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

Technical diagram of a camera with numbered parts labeled 4 and 9

11 12

Diagram of a cable carabiner with attached suspension rings and a magnified view of the rope (no text or symbols)

10 (N-markering) (27)

Diagram showing a hand holding a tool interacting with a device, labeled with 'N' symbols indicating the component.

Technical diagram of a camera module with numbered parts labeled 1 to 4

1 Vergrendelingshendel (18)
2 Accuvak (18)
3 Accudeksel (18)

Diagram showing a device's internal structure with labeled parts and directional arrows indicating movement or assembly.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical component with a rectangular block and directional arrow indicator (no text or symbols)

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

3 Sluit het deksel.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or flow.

Diagram of a mechanical device with a pressure gauge and directional arrow indicating movement (no text or symbols)

Diagram of a camera body with labeled parts and directional arrows indicating movement or rotation.

NL

Technical diagram of a mechanical component with internal channels and a labeled inset (no text or symbols)

Gleuf 1 Gleuf 2

3 Sluit het deksel.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Hint

Diagram of a DSLR camera with an inset close-up showing the lens adjustment (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

Opmerking

Diagram of a DSLR camera with numbered parts indicating internal components and directional arrows

Lensontgrendelingsknop

■ Compatibele lenzen

Line drawing of a DSLR camera with lens and adjustment knobs (no text or symbols)

Diagram showing a DSLR camera with a dial indicator and rotation arrow, likely illustrating camera mode or adjustment.

QR code image containing encoded data, no visible human-readable text

NL

Opmerking

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

https://rd1.sony.net/help/di/ftp/h_zz/

QR code image containing encoded data, no visible human-readable text

- Basiskennis van FTP-servers is vereist.

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Opnamefunctie (25)

Registernummer

Collection of black-and-white icons representing various human, animals, and plant symbols (no text or labels)

60M 54M 51M 40M 26M 23M
22M 17M 15M 13M 10M 6.5M
5.8M 5.5M 4.3M

120p 60p 60i 30p 24p 100p 50p 50i 25p

120fps 60fps 30fps 15fps 8fps 4fps 100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Assist Assist Assist Assist S-Log2 S-Log3 HLG 709 HLG 2020

Gamma-weerg.hulp

Scherpstellen annuleren

Electrical circuit symbols and component labels arranged in a grid-like layout

Scherpstelgebied

Bestandsindeling

Lichtmeetfunctie

AWB AWB AWB -1 0 +1 +2 WB AWB

7500K A5 G5

1 Basisinformatie

Weergavemedia

Weergavefunctie

IPTC

IPTC-informatie

Classificatie

Beveiligen

DPOF

DPOF instellen

3/7

[Bluetooth-communicatie]

Bluetooth-norm Ver. 4.1 Frequentieband: 2,4 GHz

Batterijlader BC-QZ1

Illustration of a coiled electrical plug with a terminal outlet (no text or symbols)

Illustration of a USB cable with a connector (no text or symbols)

Pure diagram of a U-shaped cable with connector ends, no text or symbols present

Line drawing of two pliers with handles and clamps (no text or symbols)

Diagram of a DSLR camera with numbered parts for identification and assembly reference.

Diagram showing camera mode adjustment steps with magnified views and directional arrows indicating movement

Line drawing of a DSLR camera with an attached screen and scroll, showing no text or symbols.

6 Czujnik oka

Mechanical component diagram showing a rotating knob or dial (no text or symbols)

8 Przycisk MOVIE (Film) (27)

Diagram of a DSLR camera with numbered parts labeled for identification

Line drawing of a DSLR camera with an inset close-up showing the lens (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

Technical diagram of a camera with numbered parts labeled 9 and 10

11 12

Diagram of a cable harness being lifted by a camera, showing rope and cable attachment (no text or symbols)

10 (2nak N) (28)

Diagram showing a hand holding a tool interacting with a device, labeled with 'N' symbols pointing to the screen area.

Technical diagram of a camera module with numbered parts labeled 1 to 4

Diagram showing a device component with labeled parts and directional arrows indicating movement or assembly.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or assembly.

Diagram of a device with a rectangular component and directional arrows, no text or symbols present

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Mechanical component diagram showing a valve and adjustment knob (no text or symbols)

3 Zamknij pokrywę.

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

PL

Diagram of a mechanical component with numbered parts and directional arrows indicating movement or force

Technical diagram of a mechanical component with no visible text or symbols

Gniazdo 1 Gniazdo 2

3 Zamknij pokrywę.

Diagram of a camera module with labeled parts and directional arrows indicating movement or force

Wskazówka

Diagram of a DSLR camera with an inset close-up showing the lens adjustment (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

Uwaga

Diagram of a DSLR camera with numbered parts indicating left and right views of the lens and body.

Line drawing of a DSLR camera with lens and control panel (no text or symbols)

Line drawing of a DSLR camera with a button labeled on the front panel (no text or symbols present)

Pokrętło sterowania

Diagram showing a DSLR camera with a dial indicator and directional arrow, likely illustrating camera mode or adjustment.

QR code image containing encoded data, no visible human-readable text

Uwaga

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

QR code image containing encoded data, no visible human-readable text

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Collection of black-and-white icons representing various human, landscape, and symbolic elements (no text or labels)

60M 54M 51M 40M 26M 23M 22M 17M 15M 13M 10M 6.5M 5.8M 5.5M 4.3M

120p 60p 60i 30p 24p 100p 50p 50i 25p

120fps 60fps 30fps 15fps 8fps 4fps

100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Assist Assist Assist Assist S-Log2 S-Log3 HLG 709 HLG 2020

Asysta wys. Gamma

Anuluj ostrość

Diagram showing various electrical or mechanical symbols with labels like M and A, likely representing circuit components or indicators.

Obszar ostrości

Format pliku

Tryb pomiaru

AWB AWB AWB -1 0 +1 +2 WB AWB

7500K A5 G5

Film (format XAVC S):

Zgodny z formatem MPEG-4 AVC/

H.264 XAVC S wer. 1.0

Obraz: MPEG-4 AVC/H.264

Film (format AVCHD):

Zgodny z formatem AVCHD wer. 2.0

Obraz: MPEG-4 AVC/H.264

Dźwięk: 2-kanałowy

SuperSpeed USB (USB 3.2 Gen 1)

Wi-Fi Protected Setup™ (WPS)/

ręczna

Mechanizm dostępu:

Try infrastruktury

[NFC]

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Сканировать здесь

https://rd1.sony.net/help/ilc/1930/h_zz/

Simple line drawing of a plug with a coiled cable (no text or symbols)

Illustration of a cable with a connector, no text or symbols present

Pure diagram of a U-shaped cable with two connectors (no text or symbols)

Line drawing of two pliers with handles and a handle (no text or symbols)

Diagram of a camera with numbered parts labeled for identification

Diagram showing camera mode adjustment steps with directional arrows indicating movement from left to right.

Line drawing of a DSLR camera with an attached screen and scroll, showing no text or symbols.

Mechanical component diagram showing a valve or knob with directional arrow (no text or symbols)

Diagram of a DSLR camera with numbered parts labeled for identification

Line drawing of a DSLR camera with an inset close-up showing the lens (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

Technical diagram of a camera with numbered parts labeled 9 and 10

11 12

Diagram of a rope harness lifting a cable, showing rope routing and mechanical components (no text or symbols)

10 (Метка N) (28)

Diagram showing a hand holding a tool interacting with a device, labeled with 'N' symbols indicating magnetic polarity.

Technical diagram of a camera module with numbered parts labeled 1 to 4

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component assembly.

Diagram of a mechanical component with numbered parts and directional arrows indicating movement or assembly.

Diagram of a device with a rectangular component and a switch, showing directional arrows (no text or symbols)

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Mechanical assembly diagram showing a valve inserted into a housing with directional arrows indicating movement (no text or symbols present)

3 закройте крышку.

Technical diagram of a device with numbered components and directional arrows indicating movement or flow

RU

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or force.

Technical diagram of a mechanical component with no visible text or symbols

Слот 1 Слот 2

Diagram of a camera module with labeled parts and directional arrows indicating movement or flow

Совет

Diagram of a DSLR camera with an inset close-up showing the lens adjustment (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

Примечание

Diagram of a DSLR camera with labeled parts 1 and 2, showing internal components and directional arrows.

Line drawing of a DSLR camera with lens and control panel (no text or symbols)

Line drawing of a DSLR camera with adjustment knobs and a button (no text or symbols)

Колесико управления

Diagram showing camera module with adjustment knob and rotary dial indicator

QR code image containing encoded data, no visible human-readable text

Примечание

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

https://rd1.sony.net/help/di/ftp/h_zz/

QR code image containing encoded data, no visible human-readable text

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Режим съемки (26)

Номер регистра

Collection of black-and-white icons representing various human, animals, and plant symbols (no text or labels)

60M 54M 51M 40M 26M 23M 22M 17M 15M 13M 10M 6.5M 5.8M 5.5M 4.3M

120p 60p 60i 30p 24p 100p 50p 50i 25p

120fps 60fps 30fps 15fps 8fps 4fps 100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Assist Assist Assist Assist S-Log2 S-Log3 HL6 709 HL6 2020

Поддержка Gamma

Отмена фокуса

Отмена отслеживания

Точечный фокус

Diagram showing various symbols and labels including crosses, rectangles, and dots with superscript M

Область фокусир.

JPEG RAW RAW+J +J RAW

Формат файла

Режим измер.

7500K A5 G5

Баланс белого

(автоматический,

предустановленный,

3 XC II CLASS 10 3 XC I CLASS 10

HDMI™ AVCHD HIGH-COMPRISON MULTIMETERS BREADS

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Проскануйте тут

https://rd1.sony.net/help/ilc/1930/h_zz/

ILCE-7RM4 Довідка

Simple line drawing of a cordless electrical plug with a handle (no text or symbols)

Illustration of a black cable with a connector, tied with a ribbon (no text or symbols)

Pure diagram of a U-shaped cable with two connectors (no text or symbols)

Line drawing of two pliers with handles and a handle (no text or symbols)

Diagram of a camera with numbered parts labeled for identification

Diagram showing camera mode adjustment steps with directional arrows indicating movement from left to right.

Line drawing of a DSLR camera with an attached screen and scroll, showing no text or symbols.

6 Сенсор ока

UA

Mechanical component diagram showing a rotating knob or dial (no text or symbols)

Diagram of a DSLR camera with numbered parts labeled for identification

Line drawing of a DSLR camera with an inset close-up showing the lens (no text or symbols present)

Technical diagram of a mechanical device with labeled parts 1 and 2

3 4 5 6 7 8

Technical diagram of a DSLR camera with numbered parts labeled 9 and 10

Technical diagram of a camera module with numbered parts labeled 11 and 12

Diagram of a cable harness with attached components and a magnified inset showing the rope knot (no text or symbols)

10 (Нозначка N) (28)

Diagram showing a hand holding a pen-like tool next to a container with coins, labeled with 'N' symbols.

Technical diagram of a camera module with numbered parts labeled 1 to 4

Diagram showing a device's internal structure with labeled parts and directional arrows indicating movement or assembly.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a device with a rectangular component and a switch, showing directional arrows (no text or symbols)

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Mechanical component diagram showing a valve and adjustment knob (no text or symbols)

3 Закрийте кришку.

Technical diagram of a device with numbered components and directional arrows indicating movement or flow

UA

Mechanical assembly diagram showing a valve inserted into a housing with directional arrows indicating flow or movement (no text or symbols present)

Diagram of a camera body with labeled parts and directional arrows indicating movement or force

Technical diagram of an engine cylinder head with a close-up inset showing internal components (no text or labels)

Гніздо 1 Гніздо 2

Diagram of a camera body with labeled parts and directional arrows indicating movement or force

Підказка

Diagram of a DSLR camera with an inset close-up showing the lens adjustment (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

Примітка

Diagram of a DSLR camera with labeled parts 1 and 2, showing mechanical components and directional arrows.

Line drawing of a DSLR camera with lens and adjustment knobs (no text or symbols)

Line drawing of a DSLR camera with adjustment knob (no text or symbols)

Диск керування

Diagram showing a DSLR camera with a dial indicator and directional arrow, likely illustrating camera mode or adjustment.

QR code image containing encoded data, no visible human-readable text

Примітка

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

QR code image containing encoded data, no visible human-readable text

i P P* A S M i P A S M S&Q P S&Q A S&Q S S&Q M

Режим зйомки (26)

Реєстраційний номер

Collection of black-and-white icons representing various human, animal, and symbolic elements (no text or labels)

60M 54M 51M 40M 26M 23M 22M 17M 15M 13M 10M 6.5M 5.8M 5.5M 4.3M

120p 60p 60i 30p 24p 100p 50p 50i 25p

120fps 60fps 30fps 15fps 8fps 4fps

100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Assist Assist Assist Assist S-Log2 S-Log3 HLG709 HLG2020

Підтр.диспл.Gamma

Скасувати фокус

AF-S AF-A AF-C DMF MF

Режим фокусуван.

Cropped image showing multiple labeled icons with symbols and numbers, possibly representing UI or control buttons.

Обл. фокусування

JPEG RAW RARAW+J +J RAW

Формат файла

Режим виміру

AWB AWB AWB

AVCHD XAVCS HD XAVCS 4K

Режим перегляду

IPTC

Информац. про IPTC

Рейтинг

Захист

DPOF

Встановлено DPOF

3/7

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Skanna här

https://rd1.sony.net/help/ilc/1930/h_zz/

Simple line drawing of a medical or laboratory device with a coiled tube and plug (no text or symbols)

Illustration of a cable with a connector, no text or symbols present

Pure diagram of a U-shaped cable with two connectors (no text or symbols)

Line drawing of two pliers with handles and metal bands (no text or symbols)

- Kabelskydd (1)

• Skoskydd (1) (monterad på kameran)
• Ögonmussla (1) (monterad på kameran)
• Handledning (1) (Denna bruksanvisning)
  • Referensmaterial (1)

Startguide

Diagram of a mechanical component with a rectangular block and directional arrows, no text or symbols present.

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or flow.

Diagram of a camera body with labeled parts and directional arrows indicating movement or force

SE

Technical diagram of a mechanical component with internal channels and a labeled inset (no text or symbols)

Fack 1 Fack 2

3 Stäng locket.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Tips

Diagram of a DSLR camera with an inset close-up showing the lens and adjustment knob (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

OBS!

Line drawing of a DSLR camera with lens and control panel (no text or symbols)

Line drawing of a DSLR camera with a rotary dial indicator (no text or symbols on the device itself)

QR code image containing encoded data, no visible human-readable text

OBS!

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

https://rd1.sony.net/help/di/ftp/h_zz/

QR code image containing encoded data, no visible human-readable text

MENU-knapp

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Skannaa tästä

https://rd1.sony.net/help/ilc/1930/h_zz/

Illustration of a medical or laboratory device with a coiled tube and plug (no text or symbols)

Illustration of a cable with a connector, no text or symbols present

Pure diagram of a U-shaped cable with connector ends, no text or symbols present

- Olkahihna (1)

Line drawing of two pliers with handles and metal bands (no text or symbols)

Diagram of a mechanical component with a rectangular block and directional arrow indicator (no text or symbols)

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or flow.

Akun lataaminen, kun se on kamerassa

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a mechanical component with arrows indicating assembly or connection (no text or symbols present)

Paikka 1 Paikka 2

FI

3 Sulje kansi.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Vihje

Diagram of a DSLR camera with an inset close-up showing the lens adjustment (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

FI

Huomautus

Diagram of a DSLR camera with numbered parts indicating left and right motion directions

Line drawing of a DSLR camera with a rotary dial indicator showing speed and angle (no text or symbols on the device itself)

QR code image containing encoded data, no visible human-readable text

Huomautus

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

QR code image containing encoded data, no visible human-readable text

MENU-painike

GNU General Public License-

GNU Lesser General Public License

Simple line drawing of a laptop and smartphone (no text or symbols)

"Hjelpeveiledning" er en nettbasert veiledning du kan lese på datamaskinen eller smarttelefonen din. Slå opp i den for å finne mer informasjon om menyelementer, avansert bruk og den nyeste informasjonen om kameraet.

QR code image containing encoded data, no visible human-readable text

Skann her

https://rd1.sony.net/help/ilc/1930/h_zz/

ILCE-7RM4 Hjelpeveiledning

Bruksanvisning (denne boken)

Illustration of a handheld electrical plug with wires (no text or symbols)

NO

Illustration of a black cable with a connector, tied with a loop (no text or symbols)

Pure diagram of a U-shaped cable with connectors, no text or symbols present

- Skulderrem (1)

Line drawing of two pliers with handles and metal bands (no text or symbols)

- Kamerahusdeksel (1) (festet på kameraet)

Diagram of a device with a black component and directional arrow, no text or symbols present

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Mechanical assembly diagram showing a valve inserted into a housing with directional arrows indicating movement (no text or symbols present)

3 Lukk dekselet.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or flow.

Lade batteriet mens det sitter i kameraet

Slå av kameraet, og koble det til en enhet, for eksempel en datamaskin, med USB-kabelen.

Hvis du slår på kameraet, får det strøm fra datamaskinen eller enheten det er tilkoblet, og du kan bruke kameraet. Batteriet lades imidlertid ikke.

Bruk USB Type-C-kabelen (inkludert) eller en standard USB-kabel.

Ta ut batteriet

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or force.

NO

2 Sett inn SD-kortet i spor 1.

Technical diagram of a mechanical component with internal channels and a labeled inset (no text or symbols)

Spor 1 Spor 2

3 Lukk dekselet.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Hint

Diagram of a DSLR camera with an inset close-up showing the lens adjustment (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

Merknad

Diagram of a DSLR camera with numbered parts indicating left and right motion directions

Utløserknapp for objektivet

ON/OFF (Strømbryter)

Line drawing of a DSLR camera with a dial indicator showing rotary knob (no text or symbols on the device itself)

QR code image containing encoded data, no visible human-readable text

Merknad

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

Overføre bilder til FTP-serveren

https://rd1.sony.net/help/di/ftp/h_zz/

QR code image containing encoded data, no visible human-readable text

MENU-knapp

Justert spenning: 7,2 V ---

Digital Living Network Alliance.

- USB Type- C^TM og USB- C^TM er varemerker for USB Implementers Forum.

- Dolby, Dolby Audio og Dobbel-D-symbolet er varemerker for Dolby Laboratories.

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Scan her

https://rd1.sony.net/help/ilc/1930/h_zz/

Illustration of a handheld electrical plug with wires (no text or symbols)

Illustration of a cable with a connector, no text or symbols present

Pure electrical connector diagram showing a U-shaped cable with two connectors (no text or symbols)

- Skulderrem (1)

Line drawing of two pliers with handles and metal bands (no text or symbols)

Diagram of a mechanical component with a rectangular block and directional arrows, no text or symbols present.

2 Tilslut netledningen (medfølger) til batteriladeren og tilslut batteriladeren til stikkontakten.

Diagram of a device component with numbered parts and directional arrows indicating movement or flow

Mechanical assembly diagram showing a valve inserted into a housing with directional arrows indicating movement (no text or symbols present)

3 Luk dækslet.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating movement or flow.

Diagram of a camera body with labeled parts and directional arrows indicating movement or force

DK

Technical diagram of an engine cylinder with a labeled component (no text or symbols present)

Åbning 1 Åbning 2

3 Luk dækslet.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Tip!

Diagram of a DSLR camera with an inset close-up showing the lens and adjustment knob (no text or symbols present)

Line drawing of a DSLR camera with a circular lens and scroll wheel (no text or symbols)

Bemærk!

Diagram of a DSLR camera with numbered parts indicating component positioning

Line drawing of a DSLR camera with lens and control panel (no text or symbols)

Diagram of a DSLR camera with a dial indicator showing rotary knob (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Bemærk!

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/btg/

https://rd1.sony.net/help/di/ftp/h_zz/

QR code image containing encoded data, no visible human-readable text
