USER MANUAL DEC1850W Sub-Zero

Designer Series Wine Storage

Use and Care Guide

2 Designer Series Wine Storage
3 Safety Precautions
6 Designer Series Wine Storage Features
6 Touch Controls
7 Storage
8 Product Operation
8 Care Recommendations
Troubleshooting
10 Sub-Zero Warranty

Customer Care

The model and serial number are listed on the product rating plate. Refer to page 5 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Sub-Zero dealer. Record this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certified Service Name

Certified Service Number

Authorized Dealer

Dazier Number

If your product ever needs attention, be sure to use a Sub-Zero Factory Certified Service provider.

Important Note

To ensure this product is installed and operated as safely and efficiently as possible, take note of the following types of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially important.

CAUTION

Indicates a situation where minor injury or product damage may occur if instructions are not followed.

WARNING

States a hazard that may cause serious injury or death if precautions are not followed.

IMPORTANT SAFEGUARDS

WARNING

This appliance is only intended for residential use.

WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING

This appliance contains flammable refrigerant and must be handled, installed, serviced, and decommissioned by authorized personnel. Once decommissioned, consult local authorities for disposal instructions.

WARNING

Do not damage the refrigerant circuit.

WARNING

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

IMPORTANT SAFEGUARDS

WARNING

This symbol indicates risk of fire/flammable materials.

WARNING

To minimize the risk of ignition due to improper installation, replacement parts, or service procedures, only refrigeration technicians with flammable refrigerant training who are aware of the dangers of dealing with high voltage electricity and refrigerant under pressure are allowed to work on this equipment.

CAUTION

Appliances without a four-star compartment are not suitable for freezing foodstuffs.

CAUTION

To avoid food contamination, respect the following:

• Regularly clean surfaces that come into contact with food and accessible drainage systems.
• Clean ice and water dispensers that have not been used in 48 hours. Dispense and discard ice and water if the ice and water have not been used in more than five days.
• Do not allow raw meat and fish to touch other food in the refrigerator. Store in suitable containers.
  One-, two-, and three-star compartments are not suitable for freezing fresh food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.

IMPORTANT SAFEGUARDS

WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

CAUTION

Incorporated ice makers must be installed by the manufacturer or its service agent.

WARNING

Do not expose this appliance to rain.

IMPORTANT NOTE: Allowing doors or drawers to remain open for an extended period increases the temperature inside the appliance.

WARNING

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves and drawer dividers in place so that children may not easily climb inside.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments
• farm houses and by clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications

Designer Series Wine Storage Features

FEATURES

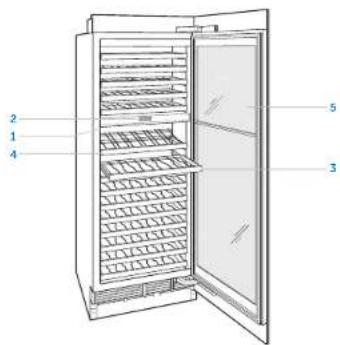

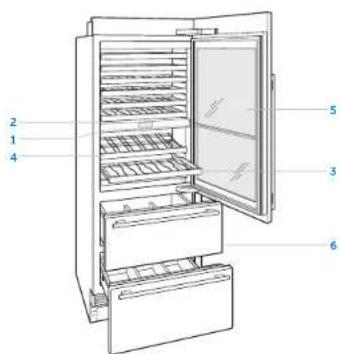

1 Product Rating Plate
3.1ouch Control
3 Wine Storage Blocks
4 Display Back
5 Full-View Class Door
6 Refrigerator Storage Drawers

Not available on all models.

Column model

Touch Control Panel

For initial start-up, touch and hold the control panel for 2 seconds.
The temperature can be adjusted in one-degree increments on the home screen. The temperature on the left of the display represents the lower zone and the temperature on the right represents the upper

To adjust temperature:

1 Touch the temperature to be adjusted.
2 Touch + or - until the desired temperature is displayed.
Refring to the illustration below.

To adjust additional settings, touch on the control panel. Refer to the illustration below.

Home screen

SETTINGS

Turn the unit on or off
Turn accent lighting on or off and adjust brightness and select soft on duration
Tum door alarm on or off and adjust duration
Aust drawer temperature
Tum Sabath on or off
S F t
Adjust door alarm volume and tone
Select language
① System information
View troubleshooting and service information

Not available on all models

Storage

Wine Storage

WINE RACKS

The full-extension wine racks provide easy access to 750 ml bottles, half-bottles, and magurns. When storing magurns, the rack above must be removed.

To remove a wine rack, pull out to full extension, tilt up, then lift up and ou. Refer to the illustration below. The two racks in each compartment cannot be placed in any other position. These racks can be identified by the small-square cutout located in the right rear corner. Refer to the illustration below.

The natural cherrywood facing on wire radios can be stained or replaced with wood to complement cabinetry.

Wine rack removal.

Rack position indicator

DISPLAY RACK

The adjustable display rack is designed for wine to stay in contact with the cork at any position. Refer to the illustration below.

To remove the display rack, pull out to full extension, tilt up, then lift up and out.

CAUTION

Remove all bottles from the display rack before removal.

Display rack

Storage Drawers

DRAWER DIVIDERS (TALL MODEL)

1 To move a short divider, slide the divider forward or backward. Refer to the illustration below.
2 One long divider in the top drawer is adjustable. To remove a long divider, pull the long divider up until it stops, rotate counterclockwise, then pull upward
3. Install a long divider, align the grooves with the drawer labs. Rotate clockwise, then slide down.

Drawerdividers

DRAWER REMOVAL (TALL MODEL)

To remove/install a storage drawer:

1 To remove, pull the drawer open until it stops. Raise the front of the drawer slightly and pull straight out. Refer to the illustration below.
2 To install, raise the front of drawer and place onto the slides. Align the back of the drawer with hooks on the slide, then align the white pegs at the front of the slide with hooks at the front of the drawer.

Drawer removal

Sabbath

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.stark-k.org

Sabbath mode automatically turns on the interior lights at a reduced brightness. The lights stay on when the door is closed. The lights cannot be turned off in Sabbath mode.

Sabbath mode automatically turns off after 74 hours. All lighting preferences return to the previous setting when Sabbath mode is turned off.

To tum on Sabbath:

1 Touch

1. Touch and hold for 3 seconds

To turn off Sabbath:

1 Touch and hold up to 10 seconds.

Cleaning

STAINLESS STEEL EXTERIOR

Use a nonabrasive stainless steel cleaner and apply with a soft Eel-free cloth. To bring out the natural luster, tightly wipe the surface with a water-dampened microfiber cloth followed by a dry polishing charron. Always follow the grain of stainless steel.

INTERIOR CLEANING

To clean interior surfaces and all removable parts, wash with a mild solution of soap, water and baking soda. Rinse and dry thoroughly. Avoid getting water on the lights, control panel, and cherrywood facing on wine racks.

Use a standard glass cleaner to clean the UV-resistant glass door.

CAUTION

Do not use vinegar, rubbing alcohol, or other alcohol-based cleaners on any interior surface.

CONDenser CLEANING

CAUTION

Before cleaning the condenser, turn power off at the control panel. Wear gloves to avoid injury from sharp condenser fins.

The condenser is located behind the kickplate. Clean the condenser every 6-12 months.

To clean the condenser:

1 Turn power off at the control panel
2 Remove the kickplace by extracting the two mounting screws. Refer to the illustration below.
3 Use a soft, bristle brush and vacuum to remove dust and lint from the condenser.

CAUTION

Failure to clean the condenser could result in temperature loss, mechanical failure, or damage.

Condenser location

Troubleshooting

UNIT OPERATION

No lights or cooling.

1 Verify power is on.

1. Verify electrical power to the unit and home circuit breaker is on.

No lights.

1 The door may have been left ajar, which has disabled lights to eliminate excess heat. If the lights are out, close the door for one hour if the lights are still out. Contact Sub-Zero Factory Certified Service.
2. LED interior lighting must be replaced by Sub-Zero Factory Certified Service.

Condensation forms inside the unit.

1 Verify the condenser is clean
2 Verify the door is closing properly.
3 Verify the door has not been left ajar.
4 Verify the door gasket does not have tips or tears. If it does, contact Sub-Zero Factory Certified Service.

High temperatures, the unit runs excessively, or the unit is giving off too much heat.

1 Verify the condenser is clean.
2 Verify the door is closing properly.
3 Verify the door has not been left ajar.
4 Increased ambient temperatures may cause the compressor to run longer.
5 If the temperature display shows 13^ and 7^ , but is not cooling, the unit may be in Showroom Mode. Contact Sub-Zero Customer Care at 800-222-7820.

ODOR

1 Clean the unit before using for the first time. This will clear any odors that may have been trapped during shipping.

SERVICE

• Maintain the quality built into your product by contacting Sub-Zero Factory Certified Service.
• When contacting service, you will need the model and serial number of your unit. Both numbers are listed on the product rating plate. Refer to page 6 for rating plate location.
  For warranty purposes, you will also need the date of installation and name of your authorized Sub-Zero dealer. This information should be recorded on page 2 of this guide.

SERVICE (FOR AUSTRALIA ONLY)

Yearly maintenance is recommended.
- Maintain the quality built into your product by contact

• When contacting service, you will need the model and serial number of your product. Both numbers are listed on the product rating plate. Refer to page 6 for rating plate location.
• For warranty purposes, you will also need the date of installation and name of your authorized Sub-Zero dealer. This information should be recorded on page 2.
  For Australia only, contact: Sub-Zero Group Australia Pty Ltd Level 10,469 La Trobo Street Melbourne Victoria 3000 Phone [phone] subzero-wolf.com.au

SERVICE (FOR UNITED KINGDOM ONLY)

Sub-Zero & Wolf Ltd
S The Street, Heybridge, Malé
020 8418 5800
[e-mail]
www.subzero-wolf.co.uk

Warranty

Sub-Zero International Limited Warranty

FOR RESIDENTIAL USE

FULL TWO YEAR WARRANTY\*

For two years from the date of original installation, this Sub-Zero product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided by Sub-Zero under the above warranty must be performed by Sub-Zero Factory Certified Service, unless otherwise specified by Sub-Zero, Inc. Service will be provided during normal business hours.

FULL FIVE YEAR SEALED SYSTEM WARRANTY

For five years from the date of original installation, this Sub-Zero product warranty covers all parts and labor to repair or replace, under normal residential use, these parts that prove to be defective in materials or workmanship or compressor, condenser, evaporator, drier and all connecting tubing. All service provided by Sub-Zero under the above warranty must be performed by Sub-Zero Factory Certified Service, unless otherwise specified by Sub-Zero, Inc. Service will be provided during normal business hours.

For more information regarding your Sub-Zero product warranty, contact your authorized Sub-Zero dealer. Warranties must comply to all county, state, city, local and/or ordinance.

Stainless steel (doors, panels, in panels, product frames and interior surfaces) are covered by a limited 60-day parts and labor warranty for cosmetic defects.

*Replacement water filters and air purification cartridges are not covered by the product warranty.
