USER MANUAL H43K85FUX HAIER

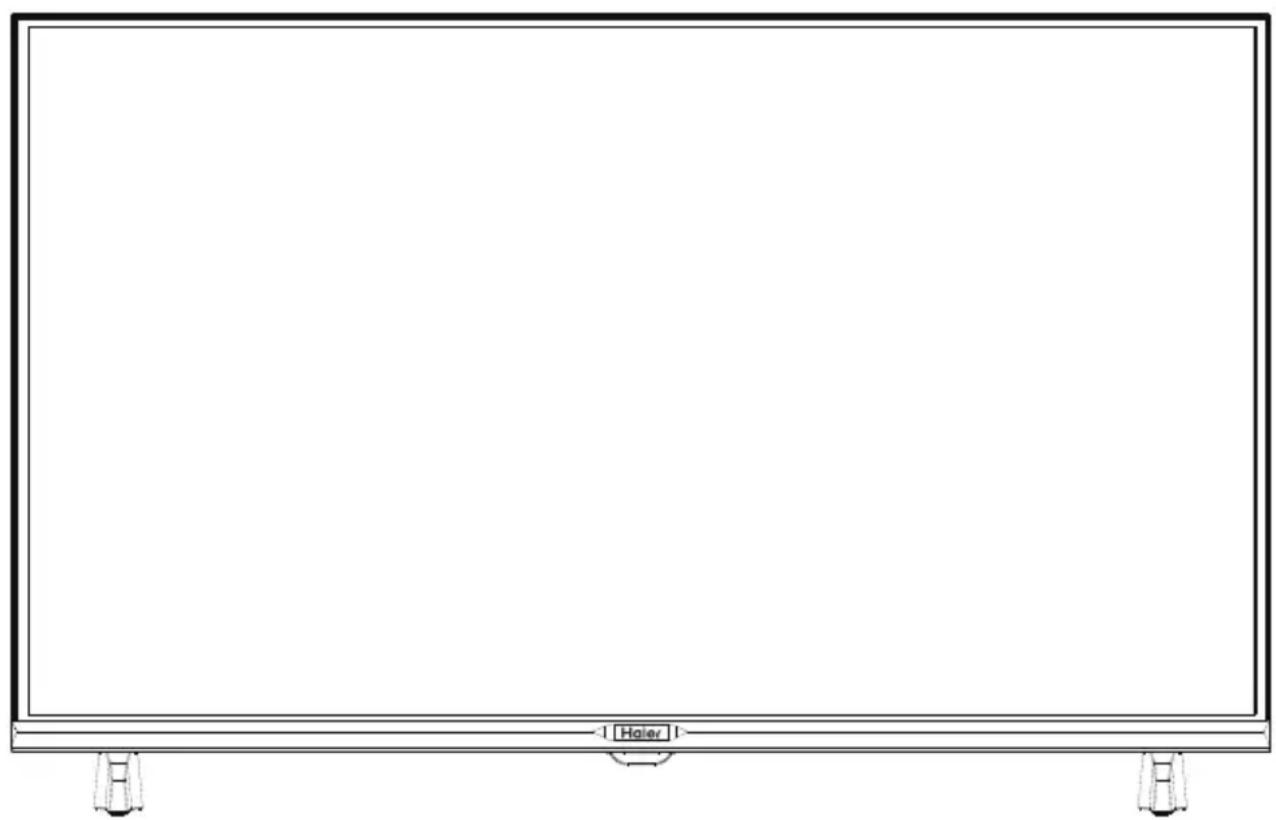

Front view of a modern flat-screen monitor with no visible text or symbols on the screen or side.

Illustration in this guide are provided for reference only and may differ from actual product appearance.

Product design and specification may be changed without notice.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this product near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
20) Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions provided in the user manual given with this unit.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as radiators, fire or the like.

This symbol indicates AC voltage.

This symbol indicates DC voltage.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

EU Battery Regulation

This symbol on the battery(ies) or on the packaging indicates that the battery(ies) provided with this product shall not be treated as household waste. Instead, please separate battery(ies) from other types of waste and recycle it(them) through your local recycling system to protect environment and health.

The chemical symbol for lead (Pb) is added under this symbol if the battery(ies) contains more than 0.004 % lead. For more detailed information about recycling of this battery(ies), please contact your local authority or the shop where you purchased the product or battery(ies).

Caution:

A display may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
• ALWAYS use furniture that can safely support the television set.
- ALWAYS ensure the television is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television or its controls.
• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
- NEVER place the television set in an unstable location.
- NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the display to a suitable support.
- NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
- NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television set or furniture on which the television set is placed.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

H43K85FUX

European Energy Label EPREL registration number: 2218274

https://eprel.ec.europa.eu/qr/2218274

H55K85FUX

European Energy Label EPREL registration number: 2218303

https://eprel.ec.europa.eu/qr/2218303

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a monitor mounted on a stand, with no text or symbols present.

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen monitor with a cross mark on the stand (no text or symbols)

Do not trap the power supply cord under the television receiver.

Computer monitor displaying three prohibition symbols: no restrictions, no charges, and a document.

If you are going to clean the product, unplug the TV, use soft fabric, no water, never chemicals.

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

Illustration of a woman running away from a computer screen next to a broken circular object (no text or symbols)

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Warning symbol with crossed-out monitor and lightbulb, indicating no warning or caution

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

Minimum distance 5cm 10cm 20cm 30cm

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Note: the use of apparatus in moderate climates.

Note: This product uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may by a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

IMPORTANT: Do not apply pressure to the screen display area which may compromise the integrity of the display. The manufacturer's warranty does not cover user abuse or improper installations.

ATTACHING THE STAND

IMPORTANT: The stand of the TV must be assembled prior to usage.

1. Place the TV unit face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV.

2. Fix the stands to the bottom of the TV with 4 screws.

Technical line drawing of a computer chassis with ventilation slots and connectors (no text or symbols)

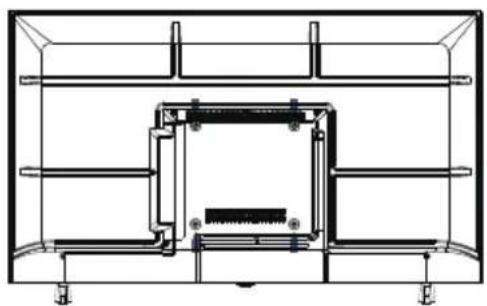

PREPARING YOUR LED TV FOR WALL MOUNTING

We suggest that you keep your TV at least 2.36 inches (60 mm) from the wall to prevent cable interference. Before mounting your TV on the wall, you need to remove the stantand.

For your safety, please use only with a UL listed wall mount bracket with minimum weight of the TV without stand.

To attach a wall mount bracket to your TV:

1. Remove the screws holding your TV to the stand.

2. Remove the stand from your TV.

3. Secure the wall mount bracket to the back of your TV using four screws. Follow the instructions of the user manual that came with the wall mount bracket to install.

Architectural cross-section diagram of a building facade with structural beams and supports (no text or labels)

NOTE

The wall mount bracket are not included.

1. Fix the wall mount screws (M6 x 10mm/4pcs) into the rear side of the LED TV, using the torque of 8kgf,cm.

TURNNING ON THE TV

1. Install the stand and place the TV on a solid surface.

Diagram illustrating a lighting experiment setup with labeled components including a lamp, spray, sun, and speaker.

NOTE

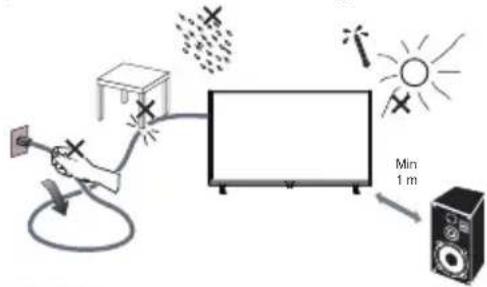

- Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover. - To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity. - Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.

1. Connect the antenna cable or cable TV cable to the ANT IN aerial socket on the back of the TV set.

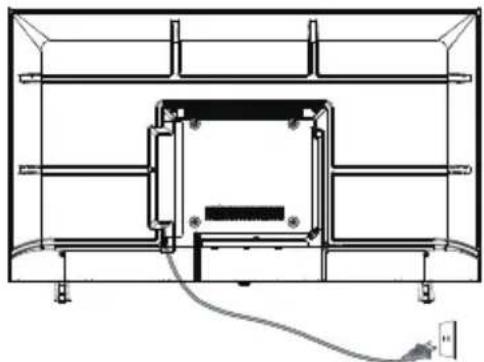

2. Power: Plug the cord into a working power outlet.

Technical line drawing of a structural frame with internal components and wiring (no text or symbols)

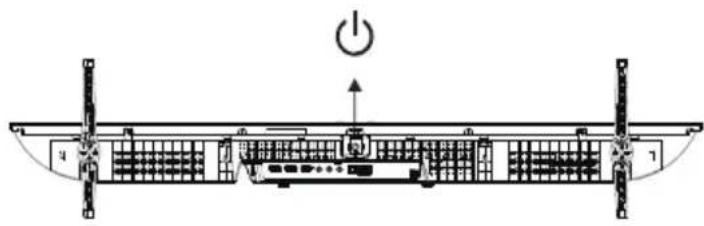

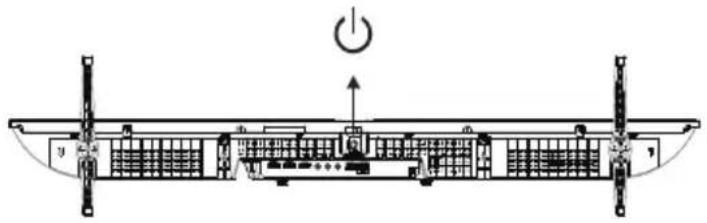

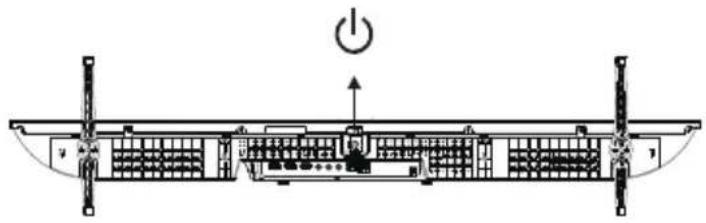

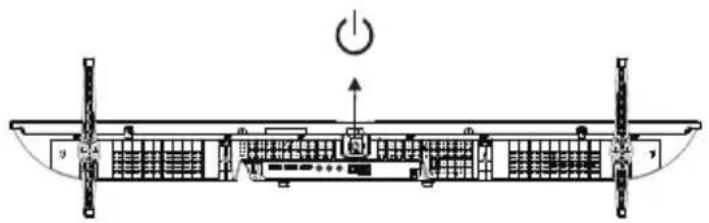

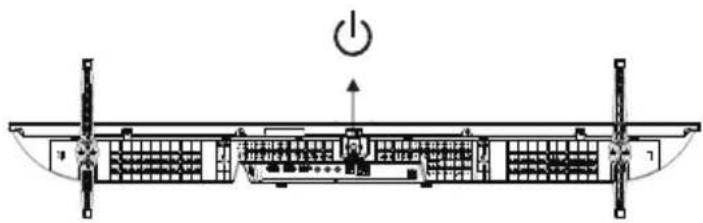

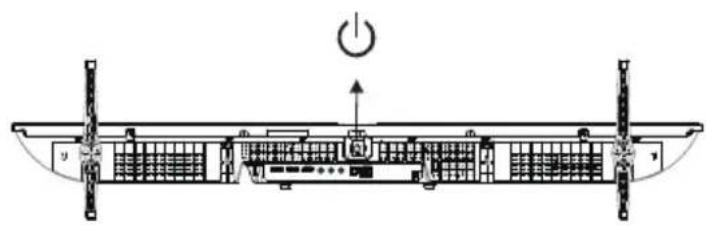

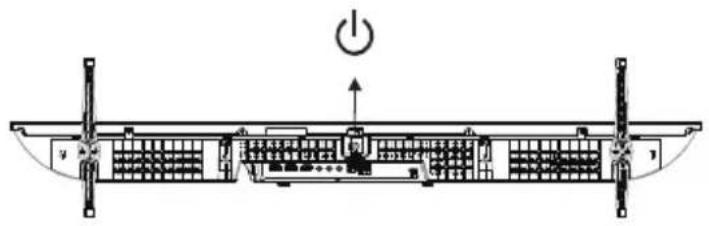

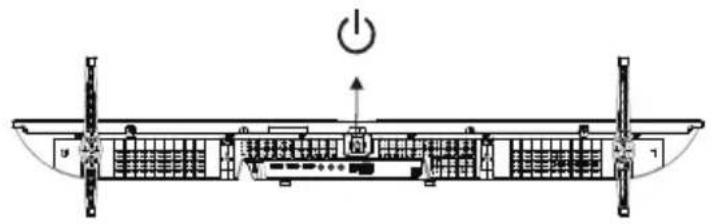

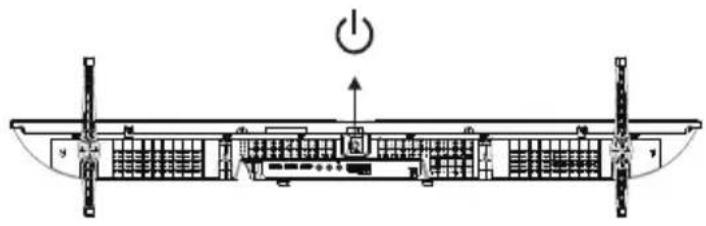

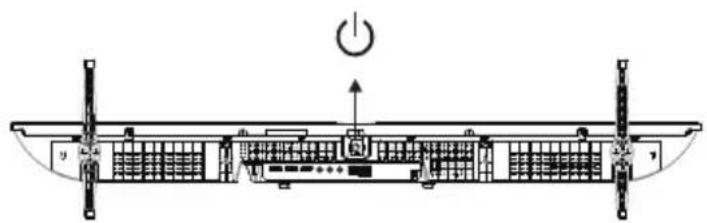

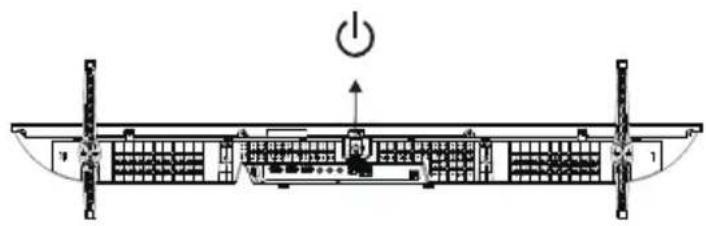

1. Turn the TV on: Press ⏻ on the remote control or POWER button at the bottom of the TV.

2. Battery Remove the cover of the battery compartment. Insert the 2 batteries (Type AAA 1.5V).

Diagram showing battery charging process with labeled components and directional arrows indicating sequence

BUTTON CONTROL

Technical line drawing of a mechanical or electrical component with no visible text or symbols

ACCESSORIES

Remote Control - 1 pcs

User's Manual - 1 pcs

Quick set up guide - 1 pcs

Stand - 2 pcs

Screws - 4 pcs

Warranty Card - 1 pcs

REAR AV Connections(SIDE)

HDMI 1 (ARC/ARCI) SATELLITE 13/18V = 500mA ANT/CABLE USB 5.0V = 500mA COMMON INTERFACE(CI)

All the terminals are(from left to right):

HDMI1(eARC/ARC), SATELLITE, ANT IN(ANTENNA/CABLE), USB, HEADPHONE, COMMON INTERFACE(CI).

REAR AV Connections

LAN OPTICAL VIDEO L - IN - R HDMI 4 HDMI 3 HDMI 2

All the terminals are(from left to right):

LAN, OPTICAL, AV IN adapter, HDMI4, HDMI3, HDMI2.

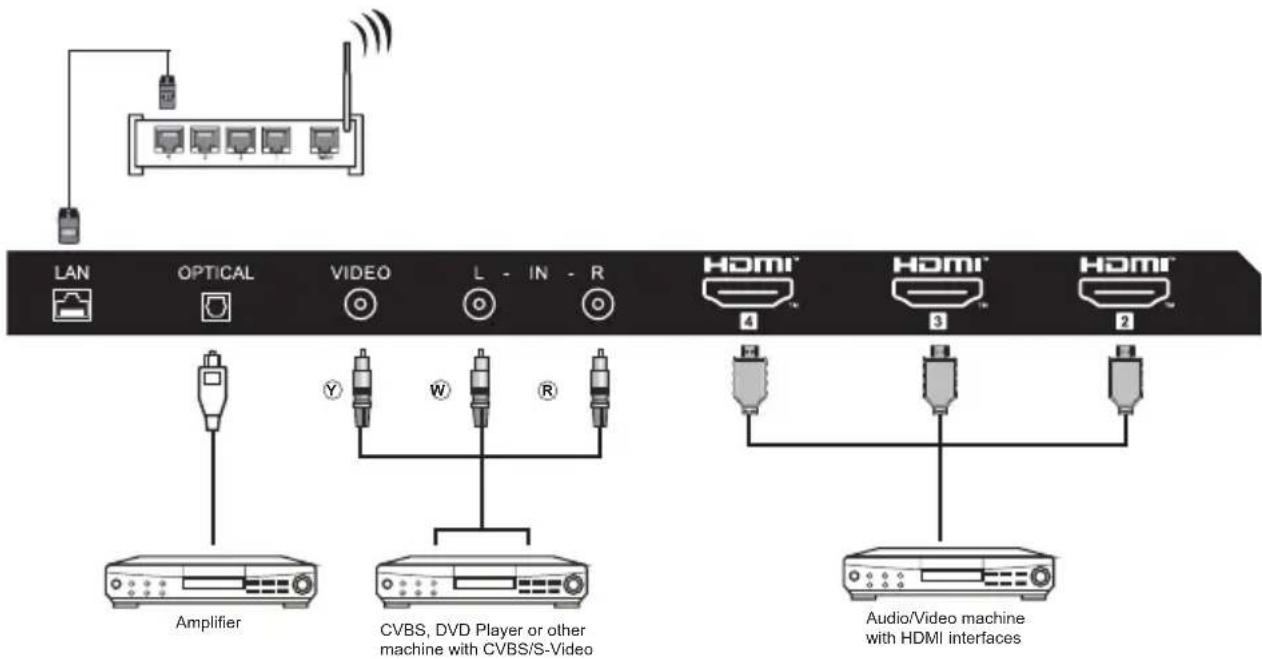

You can use the input terminals on TV set rear as follows.

LAN OPTICAL VIDEO L - IN - R HDMI 4 HDMI 3 HDMI 2 Amplifier CVBS, DVD Player or other machine with CVBS/S-Video Audio/Video machine with HDMI interfaces

HDMI 13/18V 500mA SATELLITE ANT/CABLE USB 6.0V 500mA COMMON INTERFACE(CI) Audio/Video machine with HDMI interfaces RF CAM CI card W (Audio L) R (Audio R) Y (Video)

1. RF: Antenna/close circuit TV
2. EARPHONE: Earphone output.
3. USB: Connect USB device.
4. HDMI: Connect to High-definition multimedia signal resource.
5. AV INPUT: Video input/Audio input.

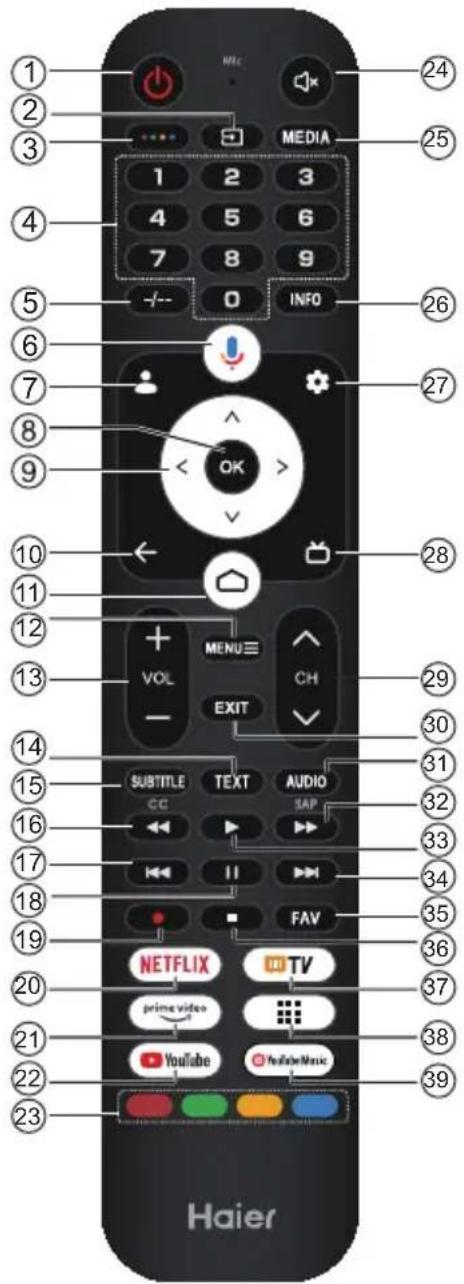

1 2 3 4 5 6 7 8 9 INFO MEDIA 1 2 3 4 5 6 7 8 9 +/- 0 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 20 21 22 23 YouTube YouTubeMusic CNN MENU VOL EXIT TEXT AUDIO SAP FAV NETFLIX TV prime video

#	Item	Descriptions
1	Power	Press to turn the TV on or off. When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
2		Press to open the input source list.
3	●●●●	Press to open Soft Keyboard.
4	0~9 number	Press to enter a TV channel number.
5	-/--	It is used to enter channel numbers with various digit counts, e.g. 1 – 11 – 111.
6		Press to open the Google Assistant.
7		Press to open user account page.
8	OK	Enter the selected option or perform the selected operation.

#	Item	Descriptions
9	▲▼◀▶	Press to navigate the on-screen menu.
10	←	Return to the previous menu.
11		Press to open the Home Page.
12	MENU≡	Press to open or close the on-screen menu.
13	VOL+/VOL-	Press VOL+ or VOL- to adjust volume level.
14	TEXT	Press to select the teletext mode.
15	SUBTITLE	Open or close subtitle.
16		Press to reverse playback in multimedia & Timeshift mode.
17		Switch to the previous file when the audio or video is playing.
18	II (Pause)	Press to pause in multimedia mode&Timeshift mode.
19	●(REC)	Press to record the TV program you are watching in DTV mode.
20	NETFLIX	Press to open the NETFLIX.
21	prime video	Press to prime video for viewing online TV shows and films(internet connection required).
22	YouTube	Press to open the YouTube.
23	Coloured buttons	Implement the relevant operations according to the prompt at the botton of the menu in the text.
24		Press to open the mute.
25	MEDIA	Press to open multimedia player.
26	INFO	Press to display the channel information.
27		Press to open the settings menu.
28		Press to display electronic programme guide in TV mode.
29	CH-/CH-	Press CH^ or CH▼ to change TV channels.
30	EXIT	Exit menu or operation.
31	AUDIO	Press to select Mono, Nicam, Stereo for ATV channel, Audio language for DTV channels.
32	▶▶(forward)	Press to fast forward in multimedia &Timeshift mode.
33	▶(play)	Press to play in multimedia mode &Timeshift mode.
34		Switch to the next file when the audio or video is playing.
35	FAV	Quickly add the current channel to the favorite Show list or remove it from the favorite list under ATV and DTV.
36		Press to stop multimedia playback, REC & Timeshift mode.
37		Press to open the Live TV.
38		Press to open the app list.
39	YouTube Music	Press to open the YouTube Music.

INITIAL SETUP

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings. Please according to the Text Tip to First Time Setup.

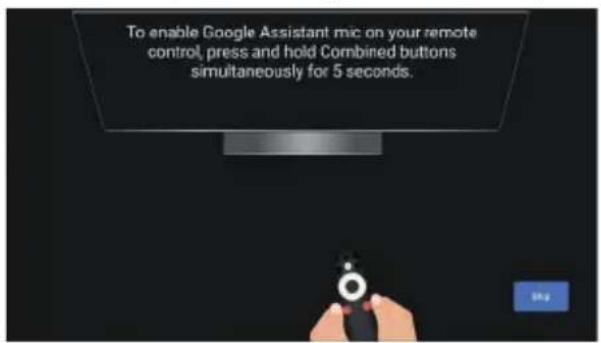

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV.

Language English (United States) Afrikaans Azerbaycan Bosarnati Cetalia Ceistina

Press ▲/▼ to select the system language and press OK to confirm the language.

Select your region or country Albania Algeria Angola Aruba Australia Austria

Press ▲/▼ to select the region/country of your device and press OK to confirm.

Complete the TV initialization settings according to the guide prompt.

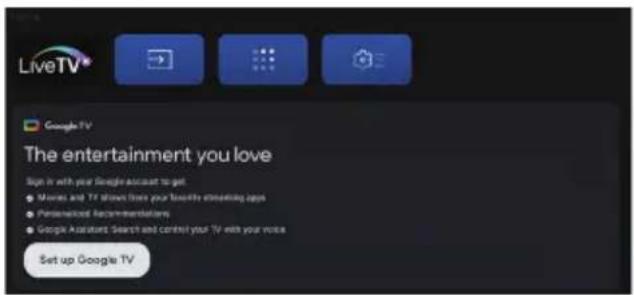

LiveTV Google TV The entertainment you love Sign in with your Google account to get. ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Analysts Search and control your TV with your voice Set up Google TV

Note: The picture is only for reference.

- Once in the user interface, you can switch from basic TV to Google TV settings

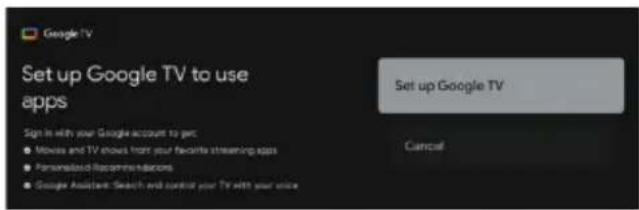

Set up Google TV to use apps Sign in with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and Control your TV with your voice Set up Google TV Cancel

Press ▲/▼ to select the "Set up Google TV" of your device and press OK to complete the setup.

Google Sign in Use your Google Account Create space Forgot email? Create account Next

Use your Google Account Sign in. Follow the Google Guide.

E-Manual

E-Manual is built into your TV and can be displayed on the screen. To learn more about your TV features, access your E-Manual by referring to the following. E-Manual may be available depending on the region or model.

1. Press HOME button to access the home page.
2. Press UP/DONW/LEFT/RIGHT and OK button to select and enter "E-Manual" in "Apps".

E-MANUAL First Time Use Smart Features Guide Time Picture Channel Audio Networks Home Display Smart Features Smart Features Time Smart Features Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Time Smart Features Tide Dialy Dialy Feature Dialy Feature Dialy Feature Dialy Feature Dialy Feature

Note: The picture is only for reference.

Front view of a blank rectangular screen with control buttons at the bottom (no text or symbols on the screen)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a monitor mounted on a stand, with no text or symbols present.

Simple line drawing of a flat-screen monitor with a cross mark on the stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no restrictions, no charges, and a document.

Cartoon illustration showing a person holding a crossed-out monitor with a 'No' symbol, likely indicating no violation or prohibition.

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a woman running away from a computer screen next to a broken circular object (no text or symbols)

Warning symbol with crossed-out monitor and lightbulb, indicating no warning or caution

Technical line drawing of a mechanical or electrical component with no visible text or symbols

ACCESORIOS

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign is with your Google account to get ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Assistant Search and Cardinal your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account! Create a plan ! Target email? Create account Next

E-MANUAL First Time Use Smart Features Guide Start Prints Cigarette Balance Help the TV with TV Make the Connected Window HDMI 2.1 HDMI Advanced Settings Take Home to use

Front view of a blank rectangular monitor with a 'Haier' label at the bottom (no other text or symbols)

Illustration of a computer monitor with an antenna and a crossed-out cable, no text or symbols present.

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a monitor mounted on a stand, with no text or symbols present.

Simple line drawing of a flat-screen monitor with a cross mark on the stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no restrictions, no charges, and a document.

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric object with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a woman running away from a computer screen next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a flat-panel electronic device with ventilation grilles and connectors (no text or symbols)

PREPARAR A TV LED PARA MONTAGEM NA PAREDE

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

Diagram illustrating a lighting experiment setup with labeled components including a speaker, spray, sun, and speaker.

NOTA

Technical line drawing of a structural frame with internal components and wiring (no text or symbols)

Diagram showing battery charging process with labeled components and directional arrows indicating sequence

CONTROLO DE BOTÕES

Technical line drawing of a mechanical or electrical component with no visible text or symbols

ACESSÓRIOS

Controlo remoto - 1 unid.

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign it with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and Control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign is with your Google account to get • Movies and TV shows from your Facebook streaming apps • Personalized Recommendations • Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account. Created phone: 1 Forget-coated? Create account Next

Front view of a blank rectangular screen with a small 'Haier' label at the bottom (no other text or symbols)

Illustration of a computer monitor with arrows indicating signal or action, and a crossed-out hand symbolizing no change (no text or labels present)

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol crossed out, no text or symbols present.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, no image, and document.

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person running away from a computer monitor with a broken phone and alarm clock (no text or symbols)

Simple line drawing of a monitor with a 'X' symbol crossed out, next to a small lamp emitting smoke (no text or symbols)

Technical line drawing of a multi-panel electronic device with ventilation grilles and connectors (no text or symbols)

ΣΗΜΕΙΩΣΗ

Technical line drawing of a mechanical assembly with no visible text or symbols

ΣΗΜΕΙΩΣΗ

Diagram illustrating an outdoor monitoring setup with labeled components including a lamp, air pollutants, and a screen, plus a speaker.

ΣΗΜΕΙΩΣΗ

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing battery charging process with labeled components and directional arrows indicating sequence

ΛΕΙΤΟΥΡΓΙΑ ΠΛΗΚΤΡΩΝ

Technical line drawing of a mechanical or electrical component with no visible text or symbols

E3APTHMATA

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign is with your Google account to get • Movies and TV shown from your benefits streaming apps • Personalized Recommendations • Google Assistant Search and contact your TV with your voice Set up Google TV

Set up Google TV to use apps Sign it with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account! Find in place ( Target email? Create account Next

E-MANUAL First Time Use Home Server Wireless Wireless Lighting To Get Inside Lighting To Get Inside Smart Features Play on Google TV Play on Google or Google TV Google Hosted Game Hosted TV HDMI 2.1 Multi-Channel Guide Start Picture Control Watch Home 6 Multiscale Power

Line drawing of a blank rectangular panel with a 'Haley' label at the bottom (no other text or symbols)

Televisore LED

Illustration of a computer monitor with an antenna and a crossed-out cable, no text or symbols present.

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols: no restrictions, no charges, and a document.

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric object with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer monitor next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a computer chassis with ventilation grilles and connectors (no text or symbols)

PREPARAZIONE DEL TELEVISORE A LED PER IL MONTAGGIO A PARETE

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

Diagram illustrating a physics experiment setup with labeled components including a screen, light source, detector, and motion indicators.

NOTA

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing battery charging process with labeled components and directional arrows indicating sequence

CONTROLLO TASTO

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

ACCESSORI

Telecomando - 1 pz.

Manuale - 1 pz.

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign is with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assisters Search and Control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign to with your Google account to get • Movies and TV visits from your favorite streaming apps • Personalized Resources Statistics • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account! Email or phone: { Prompt email? Create accounts Next

Line drawing of a blank rectangular panel with a 'Haier' label at the bottom (no other text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a monitor mounted on a stand, with no text or symbols present.

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three circular icons with prohibition symbols: a crossed-out circle, a document with a checkmark, and a graph.

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a woman running away from a computer screen next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a computer chassis with ventilation grilles and connectors (no text or symbols)

PRÉPARER VOTRE TÉLÉVISEUR LED POUR INSTALLATION MURALE

Technical line drawing of a mechanical assembly with no visible text or symbols

REMARQUE

Diagram illustrating a lighting experiment setup with labeled components including a speaker, lamp, light source, and screen.

REMARQUE

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing battery charging process with labeled components and directional arrows

BOUTON DE CONTRÔLE

Technical line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

ACCESSOIRES

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV® Google TV The entertainment you love Sign is with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and content your TV with your music Set up Google TV

Set up Google TV to use apps Start in with your Google account to get • Movies and TV shows how your favorite streaming apps • Personalized Recommendations • Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Create email ! Forgot email? Create account) Next

Front view of a blank rectangular screen with a 'Haier' button at the bottom (no text or symbols on the screen itself)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a monitor mounted on a stand, with no text or symbols present.

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three circular icons with prohibition symbols: a crossed-out circle, a document with a checkmark, and a graph.

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a person running away from a computer monitor next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a computer chassis with ventilation slots and connectors (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

HINWEIS

Diagram illustrating a lighting experiment setup with labeled components including a lamp, spray, sun, and speaker.

HINWEIS

Technical line drawing of a structural frame with internal components and a cable (no text or symbols)

Diagram showing battery charging process with labeled components and directional arrows indicating sequence

TASTENSTEUERUNG

Technical line drawing of a mechanical assembly with no visible text or symbols

ZUBEHÖR

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV* Google TV The entertainment you love Sign is with your Google account to get ● Movies and TV shows from your benefit streaming apps ● Personalized Recommendations ● Google Assistant Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized recommendations • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account! Email or plan: 1 Target email? Create account Next

Line drawing of a blank rectangular frame with a 'Haier' label at the bottom (no other text or symbols)

Illustration of a computer monitor with an electrical circuit and a crossed-out cable (no text or symbols)

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a monitor mounted on a stand, with no text or symbols present.

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols: no restrictions, no charges, and a document.

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a woman running away from a computer screen next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a computer chassis with ventilation grilles and connectors (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ЗАБЕЛЕЖКА

Technical line drawing of a structural frame with internal components and a cable (no text or symbols)

Diagram showing battery charging process with labeled components and directional arrows indicating sequence

УПРАВЛЕНИЕ С БУТОНИ

Technical line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

АКСЕСОАРИ

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English (United States) Afrikaans Azerbaijan Boswinski Canada Céchine

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign in with new Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google subscription: Amazon and content your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and monitor your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account! Create place { Forgot email? Create account! Next

E-MANUAL First Time Use Home System Battery Network Google TV - 100 MHz Using the Cylindrical Device Smart Features Profile on Google TV Add a line on Google TV Google Network Load in Google TV HDMI Advanced Settings Modify Home Server Guide Insert Delete Change Remove New On New Make Forward

Front view of a blank rectangular TV or display stand with no visible text, symbols, or labels.

Illustration of a computer monitor with an explosion symbol and a crossed-out hand gesture (no text or symbols present)

Simple line drawing of a monitor with a cross mark and a curtain in the background (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a fan, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no signs, a document, and a map (no readable text or labels)

Cartoon illustration of a person holding a crossed-out monitor with a 'X' symbol, surrounded by boxing gloves (no text or symbols present)

Simple line drawing of a geometric object with crosshairs and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer monitor and holding a bag, with a circular object nearby (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Minimum cylindrical 10mm 20mm 30mm 40mm

Technical line drawing of a multi-panel electronic device with ventilation grilles and connectors (no text or symbols)

NOT

Technical line drawing of a structural frame with internal components and supports (no text or symbols)

NOT

Technical line drawing of a mechanical assembly with no visible text or symbols

1. TV'yi açın:

Diagram showing battery charging process with labeled components and directional arrows

TUŞ KONTROLÜ

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

AKSESUARLAR

Uzaktan Kumanda - 1 adet

Kılavuzu - 1 adet

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign it with your Google accrue to get: • Movies and TV shows from your favorite streaming apps • Personalized recommendations • Google Assistant search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account! Enable this ! Forgot email? Create account Next

Front view of a rectangular display panel with no visible text or symbols on the screen face

Ilustracije u ovom vodiču navedene su samo kao referenca i mogu da se razlikuju u odnosu na stvarni izgled proizvoda.

Dizajn i specifikacije proizvoda mogu biti promenjene bez prethodne najave.

LED televizor

Illustration of a computer monitor with arrows indicating motion and a crossed-out hand (no text or symbols)

Ovaj TV prijemnik koristi visoki napon pri radu. Ne uklanjajte leđa sa televizora. Servisiranje prepustite kvalifikovanim serviserima.

Simple line drawing of a monitor with a cross symbol crossed out, next to a curtain and rope (no text or symbols)

Da biste smanjili rizik od požara ili strujnog udara, ne izlažite TV kiši ili vlazi.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Ne ispuštajte i ne gurajte predmete u proreze i otvore na leđima TV-a. Ne prosipajte tečnost na televizor.

Simple line drawing of a computer monitor with a stand and a curved top frame (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Nemojte da uštinete kabl za napajanje televizorom.

Computer monitor displaying three prohibition symbols: a crossed-out circle with no text, a document icon, and a small globe (no readable text or labels)

Ako želite da očistite proizvod, isključite ga iz struje i koristite meku tkaninu. Ne koristite vodu i hemikalije.

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines, no text or symbols present

Illustration of a person running away from a computer screen with a clock nearby (no text or symbols)

Ako nećete koristiti televizor duže vreme, preporučujemo da mu izvučete utikač iz napajanja.

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a flat electronic device with ventilation grilles and mounting brackets (no text or symbols)

NAPOMENA

Technical line drawing of a mechanical assembly with no visible text or symbols

NAPOMENA

Zidni nosač se ne isporučuje uz TV.

1. Fiksimajte zavrtnje zidnog nosača (M6 x 10 mm / 4 kom) na u leđa TV-a momentom pritezanja od 8 kgf,cm.

UKLJUČIVANJE TV-a

1. Montirajte stalak i stavite TV na stabilnu površinu.

Diagram illustrating a lighting experiment setup with labeled components including a lamp, screen, sun, and speaker.

NAPOMENA

- Uverite se da je TV u položaju koji omogućava nesmetan tok vazduha. Ne prekrivajte ventilacione otvore na leđima.

Technical line drawing of a structural frame with internal components and wiring (no text or symbols)

1. Uključite televizor: Pritisnite 📍na daljinskom upravljaču ili taster POWER na bočnoj kontrolnoj tabli TV-a.

2. Daljinski upravljač: Uklonite poklopac odeljka za baterije. Umetnite 2 baterije (tip AAA 1,5 V).

Diagram showing battery charging process with labeled components and directional arrows indicating sequence

UPRAVLJANJE PREKO TASTERA

Technical line drawing of a mechanical or electrical component with no visible text or symbols

DODATNI PRIBOR

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Ova funkcija se koristi za kôd za uparivanje daljinskog upravljača. Kad se kôd unese, možete da koristite Bluetooth daljinski upravljač za upravljanje TV-om.

Language English (United States) Afrikaans Azerbaycan Bosanski Català Čeistina

Pritiskanjem dugmadi ▲/▼ odaberite jezik sistema, pa pritisnite OK da potvrdite.

Select your region or country Albania Algeria Angola Aruba Australia Austria

Pritisnite ▲/▼ da biste odabrali zemlju ili region uređaja i pritisnite OK da biste potvrdili.

LiveTV* Google TV The entertainment you love Size is with your Google account to get ● Movies and TV shows from your benefits streaming apps ● Personalized recommendations ● Google Assistant menu and control your TV with your voice Set up Google TV

Napomena: Slika služi samo kao referenca.

- Kada uđete u korisnički interfejs, možete da predete sa osnovnih podešavanja TV-a na Google TV.

Set up Google TV to use apps Sign in with your Google account to get! ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account! Email or phone: + Forgot email? Create account Next

Prijavite se pomoću svog Google naloga. Pratite Google vodič.

E-priručnik

E-priručnik je ugrađen u TV i može da se prikaže na ekranu. Da biste saznali više o funkcijama vašeg TV-a, otvorite e-priručnik na sledeći način.

Front view of a blank rectangular TV screen with no visible text, symbols, or labels.

Illustration of a computer monitor with an 'X' symbol and lightning bolts, no text or symbols present

Simple line drawing of a window frame with a diagonal X mark and a hanging curtain (no text or symbols)

Simple line drawing of a computer monitor with a crossed X mark and stars (no text or symbols)

Simple line drawing of a computer monitor with a fan, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no document, no litter, and document with a magnifying glass icon.

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person running away from a computer screen next to a circular object with a star symbol (no text or symbols present)

Simple line drawing of a monitor with a 'X' symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a device casing with ventilation grilles and connectors (no text or symbols)

UWAGA

Technical line drawing of a mechanical assembly with no visible text or symbols

UWAGA

Diagram illustrating a lighting experiment setup with labeled components including a lamp, screen, speaker, and light sources.

UWAGA

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing battery charging process with labeled components and directional arrows indicating sequence

STEROWANIE PRZYCISKAMI

Technical line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

AKCESORIA

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign is with your Google account to get • Movies and TV shows that your favorite streaming apps • Personalized recommendations • Google Assistant Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Make your Google Account! Email to geese ! Forgot email? Create account! Next

Front view of a rectangular display unit with 'Haier' branding and mounting feet (no text or symbols on the panel itself)

Illustration of a computer monitor with an electrical circuit and a crossed-out cable (no text or symbols)

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a monitor mounted on a stand, with no text or symbols present.

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, no image, and document.

Cartoon illustration showing a person on a computer screen with a crossed-out 'No' symbol, indicating no change or absence of a warning.

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a person running away from a computer monitor next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a flat electronic device with ventilation grilles and mounting brackets (no text or symbols)

Technical line drawing of a structural frame with supports and internal components (no text or symbols)

ПРИМИТКА

Diagram illustrating a lighting experiment setup with labeled components including a speaker, lamp, screen, and light source.

NOTE

Technical line drawing of a structural frame with internal components and wiring (no text or symbols)

Diagram showing battery charging process with labeled components and directional arrows

КНОПКА КОНТРОЛЮ

Technical line drawing of a mechanical assembly with no visible text or symbols

АКСЕСУАРИ:

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign in with your Google account to get ● Movies and TV shown from your favorite debriefing apps ● Personalized Recommendations ● Google Assistant Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Email to phone Target email? Create account Next

Front view of a blank rectangular screen with a 'Haley' label at the bottom (no other text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a monitor mounted on a stand, with no text or symbols present.

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, no image, and document.

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a person running away from a computer monitor next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a flatbed electronic device with ventilation grilles and connectors (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ПРИМЕЧАНИЕ

Diagram illustrating a lighting experiment setup with labeled components including a lamp, screen, sun, and speaker.

NOTE

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing battery charging process with labeled components and directional arrows

Technical line drawing of a mechanical or electrical component with no visible text or symbols

ПРИНАДЛЕЖНОСТИ

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV* GoogleTV The entertainment you love Spin in with your Google account to get ● Movies and TV shows from your favorite streaming apps ● Personalized recommendations ● Google Assistant Search and content your TV with your music Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account: Focalize place ! Forgot email! Create account Next

Line drawing of a blank rectangular monitor with no text, numbers, or symbols on the screen or frame.

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a monitor mounted on a stand, with no text or symbols present.

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols: no document, no litter, and document with a magnifying glass icon.

Cartoon illustration showing a person on a computer screen with a crossed-out 'No' symbol, indicating no change or absence of a warning.

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a person running away from a computer monitor next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit candle and a flame (no text or symbols)

Technical line drawing of a flat electronic device with ventilation slots and connectors (no text or symbols)

PREGĂTIREA TELEVIZORULUI LED PENTRU MONTAREA PE PERETE

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTĂ

Diagram illustrating a surveillance or monitoring setup with labeled components including a monitor, signal light, and a speaker.

NOTE

Technical line drawing of a structural frame with internal components and wiring (no text or symbols)

1. Porniti televizorul:

Diagram showing battery charging process with labeled components and directional arrows

CONTROL BUTON

Technical line drawing of a mechanical assembly with no visible text or symbols

ACCESORII

Telecomandă - 1 buc

Manual - 1 buc

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign is with your Google account to get ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Assistant Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get! ● Money and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Assistant: Search and control your TV with user voice Set up Google TV Cancel

Google Sign in Use your Google Account! Send to phone: 1 Forgot email? Create account Next
