USER MANUAL N2 mini DANGBEI
Please read the product instructions carefully:
Thank you for purchasing and using these products.
For your safety and interests, please read the Product Instructions carefully before using the product.
About the Product Instructions:
The trademarks and names mentioned in the Product Instructions are the property of their respective owners.
All Product Instructions shown are for illustration purposes only. The actual product may vary due to product enhancements.
We shall not be liable for any personal injury, property damage, or other damages caused by the failure of the user to comply with the Product Instructions or precautions.
- Dangbei reserves the right to interpret and modify the Product Instructions.
Important Precautions
As with any bright source, do not stare into the direct beam, RGI IEC 6247I-5:2015
- Do not block or cover the heat dissipation holes of the device to avoid affecting the heat dissipation of internal parts and damaging the device.
- Keep away from humidity, exposure, high temperature, low pressure, and magnetic environment.
Do not place the device in areas susceptible to excessive dust and dirt.
- Put the device in the flat and stable station, do not put it in the place prone to vibration.
Do not allow children to handle the device without supervision.
No not place heavy or sharp objects on this device.
- Avoid extreme vibrations as they may damage the internal components.
- Please use correct type of battery for the remote control.
Only use attachments/accessories specified or provided by the manufacturer.
Do not disassemble the device personally, repair the device only for staff authorized by the company.
- Place and use the device in an environment of 0^ - 40^ .
Do not use the earphones for a long time. Excessive sound from the earphones can damage your hearing.
As with any bright source, do not stare into the direct beam.
- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from this device.
Unplug this device if there are lightning storms or when unused for a long period of time.
Where the power plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
Before you make or change any connections, ensure that all devices are disconnected from the power outlet.
- Never touch the power cable with wet hands.
Packing List
Before using this product, please check that all items are included in the box.
Projector
Remote Control AAA batteries
Power Cable
User Manual
EN

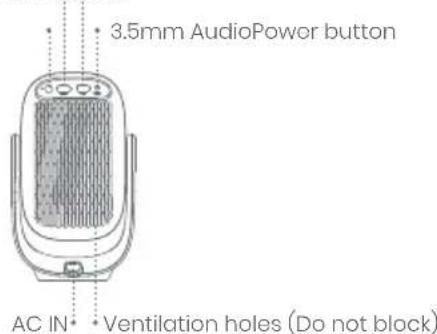

Projector Overview
Overview and interfaco description.
HDMIUSB2.0
Rear viewFront view Bottom View

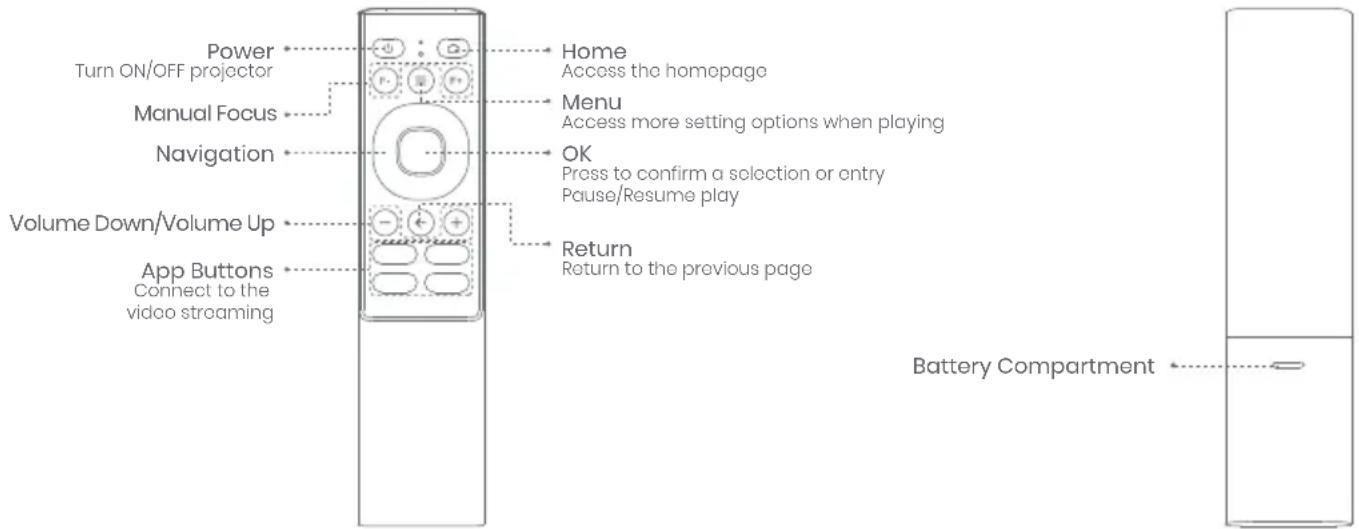

Remote Control Overview
- Open the battery compartment cover of the remote control.
Install 2 AAA batteries *. - Put back the battery compartment cover.
* Please insert new batteries according to the polarity indication.
Getting Started

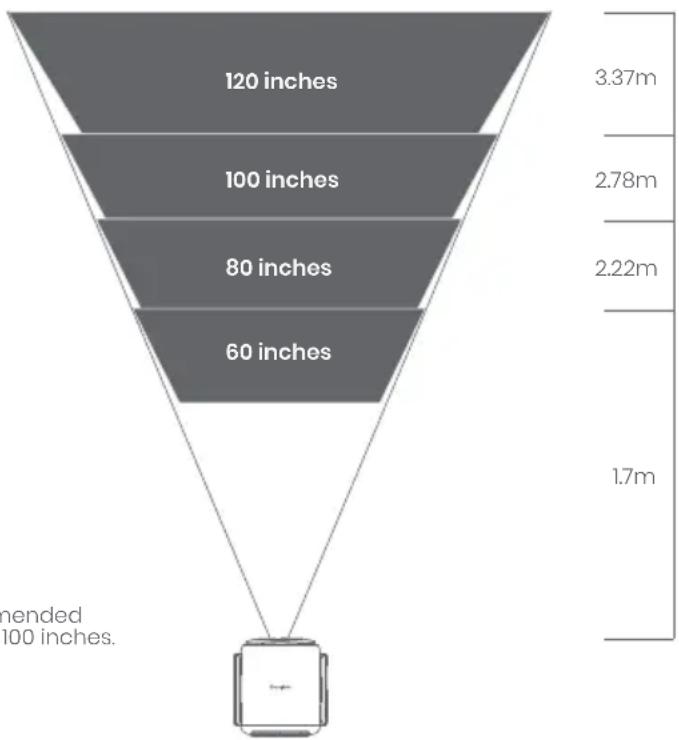

1.Placement
Position the projector on a stable, flat surface in front of the projection surface.
A flat and white projection surface is recommended.
Please follow the instructions below to determine the distance
between the projector and the projection surface,
and the corresponding projection size:
| Size | Screen (Length × Width) |
| 60 inches | 133 x 75 cm 4.36 x 2.46 ft |
| 80 inches | 177 x 100 cm 5.81 x 3.28 ft |
| 100 inches | 221 x 125 cm 7.25 x 4.10 ft |
| 120 inches | 266 x 149 cm 8.73 x 4.89 ft |
2.Power on
① Connect the projector to the power outlet.
② Press the power button on either the projector or the remote control to turn on the projector.
EN

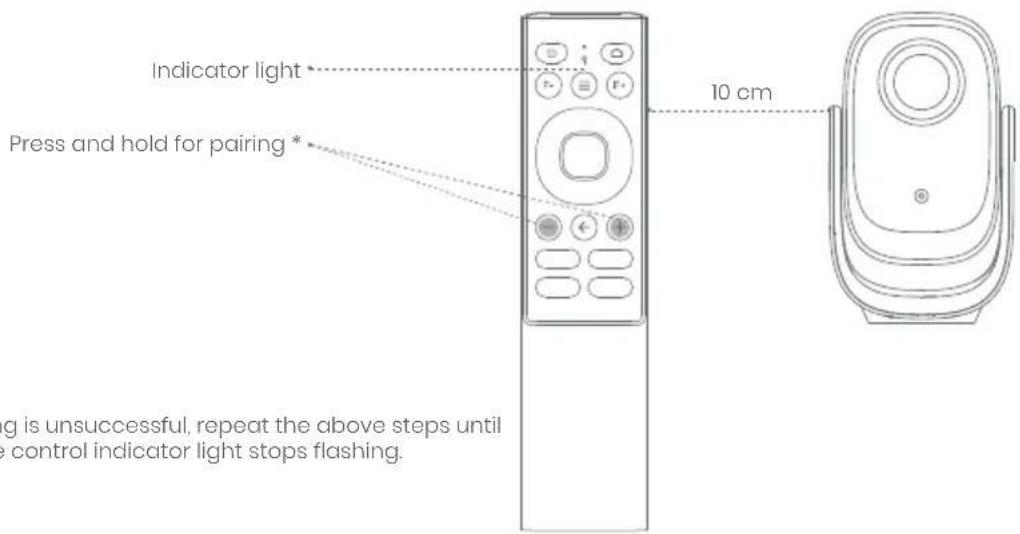

3. Remote Control Pairing
- Place the remote control within 10cm of the projector.
- For first-time use, follow the on-screen projector instructions: Simultaneously press and hold the [Volume Down] and [Volume Up] buttons until the indicator light begins to flash. (This means that the remote control is entering pairing mode.)
The connection is successful when the indicator light stops flashing.
- If the pairing is unsuccessful, repeat the above steps until the remote control indicator light stops flashing.
Network Settings
Go to [Sittings] -- [Network].
Focus Settings
- Go to [Settings] -- [Focus].
- To use Manual focus, select [Manual focus], and use the up/down buttons on the navigation keys of the remote control to adjust the focus based on what is displayed.
- It supports quick focusing with the remote control. Press the [F-] or [F+] button on the remote control to adjust the focus.
Image Correction Settings
1.Keystone Correction
- Go to [Sittings]-- [Keystone].
To use Manual keystone correction, select [Four Points Correcton] to adjust the four points and the image shape.
2.Intelligent Screen Fit
- Go to [Settings] -- [Keystone], and turn on [Auto Screen].
3.Intelligent Obstacle Avoidance
- Go to [Settings] -- [Keystone], and turn on [Auto Avoid].
Bluetooth Speaker Mode Screen Mirroring & Casting
- Open the Bluetooth Speaker application on the device.
- Turn on the Bluetooth of your mobile phone/tablet/laptop, select the device of [N2mini], and connect to it.
- Use the projector to play audio from the devices mentioned above, or connect the projector to a speaker/ headphone to play the audio from the projector.
1.Screencast
To mirror the screen of an Android/Windows device to the projector, open the app Scrooncast, and follow the on-screen instructions.

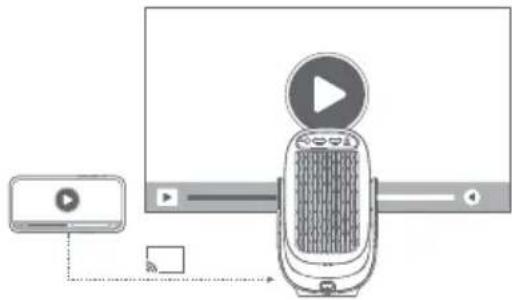

2.Homeshare
To stream content from an iOS/Android device to the projector, open the app Homeshare, and follow the on-screen instructions.
-
Mirrorcast does not support iOS devices. Homeshare only supports apps with DLNA protocol.
-

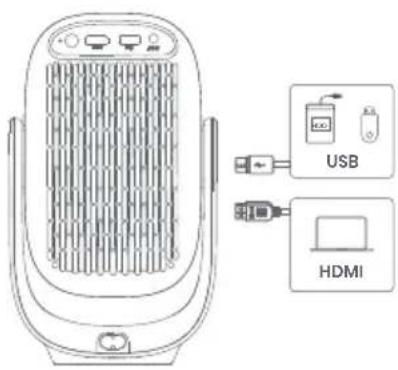

Go to [Inputs] -- HDMI/HOME/USB.
- Watch the content from the different signal sources.
*This product's HDMI interface is HDMI 1.4 and does not support 4K video signal input.
More SettingsInputs
1.Picture Mode
Go to [Settings] - [Picture Mode] to choose a picture mode from [Standard/Custom/Cinema/Sport/Vivid/Hi-Bright].
2.Sound Mode
Go to [Settings] -- [Audio] -- [Sound Style] to choose a sound mode from [User/Standard/Vivid/Sport/Music/News].
3.Projection Mode
Go to [Settings] -- [Projection] to choose the placement method of the projector.
4.Zoom
Go to [Settings] -- [Zoom] to decrease the image size from 100% to 50%.
5.Product Info
Go to [Settings] -- [About] to check the product information.
Specifications
EN
| Display Technology | LCD |
| Display Resolution | 1920 x 1080 |
| Throw Ratio | 1.25:1 |
| Speakers | 6 W |
| Bluetooth Version | 5.2 |
| Wi-Fi | Dual Frequency 2.4/5.0 GHz |
| Dimensions (L x W x H) | 143 × 149 × 241 mm 5.63 × 5.87 × 9.49 inches |
| Weight | 1.715KG / 3.78lb |
Troubleshooting
1.No audio output
a. Check if the volume is set to 0.
b. Check if the projector interface "3.5mm Audio", "HDMI" or Bluetooth is connected to an external audio device.
2. No image output
a. Press the power button on the back. The power button indicator light will turn off if the projector is powered on successfully.
b. Ensure that the power cord is properly connected to the power outlet and the projector.
3. No network
a. Enter settings, and check the network connection status in the network option.
b. Ensure that the router is correctly configured.
4.Blurry Image
a. Adjust the focus or keystone.
b. The projector and screen/wall must be positioned with an effective distance.
c. Projector lens is not clean.
5. Non-rectangular Image
a. Place the projector perpendicular to the screen/wall if keystone correction function is not used.
b. Use the keystone correction function to adjust the display.
EN
6. Automatic keystone correction failed
a. Ensure that the Camera on the front panel is not blocked or dirty.
b. The best automatic keystone correction distance is 1.3 - 3.0m horizontal ± 20^
7. Autofocus failure
a. Ensure that the Camera on the front panel is not blocked or dirty.
b. The best autofocus distance is 1.3-3.0 m, horizontal ±20°.
8. The Remote Control is unresponsive
a. Ensure that the remote control is successfully paired via Bluetooth connection. If the pairing is successful, the indicator light will flash once when a button is pressed.
b. If the pairing is unsuccessful, and the Remote Control is at IR communication, the indicator light will flash twice when a button is pressed.
c. The projector's IR receiver is located at the back. Ensure that there are no interferences or obstructions between the projector and remote control.
d. Check the battery and installation polarity.
9. Connect the Bluetooth devices
Enter settings, open the Bluetooth option to check the Bluetooth device list, and connect the device.
10. Others
Please feel free to contact us at support@dangbei.com
Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Those limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
We doclaro that this device is in compliance with the essontial requirements and other relevant provisions of Directivo 2014/53/E. Satisfies all the technical regulations applicable to the product within the scope of UK Radio Equipment Regulations (SI 2017/1206); UK Electrical Equipment (Safety) Regulations (SI 2016/1101); and UK Electromagnetic Compatibility Regulations (SI 2016/1091).
This dovico operating frequency:2402-2480MHz(EIRP<20dBm),2412-2472MHz(EIRP<20dBm),5150-5250MHz(EIRP<23dBm), 5250-5350MHz(EIRP<20dBm),5470-5725MHz(EIRP<27dBm),5725-5850MHz(EIRP<13.98dBm).
Dolby Audio
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
CANICES-3(B)/NMB-3(B)
This Class B digital apparatus complies with Canadian ICES-003.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause.
undesired operation of the device
The distance between user and products should be no less than 20cm.
5150- 5350MHz band is restricted to indoor use only.
Suite II, First Floor, Moy Road Business
Centre, Taffs Well, Cardiff, Wales, CF15 7QR
contact@evatmaster.com
We simply act as UK representative for cross-border sellers, and are not ma nufacturers/importers/distributors for the product, nor involved in the manufacture/import/sale of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/ importer/seller shall be solely held responsible.
We simply act as EU representative for cross-border sellers, and are not manufacturers/importers/distributors for the product, nor involved in the manufacture/import/sale of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/importer/seller shall be solely held responsible.
0ST_EU_2021081700003
EU DECLARATION OF CONFORMITY
Product:Smart Projection
Trademark:Dangbei
Model Designation : N2mini
Manufacturer's Name: Guangzhou Shikun Electronics Co., Ltd.
Manufacturer's Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China
Manufacturer's Phone: +86-20-82086168
We, Guangzhou Shikun Electronics Co., Ltd. declare under our sole responsibility that the above referenced product is in conformity with the applicable requirements of the following directives:
WEEE Directive:2012/19/EU
REACH Regulation: 2006/1907/EC
Conformity with these directives has been assessed for the product by demonstrating compliance to the following harmonized standards and/or regulations:
EN IEC 6231:2020
EN 55032:2015+All
ETSI EN 300440 V2.2.1
EN 62368-1:2014+A11:2017
EN 55035:2017+AI1
EN 300328 V2.2.2
EN 301489-1 V2.2.3
EN IEC 61000-3-2:2019+A2
2011/65/EU, (EU) 2015/863
EN 301489-3 V2.3.2
EN 61000-3-3:2013+A2:2021+AC:2022
2006/1907/EC
ETSI EN 301489-17 V3.2.6
EN 301893 V2.1.1
2012/19/EU
Signed for and on behalf of: Guangzhou Shikun Electronics Co., Ltd.
Place: Guangzhou, China
Date:2025-02-28
Name: Sarah Sun
Position : Certification Engineer
Signature:
UKCA DECLARATION OF CONFORMITY
Product:Smart Projector
Trademark:Dangbei
Model Designation : N2mini
Manufacturer's Name: Guangzhou Shikun Electronics Co., Ltd.
Manufacturer's Address : NO.6 Liankun Road,Huangpu District,Guangzhou,China
Manufacturer's Phone: +86-20-82086168
We, Guangzhou Shikun Electronics Co., Ltd. declare under our sole responsibility that the above referenced product is in conformity with the applicable requirements of the following directives:
RED Directive: SI 2017 No.1206
PSTI Directive: SI 2023 No.1007
Conformity with these directives has been assessed for the product by demonstrating compliance to the following harmonized standards and/or regulations:
BS EN IEC 6231:2020
BS EN 62368-1:2014+All:2017
BS EN 55035:2017+All
ETSI EN 300328 V2.2.2
ETSI EN 301489-1 V2.2.3
BS EN IEC 61000-3-2:2019+A2
SI 2022 No.622
ETSI EN 301489-3 V2.3.2
BS EN 61000-3-3:2013+A2:2021+AC:2022
SI 2019 No.758 and its amendment (UK REACH)
ETSI EN 301489-17 V3.2.6
ETSI EN 301893 V2.1.1
EISI EN 303 645 V2.1.1
BS EN 55032:2015+All
ETSI EN 300440 V2.2.1
ISO/IEC 29147
Signed for and on behalf of: Guangzhou Shikun Electronics Co., Ltd.
Place:Guangzhou,China
Date:2025-02-28
Name: Sarah Sun
Position: Certification Engineer
Signature: sah sm
Sprache Inhalt
English 01-19
Deutsch 20-38
Francais 39-57
Italiano 58-76
Espanol 77-95
日本語 96-113
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
We doclaro that this device is in compliance with the essontial requirements and other relevant provisions of Directivo 2014/53/E. Satisfies all the technical regulations applicable to the product within the scope of UK Radio Equipment Regulations (SI 2017/1206); UK Electrical Equipment (Safety) Regulations (SI 2016/1101); and UK Electromagnetic Compatibility Regulations (SI 2016/1091).
This dovico operating frequency:2402-2480MHz(EIRP<20dBm),2412-2472MHz(EIRP<20dBm),5150-5250MHz(EIRP<23dBm), 5250-5350MHz(EIRP<20dBm),5470-5725MHz(EIRP<27dBm),5725-5850MHz(EIRP<13.98dBm).
Dolby Audio
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
CANICES-3B/NMB-3B
This Class B digital apparatus complies with Canadian ICES-003.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause.
undesired operation of the device
The distance between user and products should be no less than 20cm.
5150- 5350MHz band is restricted to indoor use only.
Suite II, First Floor, Moy Road Business
Centre, Taffs Well, Cardiff, Wales, CF15 7QR
contact@evqmaster.com
We simply act as UK representative for cross-border sellers, and are not ma nufacturers/importers/distributors for the product, nor involved in the manufacture/import/ sale of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/ importer/seller shall be solely held responsible.
0ST EU 20220817000037
We simply act as EU representative for cross-border sellers, and are not manufacturers/importers/distributors for the product, nor involved in the manufacture/import/sole of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/importer/seller shall be solely held responsible.
EU DECLARATION OF CONFORMITY
Product:Smart Projector
Trademark:Dangbei
Model Designation : N2mini
Manufacturer's Name: Guangzhou Shikun Electronics Co., Ltd.
Manufacturer's Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China
Manufacturer's Phono: +86-20-82086168
We, Guangzhou Shikun Electronics Co., Ltd. declare under our sole responsibility that the above referenced product is in conformity with the applicable requirements of the following directives:
RED Directivo : 2014/53/EU
WEEE Directive:2012/19/EU
REACH Regulation: 2006/1907/EC
Conformity with these directives has been assessed for the product by demonstrating compliance to the following harmonized standards and/or regulations:
EN IEC 62311:2020
EN 55032:2015+All
ETSI EN 300440 V2.21
EN 62368-1:2014+All:2017
EN 55035:2017+All
EN 300328 V2.2.2
EN 301489-1 V2.2.3
EN IEC 61000-3-2:2019+A2
2011/65/EU, (EU) 2015/863
EN 301489-3 V2.3.2
EN 61000-3-3:2013+A2:2021+AC:2022
2006/1907/EC
ETSI EN 301489-17 V3.2.6
EN 301893 V2.1.1
2012/19/EU
Signed for and on behalf of: Guangzhou Shikun Electronics Co., Ltd.
Place: Guangzhou, China
Date:2025-02-28
Name: Sarah Sun
Position : Certification Engineer
Signature:
Langue Contenu
English 01-19
Deutsch 20-38
Francais 39-57
Italiano 58-76
Espanol 77-95
日本語 96-113
Laffectivetailledeprojection recommandeeestde100pouces.
FR
2.Mise sous tension
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
We doclaro that this dovico is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Satisfies all the technical regulations applicable to the product within the scope of UK Radio Equipment Regulations (SI 2017/1206); UK Electrical Equipment (Safety) Regulations (SI 2016/1101); and UK Electromagnetic Compatibility Regulations (SI 2016/1091).
This dovico operating frequency:2402-2480MHz(EIRP<20dBm),2412-2472MHz(EIRP<20dBm),5150-5250MHz(EIRP<23dBm), 5250-5350MHz(EIRP<20dBm),5470-5725MHz(EIRP<27dBm),5725-5850MHz(EIRP<13.98dBm).
Dolby Audio
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
CANICES-3B/NMB-3B
This Class B digital apparatus complies with Canadian ICES-003.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undosired operation of the dovico
The distance between user and products should be no less than 20cm.
5150- 5350MHz band is restricted to indoor use only.
Sutie T. First Floor, Moy Road Business Centre, Taffs Well, Cardiff, Wales, CF15 7QR contact@evatmaster.com
We simply act as UK representative for cross-border sellers, and are not ma nufacturers/importers/distributors for the product, nor involved in the manufacture/import/ sale of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/ importer/seller shall be solely held responsible.
OST_EU_2022081700003
We simply act as EU representative for cross-border sellers, and are not manufacturers/importers/distributors for the product, nor involved in the manufacture/import/sole of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/ importer/seller shall be solely held responsible.
EU DECLARATION OF CONFORMITY
Product:Smart Projection
Trademark:Dangbei
Model Designation : N2mini
Manufacturer's Name: Guangzhou Shikun Electronics Co., Ltd.
Manufacturer's Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China
Manufacturer's Phone: +86-20-82086168
We, Guangzhou Shikun Electronics Co., Ltd. declare under our sole responsibility that the above referenced product is in conformity with the applicable requirements of the following directives:
RED Directive: 2014/53/EU
WEEE Directive:2012/19/EU
Conformity with these directives has been assessed for the product by demonstrating compliance to the following harmonized standards and/or regulations:
EN IEC 6231:2020
EN 62368-1:2014+AII:2017
EN 301489-1 V2.2.3
EN 301489-3 V2.3.2
ETSI EN 301489-17 V3.2.6
RoHS Directive: 2011/65/EU
REACH Regulation: 2006/1907/EC
(EU) 2015/863
EN 55032:2015+All
EN 55035:2017+AI1
EN IEC 61000-3-2:2019+A2
EN 61000-3-3:2013+A2:2021+AC:2022
EN 301893 V2.1.1
ETSI EN 300440 V2.2.1
EN 300328 V2.2.2
2011/65/EU, (EU) 2015/863
2006/1907/EC
2012/19/EU
Signed for and on behalf of: Guangzhou Shikun Electronics Co., Ltd.
Place: Guangzhou, China
Date:2025-02-28
Name: Sarah Sun
Position : Certification Engineer
Signature:
Lingua Contenuti
English 01-19
Deutsch 20-38
Francais 39-57
Italiano 58-76
Espanol 77-95
日本語 96-113
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Those limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
We declare that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Satisfies all the technical regulations applicable to the product within the scope of UK Radio Equipment Regulations (SI 2017/1206); UK Electrical Equipment (Safety) Regulations (SI 2016/1101); and UK Electromagnetic Compatibility Regulations (SI 2016/1091).
This device operating frequency:2402-2480MHz(EIRP<20dBm),2412-2472MHz(EIRP<20dBm),5150-5250MHz(EIRP<23dBm), 5250-5350MHz(EIRP<20dBm),5470-5725MHz(EIRP<27dBm),5725-5850MHz(EIRP<13.98dBm).
Dolby Audio
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
CANICES-3B/NMB-3B
This Class B digital apparatus complies with Canadian ICES-003.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause.
undesired operation of the device
The distance between user and products should be no less than 20cm.
5150-5350MHz band is restricted to indoor use only.
Suite II, First Floor, Moy Road Business
Centre, Taffs Well, Cardiff, Wales, CF15 7QR
contact@evatmaster.com
We simply act as UK representative for cross-border sellers, and are not ma nufacturers/importers/distributors for the product, nor involved in the manufacture/import/ sale of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/ importer/seller shall be solely held responsible.
( x - 1) ( x + 3) = 0
OST_EU_20220817000037
We simply act as EU representative for cross-border sellers, and are not manufacturers/importers/distributors for the product, nor involved in the manufacture/import/sole of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/ importer/seller shall be solely held responsible.
EU DECLARATION OF CONFORMITY
Product:Smart Projector
Trademark:Dangbei
Model Designation : N2mini
Manufacturer's Name: Guangzhou Shikun Electronics Co., Ltd.
Manufacturer's Address : NO.6 Liankun Road,Huangpu District,Guangzhou,China
Manufacturer's Phone: +86-20-82086168
We, Guangzhou Shikun Electronics Co., Ltd. declare under our sole responsibility that the above referenced product is in conformity with the applicable requirements of the following directives:
RED Directive: 2014/53/EU
RoHS Directive: 2011/65/EU
(EU) 2015/863
WEEE Directive:2012/19/EU
REACH Regulation: 2006/1907/EC
Conformity with these directives has been assessed for the product by demonstrating compliance to the following harmonized standards and/or regulations:
EN IEC 6231:2020
EN 55032:2015+AI1
ETSI EN 300440 V2.21
EN 62368-1:2014+A11:2017
EN 55035:2017+AI1
EN 300328 V2.2.2
EN 301489-1 V2.2.3
EN IEC 61000-3-2:2019+A2
2011/65/EU, (EU) 2015/863
EN 301489-3 V2.3.2
EN 61000-3-3:2013+A2:2021+AC:2022
2006/1907/EC
ETSI EN 301489-17 V3.2.6
EN 301893 V2.1.1
2012/19/EU
Signed for and on behalf of: Guangzhou Shikun Electronics Co., Ltd.
Place: Guangzhou, China
Date:2025-02-28
Name: Sarah Sun
Position: Certification Engineer
Signature:
Idioma Índice
English 01-19
Deutsch 20-38
Francais 39-57
Italiano 58-76
Espanol 77-95
日本語 96-113
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
We doclaro that this dovico is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Satisfies all the technical regulations applicable to the product within the scope of UK Radio Equipment Regulations (SI 2017/1206); UK Electrical Equipment (Safety) Regulations (SI 2016/1101); and UK Electromagnetic Compatibility Regulations (SI 2016/1091).
This dovico operating frequency:2402-2480MHz(EIRP<20dBm),2412-2472MHz(EIRP<20dBm),5150-5250MHz(EIRP<23dBm), 5250-5350MHz(EIRP<20dBm),5470-5725MHz(EIRP<27dBm),5725-5850MHz(EIRP<13.98dBm).
Dolby Audio
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
CANICES-3B/NMB-3B
This Class B digital apparatus complies with Canadian ICES-003.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause.
undesired operation of the device
The distance between user and products should be no less than 20cm.
5150- 5350MHz band is restricted to indoor use only.
Sutie T. First Floor, Moy Road Business Centre, Taffs Well, Cardiff, Wales, CF15 7QR contact@evatmaster.com
We simply act as UK representative for cross-border sellers, and are not ma nufacturers/importers/distributors for the product, nor involved in the manufacture/import/ sale of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/ importer/seller shall be solely held responsible.
OST_EU_2022081700003
We simply act as EU representative for cross-border sellers, and are not manufacturers/importers/distributors for the product, nor involved in the manufacture/import/sole of the product. Therefore, we are not responsible for any after-sales services related to the product. In case of any product quality or infringement issues, the manufacturer/ importer/seller shall be solely held responsible.
EU DECLARATION OF CONFORMITY
Product:Smart Projection
Trademark:Dangbei
Model Designation : N2mini
Manufacturer's Name: Guangzhou Shikun Electronics Co., Ltd.
Manufacturer's Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China
Manufacturer's Phone: +86-20-82086168
We, Guangzhou Shikun Electronics Co., Ltd. declare under our sole responsibility that the above referenced product is in conformity with the applicable requirements of the following directives:
RED Directive: 2014/53/EU
RoHS Directive: 2011/65/EU
(EU) 2015/863
WEEE Directive:2012/19/EU
REACH Regulation: 2006/1907/EC
Conformity with these directives has been assessed for the product by demonstrating compliance to the following harmonized standards and/or regulations:
EN IEC 6231:2020
EN 55032:2015+AI
ETSI EN 300440 V2.2.1
EN 62368-1:2014+A11:2017
EN 55035:2017+All
EN 300328 V2.2.2
EN 301489-1 V2.2.3
EN IEC 61000-3-2:2019+A2
2011/65/EU, (EU) 2015/863
EN 301489-3 V2.3.2
EN 61000-3-3:2013+A2:2021+AC:2022
2006/1907/EC
ETSI EN 301489-17 V3.2.6
EN 301893 V2.1.1
2012/19/EU
Signed for and on behalf of: Guangzhou Shikun Electronics Co., Ltd.
Place: Guangzhou, China
Date:2025-02-28
Name: Sarah Sun
Position : Certification Engineer
Signature:
言語 目次
English 01-19
Deutsch 20-38
Français 39-57
Italiano 58-76
Espanol 77-95
日本語 96-113
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
We doclaro that this dovico is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Satisfies all the technical regulations applicable to the product within the scope of UK Radio Equipment Regulations (SI 2017/1206); UK Electrical Equipment (Safety) Regulations (SI 2016/1101); and UK Electromagnetic Compatibility Regulations (SI 2016/1091).
This dovico operating frequency:2402-2480MHz(EIRP<20dBm),2412-2472MHz(EIRP<20dBm),5150-5250MHz(EIRP<23dBm), 5250-5350MHz(EIRP<20dBm),5470-5725MHz(EIRP<27dBm),5725-5850MHz(EIRP<13.98dBm).
Dolby Audio
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
CANICES-3B/NMB-3B
This Class B digital apparatus complies with Canadian ICES-003.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause.
undesired operation of the device
The distance between user and products should be no less than 20cm.
5150-5350MHz band is restricted to indoor use only.
User Guides in More Languages
Dangbei
Smart Projector
Model: N2mini
Input:100-240V~50/60Hz 2A
USB Output:5V = = = 1.0A
Manufacturer: Guangzhou Shikun Electronics Co., Ltd.
Address: NO.6 Liankun Road, Huangpu District, Guangzhou, China
Customer Support: support@dangbei.com
For FAQs, user guides in multiple languages to download, and more information, please visit us.dangbei.com
