USER MANUAL BBS711ANM BOSCH

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratın veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[hu]	Olvassa be a QR-kódot vagy keresse fel a weboldalt a kibővített használati utasítás megnyitásához. Ott ki-egészítő információkat talál a készülékkel vagy tartozékkal kapcsolatban.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.
[ro]	Scanați codul QR sau accesăți site-ul web pentru a obține mai mult recomandări privind utilizarea. Acolo veți găsi mai multe informații privind aparatul dumneavoastră sau accesoriiile.
[cs]	Pro další informace k používání načtěte QR kód nebo navštivte webovou stránku. Tam najdete další informace ke spotřebiči nebo příslušenství.

QR code image containing encoded data, no visible human-readable text

https://digitalguide.bsh-group.com?mat-no=8001222557

Diagram of a vacuum cleaner with numbered parts and component labels in Chinese

CLICK

2

CLICK

3

CLICK

4

CLICK CLICK

5

Diagram showing two views of a blue industrial device with a black arrow pointing to a component, and a close-up of its internal structure with a warning icon (no text or symbols present)

6

Diagram showing installation steps of a washing machine with labeled components and wiring connections

7

Diagram showing two steps of a blue plastic container being inserted, labeled with arrows and numbered annotations.

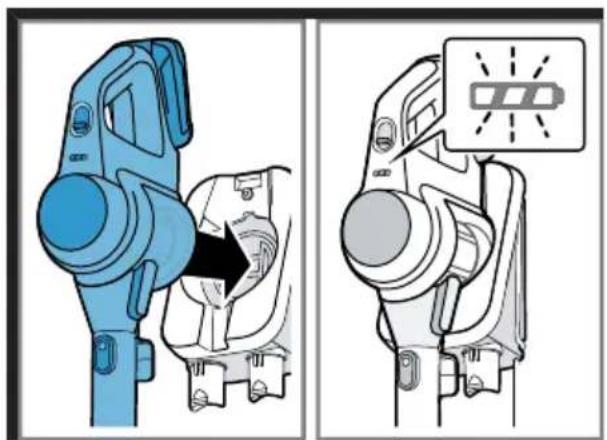

8

Illustration of a blue plastic device being inserted into a power terminal (no text or symbols visible)

9

CLICK

10

Diagram of a device with a speaker and control panel, showing no text or symbols

11

Diagram showing a car interior with a highlighted component and an arrow pointing to a light indicator symbol.

12

0 Eco Turbo Auto ①

The image is too blurry to recognize any text content.

Diagram showing a hand using a blue brush to adjust a cleaning tool, labeled with step numbers ① and ②.

14

CLICK CLICK

The image is too blurry to recognize any text content.

CLICK

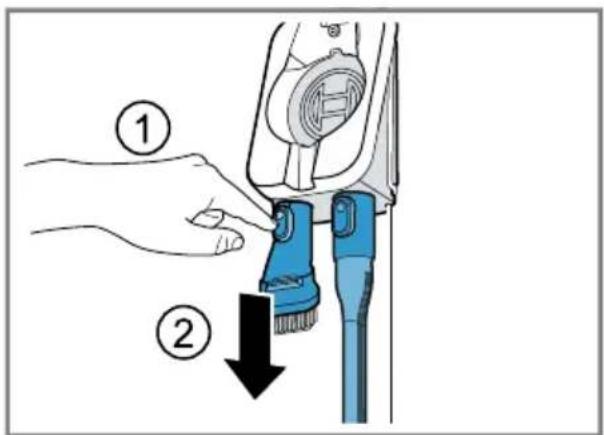

16

CLICK

-

CLICK CLICK

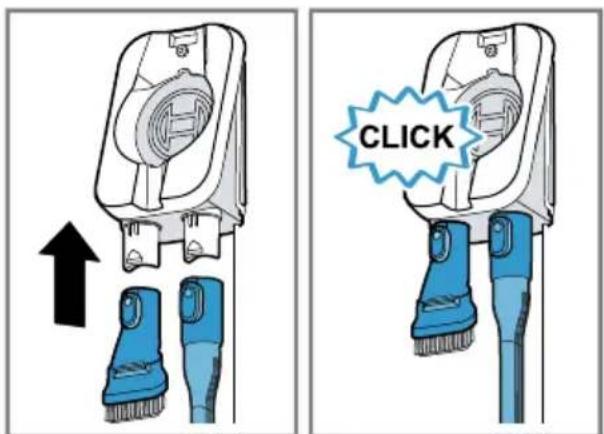

18

max 90° ② ①

19

Line drawing of a robotic arm interacting with a small mechanical component, placed on a floor near a cabinet (no text or symbols)

20

CLICK

The image is too blurry to recognize any text content.

Diagram illustrating robot arm joint positioning and drag mechanism, showing step 1 and step 2 with a 'CLICK' button.

22

Illustration of a person's foot using a blue ergonomic lift device, showing the foot and leg (no text or symbols)

The image is too blurry to recognize any text content.

Diagram illustrating foot movement and grip mechanism in a robotic arm, with labeled parts and directional arrows indicating motion.

24

CLICK ① ②

The image is too blurry to recognize any text content.

Diagram of a blue ergonomic device with labeled parts and directional arrows indicating movement or adjustment.

26

Diagram showing two steps of a cleaning or cleaning process: step 1 contains a blue plastic container, step 2 shows a blue plastic bag with arrows indicating the process.

27

Illustration showing three blue 'X' marks above icons: a brush, a plate with mesh, and a bottle with a checkmark.

28

max

29

Diagram showing two steps of a device operation: step 1 indicates the first step, and step 2 indicates the second step.

30

Diagram illustrating two stages of a cleaning or dust removal process: step 1 shows a funnel with upward arrow, and step 2 shows a moving device emitting particles.

31

① ③ CLICK

32

Diagram illustrating a mechanical device with numbered steps and directional arrows indicating process flow.

33

Diagram of a mechanical device with a blue cylindrical component and an upward arrow, no text or symbols present.

34

Diagram illustrating two steps of a mechanical device: step 1 shows hand positioning and rotation, step 2 shows press application with directional arrows.

35

Illustration showing a hand pouring liquid into a trash bin with a 'no waste' symbol, indicating a hazardous or ungarant disposal method.

36

Illustration showing two steps of cleaning a trash bin: pouring contents into a container and sweeping it with a person (no text or symbols)

The image is too blurry to recognize any text content.

Diagram illustrating the step-by-step instructions for installing a lock mechanism on a device, with labeled steps 1 and 2.

38

Diagram illustrating a device's cleaning process with numbered steps and a 'CLICK' button, showing step 1 before cleaning and step 2 after cleaning.

39

Cross-sectional diagram of a mechanical device with internal blue component and scissors (no text or symbols)

40

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

■ Do not connect the appliance if it has been damaged in transit. Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.

■ for cleaning surfaces.

■ in private households and in enclosed spaces in a domestic environment at room temperature.

■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  ▶ Never operate a damaged appliance.

en Safety

▶ Never operate an appliance with a cracked or fractured surface.
▶ Call customer services. → Page 19
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the charging cable ^1 and the quick charger ^1 only in accordance with the specifications on the rating plate.
- Connect the charging cable ^1 and the quick charger ^1 to a power supply with alternating current only via a properly installed socket with earthing.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
- Ensure that children do not play with the appliance, even when it is in the base station ^1 .
▶ Persons with electronic implants must stand at least 10 cm away from the appliance.
- Keep packaging material away from children.
- Do not let children play with packaging material.
▶ Protect the battery against fire, heat and constant sunlight.
▶ Protect the battery against water and penetrating moisture.
▶ Never open the battery.
- When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws.
▶ Supply fresh air.
▶ If there are any problems, seek medical advice from a doctor.

▶ If these come into contact with the skin, wash immediately with cold water.
▶ If these come into contact with the eyes, seek medical help.

Preventing material damage

▶ Check and clean any wet objects.
▶ Replace damaged objects.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never use the nozzle without the brush roller in place.
▶ Never operate the appliance without the filter unit.

Overview

You can find an overview of the parts of your appliance here.

→ Fig. 1

1	Dust container
2	Fluff filter
3	Cartridge filter
4	Power control and on/off switch
5	Status display
6	Dust container release button
7	Storage hook
8	Flexible suction pipe
9	Foot release
10	Universal floor nozzle with free-standing function

Installing the base station

▶ Check whether any household wiring could be damaged in the installation area.
- Do not install the base station horizontally or vertically above, below or next to a socket.

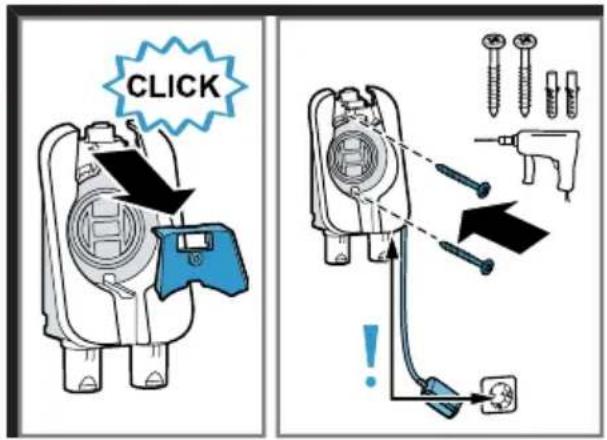

→Fig. 2 - 3

Operation

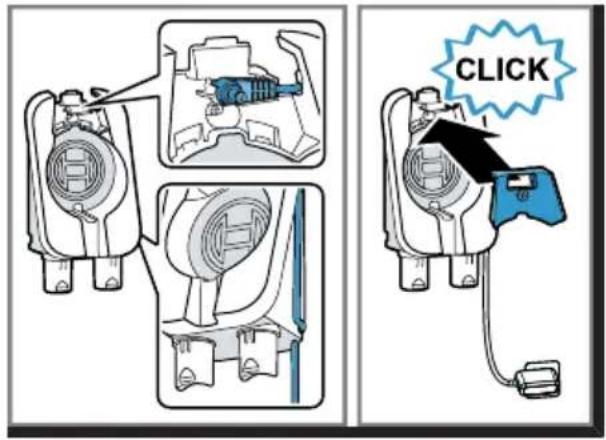

Installing the appliance

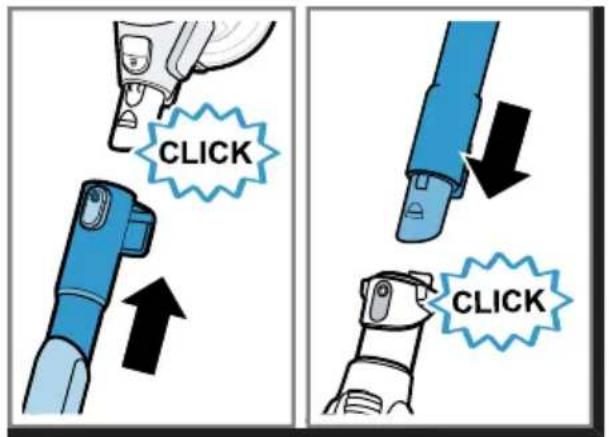

→ Fig. 4 - 5

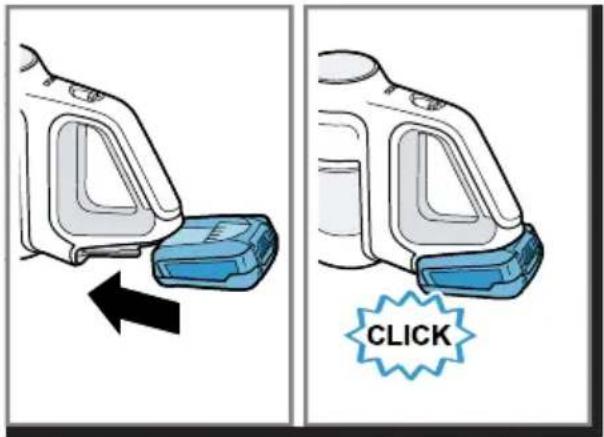

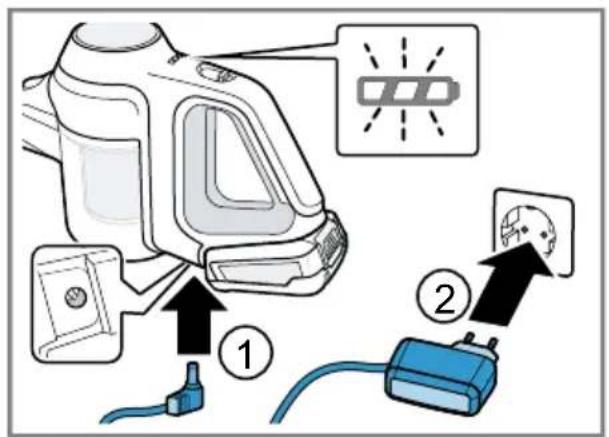

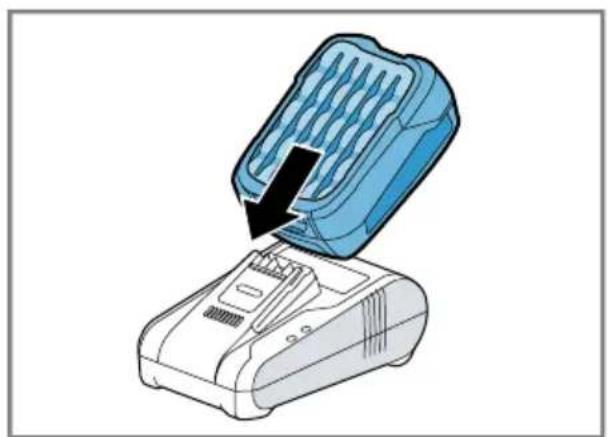

Charging the appliance

▶ Only charge the battery in chargers that are recommended by the manufacturer.
▶ Only use the battery in connection with the Bosch appliance.
- Charge the battery using the original charging cable ^1 or the original quick charger ^1 .
▶ Only use batteries from the Power for ALL 18 V series.
- Ensure that children do not play with the appliance, even when it is in the base station ^1 .

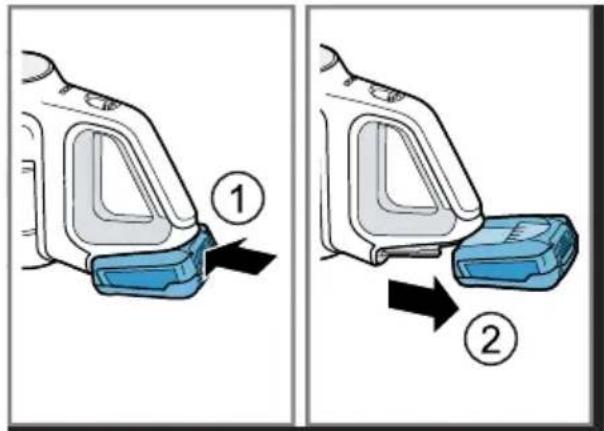

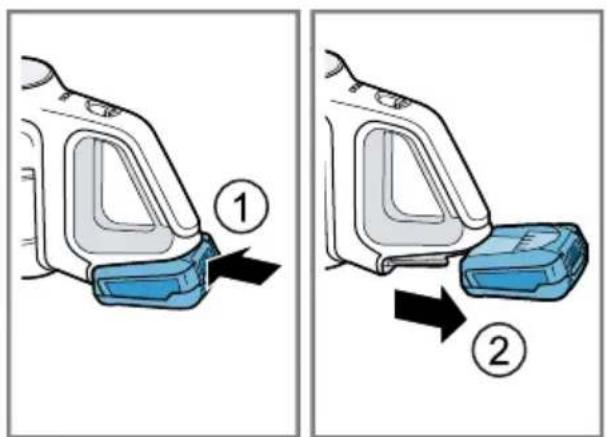

→ Fig. 6 - 10

Battery runtimes

You can find an overview of the battery runtimes, depending on the battery that is used, here.

Notes

■ The appliance features intelligent battery detection. With 2.50 Ah and 3.0 Ah batteries from the Power for ALL 18 V series, the appliance is designed for everyday cleaning tasks. The 4.0 Ah Power + battery from the Power for ALL 18 V series optimises the appliance for the runtime. With the 5.0 Ah battery in the Power for ALL 18 V series, the appliance is designed for particularly difficult cleaning tasks.
■ The following modes affect the battery runtime:

• Mode 1: Eco mode with non-electrical accessory
• Mode 2: Eco mode with electrical floor nozzle
• Mode 3: Auto mode with electrical floor nozzle
• Mode 4: Turbo mode with electrical floor nozzle

Runtime 2,5 Ah 3,0 Ah 4,0 Ah Power+ 5,0 Ah

Mode 1 up to min.	35 40 45 35
Mode 2 up to min.	25 30 35 30
Mode 3 up to min.	12 15 20 25
Mode 4 up to min.	8 10 10 12

Notes

■ Like every Li-ion battery, the batteries from the Power for ALL 18 V series wear out over time, meaning that the battery capacity and the runtime decrease. This is a natural aging process and not the result of a material error, manufacturing error or material defect.
■ You can delay the natural wear by using the following measures:

• Only charge the battery in the temperature range between 0^ and 45^ .
• Only store the battery in the temperature range between -20 °C and 50 °C.
• Do not store the battery for an extended period of time if it is fully charged or fully discharged.

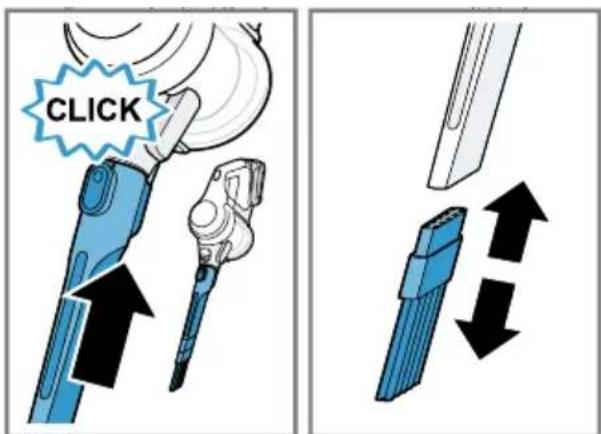

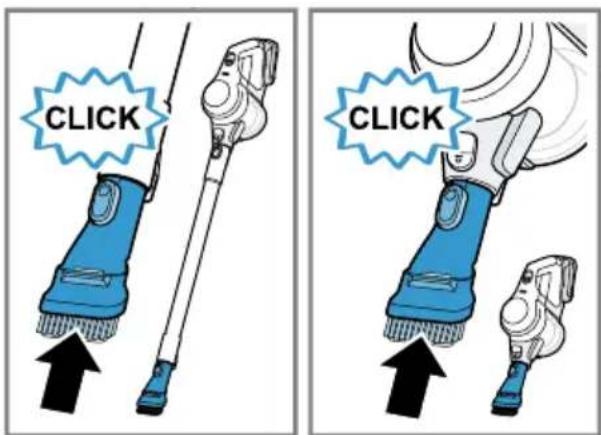

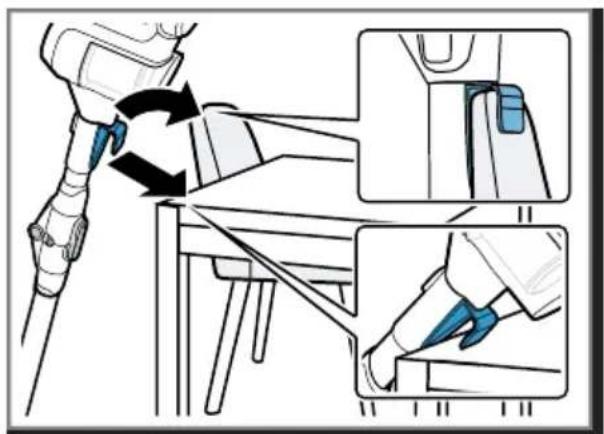

Operating the appliance

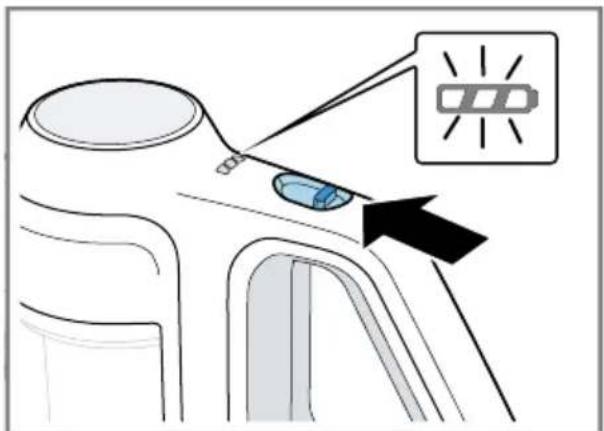

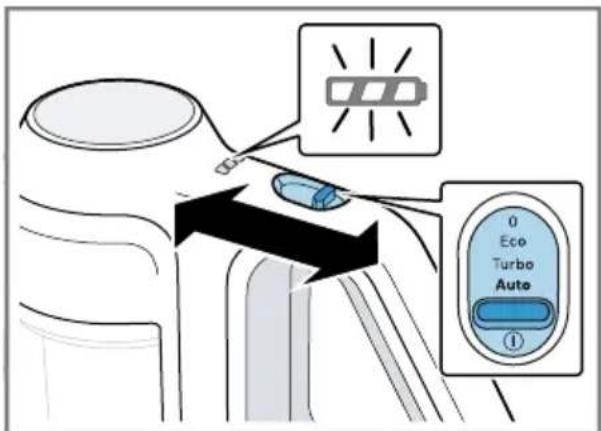

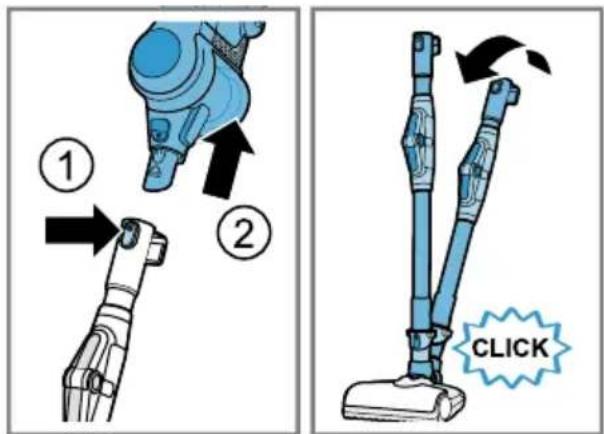

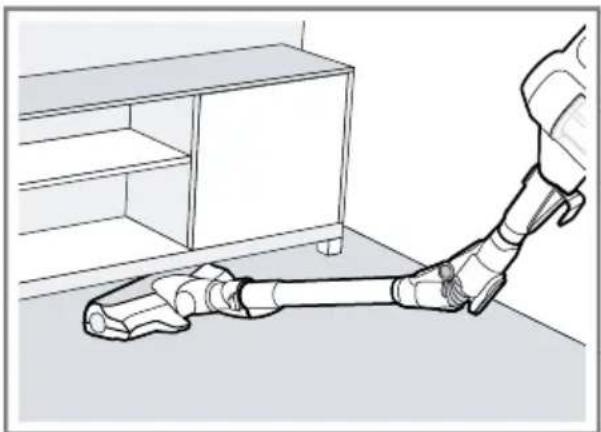

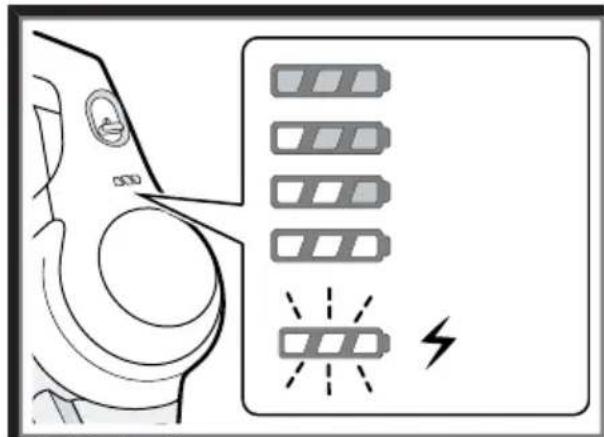

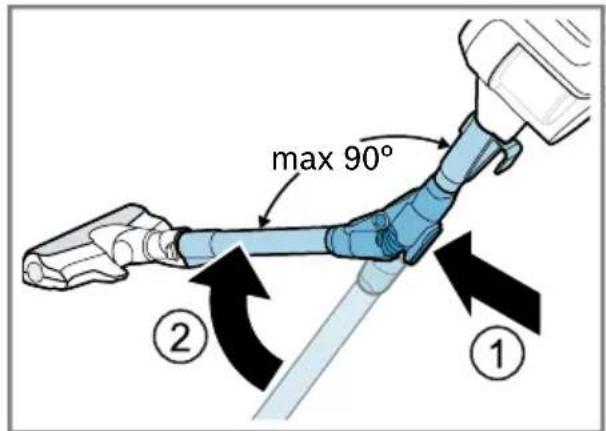

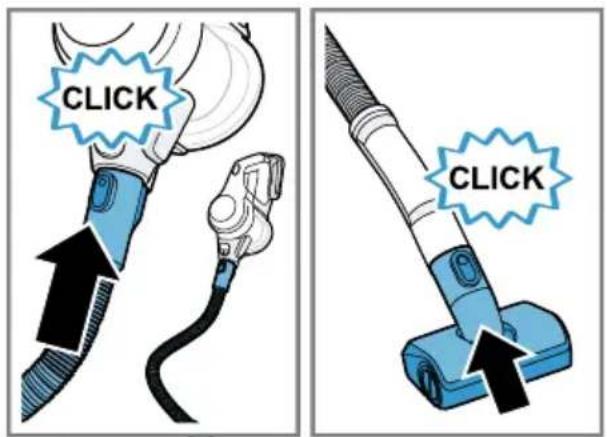

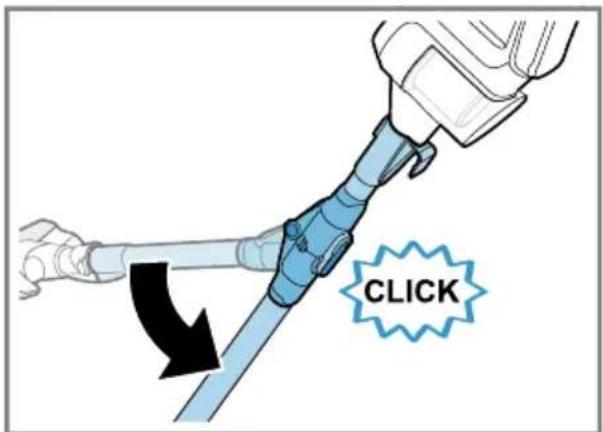

→ Fig. 11 - 24

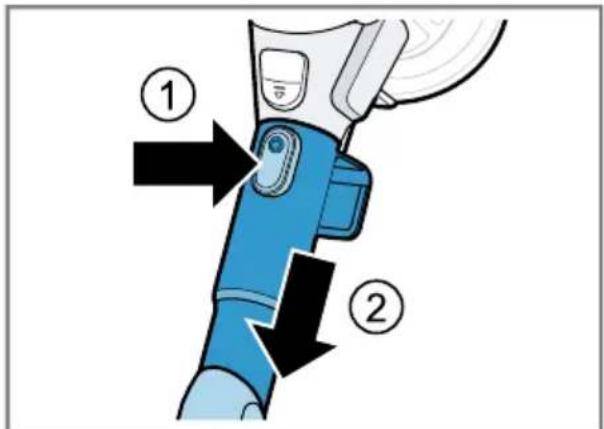

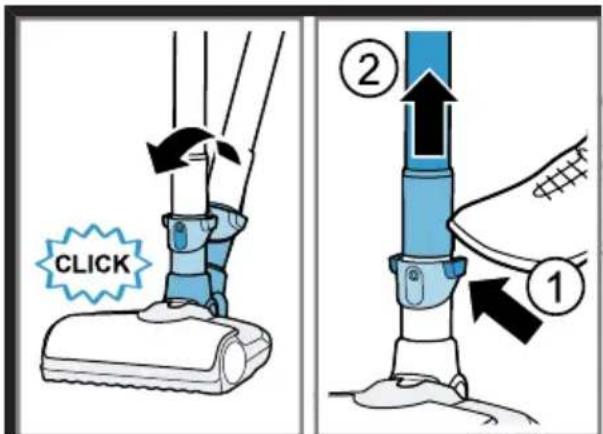

Removing the appliance

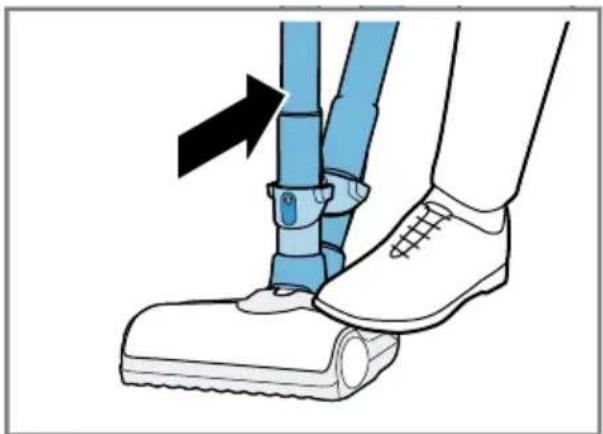

→ Fig. 25 - 27

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

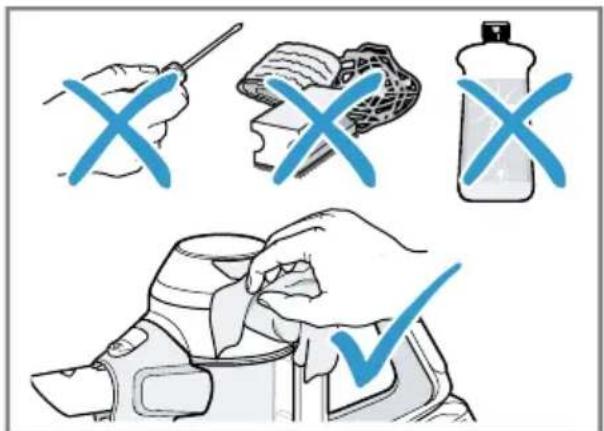

Cleaning the appliance

→ Fig. 28 - 28

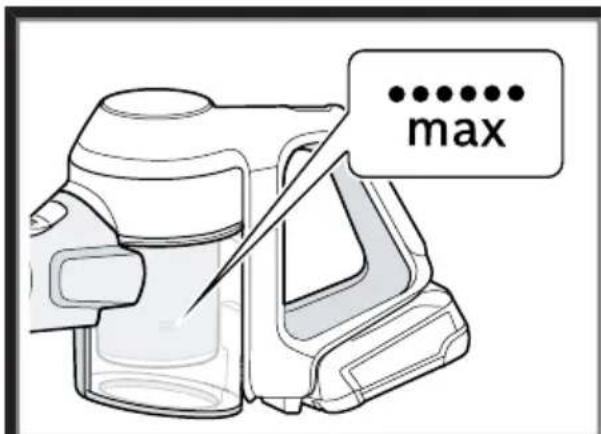

Emptying the dust container

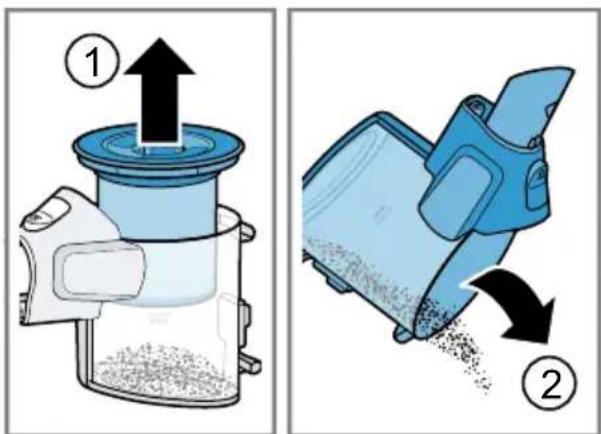

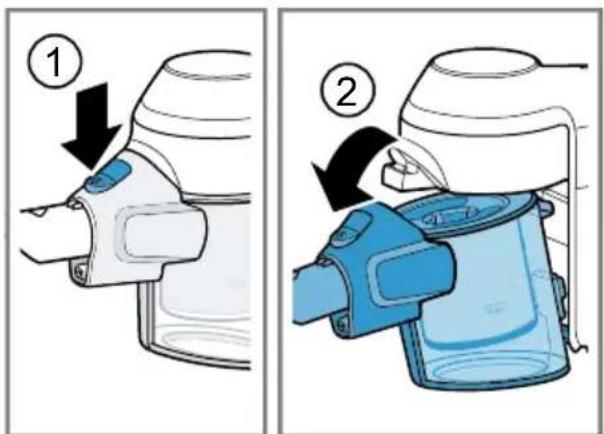

→ Fig. 29 - 32

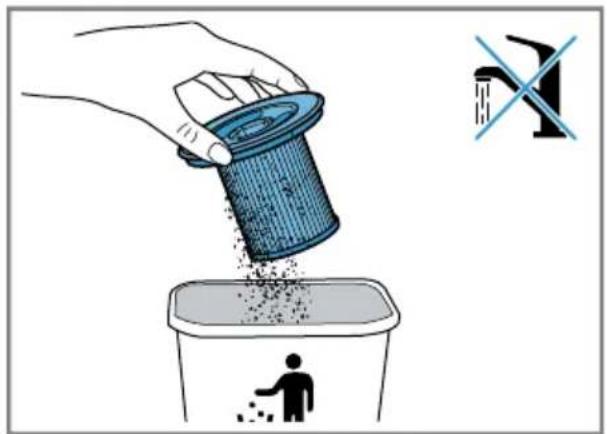

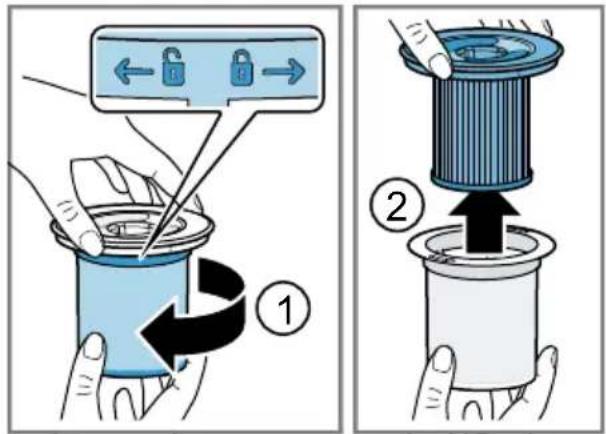

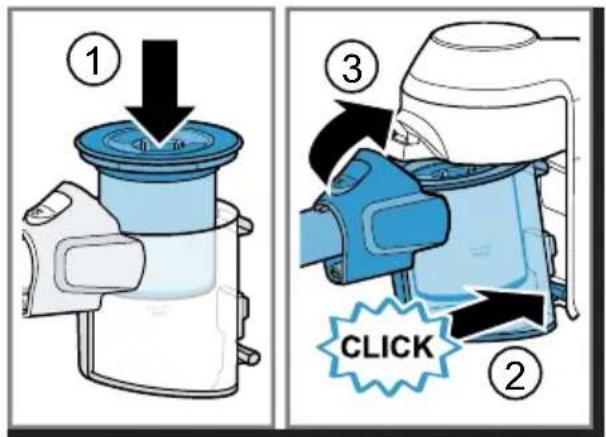

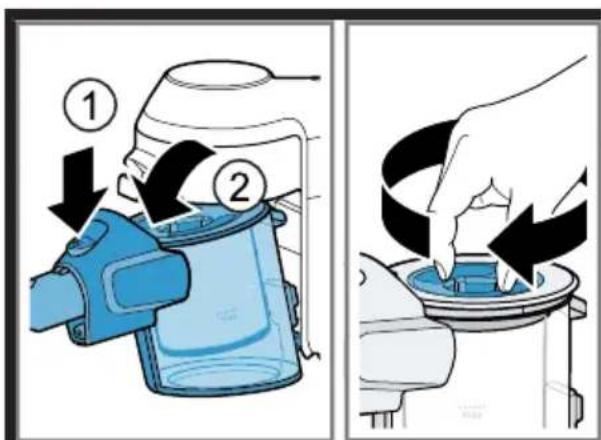

Cleaning the filter unit

▶ Never allow the filters to come into contact with liquids.

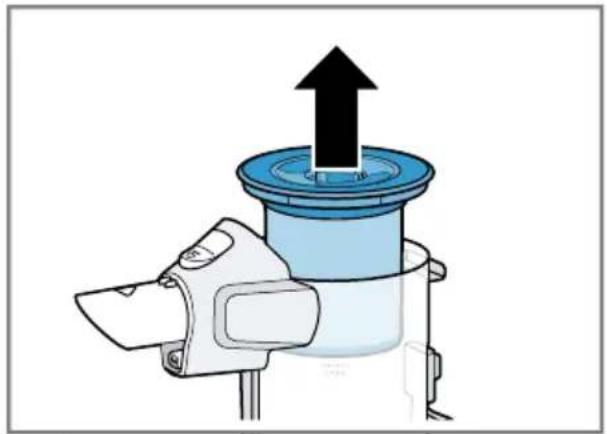

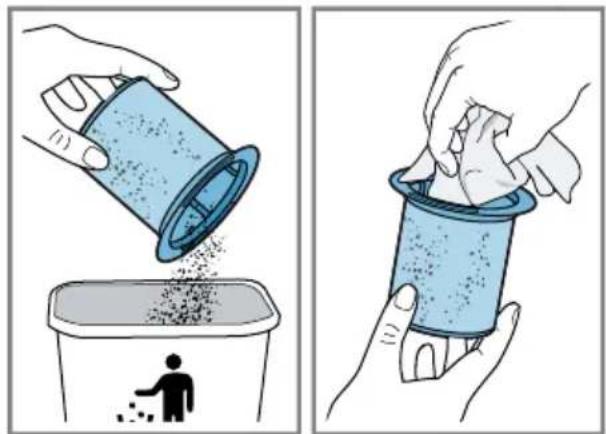

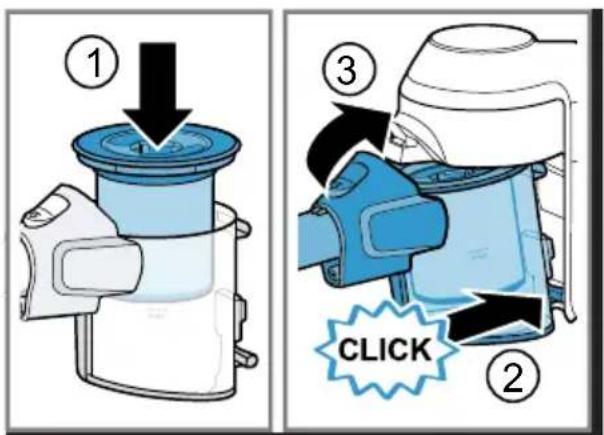

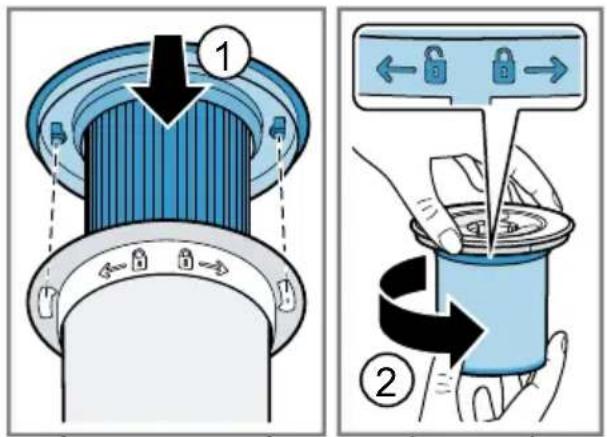

→ Fig. 33 - 39

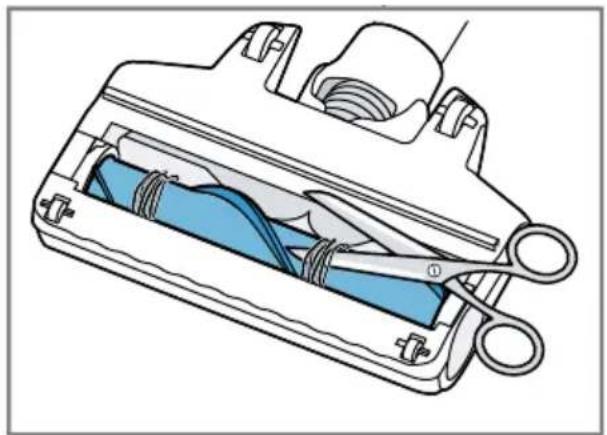

Cleaning the floor nozzle

→ Fig. 40 - 40

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.

The appliance is not working.

The battery status display does not show any status.

The battery has not been inserted correctly.

The battery has not been charged.

The red fault indicator lights up for 10 seconds.

The battery has overheated or overcooled.

The appliance has overheated or overcooled.

No charging function.

Incorrect charger was used.

▶ Only use the charger that is included.

The dust container cannot be inserted.

The filter unit is not complete.

- Check whether the filter unit is complete.

The filter unit or dust container is not positioned correctly.

- Check whether the filter unit and dust container are inserted correctly.

Suction is reduced.

The filter is blocked.

1. Switch off the appliance and disconnect the appliance from the power supply.

2. Clean the filter unit.

The nozzle is blocked.

1. Switch off the appliance and disconnect the appliance from the power supply.

2. Check whether the air channel from the nozzle to the appliance is blocked.

3. Empty the dust container.

4. Clean the filter unit.

5. Once the appliance has cooled down, switch the appliance back on.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

- Dispose of batteries in an environmentally friendly manner.

According to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Sécurité

Accu is oververhit of onderkoeld.

Apparaat is oververhit of onderkoeld.

Laden werkt niet.

Duração 2,5 Ah 3,0 Ah 4,0 Ah Power+ 5,0 Ah

Çalışma süresi 2,5 Ah 3,0 Ah 4,0 Ah Power+ 5,0 Ah

Mod 1, maks. dakika	35 40 45 35
Mod 2, maks. dakika	25 30 35 30
Mod 3, maks. dakika	12 15 20 25
Mod 4, maks. dakika	8 10 10 12

Notlar

QR code image containing encoded data, no visible human-readable text

Siguranța

Durata de fun- 2,5 Ah 3,0 Ah 4,0 Ah Power+ 5,0 Ah cționare

Doba provozu 2,5 Ah 3,0 Ah 4,0 Ah Power+ 5,0 Ah

Režim 1 až min. 35 40 45 35

Režim 2 až min. 25 30 35 30

Režim 3 až min. 12 15 20 25

Režim 4 až min. 8 10 10 12

Poznámky
