STAR_PS_06 - Projection screen Fromm & Starck - Free user manual and instructions

Product Type	Projection Screen
Brand	Fromm & Starck
Model	STAR_PS_06
Product Dimensions (L x W x H)	3400 x 800 x 2620 mm
Screen Dimensions (Visible)	3319 x 1867 mm
Weight	13.5 kg
Aspect Ratio	16:9
Screen Type	White matte projection screen fabric
Power	None (manual operation)
Usage	Indoor and outdoor (with ground stakes)
Assembly	Recommended for at least two people
Included Accessories	Assembly parts, ground stakes
Maintenance	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Keep out of reach of children and animals. Do not touch the screen surface. Do not fold the screen. Do not use outdoors in bad weather.
Reparability	In case of malfunction, contact the manufacturer's service department. No spare parts specified.
Operating Temperature	Suitable for indoor and outdoor use in dry weather
Color	Frame: not specified (probably black), screen: white

Frequently Asked Questions - STAR_PS_06 Fromm & Starck

How to assemble the STAR_PS_06 projection screen?

Assembly requires at least two people. Follow the diagram of the assembly elements (A to L) provided in the manual. Make sure to secure the structure firmly and, for outdoor use, use the included stakes to stabilize the product on the ground.

Can I use this screen outdoors?

Yes, the screen can be used outdoors in dry weather. It is essential to secure it to the ground with the provided stakes. Do not use it in rain or strong wind, and do not leave it outside overnight.

How to clean the projection screen?

Clean the screen with a soft, dry cloth. Never use chemical or abrasive products. Do not touch the screen surface with your fingers to avoid marks.

What are the exact dimensions of the product?

The product dimensions (L x W x H) are 3400 x 800 x 2620 mm. The visible screen area measures 3319 x 1867 mm, in 16:9 format.

Is the screen motorized?

No, the STAR_PS_06 screen is a manual model. It requires no electrical power and is deployed using its assembly system.

How many people are needed for assembly?

It is recommended that at least two people participate in assembly due to the size and weight of the screen (13.5 kg).

What to do if the screen is damaged?

In case of damage or doubt about proper operation, contact the manufacturer's service department. Do not attempt to repair the device yourself. Keep the manual for reference.

Are the ground stakes included?

Yes, stakes are supplied in the package to secure the screen to the ground when used outdoors.

Can I fold the projection screen?

No, it is strongly advised not to fold the screen. This could damage the projection surface. Handle it with care.

What other models are available?

The STAR_PS range also includes the STAR_PS_04 and STAR_PS_05 models, with smaller dimensions. Refer to the manual for their specifications.

USER MANUAL STAR_PS_06 Fromm & Starck

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Projectile screen
Model	STAR_PS_04	STAR_PS_05	STAR_PS_06
Product dimensions [mm]	1965x810x1810	2325x810x2100	3400x800x2620
Screen dimensions [mm]	1860x1050	2212x1245	3319x1867
Weight [kg]	7.2	8	13.5

General Description

This manual is intended to assist you for safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components, and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE USE.

To ensure long and reliable operation of the product, operate and maintain it correctly, strictly in compliance with this manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to modifications for the purpose of quality improvement.

Explanation of symbols

Read the manual before use.

CAUTION! or WARNING! or REMEMBER! General warning sign.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

SAFETY OF USE

The term "device" or "product" in the warnings and in the description of the manual refers to

Projector screen

a) If in doubt as to whether the product is working properly or found to be damaged, contact the manufacturer's technical service.
b) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
c) Keep packaging components and small installation parts out of the reach of children.
d) Keep the product away from children and animals.
e) When using this product with other devices, also follow the other instructions for use.
f) The product is not a toy. Children should not play with the product.
g) Keep the product away from sources of fire and heat.
h) Do not touch the screen surface.
i) Do not write or draw on the surface of the screen.
j) Do not fold the screen!
k) Do not use the product outdoors in bad weather, especially in rain and wind.
I) When using the product outside, do not leave it overnight, regardless of the weather.

CAUTION!

Although the device is designed to be safe, it is recommended to exercise caution and common sense when using it.

ASSEMBLY ELEMENTS

Symbol	Element	Models STAR_PS_04 STAR_PS_05	Model STAR_PS_06
A		2	2
B		2	2
C		2	4
D		4	4
E		2	2
F		2	2
G		2	2
H		4	4
I		6	6
J		4	4
K		4	4
L		4	4

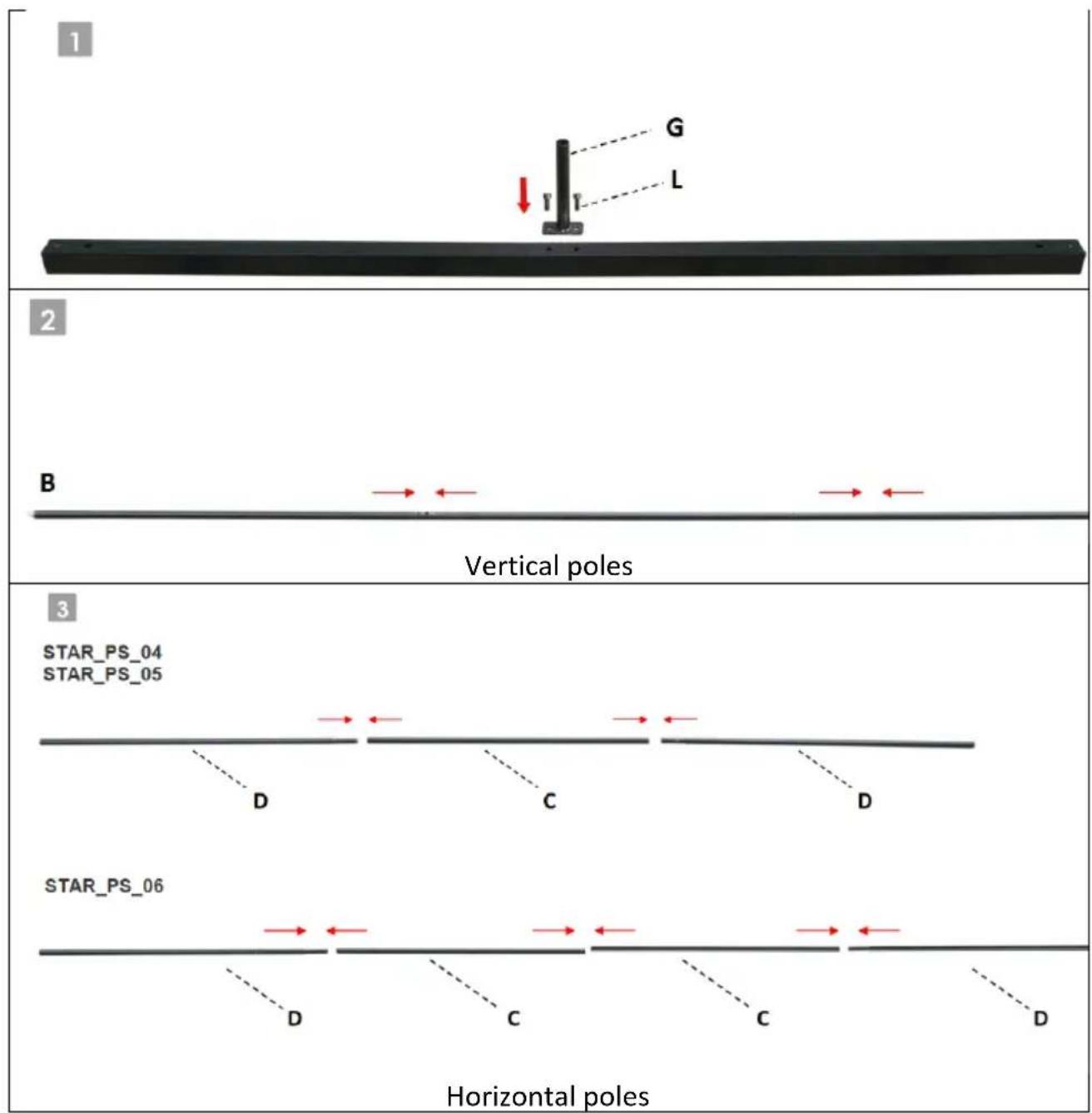

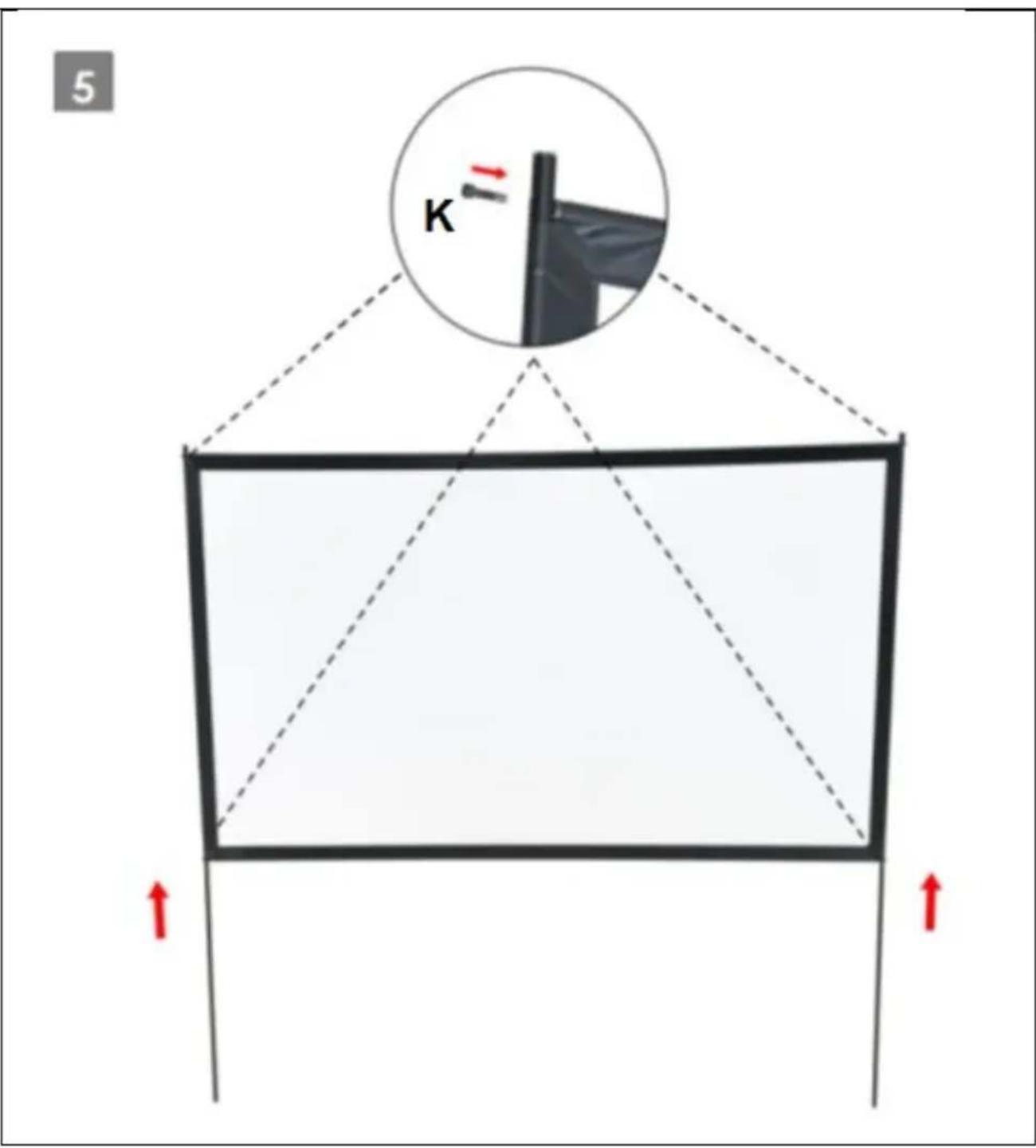

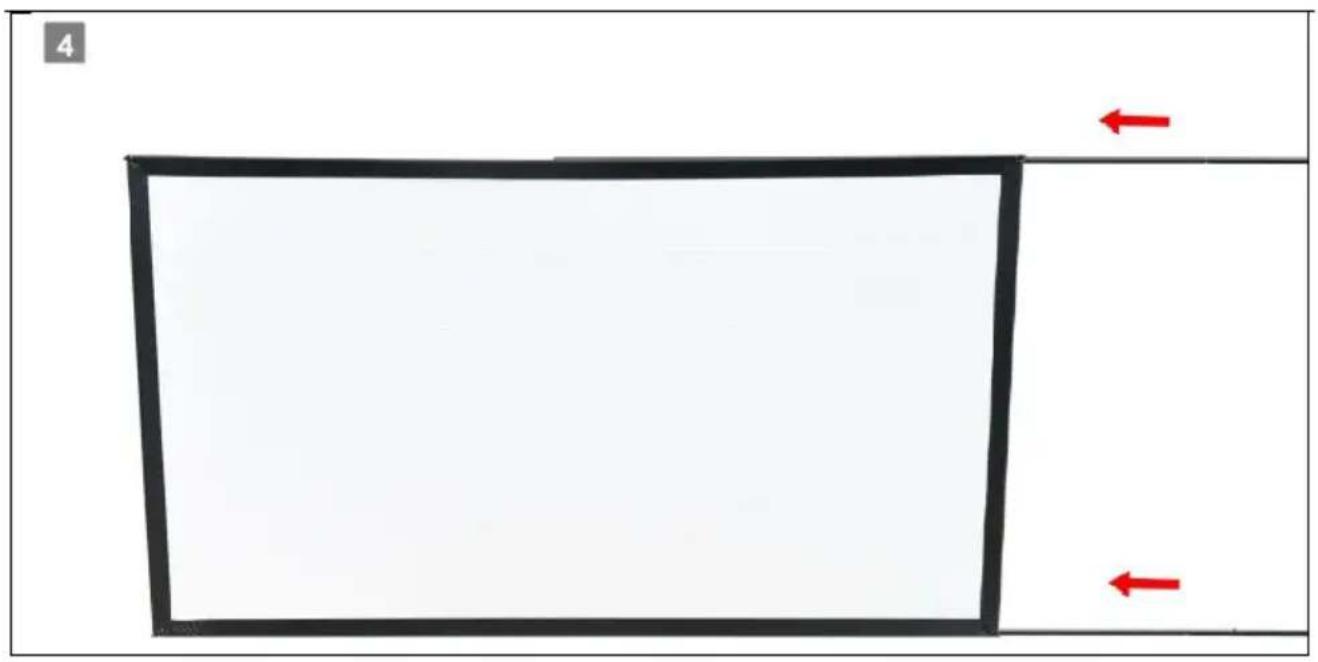

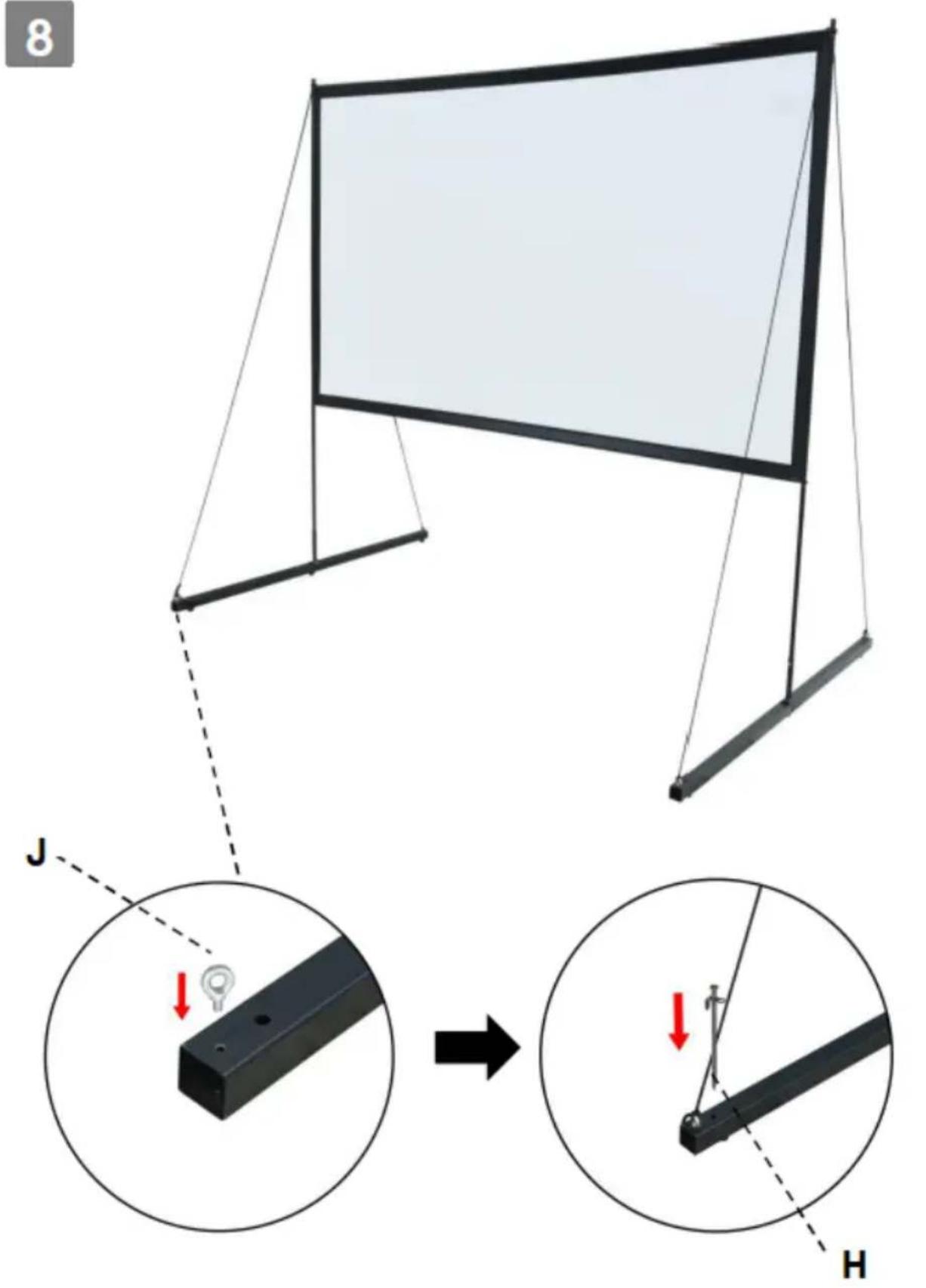

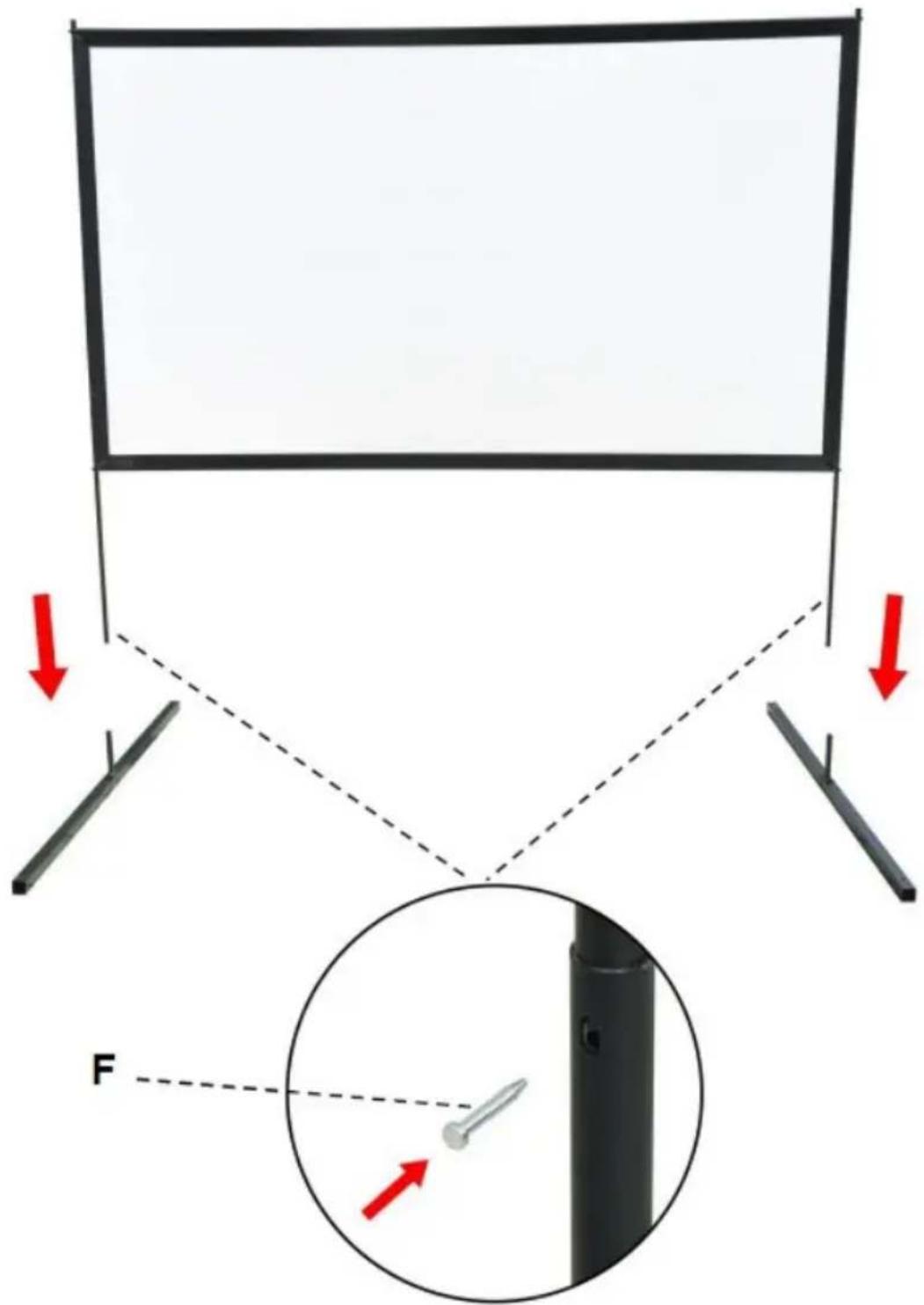

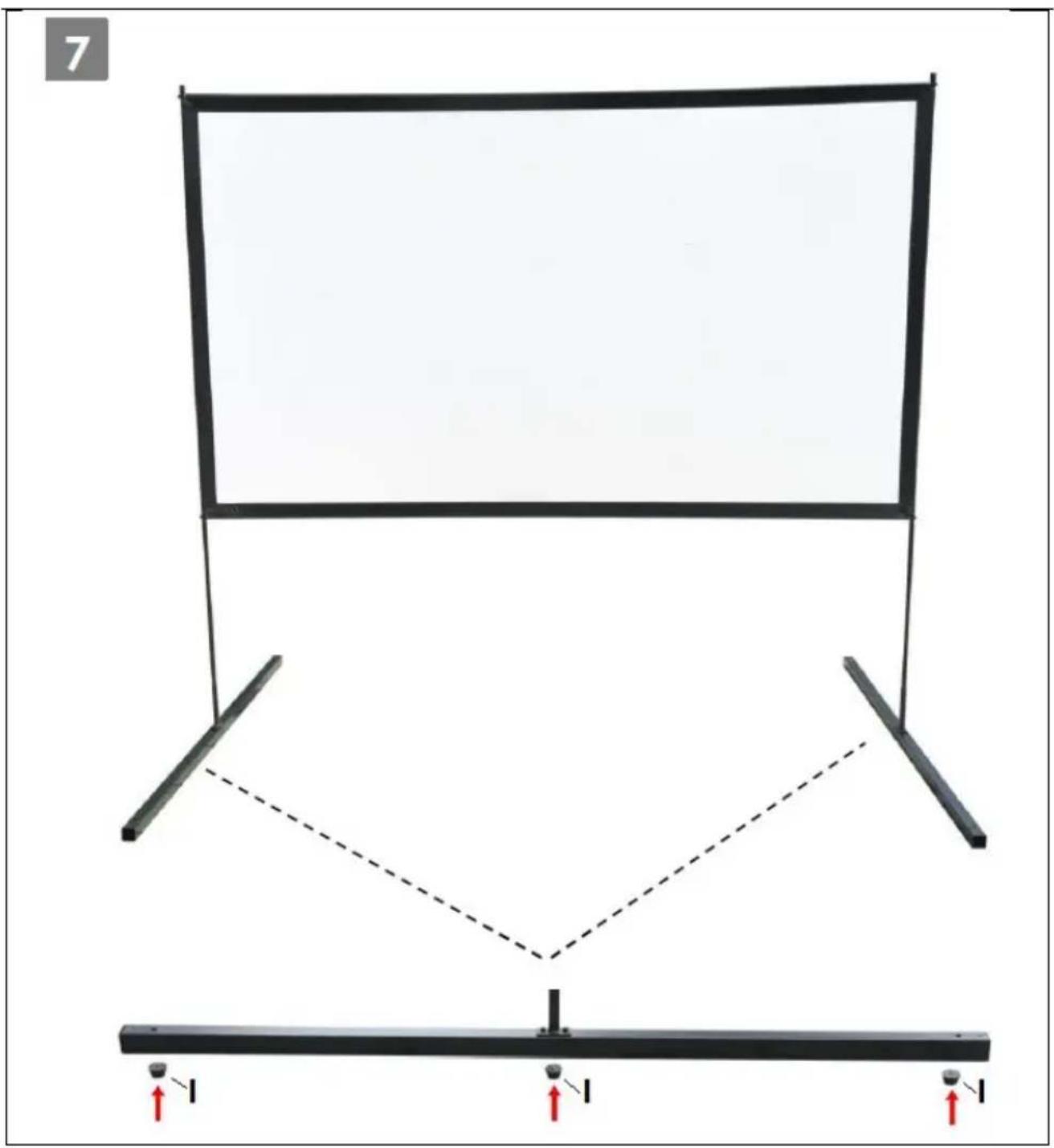

ASSEMBLY

CAUTION! It is recommended that at least two people assembly it.

6

CAUTION! When using the product outdoors, it is recommended to attach the product to the ground with the pegs (included).
