MSBC-220 - Solar panel Mestic - Free user manual and instructions

Product type	Photovoltaic solar panel
Brand	Mestic
Model	MSBC-220
Rated power	220 W
Rated voltage	12 V
Approximate dimensions	1650 x 992 x 35 mm
Approximate weight	18 kg
Frame material	Anodized aluminum
Surface material	Tempered glass
Junction box type	Waterproof junction box (IP65)
Cables included	Yes, pre-connected (positive and negative)
Mounting brackets included	Yes
Main functions	Conversion of solar energy into electricity, battery charging via regulator
Possible connections	Series (24 V) or parallel (12 V)
Maintenance and cleaning	Clean glass with a soft cloth and mild detergent (50% water)
Safety	Do not disassemble, do not bend, avoid short circuits, cover during installation
Recycling	Compliant with WEEE directive (2012/19/EU)
Use	Horizontal or vertical mounting, junction box at top, orientation without shade

Frequently Asked Questions - MSBC-220 Mestic

What is the power of the Mestic MSBC-220 solar panel?

The panel has a rated power of 220 W under a voltage of 12 V.

How to install the solar panel on a roof?

Use the included mounting brackets. Clean and degrease the surface, apply suitable sealant or adhesive, then fix the brackets. Allow to dry before placing the panel.

Can I connect multiple solar panels together?

Yes, you can connect them in series to obtain a voltage of 24 V or in parallel to remain at 12 V. Follow the diagrams in the manual.

How to clean the solar panel?

Use a soft cloth dampened with a mild detergent mixed with 50% water. Avoid damaging the rear protective film.

What to do if the panel does not produce enough energy?

Check that the panel is not shaded and that it is oriented toward the sun. Also make sure the charge controller and battery are properly connected.

Is a charge controller necessary?

Yes, a charge controller is essential between the panel and the battery to prevent overcharging. Connect the battery to the controller first, then the panel.

Can the panel be mounted indoors?

It can be mounted behind glass, but the efficiency will be reduced. For optimal performance, place it outdoors, without shade.

How to ensure waterproofing of cable pass-through?

Use the included roof entry. Apply sealant to the underside and fix it covering the holes. After drying, add a peripheral waterproof sealant.

Is the panel weather-resistant?

Yes, it is designed for outdoor use. The aluminum frame and tempered glass resist rain, wind, and snow.

What to do in case of failure or performance drop?

Check the connections, cable condition, and glass cleanliness. If the problem persists, consult the manual or contact customer service.

USER MANUAL MSBC-220 Mestic

Dark rectangular object with a faint horizontal line above it, resembling a banner or panel (no text or symbols visible)

Gebruiksaanwijzing NL User instructions EN Bedienungsanleitung DE Mode d'emploi FR

Instrucciones de uso ES Istruzioni per l'uso IT Betjeningsvejledning DK

Bruksanvisning SE Bruksanvisning NO

FR

Serie- en parallelschakeling

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

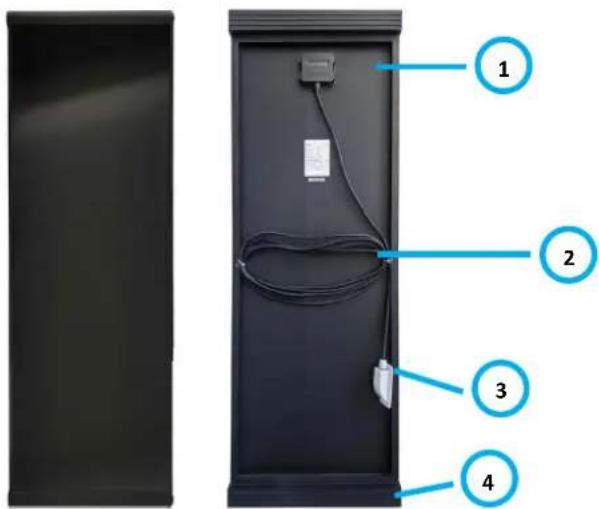

1. Junction box
2. Cables
3. Roof penetration
4. Mounting bracket

	MSBC-110	MSBC-130	MSBC-150	MSBC-170	MSBC-190	MSBC-220	MSBC-250	MSBC-300
Maximum power (Pmax)	110W	130W	150W	170W	190W	220W	250W	300W
Voltage at Pmax (Vmpp)	19.14V	24.36V	26.10V	20.88V	17.40V	20.88V	23.56V	22.94V
Current at Pmax (Impp)	5.23A	5.34A	5.75A	8.15A	10.92A	10.54A	10.62A	13.08A
Open-circuit voltage (Voc)	21.78V	27.72V	29.70V	23.76V	20.10V	23.40V	27.36V	26.64V
Short-circuit current (Isc)	5.54A	5.66A	6.10A	8.64A	11.58A	11.17A	11.26A	13.87A

General instructions

Before using this appliance, read the operating instructions carefully. Keep the manual for future use.

Assembly

Note: as soon as the solar panel is exposed to light or sunlight, the terminals in the junction box are energised. To avoid short circuits when mounting and connecting the solar panels, you can turn the panels away from the light or cover them so that they do not produce electricity during the assembly process. Remove the cover when the connection is complete.

General assembly instructions:

1. Always mount the panel on a straight, flat surface. Do not bend or twist the panel.
2. Never try to disassemble the panel.
3. Avoid drilling or welding in the frame wherever possible.
4. Do not use sharp metal tools or other objects that may scratch the surface of the panel.
5. Install the panel horizontally or vertically with the junction box at the top.
6. Choose a location for the panel with as little shade as possible. Keep in mind that if the solar panel is shaded, the power output will decrease.
7. Mount the panel so that air can circulate freely around it.
8. The supplied cables are already connected for you in the junction box. Do not disconnect it or swap the plus and minus terminals.
9. Always connect the battery to the charge controller before connecting the solar module.
10. Check the system regularly to make sure it is functioning normally.

Determining location:

1. Determine the location for installing the solar panel, by placing it in the desired spot.
2. Mark this location and check that there is enough space around the panel.
3. Plan the laying of your wiring before proceeding with the installation.

Mounting:

1. Once you have checked your mounting location, you fix the panels to the desired location with the brackets, using appropriate mounting sealant or glue. Follow the instructions on the packaging of the respective product.

2. Note: make sure the surface on which the brackets are placed is clean, free of grease and dust, and dry. We recommend roughing up the surface first before degreasing it thoroughly. Sealant or glue in a clean, dry environment.

3. Make sure the adhesive forms a good seal on the mounting surface by applying an even, continuous strip in the ridges at the bottom of the mounting brackets. The volume of the sealant or glue should be greater than the ridges.
4. Evenly and carefully press the panel down at the selected location.
5. Remove excess sealant or glue.
6. Let the sealant or glue dry thoroughly. Follow the instructions on the packaging of the respective product for this.
7. Note: preferably double-check the dimensions of the panel with the mounting brackets and the chosen location to avoid errors. The sealant or adhesive is very difficult to remove once applied.

Routing cables:

1. Before you can install the roof penetration, find the most suitable location for your power cables to go through the roof. Before drilling, check again that there are no other cables, pipes, etc. at the place you want to drill.
2. Once you are sure what your entry point is, drill holes of the right size.
3. Check that the cables are through the cable holes in the roof penetration and route the cables through holes drilled in the roof to the desired location.
4. Note: make sure the surface on which the roof penetration is placed is clean, free of grease and dust, and dry. We recommend roughing up the surface first before degreasing it thoroughly.
5. Apply an even, continuous strip of sealant or glue to the underside of the cable penetration and attach it to the mounting surface, ensuring that the drilled holes are completely covered.
6. After the sealant or glue has cured, you can also apply a sealant to ensure a watertight seal around the cable penetration.

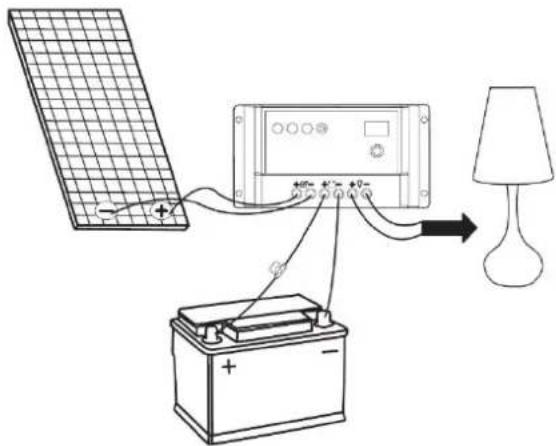

Note: a solar panel must be connected to a battery system via a charge controller. For correct installation, follow the instructions supplied with the product.

Series and parallel connection

If more than one panel is used, they can be connected either in series or in parallel.

Diagram of two solar panels connected to a 12V battery (no text or symbols on the components)

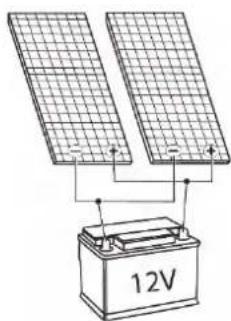

Parallel:

To connect 2 solar panels in a 12 V system, connect the panels in parallel by connecting the plus to the plus and the minus to the minus.

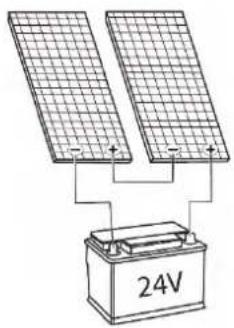

Series:

To connect 2 solar panels in a 24 V system, connect the panels in series by connecting the plus of one panel to the minus of the next panel.

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

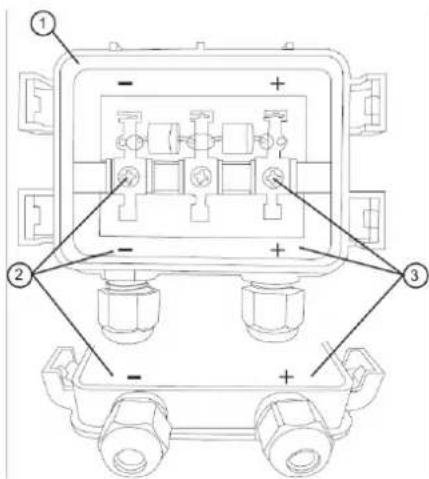

Plus and minus connection view:

Open the junction box by gently loosening the tabs with a screwdriver.

1. Junction box
2. Negative pole and connection
3. Positive pole and connection

Please note: The supplied cables have already been connected for you in the connection box. Do not disconnect this and do not swap the plus and minus connections.

Maintenance

1. Normally, normal rainfall and wind are enough to keep the module glass clean. If necessary, you can clean the glass with a soft cloth with a mild detergent and 50% water.
2. Note: do not damage the protective film on the back of the solar panels.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment This means that this product must be handled pursuant to European Directive (2012/19/EU) in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

Declaration of conformity

Hereby EURO ACCESSOIRES declares that the device MSBC-110/-130/-150/-170/-190/-220/-250/-300 applies all basic requirements and other relevant regulations listed in the European directive for electromagnetic compatibility (2014/30/EU) and low voltage directive (2014/35/EU). If you require a full declaration of conformity, you can contact the address listed on the backside of this manual.

DEUTSCH

	MSBC-110	MSBC-130	MSBC-150	MSBC-170	MSBC-190	MSBC-220	MSBC-250	MSBC-300
Maximale Leistung (Pmax)	110W	130W	150W	170W	190W	220W	250W	300W
Spannung bei Pmax (Vmpp)	19.14V	24.36V	26.10V	20.88V	17.40V	20.88V	23.56V	22.94V
Strom bei Pmax (Impp)	5.23A	5.34A	5.75A	8.15A	10.92A	10.54A	10.62A	13.08A
Leerlaufspannung (Voc)	21.78V	27.72V	29.70V	23.76V	20.10V	23.40V	27.36V	26.64V
Kurzschlussstrom (Isc)	5.54A	5.66A	6.10A	8.64A	11.58A	11.17A	11.26A	13.87A

Allgemeine Hinweise

Diagram of two solar panels connected to a 12V battery, no text or symbols present

Parallel:

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

	MSBC-110	MSBC-130	MSBC-150	MSBC-170	MSBC-190	MSBC-220	MSBC-250	MSBC-300
Puissance maximum (Pmax)	110W	130W	150W	170W	190W	220W	250W	300W
Tension à Pmax (Vmpp)	19.14V	24.36V	26.10V	20.88V	17.40V	20.88V	23.56V	22.94V
Courant à Pmax (Impp)	5.23A	5.34A	5.75A	8.15A	10.92A	10.54A	10.62A	13.08A
Tension de circuit ouvert (Voc)	21.78V	27.72V	29.70V	23.76V	20.10V	23.40V	27.36V	26.64V
Courant de court-circuit (Isc)	5.54A	5.66A	6.10A	8.64A	11.58A	11.17A	11.26A	13.87A

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

	MSBC-110	MSBC-130	MSBC-150	MSBC-170	MSBC-190	MSBC-220	MSBC-250	MSBC-300
Potenza massima (Pmax)	110W	130W	150W	170W	190W	220W	250W	300W
Tensione a Pmax (Vmpp)	19.14V	24.36V	26.10V	20.88V	17.40V	20.88V	23.56V	22.94V
Corrente a Pmax (Impp)	5.23A	5.34A	5.75A	8.15A	10.92A	10.54A	10.62A	13.08A
Tensione a circuito aperto (Voc)	21.78V	27.72V	29.70V	23.76V	20.10V	23.40V	27.36V	26.64V
Corrente di cortocircuito (Isc)	5.54A	5.66A	6.10A	8.64A	11.58A	11.17A	11.26A	13.87A

Istruzioni generali

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

	MSBC-110	MSBC-130	MSBC-150	MSBC-170	MSBC-190	MSBC-220	MSBC-250	MSBC-300
Maksimal effekt (Pmax)	110W	130W	150W	170W	190W	220W	250W	300W
Spænding ved Pmax (Vmpp)	19.14V	24.36V	26.10V	20.88V	17.40V	20.88V	23.56V	22.94V
Strøm ved Pmax (Impp)	5.23A	5.34A	5.75A	8.15A	10.92A	10.54A	10.62A	13.08A
Åben kredsløbsspænding (Voc)	21.78V	27.72V	29.70V	23.76V	20.10V	23.40V	27.36V	26.64V
Kortslutningsstrøm (Isc)	5.54A	5.66A	6.10A	8.64A	11.58A	11.17A	11.26A	13.87A

Generelle instruktioner

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

	MSBC-110	MSBC-130	MSBC-150	MSBC-170	MSBC-190	MSBC-220	MSBC-250	MSBC-300
Maximal effekt (Pmax)	110W	130W	150W	170W	190W	220W	250W	300W
Spänning vid Pmax (Vmpp)	19.14V	24.36V	26.10V	20.88V	17.40V	20.88V	23.56V	22.94V
Ström vid Pmax (Impp)	5.23A	5.34A	5.75A	8.15A	10.92A	10.54A	10.62A	13.08A
Öppen kretsspänning (Voc)	21.78V	27.72V	29.70V	23.76V	20.10V	23.40V	27.36V	26.64V
Kortslutningsström (Isc)	5.54A	5.66A	6.10A	8.64A	11.58A	11.17A	11.26A	13.87A

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

	MSBC-110	MSBC-130	MSBC-150	MSBC-170	MSBC-190	MSBC-220	MSBC-250	MSBC-300
Maksimal effekt (Pmax)	110W	130W	150W	170W	190W	220W	250W	300W
Spenning ved Pmax (Vmpp)	19.14V	24.36V	26.10V	20.88V	17.40V	20.88V	23.56V	22.94V
Strøm ved Pmax (Impp)	5.23A	5.34A	5.75A	8.15A	10.92A	10.54A	10.62A	13.08A
Äpen kretsspenning (Voc)	21.78V	27.72V	29.70V	23.76V	20.10V	23.40V	27.36V	26.64V
Kortslutningsstrøm (isc)	5.54A	5.66A	6.10A	8.64A	11.58A	11.17A	11.26A	13.87A

Serie- og parallellkobling

Pure technical line drawing of a mechanical component without any text, numbers, or symbols
