USER MANUAL IM C3510A RICOH

IM C2010/C2010A/C2510/C2510A/C3010/C3010A/C3510/C3510A/C4510/C4510A/C5510/C5510A/C6010

Safety Information

Read This First

Bitte zuerst lesen

Gray circular icon with a lowercase 'i' in the center, representing information (no text or symbols beyond the icon itself)

Safety Information English

1. Manuals Provided with This Machine

2. Safety Information for This Machine

3. Other Information for This Machine

For information not found in this manual or downloading the latest driver, visit our website (https://www.ricoh.com/).

Also, you can see the online manuals via the control panel.

Gray circular icon with a lowercase 'i' in the center, representing information (no text or symbols beyond the icon itself)

Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety Information in this manual before using the machine.

TABLE OF CONTENTS

How to Read the Manuals....3

1. Manuals Provided with This Machine

Manuals for This Machine....4

1. Safety Information for This Machine

The Meanings of the Safety Symbols Used with This Machine 5

The Meanings of Safety Labels 5

Safety Precautions to Be Followed....6

Safety Labels of This Machine 10

1. Other Information for This Machine

Laws and Regulations....14

Legal Requirements....14

Trademarks 16

How to Read the Manuals

Symbols Used in the Manuals

This manual uses the following symbols:

Important

Indicates points to pay attention to when using functions. This symbol indicates points that may result in the product or service becoming unusable or result in the loss of data if the instructions are not obeyed. Be sure to read these explanations.

Note

Indicates supplementary explanations of the product's functions and instructions on resolving user errors.

[]

Indicates the names of keys or buttons on the product or display.

Region A (mainly Europe and Asia), (mainly Europe), or (mainly Asia)

Region B (mainly North America)

Differences in the functions of Region A and Region B models are indicated by two symbols. Read the information indicated by the symbol that corresponds to the region of the model you are using. For details about which symbol corresponds to the model you are using, see "Model-Specific Information", Specifications.

Disclaimer

To the maximum extent permitted by applicable laws, in no event will the manufacturer be liable for any damages whatsoever arising out of failures of this machine, losses of the registered data, or the use or non-use of this product and operation manuals provided with it.

Make sure that you always copy or have backups of the data registered in this machine. Documents or data might be erased due to your operational errors or malfunctions of the machine.

In no event will the manufacturer be responsible for any documents created by you using this machine or any results from the data executed by you.

Notes

Contents of this manual are subject to change without prior notice.

The manufacturer shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the manufacturer with your office products. For good output quality, the manufacturer recommends that you use genuine toner from the manufacturer.

Some illustrations in this manual might be slightly different from the machine.

Colors on color keys or the color circle may differ slightly from the colors of actual copies.

The color samples in this manual may differ slightly from the colors of actual copies.

Certain options might not be available in some countries. For details, please contact your local dealer.

Depending on which country you are in, certain units may be optional. For details, please contact your local dealer.

1. Manuals Provided with This Machine

Manuals for This Machine

The operating instructions of this machine are provided in the following formats:

Format Manuals
Printed manual • Safety Information
Manuals displayed on the control panel • User Guide (HTML)
Web pages • Safety Information	• User Guide (HTML)

Safety Information

Before using the machine, be sure to read the section of this manual entitled Safety Information. It also describes each regulation and environmental conformance.

User Guide

For users in English, German, French, Italian, Spanish, Dutch, and Russian

This Guide describes how to configure the machine, how to copy, fax, print, or scan, how to use functions for maintenance and specifications, troubleshooting, system settings, security functions, and how to install and configure each driver.

For users of the languages other than those mentioned above

This Guide describes the basic usage of this machine, frequently used functions, troubleshooting when an error message appears, and so on, and summaries that are provided for each user manual and security functions.

Note

• Before you configure the extended security and authentication settings, refer to "Registering Standard-Privileges Administrators" in the Security.
• Using the machine's security function prevents unauthorized use of the machine, data tampering, or information leakage. For enhanced security, we recommend that you first make the following settings:
  • Install the Device Certificate.
• Enable SSL (Secure Sockets Layer) Encryption.
• Change the user name and password of the administrator.

- You can download information about the machine's certification, which is based on an IT security certification system (hereafter CC Certification), from the following URL:

U.S. Government Protection Profile for Hardcopy Devices Version 1.0 (IEEE Std 2600.2™-2009)

• IM C2010/C2010A/C2510/C2510A/C3010/C3010A/C3510/C3510A https://support.ricoh.com/services/device/ccmanual/IM_C2010_C2510_C3010_C3510/en/Guidance_eu.zip
• IM C4510/C4510A/C5510/C5510A/C6010 https://support.ricoh.com/services/device/ccmanual/IM_C4510_C5510_C6010/en/Guidance_eu.zip

Protection Profile for Hardcopy Devices 1.0 dated September 10, 2015

- IM C2010/C2010A/C2510/C2510A/C3010/C3010A/C3510/C3510A/C4510/C4510A/C5510/C5510A/C6010

For Administrator: https://support.ricoh.com/services/device/ccmanual/IM_C2010-C2510-C3010-C3510-C4510-C5510-C6010/en/download_admin.html

This information is about how to set up the machine. If you have purchased a CC Certified machine, be sure to read it before operating the machine so you can make the correct settings before using it.

2. Safety Information for This Machine

The Meanings of the Safety Symbols Used with This Machine

Prohibition

Caution

General mandatory action sign

Keep out of reach of children

Do not touch

Do not throw into the fire

Do not use the cleaner

No disassembly

Caution, risk of having hands or arms caught

Caution, hot surface

The Meanings of Safety Labels

WARNING

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

Safety Precautions to Be Followed

Requirements for Unpacking Products

WARNING

• The following explains the warning messages on the plastic bag used in this product's packaging:
• Do not leave the polythene materials (bags, etc.) supplied with this machine close to babies and small children. Suffocation can result if polythene materials are brought into contact with the mouth or nose.

Requirements for Locating and Installing Machines

WARNING

• Avoid taking the following actions close to or inside this machine because doing so can result in fire or electric shock:
  • Using flammable sprays, solvents, and so on
• Placing flammable sprays, solvents, and so on
• Placing containers holding liquids or small metal objects

CAUTION

• Do not place the machine in a humid or dusty environment. Doing so can result in fire or electric shock.
• Do not place the machine on an unstable or tilted surface. Doing so can cause the machine to fall or topple over, possibly resulting in injury.
• Do not obstruct the machine's vents. Doing so can result in fire as the internal components are overheated.
• Do not place heavy objects on the machine. Doing so can cause the machine to fall or topple over, possibly resulting in injury.
• When using this machine in a poorly ventilated or narrow room continuously for a long period of time or printing a high volume of materials, make sure to ventilate the room sufficiently.

Requirements for Using Power Plugs and Cords

WARNING

• Avoid taking the following actions because doing so can result in fire or electric shock:
  • Using any power supply voltage or frequencies other than those that match the specifications shown
  • Using multi-socket adaptors
  • Using extension cords
• Touching the prongs of the power cable's plug with anything metallic
• Avoid applying the following actions to power cords because doing so can result in fire or electric shock:
• Damaging them
• Bundling them
• Modifying them
• Putting heavy objects on them
• Pulling them forcibly
  • Bending them forcibly

- Do not handle the power cord plug with wet hands. Doing so can result in electric shock.

The supplied power cord or cords are for use with this machine only. They cannot be used for appliances other than this machine. Also, do not use power cords other than the power cord or cords supplied with this machine. Doing so can result in fire or electric shock.

To prevent fire or electric shock, disconnect the plug and the power cord from the wall outlet at least once a year and check them. If any of the following conditions exist, do not use the plug and the power cord continuously, and consult your dealer or service representative.

• There are bum marks on the plug

• The prongs on the plug are deformed

• The power cord's inner wires are exposed or broken

• The power cord's coating is cracked, dented, or damaged

- When the power cord is bent, the power turns off and on

• Part of the power cord becomes hot

CAUTION

When disconnecting the power cord from the wall outlet, make sure to pull the plug, not the cord. Do not pull the power cord forcibly. Doing so can damage the power cord, possibly resulting in fire or electric shock.

CAUTION

• Be sure to push the power cord plug fully into the wall outlet. Also, do not push it into loose and unstable wall outlets likely to cause a contact failure. Doing so can result in heat generation.
• Be sure to disconnect the plug from the wall outlet and clean the prongs and the area around the prongs at least once a year. Allowing dust to build up on the plug constitutes a fire hazard.

If you do not use the machine for a long period of time such as consecutive holidays, be sure to disconnect the power cord plug from the wall outlet for reasons of safety.

- When performing maintenance on the machine, disconnect the power cord from the wall outlet for safety.

• Power Source

220–240 V, 10 A or more, 50/60 Hz

Please be sure to connect the power cord to a power source as above. For users in Norway, this product is also designed for an IT power distribution system with phase-to-phase voltage of 230V.

Requirements during Emergencies

WARNING

• Do not touch this machine if a lightning strike occurs in the immediate vicinity. Doing so could result in electric shock.
• Be sure to install the machine as close as possible to a wall outlet so that you can disconnect the power cord plug easily in an emergency.

If the machine behaves unusually as follows, turn off the power immediately. After turning off the power, make sure to disconnect the power cord plug from the wall outlet, and then contact your service representative and report the problem. Continuously using the power cord can result in fire or electric shock.

• The machine is emitting smoke
• The machine is emitting odors
• Metal objects or other foreign objects have fallen inside the machine
• Water or other fluids have fallen inside the machine

WARNING

- If the machine topples or a cover or other part is damaged, turn off the power immediately. After disconnecting the power cord plug from the wall outlet, contact your service representative. Using the machine continuously can result in fire or electric shock.

Requirements for Relocating Machines

CAUTION

• When moving the machine, do not hold the control panel. Doing so may damage the control panel and can result in injury or malfunction.
• When moving the machine with the optional paper tray unit attached, do not push the upper part of the main unit forcibly. Doing so can cause the main unit to detach from the optional paper tray unit, possibly resulting in injury.
• When carrying or moving the machine by lifting it for relocation to another floor, contact your service representative. Dropping or toppling the machine can result in injury or malfunction.
  • After moving the machine, use the caster fixture to fix it in place. Otherwise, the machine might move or topple over to cause injury.
• When moving the machine, make sure to unplug the power cord from the wall outlet and confirm that line cords and other connecting cables have been removed. Otherwise, the power cord is damaged, possibly resulting in fire or electric shock.

Requirements for Using the Machine

CAUTION

• When pulling out the paper tray, do not pull it out swiftly. The tray may fall and cause injury.
• If the first or second layer paper tray is installed, do not pull out more than one tray at a time. Pressing down forcefully on the machine's upper surface might cause the machine topple over, possibly resulting in injury.
• Do not use stapled sheets of paper, aluminum foil, carbon paper, or any kind of conductive paper. Doing so can result in fire.
• Keep SD cards and USB flash memory devices out of reach of children. If a child accidentally swallows an SD card or USB flash memory device, consult a doctor immediately.
  • Do not hold the ADF to lift the machine.
• When lowering the ADF, do not place your hands on the hinges and exposure glass. Your hands or fingers are caught, which can result in injury.

Requirements for Handling the Machine's Interior

WARNING

• Do not remove any covers or screws other than those explicitly mentioned in this manual. There are high voltage components inside the machine that can cause electric shock. Also there are laser components inside the machine that can cause blindness. Contact your sales or service representative if any of the machine's internal components require maintenance, adjustment, or repair.
• Do not disassemble or modify this machine. Doing so can result in fire and electric shock. Also, exposure to the laser components inside this machine risks blindness.

CAUTION

• There are highly-heated parts inside the machine. When removing misfed paper, do not touch areas other than those specified in this manual. Touching those areas can result in burns.
• There are parts inside the machine that may break when touched. When removing misfed paper, do not touch connectors, sensors, and LED specified in "Troubleshooting". Touching them can result in malfunction.
• Although the machine is designed so that a safety device protects users from injury, take care not to touch the rollers during operation. The rollers may pinch before stopping completely.
• Contact your sales or service representative for cleaning the machine's interior. If the machine's interior is not regularly cleaned while dust accumulates, fire and malfunction can result.
• When replacing paper or removing jammed paper, make sure not to trap or injure your fingers.
  Keep your hands clear of the paper output slot of the finisher booklet tray when pulling it out or pushing it in the finisher's staple unit. You may trap your fingers in the machine's gap and injury can result.

Requirements for Handling Supplies

WARNING

• Do not store toner (new or used) or toner containers while toner is inside in a place with an open flame. The toner can ignite and result in burns or fire.
• Do not dispose of the following items into a fire. Toner will ignite on contact with naked flame and burns can result.

• Toner (new or used)
• Toner containers while toner is inside
- Toner-attached parts

- Do not absorb spilled toner (including used toner) using a vacuum cleaner. Absorbed toner may cause ignition or explosion due to electric contact sparks inside the vacuum cleaner. However, you can use a toner-compatible industrial vacuum cleaner. When toner is spilled, remove the spilled toner using a wet cloth so that the toner is not scattered.

CAUTION

• Do not open toner containers forcibly while toner is inside, crush or squeeze them. Toner spillage can cause accidental ingestion or dirtying of clothes, hands, or floor.
• Do not leave the following items in a place where children can reach them:
• Toner (new or used)

• Toner containers while toner is inside

Toner-attached parts

• When removing jammed paper, replenishing or replacing toner (new or used), make sure not to inhale toner.
• When the following occurs while toner is handled, receive emergency measures first, and then consult a doctor if necessary.

- When inhaling toner, gargle with a large amount of water and move into a fresh air environment.

• When swallowing toner, dilute gastric contents with a large amount of water.
• When getting toner into your eyes, flush them with a large amount of water.

- When removing jammed paper, replenishing or replacing loner (new or used), be careful not to have loner dirt your skin or clothes.

CAUTION

- If toner (new or used) comes into contact with your skin or clothes and smears them, take the following actions:

• If toner comes into contact with your skin, wash the affected area thoroughly with soap and water.
• If toner comes into contact with your clothes, wash the stained area with cold water. Heating the stained area by applying hot water will set the toner into the fabric and removing the stain may become impossible.

- When replacing a container with toner (including used toner) or consumables with toner, be careful that the toner does not splatter. After removing used consumables and shutting the lid of the container if the lid is available, put them in a bag.

What You Need to Follow for Power Connection

WARNING

• When using a UPS (uninterruptible power supply) for this product, make sure that the output power is not insufficient. If the output power is insufficient, the UPS may smoke or catch fire. Read the UPS instructions and check the rated output power carefully when using it. If you have any questions, contact your Ricoh dealer.
• If you use a surge protector with this product, a part called a varistor inside the surge protector may deteriorate after long-term use, causing the surge protector to malfunction, smoke, or catch fire. Read the surge protector instructions carefully and use it correctly. If you have any questions, contact your Ricoh dealer.

Safety Labels of This Machine

Positions of WARNING and CAUTION labels

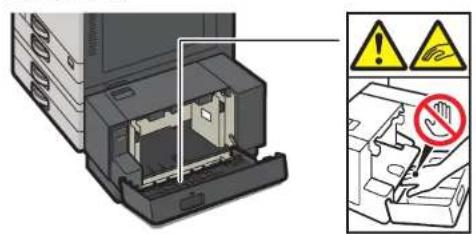

This machine has labels for WARNING and CAUTION at the positions shown below. For safety, please follow the instructions and handle the machine as indicated.

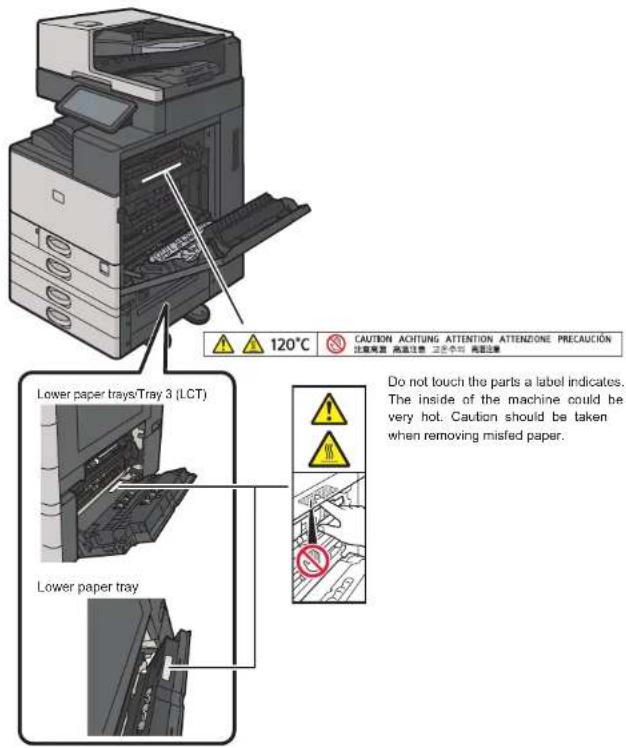

120°C CAUTION ACHITUNG ATTENTION ATTENZIONE PRECAUCIÓN 注意需要 满足注意 卫充平均 满足注意 Lower paper trays/Tray 3 (LCT) Lower paper tray Do not touch the parts a label indicates. The inside of the machine could be very hot. Caution should be taken when removing misfed paper.

The inside of the machine could be very hot. Do not touch the parts which a label is put on. Otherwise, an injury might occur.

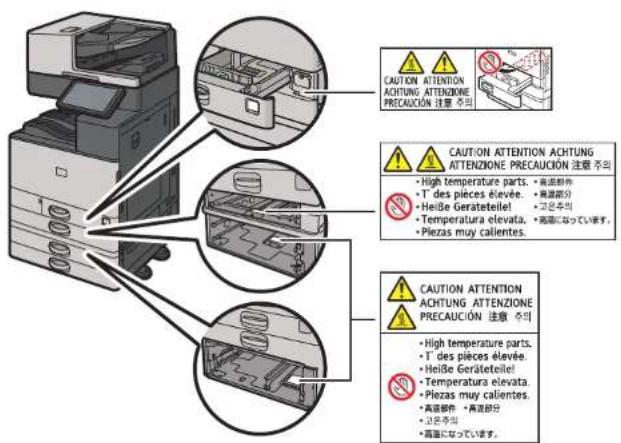

CAUTION ATTENTION ACHTUNG ATTENZIONE PRECAUCIÓN 注意 주의 CAUTION ATTENTION ACHTUNG ATTENZIONE PRECAUCIÓN 注意 주의 • High temperature parts. • 高温部件 • T' des pièces élevée. • 高温部分 • Heiße Geräteteilel • 고온주의 • Temperatura elevata. • Piezas muy calientes. CAUTION ATTENTION ACHTUNG ATTENZIONE PRECAUCIÓN 注意 주의 • High temperature parts. • T' des pièces élevée. • Heiße Geräteteilel • Temperatura elevata. • Piezas muy calientes. • 高温部件 • 高温部分 • 고온주의 • 高温になっています.

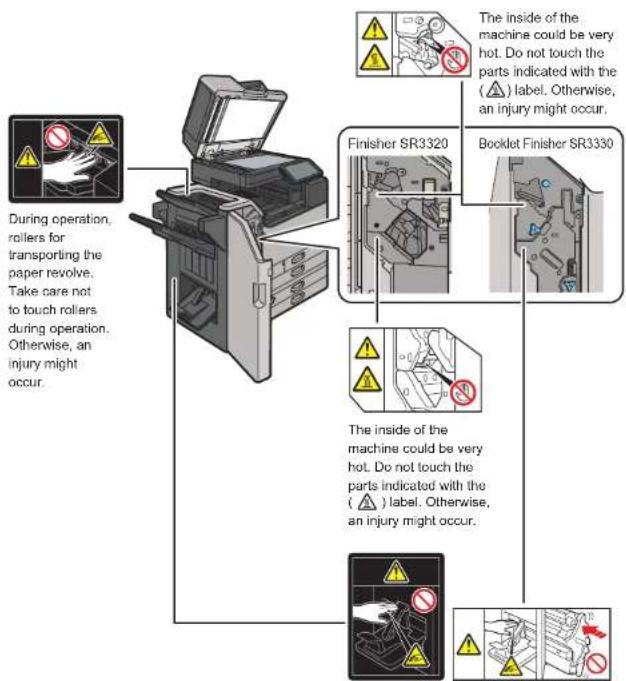

Finisher SR3320 or Booklet Finisher SR3330

During operation, rollers for transporting the paper revolve. Take care not to touch rollers during operation. Otherwise, an injury might occur. The inside of the machine could be very hot. Do not touch the parts indicated with the ( △ ) label. Otherwise, an injury might occur. Finisher SR3320 Booklet Finisher SR3330 The inside of the machine could be very hot. Do not touch the parts indicated with the ( △ ) label. Otherwise, an injury might occur.

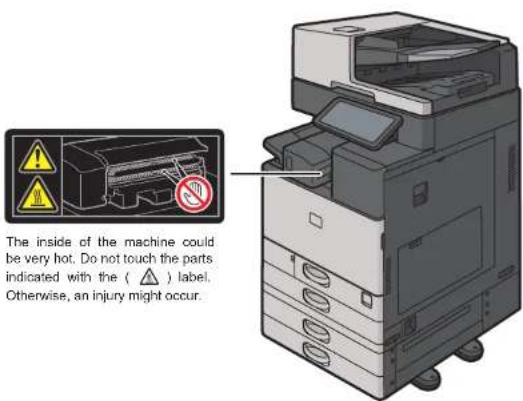

The inside of the machine could be very hot. Do not touch the parts indicated with the (△) label. Otherwise, an injury might occur.

The inside of the machine could be very hot. Do not touch the parts indicated with the ( △ ) label. Otherwise, an injury might occur.

Keep your hands clear of the booklet finisher tray when pulling out or pushing in the finisher's staple unit, or removing paper jam. You might trap your fingers if you do not.

Finisher SR3340 or Booklet Finisher SR3350

During operation, rollers for transporting the paper revolve. Take care not to touch rollers during operation. Otherwise, an injury might occur.

The inside of the machine could be very hot. Do not touch the parts indicated with

the (△) label. Otherwise, an

injury might occur.

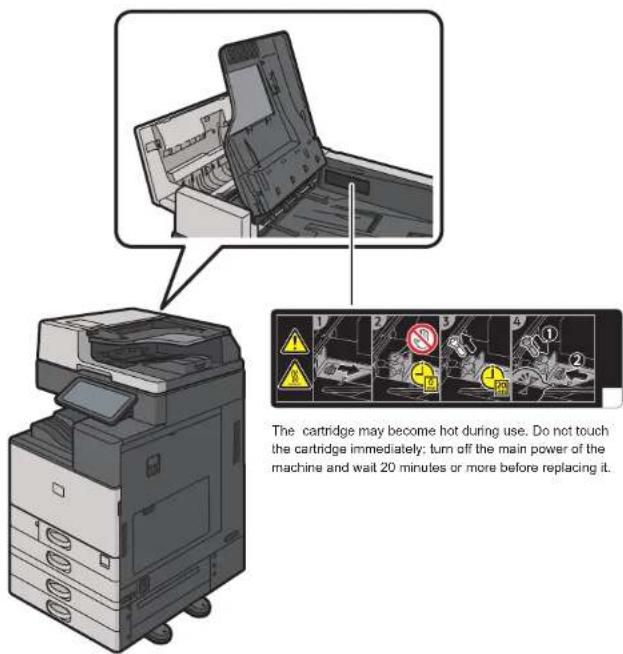

Be careful not to cut yourself on any sharp edges when replacing the cartridge in the saddle stitch unit. Do not touch the parts indicated by labels. Otherwise, an injury might occur.

Diagram of an open printer with warning labels and safety symbols, showing internal components and safety warnings.

Do not place your hands inside the machine when opening or closing the saddle stitch unit. Otherwise, you might trap your hands or fingers and an injury might occur.

Keep your hands clear of the booklet finisher tray when pulling out or pushing in the finisher's staple unit, or removing paper jam. You might trap your fingers if you do not.

Internal Finisher SR3360

The inside of the machine could be very hot. Do not touch the parts indicated with the ( △ ) label. Otherwise, an injury might occur.

ARDF

The cartridge may become hot during use. Do not touch the cartridge immediately: turn off the main power of the machine and wait 20 minutes or more before replacing it.

Tray 3 (LCT)

Do not place your hand above or below the bottom plate of the right side of the tray. Doing so may result in your fingers becoming trapped in the gap and injured.

Large capacity tray

Diagram showing a printer with internal components and warning symbols for no plastic waste or plastic waste.

Do not place your hand under the bottom plate. Doing so may result in your fingers becoming trapped in the gap and injured.

Symbols for Earth, Insulation, and Power Switch

Symbols for earth, insulation, and power switch that are used for this machine are as follows:

3. Other Information for This Machine

Laws and Regulations

Duplication and Printing Prohibited

Do not copy or print any item for which reproduction is prohibited by law.

Copying or printing the following items is generally prohibited by local law:

bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, passports, driver's licenses.

The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor.

Legal Requirements

Laser Safety

For IM C2010/C2010A/C2510/C2510A/C3010/C3010A/C3510/C3510A

This machine complies with the requirements of IEC 60825-1:2014 (EN 60825-1:2014) for class 1 laser product and EN 50689:2021 for class 1 consumer laser product. The machine contains four AlGaInP laser diodes, 655–663 nanometer wavelength for each emitter. The beam divergence angle is 21 degrees (minimum) and 29 degrees (maximum) in the vertical direction, and 7 degrees (minimum) and 11 degrees (maximum) in the horizontal direction, and laser beams are generated in Continuous Wave (CW) mode. The maximum output power of the light source is 10 milliwatt.

The following label is attached on the rear side of the machine:

Caution

Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure.

For IM C4510/C4510A/C5510/C5510A/C6010

This machine complies with the requirements of IEC 60825-1:2014 (EN 60825-1:2014) for class 1 laser product and EN 50689:2021 for class 1 consumer laser product. The machine contains four 2ch-Laser Diode Arrays (2ch-LDA). Laser diodes are AlGaInP, 657–663 nanometer wavelength for each emitter. The beam divergence angle is 16 degrees (minimum) and 23 degrees (maximum) in the vertical direction, and 7 degrees (minimum) and 13 degrees (maximum) in the horizontal direction, and laser beams are generated in Continuous Wave (CW) mode. Each 2ch-LDA has two light sources and the maximum output power of the light source is 15 milliwatt.

The following label is attached on the rear side of the machine:

Caution

Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure.

Notice to Users in EEA Countries

Manufacturer:

Ricoh Co., Ltd.

3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan

Importer (CE marking, ProdSG):

Ricoh Europe SCM B.V.

Blankenweg 24, 4612 RC Bergen op Zoom, The Netherlands

Importer (UKCA marking):

Ricoh UK Limited

800 Pavilion Drive, Ricoh House, Northampton, NN4 7YL

Declaration of Conformity

Notice to Users in EEA Countries

This product complies with the essential requirements and provisions of Directive 2014/53/EU.

The CE/UKCA Declaration of Conformity is available by accessing the URL:

https://www.ricoh.com/products/ce_doc2/

and selecting the product applicable.

Bluetooth

- Operating frequency band: 2402 -2480MHz

maximum radio-frequency power: less than 11dBm

Wireless LAN

- Operating frequency band: 2412-2472MHz

maximum radio-frequency power: less than 19dBm

- Operating frequency band: 5180-5320MHz (W52, W53)

maximum radio-frequency power: less than 15dBm

- Operating frequency band: 5500-5700MHz (W56)

maximum radio-frequency power: less than 15dBm

• Operating frequency band: 5745-5825MHz (W58)

maximum radio-frequency power: less than 14dBm

As this equipment with the radiating part is not intended to be used in close proximity to

the human body, it is recommended to use at least 20 cm apart from the user.

Overseas Affiliates and Noise Emission Information

In accordance with TUV "GS Symbol" requirements, details of the EU office or representative company are given below.

Overseas Affiliates

Ricoh Europe SCM B.V.

Blankenweg 24, 4612 RC Bergen op Zoom, The Netherlands

Noise Emission

Installing the Ferrite Core

Attach a ferrite core to the following cables to prevent RF interference:

- An Ethernet interface cable connecting to the Device server option port

• A telephone line cable connecting to the G3 interface connector

- A telephone line cable connecting to the G3 interface unit connector

COMMISSION REGULATION (EU) 2019/2020

The light source of this product is not intended for applications other than image projection.

Trademarks

The SD is a trademark of SD-3C, LLC.

Other product names used herein are for identification purposes only and might be trademarks of their respective companies. We disclaim any and all rights to those marks.

Deutsch

Sicherheitshinweise

Gray circular icon with a lowercase 'i' in the center, representing information (no text or symbols beyond the icon itself)

https://support.ricoh.com/services/device/ccmanual/IM_C2010_C2510_C3010_C3510/en/Guidance_eu.zip

• IM C4510/C4510A/C5510/C5510A/C6010

https://support.ricoh.com/services/device/ccmanual/IM_C4510_C5510_C6010/en/Guidance_eu.zip

Für Administrator: https://support.ricoh.com/services/device/ccmanual/IM_C2010-C2510-C3010-C3510-C4510-C5510-C6010/en/download_admin.html

Technical diagram of an open printer with warning labels and safety symbols, showing internal components and mounting points.

Diagram showing a printer internal structure with warning symbols indicating no plastic waste or plastic release.

800 Pavilion Drive, Ricoh House, Northampton, NN4 7YL

https://www.ricoh.com/products/ce_doc2/

Gray circular icon with a lowercase 'i' in the center, representing information (no text or symbols beyond the icon itself)

Attention, surface chaude

Technical diagram of an open printer with warning labels and safety symbols, showing internal components and mounting points.

Diagram showing printer internal structure with warning symbols and no-noise instruction

800 Pavilion Drive, Ricoh House, Northampton, NN4 7YL

Gray circular icon with a lowercase 'i' in the center, representing information (no additional text or symbols)

Per l'amministratore: https://support.ricoh.com/services/device/ccmanual/IM_C2010-C2510-C3010-C3510-C4510-C5510-C6010/en/download_admin.html

Technical diagram of an open printer with warning labels and safety icons for mechanical assembly or inspection

Diagram showing printer internal structure with warning symbols and no-noise instruction

800 Pavilion Drive, Ricoh House, Northampton, NN4 7YL

https://www.ricoh.com/products/ce_doc2/

Gray circular icon with a lowercase 'i' in the center, representing information (no text or symbols beyond the icon itself)

Technical diagram of an open printer with warning labels and safety symbols, showing internal components and mounting points.

Diagram showing printer internal structure with warning symbols and no-smoking instruction

800 Pavilion Drive, Ricoh House, Northampton, NN4 7YL

https://www.ricoh.com/products/ce_doc2/

Gray circular icon with a lowercase 'i' in the center, representing information (no text or symbols beyond the icon itself)

U.S. Government Protection Profile for Hardcopy Devices Version 1.0 (IEEE Std 2600.2™-2009)

- IM C2010/C2010A/C2510/C2510A/C3010/C3010A/C3510/C3510A https://support.ricoh.com/services/device/ccmanual/IM_C2010_C2510_C3010_C3510/en/Guidance_eu.zip

- IM C4510/C4510A/C5510/C5510A/C6010 https://support.ricoh.com/services/device/ccmanual/IM_C4510_C5510_C6010/en/Guidance_eu.zip

Protection Profile for Hardcopy Devices 1.0, de 10 de setembro de 2015

- IM C2010/C2010A/C2510/C2510A/C3010/C3010A/C3510/C3510A/C4510/C4510A/C5510/C5510A/C6010 Para administradores: https://support.ricoh.com/services/device/ccmanual/IM_C2010-C2510-C3010-C3510-C4510-C5510-C6010/en/download_admin.html

Diagram showing printer internal structure with warning symbols and no-noise instruction

800 Pavilion Drive, Ricoh House, Northampton, NN4 7YL

https://www.ricoh.com/products/ce_doc2/

Gray circular icon with a lowercase 'i' in the center, representing information (no text or symbols beyond the icon itself)

Marques comercials....16

https://support.ricoh.com/services/device/ccmanual/IM_C2010_C2510_C3010_C3510/en/Guidance_eu.zip

• IM C4510/C4510A/C5510/C5510A/C6010

https://support.ricoh.com/services/device/ccmanual/IM_C4510_C5510_C6010/en/Guidance_eu.zip

Diagram showing printer internal structure with warning symbols and no-smoking instruction

800 Pavilion Drive, Ricoh House, Northampton, NN4 7YL

https://www.ricoh.com/products/ce_doc2/
