USER MANUAL TM Sim Hub THRUSTMASTER

T1 SIM HUB

SIM HUB

For PS4™ – Xbox One®

User Manual

TRUSTRASTER 4 3 2 1 B A D

TECHNICAL SPECIFICATIONS

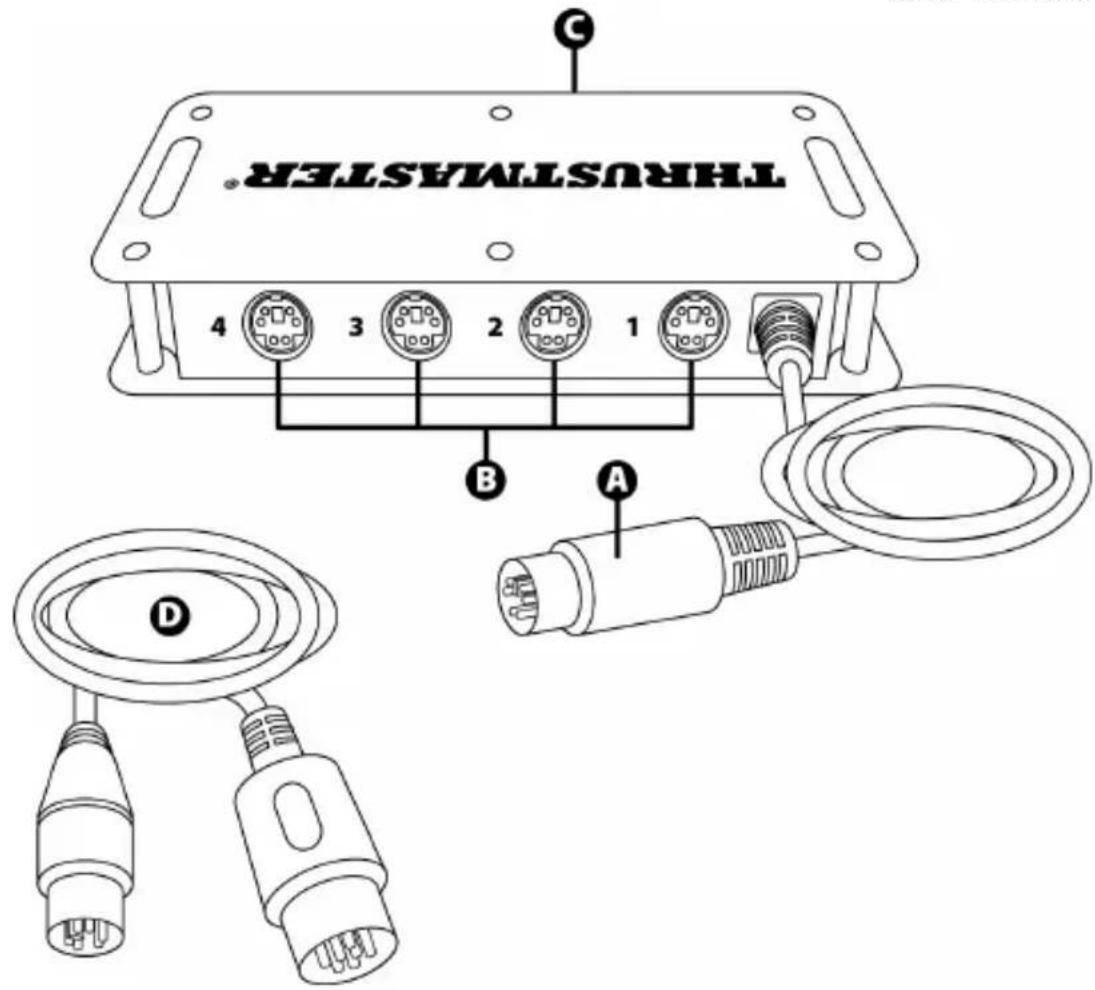

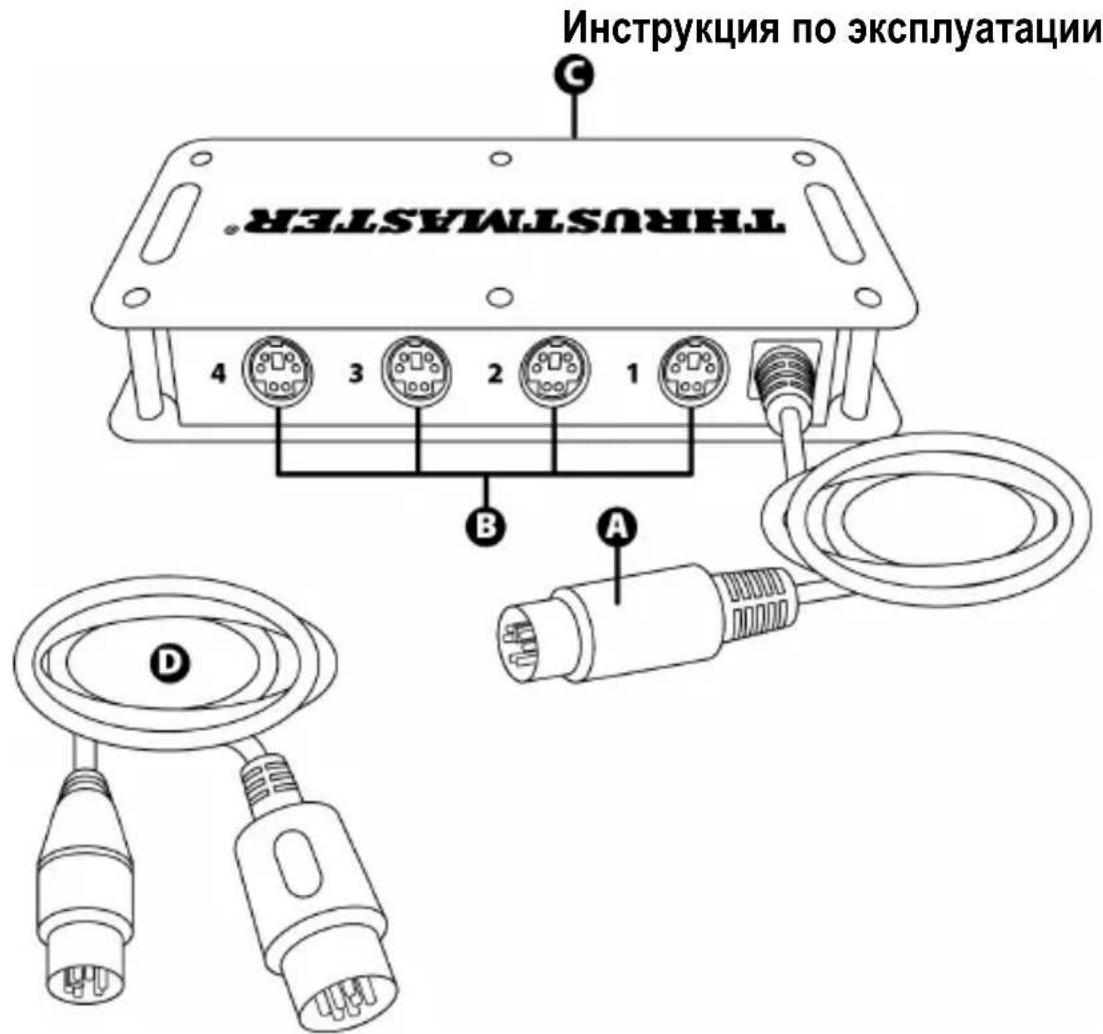

A Male mini-DIN connector
B Four female mini-DIN connectors

C Micro-USB port
D Detachable mini-DIN / DIN cable (sold separately or included with the TH8A Add-On Shifter)

IMPORTANT: in order to ensure optimal operation of the TM SIM HUB, must be sure to update the firmware for the base of your racing wheel (T-T300, TS-XW Racer or TX), as well as the firmware for the TH8A Add-Oner, with the latest versions available at https://support.thrustmaster.com/.

COMPATIBILITY

The TM SIM HUB is compatible on PS4™ and Xbox One® with:

• the base of the Thrustmaster T-GT, T300, TS-XW Racer and TX racing wheels
• the TSS Handbrake Sparco® Mod handbrake/sequential gearbox
• the TH8A Add-On Shifter gearbox.

On PS4™ and Xbox One®, the TM SIM HUB allows you to simultaneously connect up to four accessories directly to the mini-DIN connector located at the back of the compatible Thrustmaster racing wheel's base.

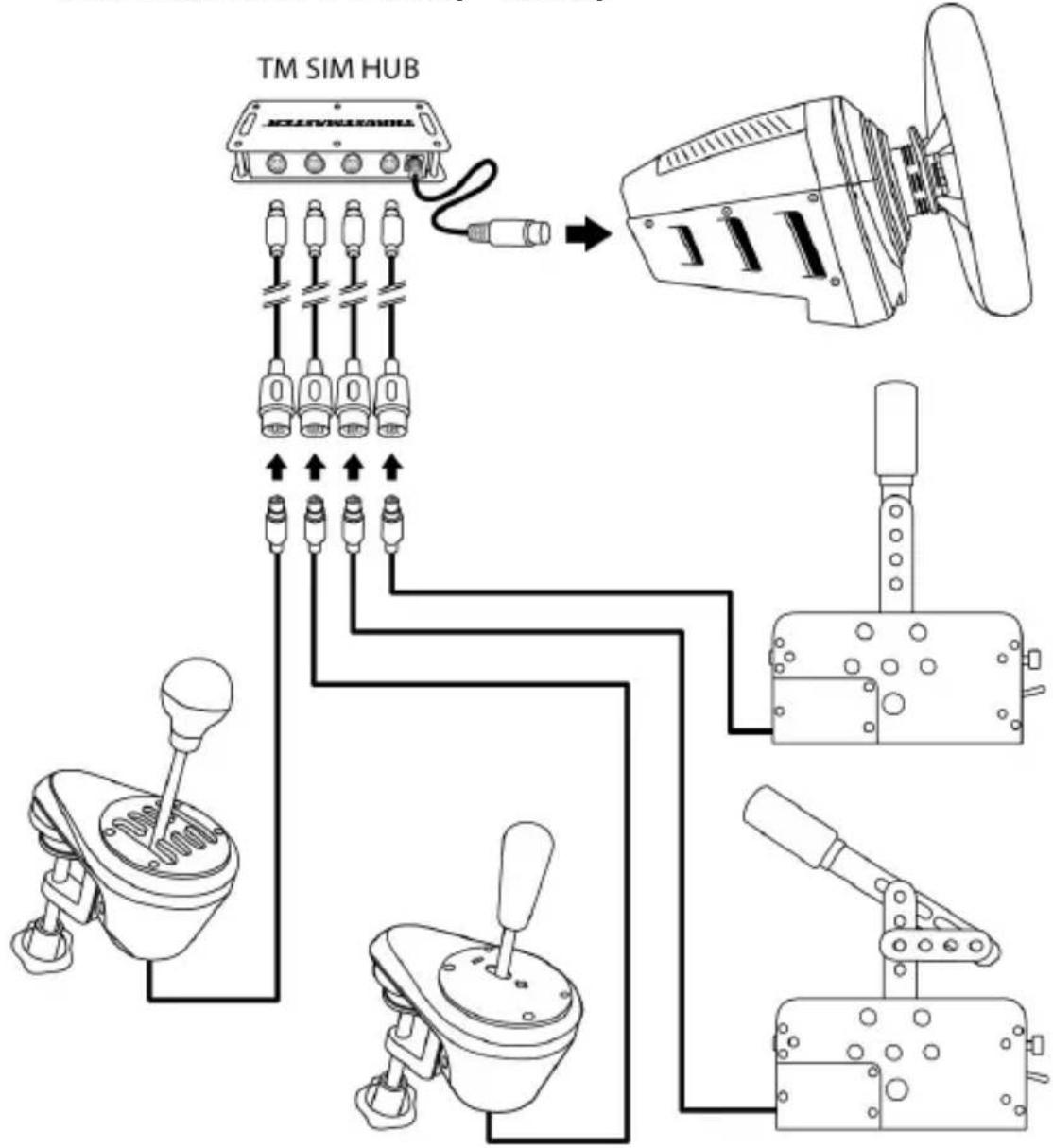

Examples of possible simultaneous connections to the TM SIM HUB:

• a TSS Handbrake Sparco® Mod in sequential mode [+/-]
• a TSS Handbrake Sparco® Mod in handbrake mode [progressive]
• a TH8A Add-On Shifter in sequential mode [+/-]
• a TH8A Add-On Shifter in "H" mode [7 + Reverse]

INSTALLATION

1. Connect your accessories (TSS Handbrake Sparco® Mod and TH8A Add-On Shifter) to the female mini-DIN connectors (B) on the TM SIM HUB.
   To do so, use detachable mini-DIN / DIN cables (D) (sold separately or included with the TH8A Add-On Shifter gearbox).
2. Connect the male mini-DIN connector (A) of the TM SIM HUB to the female mini-DIN port located at the back of your racing wheel's base.
3. Connect your racing wheel to the console.

When the TSS Handbrake Sparco® Mod is connected to a compatible Thrustmaster racing wheel base or to the TM SIM HUB:

• sequential mode [+/-] is functional in all games, as it is associated with the wheel's UP and DOWN paddle shifters.
• handbrake mode [progressive] is functional in games which support the handbrake function*.

* List of PS4™ and Xbox One® games compatible with the TSS Handbrake Sparco® Mod and the TH8A Add-On Shifter available at https://support.thrustmaster.com/. In the Racing Wheels section, select TSS Handbrake Sparco® Mod or TH8A Shifter.

MICRO-USB PORT (C)

The micro-USB port (C) is only used for firmware updates for the TM SIM HUB.

For more information, please visit https://support.thrustmaster.com/. In the Racing Wheels section, select TM SIM HUB.
