USER MANUAL SS-5530 Sogo

Exterior view of a modern kitchen blender with a black handle and control knob (no text or symbols visible on the device itself)

Batidora Licuadora de 5 Velocidades

5 Speed Table Blender

5 Vitesses Mixeur el Blender

Caution: please read and preserve these important instructions

ÍNDICE

1. Important Note P. 12
2. Symbol definitions P. 12
3. Safety instructions for the user P. 12
   I. General precautions during the use of electrical equipment P. 12
   II. Restrictions on use to avoid personal injury P. 14
   III. Product use restrictions due to poor condition or breakdown P. 14
   IV. Restrictions on use when used with children and elders P. 15
   V. IMPORTANT WARNING P. 16
   VI. Instructions to follow when using the device P. 16
4. Technical specifications P. 19
5. Parts description P. 19
6. Instructions for use P. 19
7. Cleaning and maintenance P. 20
8. Declaration of conformity P. 58
9. Responsibility for disposal, details of the manufacturer and after-sales service P. 59

INDICE

Technical diagram of a blender with numbered parts for identification

6. INSTRUCCIONES DE USO

INSTALACIÓN

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the

user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the name-plate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

II. Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. ⚠️ Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the plug-

in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. ⚠️! Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its cord out of the reach of the children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Do not allow the children to use the appliance.

V. IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.
• Installation of a spike protector will offer additional protection with a nominal trigger current of not more than 30 Ma in the house installation. Please consult your installing electrician.

VI. ⚠️! Instructions to follow when using the appliance

• The appliance cannot be used for blending hard and dry substance, otherwise the blades might get blunt.
  • The use of attachment, including Jar, lid, or

any another accessory not recommended or sold by manufacture may cause fire, electric shock or injury.

• Always disconnect the blender from the mains when it is left unattended and before assembling, disassembling or cleaning.
- Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to the sudden steaming.

- WARNING: The blades are very sharp!

- Avoid contacting moving parts of the appliance while in function.

- Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.

- Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.

- Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.

- Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.

- To reduce the risk of injury, never place cutting blade on base without mounting with the jar properly.

- The unit is equipped with a security function. The unit can only be switched on if the jug

is put on the motor base properly. If the unit cannot be switched on, pull the power cable and check the connection between jug and engine base.

- Only use the unit with tightly closed cover and inserted closure.

CAUTION: Do not operate the unit when empty.

CAUTION: Do not put hot ingredients into the jar. Before food preparation, allow food to cool down for a few minutes.

CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

CAUTION: Maximum time of food processing should not exceed 1 Minute of continuous use. The three Preset functions and the Pulse functions finish their working under 1 minute. In case your food which needs to be blended further to achieve the required smoothness, use the appliance with any present function or with intermediate speed with 10 second pauses to avoid permanent damage to the motor.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

4. TECHNICAL SPECIFICATIONS

Voltage Power Frequency Capacity				Continuous Operating Time
220-240V 1000W 50 – 60Hz 1.5L				1 minute

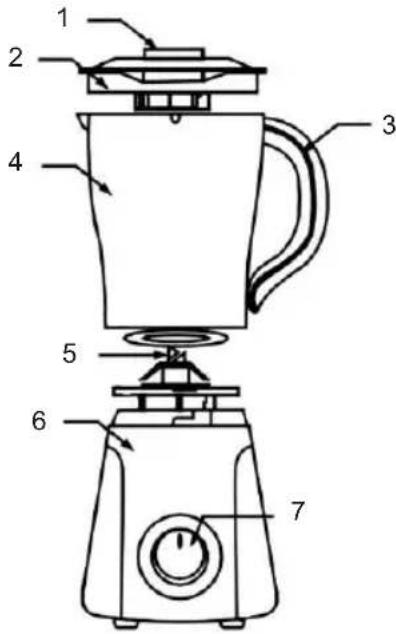

5. PARTS DESCRIPTION

1. Measuring cup
2. Lid
3. Glass jar
4. Stirring blade base
5. Stirring cup base
6. Grinder
7. Grinder blade base
8. Motor base
9. Speed control Knob
10. Main housing

Labeled diagram of a blender with numbered parts showing internal components and a power button

6. INSTRUCTIONS FOR USE

INSTALLATION

1. Clean the measuring cup, cover and jar (except main body) and so on before first using.
2. To make sure the unit is turned off and not to connect before installation.
3. First ring the jar sealed ring into blade base, then enclose the blade base into jar, last rock the jar slightly causing it to lock into place.
4. Put the jar base on the top of motor mainbody, please pay attention to match the position of jar and the bulge of the motor main body. Fill the jug with the desired foods. please ensure the water not spill over from cup.( Maximal water capacity can not exceed 1500 ml)DO NOT USE THE UNIT WITHOUT ANY MATERIAL INSIDE.
5. Put the cover on top of the jar and push it down. Insert the closure into the cover and turn till it locks into place.
6. Place the measuring cup on the center of cover, anticlockwise rock the measuring cup slightly.

OPERATION

1. Connect the power.
2. This unit have safety design, it do not working if the jar is not install on motor main body properly.
3. Turn the turning knob to position 0 in order to make sure the unit is turned off.
4. Fill the jug with the desired foods
5. Put the cover. Place the measuring cup on the center of cover, turn the measuring cup anticlockwise slightly.
6. Turn the knob to required speed

*P—pulse –Stainless steel blade operate with transitorily highest speed, suitable for ice.

CAUTION

1. Over-filled can block the operation, please turn off the unit and do not connect the plug, take out some of material, then operating.
2. Do not use unit continuous more than 1 minute.

7. CLEANING AND MAINTENANCE

1. In addition to this, you must refer to the security precautions.
2. Do not clean Motor main body, power cord and plug with water.
3. Clean the engine base with a soft, wet piece of cloth and some mild cleaning agent.
4. Fill the jug half-full with hot water and a little cleaning agent. Let the unit run on speed 2 until the jug is clean.
5. The base with the blades can be taken apart. Screw of the base counterclockwise. Take out the blades together with sealing ring facing upwards.
6. Now clean jug, cover, closure, base and blades with sealing ring with hot water and some
   cleaning agent. Dry well before re-using. Caution! The blades inside of the jug are very sharp.
7. Never use aggressive cleaning agents.

CAUTION

Do not to touch the sharp blade. When clean, please wipe by dishcloth, to avoid accidentally injure.

NOTE

1. Unit suitable for household.
2. Do not use for commerce. Otherwise the maintain service will invalid.

1. IMPORTANT:

Technical diagram of a blender with numbered parts for identification

6. MODE D'EMPLOI

INSTALLATION

Technical diagram of a blender with numbered parts for identification and assembly reference

6. INSTRUÇÕES DE USO

INSTALAÇÃO

Technical diagram of a blender with numbered parts for identification

Technical diagram of a blender with numbered parts for identification

6. ISTRUZIONI PER L'USO

INSTALLAZIONE

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
