INTRODUCTION

The Monitor uses the oscillometric method of blood pressure measurement. Measurement Automatic Electronic Blood Pressure Monitor is intended for use by medical professionals or at home to monitor and display diastolic, systolic blood pressure and pulse rate on adult each time, with an arm cuff around the left upper arm according to the instruction in the "ATTACHING THE ARM CUFF", The product complies with the electromagnetic compatibility requirement of EN60601-1-2 & EN 60601-1-11 and safety standards of EN60601-1 and

performance of IEC 80601-2-30 as specified in EEC directive 93/42/EEC, Annex II Excluding (4).

NOTES ON SAFETY

* The warning signs and sample icons shown here are listed for your safe and correct use of the unit, so as to prevent injuries or damages to the device.
* The icons and meanings are as follow

Examples of signs

Simple black prohibition symbol on white background (no text or numbers)

The Ⓧicon indicates prohibitions (what you should not do). Matters involving actual prohibitions are indicated by text or pictures in or near ⓍThe left icon refers to “general prohibition”.

The ⚠icon indicates something that is compulsory (what must always be observed). Matters involving actual compulsory actions are indicated by text or pictures in or near ⚠the left icon refers to “general compulsion”.

The 📄 icon indicates something can’t be disassembled or “Don’ disassemble” Matters involving actual compulsory actions are indicated by text or pictures in or near . The left icon refers to “general prohibition”.

Type BF Applied part IP Classification: IP21 Means protected from touch by fingers and objects greater than 12 millimeters.

Please refer to the instructions for use

Indicates a medical device that needs to be protected from moisture.

Marking of electrical and electronic equipment in accordance with RoHS Directive 2015/863/EC (WEEE)

MR MR Unsafe Do not use this equipment in the MRI scan room

The following symbol indicates that the device cannot be used in a MRI scan room

Caution

Patient must follow doctor's instruction and should not perform self-judgment and self-treatment by the measuring result, Self-diagnosis of measured results and treatment are dangerous. The device should not be used to judge illness, first aid and continuously monitor measuring.

This device can not be used for Patient transport and surgical care .It can be used in household or fixed places only. Please press “on/off” button to stop work when you feel uncomfortable with the arm, or if the air is inflating abnormally without stop.

Do not let a child below 12 years old and the people who can't express one's intention. When it is used by the people of 12~18 years old, it should accompanied by the Adult. May cause accident or trouble.
Do not use the unit for purpose other than measuring blood pressure. May cause accident or trouble.
Please do not use mobile phone around the device. Please do not use the device around the magnetic field.
The device is prohibited from being used during movement.
Do not use the equipment in outdoor or shower rooms.

Do not disassemble, repair, or remodel the main unit or the arm cuff of the blood pressure monitor. Will cause the unit to function erroneously

Requests from Manufacturer

Make sure there is no connection tubing kinking before start measuring to avoid any injury to patient.

For any patient, do not measure more than 3 times continuously, it should be at least above 5 minutes of interval rest between any two measurements, otherwise will cause extravasated blood.

Do not measure your blood pressure over 6 times each day.

Do not apply the cuff over a wound as this can cause further injury.

Do not measure on the arm which is on the side of a mastectomy, otherwise it could cause injury.

Observe the air pressure value from the LCD display.

When measuring, it could not exceed 280 mmHg, otherwise Please press “on/off” button to stop

Do not use force to bend the arm cuff or the air tube.

Do not knock or drop the main unit.

Always use the specified accessories in the manual, the use of other parts not approved by the manufacturer may cause faults or injuries.

For service information, parts list etc., please contact the dealer.

• The PATIENT is an intended OPERATOR.
• Not servicing and maintenance while the ME EQUIPMENT is in use.
• The user can maintain the product, the maintenance method is described in the maintenance instructions of manual.
• Stop using the equipment immediately, if it is in contact with water.

ABOUT BLOOD PRESSURE

1. What is blood pressure?

Blood pressure is the force exerted by blood against the walls of the arteries. Systolic pressure occurs when the heart contracts. Diastolic pressure occurs when the heart expands.

Blood pressure is measured in millimeters of mercury (mmHg).

One's natural blood pressure is represented by the fundamental pressure, which is measured first thing in the morning while one is still at rest and before eating.

2. What is hypertension and how is it controlled?

Hypertension, an abnormally high arterial blood pressure, if left unattended, can cause many health problems including stroke and heart attack. Hypertension can be controlled by altering lifestyle, avoiding stress and with medication under a doctor's supervision.

To prevent hypertension or keep it under control:

• Do not smoke
• Reduce salt and fat intake
• Maintain proper weight
  • Exercise regularly
  • Have regular physical checkups

3. Why measure blood pressure at home?

Blood pressure measured at a clinic or doctor's office may cause apprehension and produce an elevated reading, 25 to 30 mmHg higher than that measured at home, Home measurement reduces the effects of outside influences on blood pressure readings, supplements the doctor's readings and provides a more accurate, complete blood pressure history.

4. WHO blood pressure classification

Standards for assessment of high blood pressure, without regard to age, have been established by the World Health Organization (WHO), and shown in chart below.

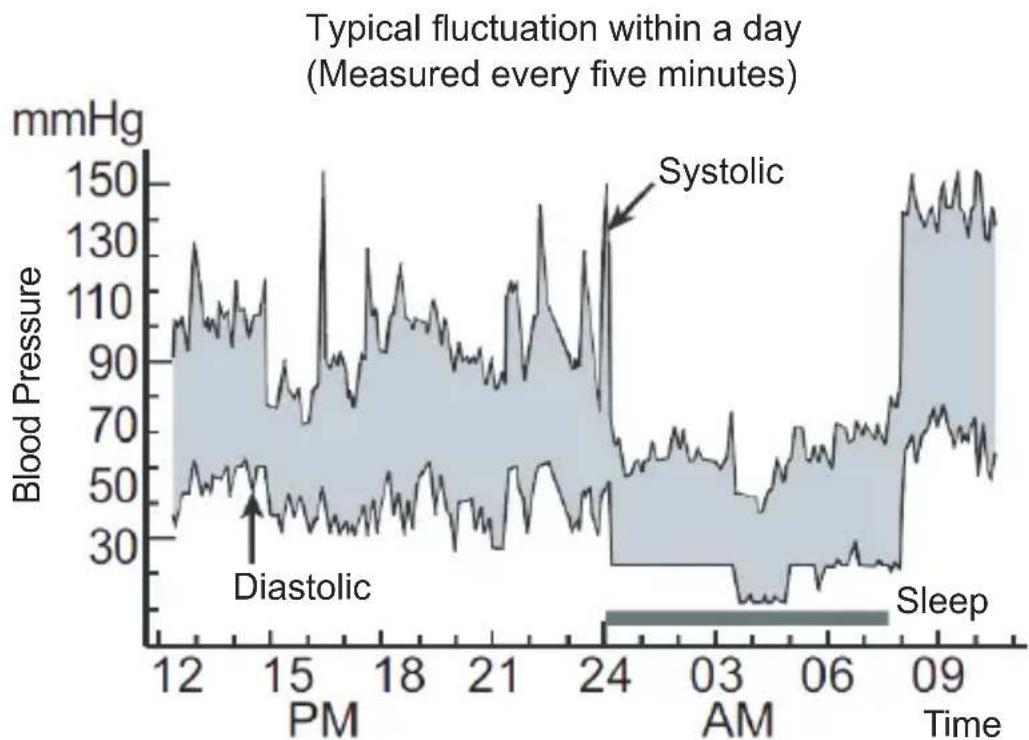

5. Blood pressure variations

An individual's blood pressure varies greatly on a daily and seasonal basis. It may vary by 30 to 50 mmHg due to various conditions during the day. In phypertensive individuals, variations are even more pronounced.

Normally, the blood pressure rises whileat work or play and falls to its lowestlevels during sleep. So, do not be overlyconcerned by the results of onemeasurement.

Take measurements at the same time every day using the procedure described in this manual, and know your normal blood pressure. Many readings give a more comprehensive blood pressure history. Be sure to note date and time when recording your blood pressure. Consult your doctor to interpret your blood pressure data.

1. If you are taking medication, consult with your doctor to determine the most appropriate time to measure your blood pressure. NEVER change a prescribed medication without first consulting with your doctor.

2. 2For people with irregular or unstable peripheral circulation problems due to diabetes, liver disease, hardening of the arteries, etc., there may be fluctuation in blood pressure values measured at the upper arm versus at the wrist.

3. Measurements may be impaired if this device is used near televisions, microwave ovens, X-ray, mobile phone equipment or other devices with strong electrical fields. To prevent such interference,

use the monitor at a sufficient distance from such devices or turn them off.

1. Before using, should wash your hands.
2. Do not measure on the arm which simultaneously used monitoring ME Equipment, otherwise it could cause loss of function.
3. Consult your doctor if the unexpected readings are obtained, also please refer to “Trouble shooting” of the manual.
4. The reading is probably a little lower than measured in the hospital due to the steady mood at home.
5. Cuff pressure range 0-299mmHg

FEATURES OF THE PRODUCT

1. Memory can store 90 measurements.
2. Large and clear LCD display.
3. WHO blood pressure classification display.
4. Easy to use, Press a button to automatically measure, record the measurement values and measurement time.
5. Automatically turns off (within 1 minute) to save power.

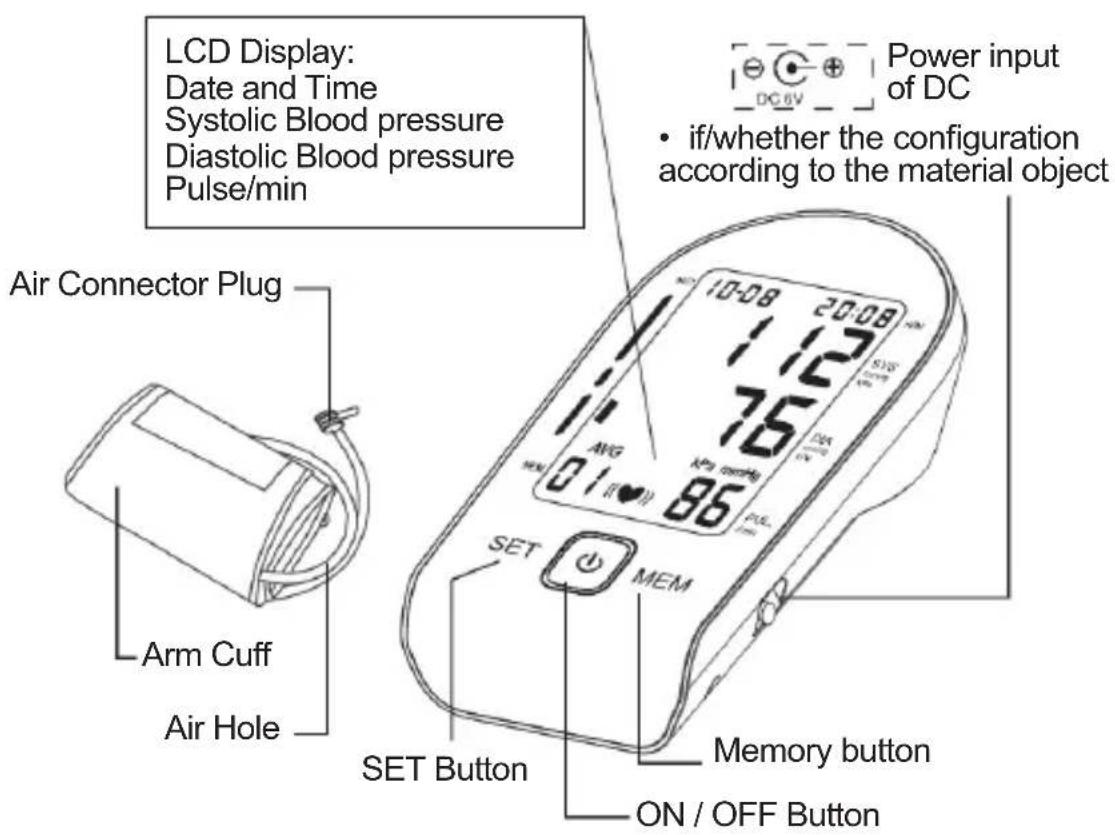

PARTS IDENTIFICATION

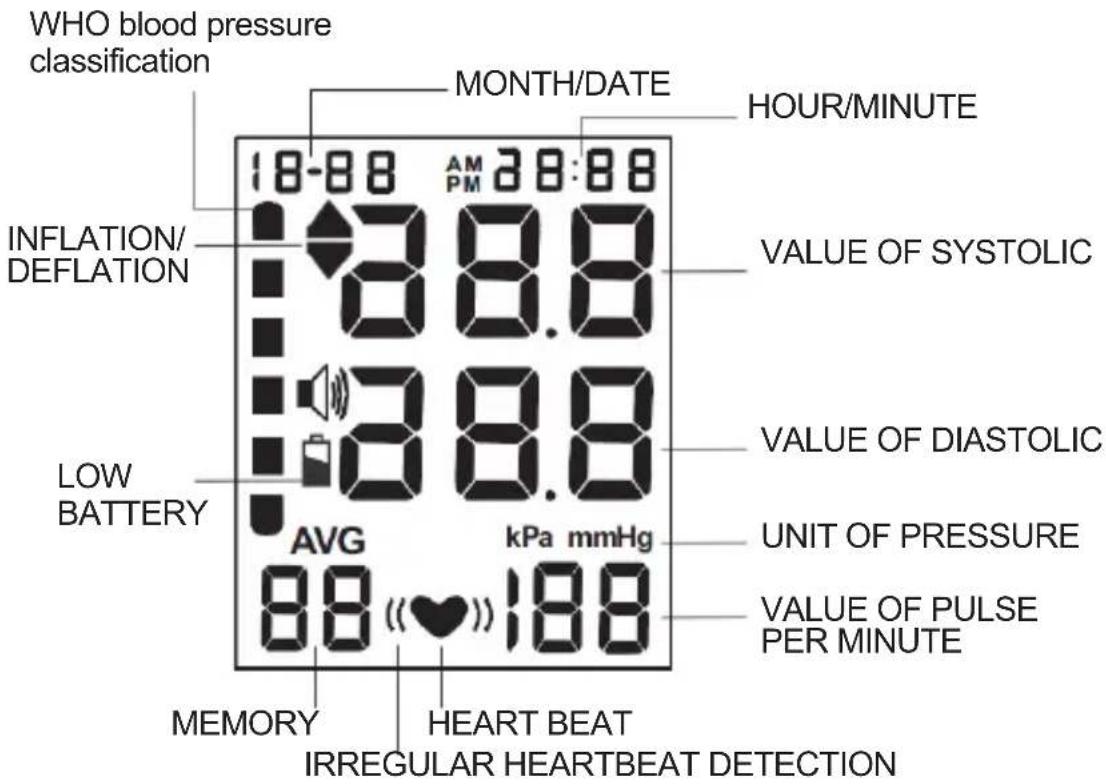

LCD Display: Date and Time Systolic Blood pressure Diastolic Blood pressure Pulse/min Air Connector Plug Arm Cuff Air Hole SET MEM SET Button Memory button ON / OFF Button 10-08 20-08 12 75 86 DC 6V Power input of DC • if/whether the configuration according to the material object

COMPONENT: ACCESSORY:

- if/whether the configuration according to the material object

Manual

Arm Cuff Manual

SYMBOLS ON DISPLAY

WHO blood pressure classification MONTH/DATE HOUR/MINUTE 18-88 AM 38:88 PM INFLATION/ DEFLATION 88.8 VALUE OF SYSTOLIC 128.8 VALUE OF DIASTOLIC LOW BATTERY AVG kPa mmHg UNIT OF PRESSURE 88 (heart) 188 VALUE OF PULSE PER MINUTE MEMORY HEART BEAT IRREGULAR HEARTBEAT DETECTION

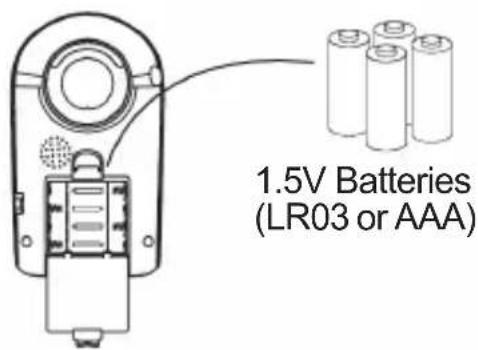

INSERT OR REPLACE BATTERIES

1. Remove the battery cover.
2. Insert new batteries into the battery compartment as shown, taking care that the polarities(+) and (-) are correct.
3. Close the battery cover, Use only LR03, AAA batteries.

1.5V Batteries (LR03 or AAA)

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

Disposal of empty battery to the authorized collecting party subject to the regulation of each individual territory.

CAUTION

• Insert the batteries as shown in the battery compartment. If not, the device will not work.
• When blinks in the display, replace all batteries with new ones. Do not mix old and new batteries. It may shorten the battery life, or cause the device to malfunction.

does not appear when the batteries run out.

• Please ensure to distinguish positive polar “+” and negative polar “-” of batteries when replacing batteries.
• Batteries, which have fluid on surface or be modified, can not be inserted into the products.
• Battery short circuit must be prevented.
• Battery life varies with the ambient temperature and may be shorten at low temperatures.
• The batteries may leak and cause a malfunction.
• Use the specified batteries only. The batteries provided with the device are for testing monitor performance and may have a shorter life.
• Used batteries may leak and damage the main unit. Pleases observe the following points.
  * If you are not going to use the unit for a long period of time (approximately three months or more), remove the batteries.
  * Replace worn batteries with their polarities in the correct direction

TIME AND SYSTEM SETUP

1. Press "SET" key to turn on.

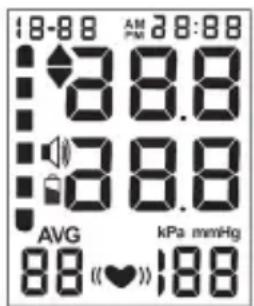

2. Press and hold "SET" key until the year number displays and flashes on LCD to enter setting mode.
3. Press "MEM" key to adjust the year, then press "SET" key again to save your setting and enter the month setting mode.
4. Press "SET" key to adjust the month. Following the same steps to adjust date/hour/minute.

18-88 AM 28:88 188.0 388.0 AVG kPa mmHg 88(♥) 188

year month date hour minute

UNIT CONVERSION mmHg/kPa DISPLAY

The goods have mm Hg(mmHg), kPa (kPa) two kinds of blood pressure display units(mmHg factory to express).

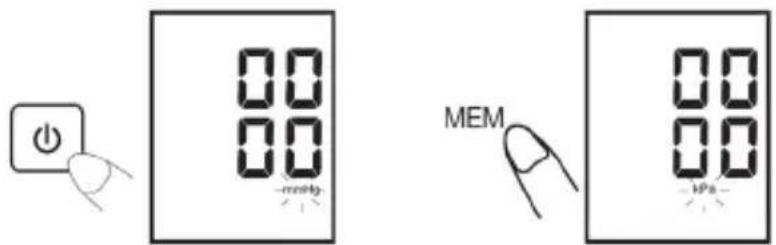

Press "ON / OFF" button for 10 seconds to display unit switching interface, then press "MEM" key to select mmHg / KPa, press "ON / OFF" button to exit.

The units will be chosen by the above shows mmHg/kPa after decontrol. After the normal boot unit values are shown as blood pressure. Also select memory unit value changes.

Power 80 8 - mmHg MEM 8 8 - kPa

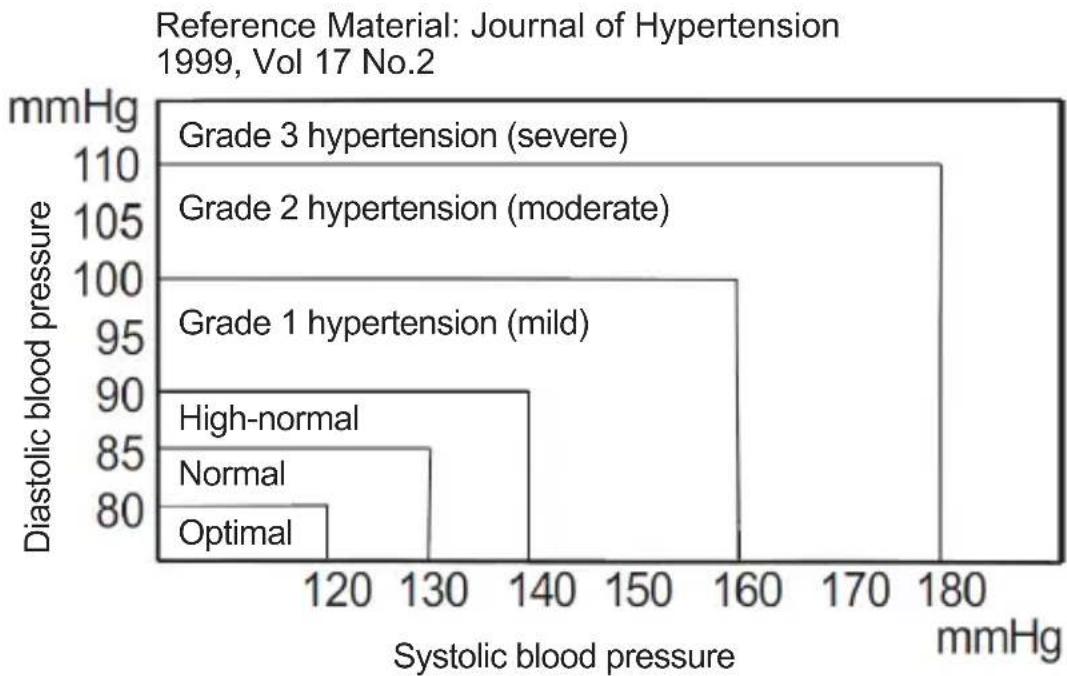

WHO BLOOD PRESSURE CLASSIFICATION DISPLAY

Diastolic blood pressure Reference material: journal of hypertension 1999. vol 17 No.2

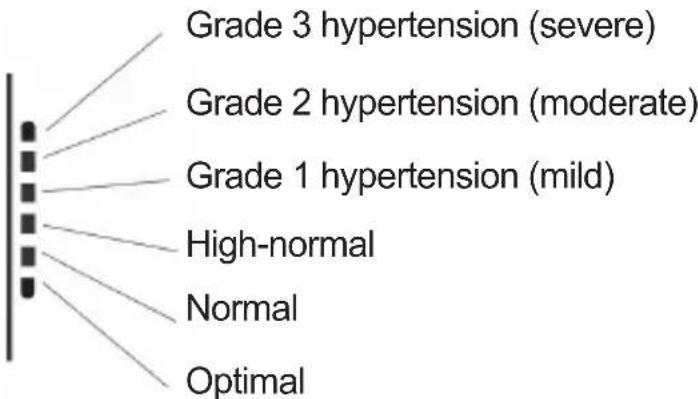

Grade 3 hypertension (severe) Grade 2 hypertension (moderate) Grade 1 hypertension (mild) High-normal Normal Optimal

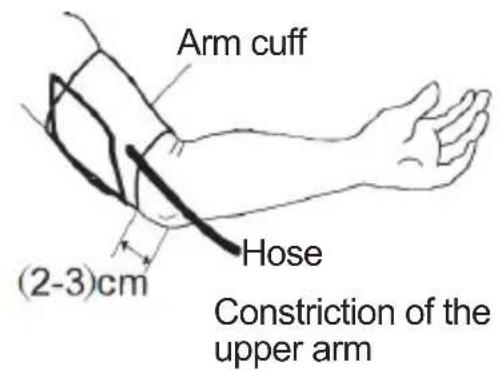

ATTACHING THE ARM CUFF

1. Wrap the arm cuff around the upper arm, about (2-3) cm above the elbow, as shown. place the cuff direct the skin, as clothing may cause a faint pulse, and result in a measurement error.
   2.constriction of the upper arm, caused by rolling up a shirtsleeve, may prevent accurate readings.
2. Secure the arm cuff with Velcro Strip in such a way that it lies comfortably and is not too tight. Lay the arm on the table(palm upwards) so that the arm cuff is at the same height as the heart. Make sure that the tube is not kinked.
3. Measure your arm circumference for cuff selection, refer to "Specifications"

Line drawing of a hand gripping a piece of wood or metal (no text or symbols)

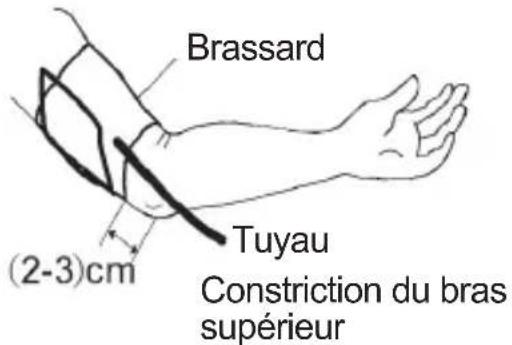

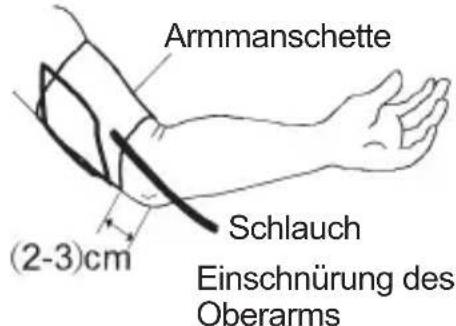

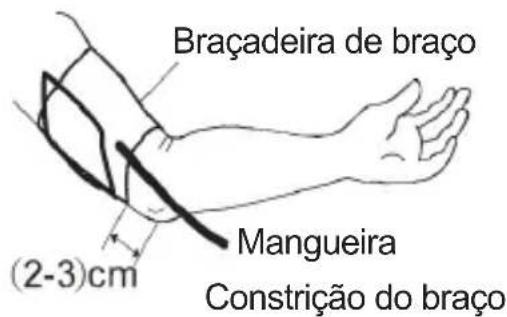

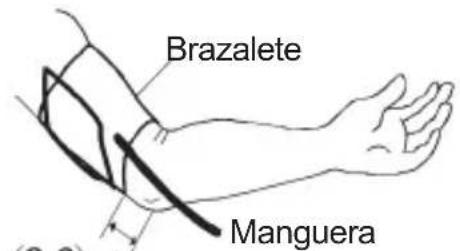

Arm cuff (2-3)cm Hose Constriction of the upper arm

HOW TO TAKE PROPER MEASUREMENTS

For the most accurate blood pressure measurement:

PATIENT position in NORMAL USE, including:

1) Comfortably seated.
2) Legs uncrossed.
3) Feet flat on the floor.
4) Back and arm supported.
5) Middle of the CUFF at the level of.

• Remain still and keep quiet during measurement.
• Relax as much as possible and not talk during the measurement process.
  • Measure your blood pressure at about the same time every day.
• Do not measure right after physical exercise or a bath. Take a rest for twenty or thirty minutes before taking the measurement.
• It could affect the readings in the below conditions:
• Within in an hour after dinner, after having wine, coffee, red tea, sports, bathing; talking, being nervous, being in unsteady mood, bending forward, moving, room temperature dramatically changing during measuring; In the moving vehicles, long time continuous measuring.

HOW TO MEASURE BLOOD PRESSURE

1. Set up the arm cuff to your upper arm as previous section of "ATTACHING THE ARM CUFF"

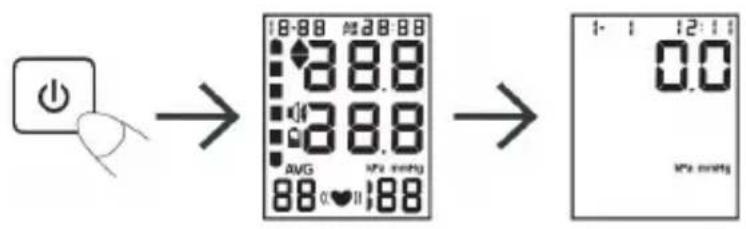

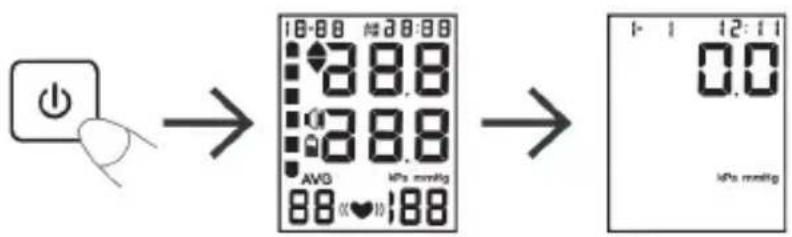

2. Press the "ON/OFF" button, all icons appear two seconds on DISPLAY, then switch to measurement, and display "0" or last measurement record.

Line drawing of a human leg with a heart symbol and bandage, no text or labels present

1. Start measurement, the cuff in the strap will automatically inflate. The mark (❤️) will flash on LCD. such measurements completed, LCD display measurement results

12-8 12:5 1 68 → 12-8 12:5 1 15 1 → 12-8 12:5 2 125 76 marking 68

READ MEMORY

Press “MEM” button to inquire memory average values “AUG Average Value Display: the latest 3 groups of memory average values (Memory values are displayed regardless of period). By pressing the “MEM” button, the memory shows the last measurements, to see the recent one press the “MEM” button and then to see the previous ones, keep pressing the “SET” button. To turn off press the “ON / OFF” button

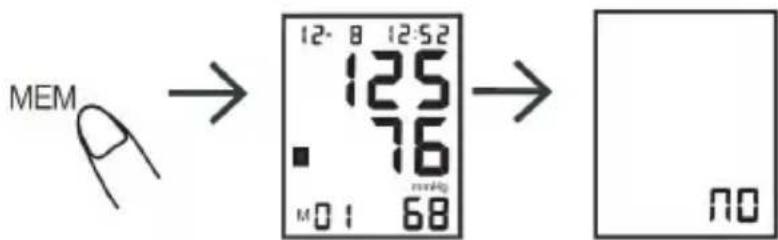

DELETE MEMORY

To delete the memory measurements, press the "MEM" button and keep it pressed for 5 seconds and the measurements will be deleted and the "no" icon will appear on the screen.

MEM 12-8 12:52 125 76 M0: 68 no

CARE AND MAINTENANCE

To keep your digital blood pressure monitor in the best condition and protect the unit from damage, follow the directions listed below:

Keep the monitor in the storage case when not in use.

Do not fold the arm cuff too tightly. The fabric fastener could touch the inner surface of the arm cuff and damage it. Clean the monitor and cuff with a soft dry cloth. Do not use any abrasive or volatile cleaners.

Illustration of a bottle, a printer, and a handbag with a cross mark (no text or symbols)

CAUTION

* Do not submerge the device or any of the components in water. Do not subject the monitor to extreme hot or cold temperatures, humidity or direct sunlight.
* Store the device and the components in a clean, safe location.
* Do not subject the monitor to strong shocks, such as dropping the unit on the floor.
* Remove the batteries if the unit will not be used for three months or longer. Always replace all the batteries with new ones at the same time.
- This device works with INPUT adapter: 100-240V \~ 50 / 60Hz, 0.2A OUTPUT: 6V - 500mA (Not Supplied) with this package.
- The manufacturer always recommends using LR03 (4x1.5V) batteries instead of an adapter and prohibits the use of it. In case use of any adapter or other spare parts sold by third parties, might cause the damage of the device and the loss of the warranty of this product.

SPECIFICATIONS

Measuring Method Oscillometric Measurement

Indication Digital LCD display

Measuring Range Pressure:(30~280)mmHgPulse:(40~199)Beat/min

Accuracy Static Pressure: ±3mmHg Pulse: ±5%

Memory 90 Memories

Power supply 4x1.5V Batteries(LR03 or AAA) (Not Included)use alkaline battery, measure above 200 times.

Operating condition +5°C~+40°C. 15%RH~93%RHAtmospheric pressure: 70kPa~106kPa

storage condition -20°C~+55°C. 0%RH~93%RHAtmospheric pressure:50kPa~106kPa

Dimensions Approx: 93(W)X161(H)X47(D)mm

Weight Approx: 380g, excluding batteries

Classification Type BF: IP21

Upper arm circumference (22~32)cm

Adaptador CA INPUT: 100-240V~ 50/60Hz, 0.2AOUTPUT: 6V - 500mA (Not Included)

* Specifications may be changed without notice in the event of improvement being made.

1. Type of protection against electric shock: INTERNALLY POWERED EQUIPMENT.
2. Degree or protection against electric shock: TYPE BF APPLIED PART.
3. Mode of operation: CONTINUOUS OPERATION.
4. Equipment not suitable for category AP&APG equipment use in presence.

STATEMENT

the system might not meet its performance specifications if stored or used outside the temperature and humidity as mentioned below: Operating conditions: +5°C\~+40°C. 15%RH\~93%RH 70kPa\~106kPa Storage conditions: -20°C\~+55°C. 0%RH\~93%RH

TROUBLESHOOTING

If you have trouble in using the unit please check the following points first.

ERROR DISPLAY	POSSIBLE CAUSE	HOW TO CORRECT
Nothing is displayedWhen you push the POWER button orBattery icon flash	No battery installation	Insert batteries
	Battery worn out	Replace new batteries
	The polarities of batteries placed wrongly	Insert battery in the correct polarities
E1:can’t normally Increase pressure	Check your arm cuff if any air leakage	Replace arm cuff with new one
E3 inflate pressure too high	Pressure value of more than 299mmHg	Re-measurement or send back dealer for re-calibrate pressure
E2E4:have shaking while measurement	Hand or body shaking while measurement	keeping static and correct gesture to measure again
Battery icon on	Battery low power	Replace battery and measure again
The systolic pressure Value or diastolic Pressure value too high	1. The arm cuff was held lower than your heart	keeping correct position and gesture to measure again
	2. 2.The arm cuff was not attached properly
	3. You moved your body or spoke during measurement
The systolic pressure Value or diastolic Pressure value too low	1. The arm cuff was held higher than your heart
	2.you moved your body or Spoke during measurement

Appendix 1 Guidance and Manufacturer Declaration Tables

Guidance and manufacturer's declaration- electromagnetic emission
The Model PG-800B19 is intended for use in the electromagnetic environment specified below. The customer or the user of the Model PG-800B19 should assure that it is used in such an environment.
Emissions test	Compliance Electromagnetic environment - guidance
RF emissions CISPR 11	Group 1 The	Model PG-800B19 uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissions CISPR 11	Class B The	Model PG-800B19 is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Harmonic emissions IEC 61000-3-2	A
Voltage fluctuations /flicker emissions IEC 61000-3-3	Complied

Guidance and manufacturer's declaration – electromagnetic immunity
The Model PG-800B19 are intended for use in the electromagnetic environment specified below. The customer or the user of the Model PG-800B19 should assure that it is used in such an environment.
Immunity test	IEC 60601 test level	Compliance level	Electromagnetic environment - guidance
Electrostatic discharge (ESD) IEC 61000-4-2	±8 kV contact ±2 kV, ±4 kV, ±8 kV, ±15 kV air	±8 kV contact ±2 kV, ±4 kV, ±8 kV, ±15 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 %.
Electrostatic transient/burst IEC 61000-4-4	±2 kV for power supply lines 100 kHz repetition frequency ±1 kV for input/output lines	±2 kV for power supply lines 100 kHz repetition frequency ±1 kV for input/output lines	Mains power quality should be that of a typical commercial or hospital environment.
Surge IEC 61000-4-5	±0.5 kV, ±1 kV differential mode line-line	±0.5 kV, ±1kV differential mode line-line	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input lines IEC 61000-4-11	0% UT (100% dip in UT) for 0.5 cycle at 0°, 45°, 90°, 135°, 180°, 225°, 270°, and 315°0% UT (100% dip in UT) for 1 cycleat 0°70% UT (30% dip in UT) for 25/30 cycles at 0°0% UT(100% dip in UT) for 250/300 cycle at 0°	0% UT (100% dip in UT) for 0.5 cycle at 0°, 45°, 90°, 135°, 180°, 225°, 270°, and 315°0% UT (100% dip in UT) for 1 cycleat 0°70% UT (30% dip in UT) for 2 5/30 cycles at 0°0% UT(100% dip in UT) for 250/300 cycle at 0°	Mains power quality should be that of a typical commercial or hospital environment. If the user of the Model PG-800B19 product name requires continued operation during power mains interruptions, it is recommended that the Model PG-800B19 be powered from an uninterruptible power supply or a battery.
Power frequency (50/60 Hz) magnetic field IEC 61000-4-8	30 A / m, 50 / 60H 30	A / m, 50 / 60Hz	Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environ-ment.
NOTE: UT is the a. c. mains voltage prior to application of the test level.

Guidance and manufacturer's declaration-electromagnetic immunity
The Model PG-800B19 are intended for use in the electromagnetic environment specified below. The customer or the user of the Model PG-800B19 should assure that it is used in such an electromagnetic environment.
Immunity test	IEC 60601 test level	Compliance level	Electromagnetic environment - guidance
Conducted RF IEC 61000-4-6	3 Vrms 150 kHz to 80 MHz 6 Vrms 150 kHz to 80 MHz outside ISM bandsa	6V Portable and mobile RF communications equipment should be used no closer to any part of the Models PG-800B19, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance d = [ 3.5V_1 ] d = [ 12V_2 ] d = [ 12E_1 ] 80MHz to 800MHz d = [ 23E_1 ] 800MHz to 2.7GHz
Radiated RF IEC 61000-4-3	10 V/m80 MHz to2.7 GHz	10 V / m Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres(m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, a should be less than the compliance level in each frequency range b Interference may occur in the vicinity of equipment marked with the following symbol:[cwz]
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.a The ISM (industrial, scientific and medical) bands between 0,15 MHz and 80 MHz are 6,765 MHz to 6,795 MHz; 13,553 MHz to 13,567 MHz; 26,957 MHz to 27,283 MHz; and 40,66 MHz to 40,70 MHz. The amateur radio bands between 0,15 MHz and 80 MHz are 1,8 MHz to 2,0 MHz, 3,5 MHz to 4,0 MHz, 5,3 MHz to 5,4 MHz, 7 MHz to 7,3 MHz, 10,1 MHz to 10,15 MHz, 14 MHz to 14,2 MHz, 18,07 MHz to 18,17 MHz, 21,0 MHz to 21,4 MHz, 24,89 MHz to 24,99 MHz, 28,0 MHz to 29,7 MHz and 50,0 MHz to 54,0 MHz.b The compliance levels in the ISM frequency bands between 150 kHz and 80 MHz and in the frequency range 80 MHz to 2,7 GHz are intended to decrease the likelihood that mobile/portable communications equipment could cause interference if it is inadvertently brought into patient areas. For this reason, an additional factor of 10/3 has been incorporated into the formulae used in calculating the recommended separation distance for transmitters in these frequency ranges.c Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To ssess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Model PG-800B19 is used exceeds the applicable RF compliance level above, the Model PG-800B19 should

be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the Model PG-800B19.

d Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 10 V/m.

Recommended separation distances between portable and mobile RF communications equipment and the Model PG-800B19

The Model PG-800B19 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Model PG-800B19 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Model PG-800B19 as recommended below, according to the maximum output power of the communications equipment.

Rated maximum output of transmitter W	Separation distance according to frequency of transmitter m
	150 kHz to 80 MHz outside ISM bands d = [ 3.5V_1 ]	150 kHz to 80 MHz in ISM bands d = [ 12V_2 ]	80 MHz to 800MHz d = [ 12E_1 ]	800 MHz to 2,7 GHz d = [ 23E_1 ]
0.01 0.12	0.12 0.12 0.23
0.1 0.38	0.38 0.38 0.73
1 1.2 1.2	1.2 2.3
10 3.8 3.8	3.8 7.27
100 12 12	12 23
For transmitters rated at a maximum output power not listed above the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.

NOTE 2 The ISM (industrial, scientific and medical) bands between 0,15 MHz and 80 MHz are 6,765 MHz to 6,795 MHz; 13,553 MHz to 13,567 MHz; 26,957 MHz to 27,283 MHz; and 40,66 MHz to 40,70 MHz. The amateur radio bands between 0, 15 MHz and 80 MHz are 1,8 MHz to 2,0 MHz, 3,5 MHz to 4,0 MHz, 5,3 MHz to 5,4 MHz, 7 MHz to 7,3 MHz, 10,1 MHz to 10,15 MHz, 14 MHz to 14,2 MHz, 18,07 MHz to 18,17 MHz, 21,0 MHz to 21,4 MHz, 24,89 MHz to 24,99 MHz, 28,0 MHz to 29,7 MHz and 50,0 MHz to 54,0 MHz.

NOTE 3 An additional factor of 10/3 has been incorporated into the formulae used in calculating the recommended separation distance for transmitters in the ISM frequency bands between 150 kHz and 80 MHz and in the frequency range 80 MHz to 2.7 GHz to decrease the likelihood that mobile/portable communications equipment could cause interference if it is inadvertently brought into patient areas.

NOTE 4 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

No smoking symbol (circle with diagonal line) indicating no restrictions)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

MR MR Unsafe Do not use this equipment in the MRI scan room

CARACTÉRISTIQUES DU PRODUIT

Line drawing of a medical device with a handle and connector (no text or symbols)

Brassard Manuel

Symbol of a waste bin with crossed x- and y-axes, no text or labels present

00 00 -mHz MEM 00 00 -kPa

AFFICHAGE DE CLASSEMENT DE LA PRESSION ARTÉRIELLE DE L'OMS

Simple line drawing of a hand gripping a piece of wood (no text or symbols)

SITUATION NORMALE, notamment:

Illustration of medical equipment including a bottle, kit, and payment device (no text or symbols)

MISE EN GARDE

No smoking symbol (circle with diagonal line) indicating no restrictions)

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

MR MR Unsafe Do not use this equipment in the MRI scan room

Line drawing of a rectangular device with a curved cable or plug, no text or symbols present

Braçadeira Manual

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

00 00 -mmHg MEM 00 00 kPa

Simple line drawing of a hand gripping a piece of wood or metal (no text or symbols)

Line drawing of a human leg with a heart symbol and bandage, no text or labels present

Illustration of a medical device with a cross symbol, next to a bottle and briefcase (no text or symbols present)

CUIDADO

No smoking symbol (circle with diagonal line) indicating no reduction or restriction

MR MR Unsafe Do not use this equipment in the MRI scan room

Symbol of a waste bin with crossed x- and circular wheels, no text or numbers present

18-88 AM 28:88 88.8 38.8 AVG kPa mmHg 88(♥) 188

Line drawing of a hand gripping a piece of wood or metal (no text or symbols)

Line drawing of a human leg with a heart symbol placed on the knee, no text or labels present

Illustration of a medical device with a cross symbol overlay, next to a bottle and a medical kit (no text or symbols present)

VORSICHT

Symbol of a trash bin with crossed lines and a blank rectangular block below (no text or labels)

Line drawing of a rectangular device with a curved handle and a small knob (no text or symbols)

Bracciale Manuale

Manuale

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

18-88 AM 28:88 38.8 38.8 AVG kPa mmHg 88 (♥) 188

2015 - 1 - 1 0.00 mmHg mmHg 1 - 1 - 0.00 mmHg mmHg 1 - 1 - 0.00 mmHg mmHg 1 - 1 0.00 mmHg

Line drawing of a human leg with a heart symbol placed on the knee, no text or labels present

COME MISURARE LA PRESSIONE DEL SANGUE

Illustration of medical equipment including a bottle, first aid kit, and a payment terminal (no text or symbols)

ATTENZIONE

DECLARATION OF CONFORMITY

This device complies with Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161

Guarantee Certificate

SERVICIO ATENCION AL CLIENTE: TEL: [phone]

email: [e-mail]

Guarantee Details/Vendor Seal

The following details must be completed in full and without omission for your SOGO product to be officially guaranteed. Please do ensure that all the details are filed in accurately and clearly.

Eadquirido Por Purchased By

Calle Street

Poblacion City

Provincia Province

Warranty Certificate

Thank you for selecting our brand SOGO

This product has been manufactured under the strictest of quality control procedures and using the highest quality materials under the regulations of CE (European Standards) and the UAE safety norms to ensure excellent performance and reliability. This product will provide reliable, long lasting service provided it is properly used and maintained. Nevertheless, if there is any eventuality, that could take place during the period of warranty or outside of this period, we recommend to read the present warranty certificate and go to the nearest Technical Assistance Service Centers of the Official Network of SOGO. SOGO guarantees that this product is free of any manufacturing defects at the time of their acquisition and extends this warranty to cover:

TWO YEARS IN LABOUR AND SPARE PARTS

If during this period, the product suffers some defect due to the materials used or a manufacturing defect, this product will be serviceable at any one of the Technical Assistance Service Centers of the Official Network of SOGO.

THE CONDITIONS

The warranty will be considered valid if and only if the following data is provided:

1. Full signature of the buyer or Name and Seal of the selling establishment.

2. Model Serial Number and Purchase Date of the product

3. In any case, the document must be with the invoice or ticket of purchase showing the date of purchase.

This warranty will not cover periodic inspections of the product nor maintenance operations such as installation, tuning adjustment and antenna problems.

Under the following conditions, this warranty will be considered invalid:

1. When any of the information required above is not provided, or if any information, such as serial numbers, seal of selling establishment or other details have been manipulated or stricken.

2. When damage inflicted upon the product is due to the consequence of abuse or wrong use of the product, including but not limited to:

* Using the product for a purpose for which it is not intended.

* Failure to follow SOGO guidelines and instructions for safe use and maintenance of the product.

* Servicing or repair by any entity other than the officially sanctioned Service Centers of SOGO.

* In the case of air-conditioning machines installed by personnel without the corresponding technical training and approval for it. * Accidents natural disasters and as a rule, any foreign motive out of the control of SOGO, including but not limited to structural damage due to water and any / all public disturbances.

The terms of the warranty are established without prejudice of the rights of the users contained in the outstanding national legislation (of warranties about consumer goods) and of the rights of the consumers before the retailer that appear in the purchase contract

Manufacturer: ShenZhen Pango Electronic Co., Ltd.

Address: No. 25, 1st Industry Zone, Fenghuang Road, Xikeng Village, Henggang Town, Longgang District, Shenzhen, Guangdong, China.

Additional site: 2-4 Floor, No.5 Shanzhuang Rd., Xikeng Village, Henggang Town, Longgang District, Shenzhen City, Guangdong Province, China

Lotus NL B.V.

Address: Koningin Julianaplein 10, le Verd, 2595AA, The Hague, Netherlands

Ref: PG-800 B19

SS-14075W

ISO

13485

0413
