USER MANUAL SS-5272 Sogo

Caution: please read and preserve these important instructions

Instructions for use

Dear Customer, Please read this instruction manual carefully.

IMPORTANT SAFEGUARDS

This instruction manual can also be downloaded from our web page www.sogo.es

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including:

• Read all instructions.
• To protect against fire, electric shock, and injury to persons do not immerse cord, plugs, or other electric parts in water or other liquids.
• Close supervision is necessary when this appliance is used by or near children.
• Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. For service information see warranty page.
• The use of accessory attachments not recommended may cause fire, electric

shock, or injury.

• Do not use this appliance outdoors.
• Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Plug cord into wall outlet. To disconnect, remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Do not attempt to repair this appliance yourself.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available, but care must be exercised in their use. While use of an extension cord is not recommended, if you must use one, ensure that the marked electrical rating of the extension cord is equal to or greater than that of the appliance. If the plug is of the grounded type, the extension cord must be a grounding-type 3-wire cord. To avoid pulling, tripping or entanglement, position the extension cord so that it does not hang over the edge of the counter, table or other area where it can be pulled on by children or tripped over.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Avoid contact with moving parts.
• Blade is sharp. Use extreme caution

during assembly, while operating, disassembly and cleaning.

• Do not use if blade is broken, cracked or loose.
• Do not leave appliance unattended while it is operating.
• Do not run this appliance continuously for more than 5 minutes as overheating may occur. Allow motor to cool down before repeat usage.
• Do not run machine without ice in the auger as damage to appliance may occur.
• Never place fingers or utensils into the feed or discharge areas to reduce the risk of severe injury to persons or damage to the shaver.
  Always check auger and exterior bowl for presence of foreign objects before using.
• For household use only.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by

children. Keep the appliance and its cord out of reach of children.

• Do not use this appliance with a programmer, counter or another device which can automatically turn it on because it is dangerous.

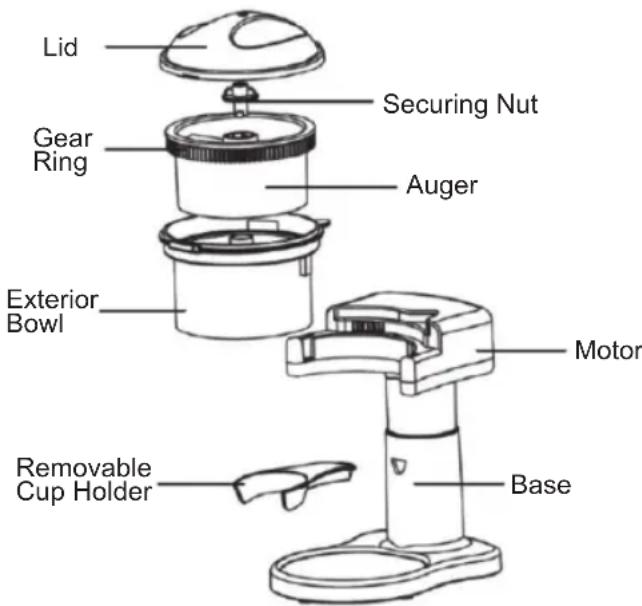

PARTS DESCRIPTION

BEFORE USING FOR THE FIRST TIME

Please check all packaging material carefully before discarding. Many accessory parts are contained within the packaging material.

Assemble the motor to the base; place narrow end of motor into the opening in the base. Press firmly until motor is securely seated in the base. If desired for storage, the motor can be removed from the base. Hand-wash the cup holder, exterior bowl, and auger in warm, soapy water. Rinse and dry thoroughly. Do not wash any parts in a dishwasher. CAUTION: The exterior bowl contains a sharp shaving blade, handle with care.

NEVER IMMERSE THE MOTOR IN WATER OR ANY OTHER LIQUID.

USING YOUR ELECTRIC ICE SHAVER

1. If using paper cone cups, push cup holder into opening on front of ice shaver housing. If using regular cups, do not attach cup holder.
2. Slide the gear ring over the auger and snap in place. You will hear a click when it is fully engaged.
3. Place the auger with gear ring inside the exterior bowl. Lock the auger in place with the securing nut by turning nut clockwise.
4. Line up the two outside tabs of the exterior bowl assembly with the matching grooves on the Ice Shaver Housing. Push gently in place to secure.

CAUTION: The exterior bowl contains a sharp shaving blade, handle with care.

1. Place paper cone cups in cup holder. If using regular cups, place cup under the shaving blade on the drip tray.
2. Add ice cubes to auger.
3. Plug the Ice Shaver into a 220 - 240 volt, AC electric outlet only.
4. Place the lid on top of the exterior bowl, aligning the tabs. Turn the lid counter clockwise until the lid tab engages the interlock switch. The motor will start and the ice will begin shaving.
5. To stop shaving ice, turn the lid clockwise to disengage the motor switch.
6. Unplug from power supply immediately after use. Note: There will always be a small amount of ice remaining in the auger after shaving. Discard the remaining ice.

CAUTION: Do not run ice shaver continuously for longer than 5 minutes as overheating may occur. Allow motor to cool down before repeat usage.

• A small amount of smoke and/or odour may occur upon use due to the release of manufacturing oils – this is normal.
  Some minor expansion/contraction sounds may occur during use - this is normal.

CLEANING YOUR ELECTRIC ICE SHAYER

1. Always unplug appliance before cleaning.
2. Hand wash parts in warm, soapy water. Rinse and dry thoroughly.

CAUTION: Be extremely careful of shaving blade in exterior bowl as blade is very sharp.

Note: Do not wash parts in a dishwasher.

1. Clean exterior of the appliance with a damp, soft cloth and wipe dry. Note: Do not immerse motor housing in water or other liquid.

NEVER ATTEMPT TO SHARPEN SHAVING BLADE AS INJURY MAY OCCUR.

This appliance has no user serviceable parts.

HELPFUL HINTS

• Be sure you have an adequate supply of ice cubes.
  If your motor is labouring or if you get poor shaving results, soften your ice cubes. This can be done by letting your ice sit at room temperature for a few minutes, or running briefly under cool tap water.
  DO NOT overfill the auger; the cover should sit flush without forcing.
• Cube shaped ice performs better than the half-moon shaped ice from ice makers or round cubes from store-bought bagged ice.

COOL & EASY TREATS

Super Snow Cones -Shave ice directly into snow cone cups.Mound tops with additional shaved ice if desired.Disperse your favourite flavoured syrup directly on top of the shaved ice. Combine different syrups to create your own unique flavours. Because the shaved ice is so fine, it absorbs the flavoured syrup instead of letting it run to the bottom. This gives you a truly intense flavour sensation, all the way through! Tip: Use flavoured ice cubes for unique snow cone tastes.Freeze fruit juice, soda,flavoured yogurt, or flavoured milk into cubes.Shave into cups.If desired,use flavoured syrups for added flavour.

Slushes - Place shaved ice into serving cups or glasses. Add just enough flavoured syrup to totally absorb into the shaved ice. Garnish with sliced or diced fruit.

Soda - Use your favourite variety such as cola, root beer, and fruit flavours. Add a twist of lemon or lime for an added "burst" of flavour.

Fruit Juices - Natural flavourings that are both tasty and good for you. Try apple, grape, orange, grapefruit, and cranberry or any combination for a special treat.

Lemonade and Punch-Flavoured Drinks -Cool and refreshing flavours are great for any occasion.

Rainbow Slush - A colourful and fun treat. Place a layer of shaved ice in the bottom of a tall, parfait style glass; add syrup flavour. Add a middle layer of ice; add a different syrup flavour. Add a top layer of ice and another syrup flavour. Garnish with fruit or paper umbrellas. A great party treat!
