USER MANUAL SS-5480 Sogo

Caution: please read and preserve these important instructions

IMPORTANTE:

• Always read the instruction book carefully before using.
  This manual can be downloaded from our web page www.sogo.es
• Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR THE USER

• This product is intended for indoor, non-industrial, non-commercial; household use only household waffle maker. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Do not use or store the appliance outdoors.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Do not place or operate this appliance near water sources.
• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized

service agent for repair before reusing.

• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• Always place the appliance on to the flat and even surface.
• Do not use the appliance for any other purpose than described in this manual.
• Do not let the appliance operate unattended.

• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

• Make sure your hands are dry before plug or unplugging.

• the appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

THINGS TO REMEMBER WHILE USING THE APPLIANCE

• Do not touch the surface of the appliance as

it can get very hot during operation. Instead, use the handle or mitts.

Do not use sharp utensils to remove toast. When removing toast, be careful not to damage the heating wires.

• Do not touch any metal parts on the exterior of the device. These can become very hot during operation.
• Do not insert bread slices that are too thick or wrapped in aluminium foil, to avoid risk of electric shock or fire.
• Do not cover the appliance with anything.
• Do not toast bread for too long as it may burn and cause a fire. Do not position the device beneath a curtain, wall cabinets or combustible materials.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

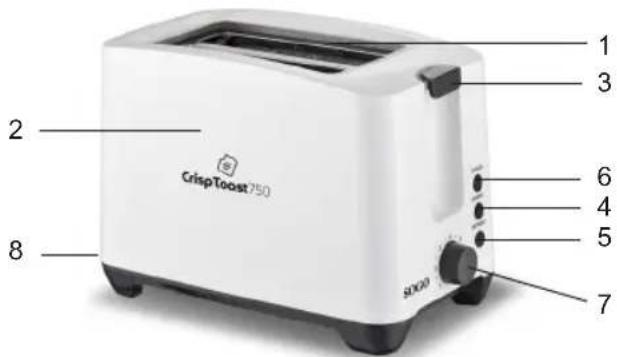

DESCRIPTION

1.2 Large slots
2. Housing
3. Bread carriage handle
4. Reheat button
5. Defrost button
6. Cancel button
7. Browning control selector
8. Crumb tray (under the unit)

INSTRUCTIONS FOR USE

Before the first use

• A- Before using the appliance for the first time, clean the parts thoroughly (see Maintenance section).
• Set the toaster to the highest setting, and operate twice without any bread inside. Ventilate the room during this period.
  It is normal if some smoke or smell emanates from the appliance when using it for the first time.

Toasting

• Plug the unit into the power supply socket.
• Insert the slices of bread into the slot.
• Adjust the timer to the desired level:
• 1 = minimum
  -7=maximum
• Press the sliding lever down until it locks. The pilot light will come on, indicating that the appliance is heating.
• When toasting is finished, the bread slices will be ejected, and the toaster will shut off automatically.

Reheating

• Use the Reheat function to warm up cold toasts without over browning.
  After following the Toasting instructions, press the Reheat button to reduce heat intensity. The Reheat pilot light will come on.

Defrost

• Frozen bread requires more time to warm up.
  After following the Toasting instructions, press the Defrost button to prolong.
  toasting time. The Defrost pilot light will come on.

Cancel

• You can cancel toasting at any time, by pressing the Cancel button. The Cancel pilot light will come on.

Crumb Tray

• The crumb tray collects any crumbs that fall into the toaster.
  Regularly empty out the crumb tray.
• Pull out to remove the crumb tray. Slide back in once finished.

CLEANING AND MAINTENANCE

Before you start cleaning, unplug the appliance and let it cool down. Pull out to remove the crumb tray, empty it and place it again.
- Never use abrasive detergents, organic solvents or aggressive chemicals.
- Remove any bread crumbs stuck in the slot by gently turning the device upside down.

STORAGE

Make sure the appliance is unplugged and allow it to cool down before storing it.
- Clean the device before storing it (see Maintenance section).
- Carefully reel the cable.
- Store the appliance in a cool and dry place.

ELECTRICAL SPECIFICATIONS

Voltage / Frequency: 220-240V~50-60Hz

Power Consumption: 650-750W

IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034902222161
