Product type	Hair dryer
Brand	Sogo
Model	SS-3645
Power supply	220-240 V ~
Power	1700-2000 W
Frequency	50-60 Hz
Temperature settings	2 levels (low and high)
Cool air function	Yes (Cool Air Shot button)
Included accessory	Concentrator nozzle
Wall mount	Included with mounting screws
Auto shut-off on stand	Yes
Overheat safety shut-off	Yes
Control type	Sliding main switch
Maintenance	Clean the air vents regularly
Storage	Cool, dry place, out of reach of children
Compliance	Low Voltage Directive, EMC, RoHS, Ecodesign

Frequently Asked Questions - SS-3645 Sogo

How to clean the filter of the SS-3645 hair dryer?

The filter is located at the air intake (cover). Clean it regularly with a dry cloth or soft brush to prevent overheating. Do not use water.

What to do if the hair dryer suddenly stops?

This is normal: the overheat safety system has activated. Unplug the device, let it cool for a few minutes, then plug it back in. You can then use it again.

How to use the Cool Air Shot function?

Press the Cool Air Shot button during operation to release cool air. Release to return to heat. Ideal for setting curls or cooling hair after drying.

Is the wall mount easy to install?

Yes, the mount screws onto the wall with the supplied plugs and screws. Use a drill to make holes. Install it away from water and humidity.

Can I use the hair dryer in the bathroom?

No, it should not be used near a bathtub, shower, or sink to avoid any risk of electrocution. Unplug it after use even when turned off.

What accessories are provided with the SS-3645?

It comes with a concentrator nozzle for targeted drying and a wall mount with screws for installation.

Does the hair dryer have multiple speeds?

No, it has two temperature settings (low and high) but only one fan speed.

How to install the wall mount correctly?

Mark the holes, drill, insert the plugs, then screw the mount. Make sure not to drill into cables or pipes. Then place the hair dryer on the mount.

What to do if the power cord is damaged?

Do not use the device anymore. The cord must be replaced by the manufacturer, its after-sales service, or a qualified technician to avoid any danger.

Does the hair dryer turn off automatically when placed on the stand?

Yes, if you place it on the supplied wall mount, it turns off automatically. This saves energy and prevents overheating.

USER MANUAL SS-3645 Sogo

WALL MOUNT HAIR DRYER

WALL-MOUNTED HAIR DRYER

Caution: please read and preserve these important instructions

INDEX

1. Important Note P. 11
2. Symbol definitions P. 11
3. Safety instructions for the user P. 11

I. General precautions during the use of electrical equipment P. 11-12 II. Restrictions on use to avoid personal injury P. 12-13 III. Product use restrictions due to poor condition or breakdown P. 13 IV. Restrictions on use when used with children and elders P. 14 V. IMPORTANT WARNING P. 14-15 VI. Instructions to follow when using the device P. 15-17

1. Technical specifications P. 17
2. Parts description P. 17
3. Instructions for use P. 17-18
4. Cleaning and maintenance P. 18
5. Declaration of conformity P. 54
6. Responsibility for disposal, details of the manufacturer and after-sales service P. 55

INDEX

Always read the instruction book carefully before using. This manual can be downloaded from our web page www.sogo.es. Keep these instructions for future reference.

2. Symbol definitions

1

GENERAL PRECAUTIONS

1- Important information and useful hints on use. 2- Warning against dangerous situations in terms of life and property. 3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance. Always remove the plug from the power socket

when the appliance is not in use. Do not leave the appliance unattended when switched on.

• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

II. ⚠️! Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself. • To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on

damp floors or when the atmosphere is humid, there is a risk of electric shock.

• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. ⚠️ Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling into water, disconnect it immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage, or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. If the cord is damaged, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• In case of appliance malfunction or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. ⚠️ Restrictions on use when used with children and elders

Children should be supervised to ensure that they do not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

V. ⚠️ IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. ⚠️! Instructions to follow when using the device

- This appliance works with high temperature,

therefore during the use always hold it by the handle and use extreme caution.

• Do not use the dryer inside a bathroom, shower, sauna, etc.
• Never use hairspray with the dryer on ionization.
• Keep away the small objects or mini particles away from the dryer, to prevent to be sucked in through the protection grid.
• Do not leave the device exposed to the weather (rain, sun, frost...)
• Do not use while bathing.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• If an appliance falls into water, “unplug it” immediately. Do not reach into the water.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
• Never use while sleeping.
• Never drop or insert any object into any opening or hose.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not direct hot air toward eyes or other heat sensitive areas.
• Attachments may be hot during use. Allow them to cool before handling.
• Do not place appliance on any surface while it is operating.
• While using the appliance, keep your hair away from the air inlets.
• This hair dryer, if it can be fitted on the wall, should be fitted away and out of reach of persons who are taking a bath or washing themselves.
• When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off. For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

The hand-held part of the hair dryer incorporates electrical components, so the appliance must be fixed in such a way that this part, when fully extended, is out of the reach of a person taking a bath or shower.

Stationary appliances not fitted with means for disconnection from the mains supply having a contact separation in all poles that provide full disconnection under overvoltage category III, so the disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

Take care not to drill into any pipes or mains cables beneath the surface during mounting holes preparation.

Danger! Risk of electrocution! Make sure that no objects such as hair clips or hair pins are inserted into the appliance. These can cause a short circuit.

- WARNING: Do not use this appliance near water. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

READ ALL INSTRUCTIONS BEFORE USING. KEEP AWAY FROM WATER.

4. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
220-240V~ 1700-2000 50 – 60Hz

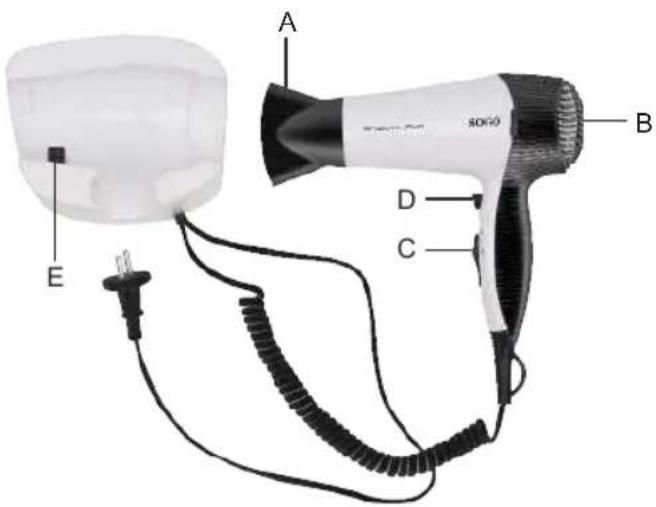

5. PARTS DESCRIPTION

A. Concentrator Nozzle B. Air Inlet Cover C. Main Switch D. Cool Shot E. Mount Switch

6. INSTRUCTIONS FOR USE

This hair dryer model has 2 temperature settings.

Position 1:

To use the low temperature setting, move the button to position 1. This temperature setting helps in gentle drying of hair and styling.

Position 2:

To use the high temperature setting, move the button to position 2. This setting can be used for quick drying of hair.

Also, this hair dryer has been provided with 1 accessory called concentrator.

Concentrator Nozzle

This concentrator nozzle concentrates the air flow and directs it exactly as needed.

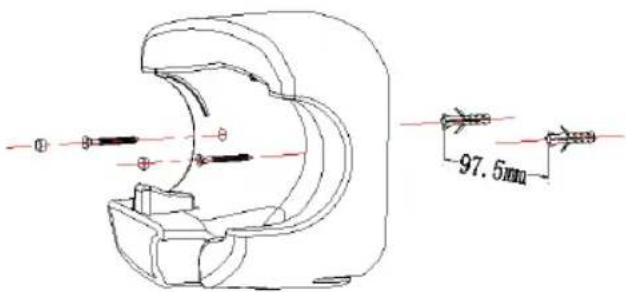

Wall holder installation:

When installing the wall holder, mount it away from water and moisture.

Use the included screws for mounting the holder.

The specific installation process requires some special operations.

Note: This hair dryer has a special function that it turns off automatically when hung on the wall.

Cool Air Shot Button:

This hair dryer model is equipped with a cool air shot button, which, as its name suggests, releases cool air instead of hot air. It is an essential tool for hair styling, as this function helps quickly cool down the hair and keep it styled for a long period of time.

• When this button is pressed while the hair dryer is in operation, the hot air cools down.
• Once the button is released, the appliance returns to a hot air flow at the selected level.

How and When to Use:

You can use this button while curling your hair. To achieve curls that last, first blow-dry your hair with a round brush in sections. Each time a section is dry, use this button as the final step to set the curls, keeping it pressed until your hair is set. This process will help maintain the style for a long period of time.

Off Function:

You can turn off the hair dryer at any time by pressing the speed button to the off position.

Automatic Safety Cut-Off System:

This hair dryer has a built-in automatic safety cut-off system. In case of overheating, this system shuts down the appliance, preventing damage to the appliance and any personal injury to the user.

Once the appliance automatically shuts off, unplug it from the wall outlet and let it cool down. Once it has cooled, you can use it again.

7. CLEANING AND MAINTENANCE

This hair dryer model is maintenance free.

There is no need for lubrication or any cleaning liquids.

Always make sure to keep the appliance clean for proper operation.

To avoid overheating, make sure to keep the air intakes unblocked and unclogged.

This appliance should be stored in a safe, cool, and dry place.

Keep it out of reach of children.

In case the dryer stops working for any reason, turn it off and let it cool for a few minutes before turning it on again.

1. IMPORTANT:

4. TECHNICAL SPECIFICATIONS

4. TECHNICAL SPECIFICATIONS

4. TECHNICAL DATA

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product cannot be disposed of as normal rubbish or household waste. All electrical and electronic equipment and battery-operated units must be recycled in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins, which you can find in any nearby large supermarkets, electronics or electro-domestic products stores, or malls that have these types of facilities available.

Designed by: SOGO based on European quality standards. Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain. Product manufactured in CHINA. After-sales service: www.sogosat.com, [e-mail] / 0034 902 222 161
