Before using your barbecue, read the following instructions carefully. Make sure that the supply voltage is the same as the voltage marked on the barbecue. This Manual can also be downloaded from our website www.sogo.es

Connection to the mains supply

The equipment should only be connected to an earth socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the barbecue.

Important safety instructions

1. Caution: do not, under any circumstances, cover the grill rack with aluminous foil, barbecue dishes or other items, as the resulting build-up of heat could cause irreparable damage to the grill.
2. Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
3. During operation, the barbecue must be placed on a level, heat-resistant surfaces, impervious to splashes and stains. When grilling food with a high fat or moisture content, splashes are not always avoidable.
4. When using the appliance, be careful not to position it next to a wall or corner, and ensure that no inflammable materials are stored near it.
5. Remember that the food with a high fat or moisture

content may tend to ignite.

1. Always fill the grill pan with water before you switch on the appliance. The water helps to cool down the grill pan, reduces the build-up of smoke, and also facilitates cleaning.
2. Ensure that the water level is kept between the 'Min 0.4L.' and 'Max 1.0L.' markings at all times during use.

←Max 1.0L water level indicator ←Min 0.4L water level indicator The water level indicator can be found inside the body

1. Always ensure that the water level is kept above the ‘Min0.4L.’ mark. Water should be added in good time, while ensuring that it does not come into contact with the heating element. Take care: do not pour water on the heating element.

2. Before the grill is used, always check that the heating element is correctly fitted in the body and safely locked. Do not connect the grill to mains power until the body has been filled with water.

3. The barbecue must be supervised at all times during operation. For reasons of safety, always keep it out of the reach of children.

4. Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill.
5. Always bear in mind that the housing surfaces as well as the heating element become very hot during operation. Even after the heating element is switched off, it must not be touched until it has sufficiently cooled down-there is otherwise a

severe danger of burns.

1. To avoid the risk of electric shock, the heating element and the power cord must not be immersed in liquid or even allowed to come into contact with it.

2. Do not allow the power cord to touch any hot parts of the appliance.

3. Always remove the plug from the mains supply socket in the case of any malfunction, before cleaning and maintenance and after use.

4. The use of an extension-lead reel causes a loss of power, possibly combined with a subsequent heat built-up in the cable. It is therefore necessary to unwind the cable completely if a cable reel is used.

5. Before carrying, transporting or storing the grill, ensure that is has sufficiently cooled down. Pour out any remaining water after use.

6. Ensure that the grill is not stored outdoors. Or in any other location where it might be subjected to extremes of temperature or high humidity.

7. No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

8. This barbecue is designed for household use only and not for commercial applications.

9. In order to comply with safety regulations and to avoid hazards, all repairs of electrical appliances must only be performed by qualified personnel. Substantial dangers for the user can appear from inappropriate repairs.

10. Should the barbecue fail to operate or should it be damaged, please contact the nearest authorized service center as special tools are needed for its repair. Never attempt to repair the barbecue yourself.

11. WARNING: Indoor use only.

12. WARNING: Never put the heating element, control box and the plug into water.

13. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning used of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

14. Keep the appliance and its cord out of reach of children less than 8 years.

15. Children should be supervised to ensure that they do not play with the appliance.

16. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

17. The temperature of accessible surfaces may be high when the appliance is operating.

18. WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

19. WARNING: Charcoal or similar combustible fuels must not be used with this appliance.

20. WARNING: Silver paper must not be used with this appliance.
21. WARNING: In order to avoid overheating, this appliance shall not be covered by any solid or flexible material such as an aluminum tray, aluminum foil or trays made of other heat resistant material. The use of such items or materials on the grille would impair the safety of your product and could lead to serious damage.
22. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
23. Children should be supervised to ensure that they do not play with the appliance.
24. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

Assembly:

Before using for the first time

1. Remove any packaging materials from the appliance.
2. Clean the grill rack and its accessories.
3. Fill the body with water up to the marking.
4. Fix heating element with body and zinc plate.
5. Fix the grill rack on top.

6. Let the grill heat up for a moment without any food on the rack. This will reduce the smell when first switching on a new grill (a slight smell and a little smoke may be emitted, ensure sufficient ventilation)

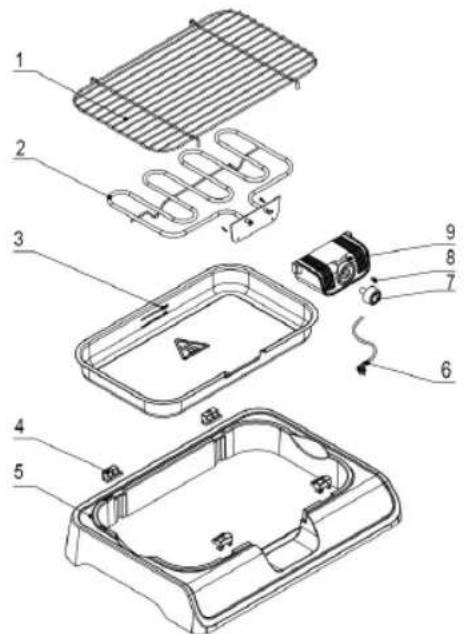

7. Grill grid

8. Heating element
9. Water Tray
10. Grill grid support
11. Body
12. Cable
13. Switch
14. Indicate light
15. Circuit box
16. Short pipe
17. Screw
18. Long pipe
19. Small pipe

Exploded view diagram of a refrigerator or cooling unit with numbered parts for identification

SOGO 10 11 12 13

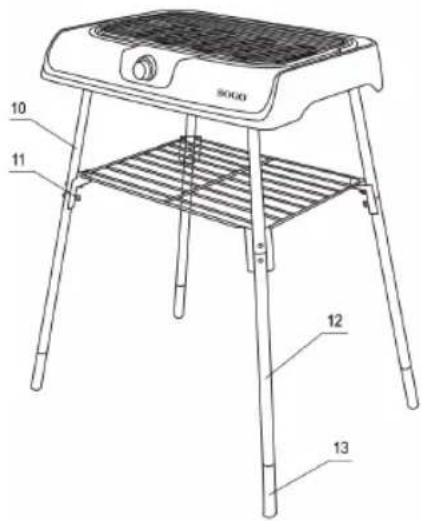

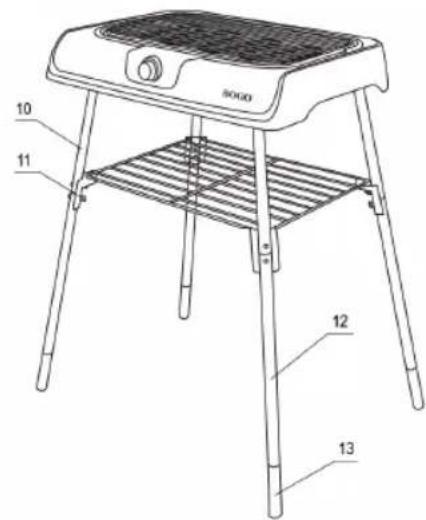

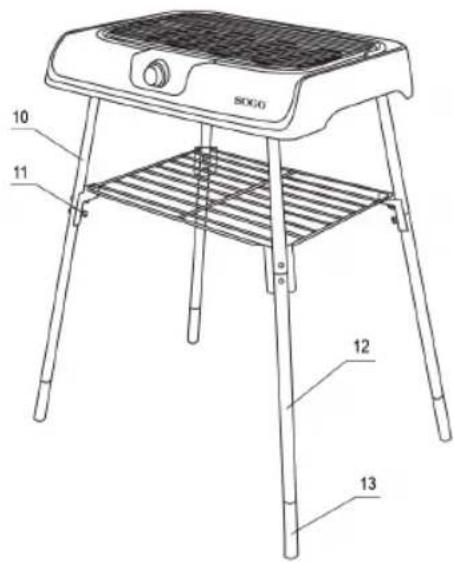

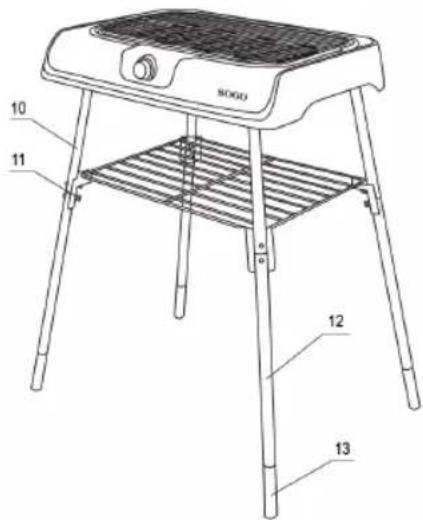

Stand assembly:

1. Fix short pipe into long pipe
2. Then using butterfly nut for fixing.
3. Finishing all assembling with all other 3pcs of stands as process 1 and 2
4. Then put the small grill on it.
5. Fix up the finished BBQ unit as instruction 'BBQ assembly' on top of the above stand.
6. Let the grill heat up for a moment without any food on the rack. This will reduce the smell when first switching on a new grill (a slight smell and a little smoke may be emitted, ensure sufficient ventilation).

Before first use

Clean the barbecue and its accessories. When it is first switched on, the grill may emit a new smell. A small amount of smoke may also be noticeable. We therefore recommend you to heat up the barbecue for about 5 minutes without any food stuffs.

How to use your barbecue

Fill water into body. Take care of the water level marks. Connect the barbecue grill to the mains supply socket and turn the thermostat knob to the highest setting(Max). the indicator will come on. Preheat for about 5 minutes before use. When grilling delicate food stuffs or for warm holding you can turn the thermostat back to a lower position and/or adjust the grill rack to the middle or upper position.

The water in the body will evaporate during use. It is therefore necessary to fill up water in time. Be careful not to pour water on the heating element.

When grilling is finished, turn the thermostat to "O" (OFF position) and disconnect the barbecue from the mains supply socket.

Regarding the instructions for cleaning thanks to refer to the below paragraph of the manual

1. Before cleaning your barbecue, always make sure that the plug has been removed from the mains supply socket. Allow the barbecue to cool down thoroughly before cleaning.
2. Never switch the heating element on when it is not placed onto the tray.
3. Never immerse the heating element or plug in water.
4. Through away water in the body firstly
5. Clean the heating element with a clean and dry cloth only.
6. Clean the grill rack and the tray with warm soapy water and dry afterwards.
7. Do not use harsh abrasive cleaners or a metal sponge to clean the tray.

Technical Specification:

Model: SS-10381

Frequency: 220 – 240V\~ 50/60Hz

Power: 2000W

Cher client :

Connection to the mains supply

Exploded view diagram of a heating device with numbered parts for identification

SOGO 10 11 12 13

L'assemblée se:

Exploded view diagram of a refrigerator or appliance with numbered parts for identification

8000 10 11 12 13

Exploded view diagram of a heating device with numbered parts for identification

SOGO 10 11 12 13

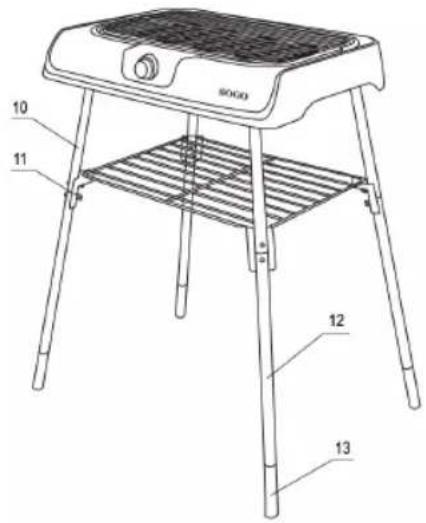

Der Standaufbau:

Exploded view diagram of a refrigerator with numbered parts for identification

10 11 12 13 SOGO

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
